In early spring, an official announcement about the KN-6410C machining center appeared on the website of the KDT plant, and already in April, Stancomplect launched this flagship model for sale on our market.

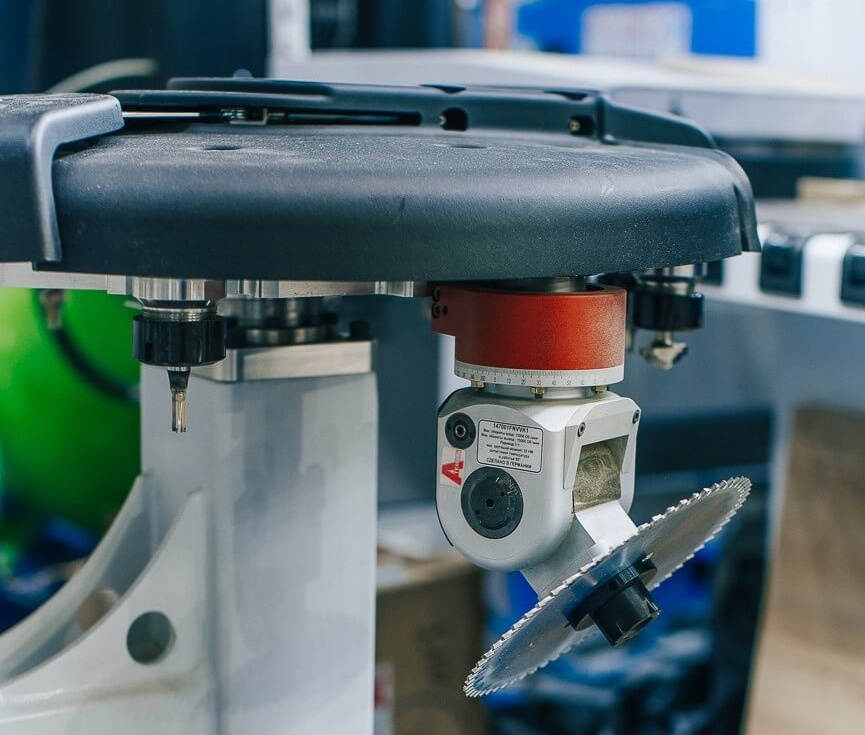

The main feature of the KN-6410C CNC machining center is the C-axis (in the basic configuration) - for the use of fixed or inclined corner units, which makes it an ideal solution for processing parts of any complexity (furniture facades, decorative panels, doors, windows, stairs, and other products) .
The machine is equipped with a drilling group from Taiwanese manufacturer Protean , which will provide the addition of holes on five sides and grooving along the X axis with a saw . Drilling group - Protean 12V + 4H + 1S has been used on KDT drilling centers for more than five years, and has established itself as a reliable unit.
The center of the KN-6410C is equipped with updated closed-type guides, which provide high accuracy and smooth running due to minimal friction and no backlash. This solution has significantly increased the reliability of the equipment.

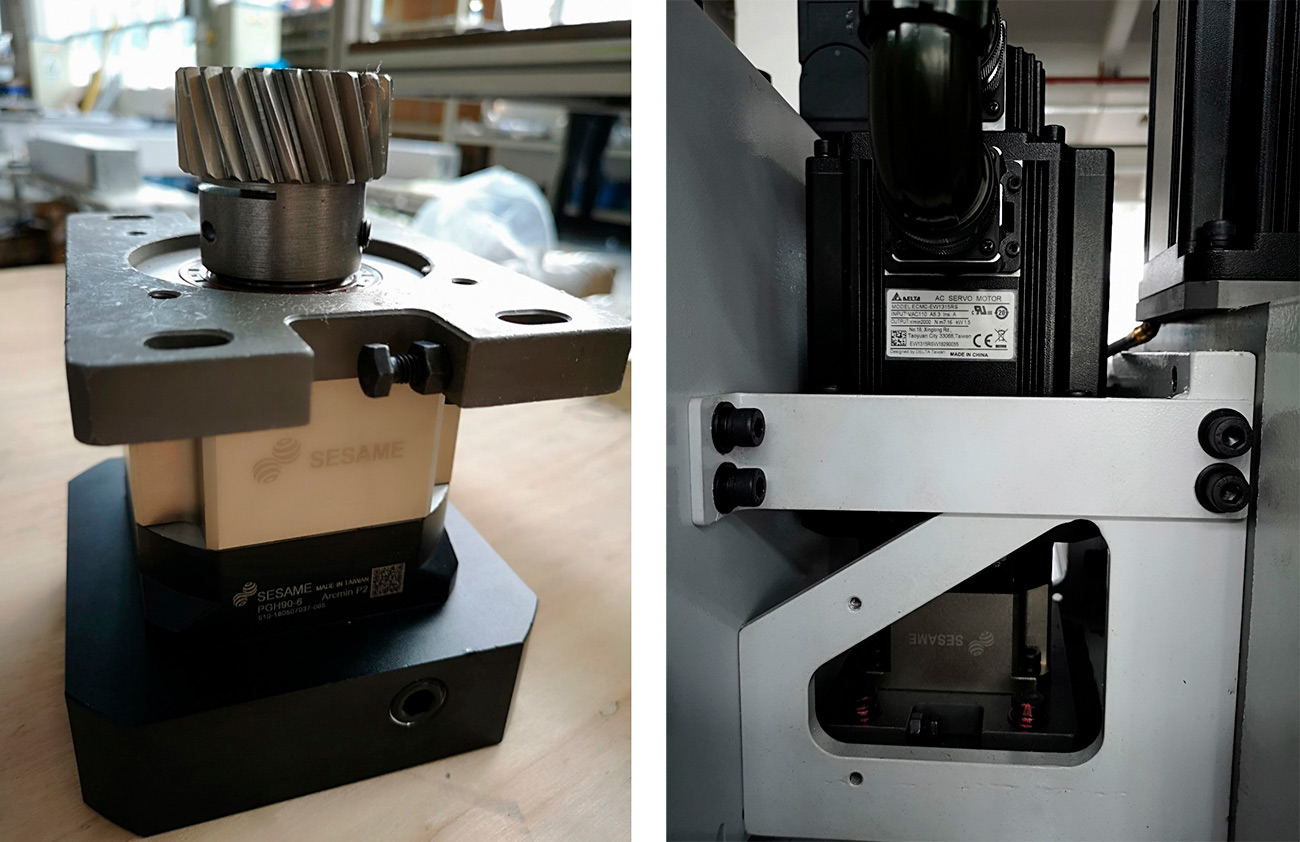

Increasing the power of the Delta servo drives along the X/Y/Z axes to 1.8/1.3/1.3 ensured a high travel speed along the axes of 80/75/30 m/min .
The machine is controlled from a rack equipped with the MasterAT system (Masterwood, Italy) , it is equipped with special software for modeling, editing and creating control programs.
CAD program - MasterWork for modeling, editing and creating control programs. It is a graphical software that avoids ISO programming with an easy, fast and intuitive interface. MASTERWORK is not a graphical string compiler (ISO), but a real product-oriented programming environment. This is a tool for all users, but is specifically designed for those with no programming experience . Supports Windows standards and guarantees immediate and easy understanding of all commands.

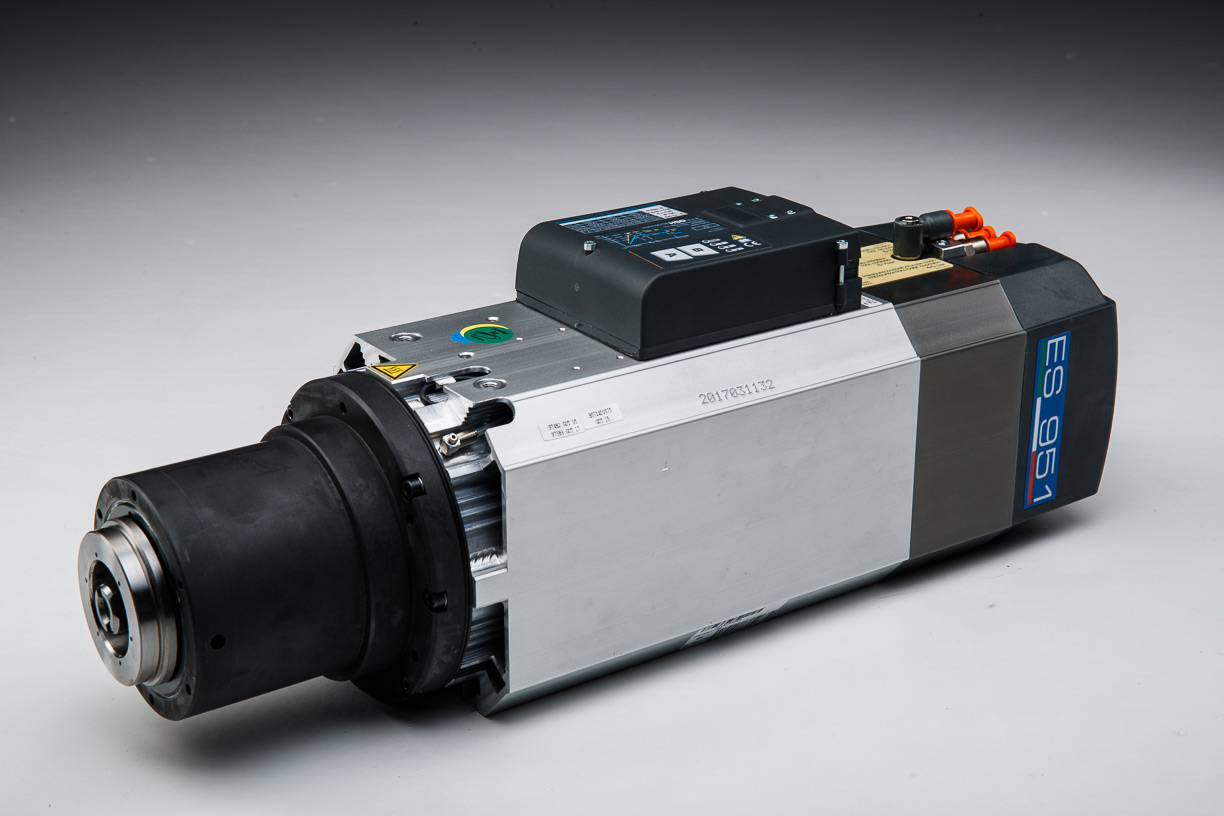

Powerful electrospindle 13.2 kW (24,000 rpm) from the Italian manufacturer HSD, "ES951 e-core" needs no introduction - has long established itself as a reliable and time-tested unit. This is the first spindle with its own intelligence, which independently diagnoses its work and sends information to the machine control system in real time. This allows you to accurately control the operating modes of the spindle and comply with the required technology for processing the part, which ensures stable operation of the machine, high quality processing and extends the life of the tool.
Noticeable changes have also taken place in the chip removal system. The CNC-controlled suction hood ensures effective chip removal in the cutting zone, which has a positive effect on the quality of processing and tool life.

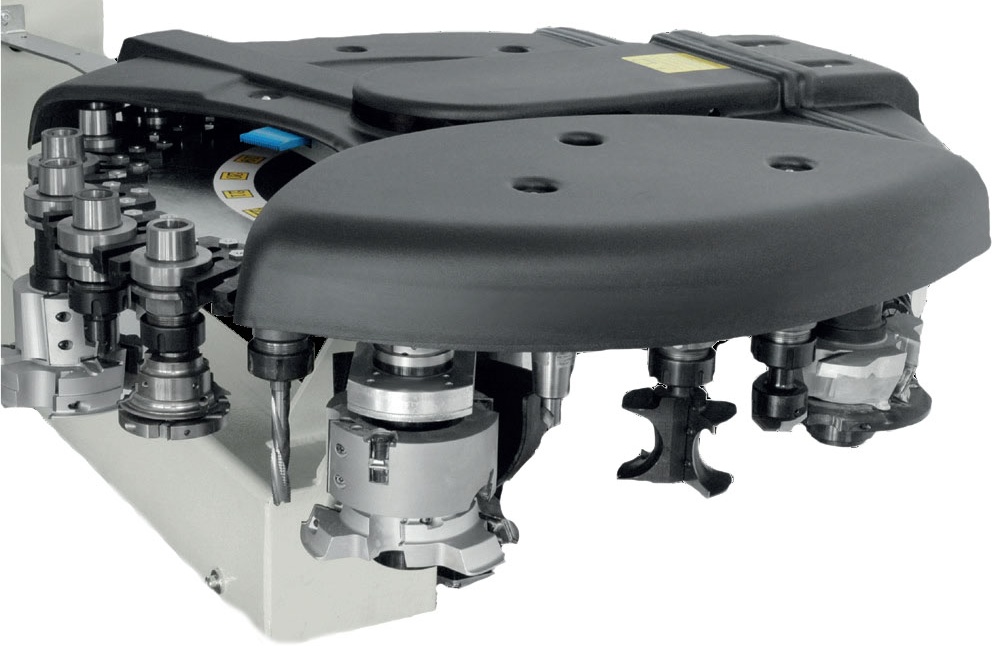

The tool magazine received more effective protection against dust ingress on tooling, due to an updated casing and additional tool airflow .

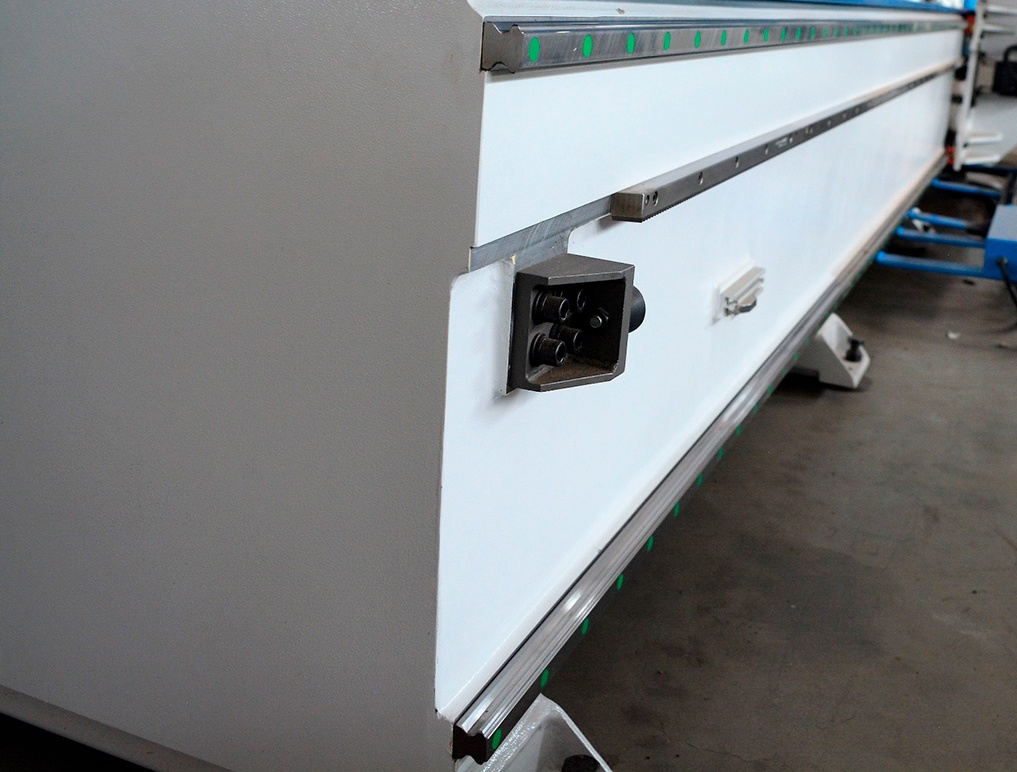

The bed of this model is even heavier, it has the form of a frame structure with stiffeners and ceilings made of all-metal sheet . This will provide a reliable base for further attachment of all components and assemblies to it, as a result of which high processing accuracy is guaranteed.

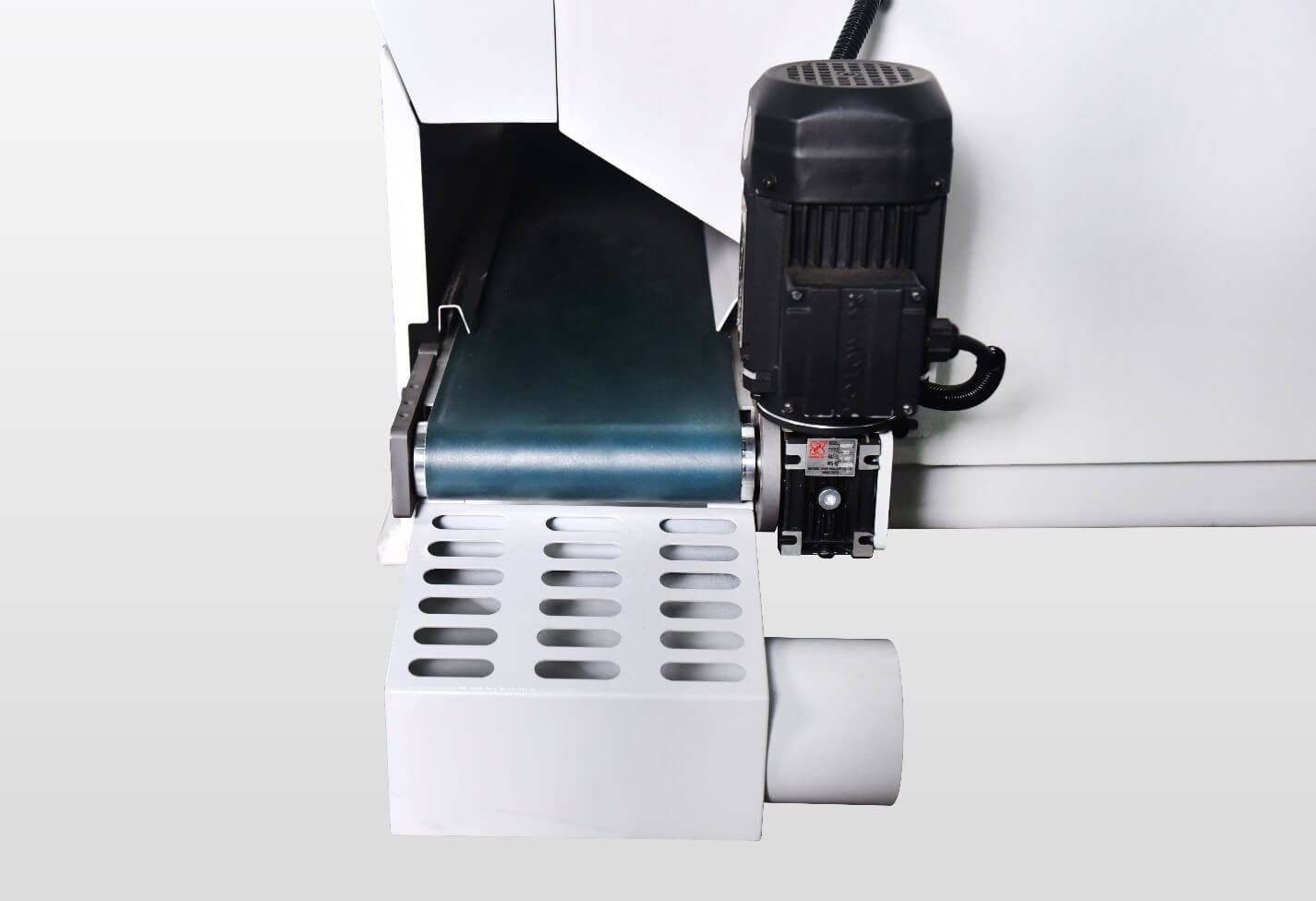

In the basic configuration, the machine has a conveyor for removing chips and small residues of workpieces , and it is also possible to install aggregate equipment.

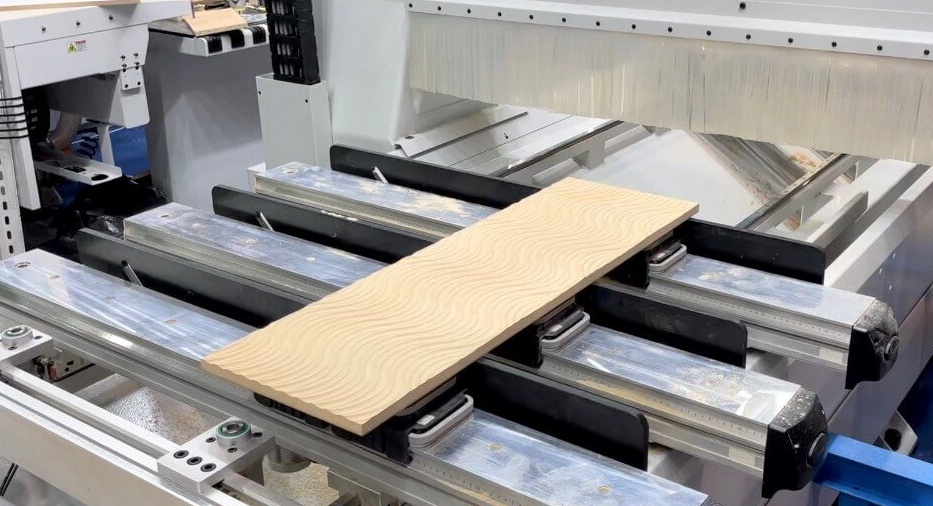

Machining center KDT KN-6410C works in pendulum mode , this function divides the desktop into two zones - this allows you to set different processing programs in these zones, this can significantly reduce the operating time (cycle) of the machine. Working table without hose type with movable traverses and vacuum suction cups " SCHMALZ" Germany is a reliable and efficient solution of the manufacturer.
