Sliding table panel saws for chipboard

Sliding table panel saw is special equipment designed for cutting wood-based panel materials (chipboard, laminated chipboard, MDF, plywood) into blanks, as well as solid wood furniture panels. Not a single furniture production can do without this machine. This technique is also used in enterprises involved in the supply and sale of wood panel materials. You can buy a sliding table saws for cutting chipboard quickly, conveniently and profitably in the online store of the Stancomplect company.

What types of sliding table panel saws are there?

On the modern industrial equipment market, you can buy sliding table saw of one of three types:

• lightweight (economy class) - this type of machine has the simplest design, consisting of main functional units. It is equipped with low-power power units, the uninterrupted operation of which should not exceed 5 hours, after which a technological break is required to cool down. The lightweight panel saw is an ideal choice for small furniture or carpentry shops and home workshops as it is lightweight and compact in size;
• medium (business class) - such machine can work a full shift (8-10) hours without a break. It is equipped with more powerful engines, as well as additional devices (stops, clamps, rulers), which increase productivity and accuracy of work, and make the cutting process more comfortable;
• heavy (industrial) is a high-tech machine of the highest class, equipped with electronic control and many additional devices that increase the accuracy, quality and safety of work. Such equipment can operate non-stop for two shifts in a row (up to 20 hours), but at the same time it has a massive design and high cost. A heavy sliding table panel saw is suitable for equipping large enterprises with a large volume of work on sawing wood panels.

Design features of sliding table saw for chipboard

The sliding table panel saw consists of the following structural elements and assemblies:

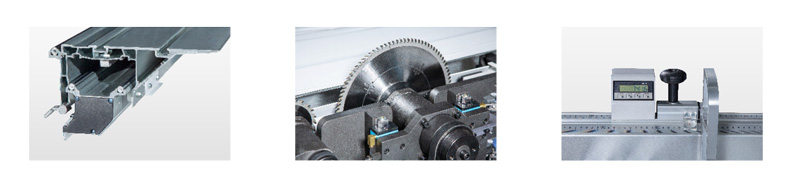

• massive bed - it serves as the basis and support of the machine, on which all its other elements are mounted. The frame has a large weight and a rigid structure to ensure a stable position of the operating equipment without wobbling and vibration, and smooth operation of the unit. The heavier the frame, the better it absorbs vibrations;
• saw unit with two discs: a scoring disc, which only marks the cutting line, and a main (sawing) disc, which cuts the material completely. The radius of the main disk determines the maximum sheet thickness that can be cut on the machine. Each blade is usually equipped with a separate motor and can be rotated to cut material at an angle;
• three work tables - support, stationary and movable. The saw unit is mounted on a stationary table. The movable table of panel saw is used to hold the material and feed it for cutting. It is located to the left of the fixed table and the length of the cut depends on its size. The support table is located to the right of the stationary one and serves to hold the sawn part on the machine; carriages (trolleys) - it is equipped with roller bearings that move along guides, and a movable table is fixed on top of it;
• stops necessary for cutting accuracy. They have their own guides and bearings, which ensures easy sliding of the workpiece. There are three stops in total - side, parallel (folding) and front, located perpendicular to the axis of the cut on the movable table;
• rulers with an engraved scale, magnifying glass and backlight - they are used to eliminate errors when cutting material. Panel saws for chipboard of the latest models are equipped with a digital display instead of rulers.

How to choose a sliding table saw

On the modern industrial equipment market, sliding table saws of various types, models and characteristics are offered for sale. Important criteria for their selection, which you need to pay attention to first of all, are:

• power – the performance of the machine depends on this parameter. A machine with a power of 3.7-4.0 kW is suitable for cutting soft materials, and up to 5 kW for massive and rough materials;
• length and depth of cut - if you need a format sawing machine for furniture production, you should buy a model with a cutting length of 1470-3200 mm, but determine the depth based on the maximum thickness of the material;
• weight of the machine - the larger it is, the more accurate and high-quality the cut will be;
• rotation speed of saw blades - it is better to choose a machine with the ability to change this parameter, depending on the characteristics of the material.

If you want to buy sliding table saw that will last for a long time without frequent repairs, choose equipment from well-known brands!

Why you should buy a panel saw from the Stancomplect online store

If you need sliding table saw for making furniture or other purposes, you should order it in our company’s online store, since we are the official dealer of the Chinese company KDT Woodworking Machinery - one of the world’s leading manufacturers of woodworking equipment - and can offer:

• a full range of machines from a Chinese manufacturer, including those equipped with a display;
• high-quality and reliable sliding table saws at an affordable price. KDT brand equipment is manufactured on CNC machines and sold with a manufacturer's warranty;
• online information support for customers and prompt service of machines by our company’s specialists;
• constant availability of original spare parts in stock.

Order panel saws in the Stancomplect online store through the shopping cart or by calling the numbers listed in the site header!
