Edge banding tools

Sort By:
Hand Router H-703 for PVC Edge Processing
In stock
Bestseller
Popular
Hand Router H-703 for PVC Edge Processing
Product code: 41
7
135.00€
Pneumatic hand chamfering tool
In stock
Popular
Pneumatic hand chamfering tool
Product code: 3719
Write a rewiew
63.00€
Universal edge banding trimmer JB-320
In stock
Universal edge banding trimmer JB-320
Product code: 570
1
67.50€

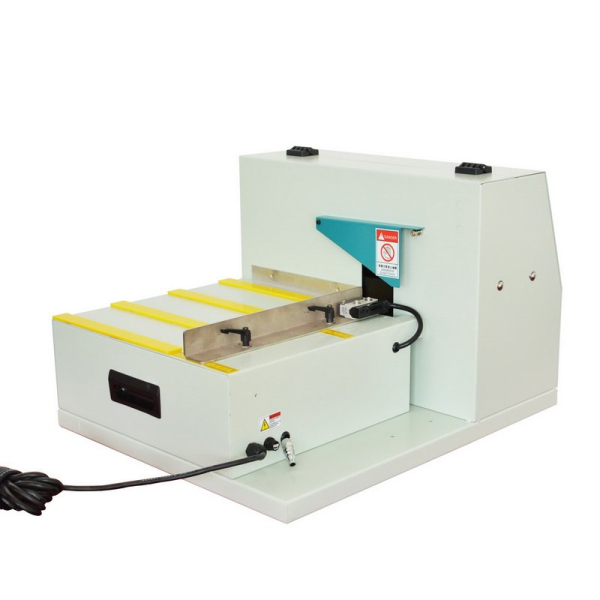

Corner rounder GK-001
In stock
Corner rounder GK-001
Product code: GK-001
Write a rewiew
837.00€

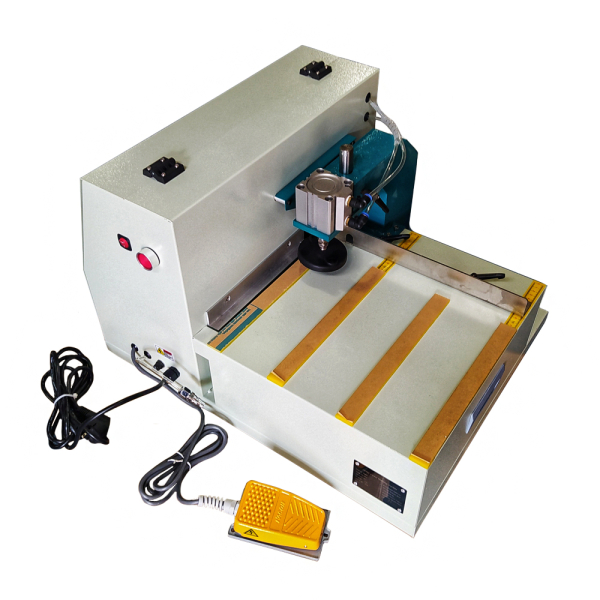

Corner rounder with workpiece clamp GK-002
In stock
Corner rounder with workpiece clamp GK-002
Product code: 568
Write a rewiew
882.00€
Round over router bit with lower bearing R2 for PVC edge trimming, shank 6.35 mm
In stock
Round over router bit with lower bearing R2 for PVC edge trimming, shank 6.35 mm
Product code: 42
Write a rewiew
19.80€
Cutting diameter, mm: 21
Length of the cutting part, mm: 9
Shank diameter, mm: 6.35
Overall length, mm: 57
Radius of the cutting part, mm: 2
Round over router bit with lower bearing R1 D15 d6 L52 for corner rounding machine
In stock
Round over router bit with lower bearing R1 D15 d6 L52 for corner rounding machine
Product code: 1920
Write a rewiew
21.60€
Cutting diameter, mm: 15
Length of the cutting part, mm: 9
Shank diameter, mm: 6
Overall length, mm: 52
Radius of the cutting part, mm: 1

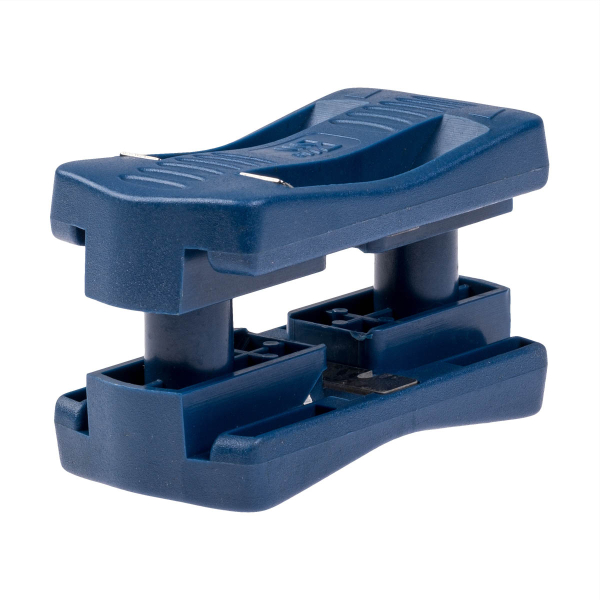

Double edge banding trimmer (spare blades included)
In stock
Double edge banding trimmer (spare blades included)
Product code: 3732
Write a rewiew
9.90€
Edge banding end trimmer
In stock
Bestseller
Edge banding end trimmer
Product code: 727
Write a rewiew
20.70€
Aluminum alloy edge banding trimmer
In stock
Aluminum alloy edge banding trimmer
Product code: 864
Write a rewiew
22.50€
Round over router bit with lower bearing R1 for PVC edge trimming, shank 6.35 mm
Pre-order
Round over router bit with lower bearing R1 for PVC edge trimming, shank 6.35 mm
Product code: 1921
Write a rewiew
19.80€
Cutting diameter, mm: 21
Length of the cutting part, mm: 9
Shank diameter, mm: 6.35
Overall length, mm: 57
Radius of the cutting part, mm: 1
Edge banding tools - Customer Reviews
Hand Router H-703 for PVC Edge Processing Hand Router H-703 for PVC Edge Processing
Petryk Roma
21/01/2021
Of course, Virutex is also lighter compared to analogues, but thanks to this, it is convenient to remove the edge quickly, given its size and weight. If the hands grow from the right place, there will be no problems.
Universal edge banding trimmer JB-320 Universal edge banding trimmer JB-320
Mikhail Yuryevich
25/10/2018
There was such a Virutex, they charged around 110 euros and all of them had the problem that the metal was pressed (rubbed) (3 pieces, all of them had the same problem), in the places where the edge of the handle came into contact with the metal plate, this one had already worked for 2 months and pah-pah no hints of deformation. Either the Europeans began to save on metal or China has already reached a new level.
Hand Router H-703 for PVC Edge Processing Hand Router H-703 for PVC Edge Processing
Tadei Zinkevich
06/07/2020
I took it purely for edge processing, but in the end I used it for other purposes, changed the cutter and used it for cutting grooves and milling along a contour - chamfering, rolling.
Hand Router H-703 for PVC Edge Processing Hand Router H-703 for PVC Edge Processing
Ilya
12/10/2019
It cuts edges efficiently and instantly, without getting too hot. Completely meets all my needs.
Hand Router H-703 for PVC Edge Processing Hand Router H-703 for PVC Edge Processing
Yevhen Kholodyuk
04/03/2019
I took it at an exhibition in Kyiv, they made a discount, it is a good assembly, the cutter is included, it fits well in the hand, it is somewhat similar to Virutex, but the platform is plastic.
Hand Router H-703 for PVC Edge Processing Hand Router H-703 for PVC Edge Processing
Volodymyr Kudrya
08/06/2018
They took 2 such manual routers for production, first of all they were attracted by the configuration, they worked for a week. So far everything is ok. Good manual router, normal price, high-quality assembly.
Hand Router H-703 for PVC Edge Processing Hand Router H-703 for PVC Edge Processing
Nikolai Raspopov
19/12/2017
An absolutely normal edging router. Of course it is worse than Virutex, but it does its job well. I was pleased that the price was for a set and not all the accessories separately. 1/4 inch shank, Virutex cutters are not suitable.
Hand Router H-703 for PVC Edge Processing Hand Router H-703 for PVC Edge Processing
Andrew
06/07/2017
We have been working for 2 years.
Popular categories

Edgebanding is an integral part of any furniture production. The edging tape is made, as a rule, at least 4 mm wider than the thickness of the laminated chipboard - this is done so that after gluing the part, the edge overhangs are at least 2 mm, in order to eliminate defects and make it possible to fully process the overhangs using a hand tool for processing edges overhangs or an automatic edge banding machine.

Hand tools for edge processing are devices for finishing the end parts of workpieces in furniture production. This group includes devices for trimming, grinding and polishing edge materials. They perform finishing work on blanks made of slab materials for furniture assembly.

Types of tools for processing PVC edges

For processing PVC edges, there are several types of hand tools that allow you to perform various operations for cutting, milling, grinding and polishing the edge material:

  • manual edge banding trimmers;
  • length edge banding trimmers;
  • devices for rounding corners;
  • manual router for edge processing.

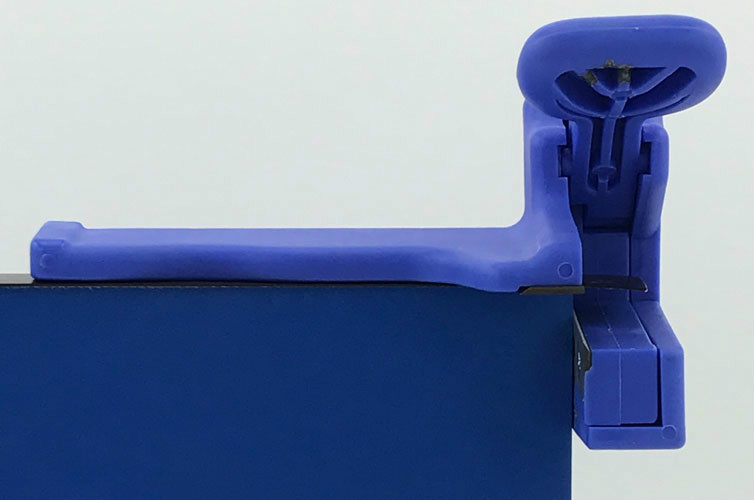

end trimmer

Manual edge banding trimmer

A manual edge banding trimmer is used to remove excess edge tape. This type of edge trimming tool operates on the principle of scissors - the craftsman needs to place it on the corner of the workpiece and press the scissor lever.

To work with round and oval workpieces, another tool is required - a manual edge banding trimmer for round workpieces. This device allows you to cut the edge tape exactly to size so that it can be glued end-to-end. No additional trimming is required.

Length edge banding trimmers

This tool is designed to remove edge overhangs in the longitudinal direction. Manual edge banding trimmers are capable of removing excess edge materials up to 0.5 mm thick. The design consists of two parts, the distance between which can be changed by pressing your hand. Having grasped the workpiece, the master cuts off the overhangs on both sides in one movement.

Hand router for edge banding

This electric tool is used to remove the longitudinal overhangs of the edge. Simply irreplaceable when processing edge material with a thickness of 0.8 mm or more. To work, you need a special type of cutter. One face is processed per pass. A hand router for PVC edges needs to be adjusted to suit materials of different thicknesses.

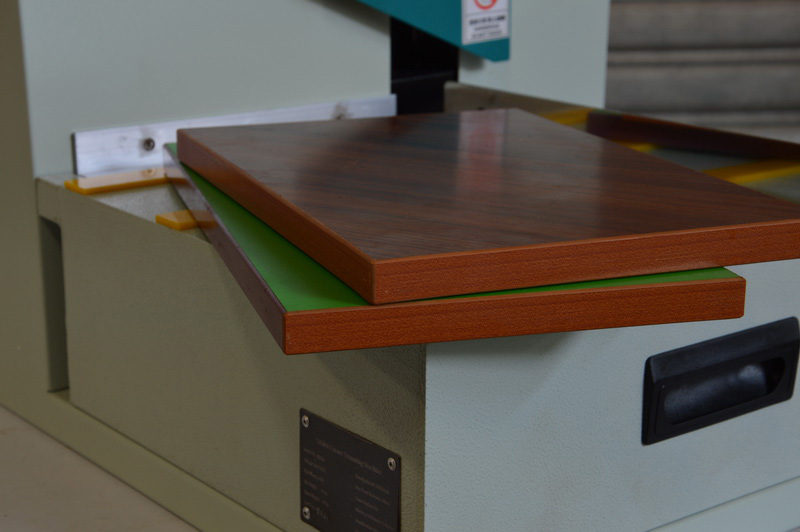

milling workpiece corners

Corner rounding device

In terms of dimensions, this technique does not fit into the concept of a hand tool for furniture production - the device is installed on a table. The main working movement is performed by the grinding cutter.

After processing in this machine, the corners of the part are rounded, acquire a finished look, and are pleasant to touch. The installation is used for processing finishing material with a thickness of 0.8 mm.

Benefits of purchasing edge banding tools from Stancomplect

Finishing the ends of furniture parts is a responsible process. The results of the work depend not only on the skill of the workers, but also on the quality of the equipment.

The Stancomplect company offers supplies of tools for edge banding on favorable terms. On our website you can buy equipment from the leading manufacturers at affordable prices.
