CNC drilling centers

Sort By:
CNC Drilling Center KD-612NHSZ with three drilling groups (milling with tool change)
In stock
Popular
CNC Drilling Center KD-612NHSZ with three drilling groups (milling with tool change)
Product code: 2088
Write a rewiew
Price request
Workpiece width, mm: 35-1200
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC drilling center KD-610NHZ with two drilling groups (milling with tool change + grooving saw)
In stock
Popular
CNC drilling center KD-610NHZ with two drilling groups (milling with tool change + grooving saw)
Product code: 2317
2
Price request
Workpiece width, mm: 30-1000
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC Drilling Center KD-610NH with two drilling groups
In stock
Popular
CNC Drilling Center KD-610NH with two drilling groups
Product code: KD-610NH
2
Price request
Workpiece width, mm: 30-1000
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC Drilling Center KD-612THZ with four drilling groups (milling with tool change)
In stock
Popular
CNC Drilling Center KD-612THZ with four drilling groups (milling with tool change)
Product code: 2355
1
Price request
Workpiece width, mm: 35-1200
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC Drilling Center KD-612NHZ with two drilling groups (milling with tool change)
In stock
Popular
CNC Drilling Center KD-612NHZ with two drilling groups (milling with tool change)
Product code: 2318
Write a rewiew
Price request
Workpiece width, mm: 35-1200
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC drilling center KD-612THZA for work as part of automatic lines (milling with tool change)
In stock
Popular
CNC drilling center KD-612THZA for work as part of automatic lines (milling with tool change)
Product code: KD-612THZA
Write a rewiew
Price request
Workpiece width, mm: 45-1200
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 55-880
Workpiece gripper travel speed (X), m/min: 140
Automated drilling complex based on the KD-612NHSA machine with robotic loading/unloading
In stock
Popular
Automated drilling complex based on the KD-612NHSA machine with robotic loading/unloading
Product code: "1+1" KD-612NHSA
Write a rewiew
Price request
Workpiece width, mm: 45-1200
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 55-880
Workpiece gripper travel speed (X), m/min: 140
CNC Drilling Center KD-612NHS with three drilling groups (2 top + 1 bottom + milling + grooving saw)
Popular
Pre-order
CNC Drilling Center KD-612NHS with three drilling groups (2 top + 1 bottom + milling + grooving saw)
Product code: 2319
Write a rewiew
Price request
Workpiece width, mm: 35-1200
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 50-850
Workpiece gripper travel speed (X), m/min: 140
CNC Drilling Center KD-612TH with four drilling groups (2 top + 2 bottom + milling + grooving saw)
Popular
Pre-order
CNC Drilling Center KD-612TH with four drilling groups (2 top + 2 bottom + milling + grooving saw)
Product code: KD-612TH
Write a rewiew
Price request
Workpiece width, mm: 35-1200
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC drilling center KD-610XHZ with two drilling groups and automatic dowel insertion unit
Pre-order
CNC drilling center KD-610XHZ with two drilling groups and automatic dowel insertion unit
Product code: KD-610XHZ
Write a rewiew
Price request
Workpiece width, mm: 30-1000
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC Drilling Center KD-612GNH with C-Axis and Tool Changer
Popular
Pre-order
CNC Drilling Center KD-612GNH with C-Axis and Tool Changer
Product code: KD-612GNH
Write a rewiew
Price request
Workpiece width, mm: 35-1200
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC drilling center KD-612NH with two drilling groups (top + bottom + milling + grooving saw)
Popular
Pre-order
CNC drilling center KD-612NH with two drilling groups (top + bottom + milling + grooving saw)
Product code: KD-612NH
1
Price request
Workpiece width, mm: 35-1200
Workpiece length, mm: 70-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 50-850
Workpiece gripper travel speed (X), m/min: 140
CNC drilling center KD-612THA for work as part of automatic lines
Popular
Pre-order
CNC drilling center KD-612THA for work as part of automatic lines
Product code: KD-612THSA
Write a rewiew
Price request
Workpiece width, mm: 45-1200
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 55-880
Workpiece gripper travel speed (X), m/min: 140
CNC drilling center KD-812A with two working tables and six drilling groups
Popular
Pre-order
CNC drilling center KD-812A with two working tables and six drilling groups
Product code: 2161
Write a rewiew
Price request
Workpiece width, mm: Left work area (45-1220), right work area (45-800)
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC drilling center KD-812HA with two working tables and six drilling groups
Popular
Pre-order
CNC drilling center KD-812HA with two working tables and six drilling groups
Product code: 2120
Write a rewiew
Price request
Workpiece width, mm: Left work area (45-1220), right work area (45-800)
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC drilling center KD-812ZA with two working tables, six drilling groups and milling with tool change
Popular
Pre-order
CNC drilling center KD-812ZA with two working tables, six drilling groups and milling with tool change
Product code: 2307
Write a rewiew
Price request
Workpiece width, mm: Left work area (45-1220), right work area (45-800)
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
CNC drilling center KD-868HA with two working tables and six drilling groups
Popular
Pre-order
CNC drilling center KD-868HA with two working tables and six drilling groups
Product code: 2345
Write a rewiew
Price request
Workpiece width, mm: Left work area (45-650), right work area (45-800)
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece gripper travel speed (X), m/min: 140
Maximum speed along the axis (Y), m/min: 90
Automated drilling section based on the KD-612THA machine with automatic loading/unloading
Popular
Pre-order
Automated drilling section based on the KD-612THA machine with automatic loading/unloading
Product code: KD-612THA LOADING/UNLOADING
Write a rewiew
Price request
Workpiece width, mm: 45-1200
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 55-880
Workpiece gripper travel speed (X), m/min: 140
Automatic drilling line based on the KD-612THA with a buffer for workpieces
Popular
Pre-order
Automatic drilling line based on the KD-612THA with a buffer for workpieces
Product code: KD-612THA BUFER
Write a rewiew
Price request
Workpiece width, mm: 45-1200
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 55-880
Workpiece gripper travel speed (X), m/min: 140

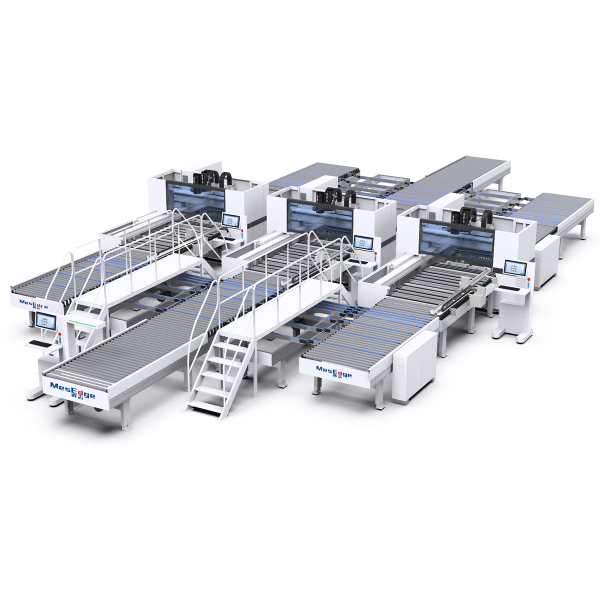

Automatic drilling line KDT Line-3 based on drilling centers KD-612THA
Popular
Pre-order
Automatic drilling line KDT Line-3 based on drilling centers KD-612THA
Product code: KDT Line-3
Write a rewiew
Price request
Workpiece width, mm: 45-1200
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 55-880
Workpiece gripper travel speed (X), m/min: 140

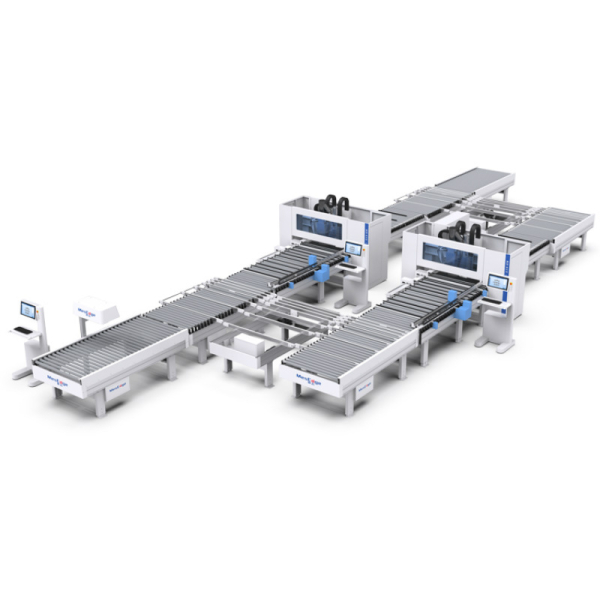

Automatic drilling line KDT Line-2 based on drilling centers KD-612THA
Popular
Pre-order
Automatic drilling line KDT Line-2 based on drilling centers KD-612THA
Product code: KDT Line-2
Write a rewiew
Price request
Workpiece width, mm: 45-1200
Workpiece length, mm: 200-2800
Workpiece thickness, mm: 9-60
Workpiece width for grooving, mm: 55-880
Workpiece gripper travel speed (X), m/min: 140
Popular categories

Portfolio

CNC drilling centers with cnc kdt

CNC drilling centers from KDT MACHINERY are designed for high-precision drilling of a large number of holes for fittings in furniture blanks. In addition to the main function - drilling, the machines are equipped with a milling and grooving spindle with a power of 3.5 kW, 5.5 kW or even 9 kW for sawing straight and curved grooves.

KDT CNC drilling centers have the ability to process workpieces from 6 sides due to the presence of a lower drilling head with a grooving milling spindle.

The main advantages of KDT CNC drilling centers:

  • High parameters for productivity and drilling accuracy;
  • Industrial execution of all machine components;
  • Ideal value for money.

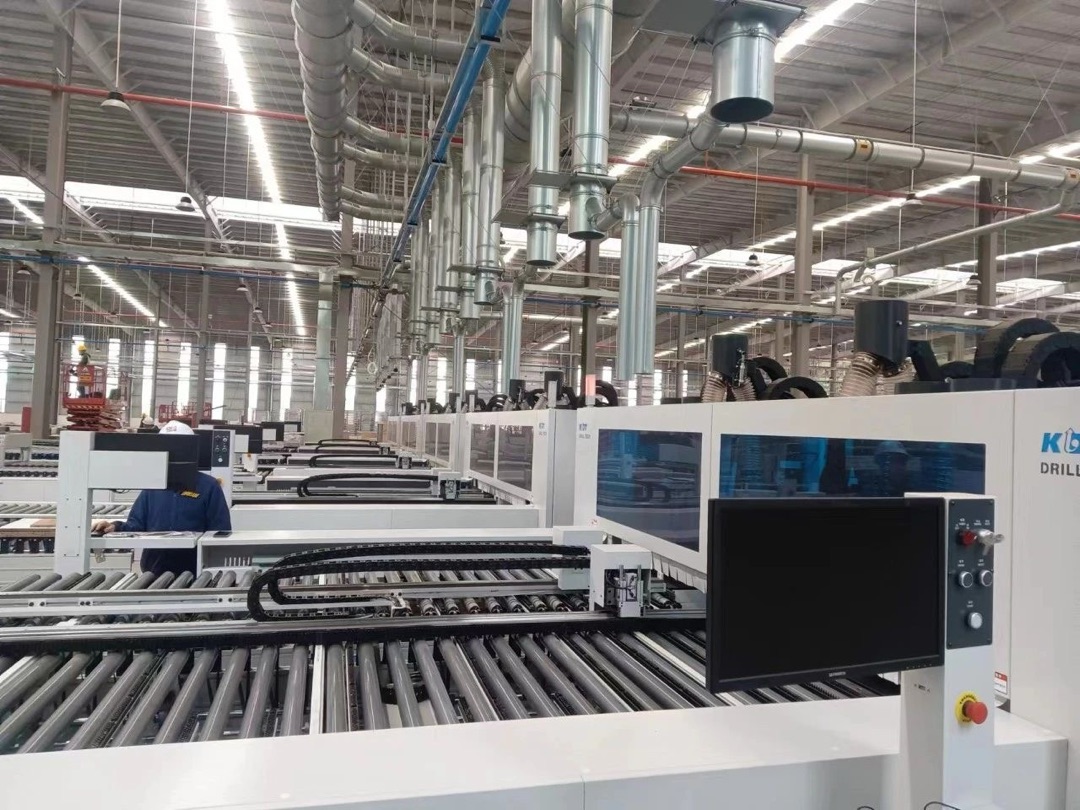

kd-812 on the furniture factory

Stancomplect LLC is the official dealer of KDT MACHINERY and we offer to buy CNC drilling centers at an affordable price. We supply and service the entire line of drilling equipment supplied by us. In the presence of a full warehouse of spare parts and consumables for drilling machines.

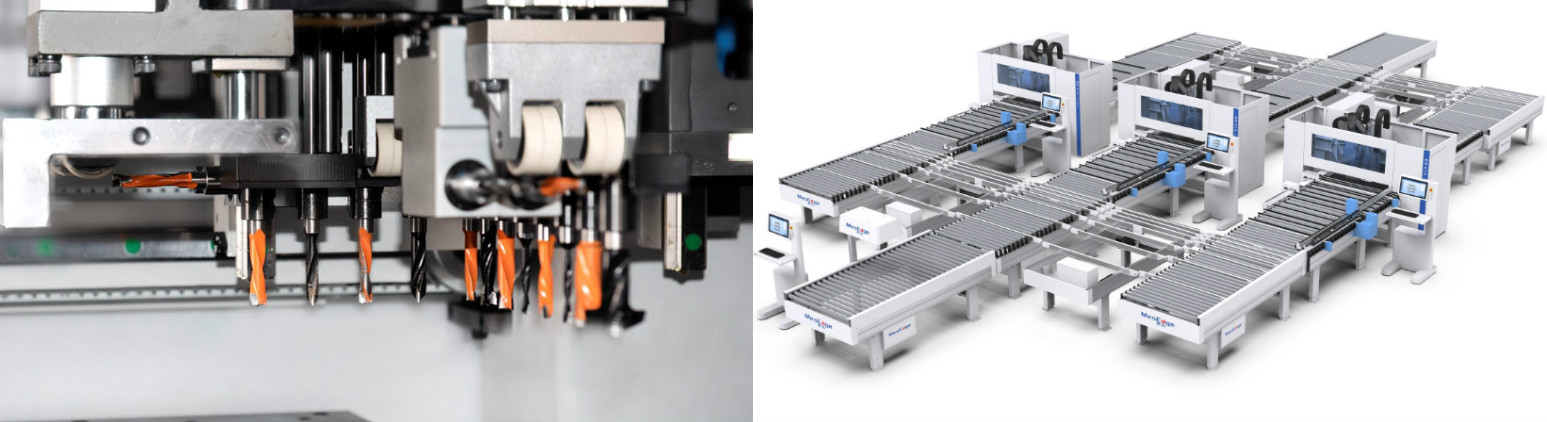

options for using CNC drilling centers

The machines are designed to work in the toughest conditions and are ideal for both serial furniture manufacturing and custom furniture manufacturing or drilling services.

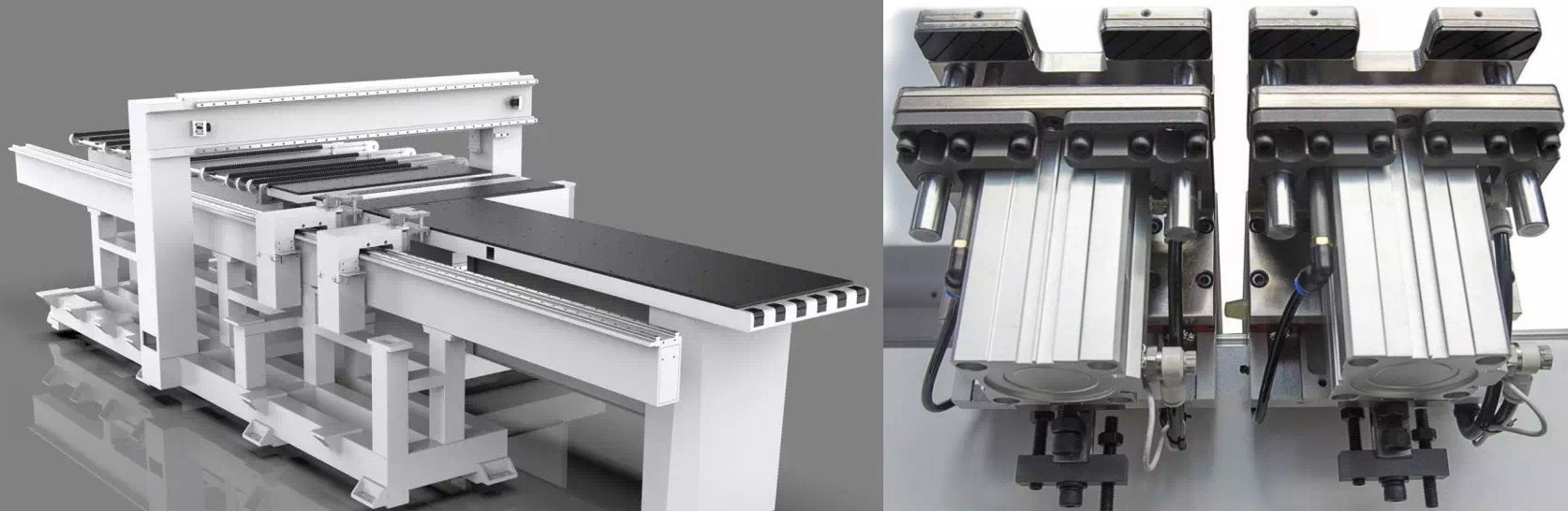

bed and grips of CNC drilling centers

The machines are designed for long service life and have high productivity: on average, the sidewall of a sliding wardrobe with an additive for 5 shelves on the face of the workpiece and an additive on two horizontal sides for dowels and mini fixes is approximately 40 seconds.

This performance is achieved thanks to powerful servos on all axes. Travel speed along the X axis - up to 140 m/min, along the Y axis - up to 90 m/min, along the Z axis - 50 m/min. The main advantage of these machines is the maximum flexibility in reconfiguration.

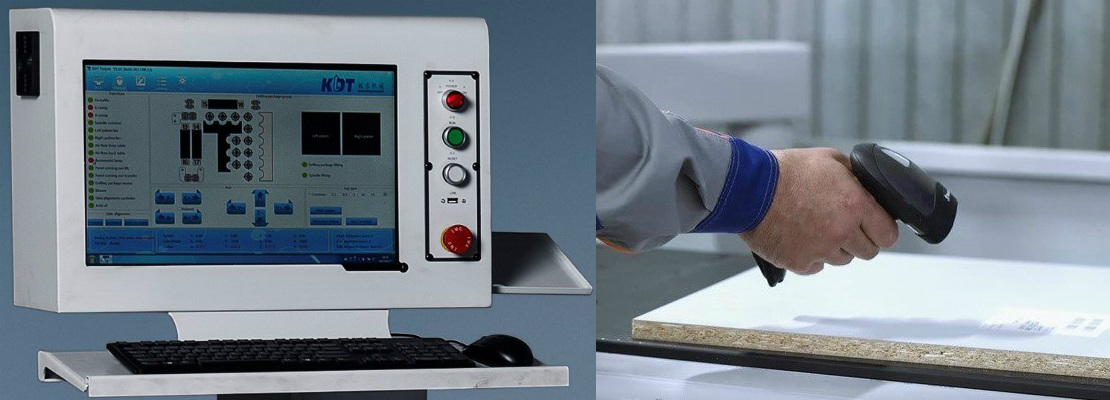

PC control and barcode scanner

The machines are controlled by an industrial PC based on Windows XP (completely Russified) .

Included is a barcode scanner for reading additive cards from workpieces.

The machine saves all work programs on its computer and the operator only needs to open the required file on the computer and install the workpiece in the machine. The reconfiguration time is 0.

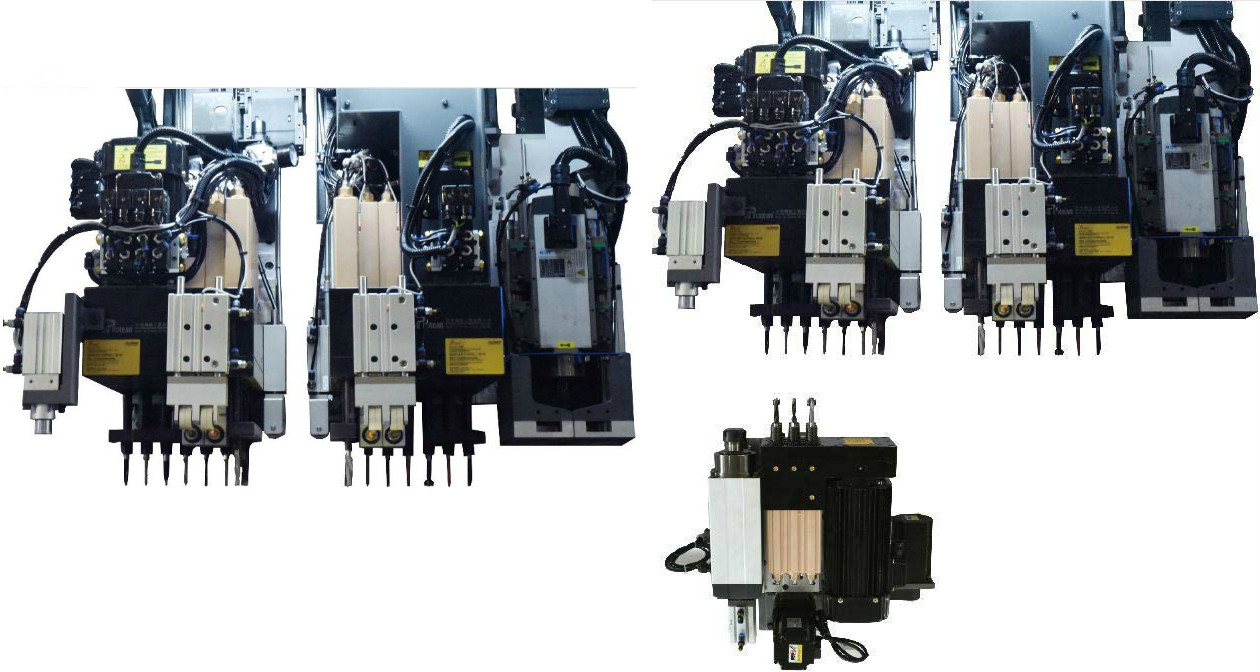

configurations of drilling groups kdt

KDT machines are equipped with two or three drilling groups with two milling spindles.

Depending on the configuration, a grooving saw can also be installed on the machine.

Drilling centers can process a stack of two blanks at the same time.
