CNC router machines

The CNC machining center (CNC router machines) is complemented by a computer control system that programs various material processing operations. It is used for the manufacture of parts and blanks from soft and hard wood, plywood, furniture panels, laminated chipboard, MDF.

Features and operating principle of CNC machining centers

• Accuracy. The machining center operates with high precision because it follows the parameters specified in the program.
• Versatility. Performs a variety of operations, including drilling, milling, and thread cutting. It is a universal tool for various production tasks.
• Performance. Automated work allows you to reduce processing time and increase the volume of finished products.

CNC router machines operate according to a certain principle:

The processing of the part is carried out thanks to the movement of a rotating cutter, which gradually removes the material layer by layer. The number of passes with a cutter in one section depends on the characteristics of the part, the material and the required cutting depth. If the material is hard and the top layer is thick, more passes must be made.

CNC simplifies and speeds up machine control, since work is performed automatically. The operator only needs to secure the workpiece on the workbench and run the program. The program is set on the basis of an electronic drawing, which is executed in a graphic editor.

Features of choosing CNC machining centers

When choosing, consider machine parameters such as table size, spindle power, number of axes and processing speed to ensure they meet your production requirements. Check what software comes with your machining center - it is important that it is compatible with your systems and provides the functionality you need.

The price of a CNC machining center for wood is also important - compare the cost of various models in our catalog and choose the optimal price-quality ratio, taking into account your budget and production needs.

The main advantages of KDT CNC machining centers include: industrial design, high operating speed, choice of configuration of drilling groups and type of tool change.

CNC router machines KDT depending on the equipment and the size of the working area

SERIES FOR NESTING

• Electrospindle 13.2 kW HSD (Italy) for HSK-F63 clamp or 12 kW KDT for ISO-30 clamp.
• Travel speed 80/80/30 m/min.
• Table sizes: 3100x2150, 4260x2150 mm.
• 4-axis machining (DPC model).
• Carousel tool change.
• Workpiece pusher.
• Set of basing stops and levelers.
• Vacuum table.
• Optional automatic loading and unloading of sheets.
• Control system DELTA  (Taiwan) or TPA (Italy).
• Drill head for 10 vertical spindles.

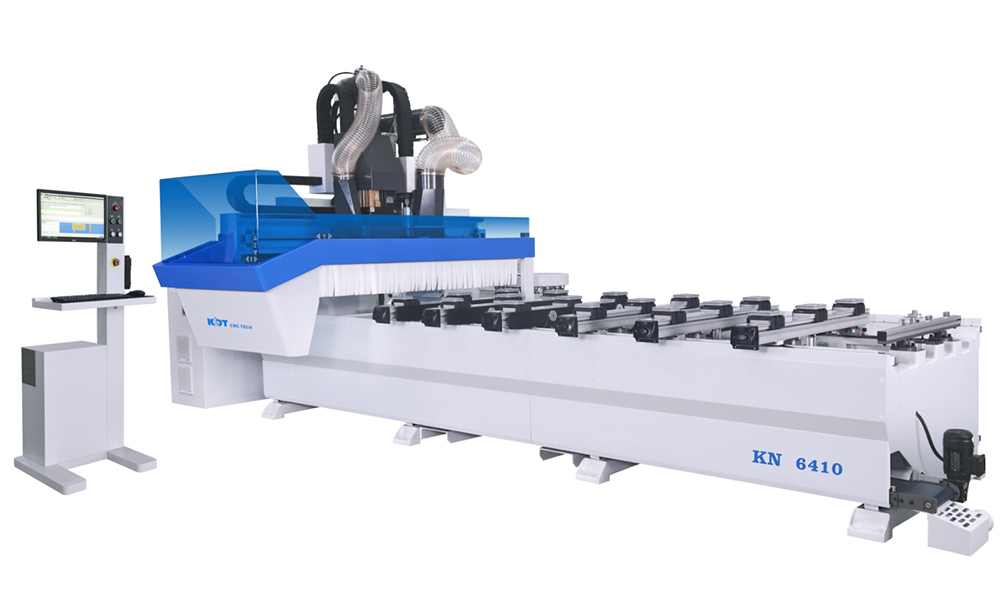

SERIES PTP

• 4-axis or 5-axis machining.
• Electrospindle 13.2 kW HSD (Italy) for clamp HSK-F63.
• Travel speed 80/80/30 m/min, 80/75/30 m/min, 48/48/15 m/min.
• Mobile traverses.
• Carousel tool change.
• Table sizes: 3250x1250, 5150x1500.
• Vacuum suction cups SCHMALZ.
• TPA (Italy) or OSAI (Italy) control system.
• Drill head 12V+8G+saw.
• 2 pendulum zones, a set of zero stops - 6 in the X-axis and 2 in the Y-axis.

AUTOMATIC NESTING LINE

• Based on machining centers KN-3710, KN-3713.
• Automatic loading of sheet material.
• Automatic unloading of finished blanks.
• Additive function before cutting sheets.
• The function of cutting sheets in one pass.
• Table dimensions: 3100x2150, 4260x2150 mm.

Advantages of purchasing a CNC machining center from the Stancomplect online store

Our catalog contains equipment for the production of furniture from the leading manufacturer KDT Machinery, of which we are an official representative.

Our experts will help you determine the best model for your production, taking into account its features and needs. When choosing equipment, we recommend checking the current price for a CNC machining center with the company’s managers.
