Product code: WG8M2
Brand: KDT Machinery
Write a rewiew
Specifications: (See all)
Max. part size, mm
2800x1200x250
Min. part size, mm
400x300x40
Productivity, boxes/min
2-3
Maximum load, kg
100

Get AI analytics

Automatic machine for measuring the dimensions of parts before packaging KDT WG8M2

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description
KDT Machinery logo
PURPOSE

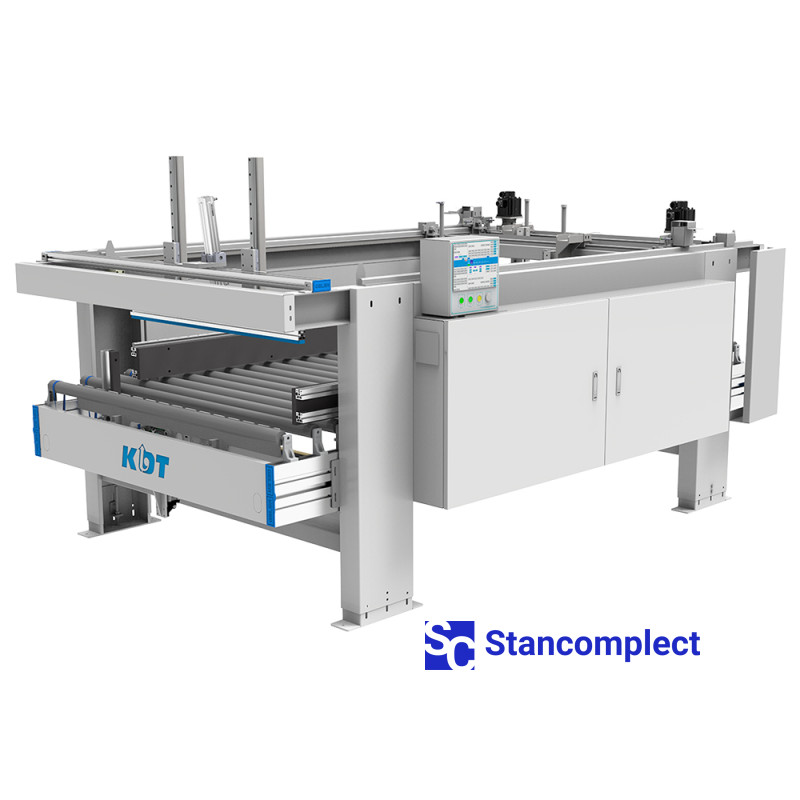

Automatic machine KDT WG8M2 for measuring the size of parts before packaging. The machine is equipped with servo drives and accurately measures the size of a package of parts on three sides. The first mechanism measures the length, the second - the width and height.

For precise measurement, the package of finished products is stopped inside the measuring machine, the stops move along the width and length of the package, thereby not only fixing the exact dimensions of the package, but also aligning it for correct placement in the box.

Having recorded the dimensions of the package of parts, the measuring machine sends information about them to the cardboard box making machine.

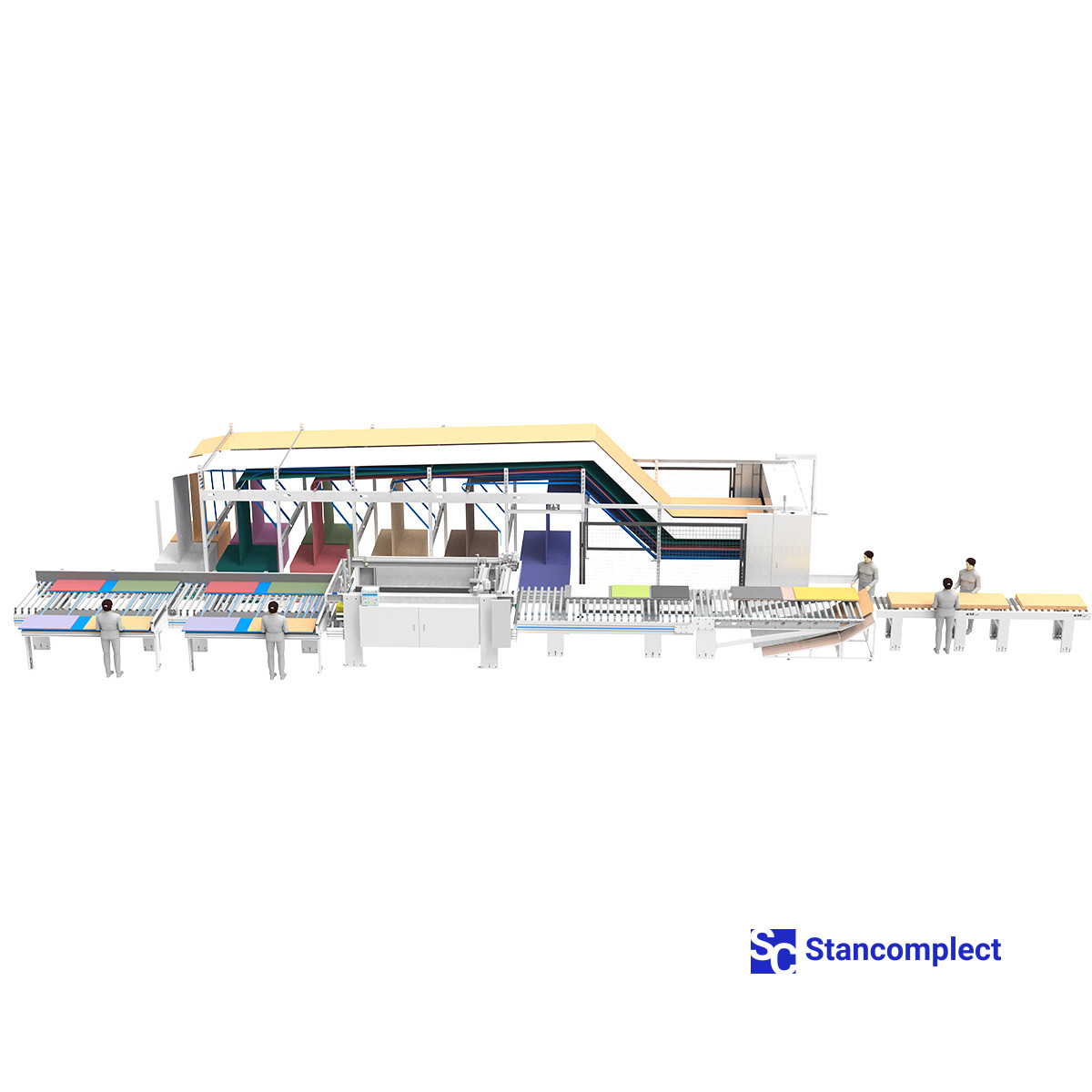

Based on the data received, the box production machine automatically selects the cardboard box making machine. The machine is used as part of a packaging line.

Specifications
Specifications of the machine for measuring parts dimensions
Max. part size, mm
2800x1200x250
Min. part size, mm
400x300x40
Productivity, boxes/min
2-3
Maximum load, kg
100
Conveyor speed, m/min
30
Power, kW
4,5
Dimensions (LxWxH), mm
3500x1850x1800
