The KE-365 automatic edge banding machine from KDT MACHINERY is designed for simultaneous banding of straight edges of furniture boards and blanks with synthetic roll material.
- Clamping knot.
- Ending knot.
- Milling unit for removing overhangs.
- Scraping unit with radius knives.
- polishing unit.
- The machine can work 24 hours a day without stopping and process 3500-4000 linear meters/shift.
- High feed speed up to 23 m/min, which is one of the main indicators of edge banding machines.
- Control panel "Touch screen".
- Built-in waypoint control for non-contact control of processing units.
- Possibility of programming technological breaks.
- Individual frequency converter for each working node.
- Lighting in the protective cabin.
- Limit switches on the doors in the protective cabin.
- The stock dispenser rod prevents damage to the machine components during operation.
- Pneumatic shutter on the glue roller prevents it from getting dirty.
- Adjustment of front and rear overhangs from the control panel.
- Execution according to CE standards.

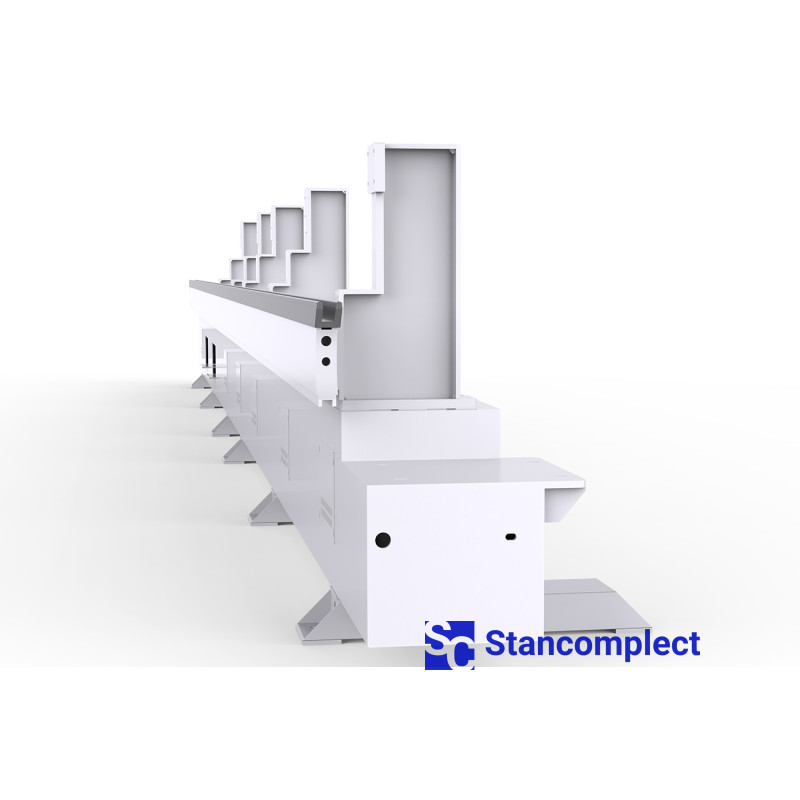

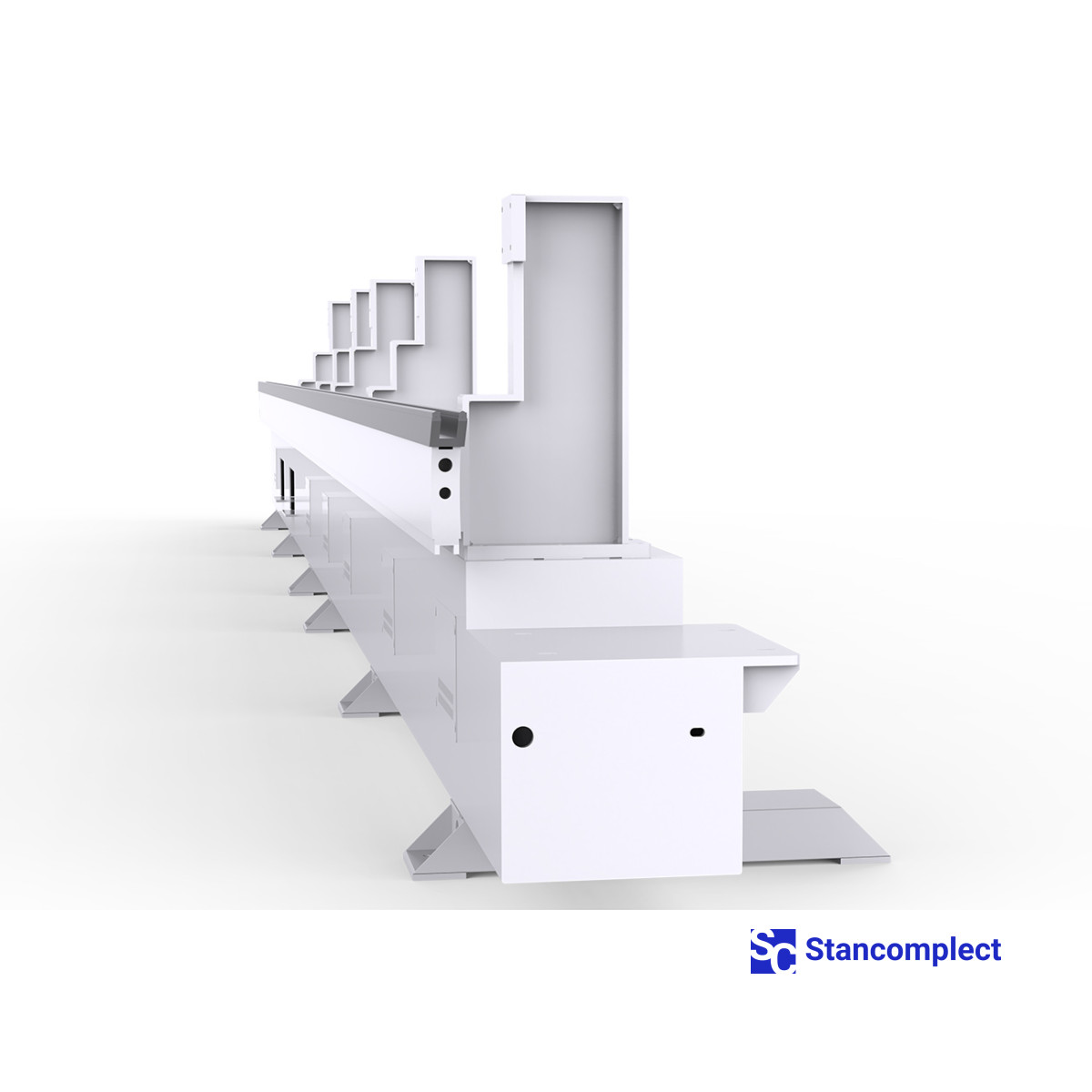

The bed of the edge banding machine has the form of a rigid box with the necessary stiffening ribs, which guarantees the exact location of all nodes during the entire period of operation.

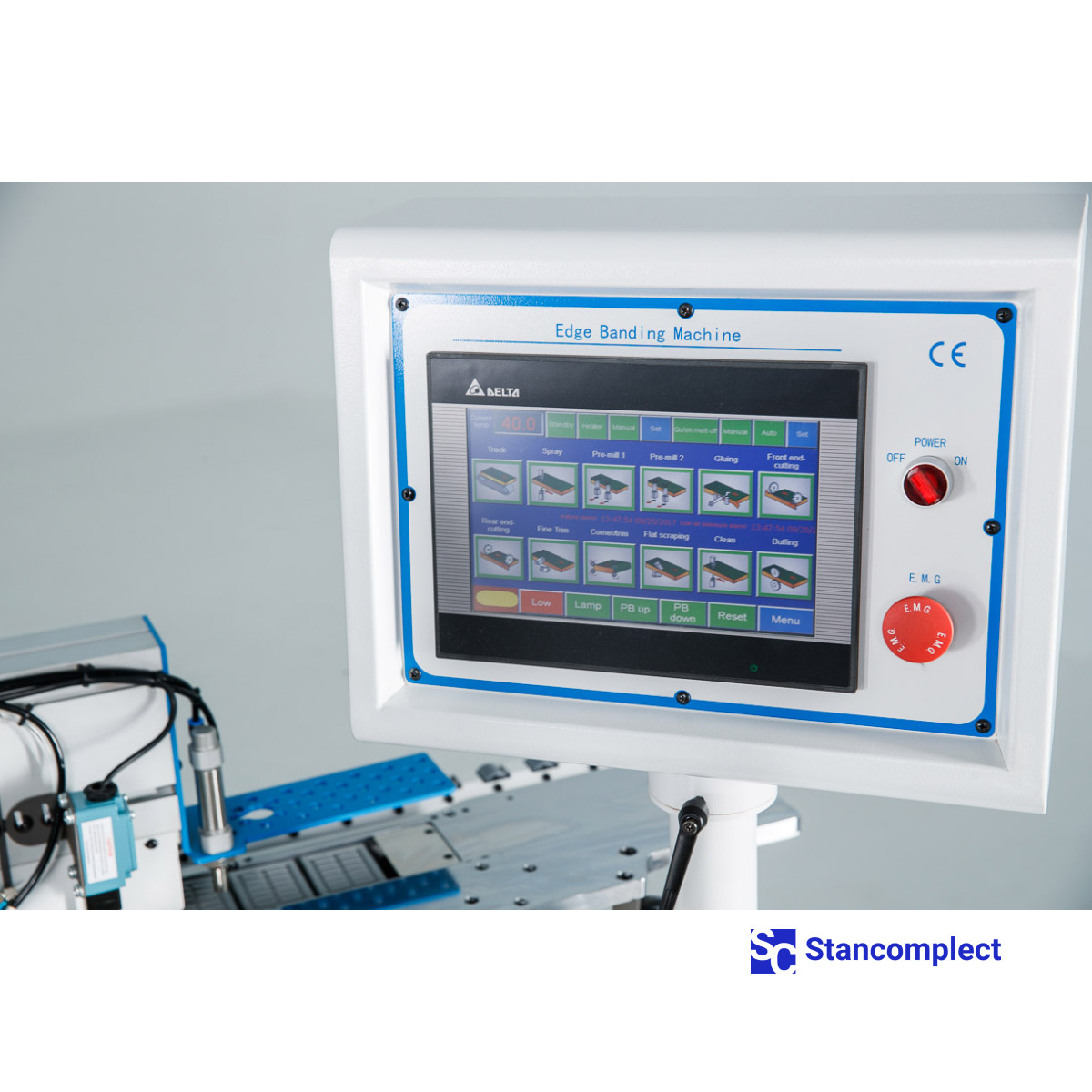

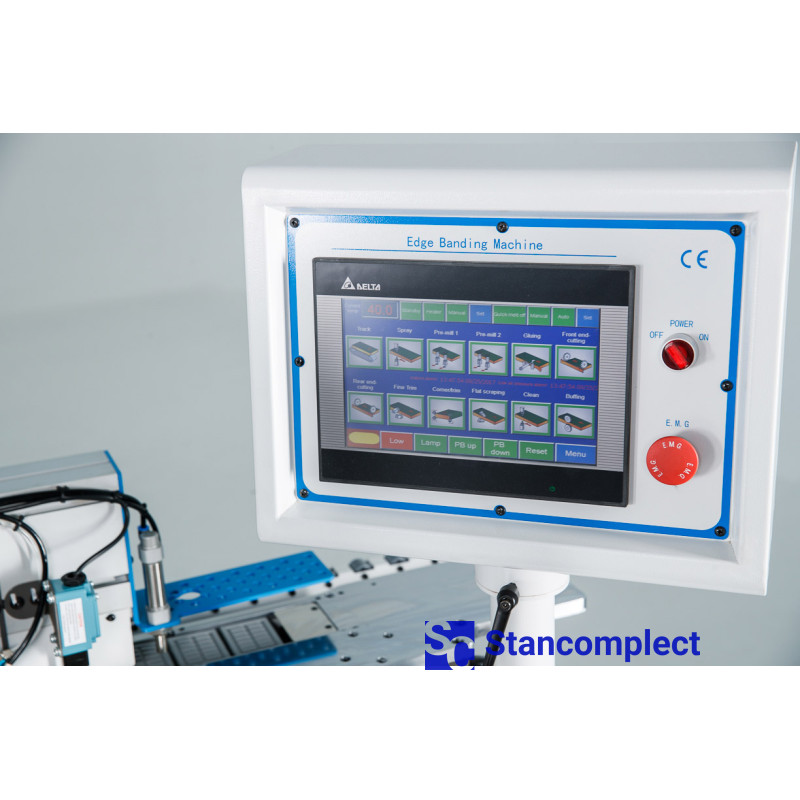

The machine is controlled using a special remote control equipped with an industrial display with a “Touch screen” system. The on/off icons of units and assemblies on the display are intuitive and do not require special skills to operate the machine.
Possibility of programming technological interruptions of glue bath heating.

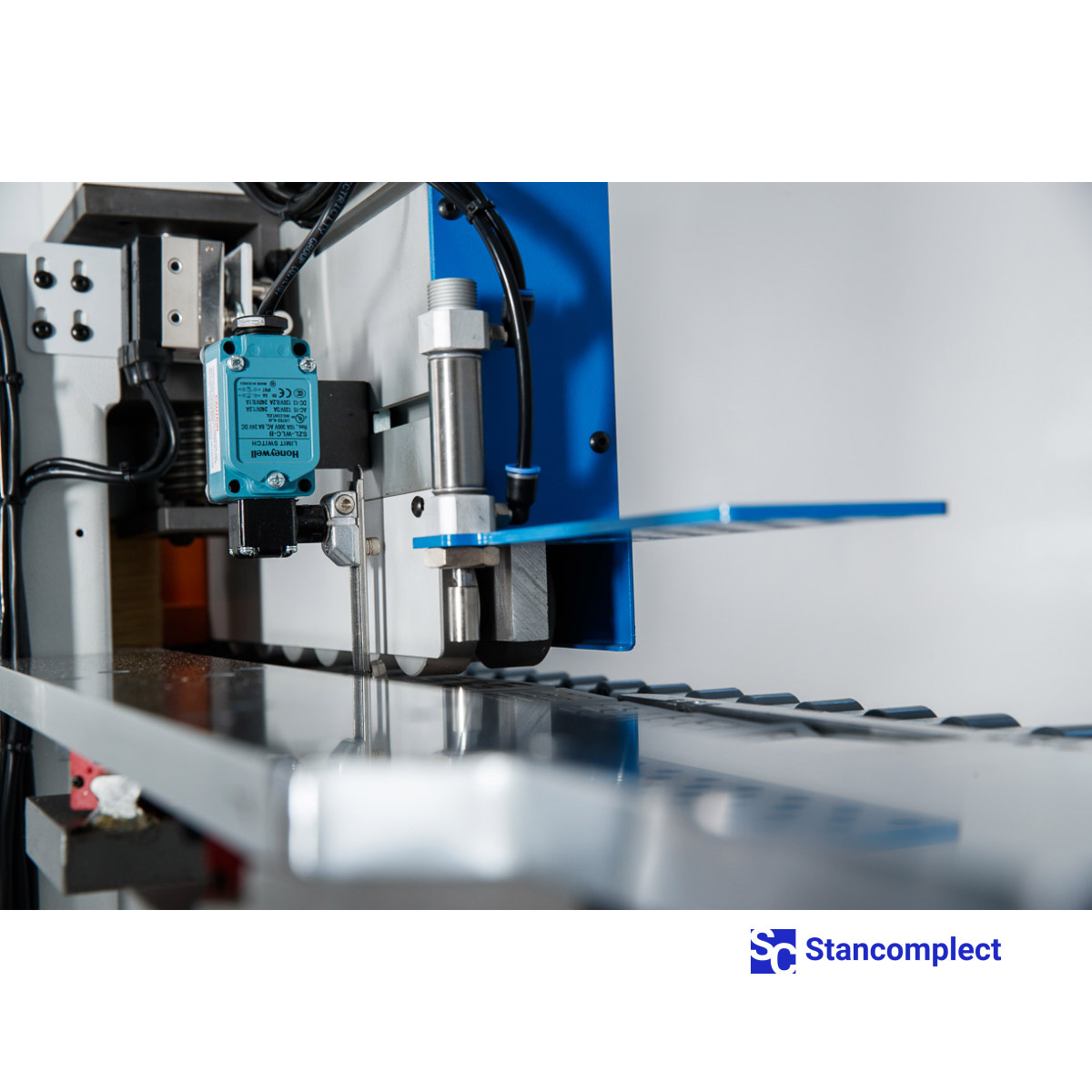

The workpiece feed dispenser rod controls the minimum distance between workpieces, preventing damage to machine components during operation.

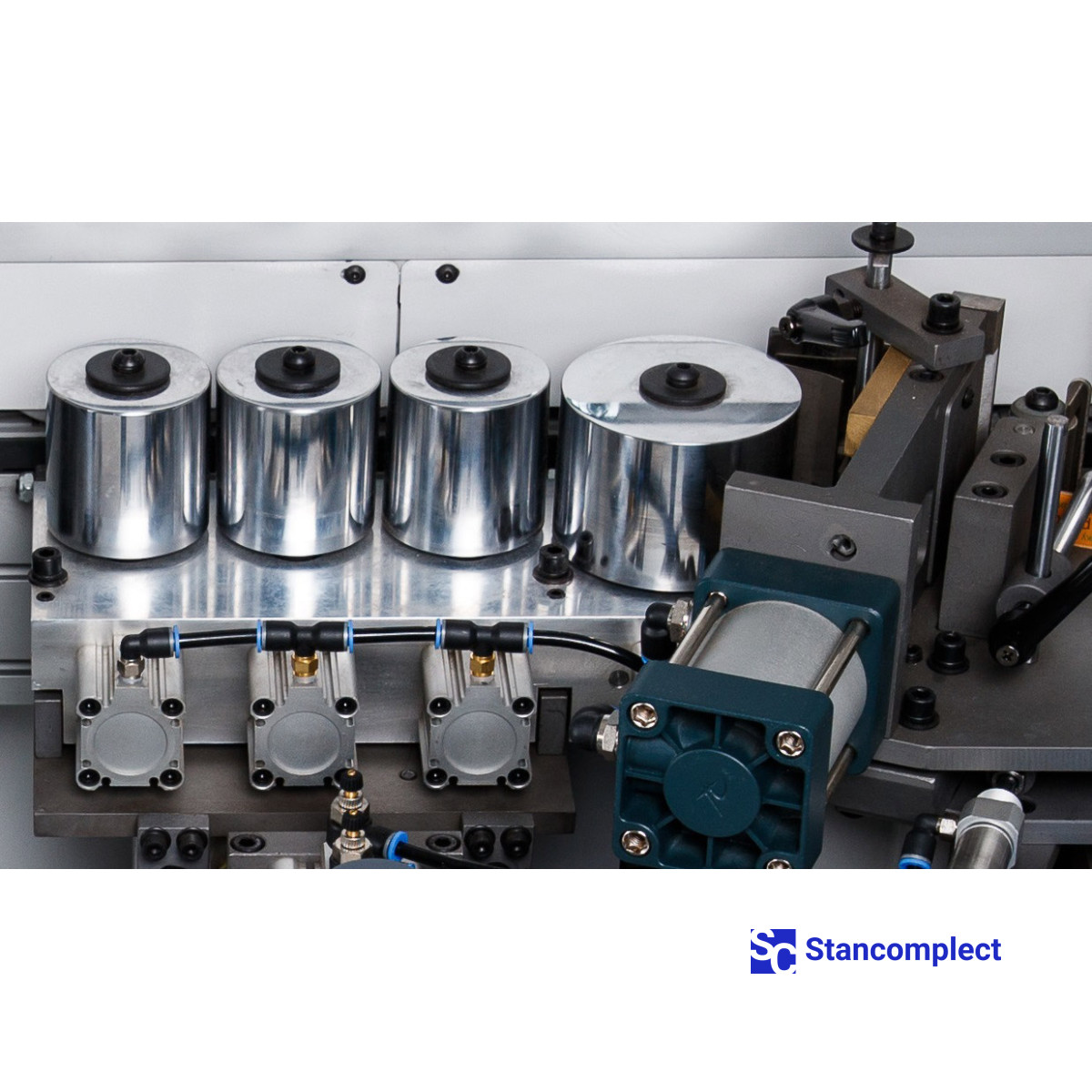

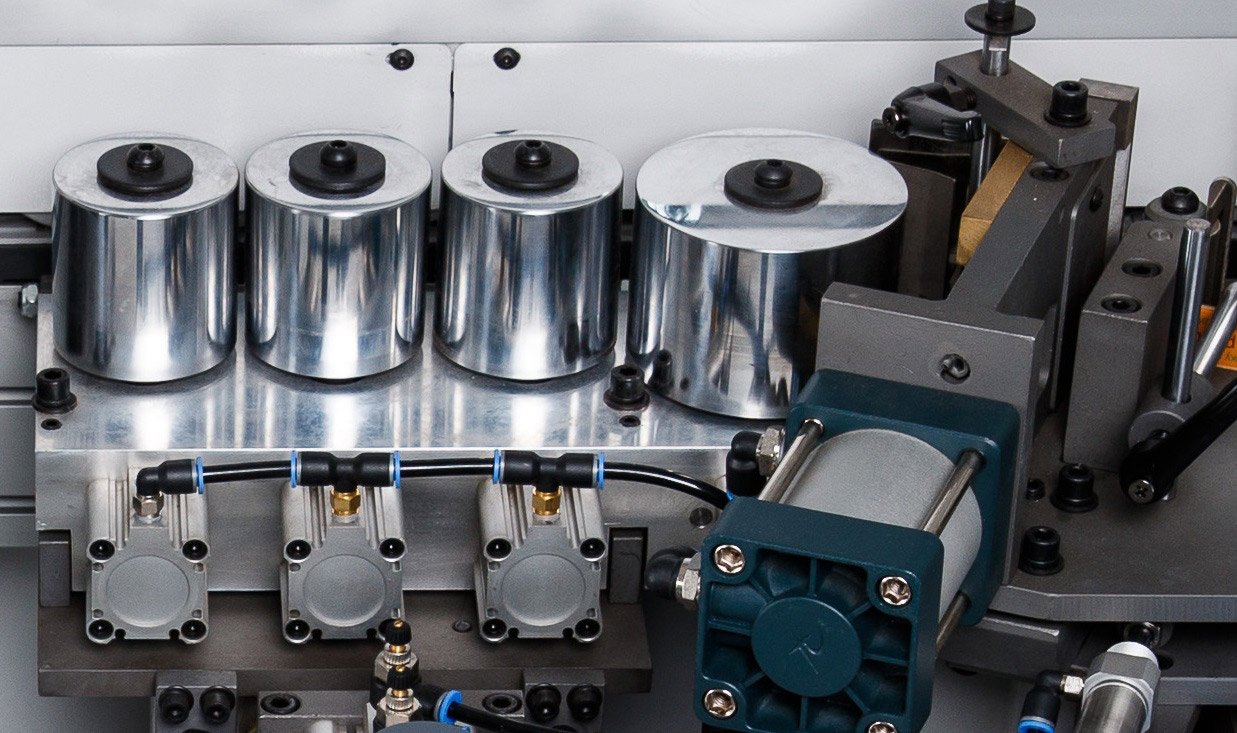

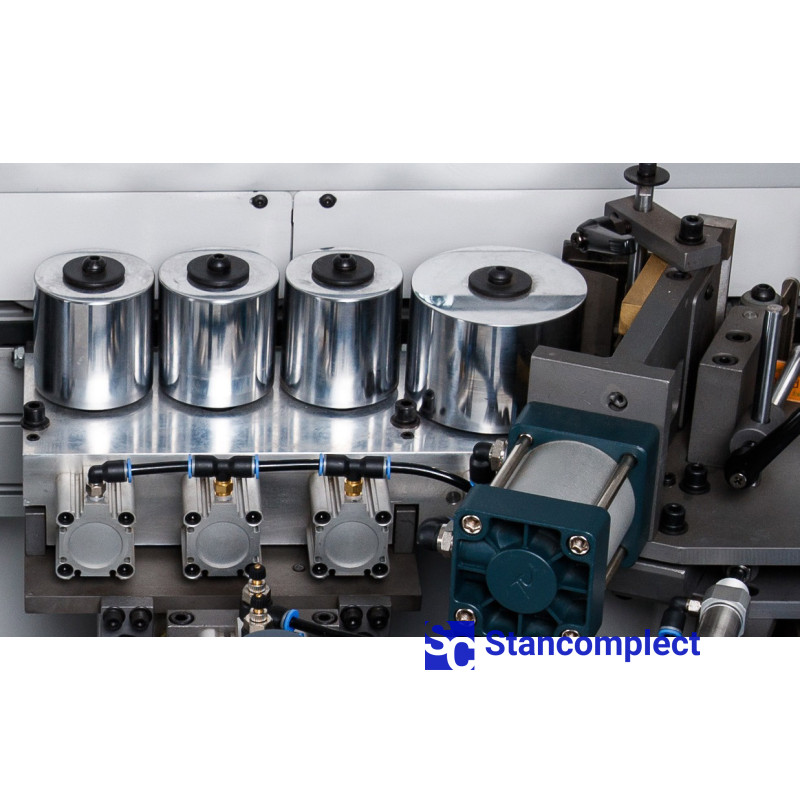

The pressure unit consists of 4 rollers, which are driven by pneumatics, which guarantees an even distribution of forces on the edge during gluing. Of the 4 rollers, 2 rollers have a different cone, which ensures the distribution of the clamping force over the thickness of the part. 2 cylindrical rollers apply pressure throughout the thickness of the part, and 2 conical rollers are concentrated on the lower and upper parts of the part. The powerful pneumatic cylinder of the pre-cutting knife handles the thick edge well.

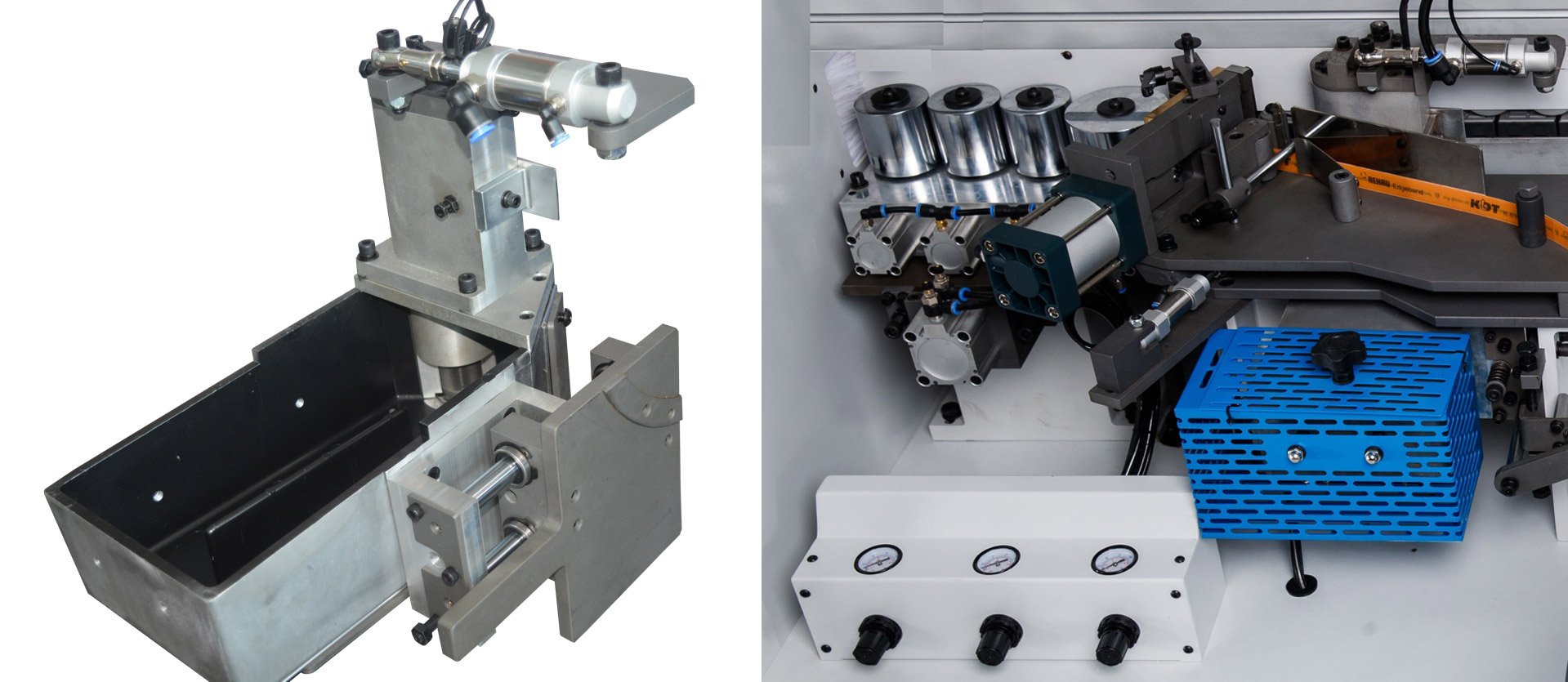

Glue bath with non-stick coating. Glue heating can be programmed taking into account technological breaks.

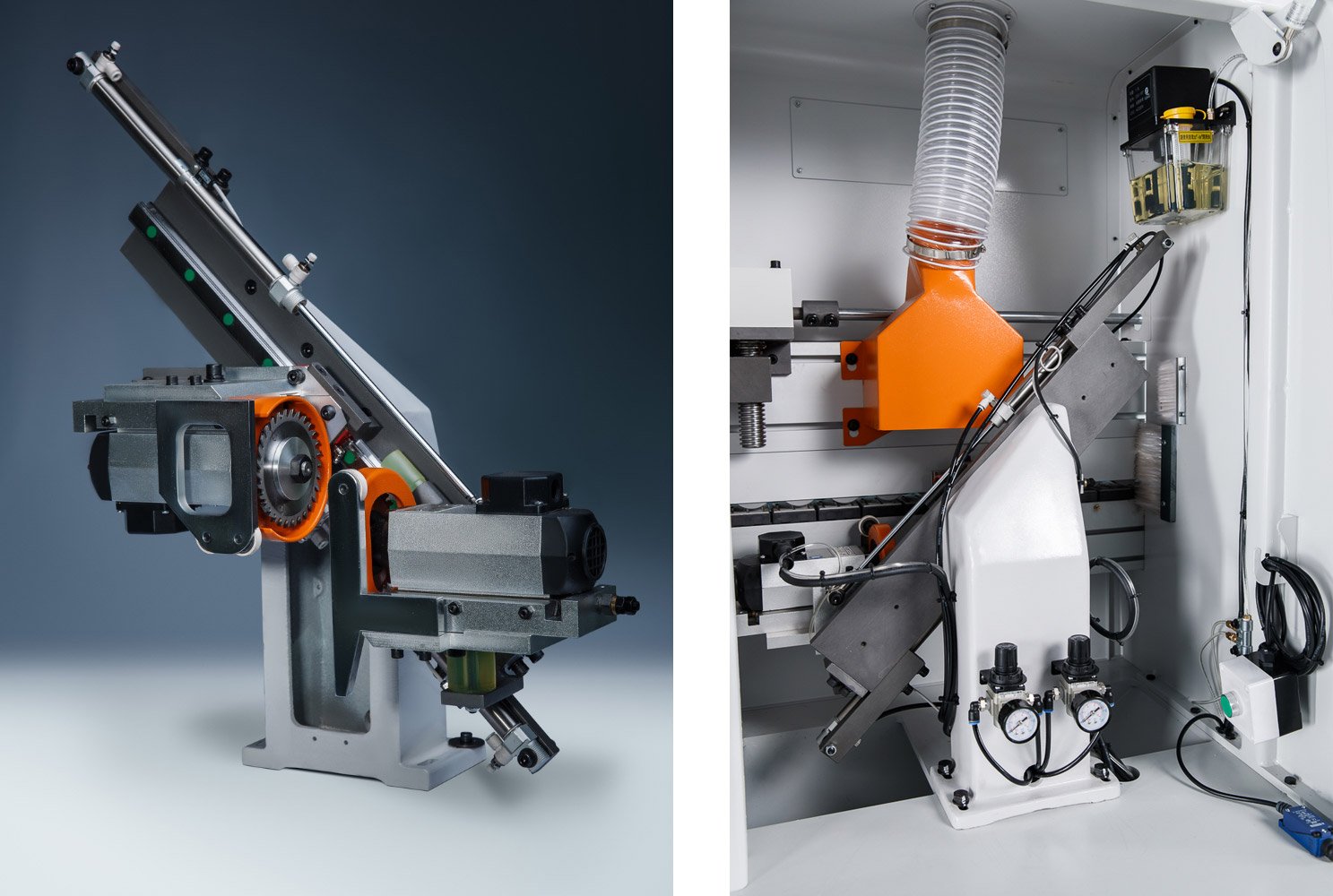

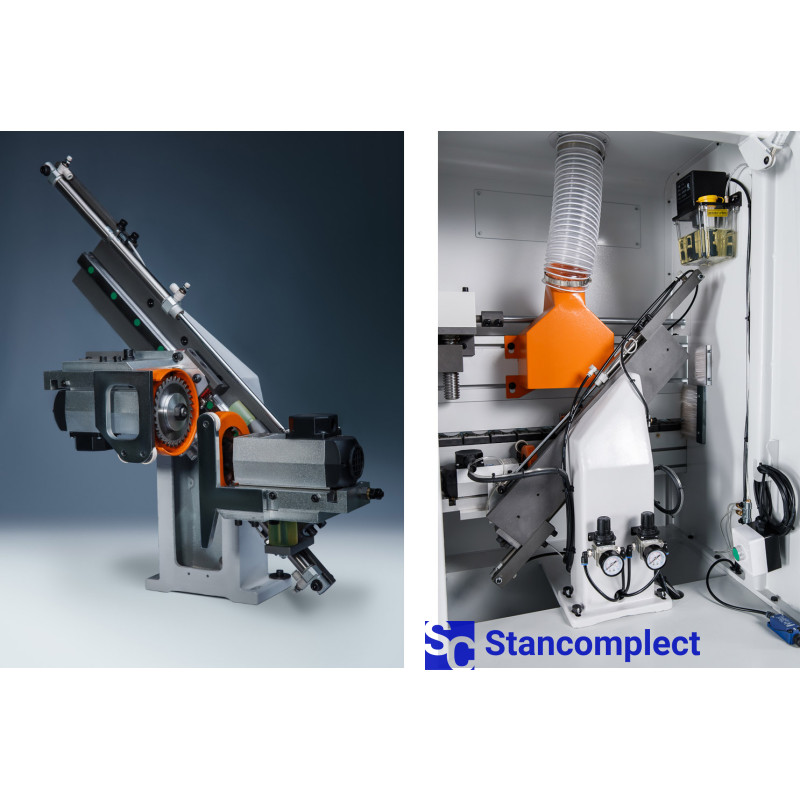

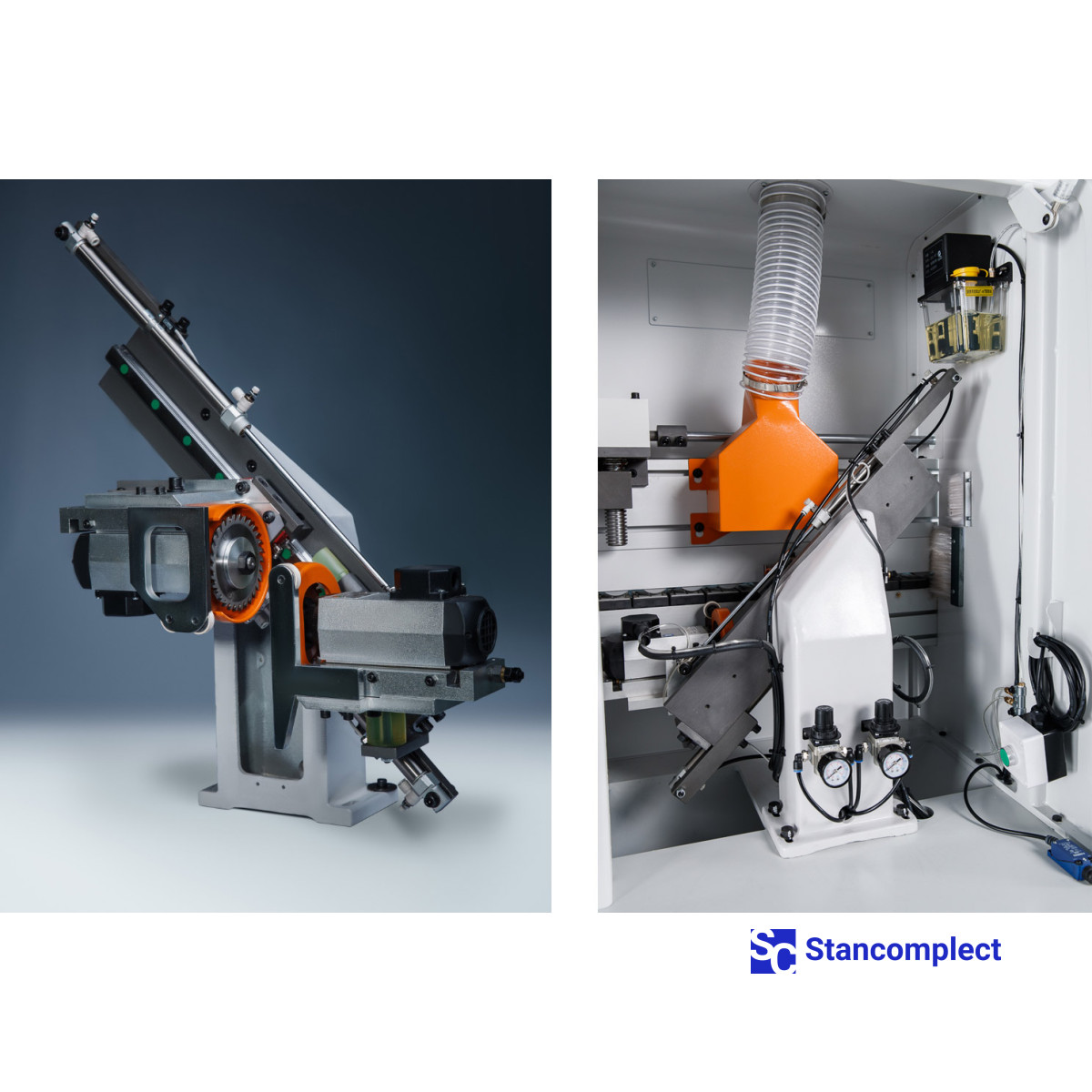

The end trimming unit is equipped with two high-frequency electric motors, and the movement of the saw units is carried out along special linear guides. The unit is equipped with an automatic lubrication system for the guides.

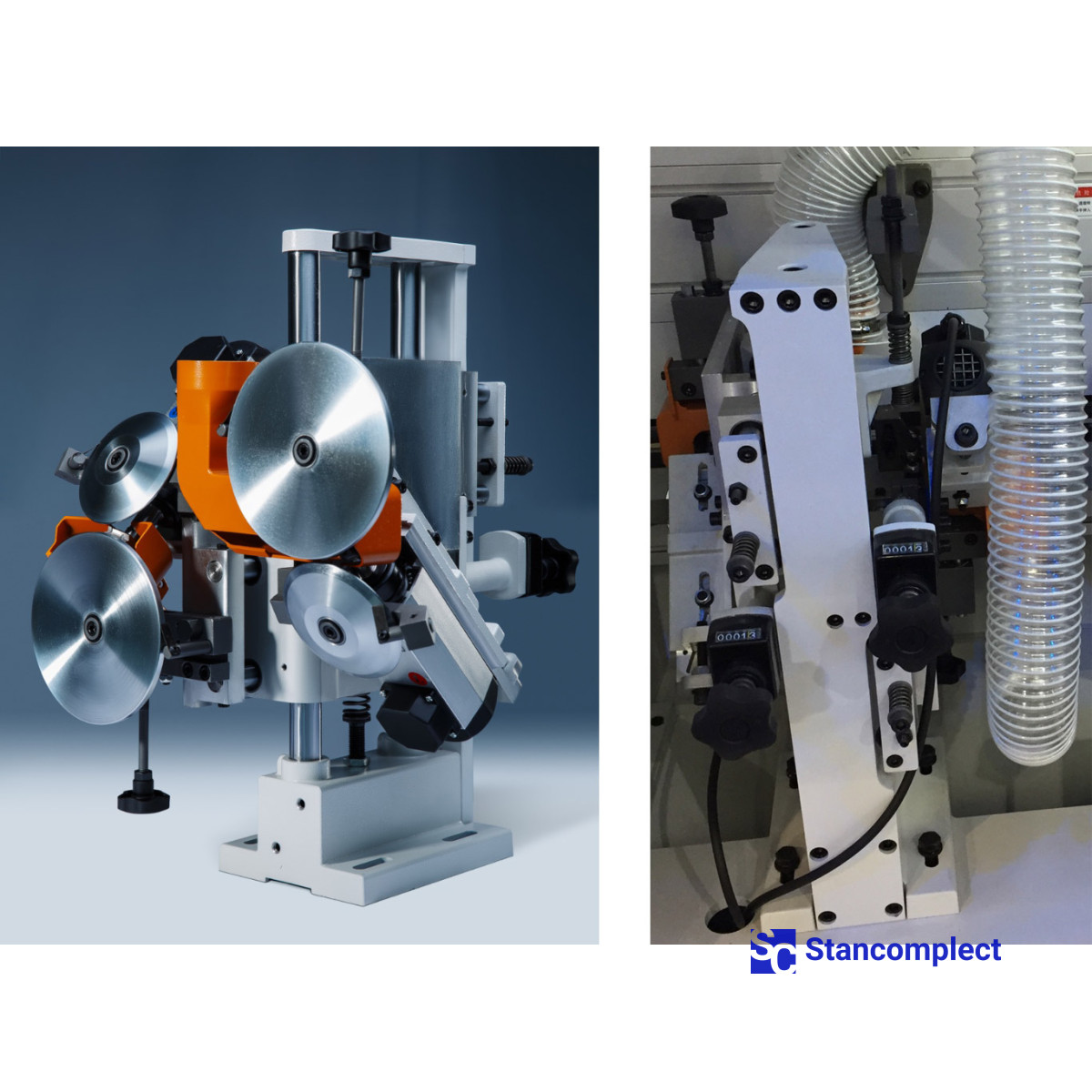

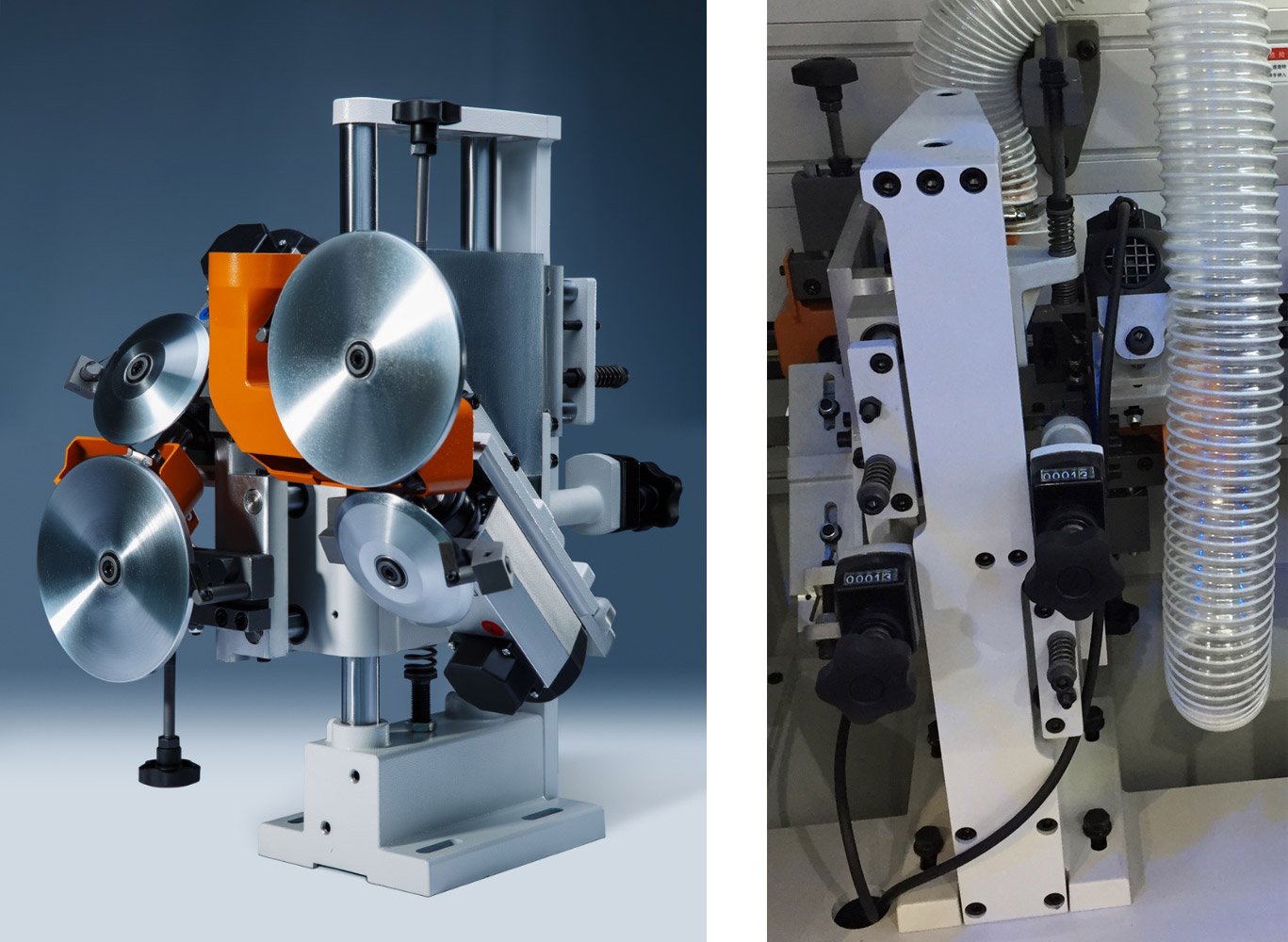

The milling unit consists of two high-frequency electric motors equipped with radius cutters, which allow processing edge material with a thickness of 0.4 - 3.0 mm. The part is tracked by two large round cams (on each motor) mounted on a floating assembly, this design prevents scrap during milling.

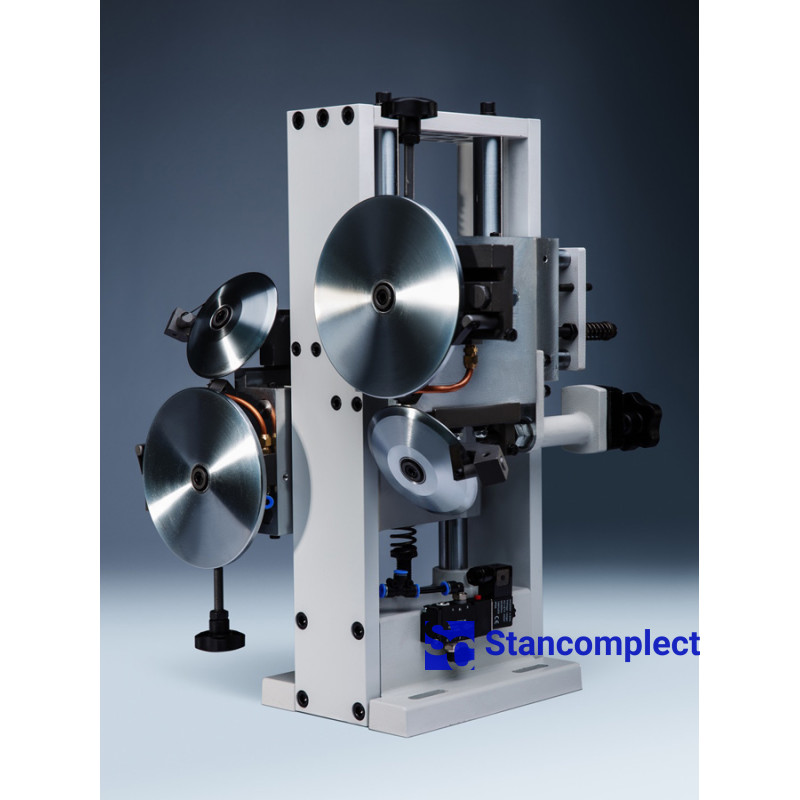

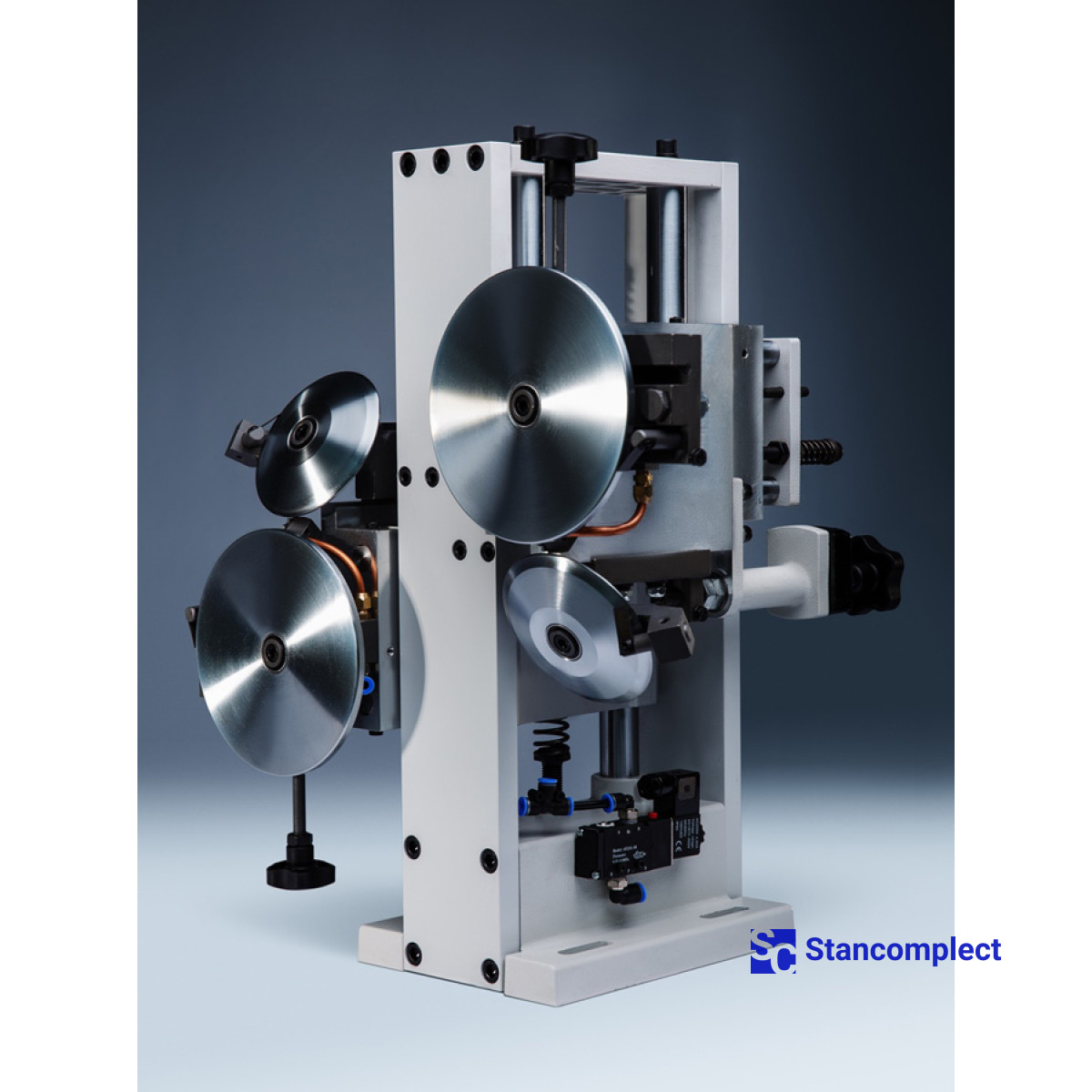

Radial scraping with two carbide radius knives, which, after milling a 2.0 mm thick edge, remove a thin layer from the milled part of the edge, as a result we get a smooth machined surface.

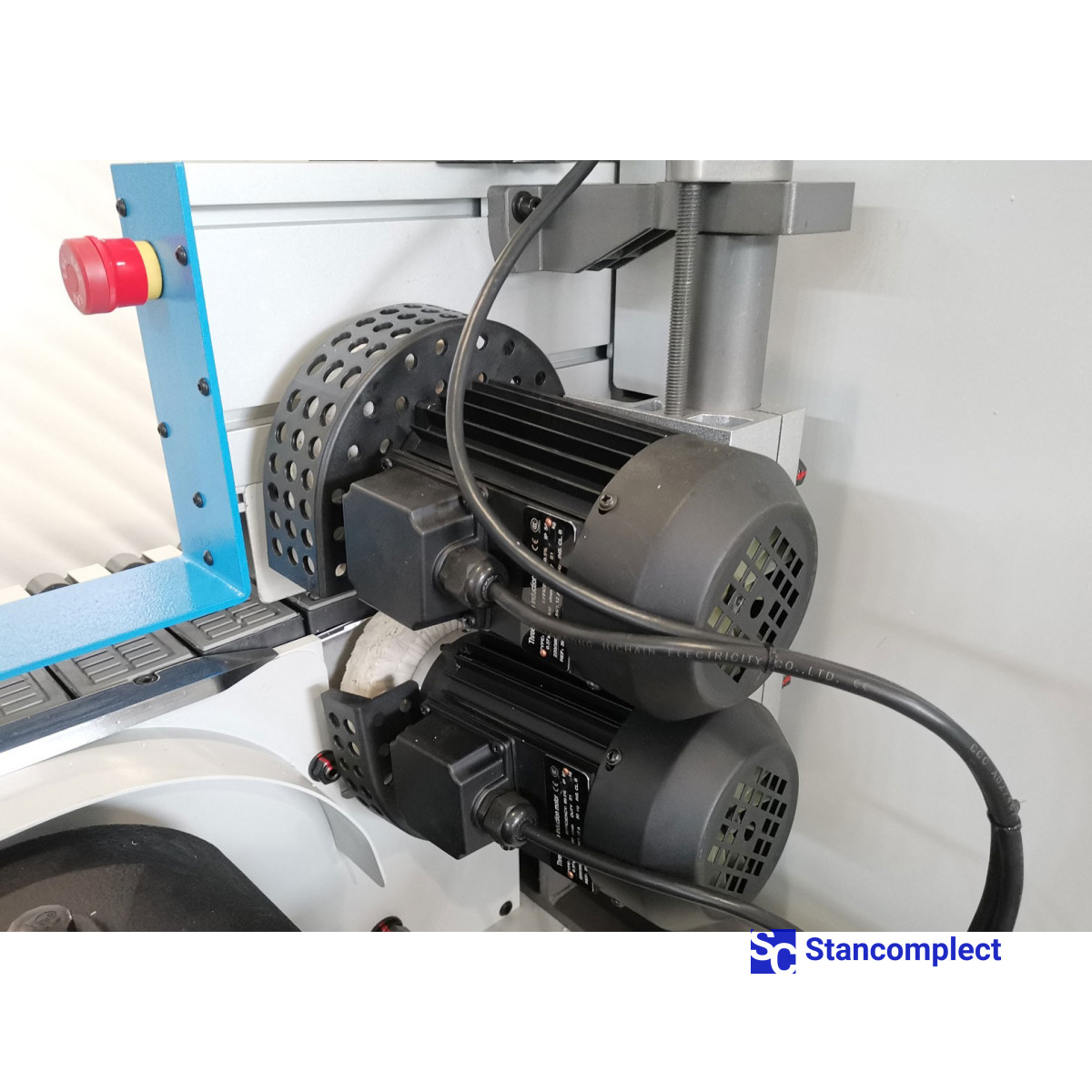

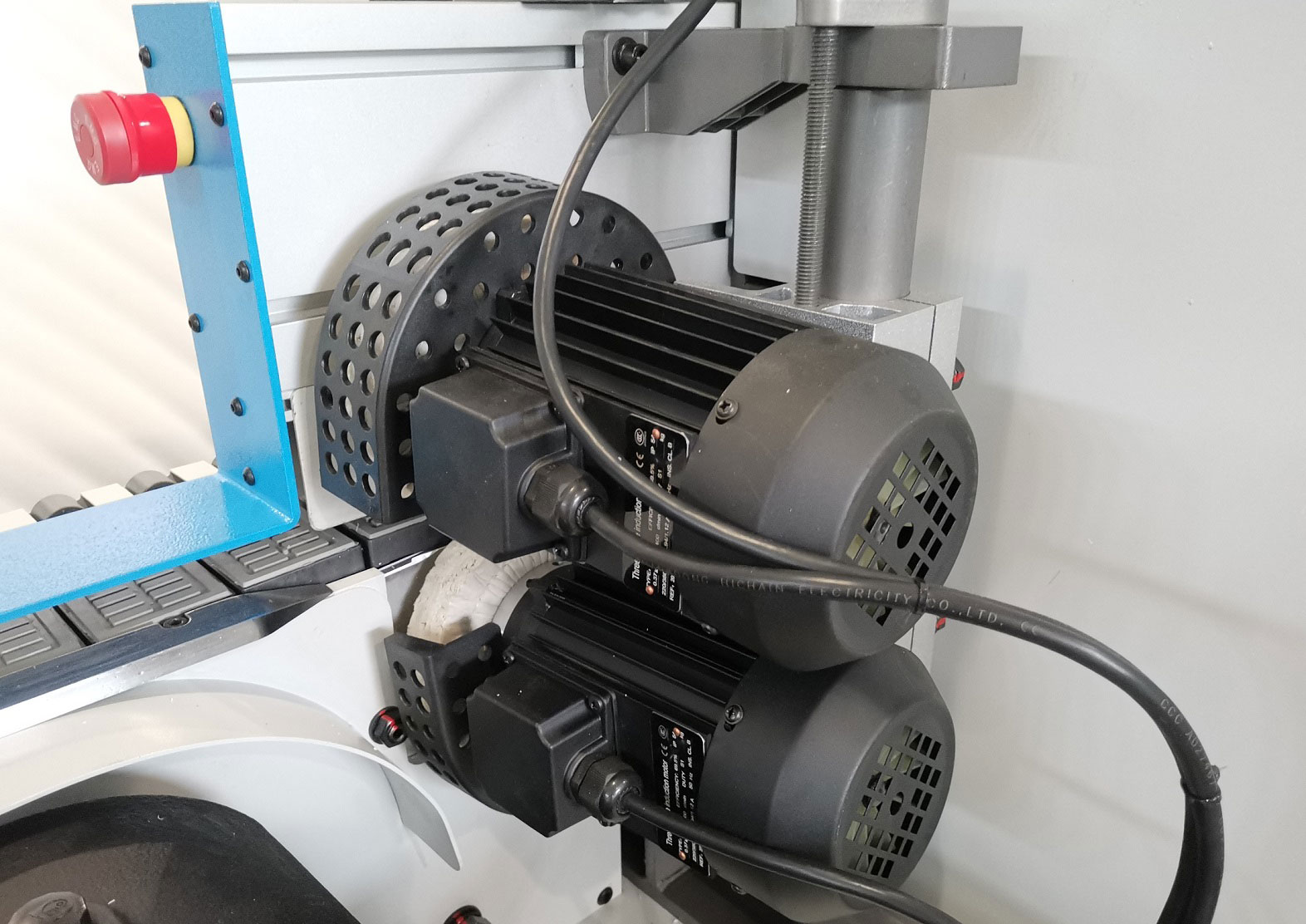

The polishing unit polishes the processed part of the edge. For safety, the unit is equipped with additional protective covers.

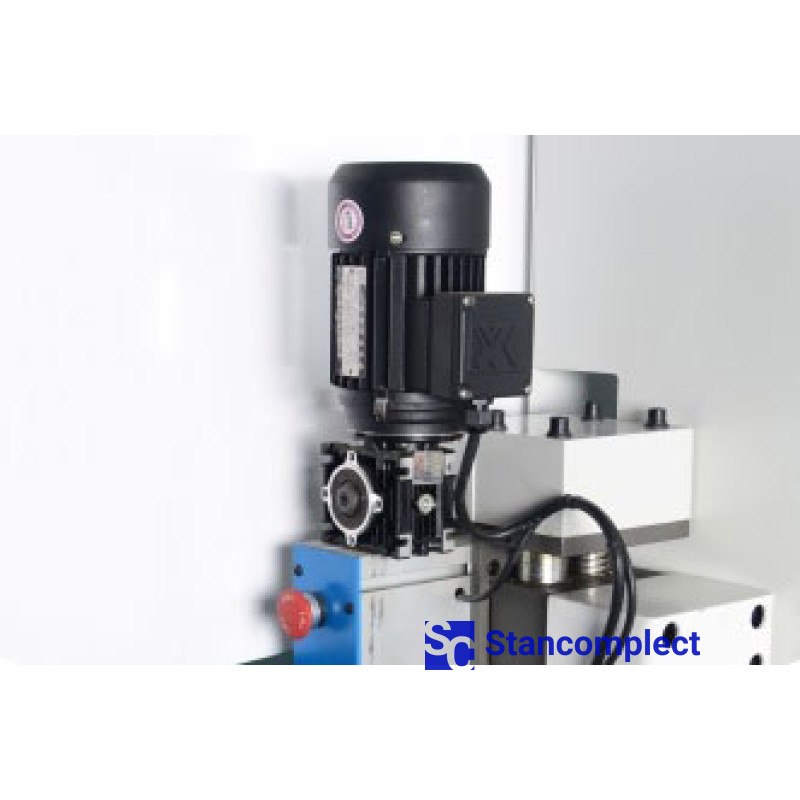

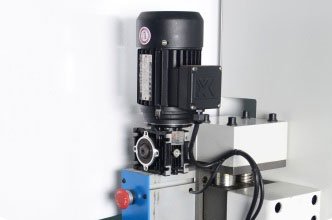

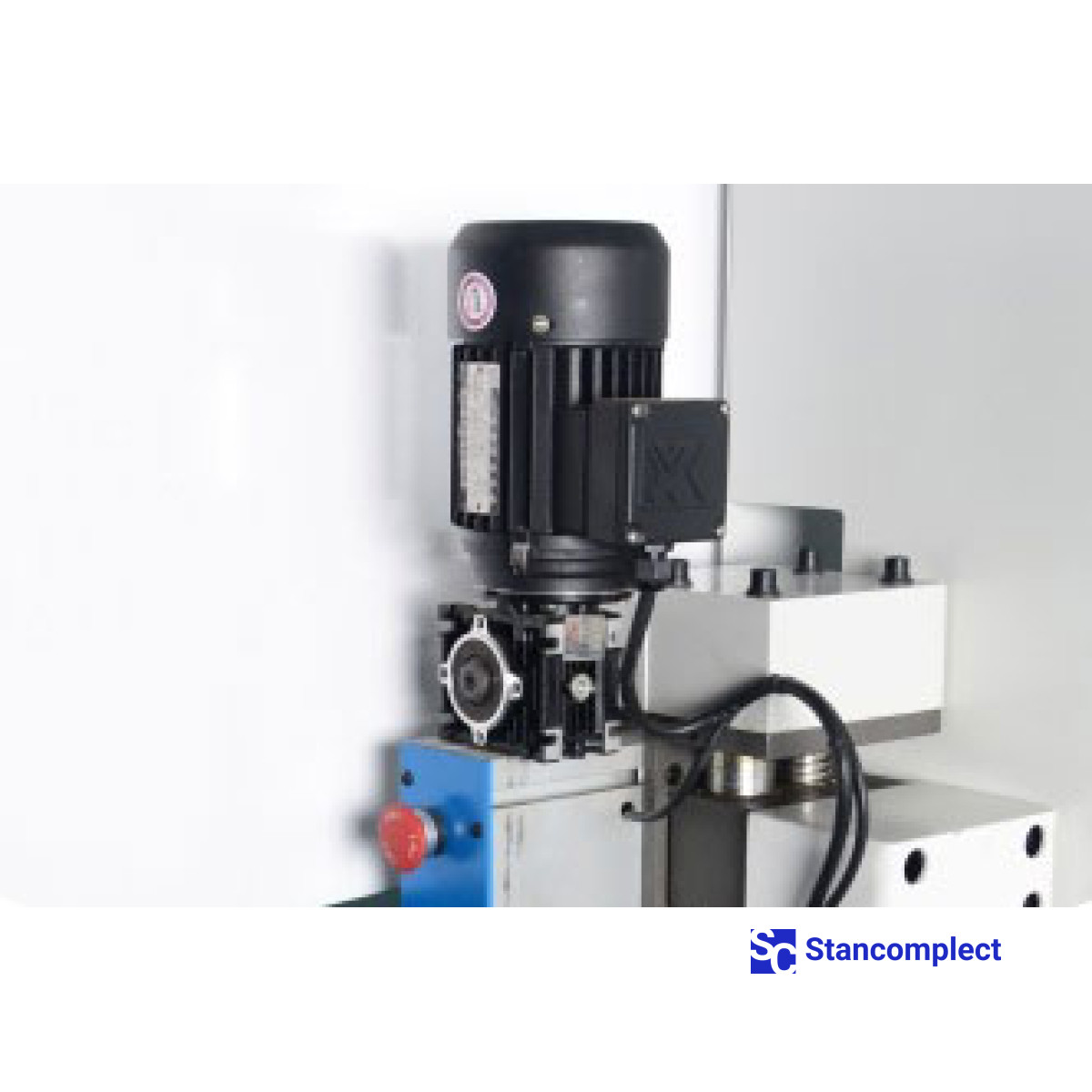

The mechanism for lifting/lowering the clamping traverse is equipped with an electric drive, which ensures fast and accurate installation to the required thickness of the part.

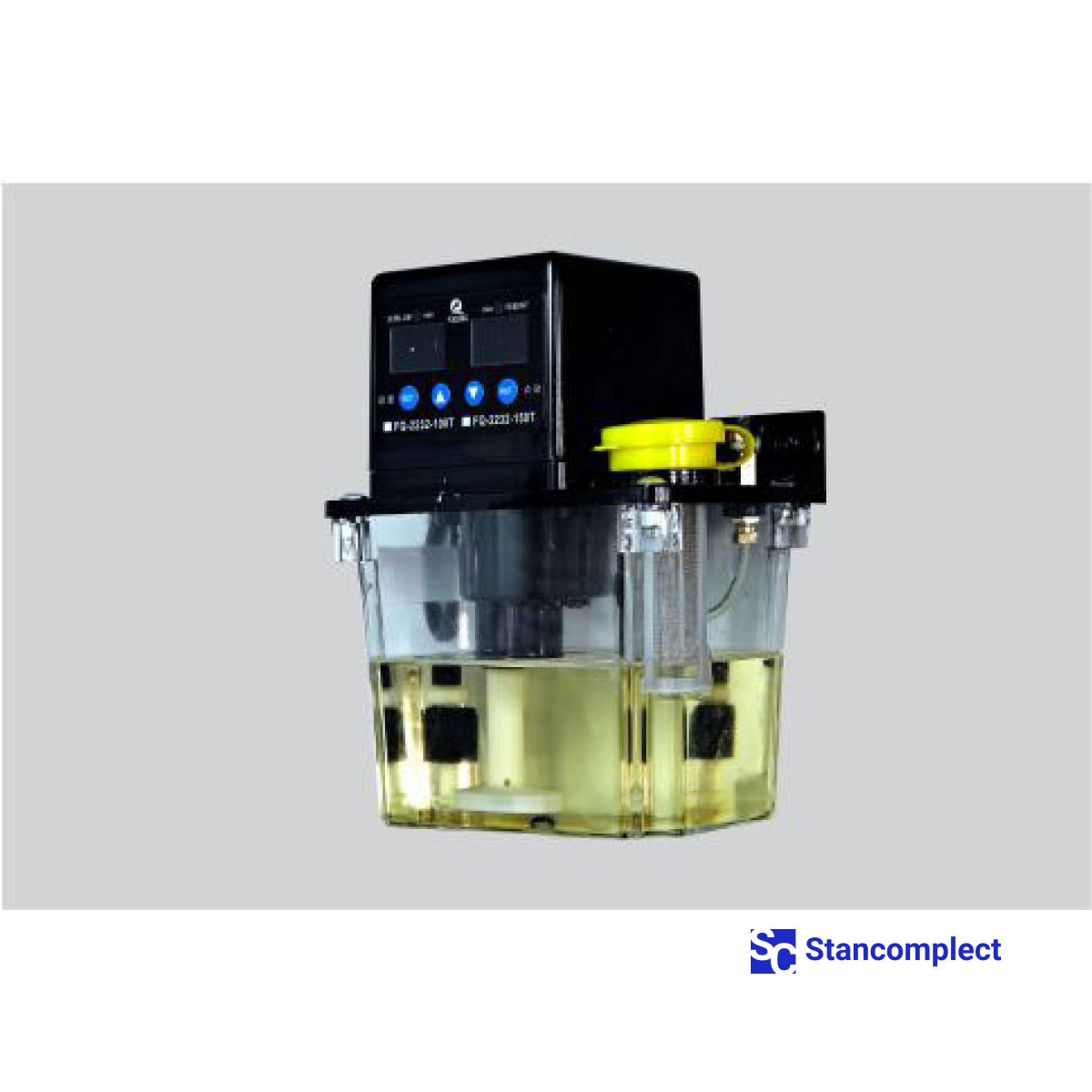

The centralized lubrication unit automatically lubricates the guides of the trimming unit.

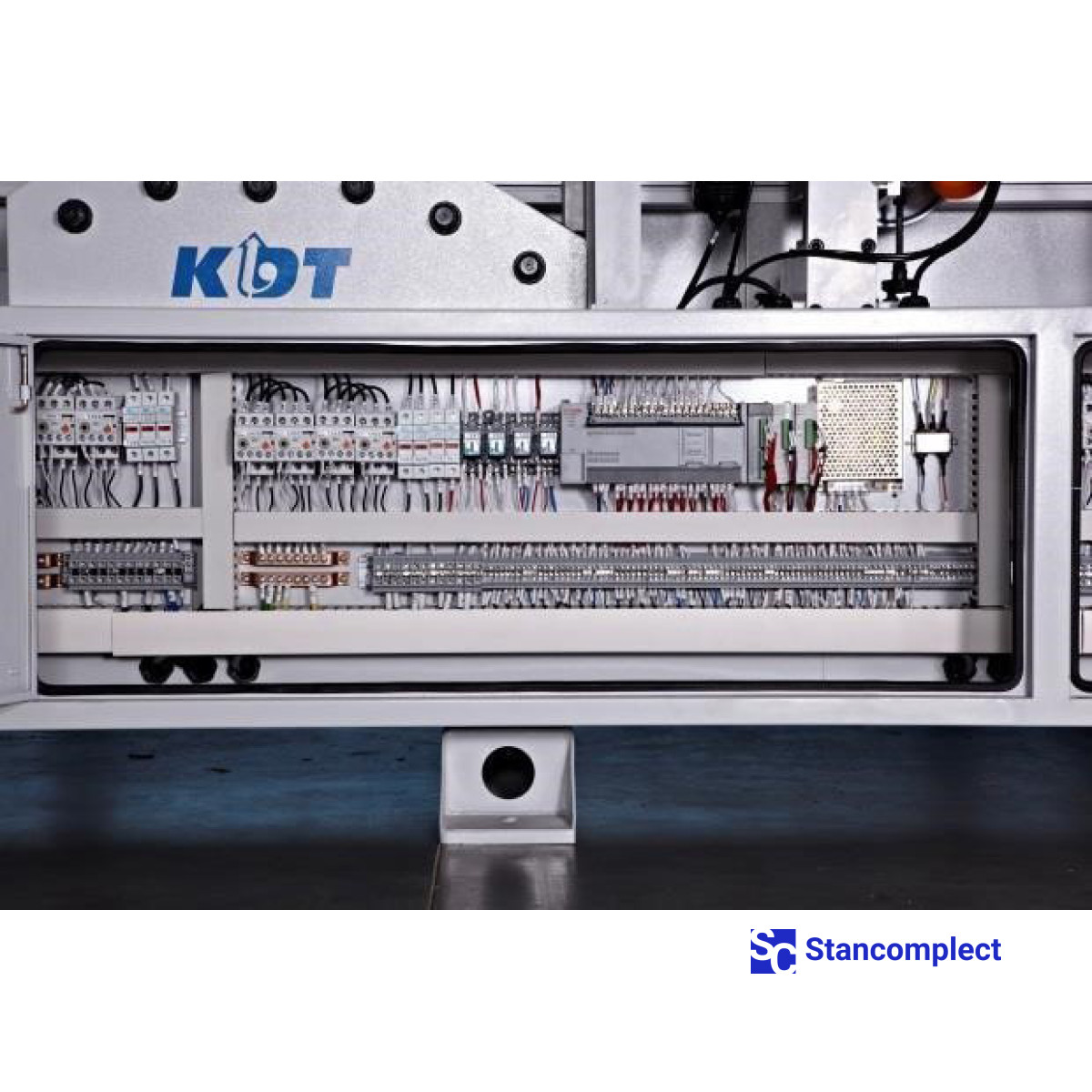

The electrical components are made in accordance with CE standards.
The doors of the machine cabin are sheathed with a layer of noise insulation made from foamed polyurethane foam, which allows you to achieve comfortable work with the equipment.
