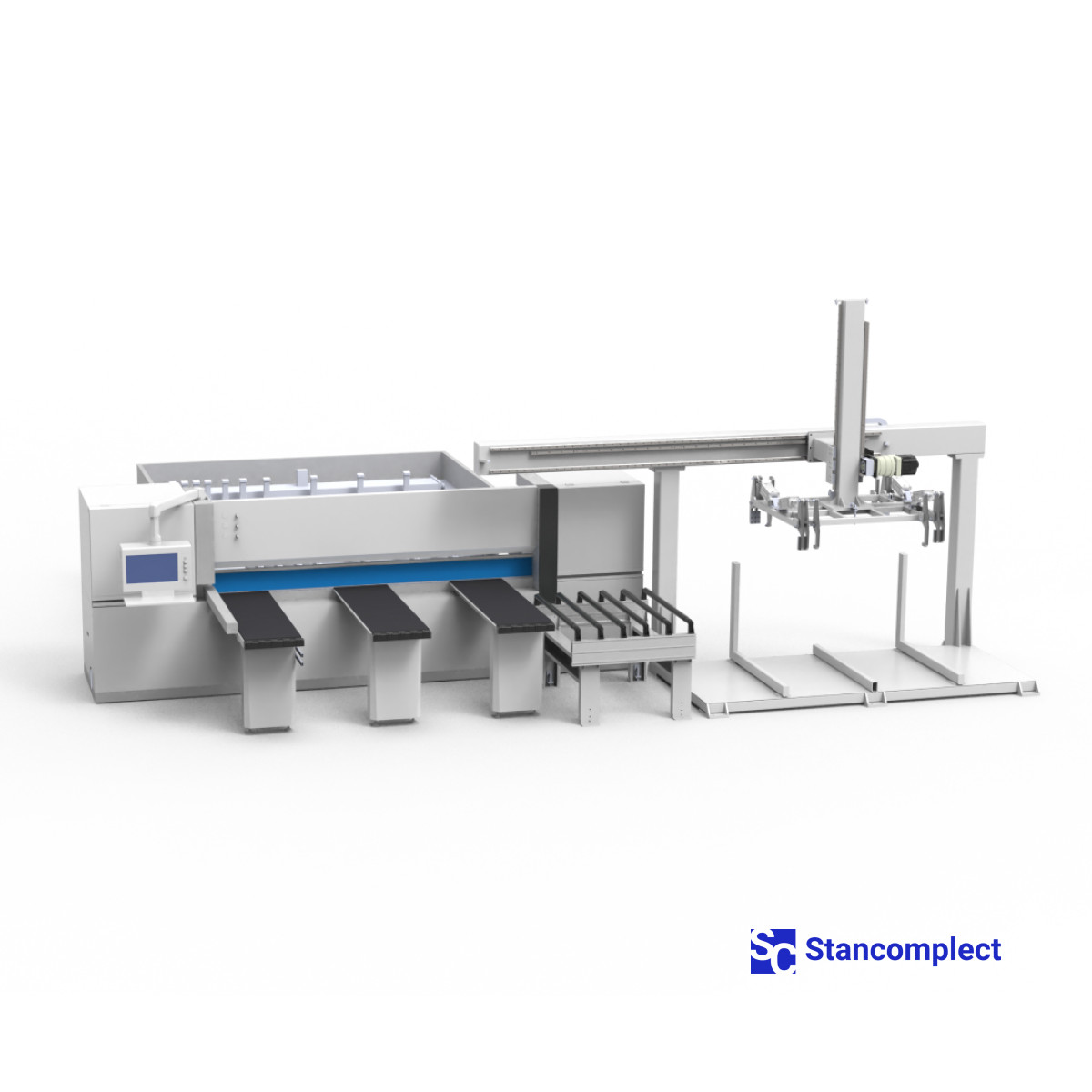

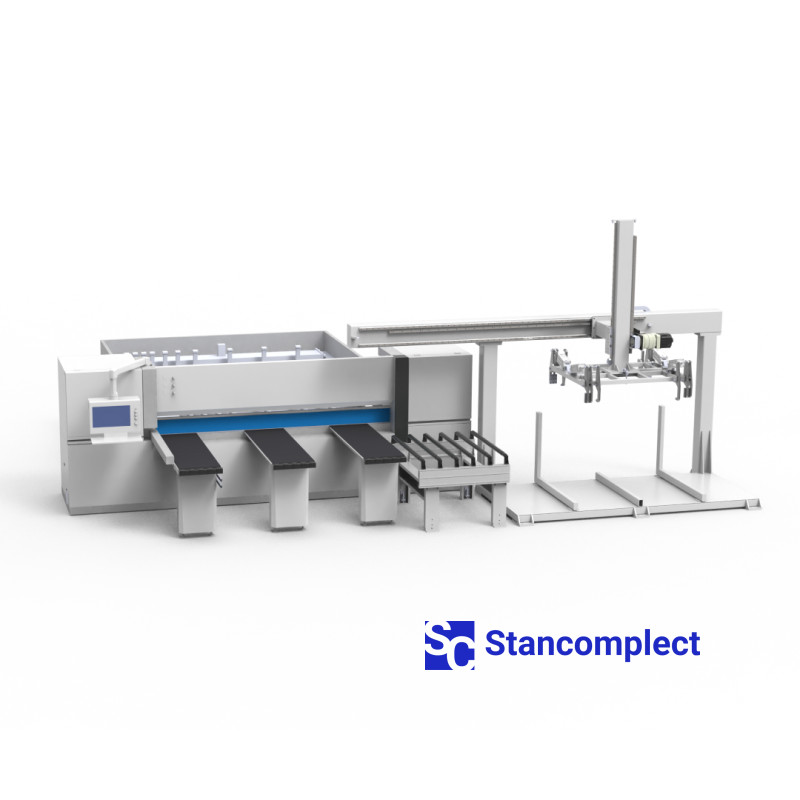

Auto gantry loader KDT KHG-2209 is designed for loading sheets of panel material up to 2800 x 2100 mm in size onto CNC beam saws. The gantry loader can be installed on the left or right side of the machine, depending on the machine model and production needs. Automatic sheet stack height detection is synchronized with the CNC beam saw software.
OPTION: Option with vacuum modules for loading one sheet of material.
Specifications:
- Max. workpiece size (package of workpieces) – 2800x2100 mm.
- Max. material weight – 500 kg.
- Max. height of a stack of material sheets on a platform – 1450 mm.
- Max. stack height when loading into the CNC beam saw – 120 mm.
- Dimensions (LxWxH) – 3260x2460x3750 mm.
- Loader weight - 2500 kg.
