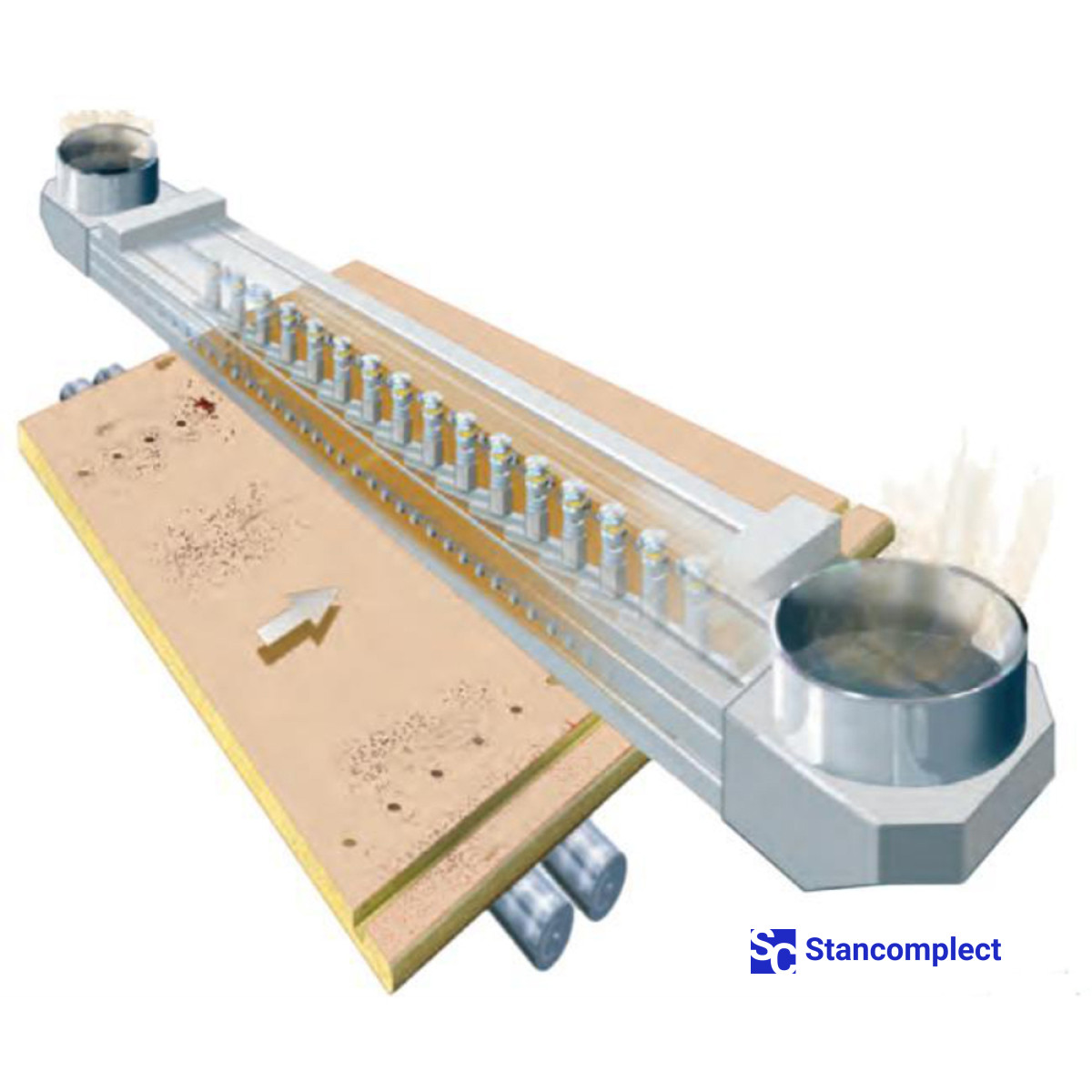

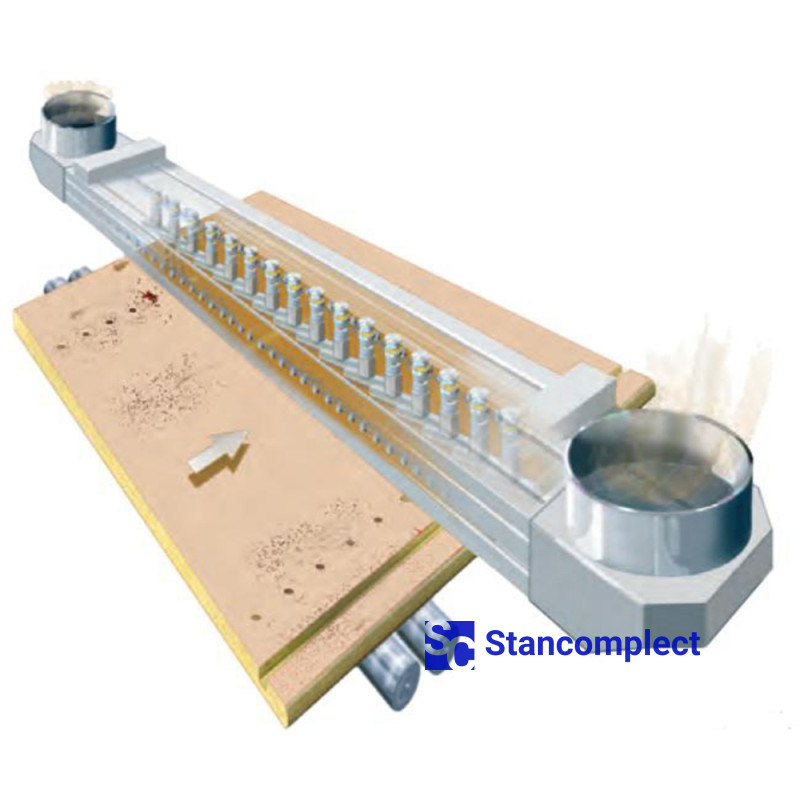

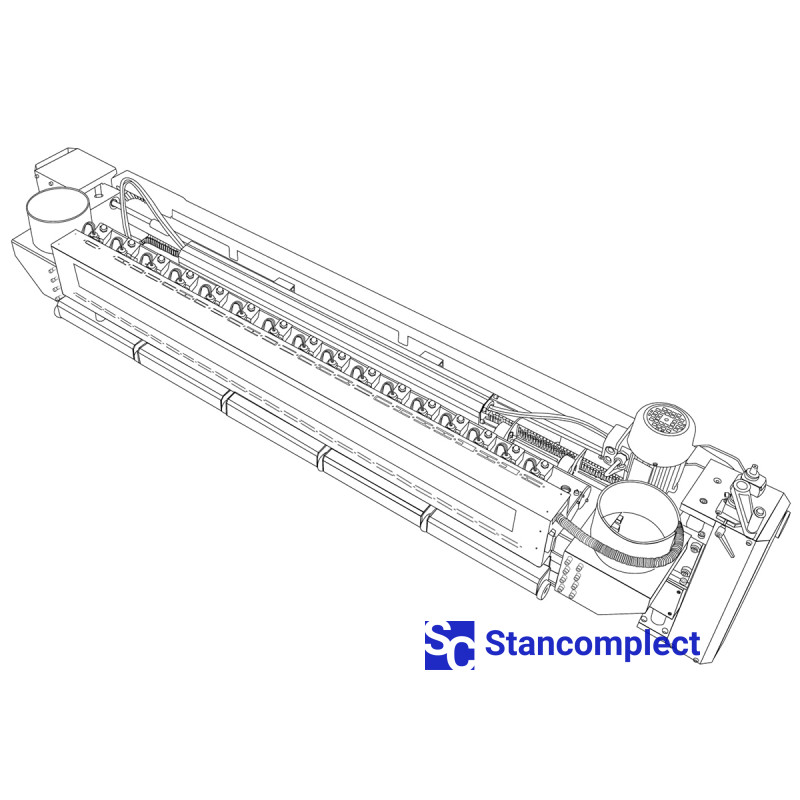

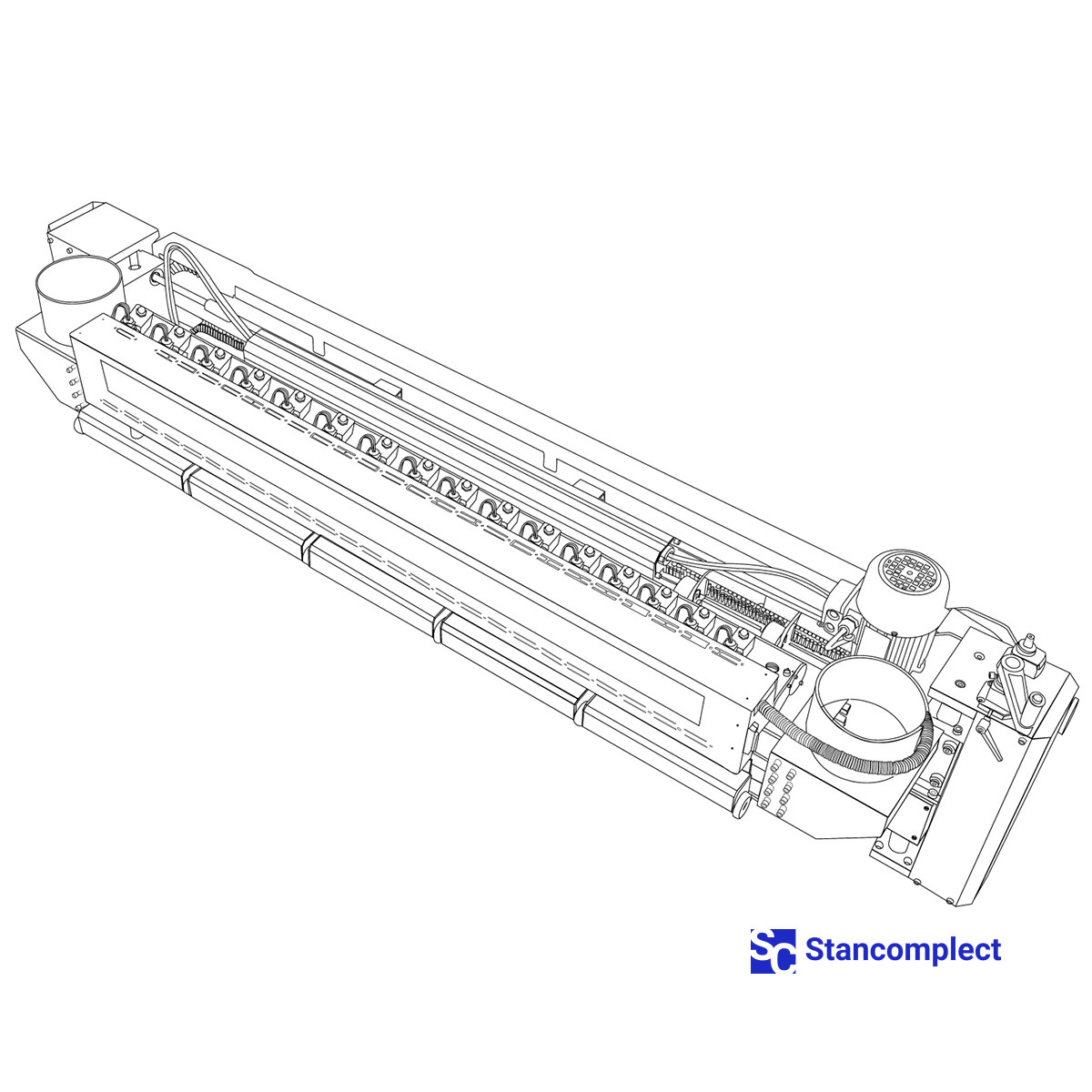

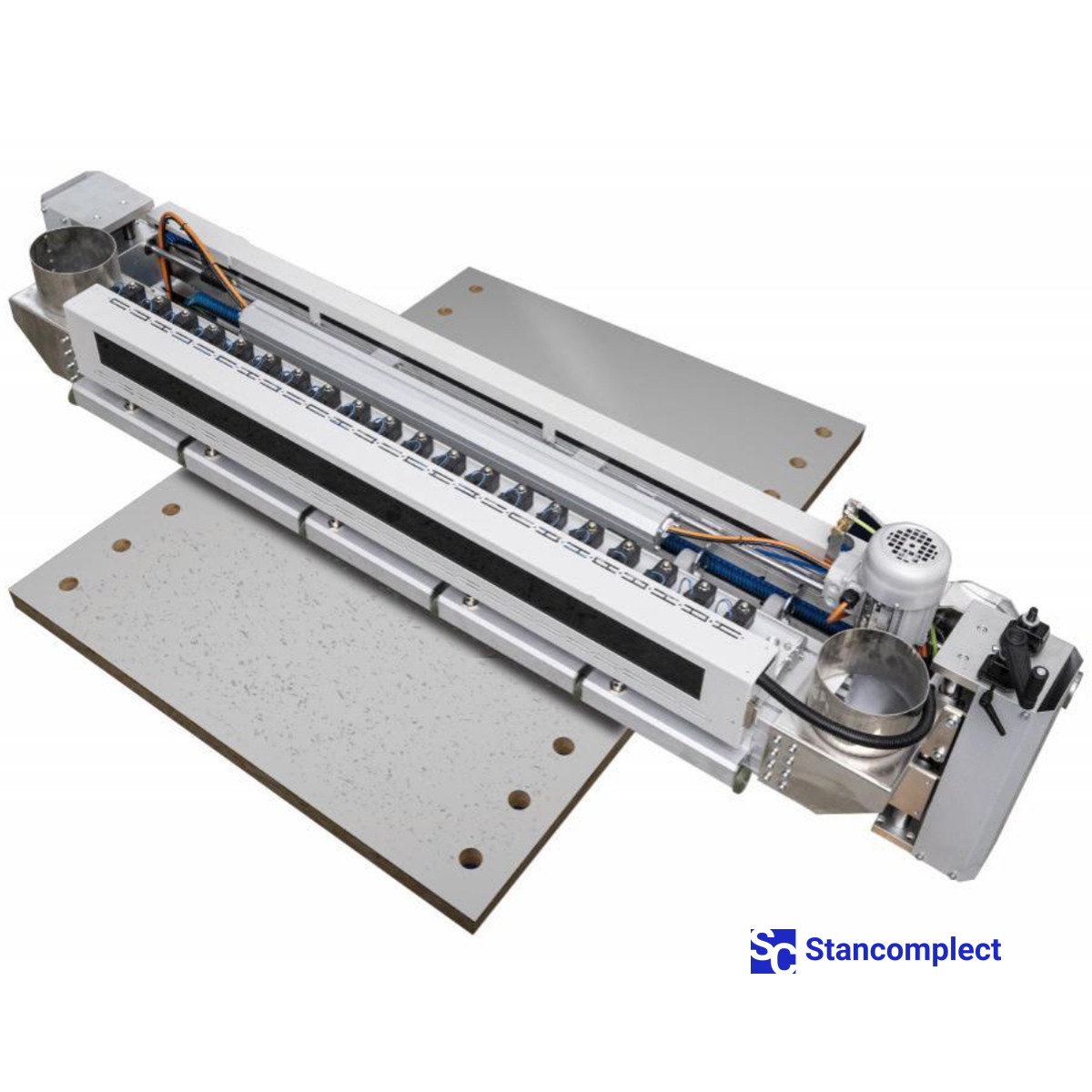

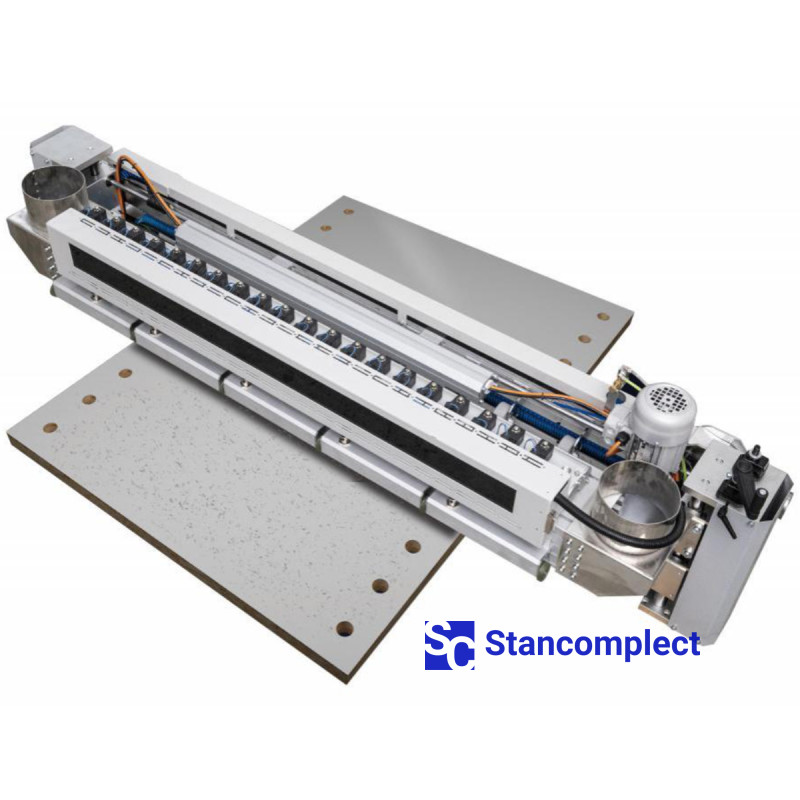

Automatic parts cleaning system

Automatic system for cleaning parts after drilling, grooving and edge banding. It is produced in two versions - for parts with a width of 1000 and 1400 mm.

Scope:

• Dust cleaning of the upper and lower surfaces of flat sheets.
• Cleaning of panels after cutting.
• Cleaning of panels before gluing or printing.
• Cleaning of panels before and after edge sealing.
• Surface cleaning before drilling.
• Cleaning before packaging.
• Removing of dust inside holes after drilling and grooving.
• Cleaning before laminating and painting.

Advantages of the automatic dust cleaning system:

• Replaces manual cleaning.
• Saves manpower.
• Integration into automatic lines.
• Reduction of production time.
• Customized retrofitting.
• Economy of production space.

Characteristics:

• Brush material - Polyamide.
• Max. width - 1000/1400 mm.
• Min. width - 120 mm.
• Max. length - Unlimited.
• Min. length - 280 mm.
• Thickness - 1-100 mm.
• Feed - ≤25 m/s.
• Horizontal swipe speed - 90 m/min.
• Max. surface temperature - 50°C.
• Machine external dimensions - 1620/2020x450x450 mm.
• Diameter/number of dust extraction outputs- 150 mm/2; 60 mm/2.
• Dust extraction air volume and speed - 1150 m³/s; 28 m/s.
• Power supply and power - 380V/50Hz; 075 kW.
• Working pressure and air consumption - 6 ATM; 10 l/min.
• Brush belt length - 2600/3400 mm.
