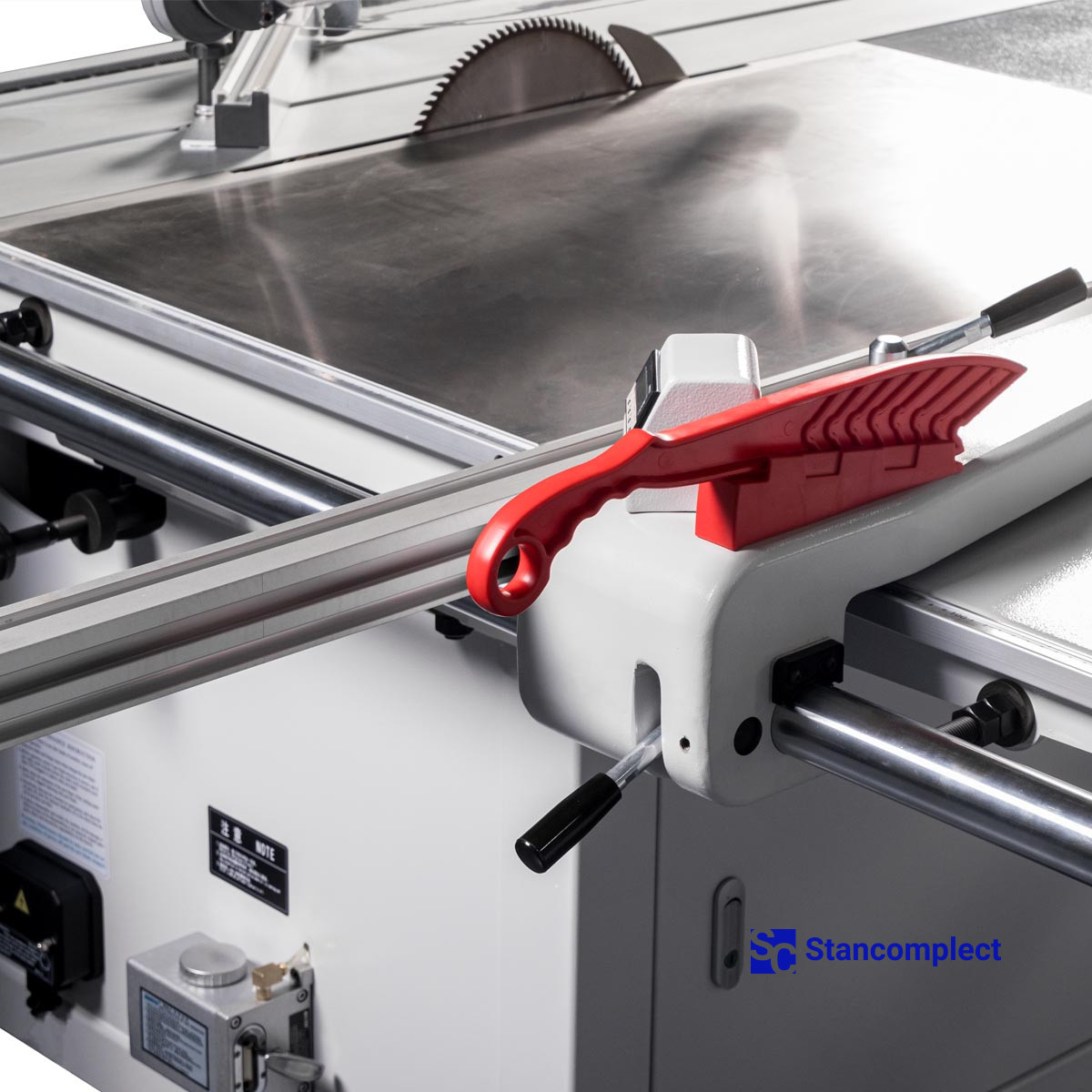

Sliding table saw KS-132C from KDT Machinery with carriage size 3200*430 mm is designed for fine cutting of sheet material (LDSTP, MDF, plywood, solid wood panels, etc.) into blanks according to specified dimensions. The format worker is designed to work under increased loads and can work in 2 shifts.
- Roller carriage 3200x430 mm - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine.
- The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them.

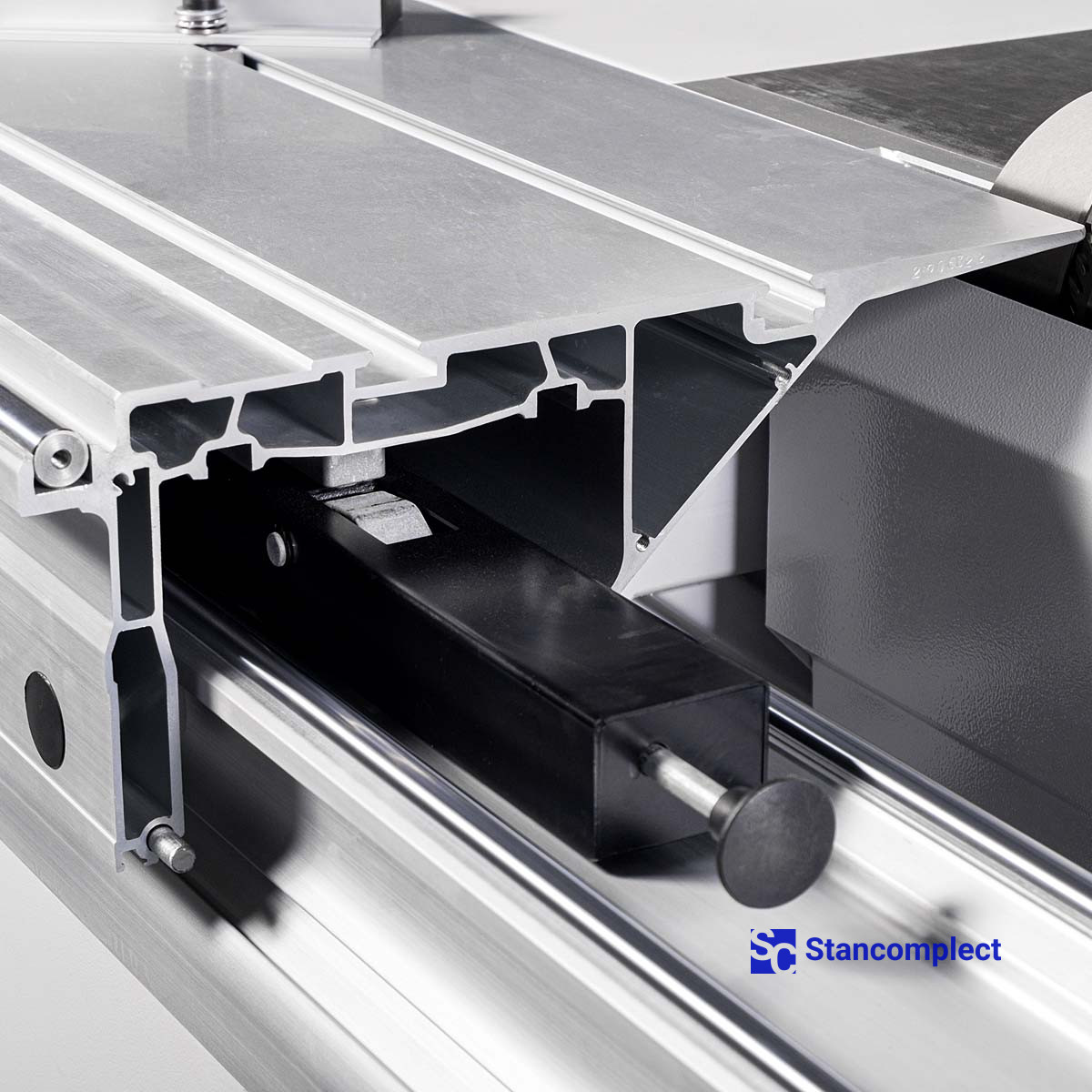

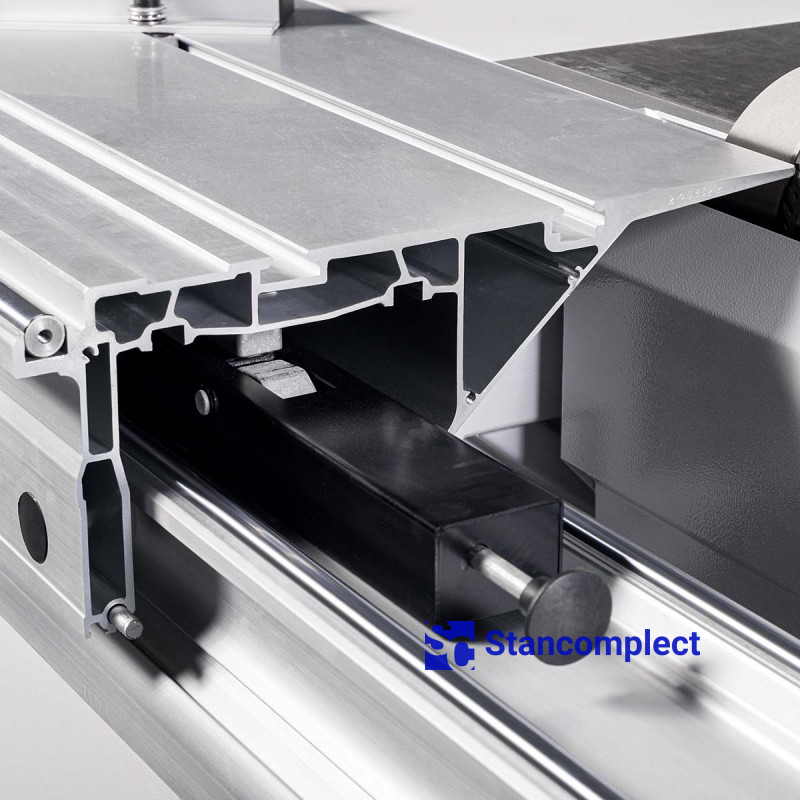

- Powerful saw carriage, made of aluminum multi-cellular profile with a working part width of 430 mm.
- Own electric motors for the scoring and main saw 1.1 / 5.5 kW allow the machine to be used in multi-shift operation and dissolve various materials.
- Electric lifting and lowering of the main saw blade.
- The scope of supply includes saws LEITZ 300×30+120×22.
- The transparent CE aspiration protective cover for saw blades allows you to visually control the sawing process, as well as effectively remove sawdust from the cutting zone.
- Digital counters are installed on the transverse and longitudinal stops.

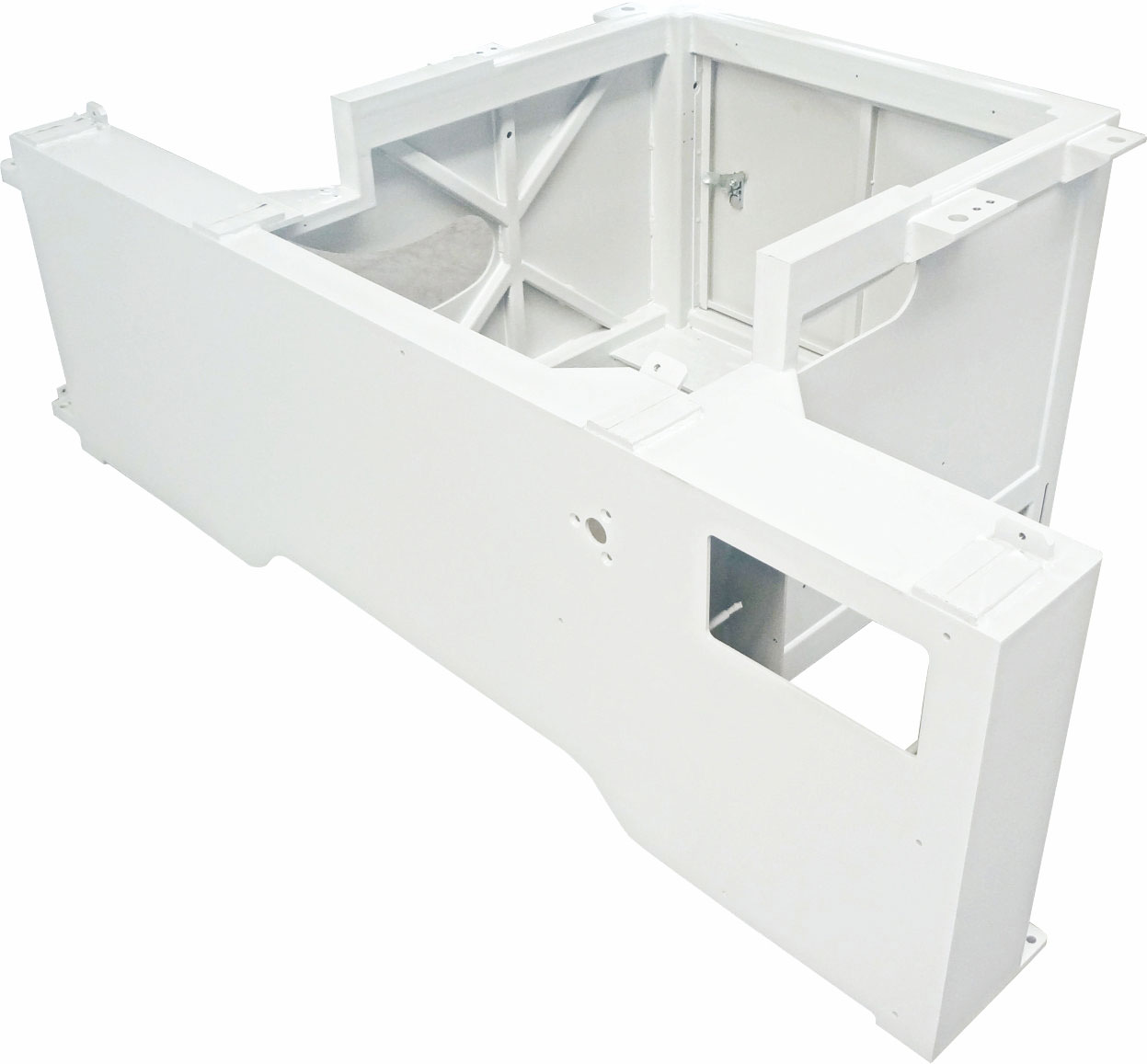

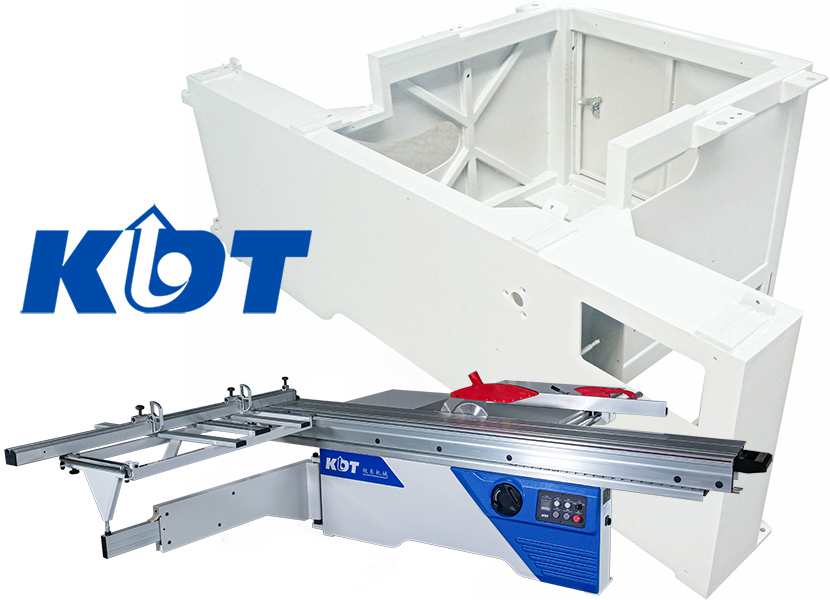

During the development of the machine, the maximum allowable loads and requirements for the design of the machine were calculated and modeled. The welded frame is tempered to relieve all internal stresses in the material, then processing takes place on a five-axis metalworking machine, where all platforms and holes for mounting components and assemblies are milled.

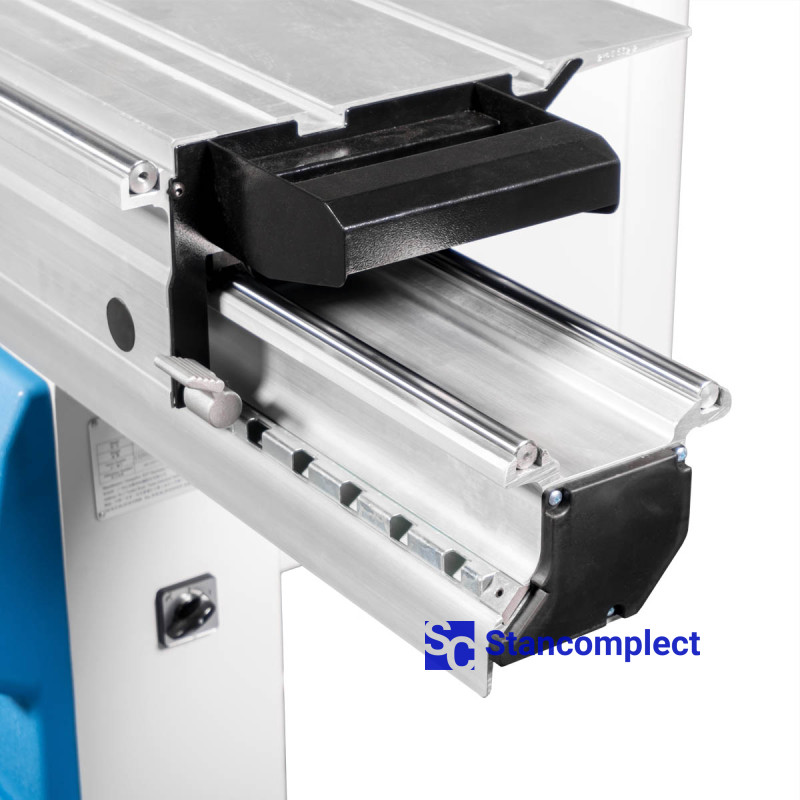

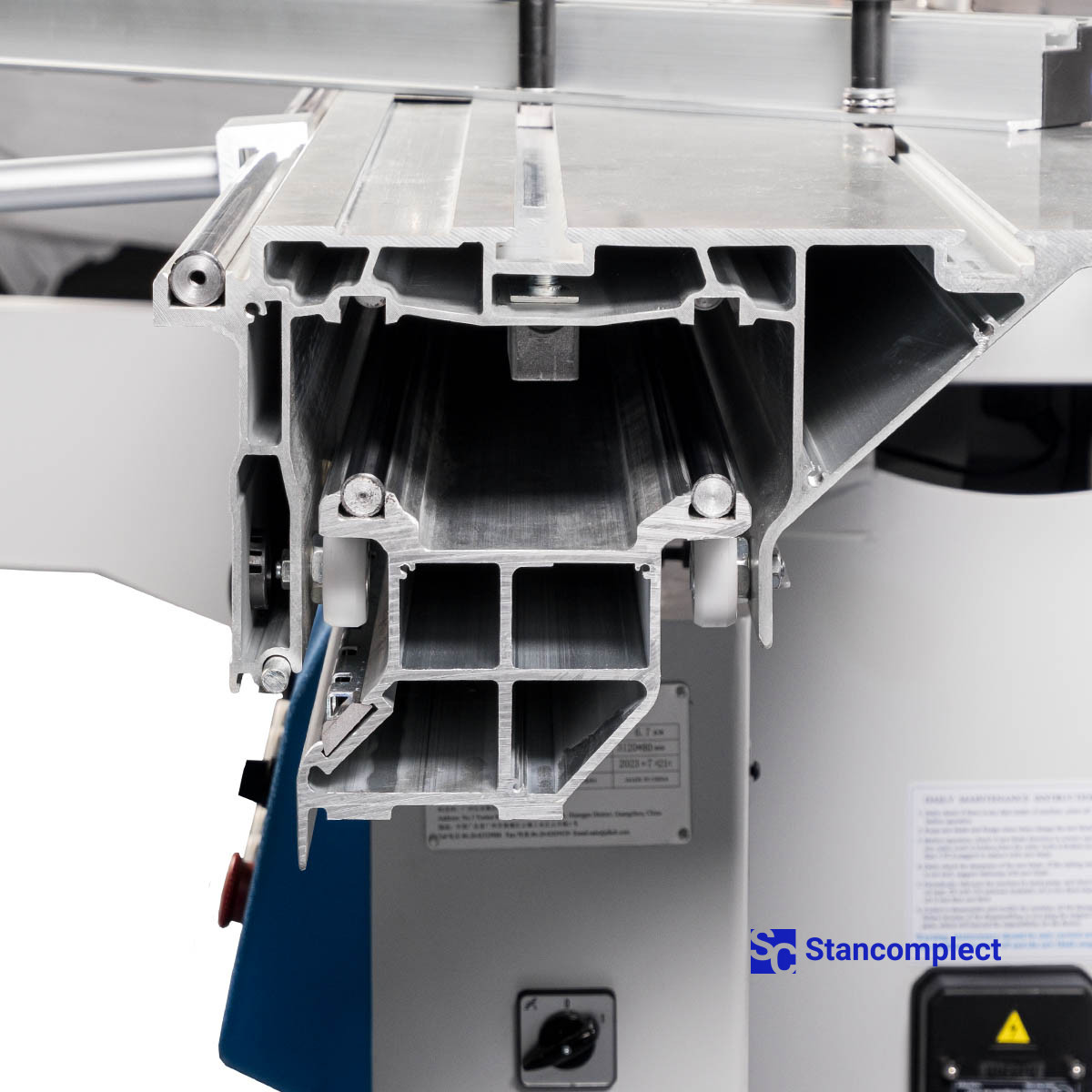

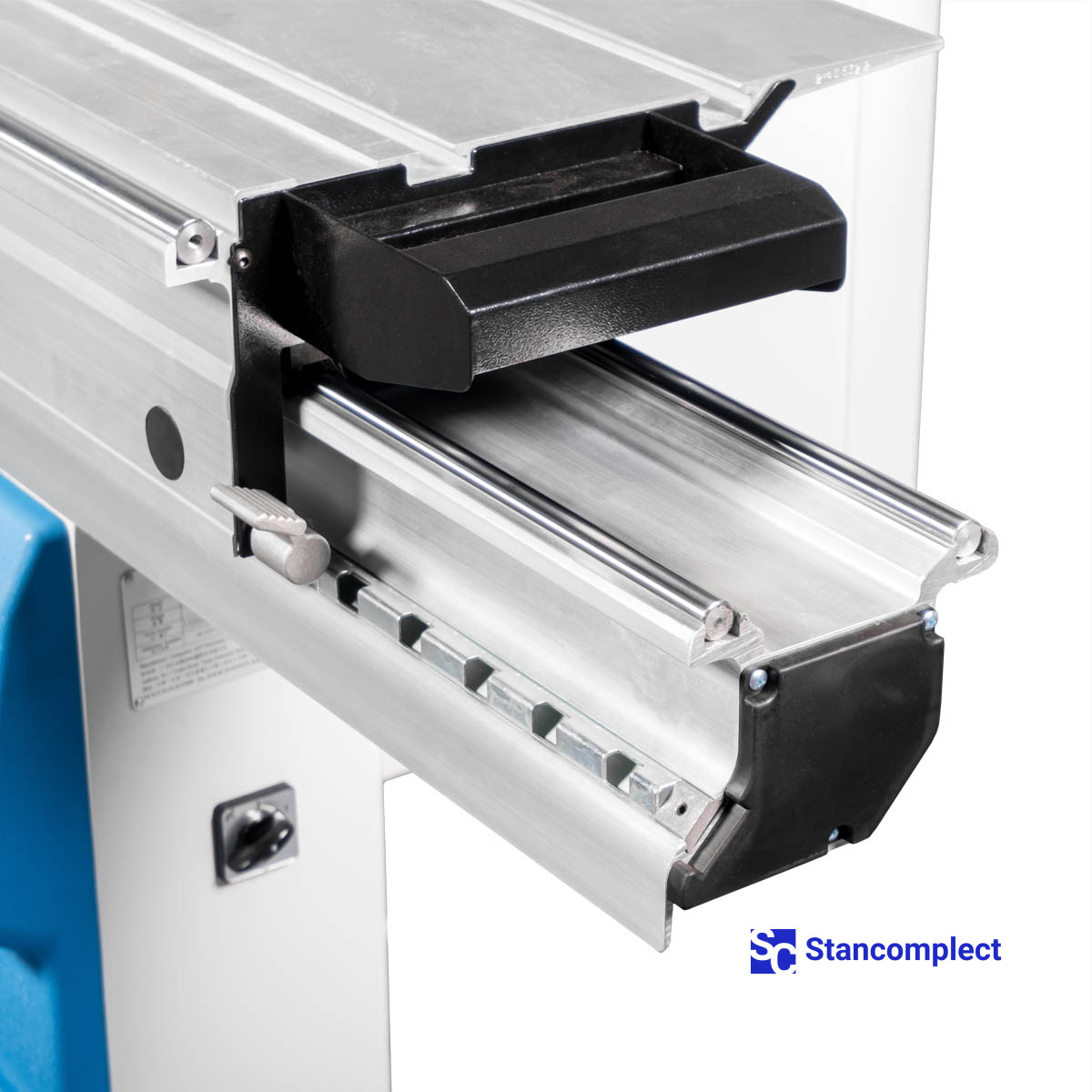

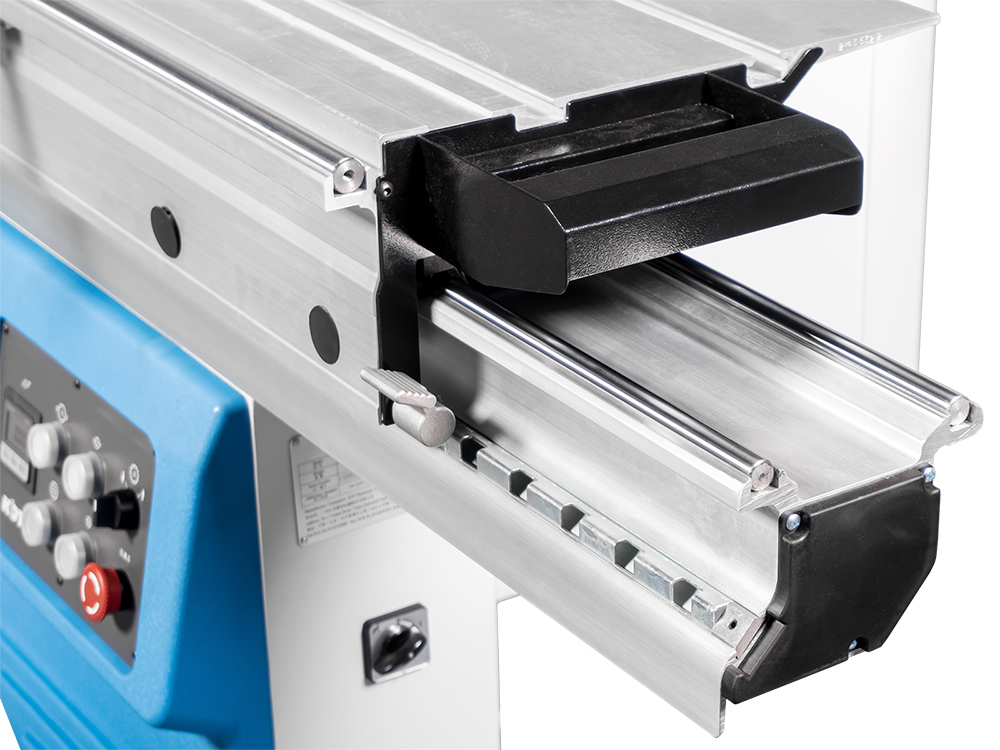

The roller carriage guarantees the highest cutting quality, no backlash when the carriage moves, smoothness and ease of movement for the entire life of the machine.

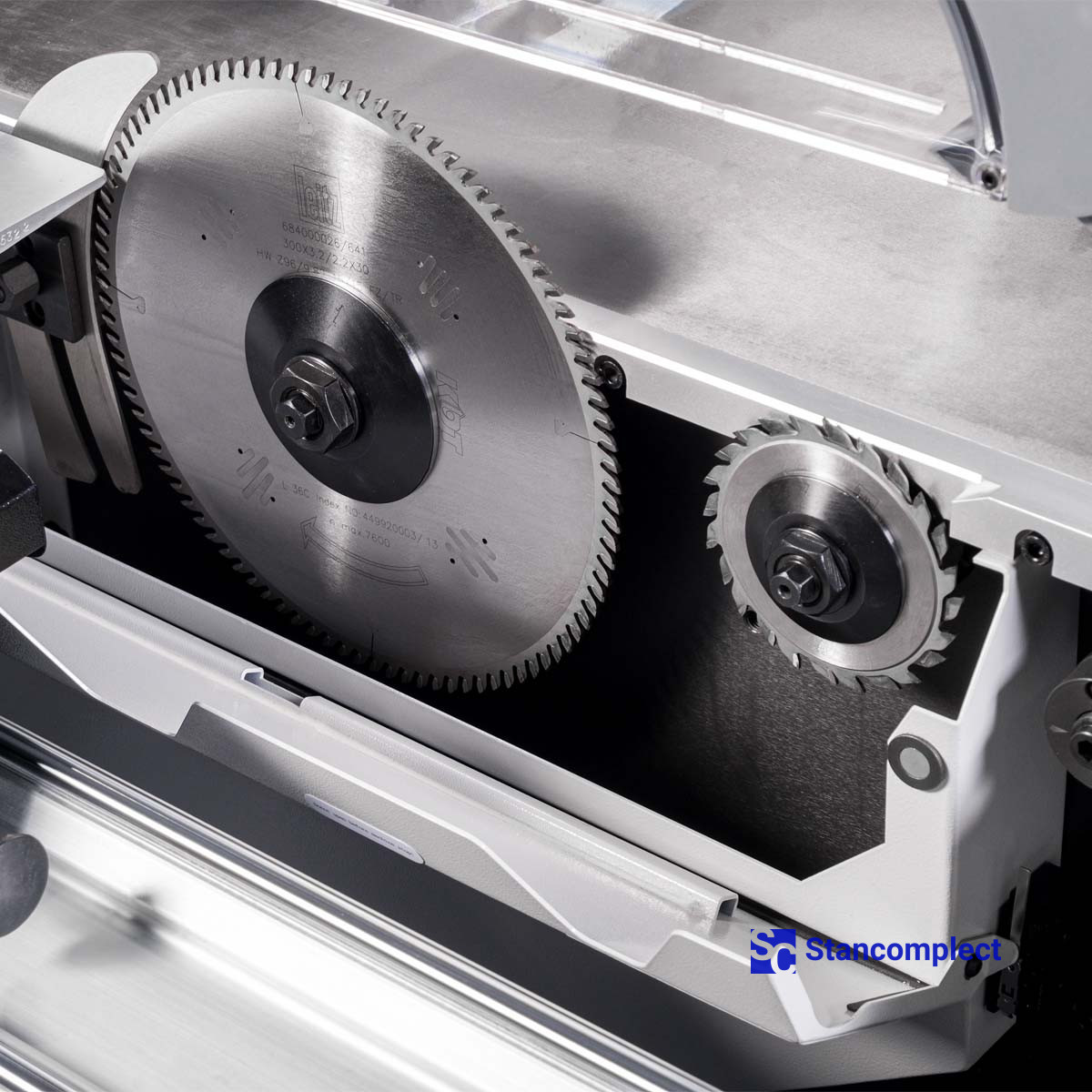

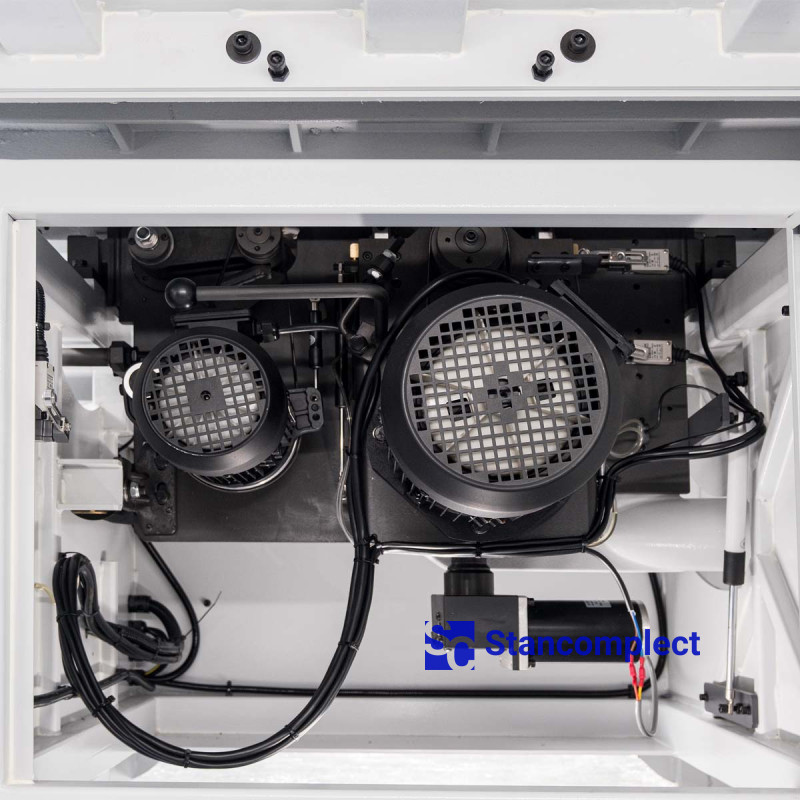

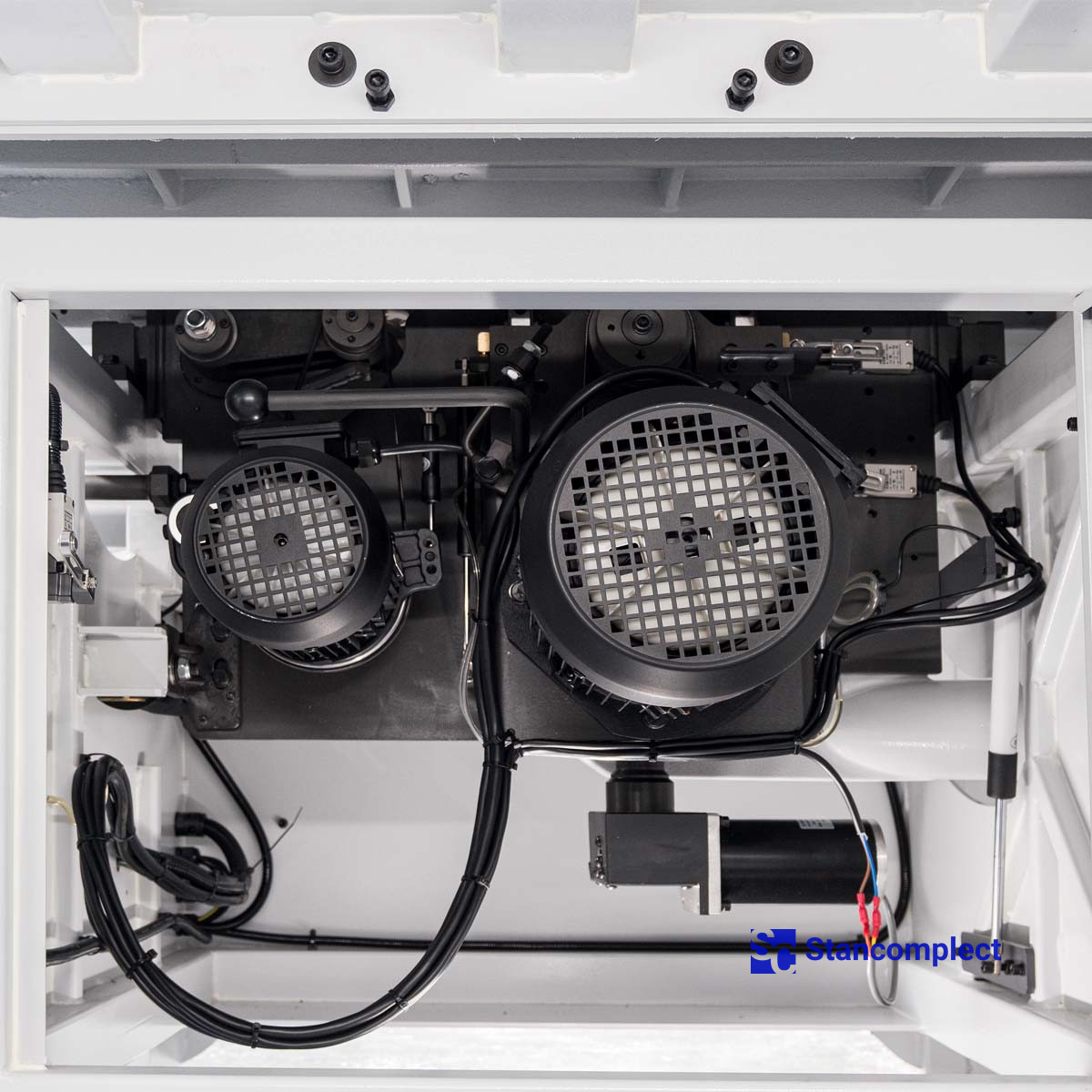

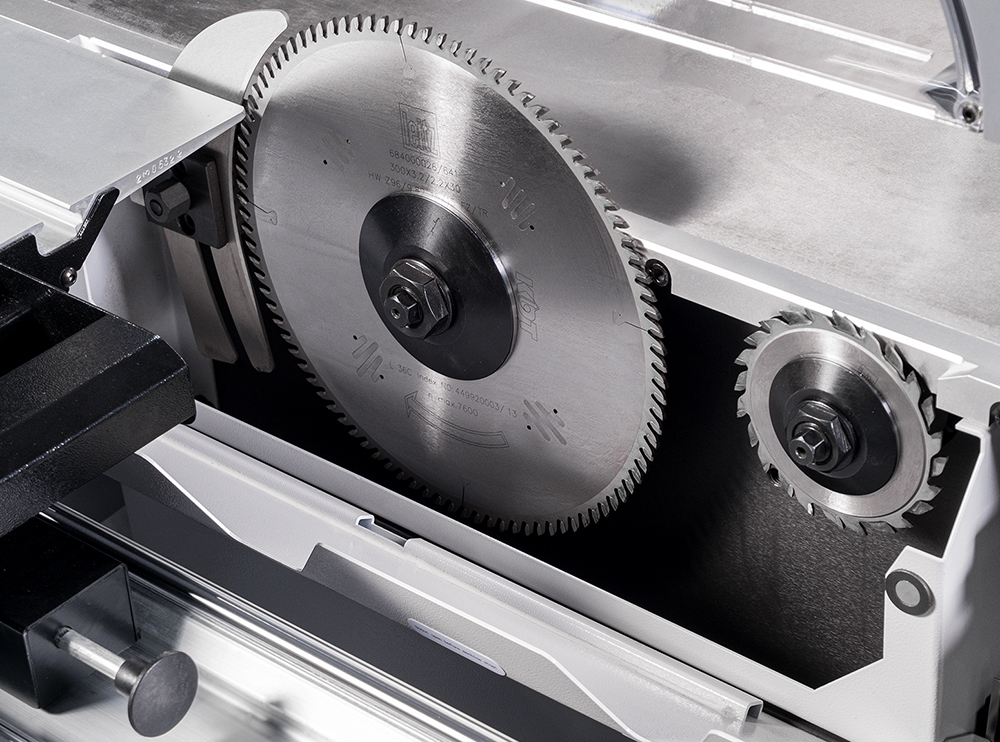

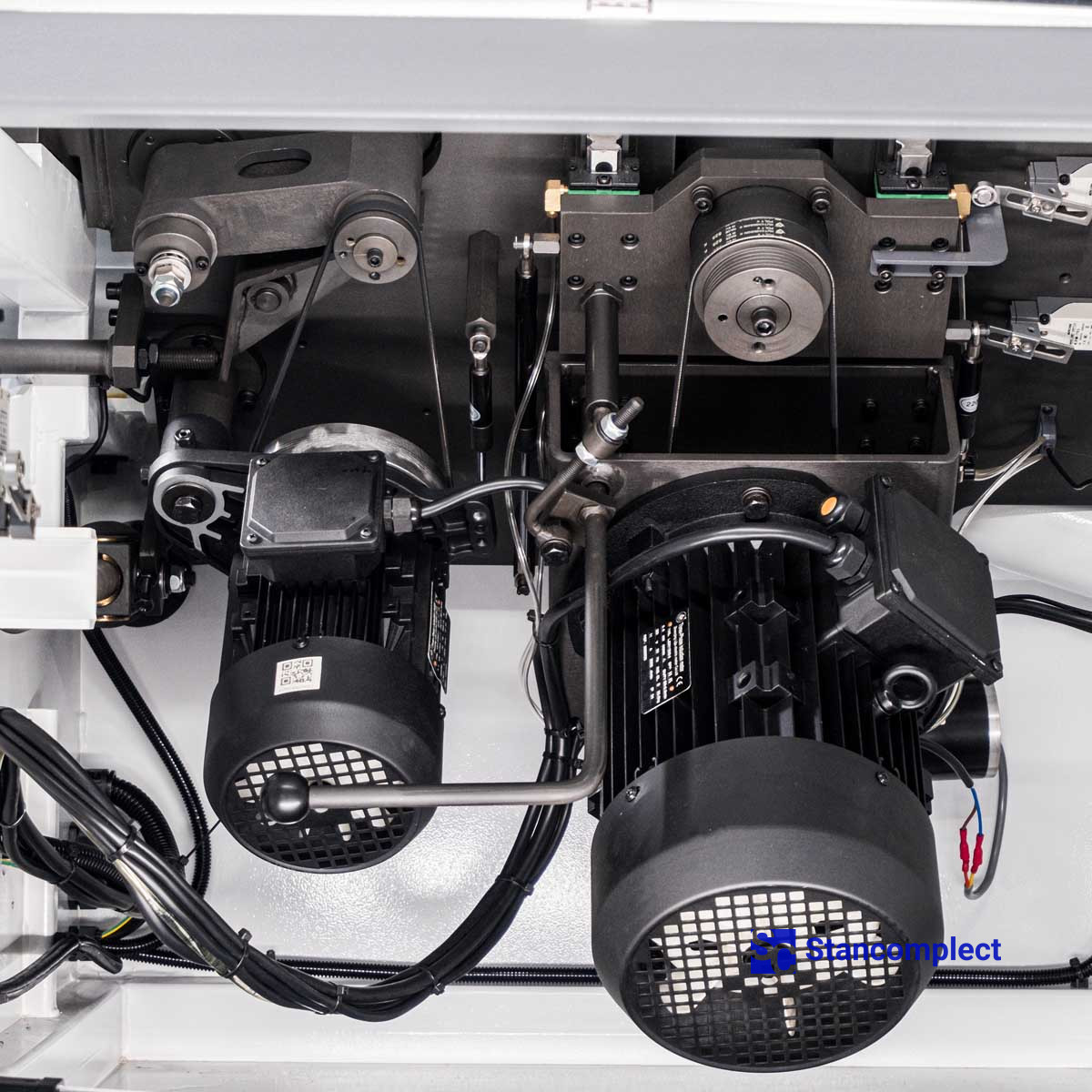

The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them. Separate motors for main and scoring saws.
Raising / lowering the saw unit is carried out by means of HIWIN high-precision linear guides.

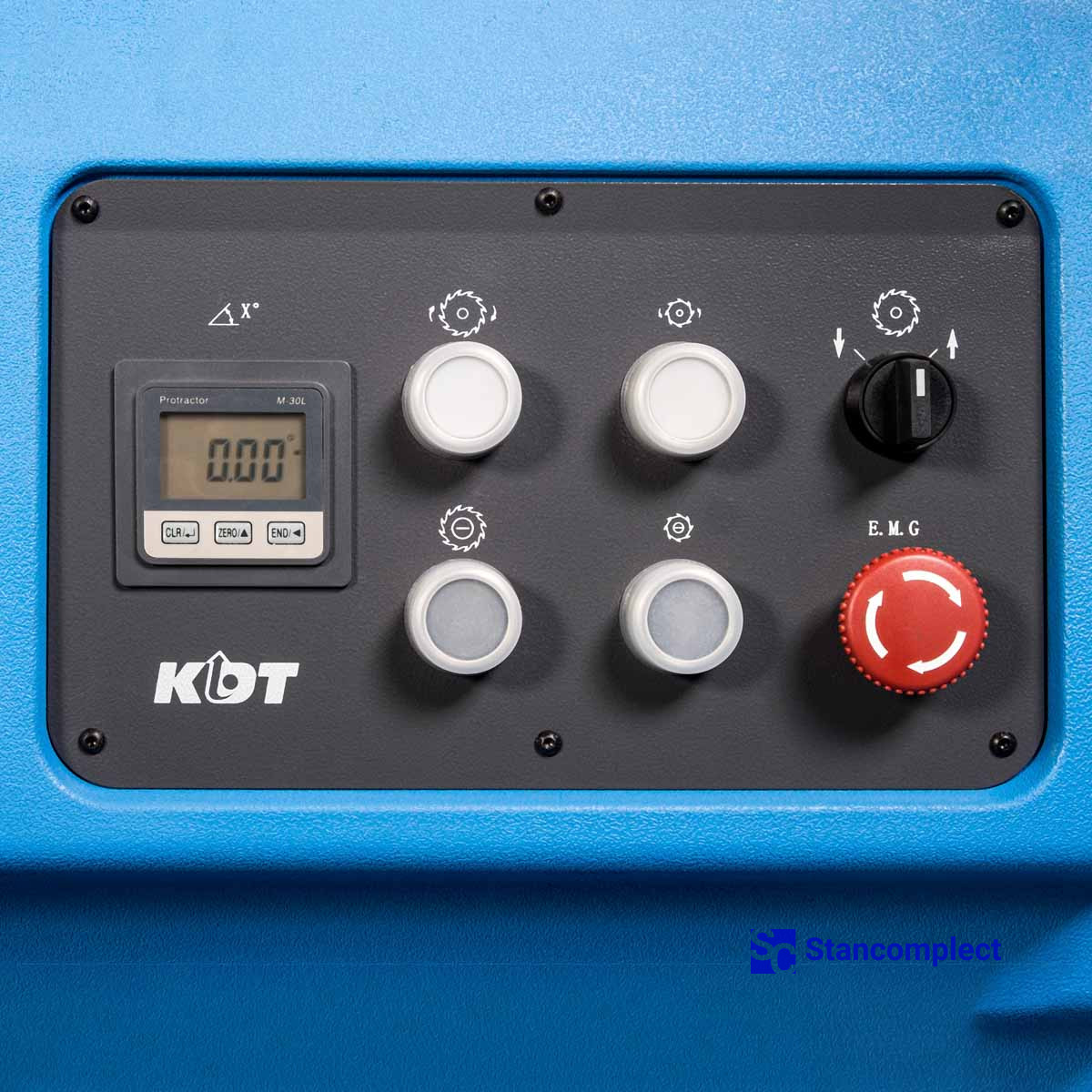

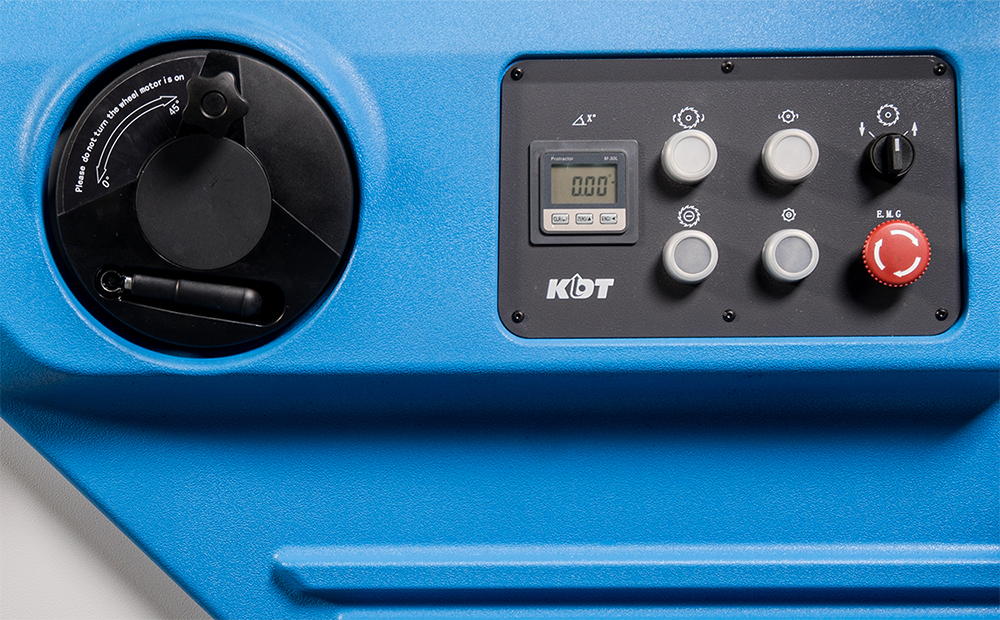

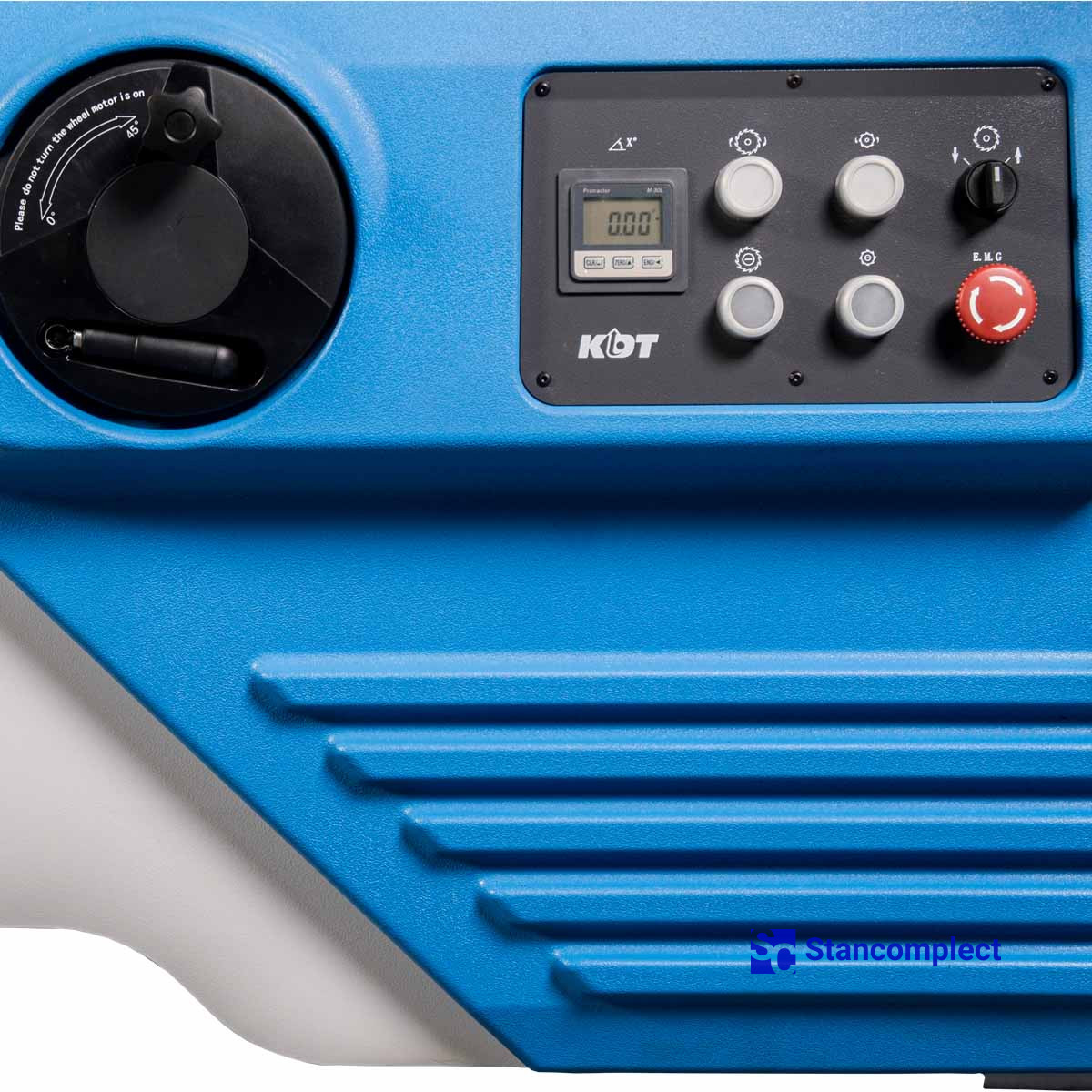

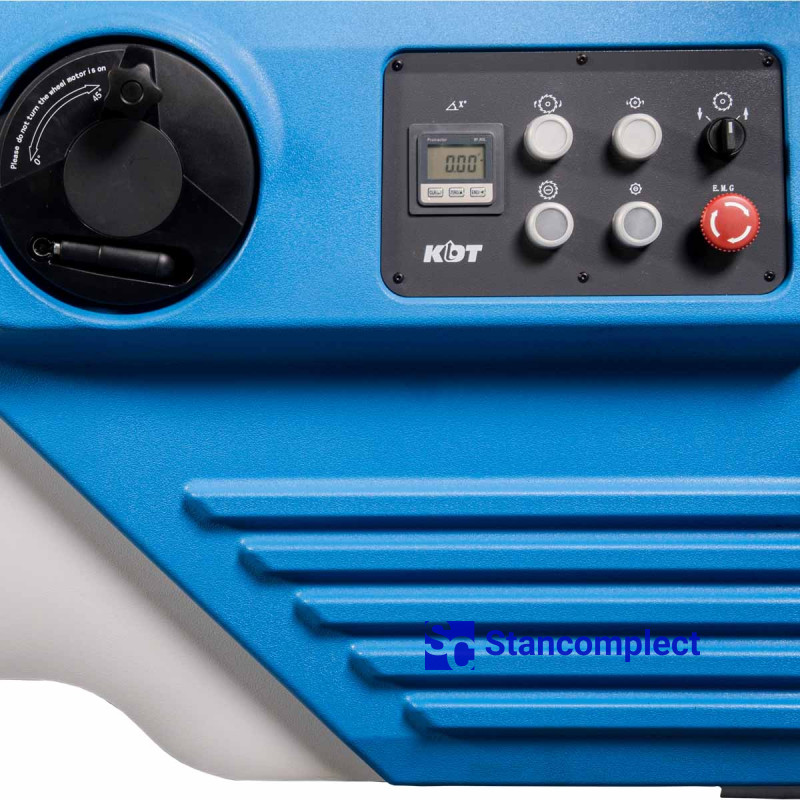

Machine control panel with electric lifting and lowering of the main saw. Provides quick saw unit settings.

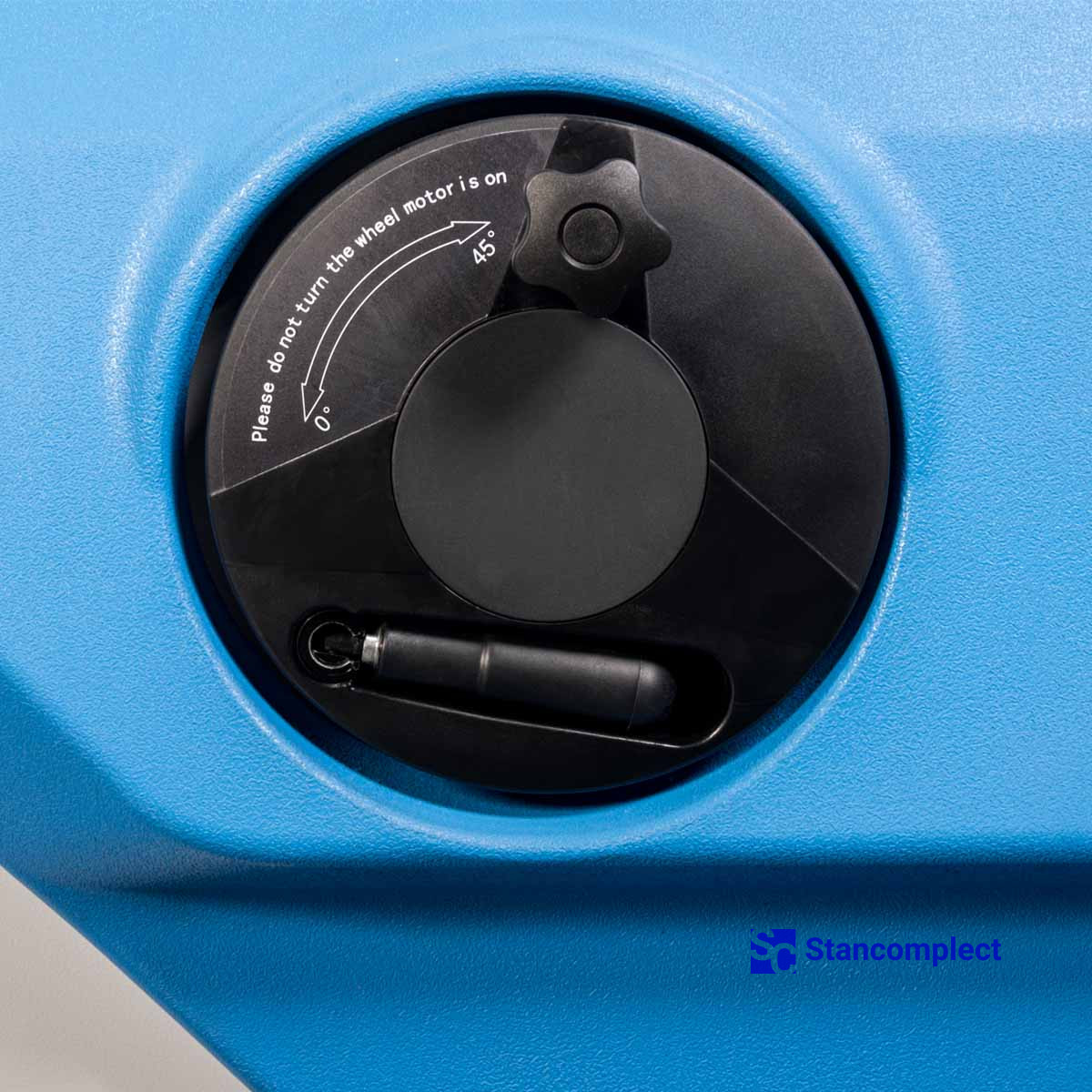

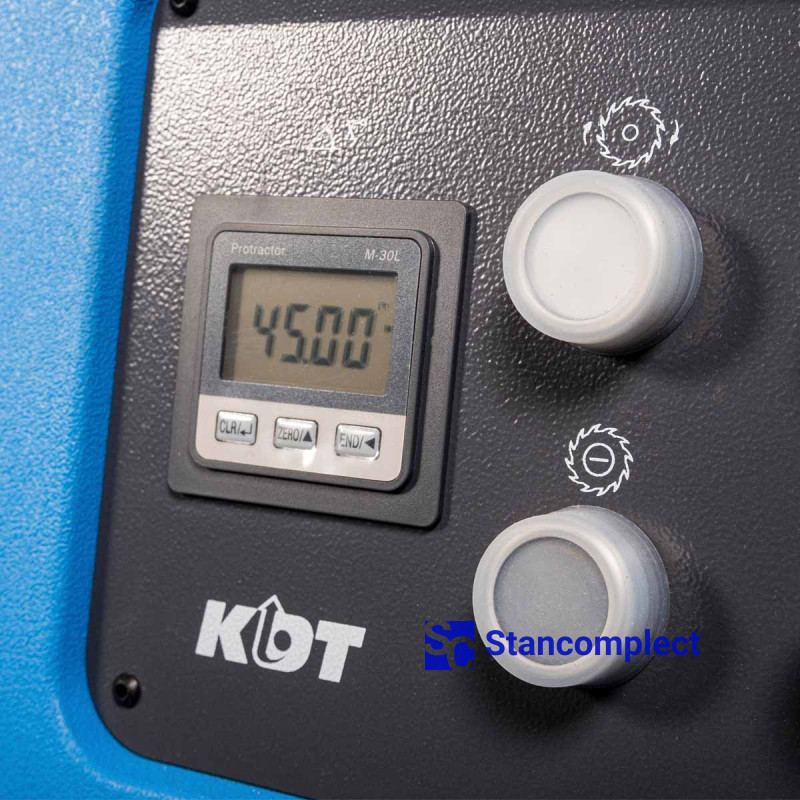

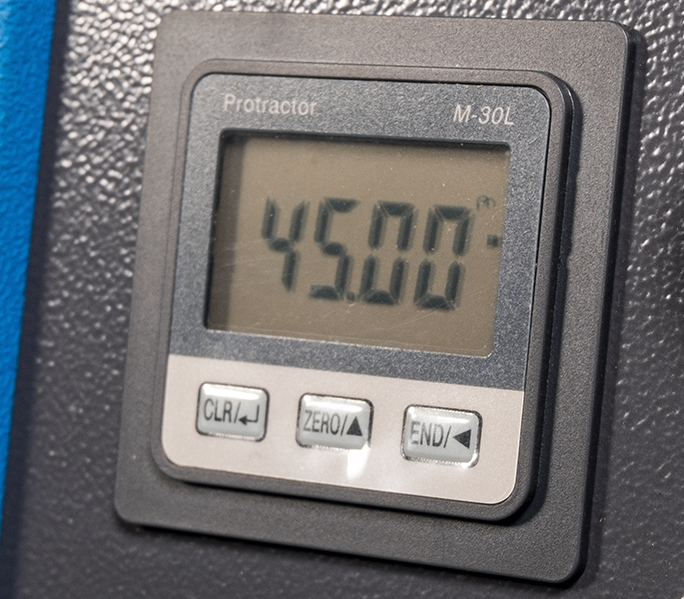

The angle of inclination of the saw unit 0-45° is set using a digital display, which ensures high positioning accuracy.

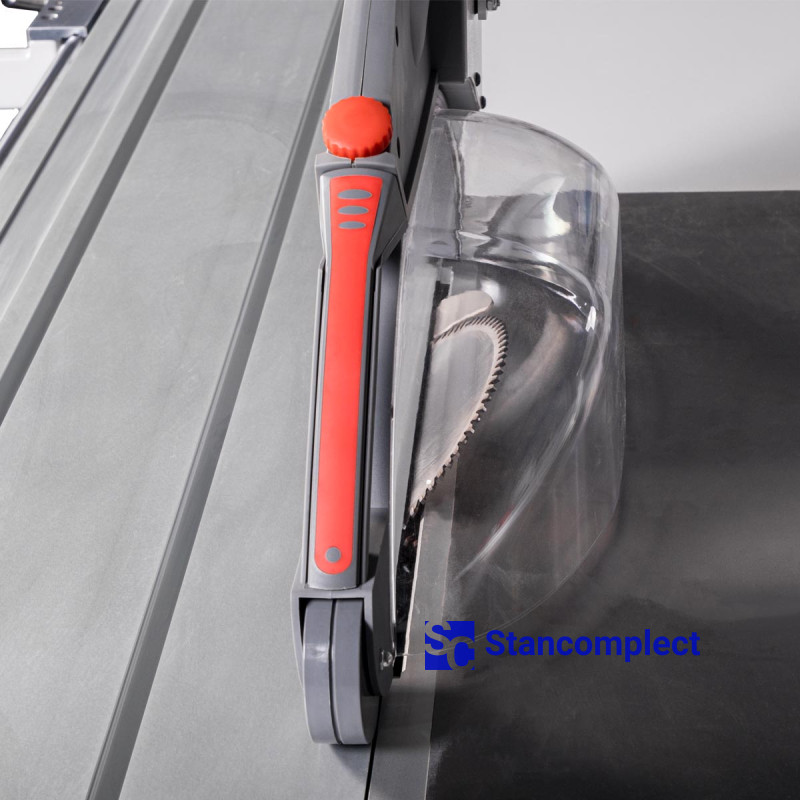

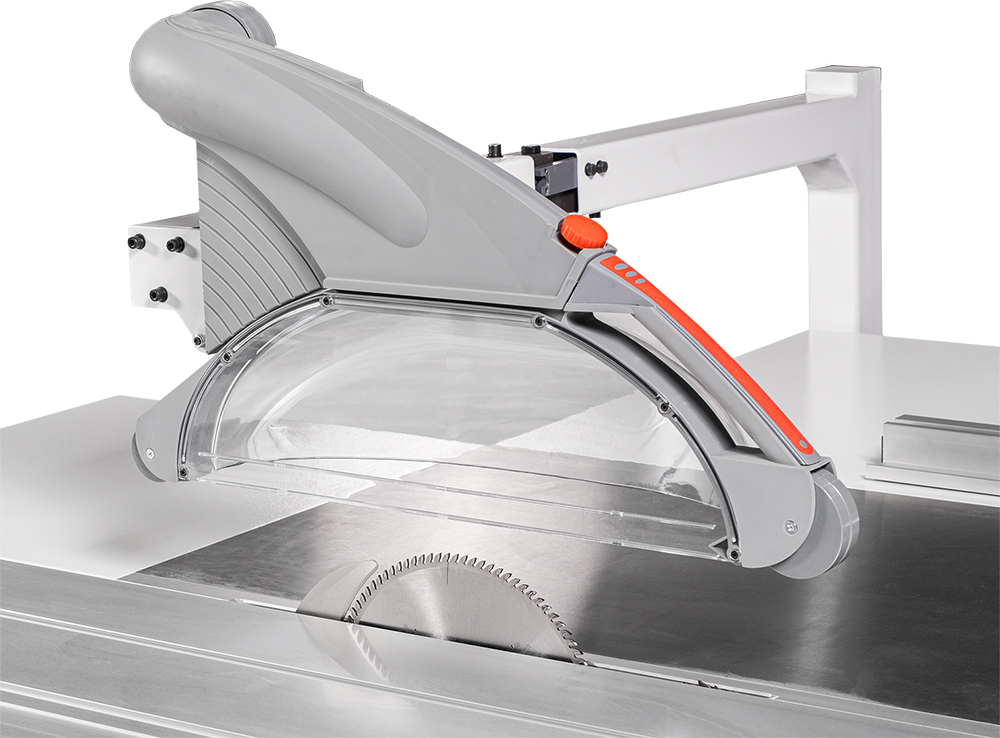

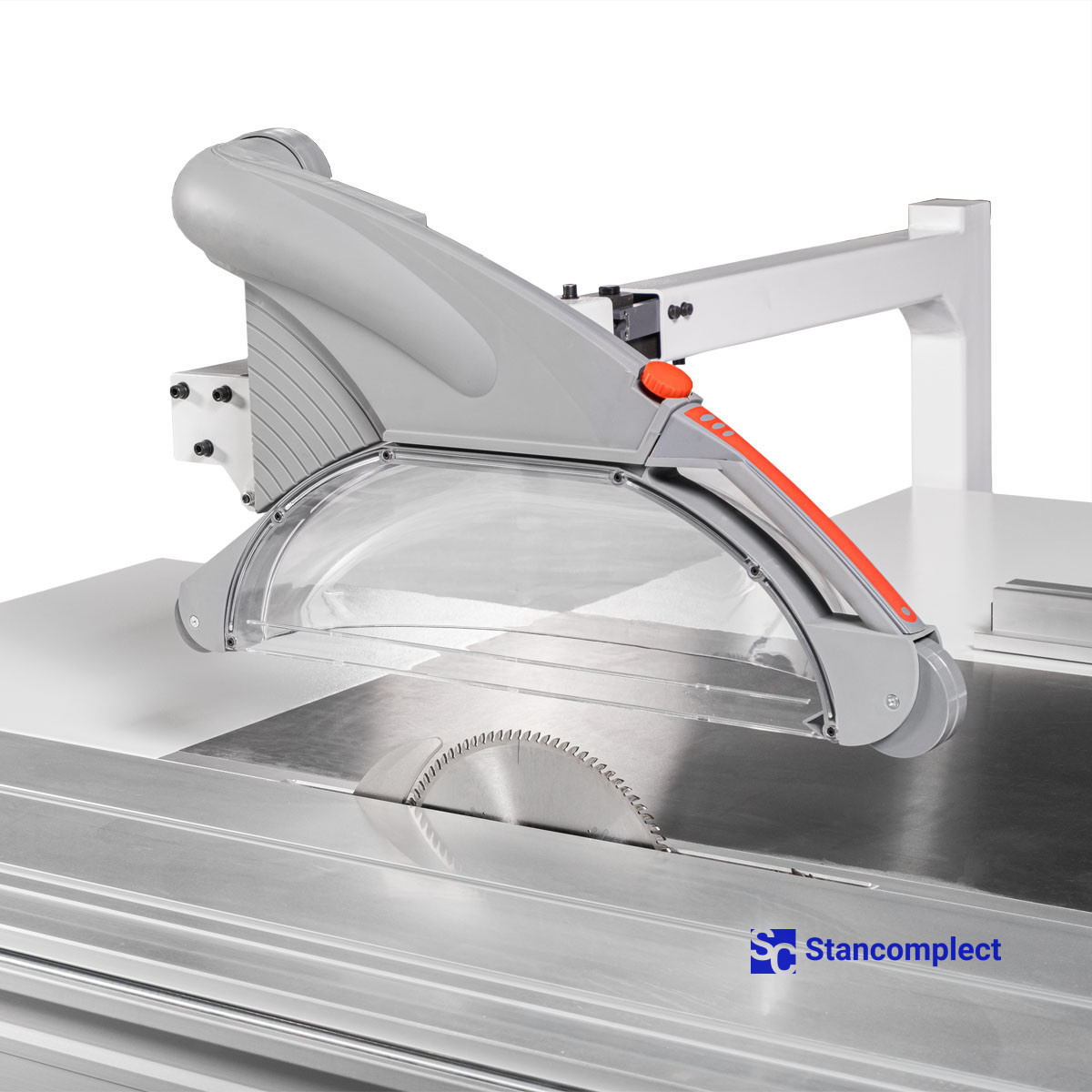

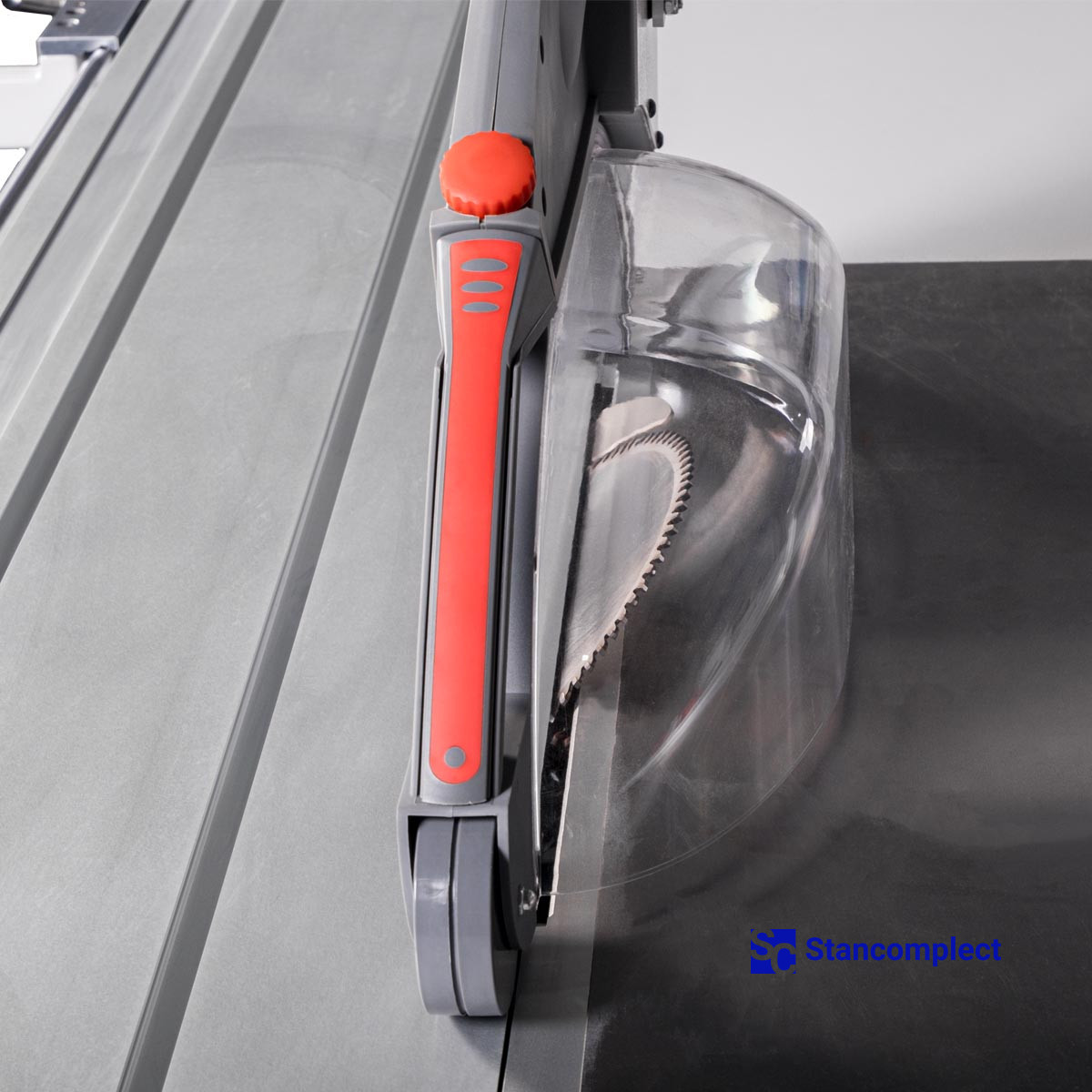

The transparent CE guard provides visual control of the cut, as well as excellent removal of sawdust from the cutting area.

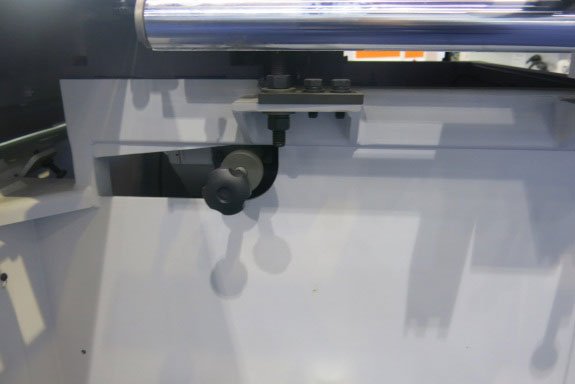

The convenient handle of adjustment of a scoring saw on height, allows to carry out fast adjustment of knot.

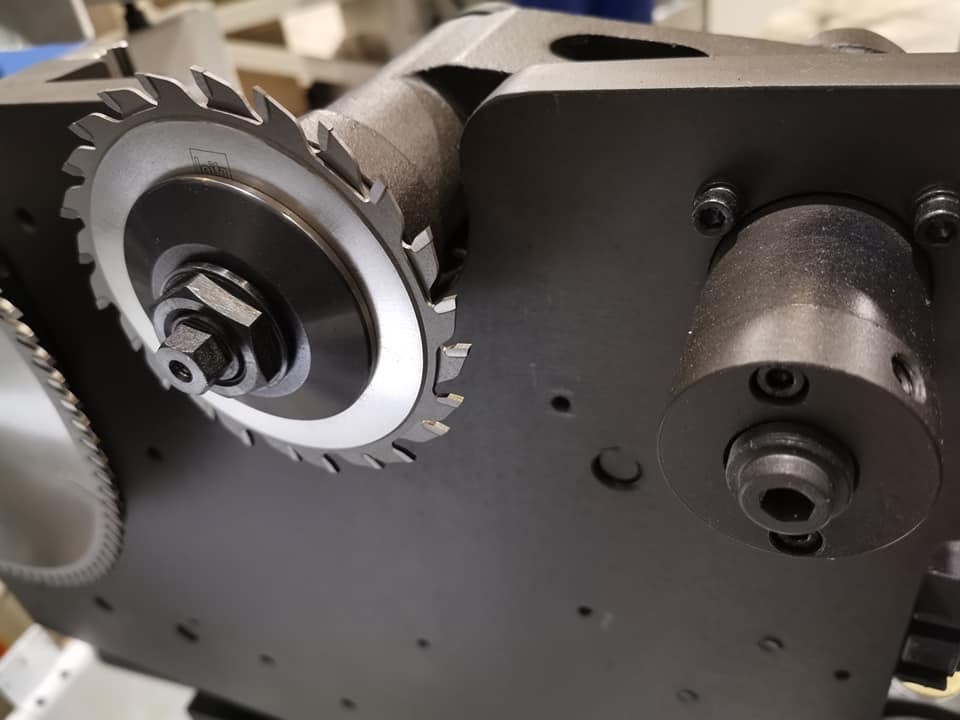

Setting the scoring saw horizontally.

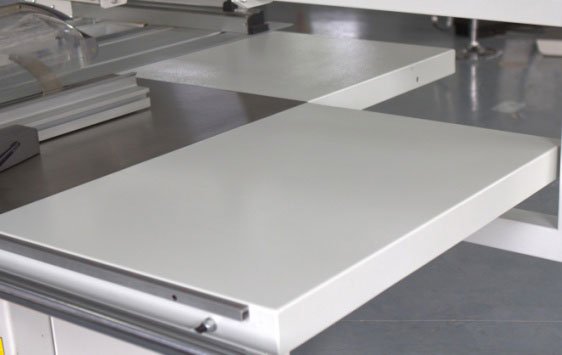

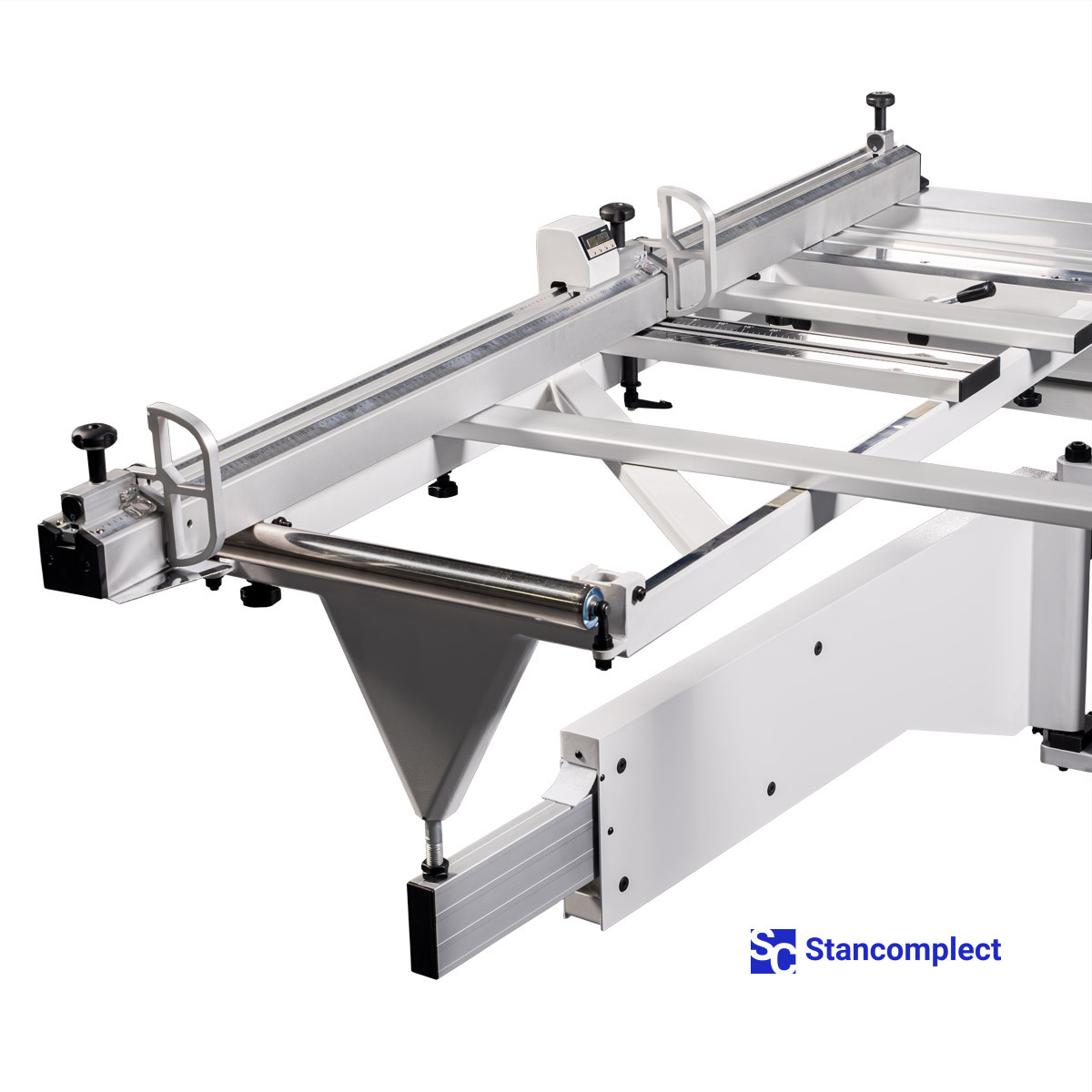

Full-format additional tables allow you to open sheets of various sizes.

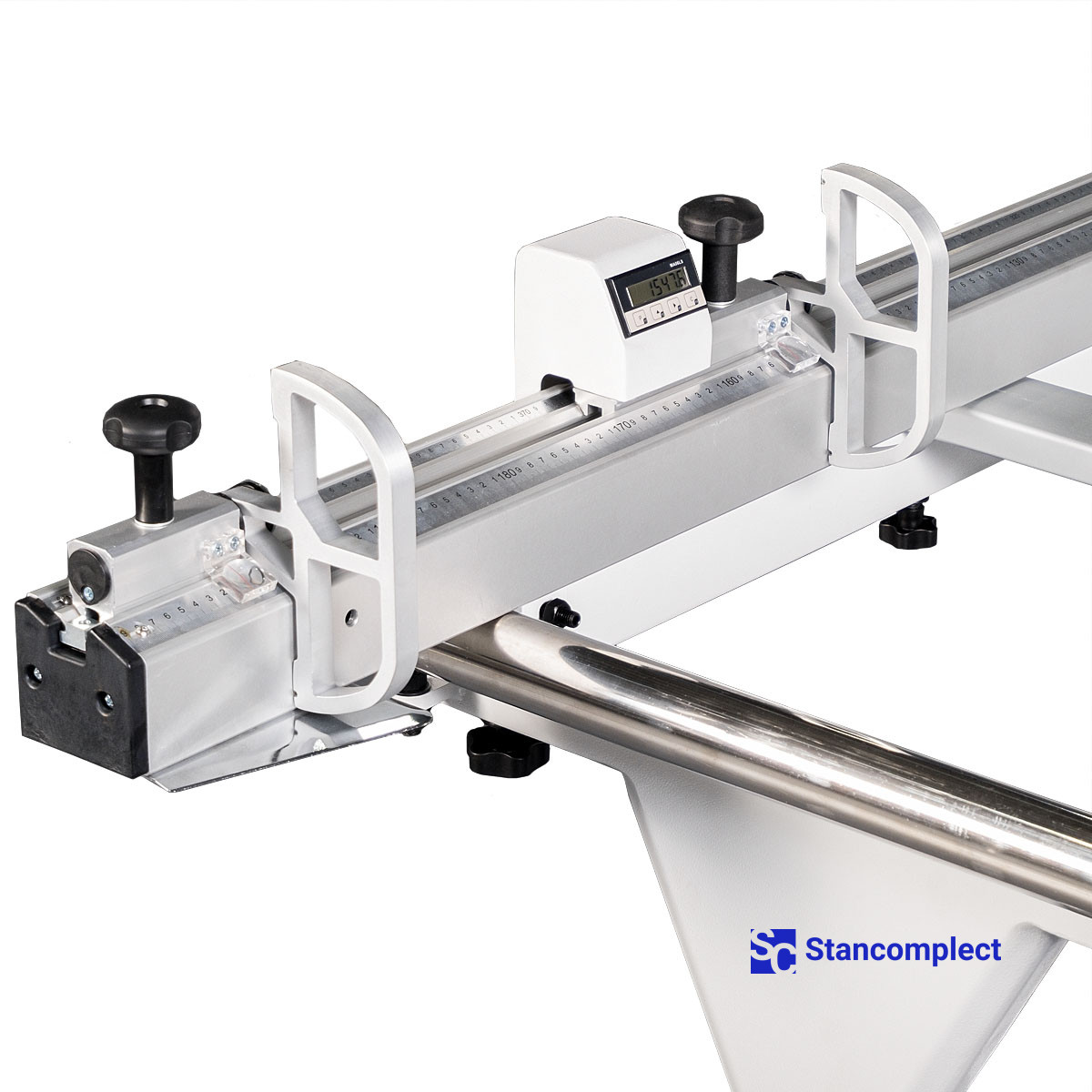

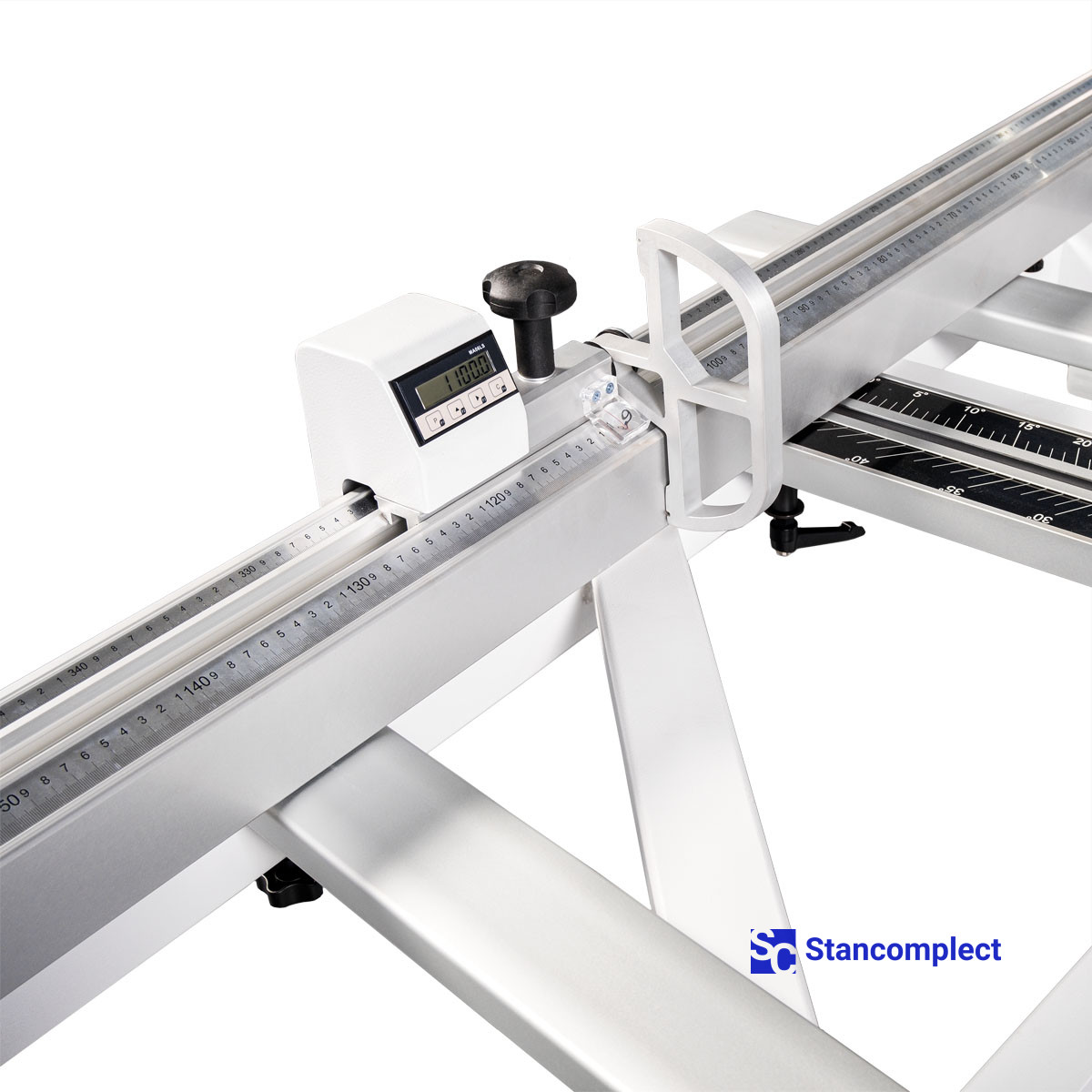

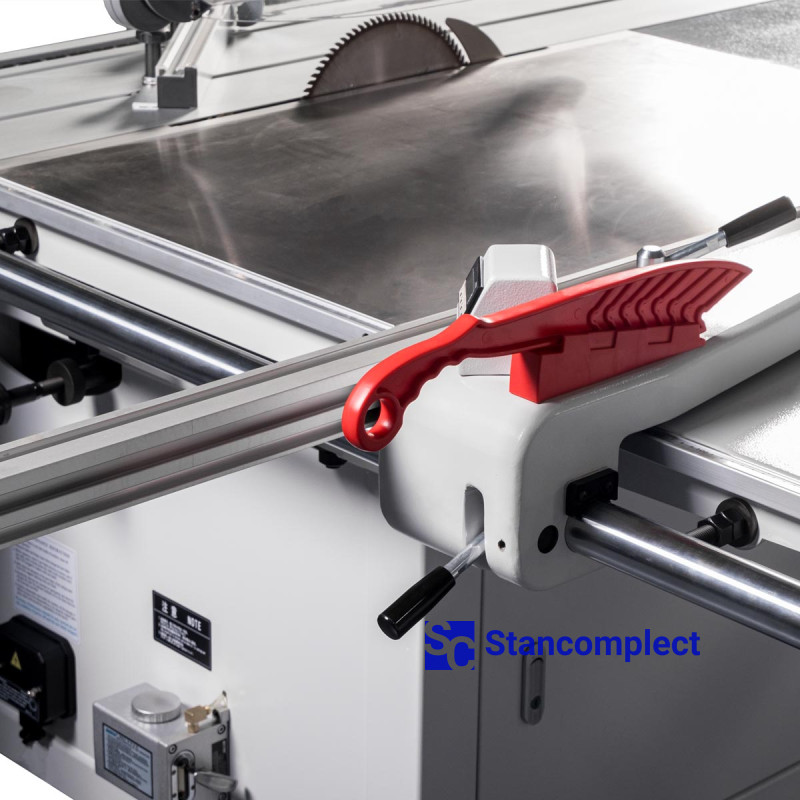

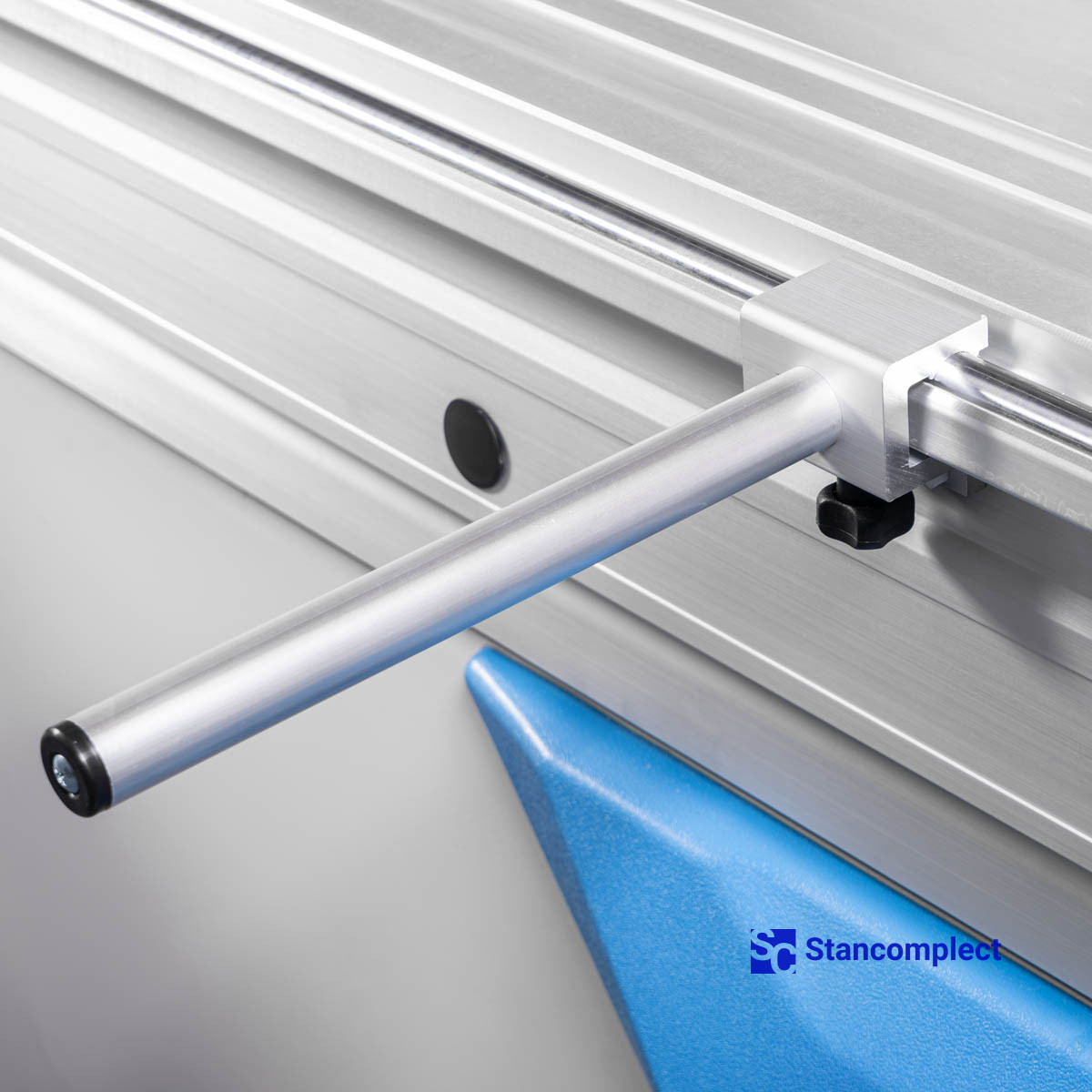

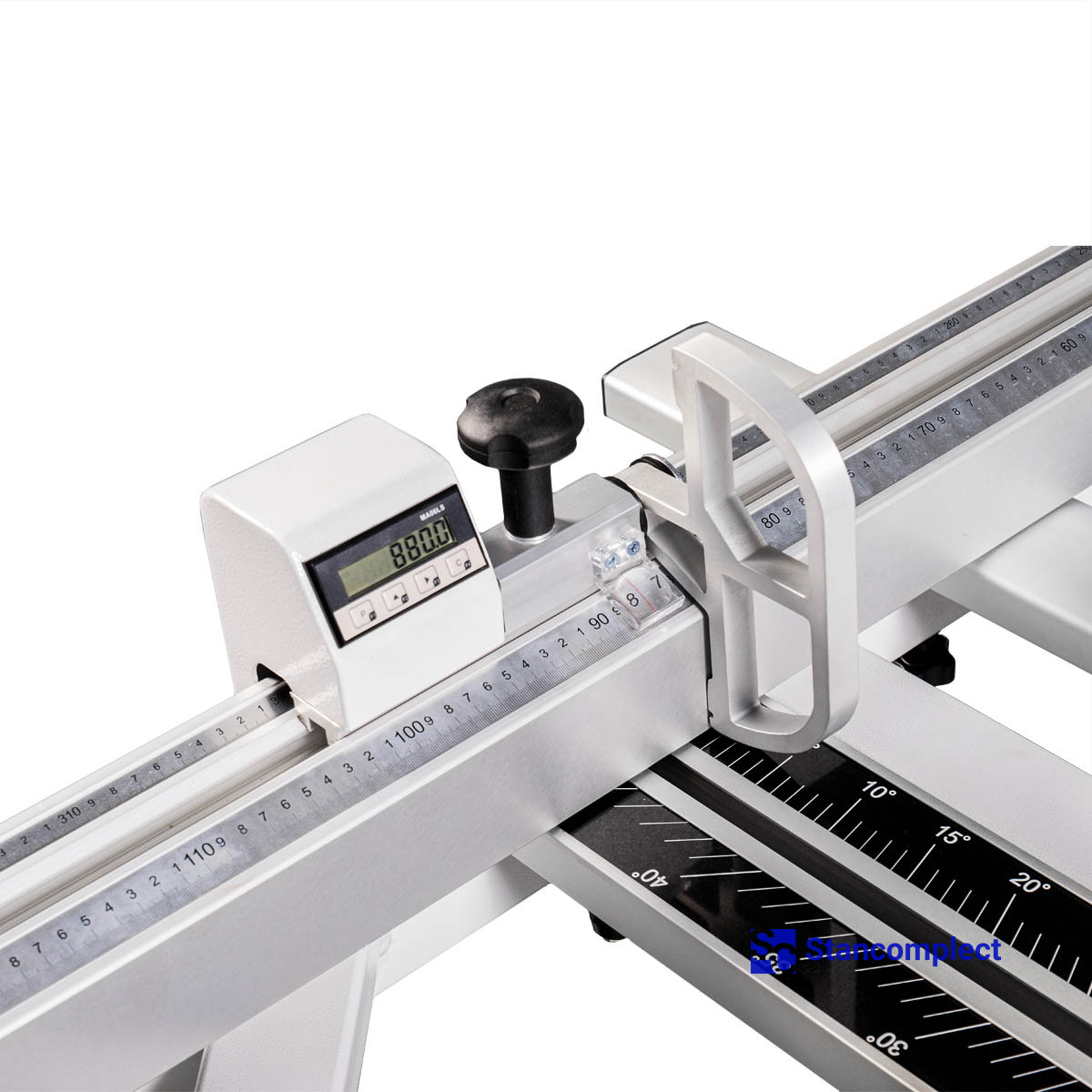

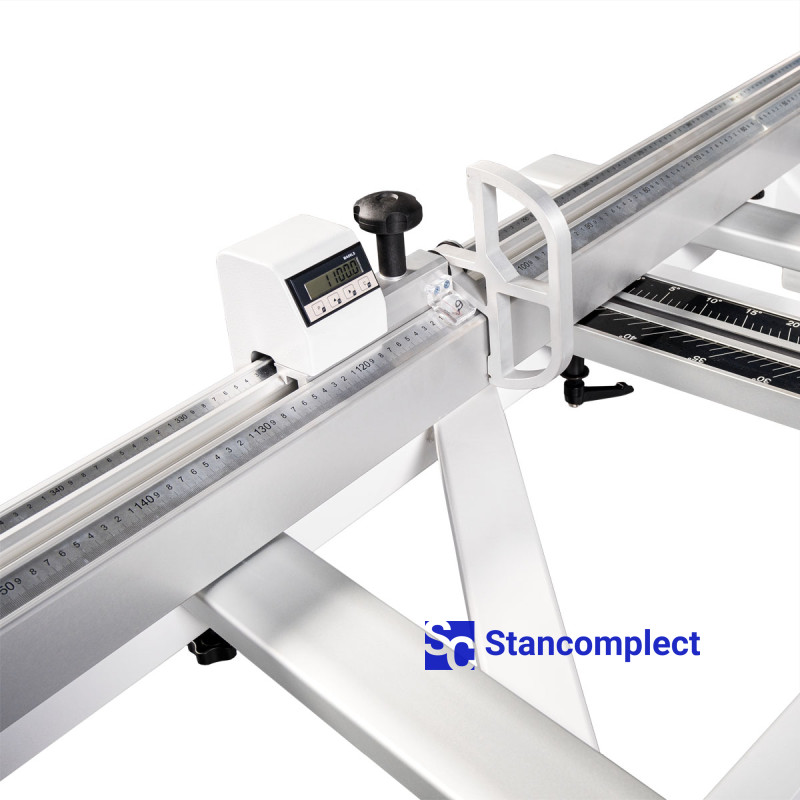

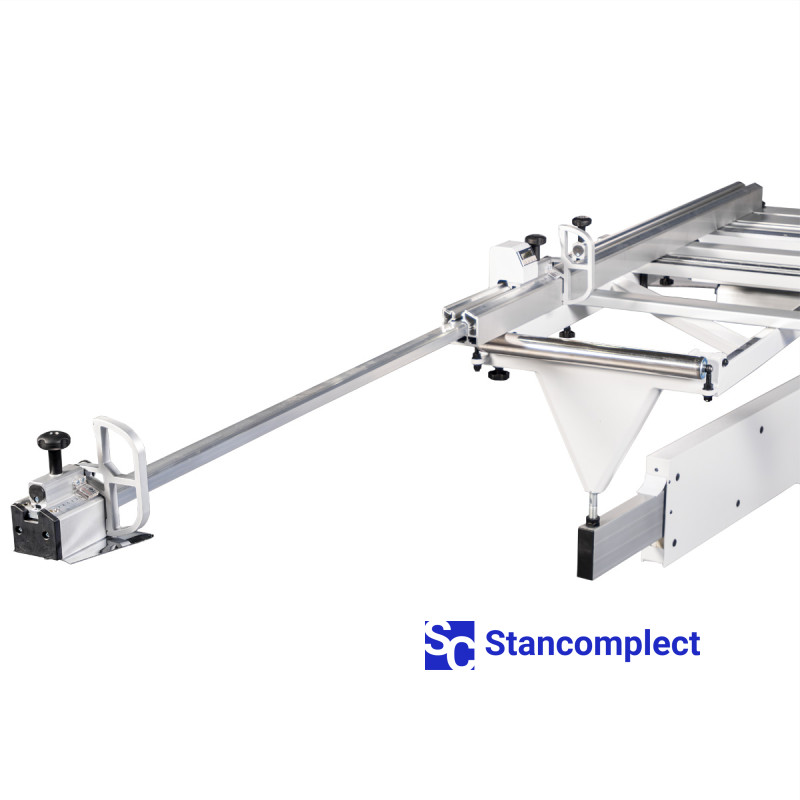

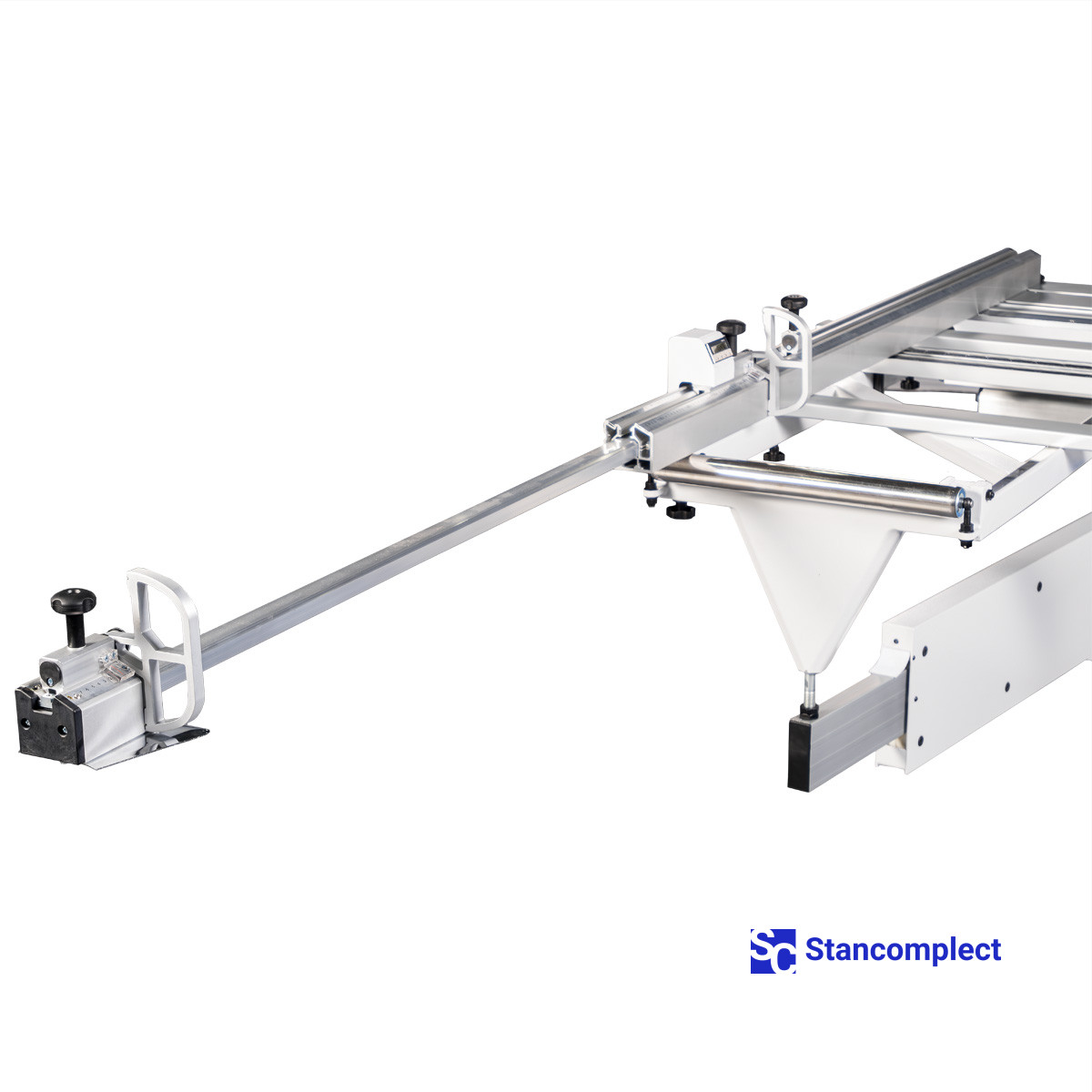

The transverse stop (ruler) is equipped with two folding stops-flags, one of which has an electronic digital display for quick and precise adjustment to the required size.

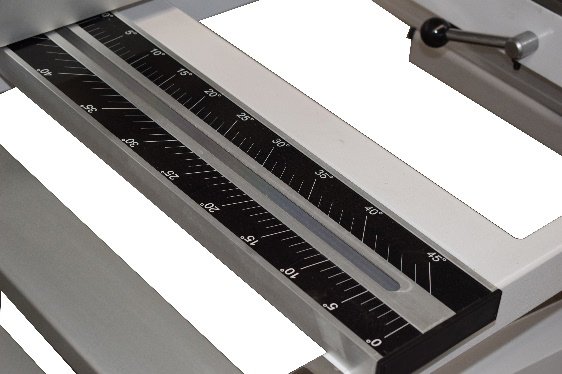

If necessary, the crosscut fence can be rotated from 0 - 45° for miter sawing.

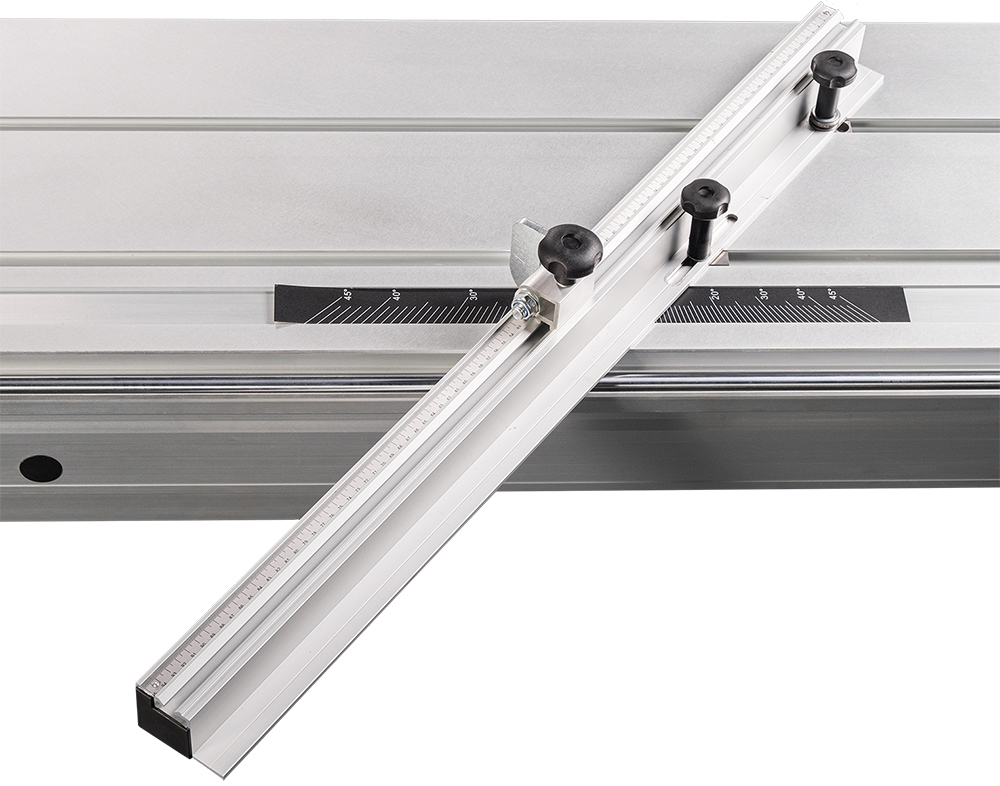

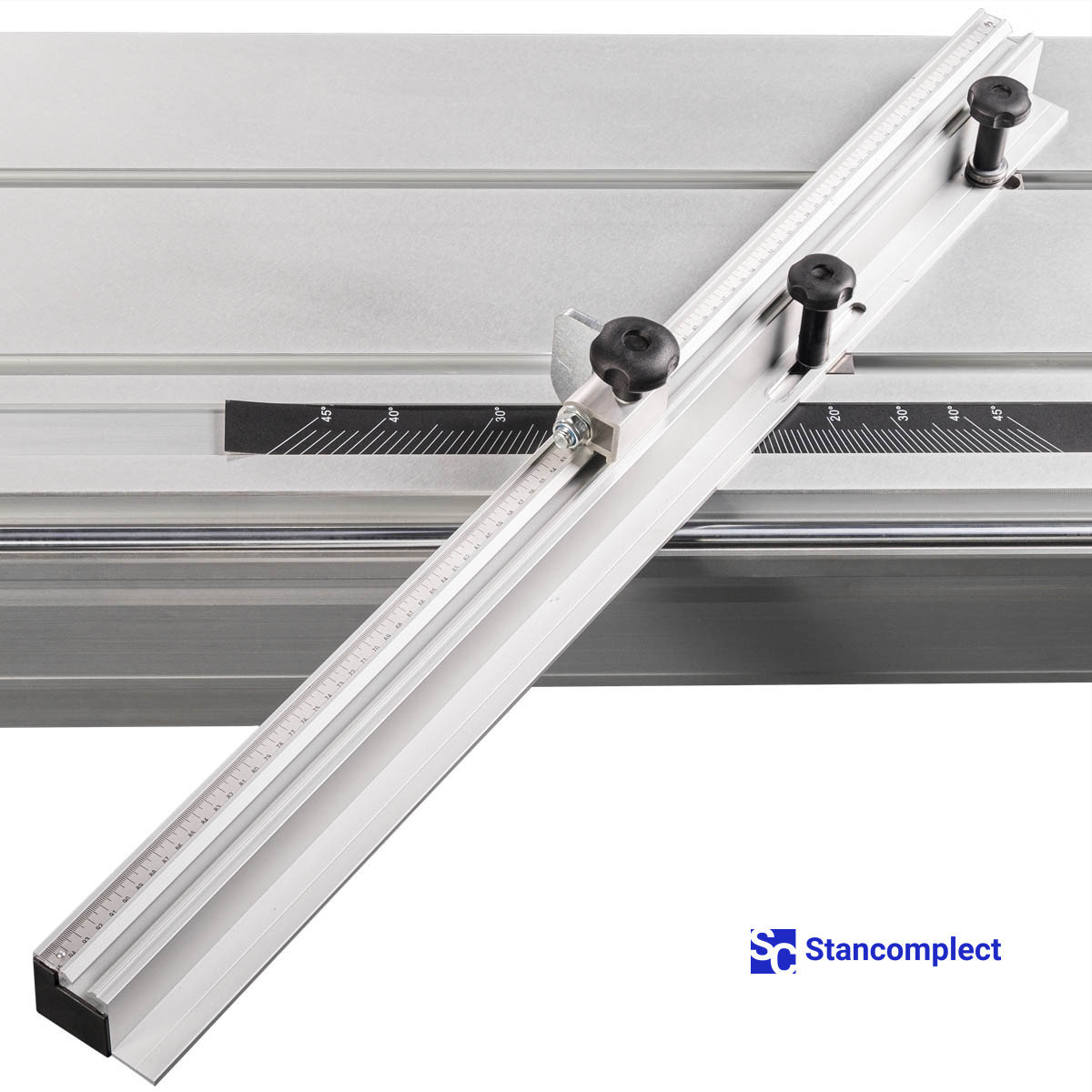

Angle ruler on the saw carriage for angled cuts.

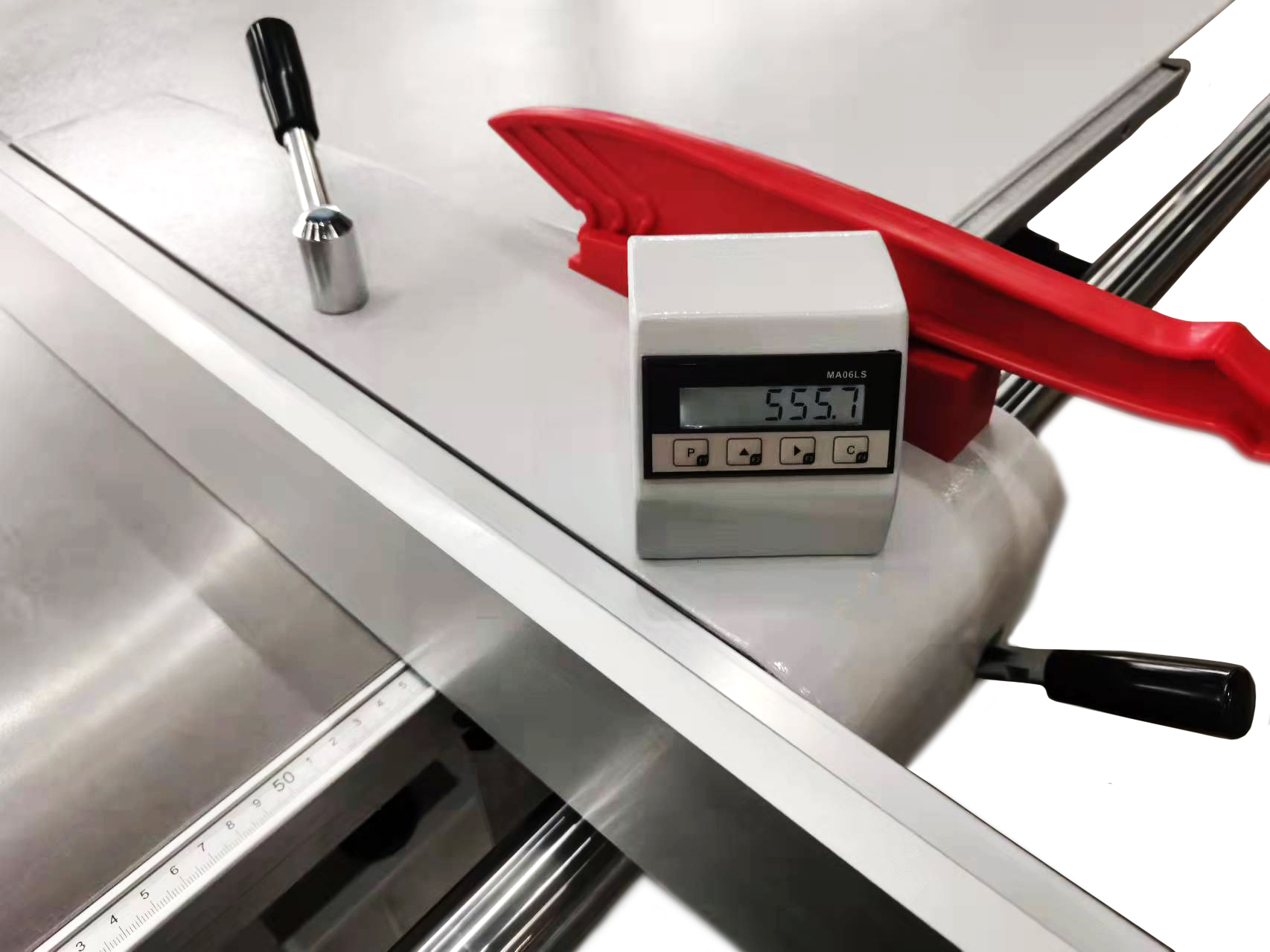

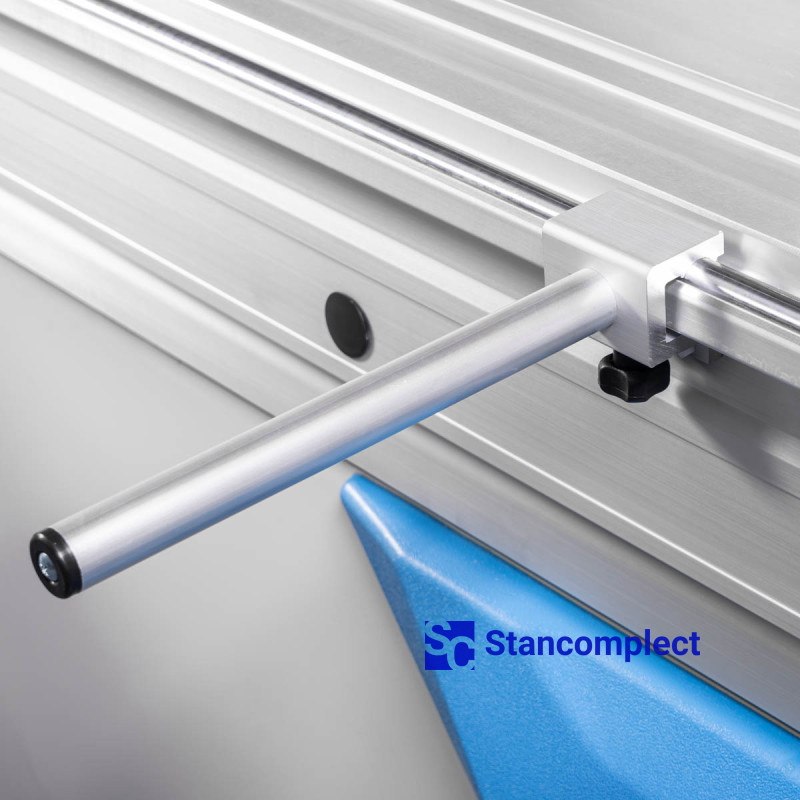

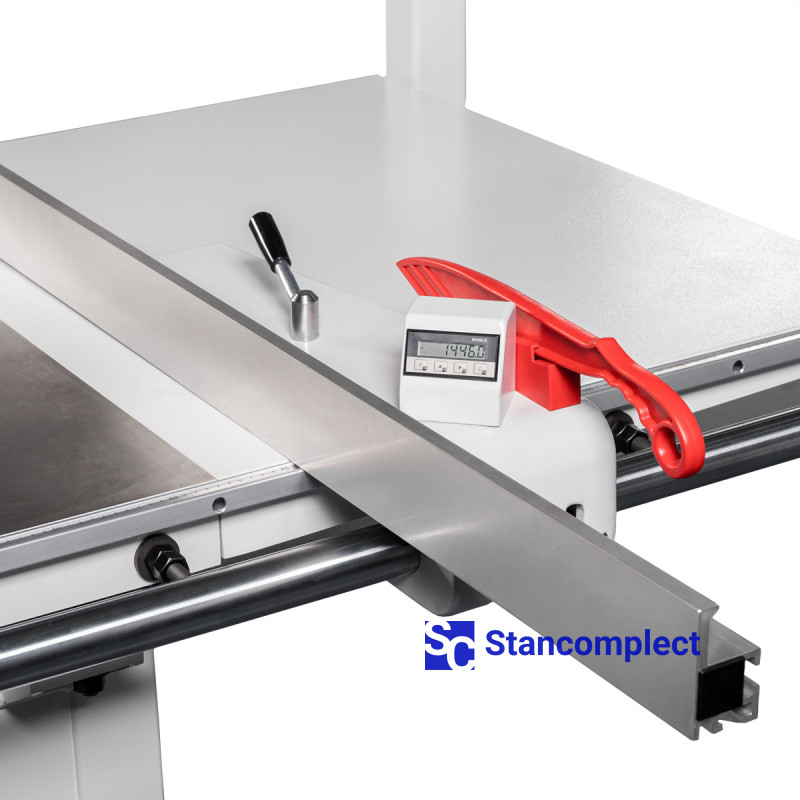

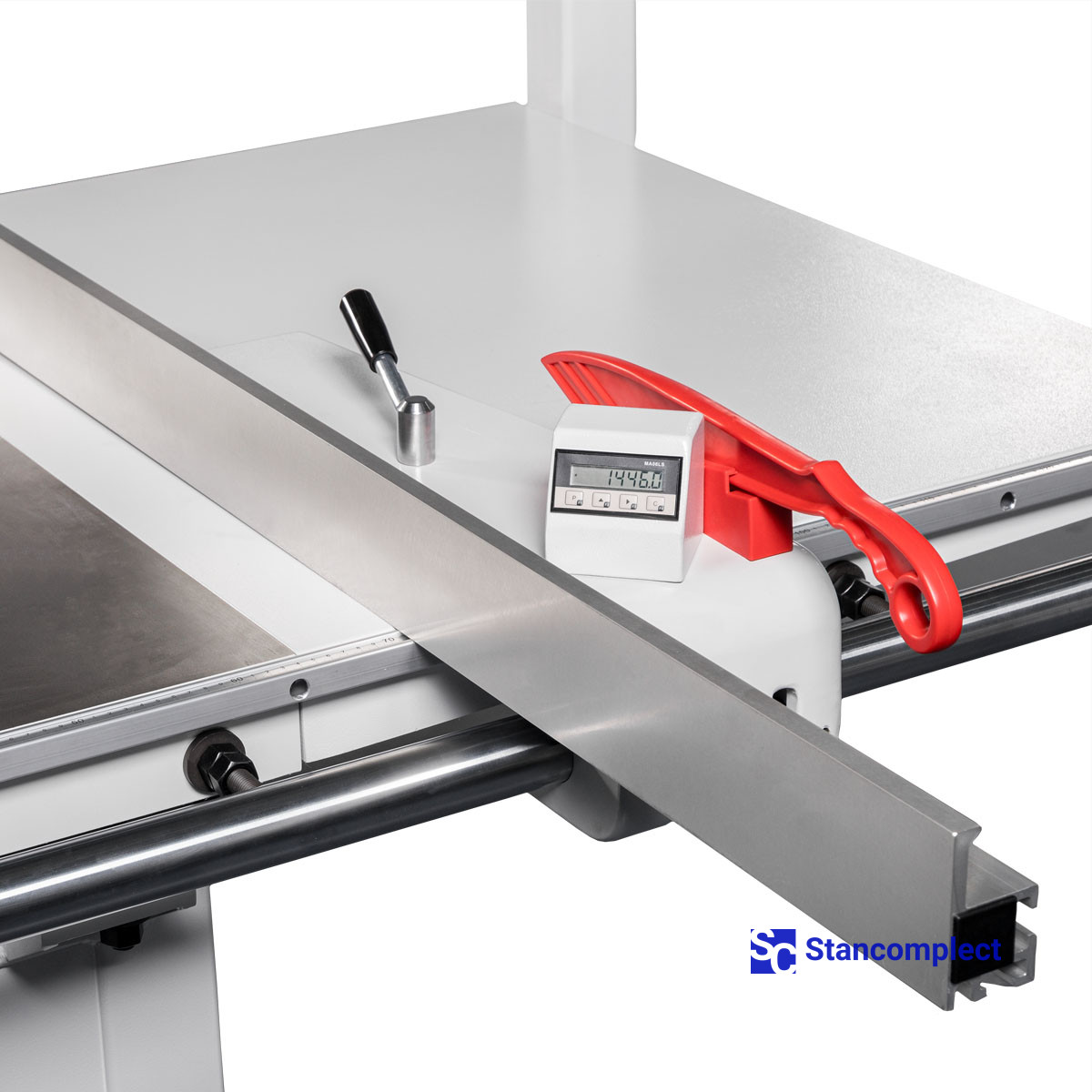

Longitudinal stop with electronic digital display allows you to quickly and accurately set the desired value. Pusher for safe work with narrow workpieces.

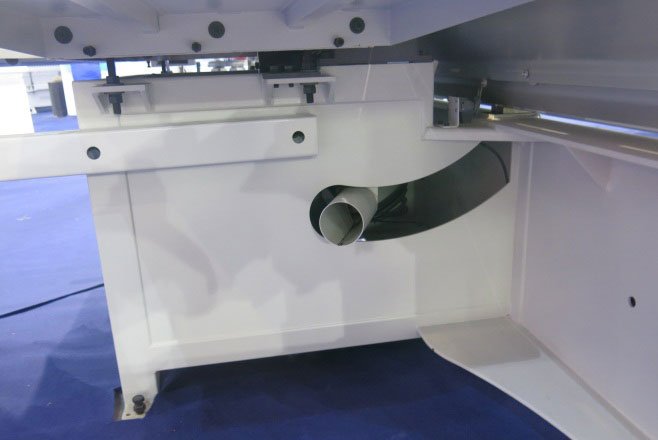

The main sawdust outlet is located in the engine compartment.

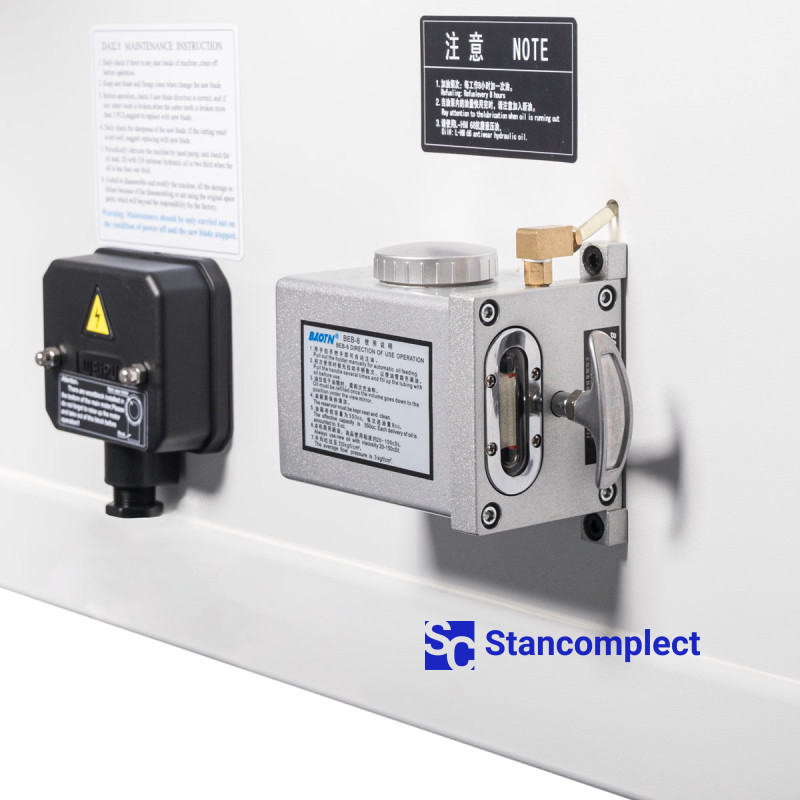

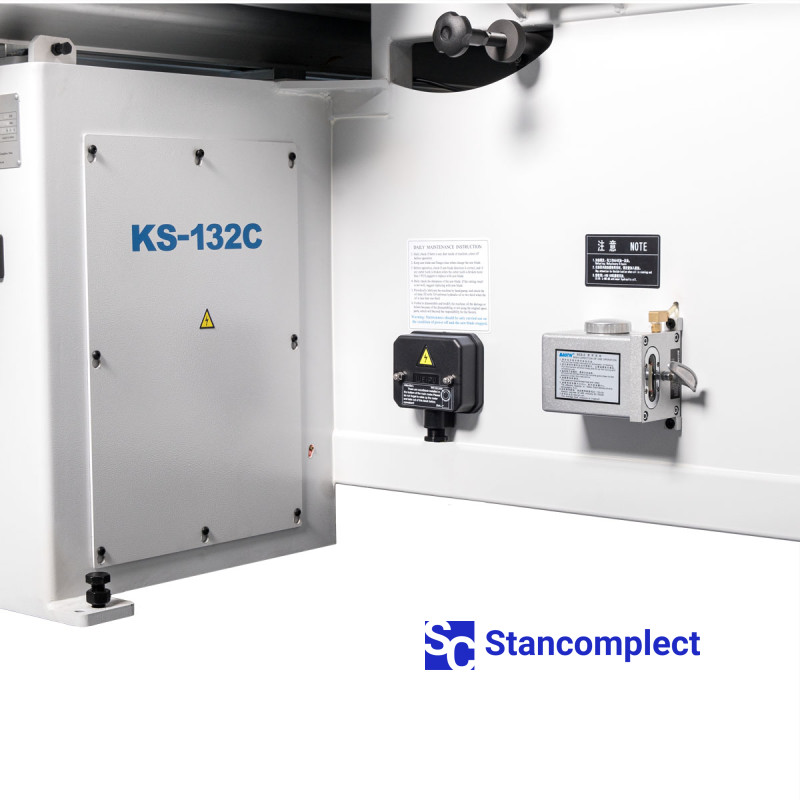

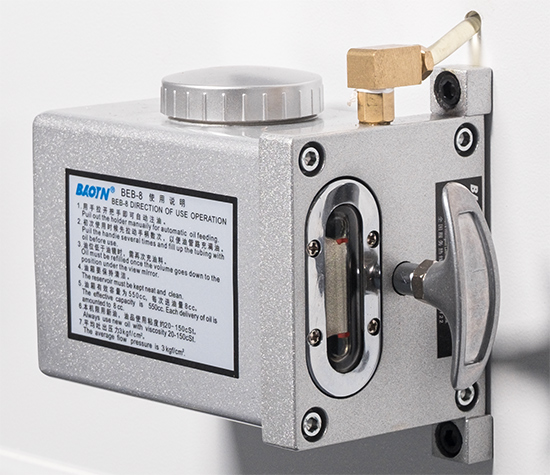

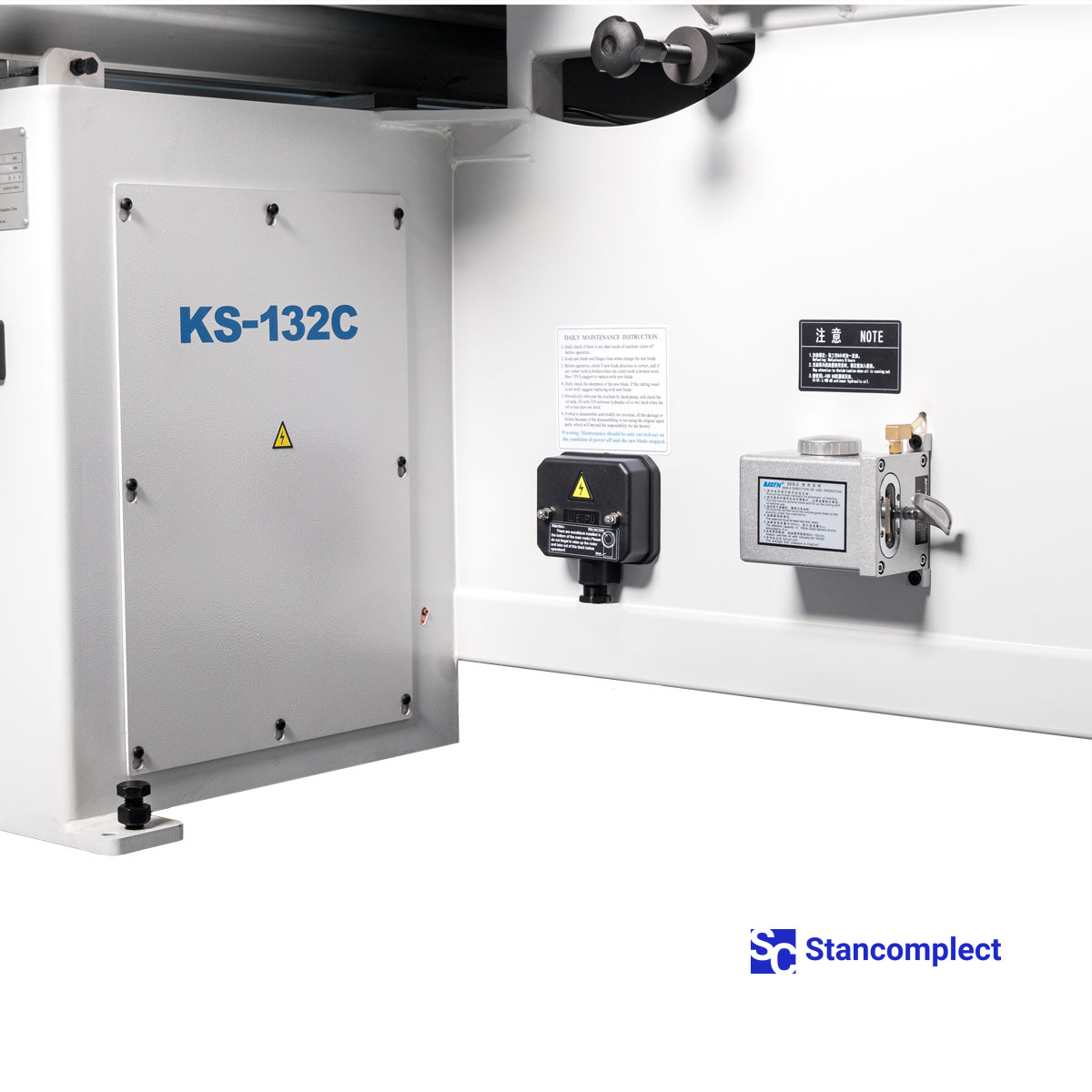

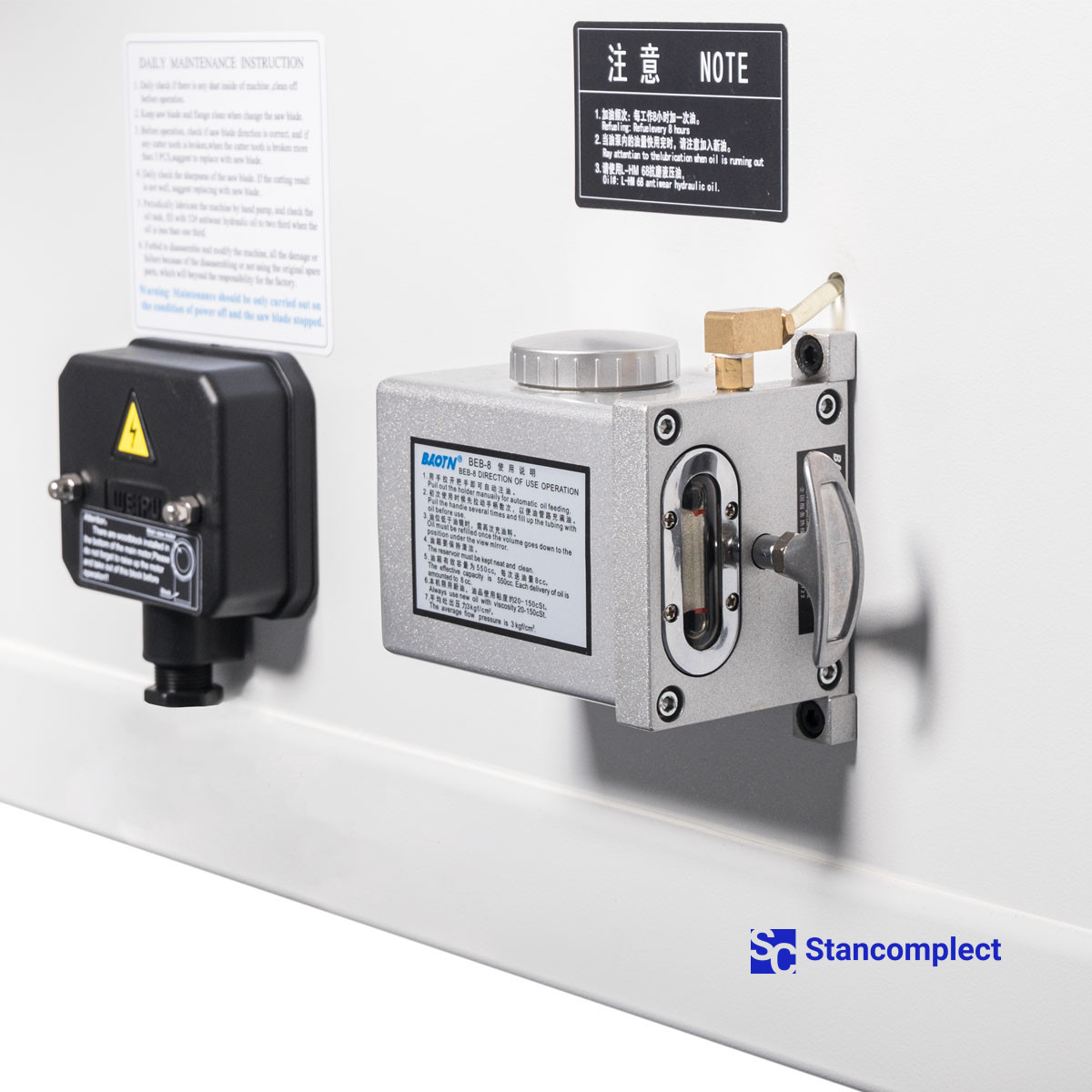

The centralized lubrication system lubricates all units and assemblies that require maintenance.
The machine is completed with the Leitz cutting tool.

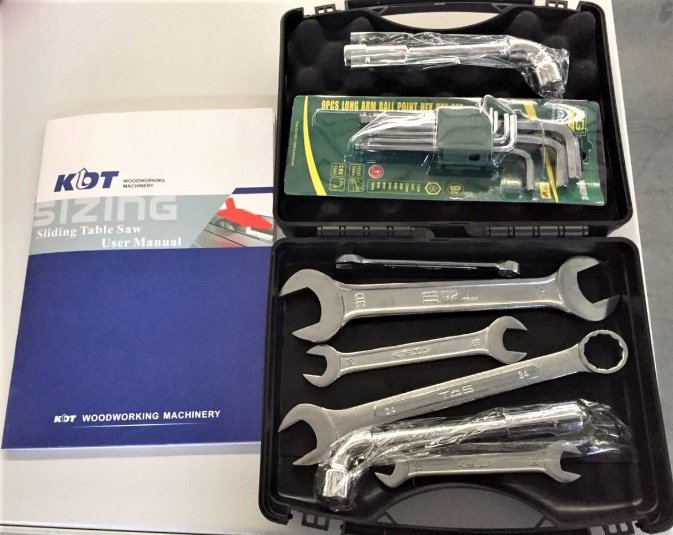

Tool kit for machine maintenance.
