Sliding table panel saw KS-132K from KDT Machinery with a servo drive and a carriage measuring 3200*430 mm is designed for fine cutting of sheet material (LDSTP, MDF, plywood, glued solid wood panels, etc.) into blanks according to specified dimensions. The format worker is designed to work under increased loads and can work in 2 shifts.
- Rip fence with servomotor for setting the size.
- A digital counter is installed on the transverse stop.
- Roller carriage 3200x430 mm - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine.
- The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them.
- Powerful saw carriage, made of aluminum multi-cellular profile with a working part width of 430 mm.
- Own electric motors for the scoring and main saw 1.1 / 5.5 kW allow the machine to be used in multi-shift operation and dissolve various materials.
- Electric lifting and lowering of the main saw blade.
- Eccentric clamp for reliable fixation of the material in the cutting area.
- The scope of supply includes saws LEITZ 300×30+120×22.

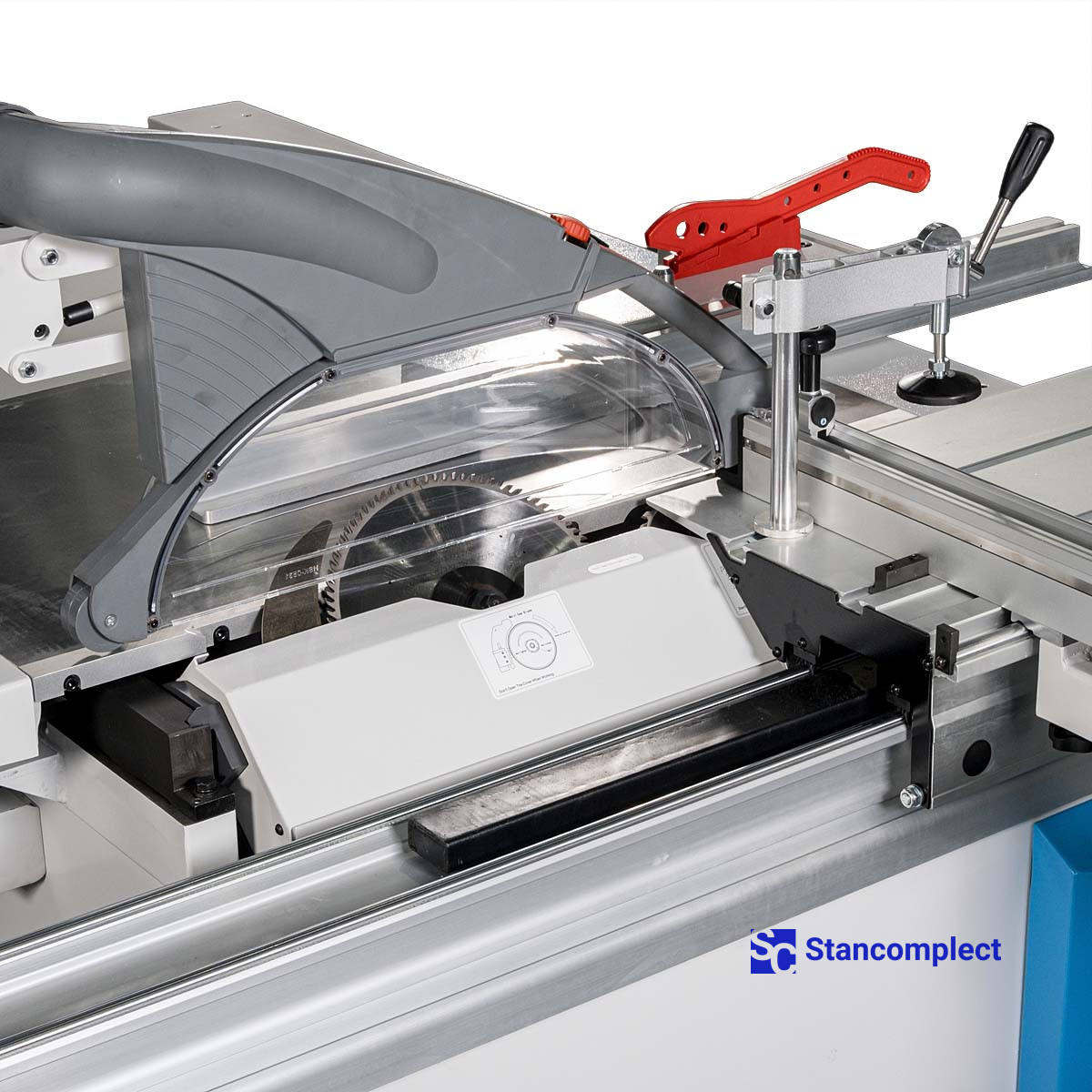

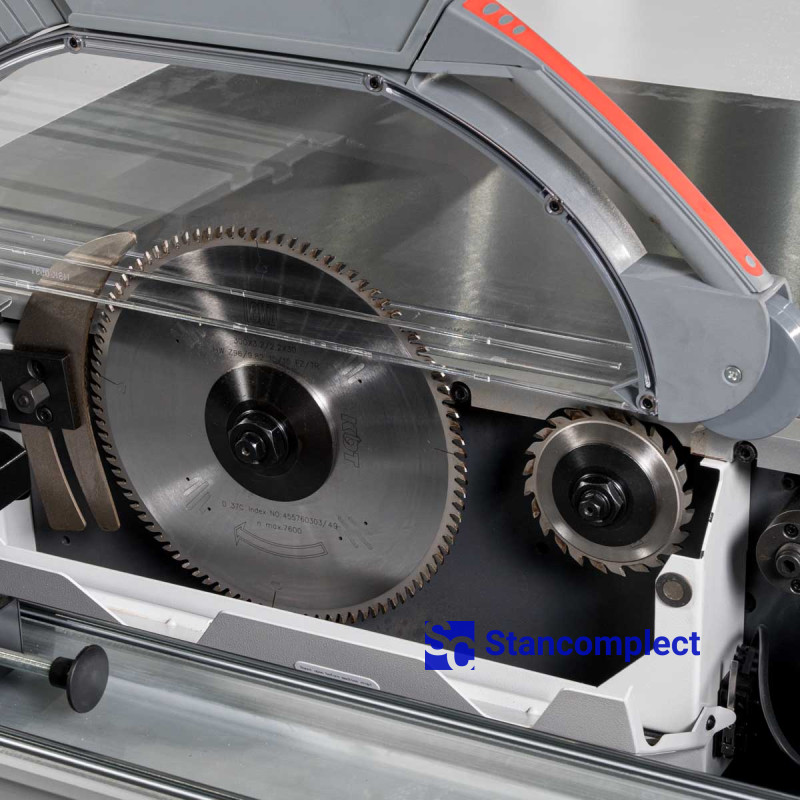

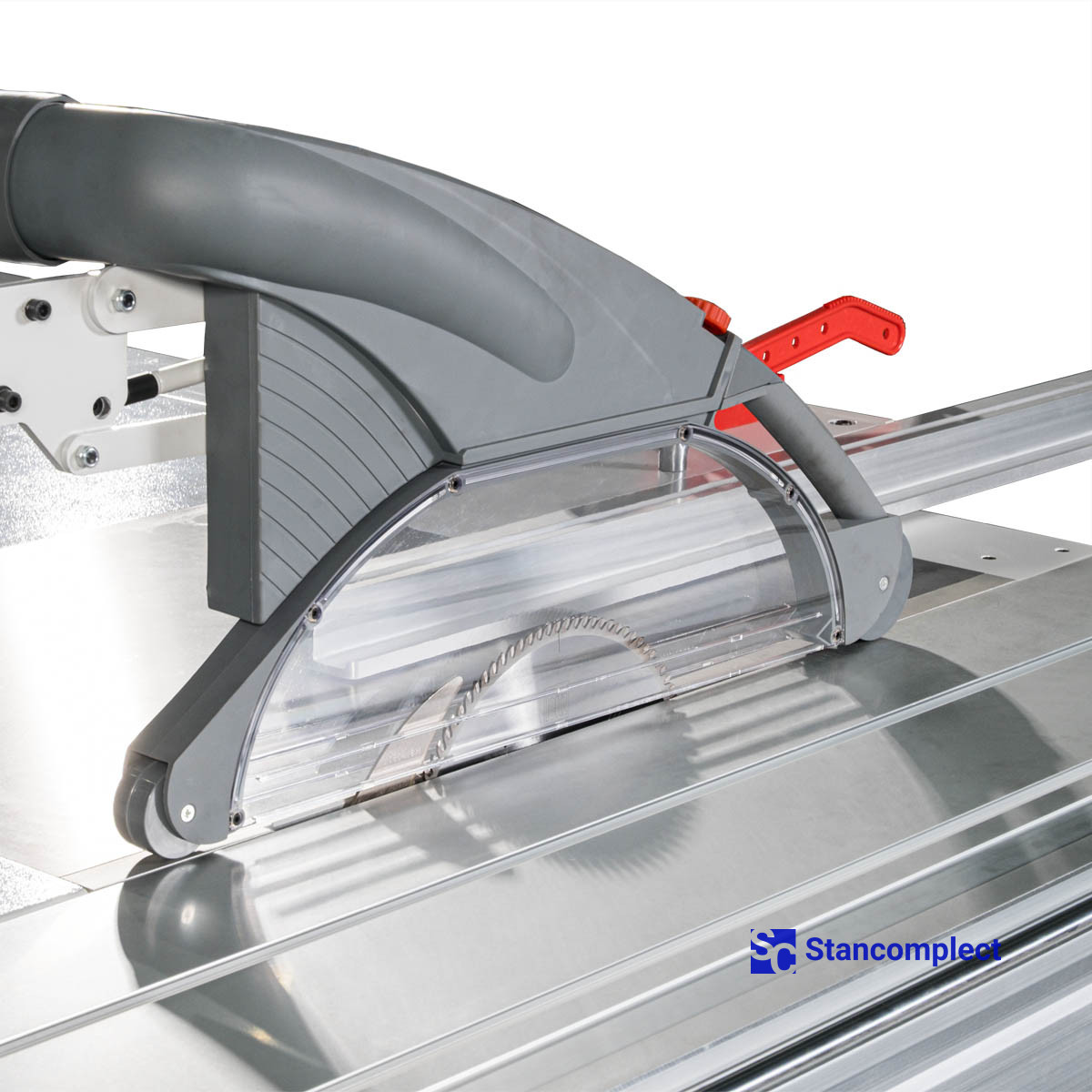

- The transparent CE aspiration protective cover for saw blades allows you to visually control the sawing process, as well as effectively remove sawdust from the cutting zone.

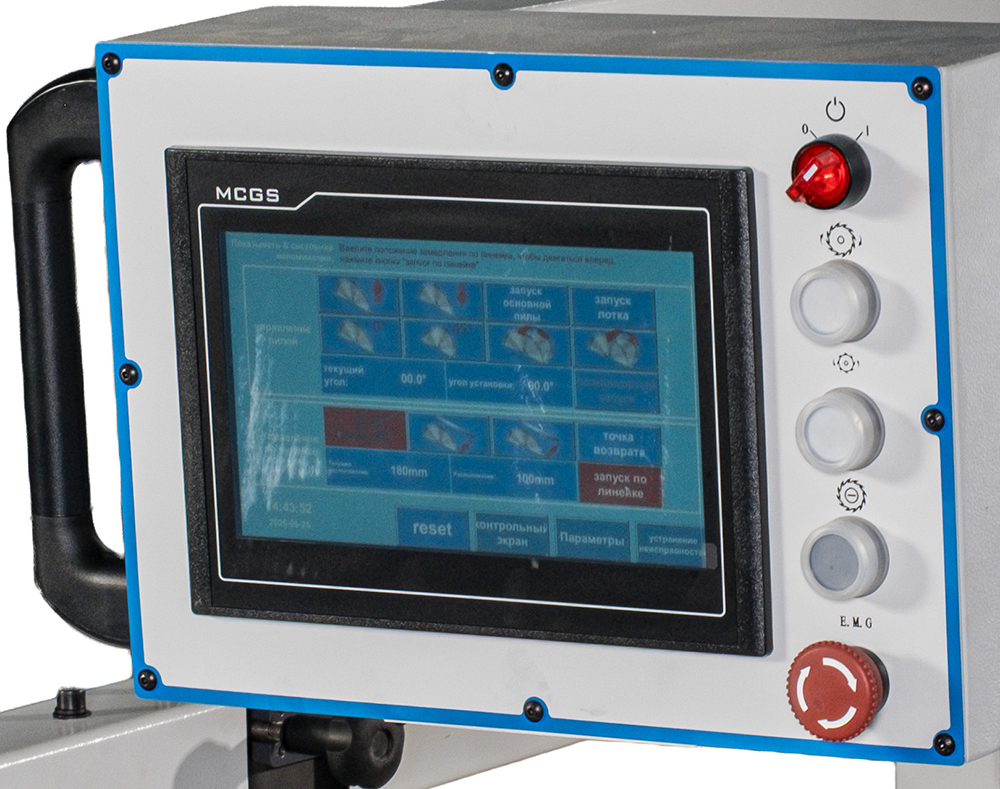

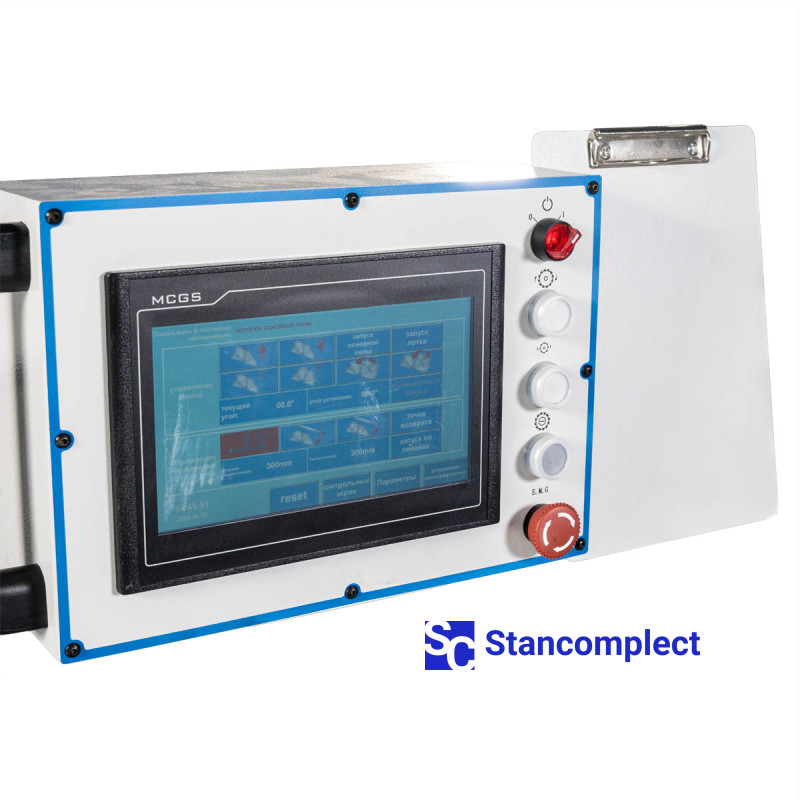

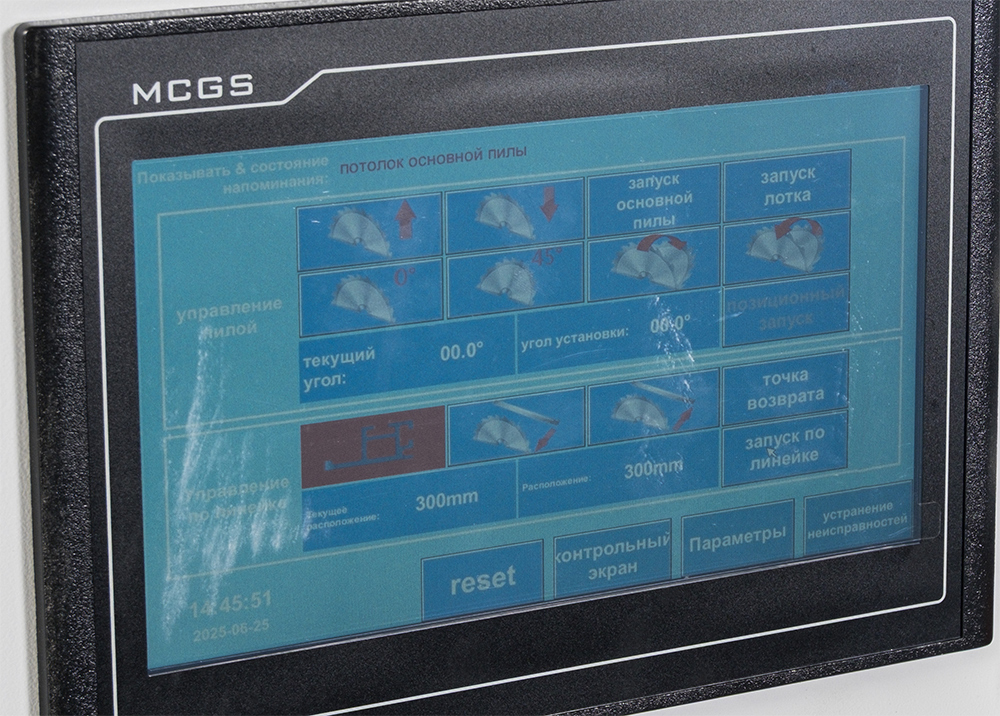

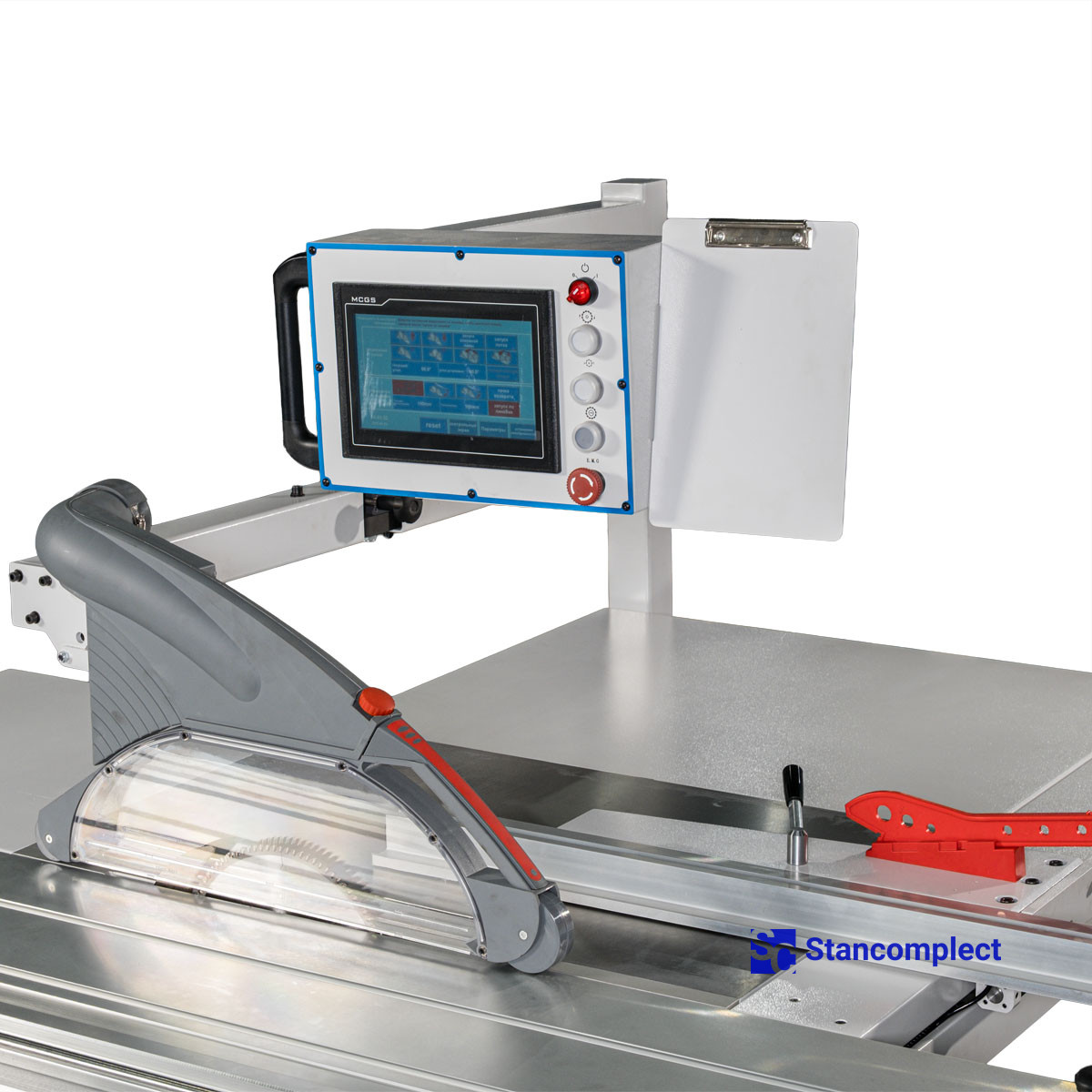

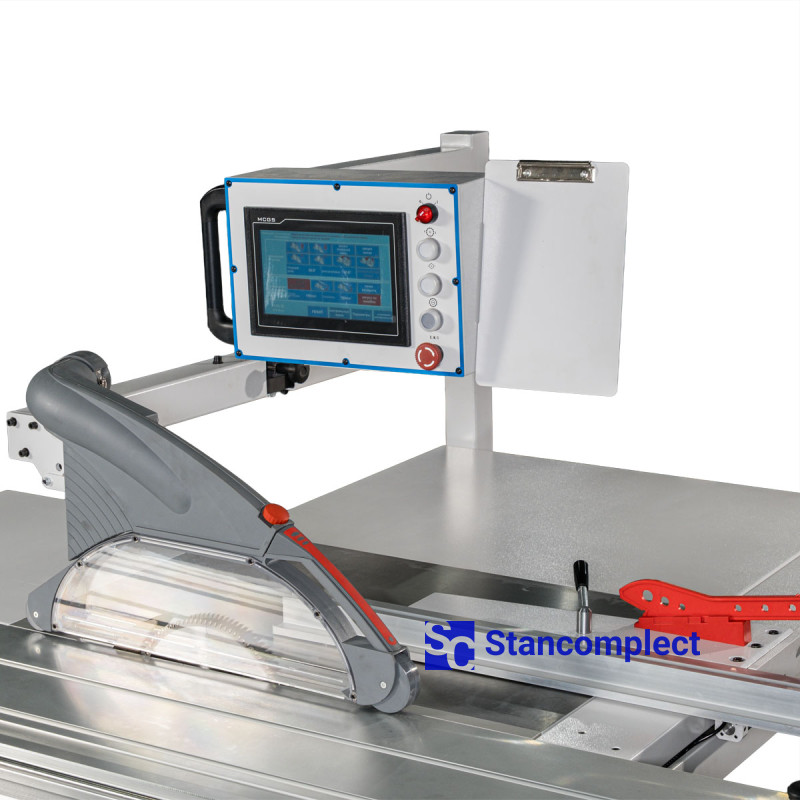

The touch screen control system (TouchScreen) provides the maximum convenience of work on the machine.

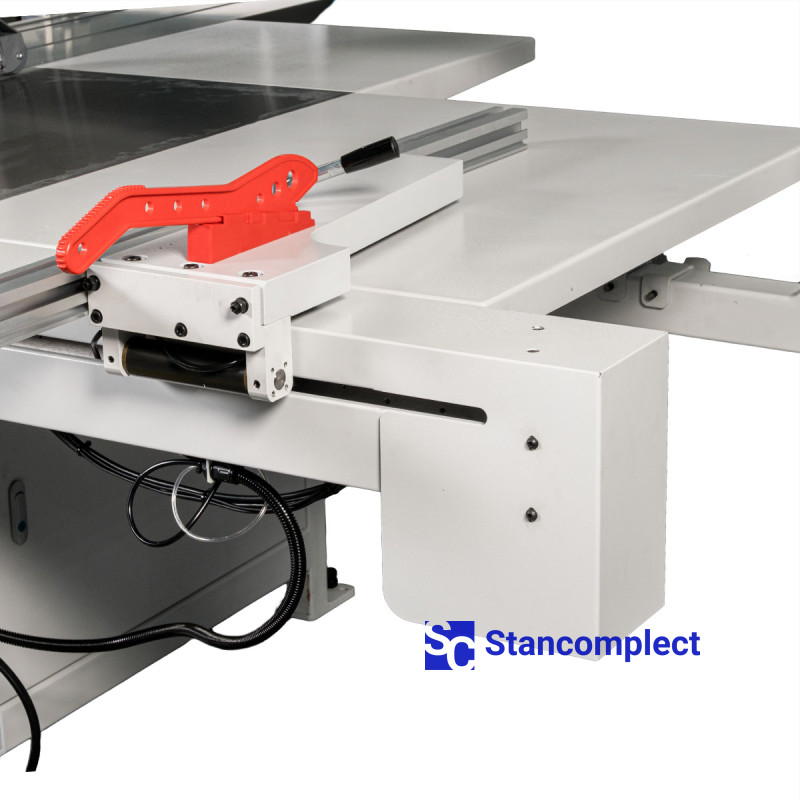

The control of the parallel fence (setting the cutting width) is also carried out from the remote control. Accuracy and smoothness of stop movement is ensured by Delta servomotor (Taiwan) and high-precision Hiwin ball screw (Taiwan). Stop travel speed up to 15 m/min.

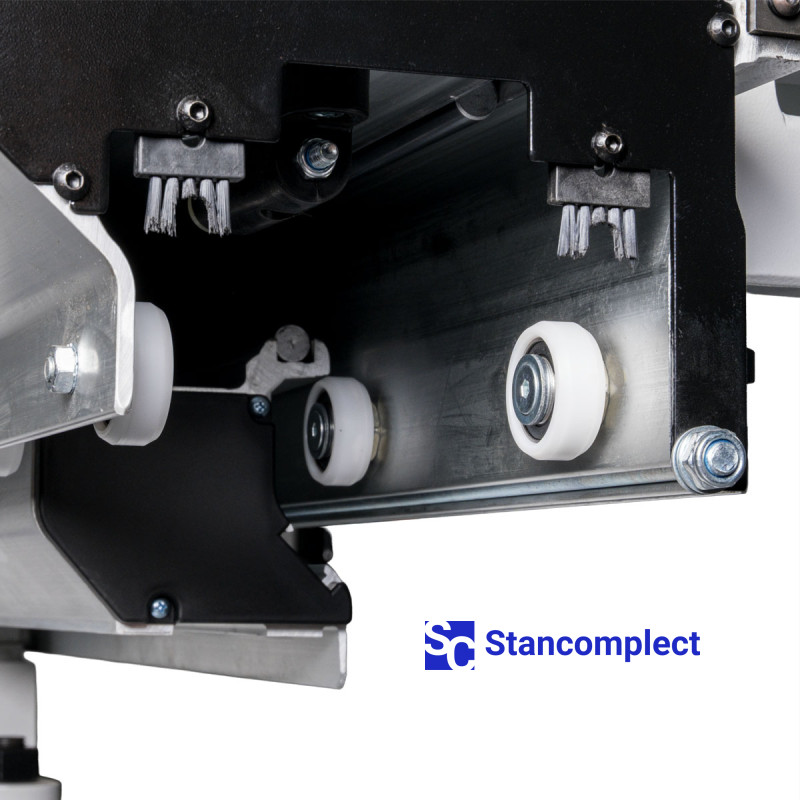

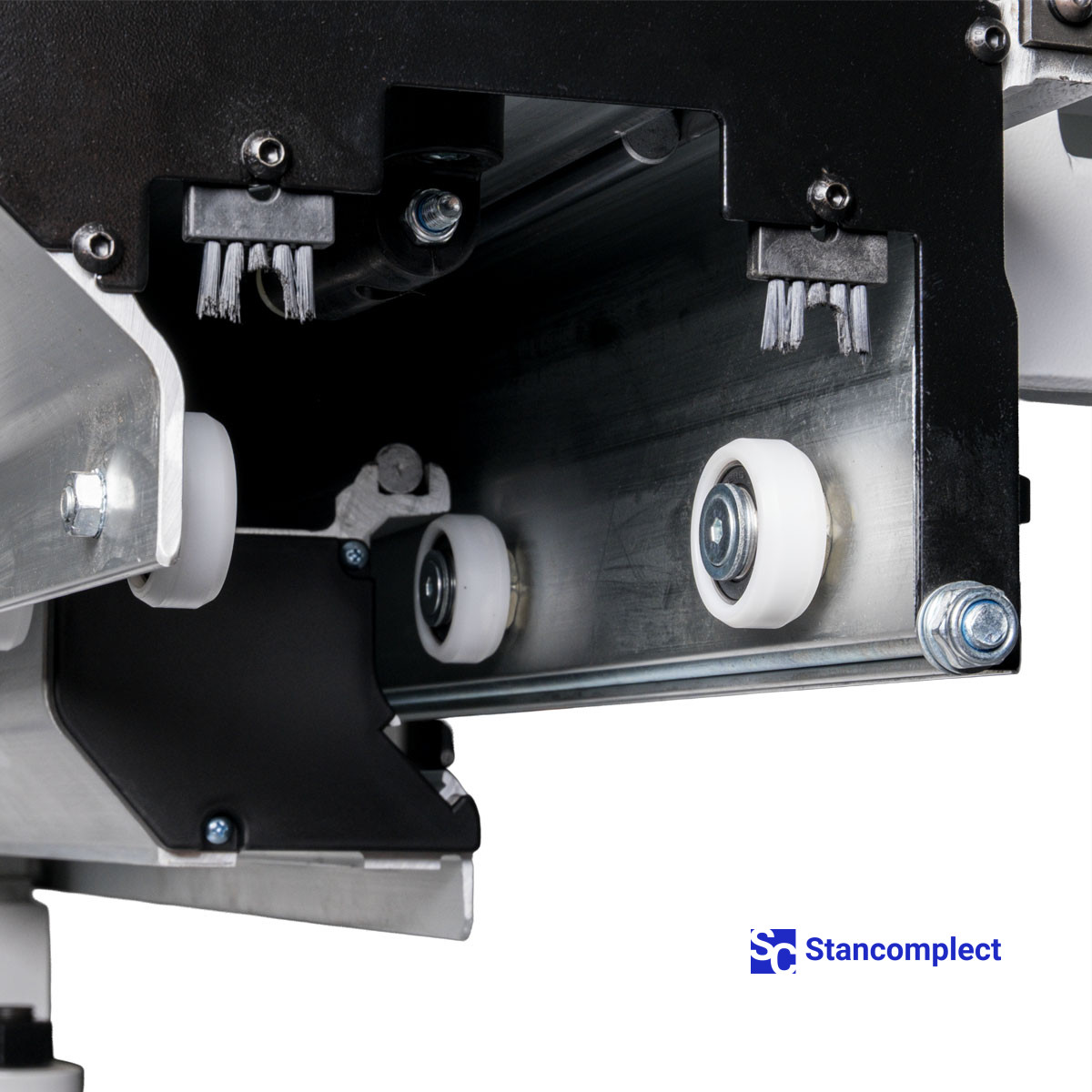

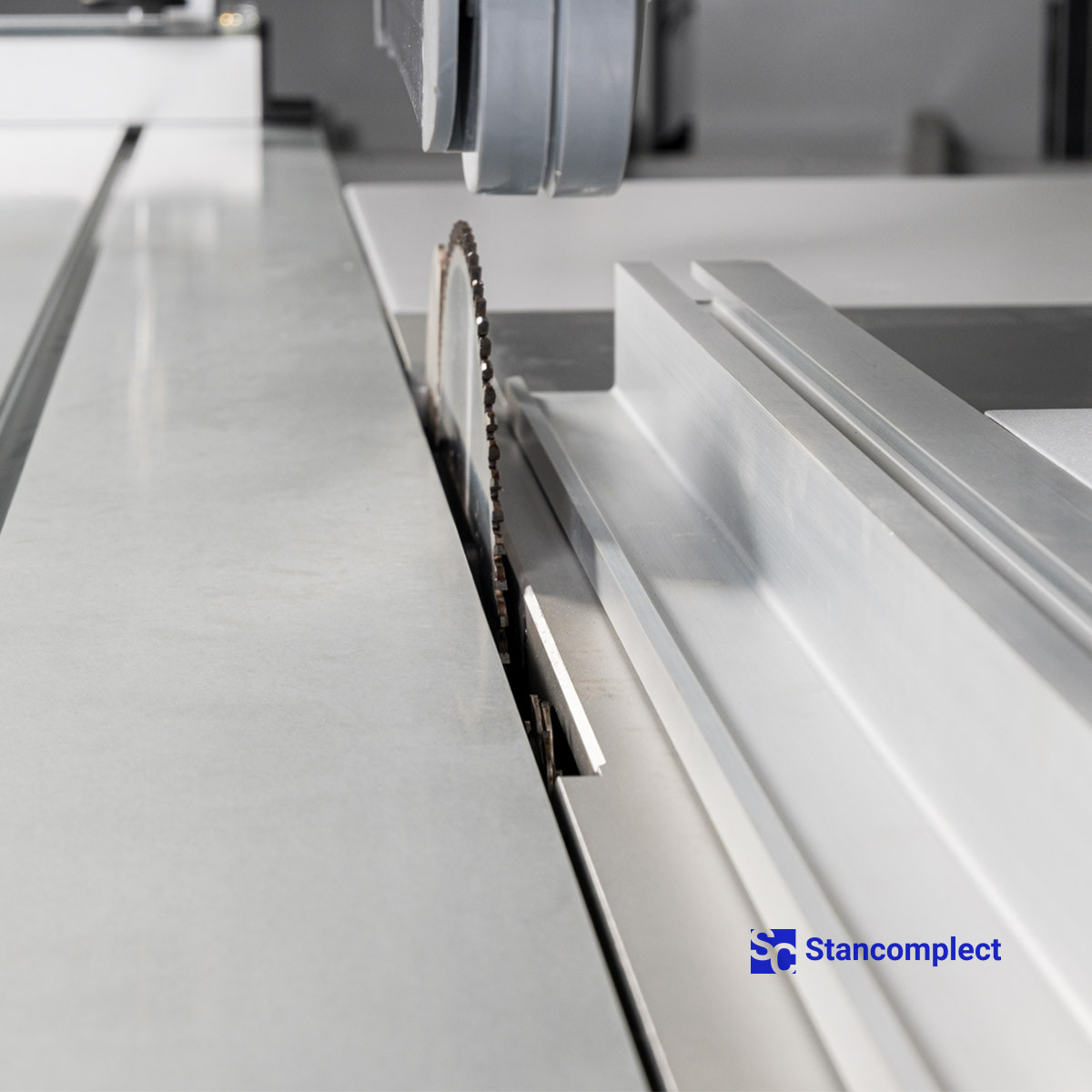

The roller carriage guarantees the highest cutting quality, no backlash when the carriage moves, smoothness and ease of movement for the entire life of the machine.

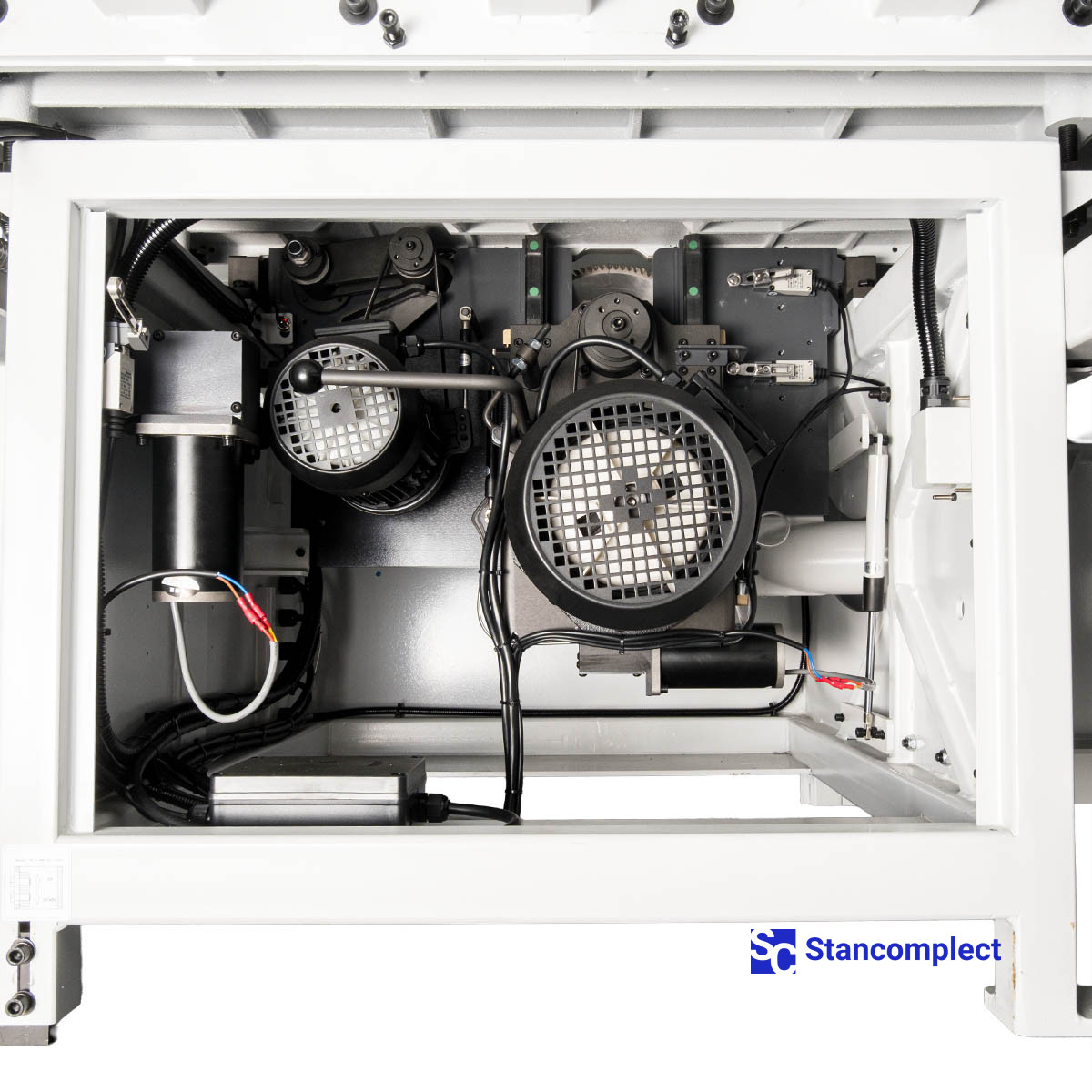

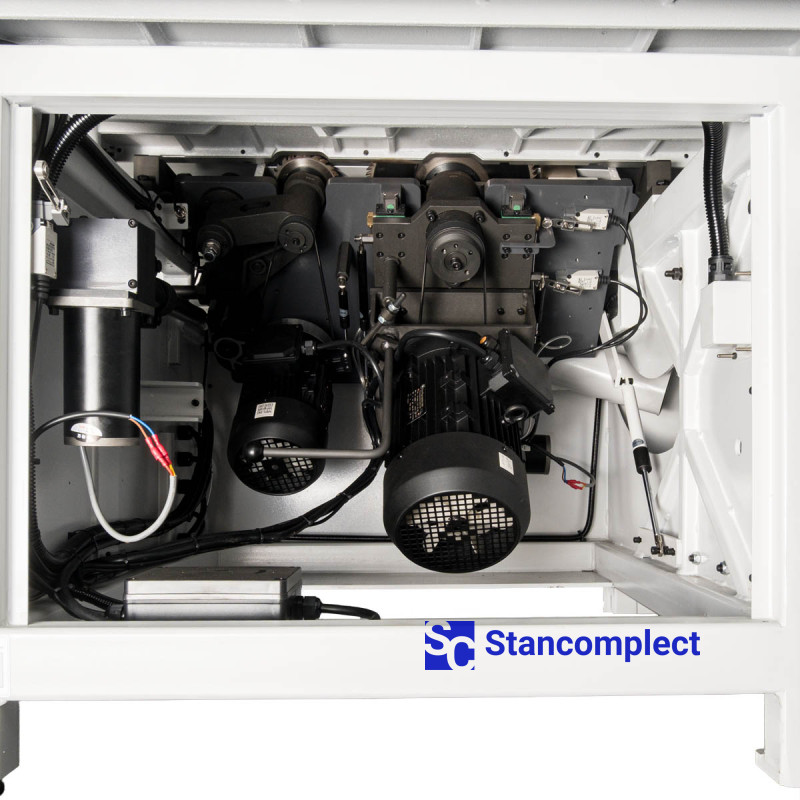

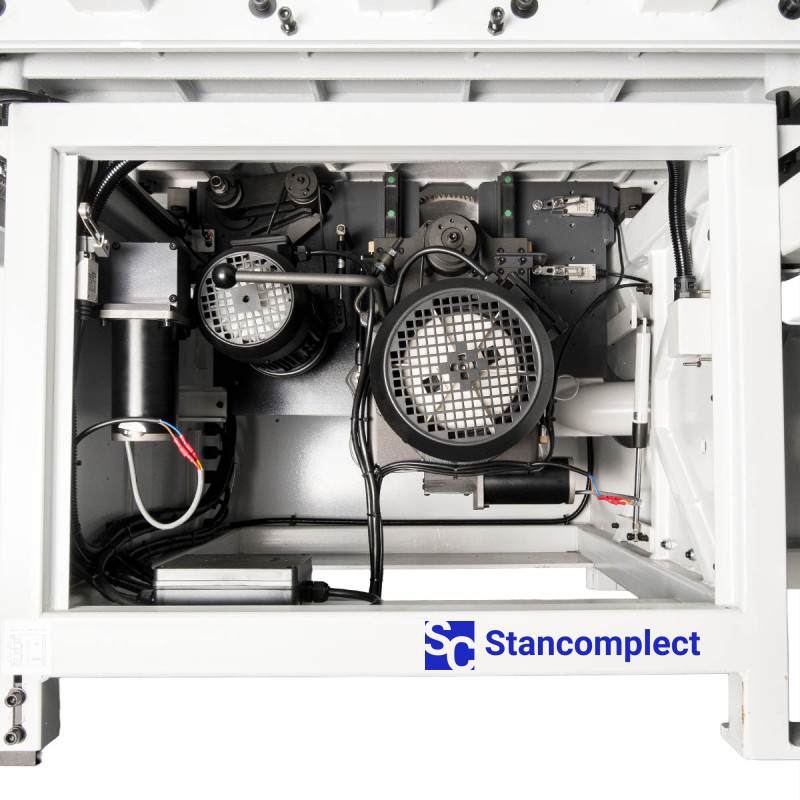

The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them. Manually Variable One Way Tilt Drives: These motors are custom made to KDT specifications and optimized for use on sliding table saws. Units with two speeds - 4000-5000 rpm, speeds are switched manually.
Accuracy and smoothness of stop movement is ensured by Delta servomotor (Taiwan) and high-precision Hiwin ball screw (Taiwan). Stop travel speed up to 15 m/min.

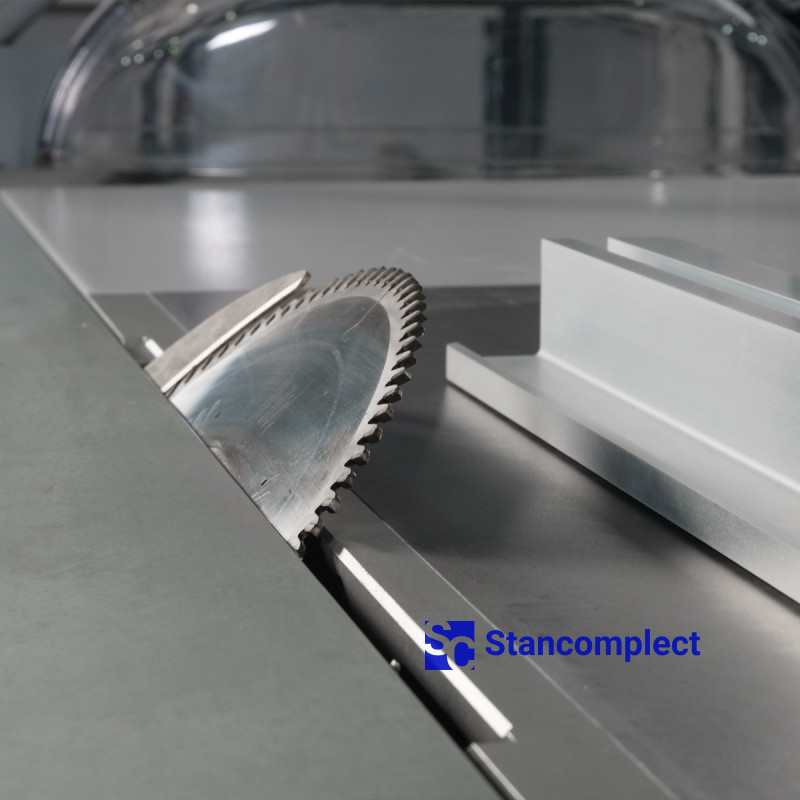

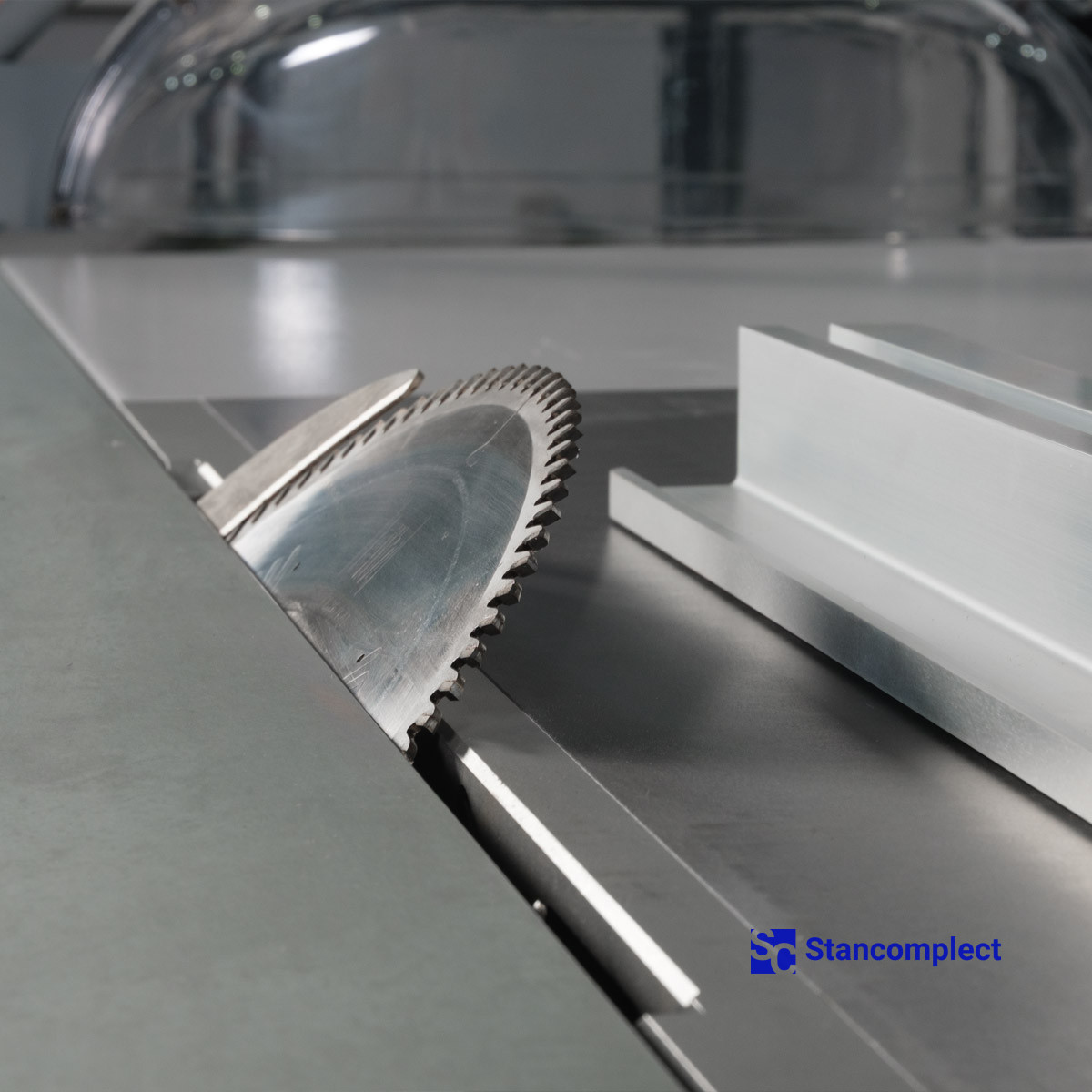

Electronic saw blade tilt 0 – 45°.
High-precision linear bearings and guides from the Taiwanese company HIWIN. One of the main directions of HIWIN is the production of high-quality linear motion systems - carriages, guides, rails, linear bearings.

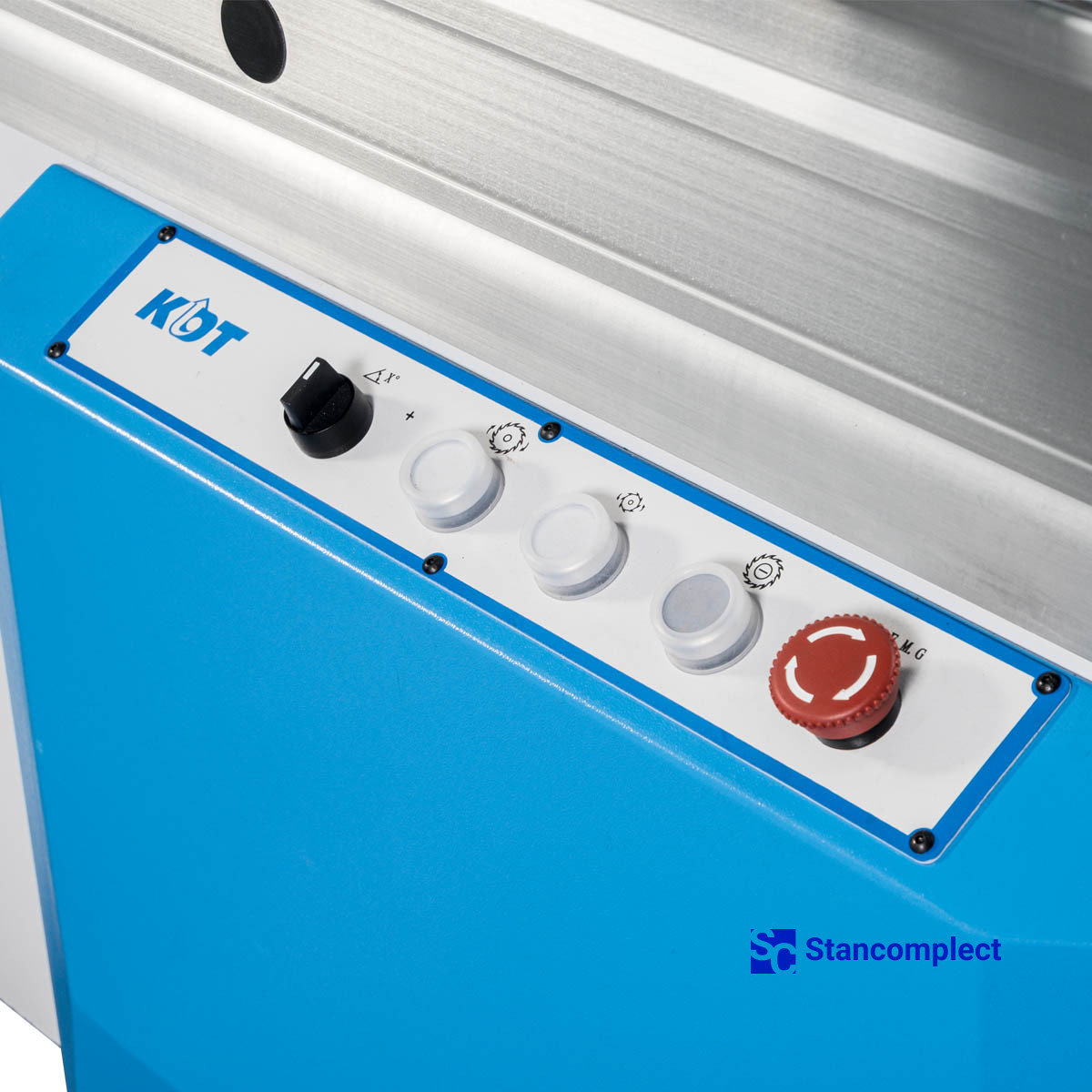

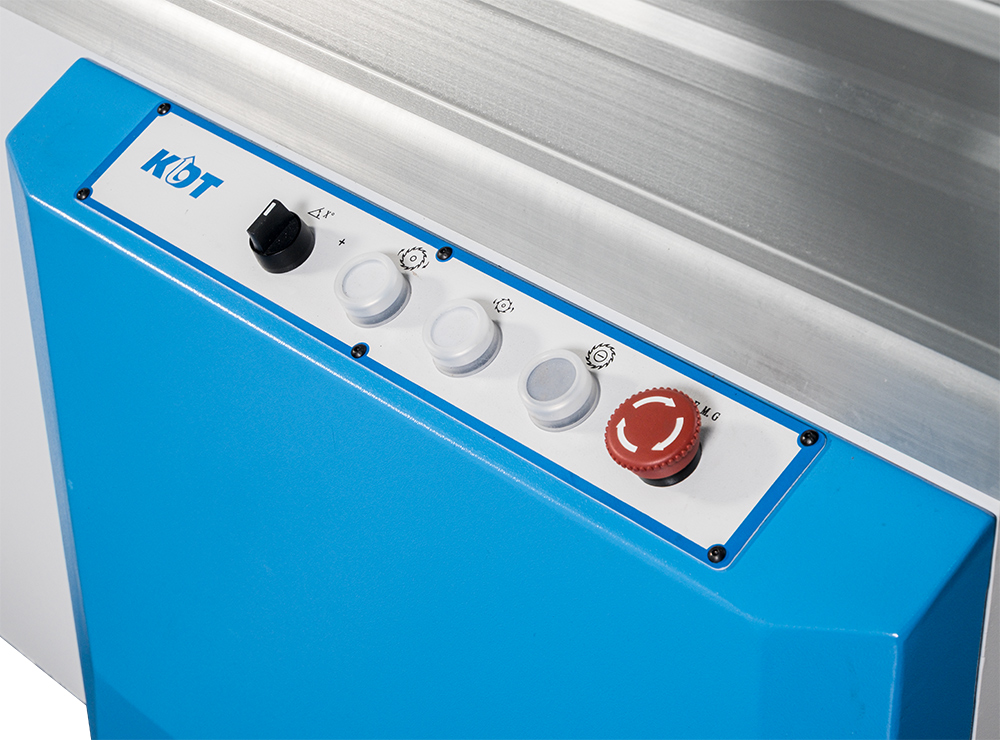

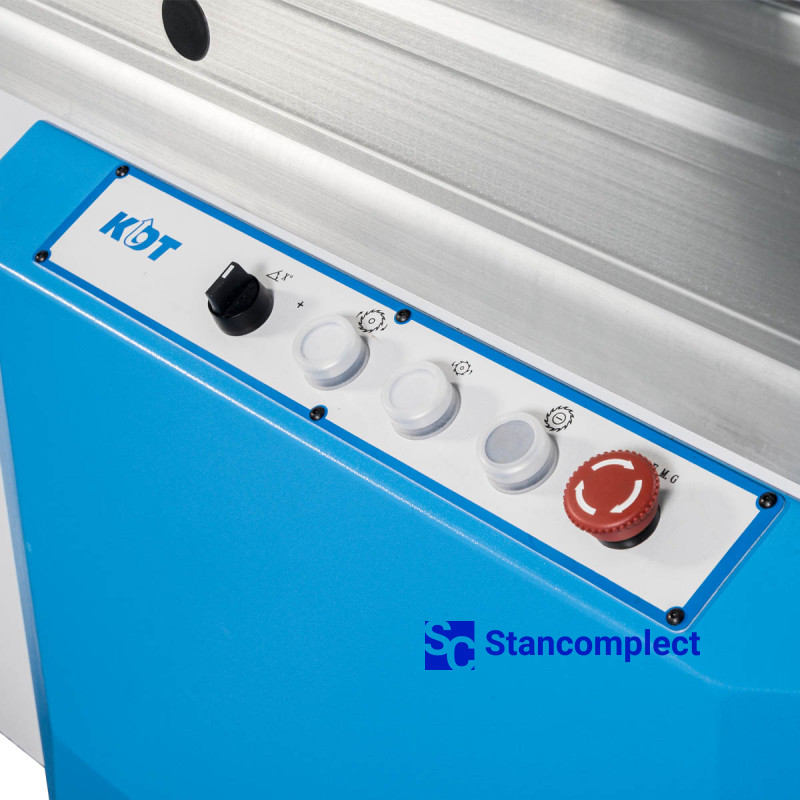

An additional control panel on the bed allows you to quickly turn on and off the motors of the main and scoring saws, as well as adjust the angle of inclination. To ensure safety, both control panels are equipped with emergency stop buttons.

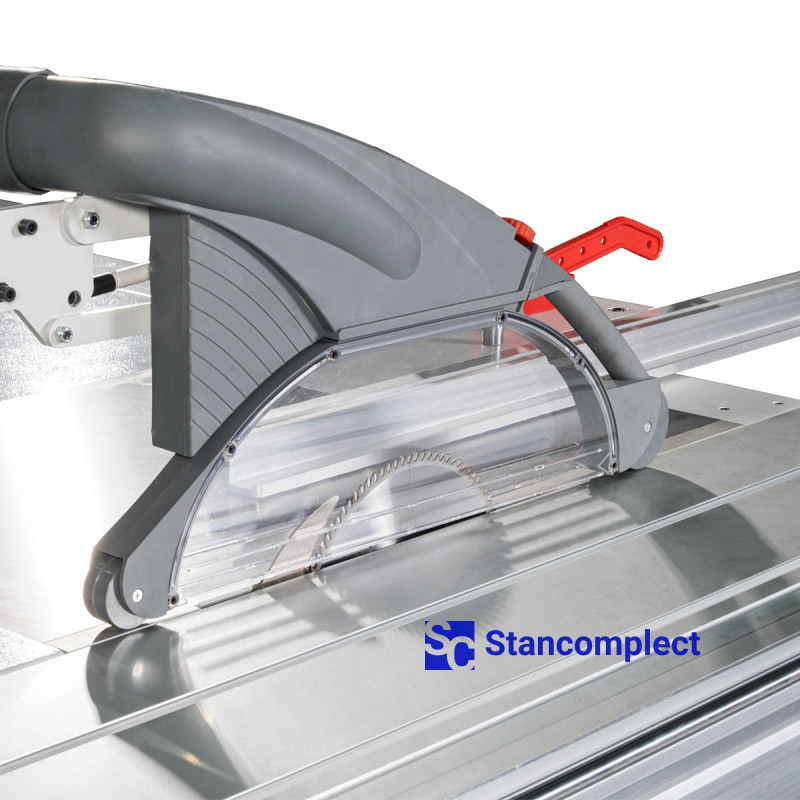

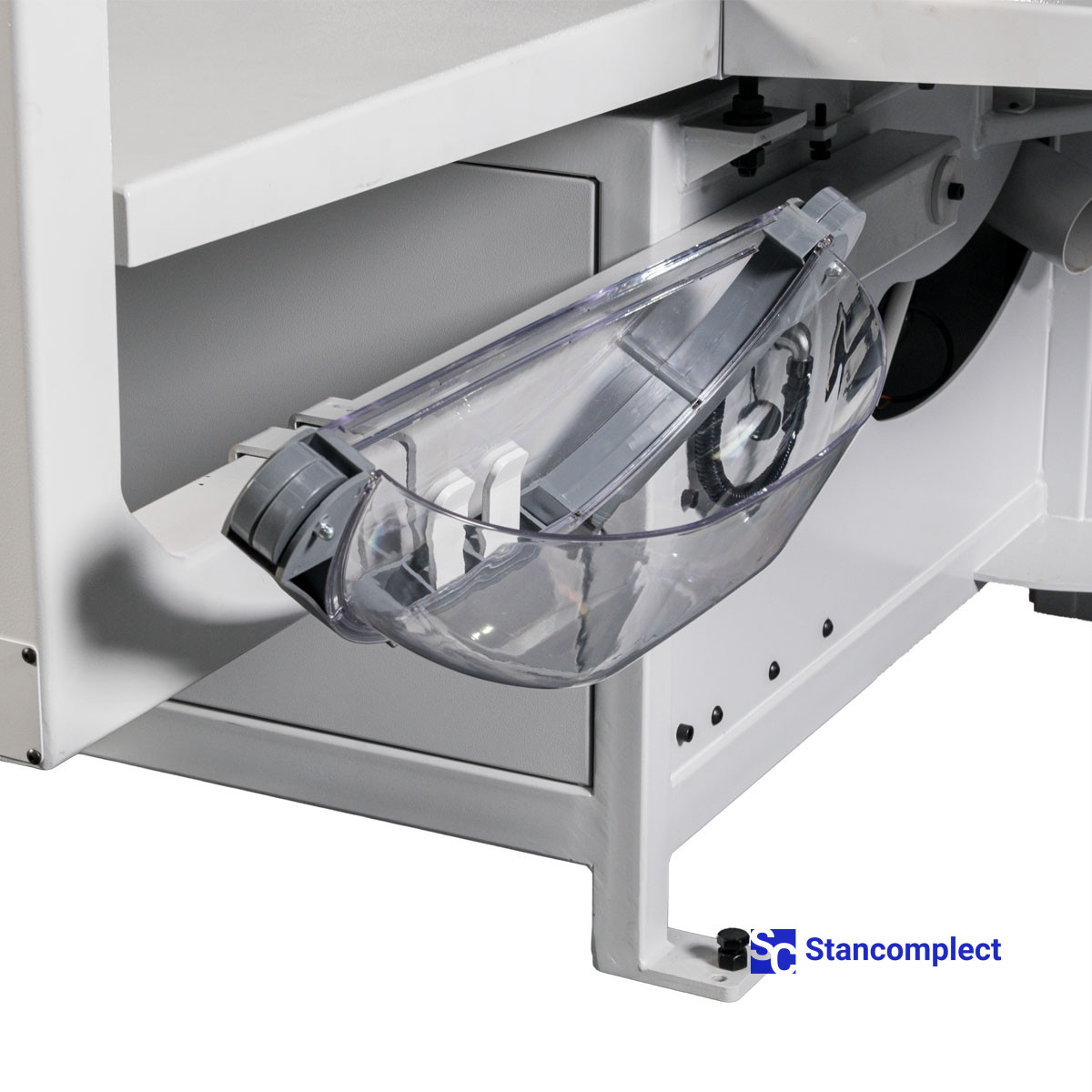

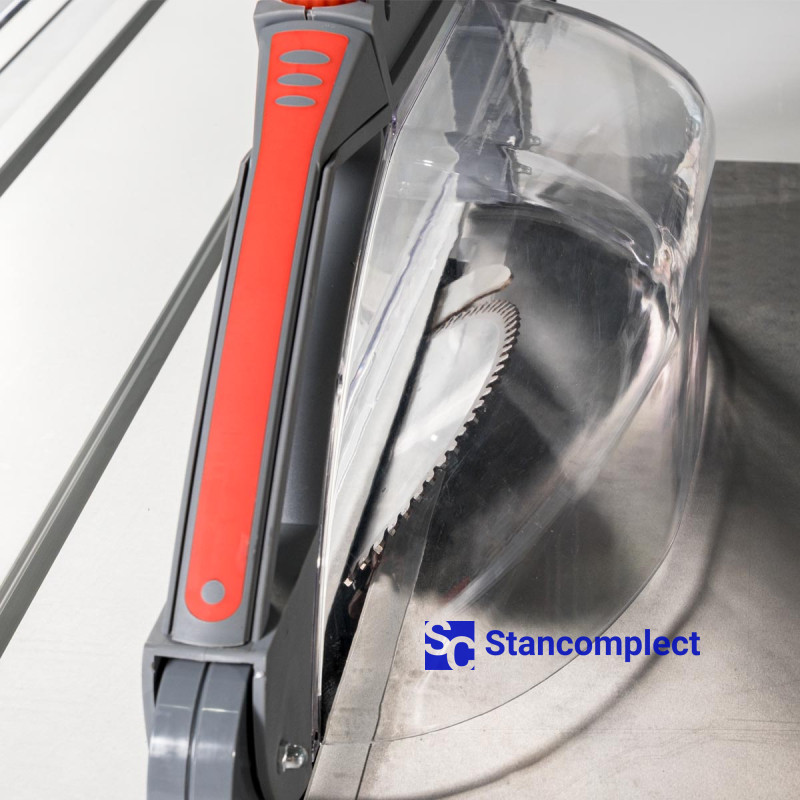

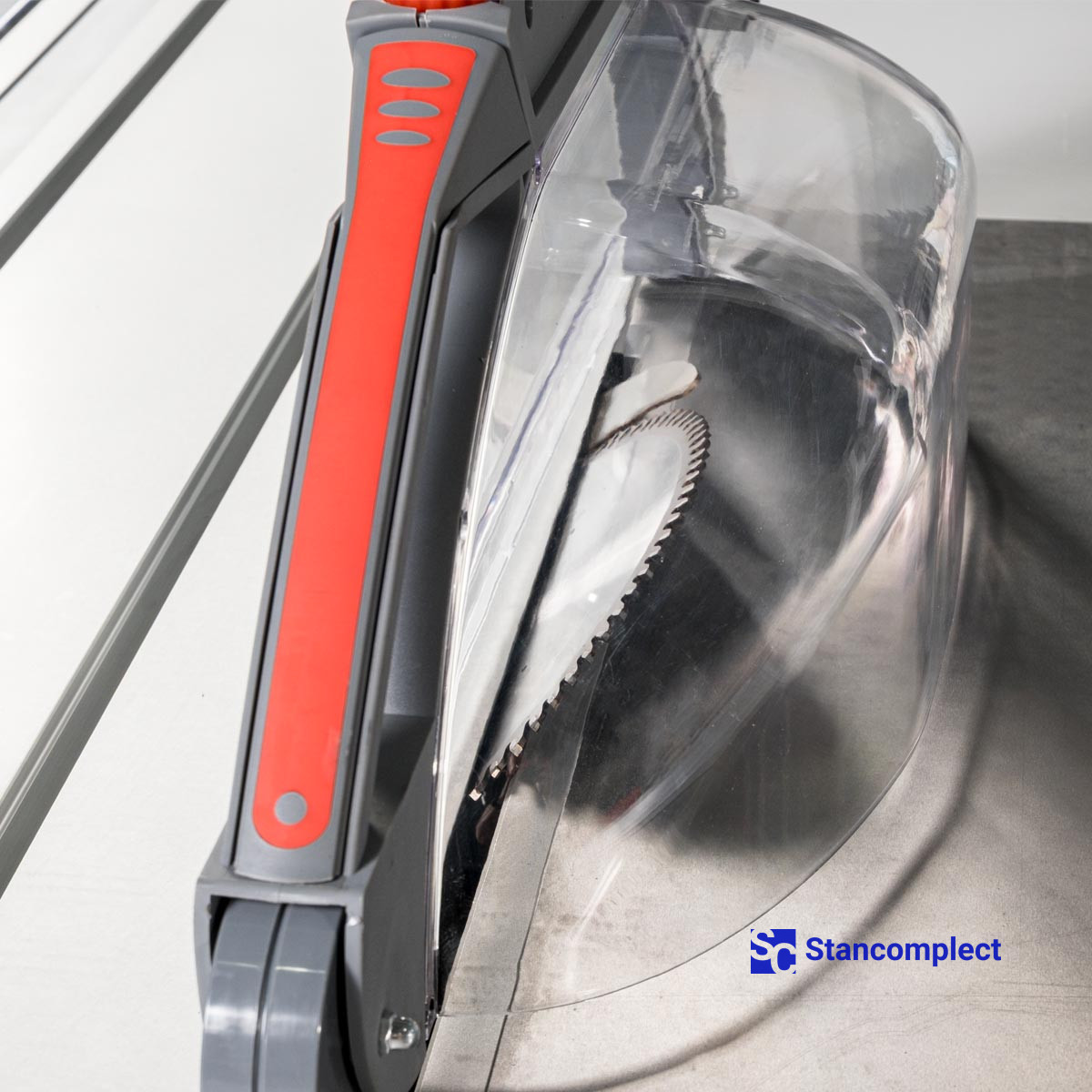

The transparent CE guard provides visual control of the cut, as well as excellent removal of sawdust from the cutting area.

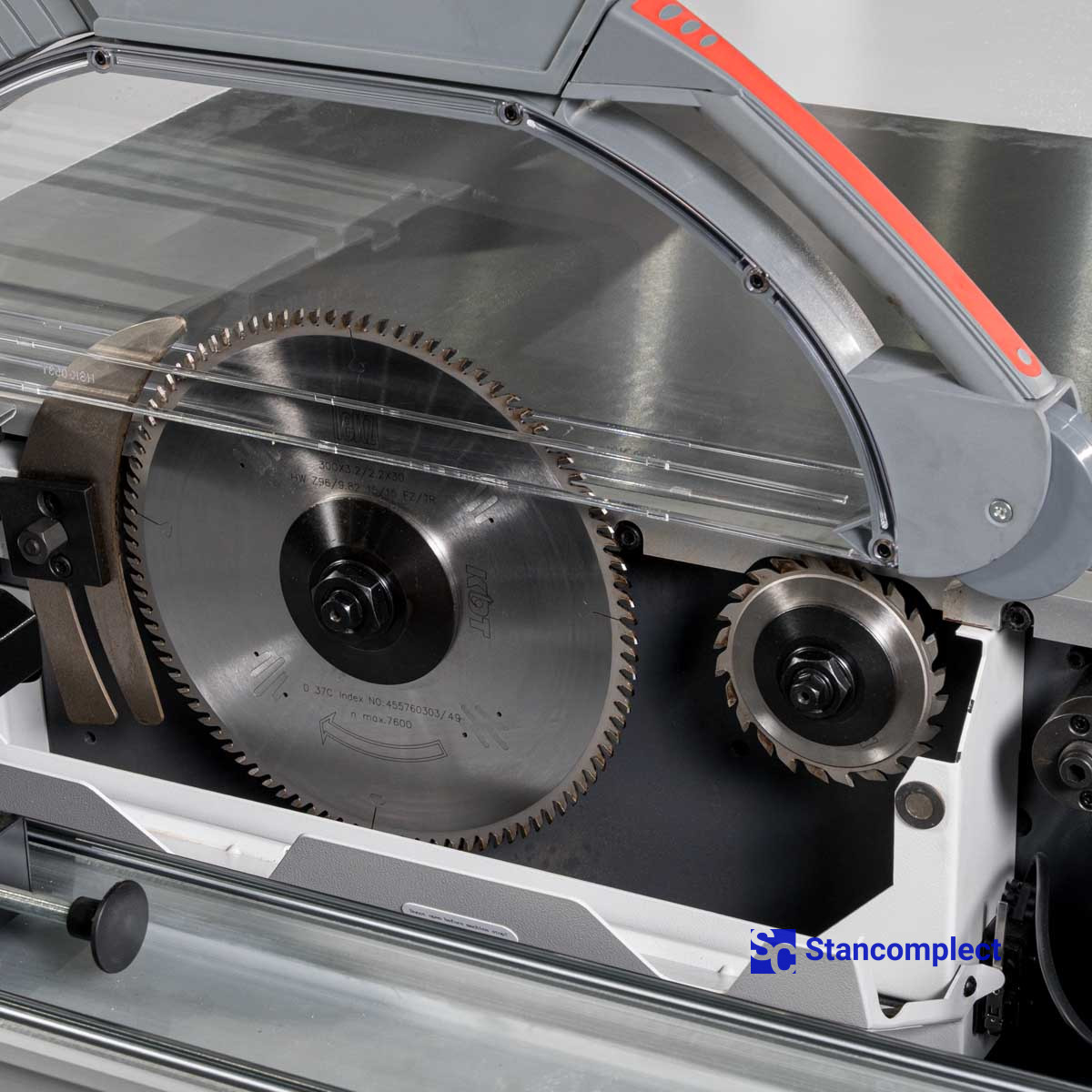

The convenient handle of adjustment of a scoring saw on height, allows to carry out fast adjustment of knot.
Setting the scoring saw horizontally.
Full-format additional tables allow you to open sheets of various sizes.

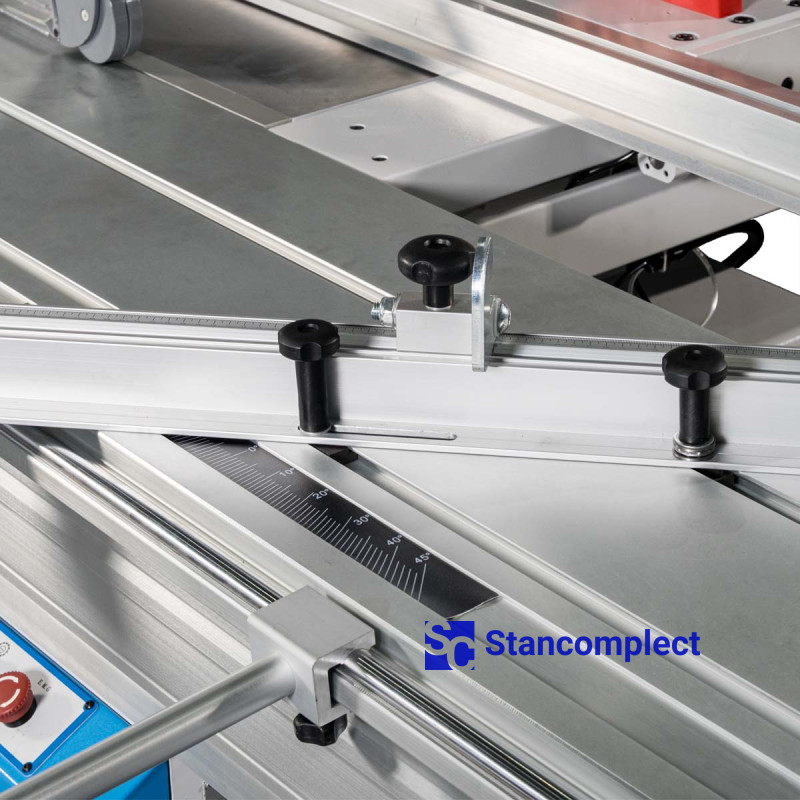

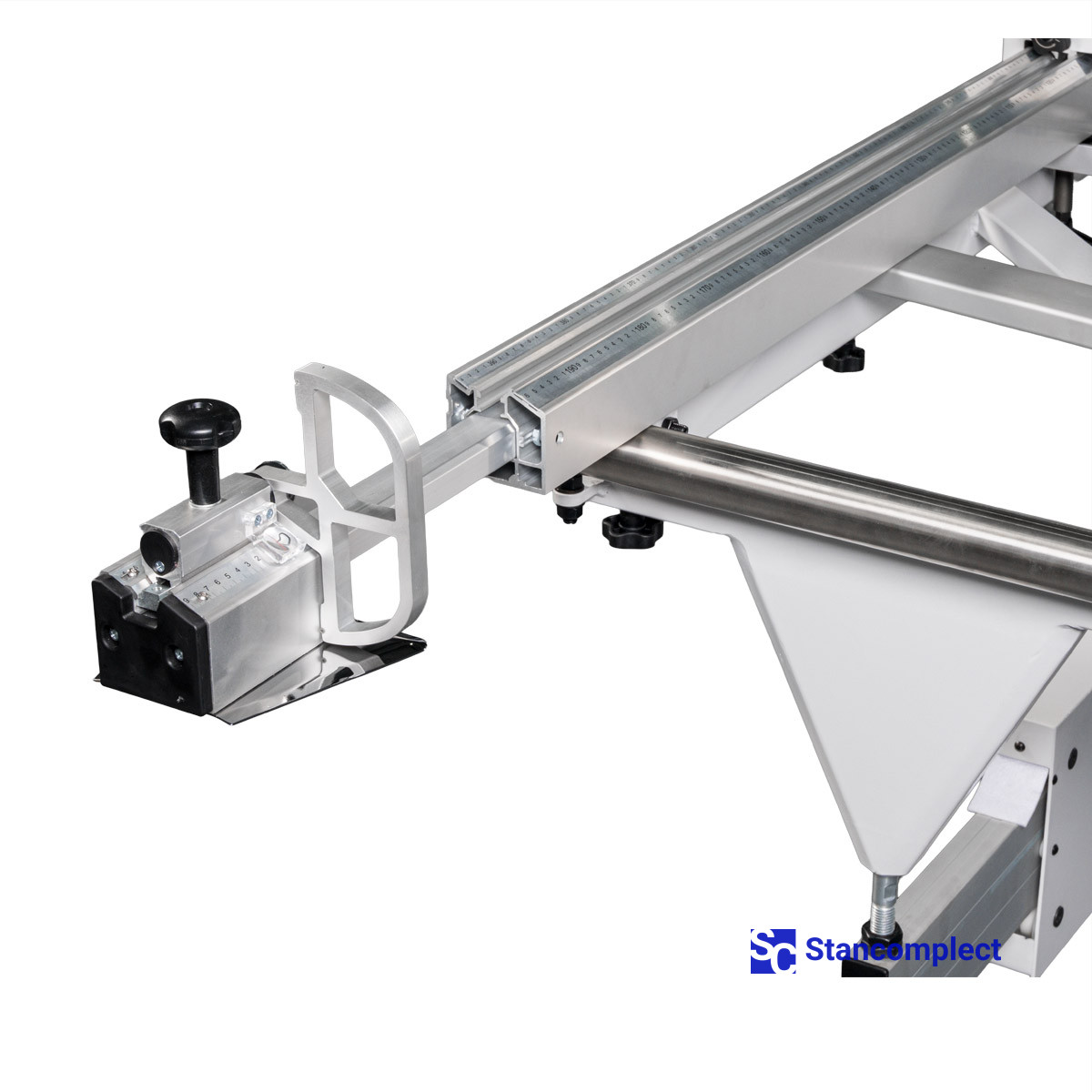

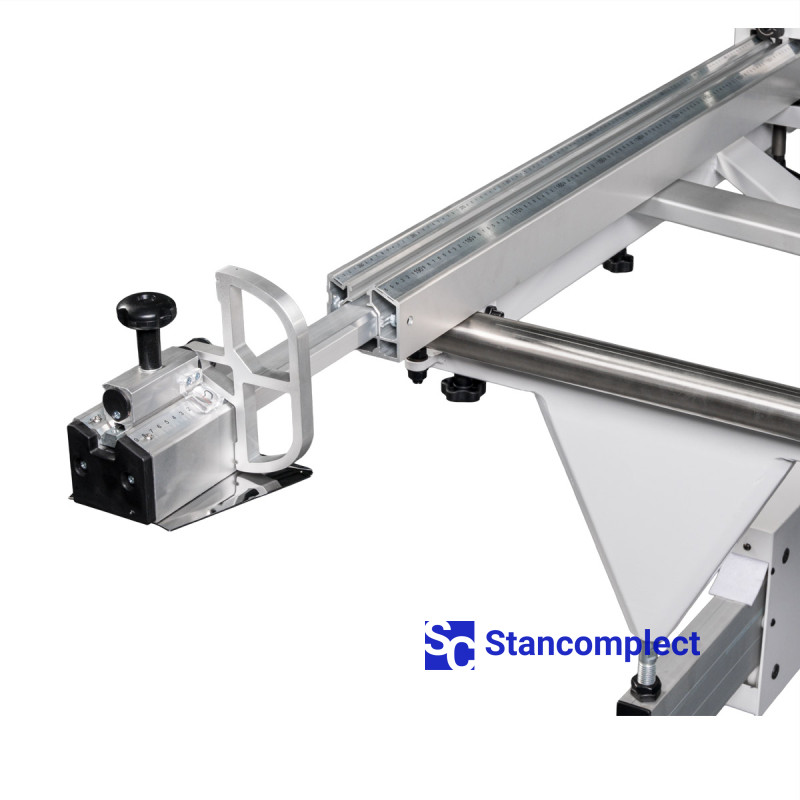

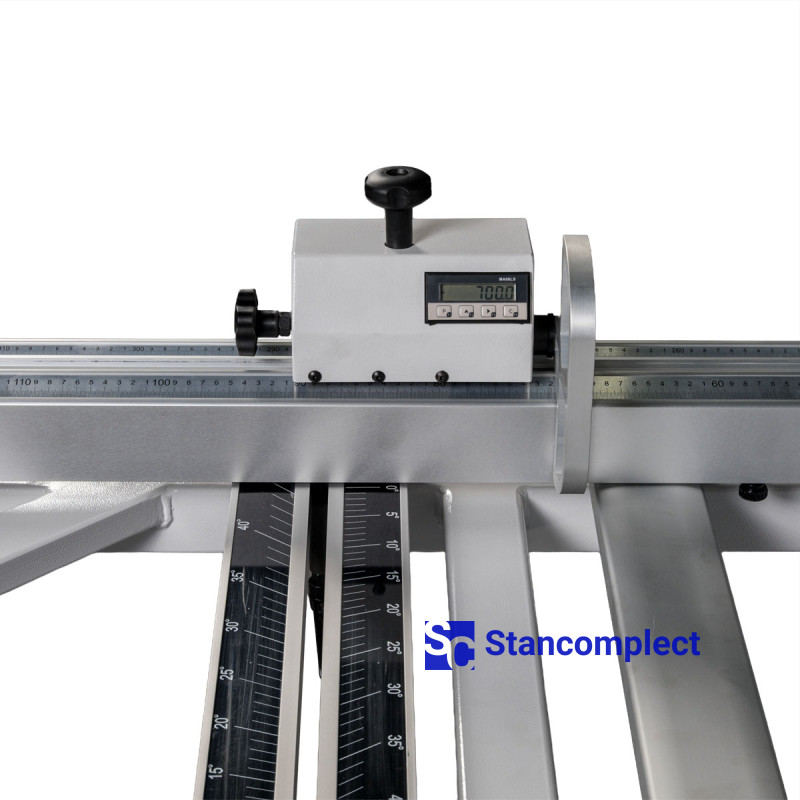

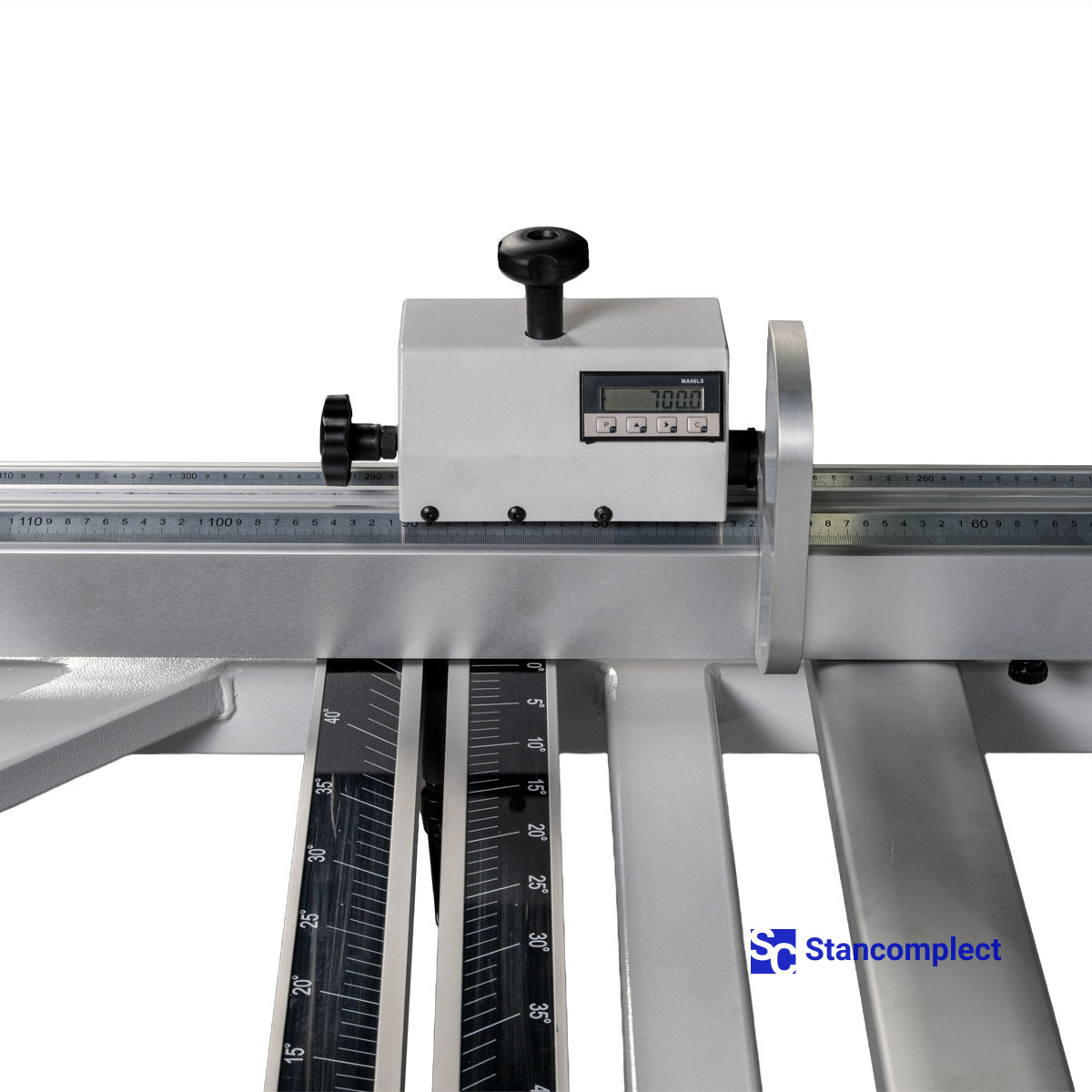

The transverse stop (ruler) is equipped with two folding stops-flags, one of which has an electronic digital display for quick and precise adjustment to the required size.

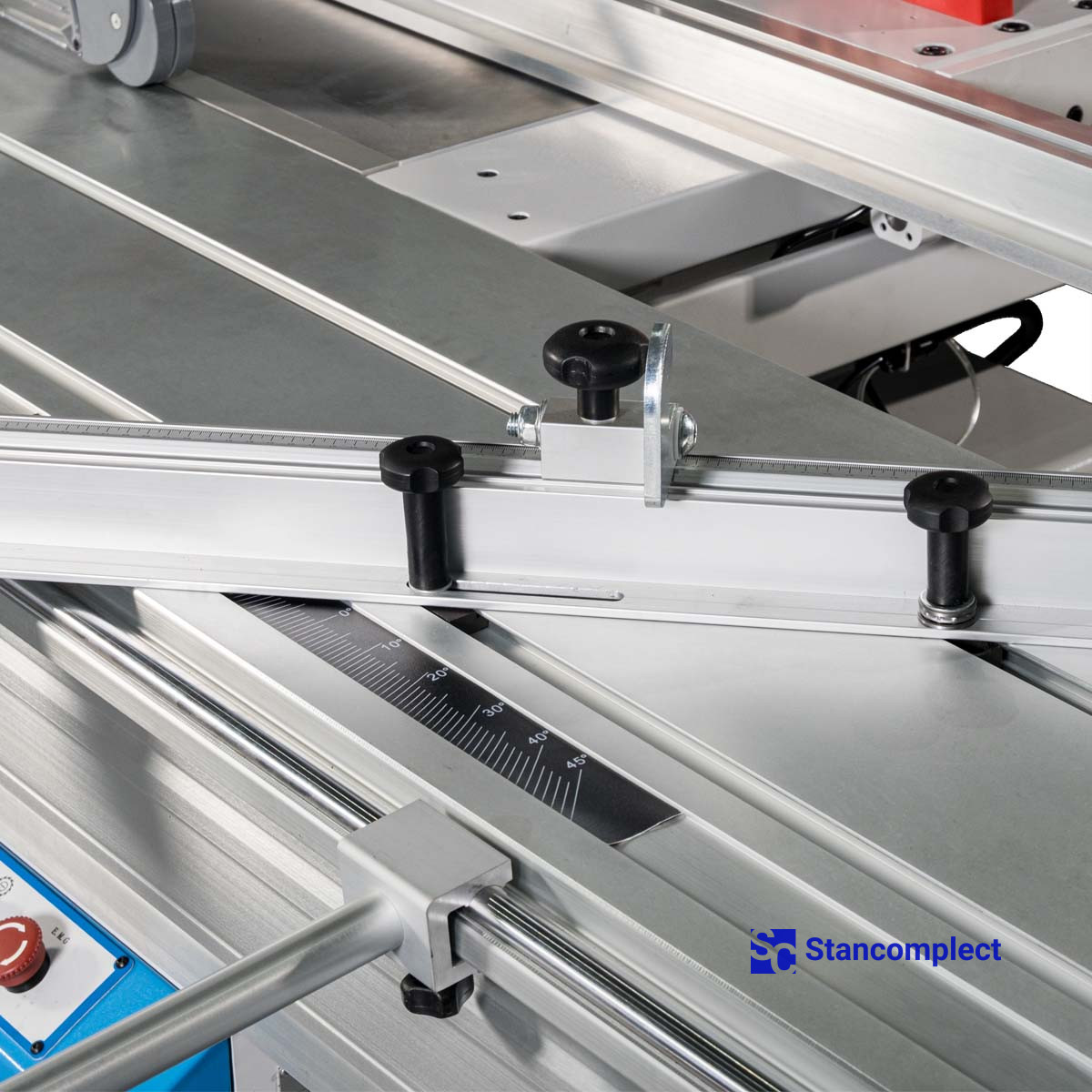

If necessary, the crosscut fence can be rotated from 0 - 45° for miter sawing.
Angle ruler on the saw carriage for angled cuts.

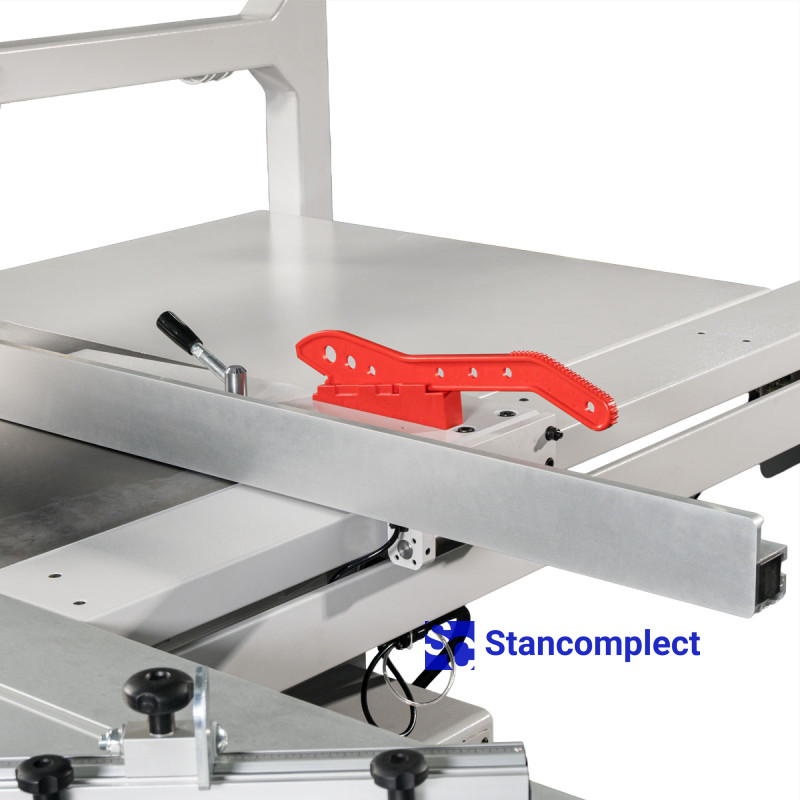

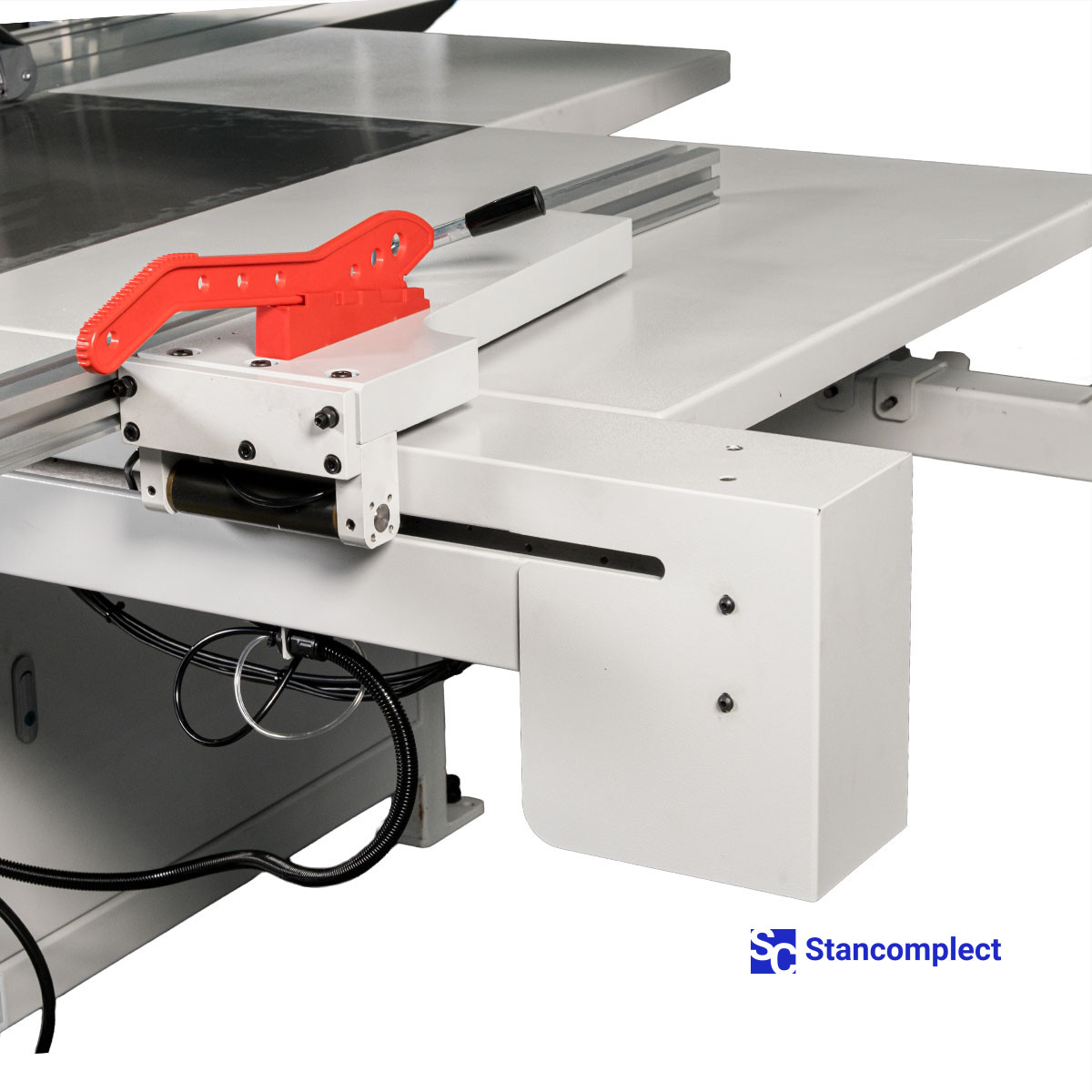

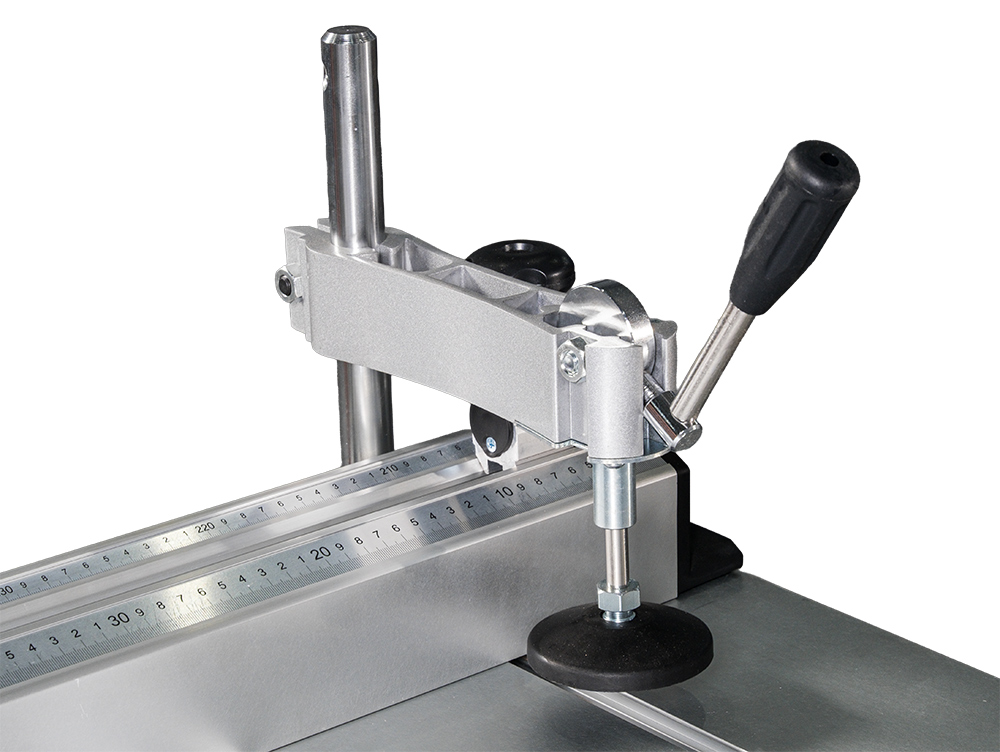

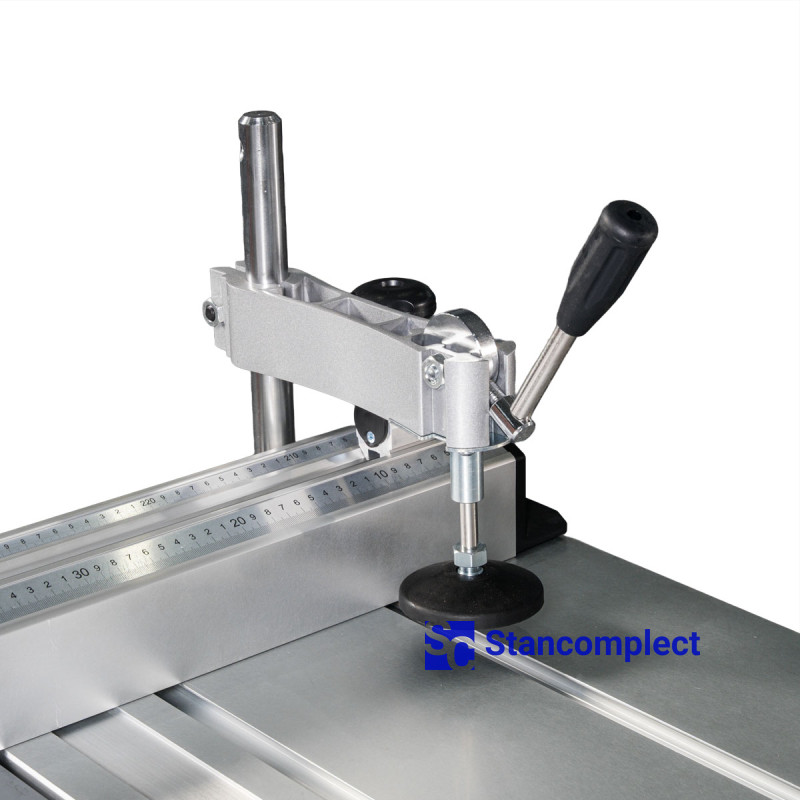

Eccentric clamp for reliable fixation of the material in the cutting area.

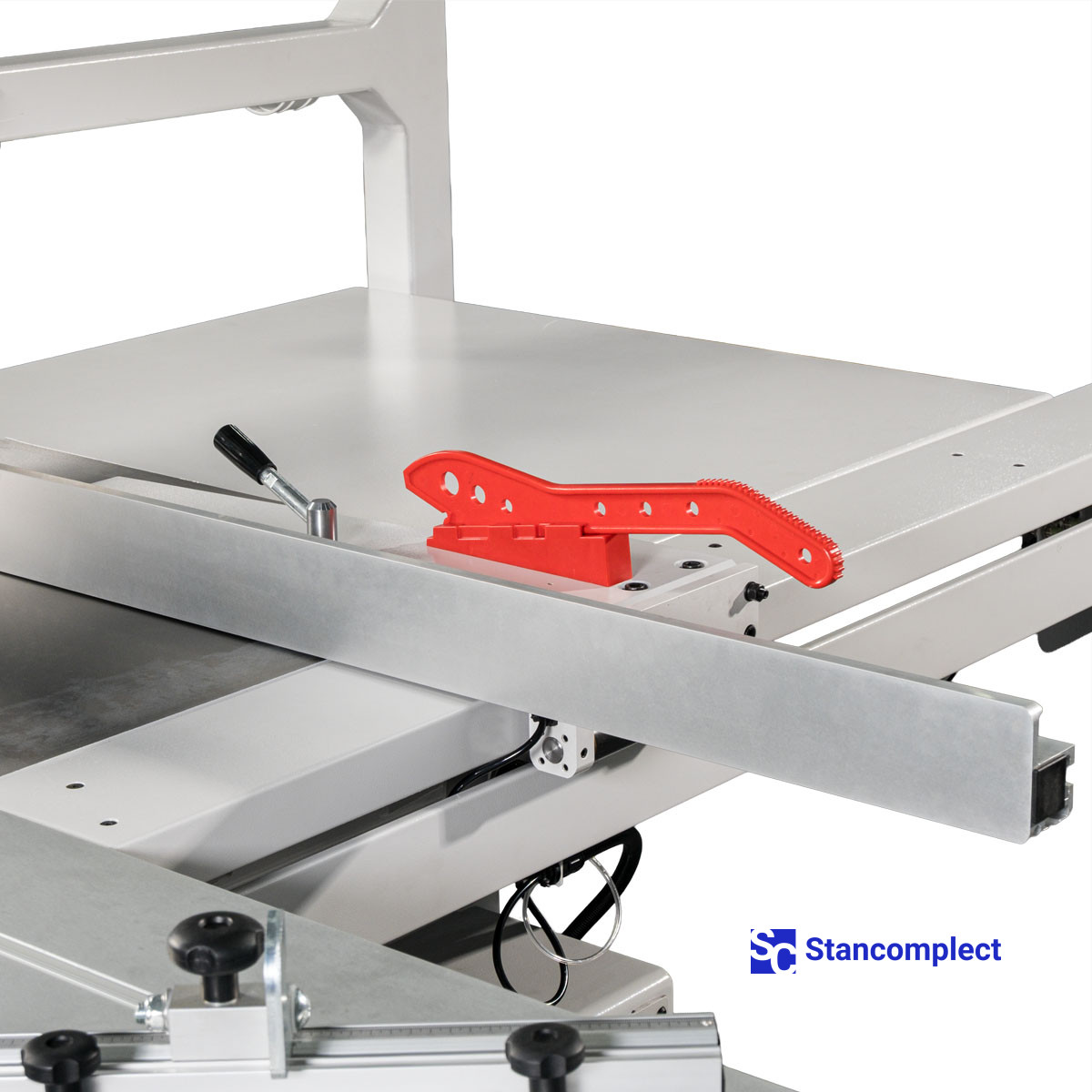

Pusher for safe work with narrow workpieces. The maximum distance from the saw blade to the parallel stop is 1250 mm.

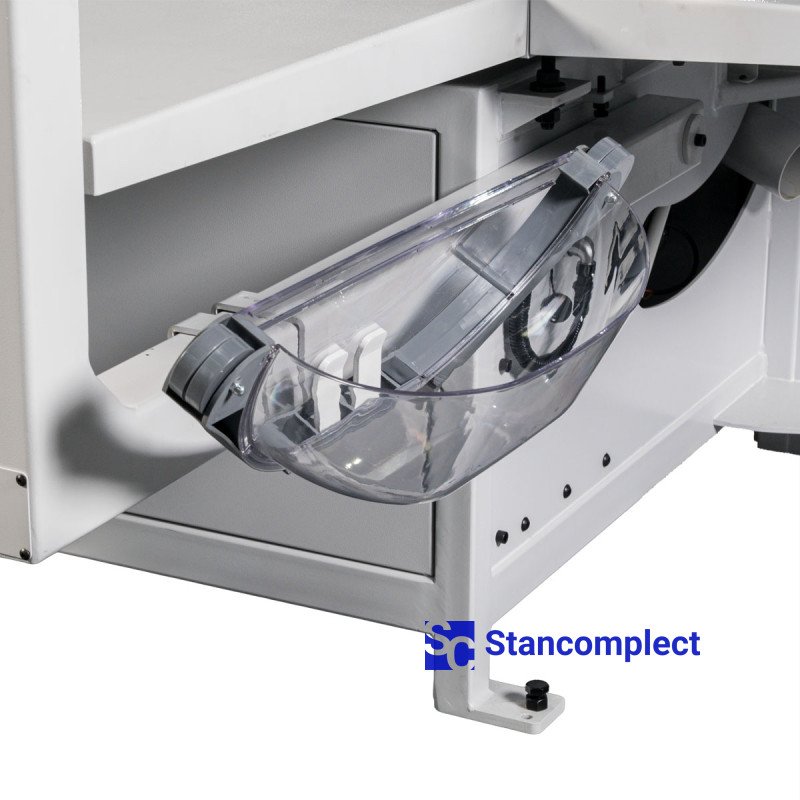

The main sawdust outlet is located in the engine compartment.
During the development of the machine, the maximum allowable loads and requirements for the design of the machine were calculated and modeled. The welded frame is tempered to relieve all internal stresses in the material, then processing takes place on a five-axis metalworking machine, where all platforms and holes for mounting components and assemblies are milled.

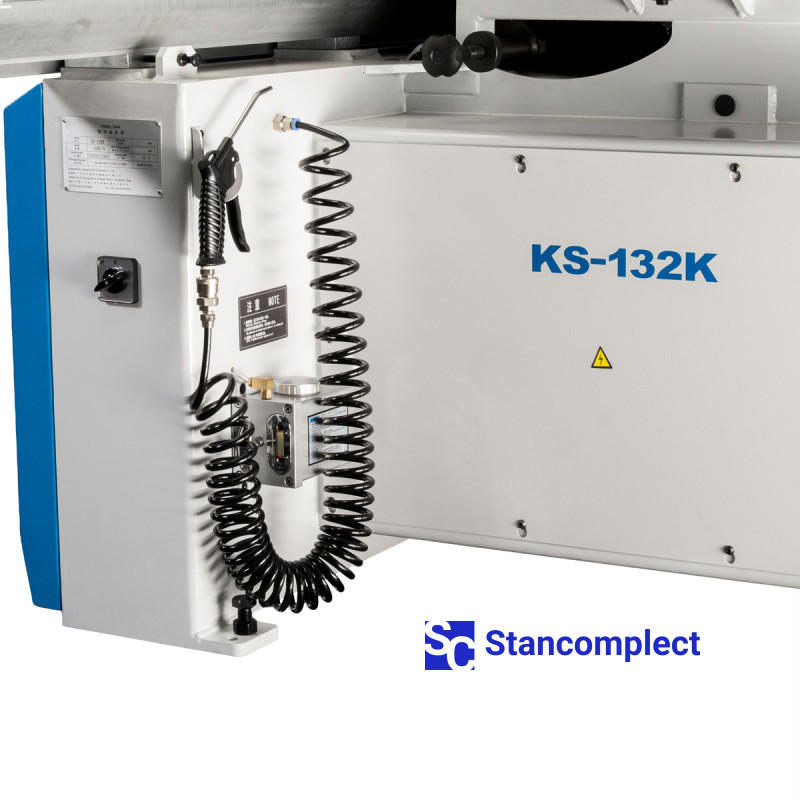

The centralized lubrication system lubricates all units and assemblies that require maintenance.

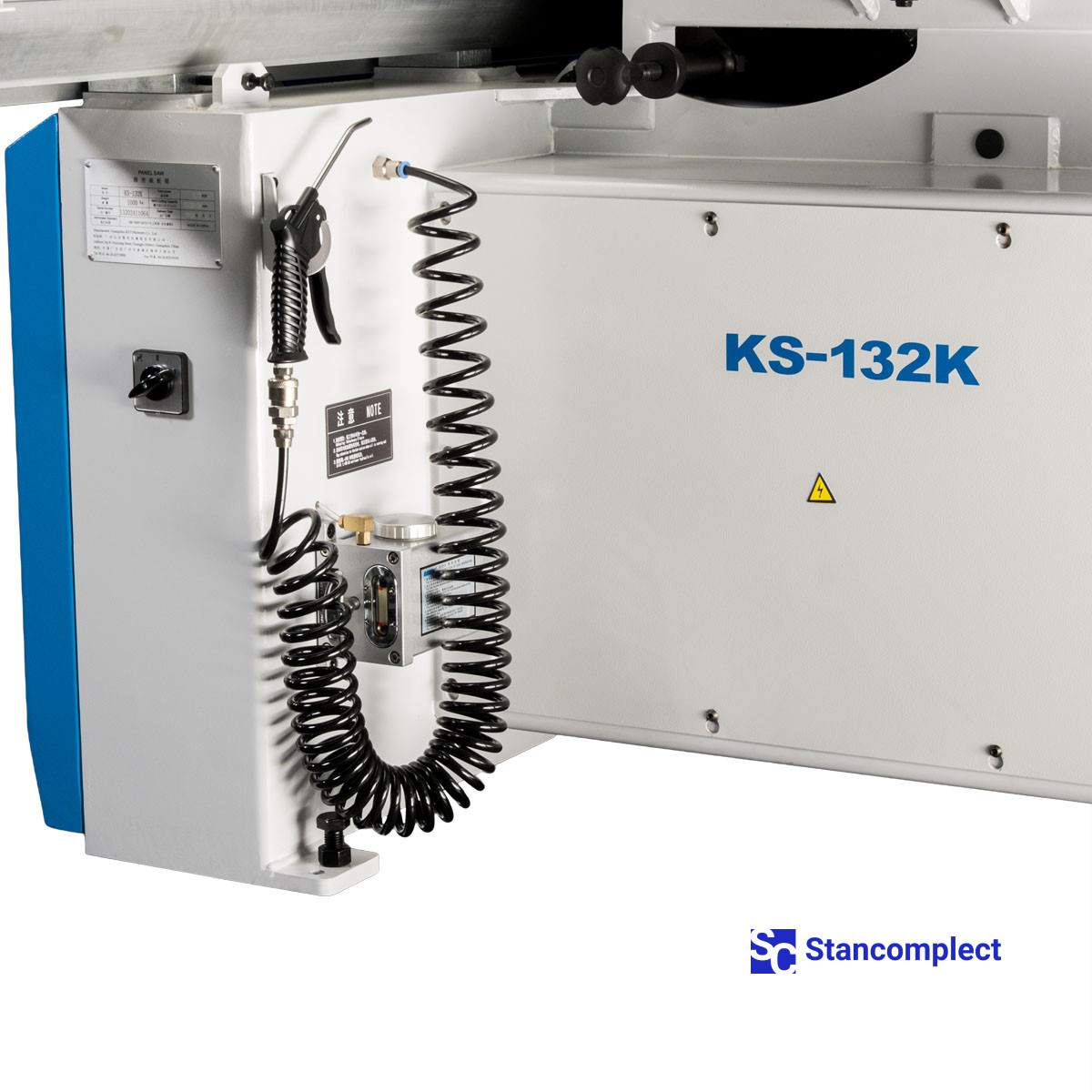

The blow gun is supplied as standard with the machine.
The machine is completed with the Leitz cutting tool.
Tool kit for machine maintenance.
