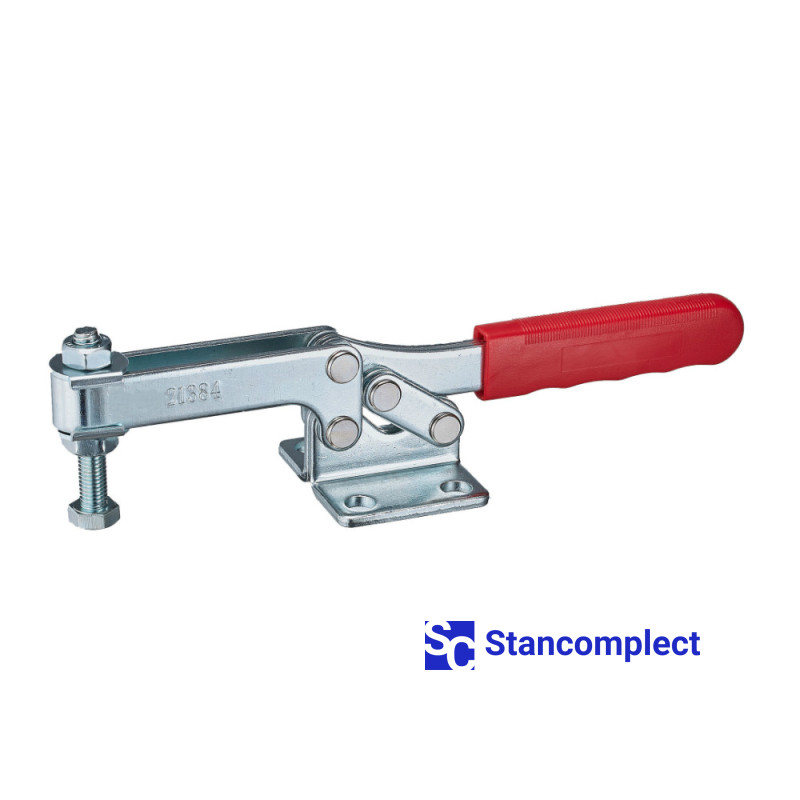

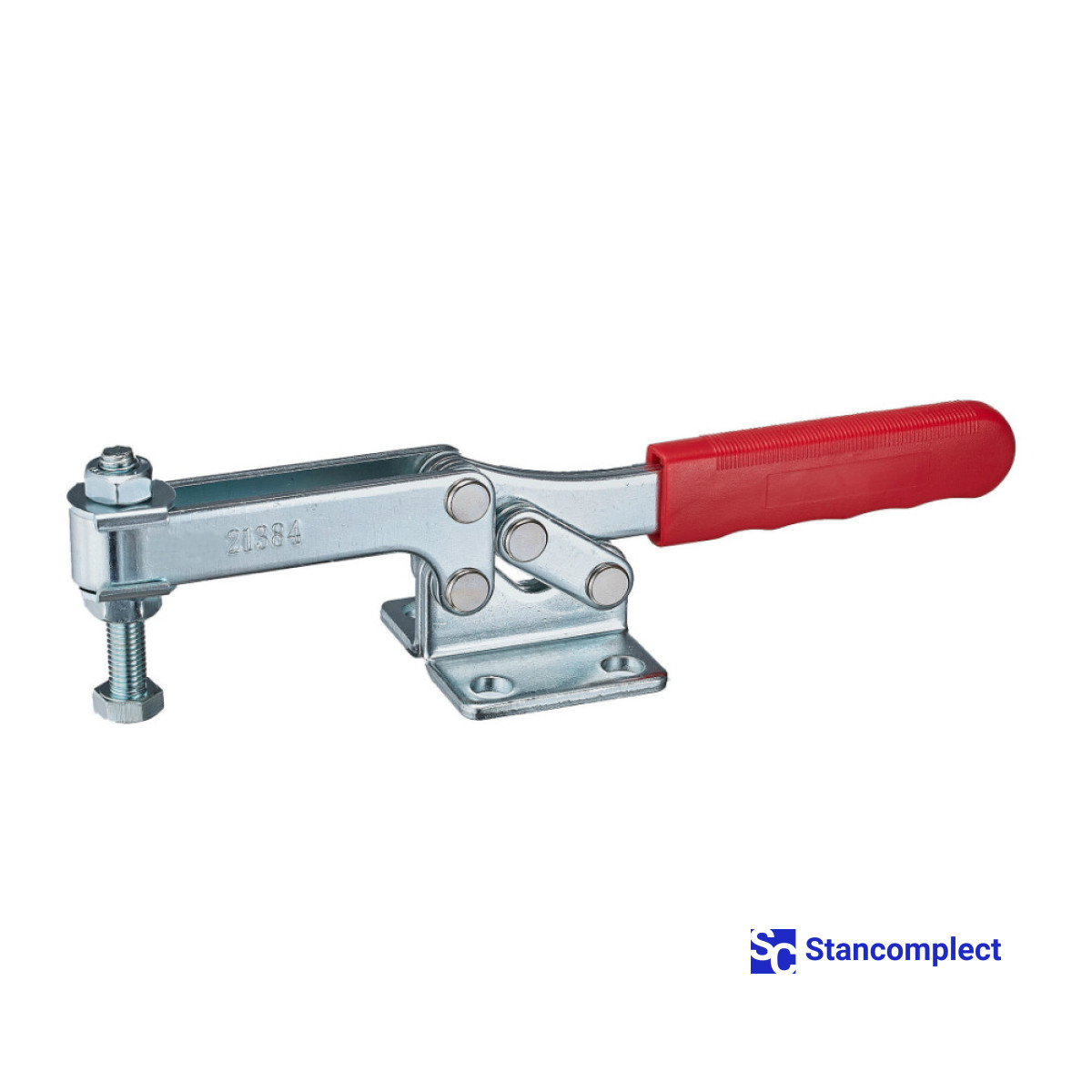

Quick release horizontal toggle clamp ST-21384 - holding capacity 500 kg

All about product
Specification
Reviews
Information
Recommended
Articles
In Stock
Product code: 896
Write a rewiew
16.20€
Buy in 1 click:
Specifications: (See all)
Material
steel
Weight, g
750
Holding capacity, kg
500
Pressure bar opening angle, °
65

Get AI analytics

Quick release horizontal toggle clamp ST-21384 - holding capacity 500 kg

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

Powerful toggle clamp ST-21384 with a horizontal handle for quick clamping of the workpiece. The U-shaped bar allows you to adjust the position of the clamping screw. Quick release horizontal toggle clamp ST-21384 provides high productivity due to reliable and fast fixing of assemblies and parts with one hand movement.

Characteristics:

  • Material - steel;
  • Weight - 750 g;
  • Holding capacity - 500 kg;
  • Opening angle of the pressure bar - 65°;
  • Handle opening angle - 85°;
  • Mounting basis - flange.



Specifications
Toogle clamp specifications
Material
steel
Weight, g
750
Holding capacity, kg
500
Pressure bar opening angle, °
65
Handle opening angle, °
85
Mounting basis
flanged
Reviews
Delivery Packeta, Fedex, DHL, UPS to the post office, address delivery by courier. Pick up from the warehouse.
Payment by card online, non-cash payment for legal entities and individuals, payment by card and when receiving the goods.
Official manufacturer's warranty.
Quick release horizontal toggle clamp ST-21384 - holding capacity 500 kg
16.20€
