Manual spray gun PRONA R-410-IP-G20

Chat with a specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

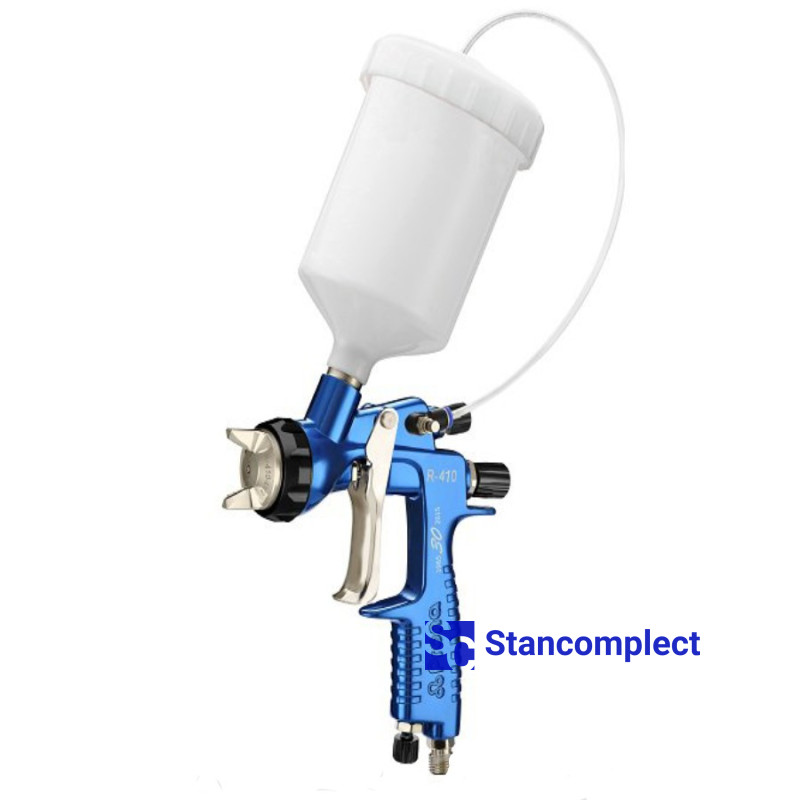

The manual spray gun R-410-IP-G20 PRONA (Nozzle 2.0 mm) with pressure-assisted cup is designed for manually applying liquid to low-viscosity coating materials to surfaces. This spray gun is ideal for applying most paints and coatings to metal, glass, plastic, ceramic and wood surfaces. The lightweight spray gun body is made of die-cast aluminum alloy. The surface of the spray gun has been anodized to facilitate cleaning and maintenance of the spray gun. All fluid passages, nozzles and needles are made of stainless steel, which allows it to spray water-based materials.

The spray gun R-410-IP-G20 is suitable for spraying such materials as: paints and varnishes (including water-based products), wood stains and dyes, adhesives, enamels and other coating materials.

Technical specifications of the R-410-IP-G20 spray gun:

  • Nozzle size - 2.0 mm.
  • Operating pressure - 2.0-3.0 atm.
  • Spraying distance - 250 mm.
  • Spray pattern width - 340 mm.
  • Fluid output - 580 ml/min (depending on nozzle size).
  • Air consumption - 360 l/min.
  • Spray system - conventional.
  • Transfer efficiency - 65%.
  • Spray gun body material - anodized aluminum.
  • Fluid passages - stainless steel.
  • Weight - 517 grams.
  • Cup capacity - 600 ml.
Specifications
Specifications of the manual paint sprayer
Nozzle size, mm
2.0
Working pressure, atm
2-3
Distance to the surface, mm
250
Spray pattern width, mm
340
Material consumption, ml/min
580
Air consumption, l/min
360
Spray type
conventional
Material transfer coefficient, %
65
Atomizer material
anodized aluminum
Material-carrying channels
stainless steel
Weight, g
517
Tank volume, ml
600
