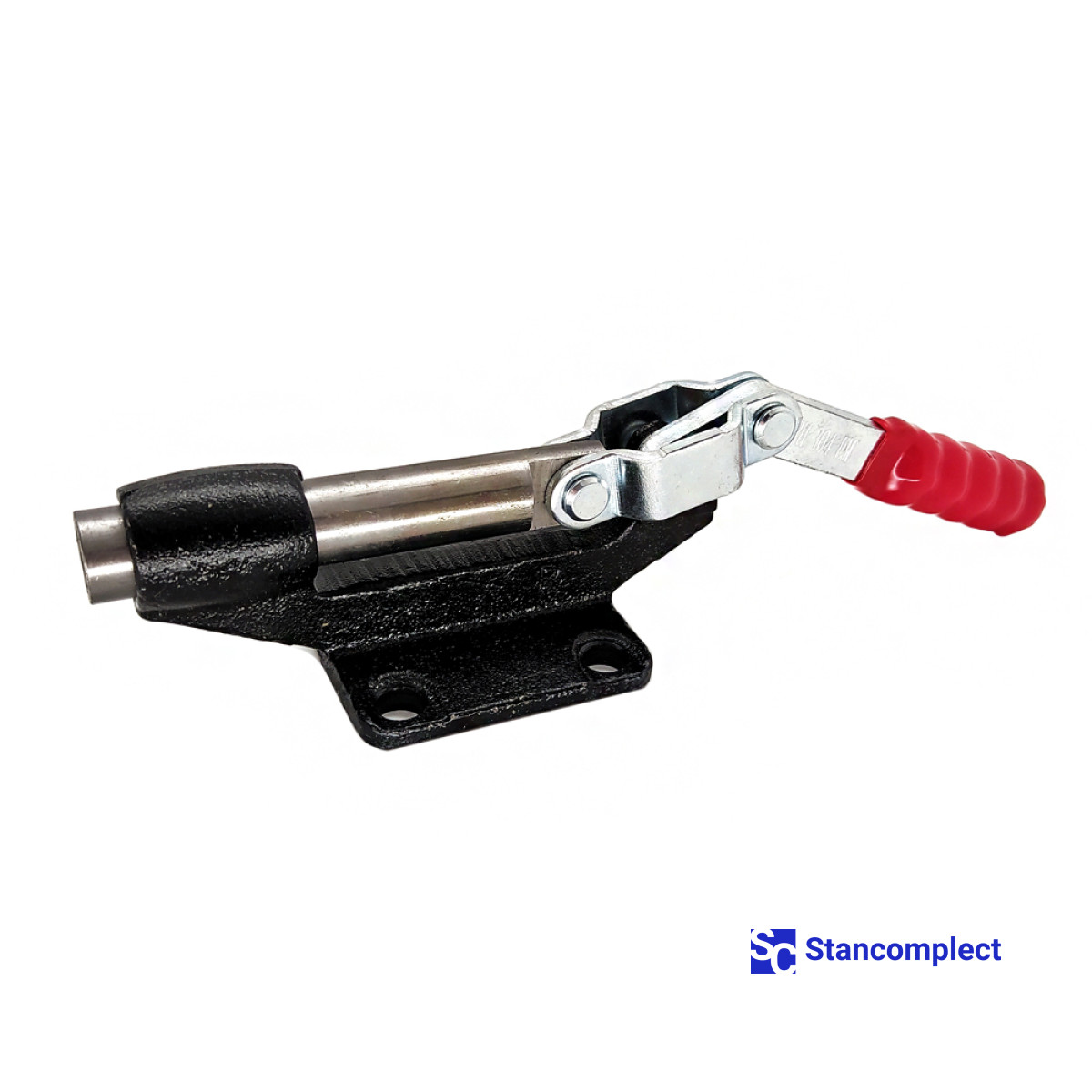

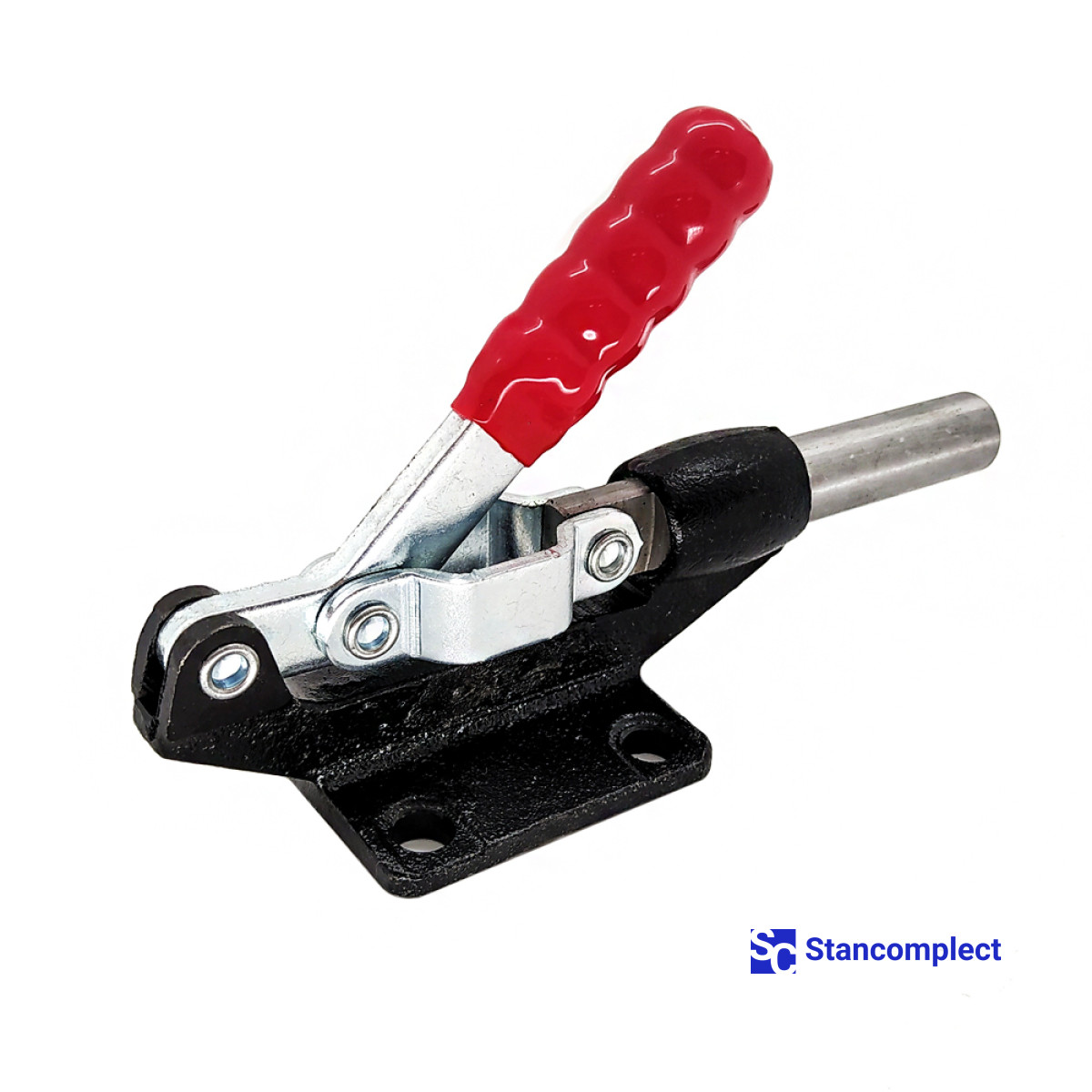

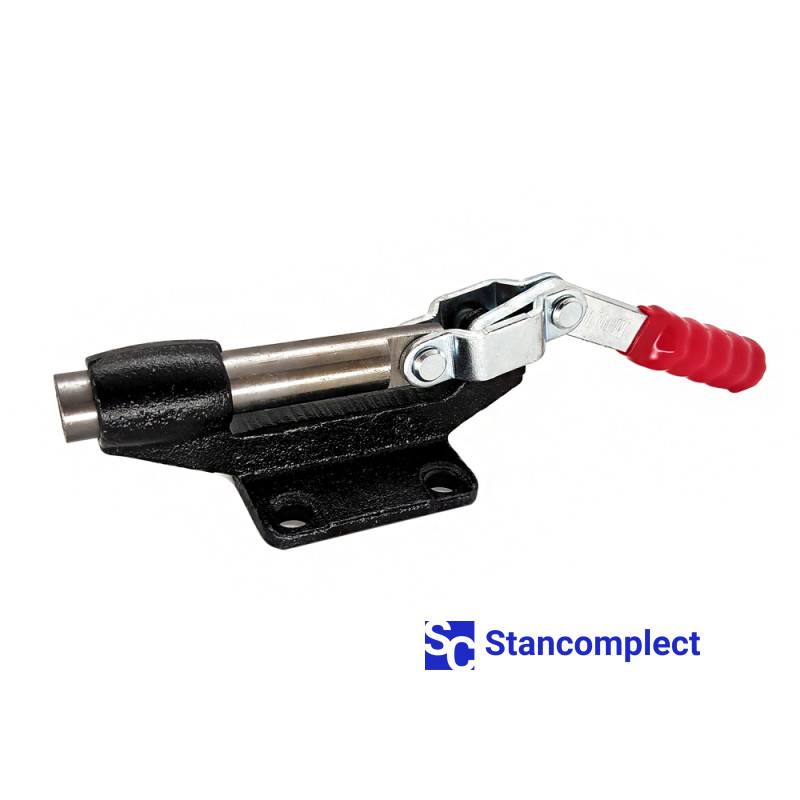

Horizontal push pull toggle clamp ST-304-E with straight stroke for fast clamping of the workpiece. The base of the clamp is made of malleable cast iron. The clamp is fixed in both extreme positions: when the stem is fully extended and when the stem is fully retracted. Thus, the plunger clamp can be used as a tension or clamping device for pressing the part against a stop or against a vertical surface.
Characteristics:
- Material - steel, cast iron;
- Weight - 580 g;
- Holding capacity - 386 kg;
- Stroke - 42 mm;
- Handle opening angle - 180°;
- Thread on the rod - M10 step 1.5;
- Mounting basis - flange.
