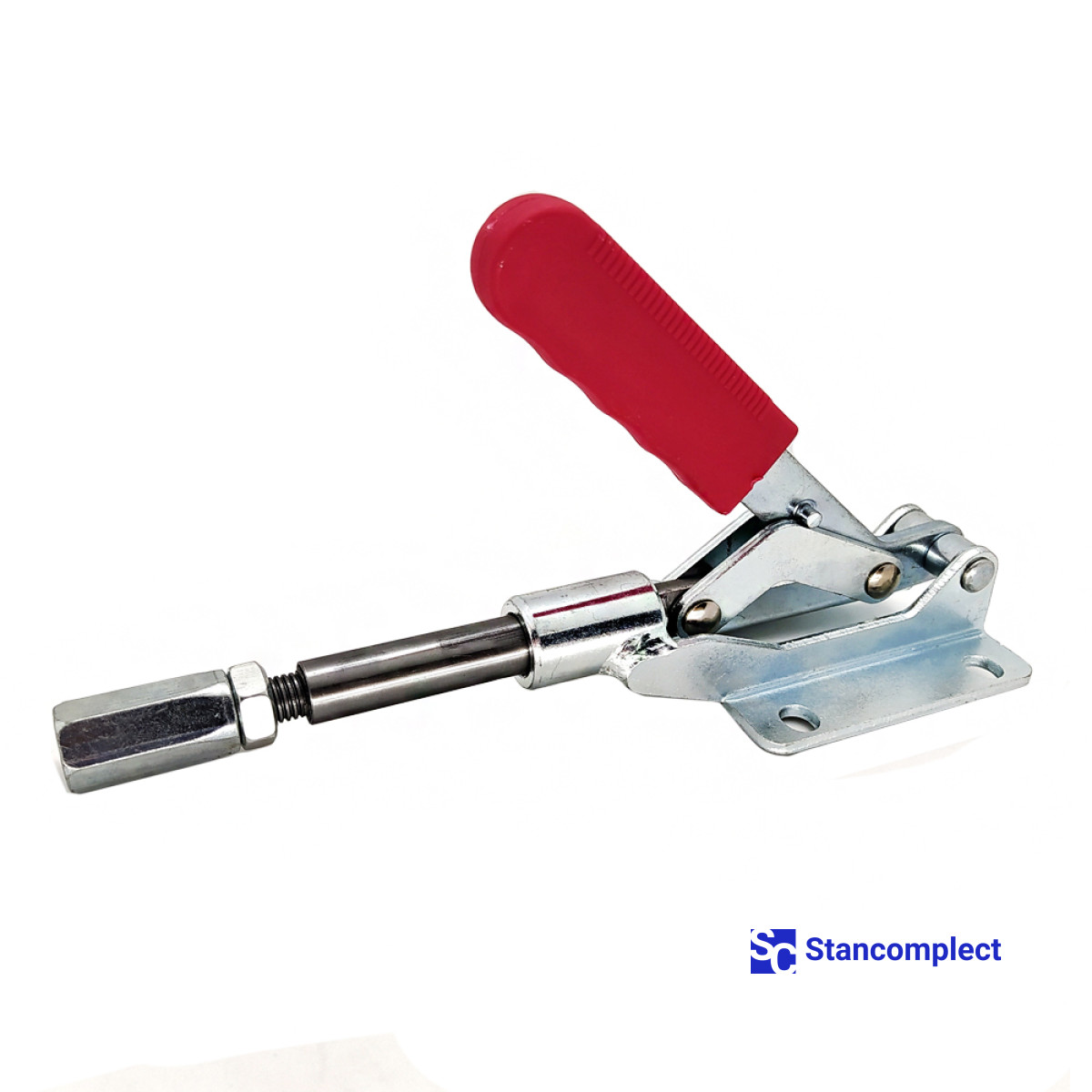

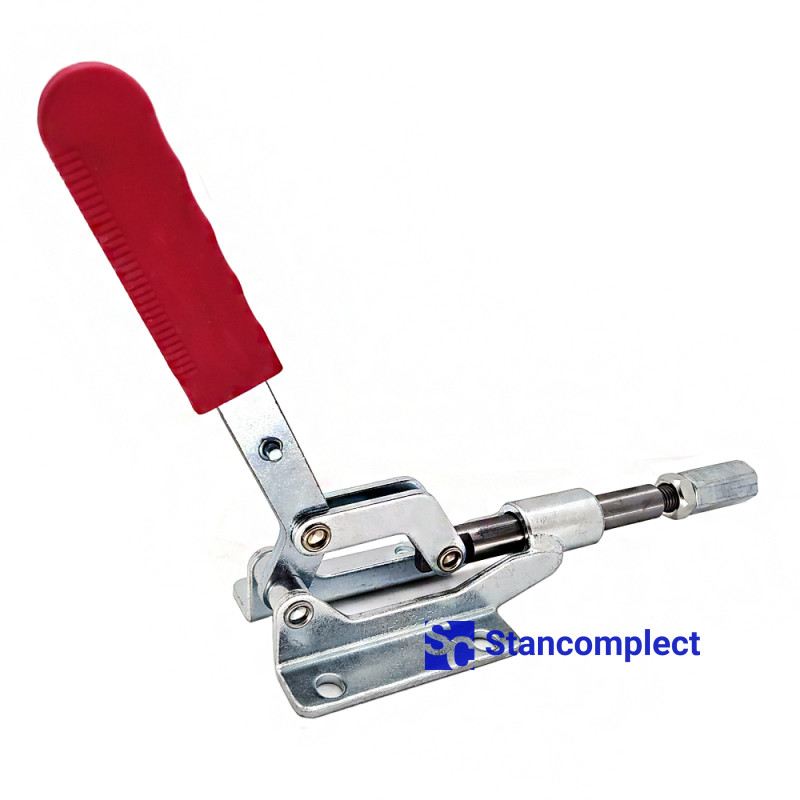

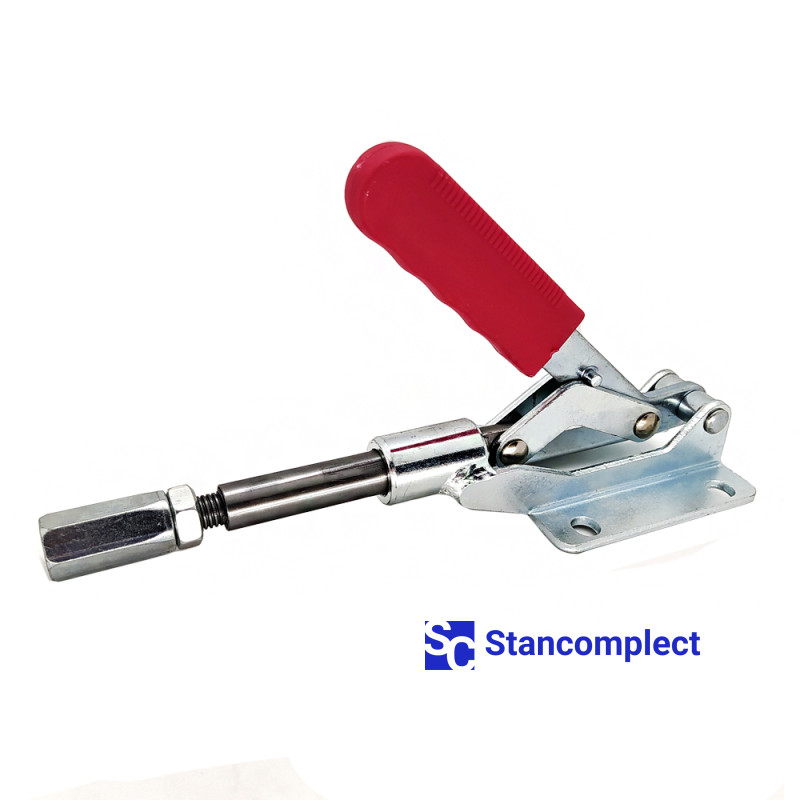

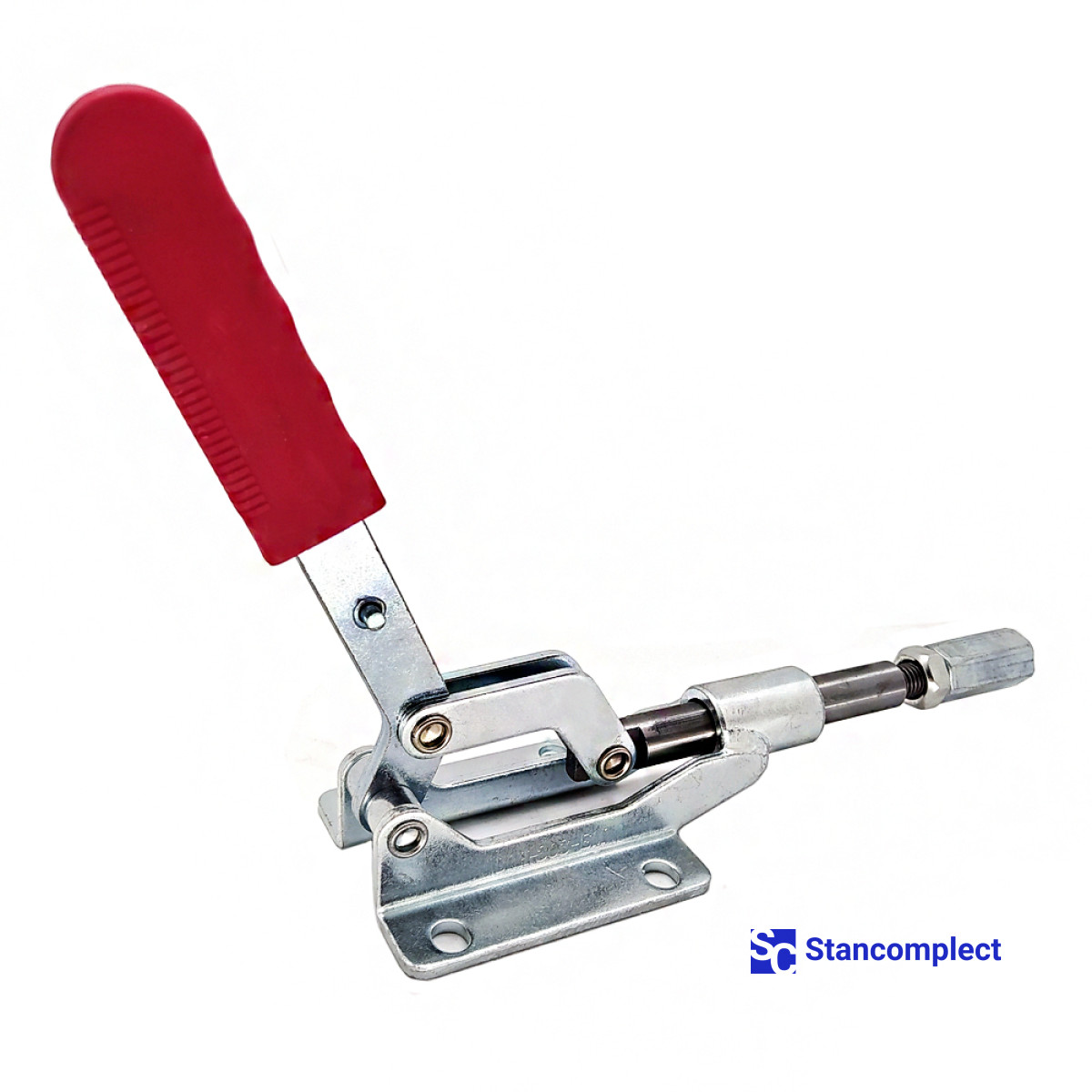

Horizontal push-pull toggle clamp ST-303-EM with a straight stroke for fast clamping of the workpiece. The clamp locks in both end positions: when the plunger is fully extended and when it is fully retracted. The clamp can therefore be used as a pulling or pushing clamp to hold a workpiece against a stop or a vertical surface.

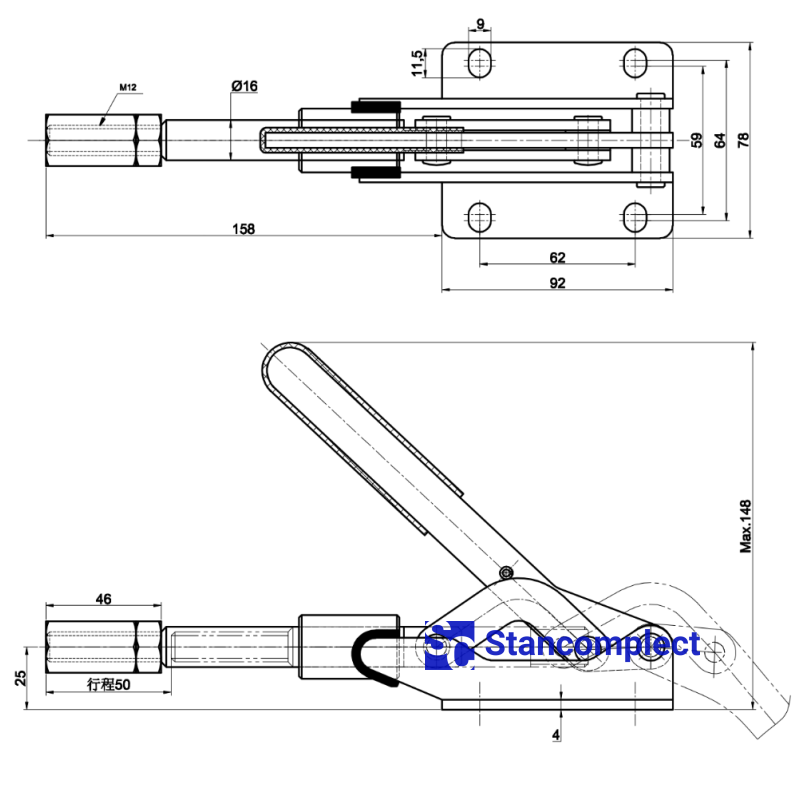

Technical specifications:
- Material - steel;
- Weight - 965 g;
- Holding capacity - 454 kg;
- Stroke - 50 mm;
- Handle opening angle - 190°;
- Plunger thread - M12, pitch 1.75;
- Mounting base - flanged.
