Vertical quick-release toggle clamp ST-101-E - holding capacity 180 kg

All about product
Specification
Reviews
Information
Recommended
Articles
In Stock
Product code: 888
Write a rewiew
9.00€
Buy in 1 click:
Specifications: (See all)
Material
steel
Weight, g
380
Clamping force, kg
180
Pressure bar opening angle, °
100

Get AI analytics

Vertical quick-release toggle clamp ST-101-E - holding capacity 180 kg

Chat with a specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

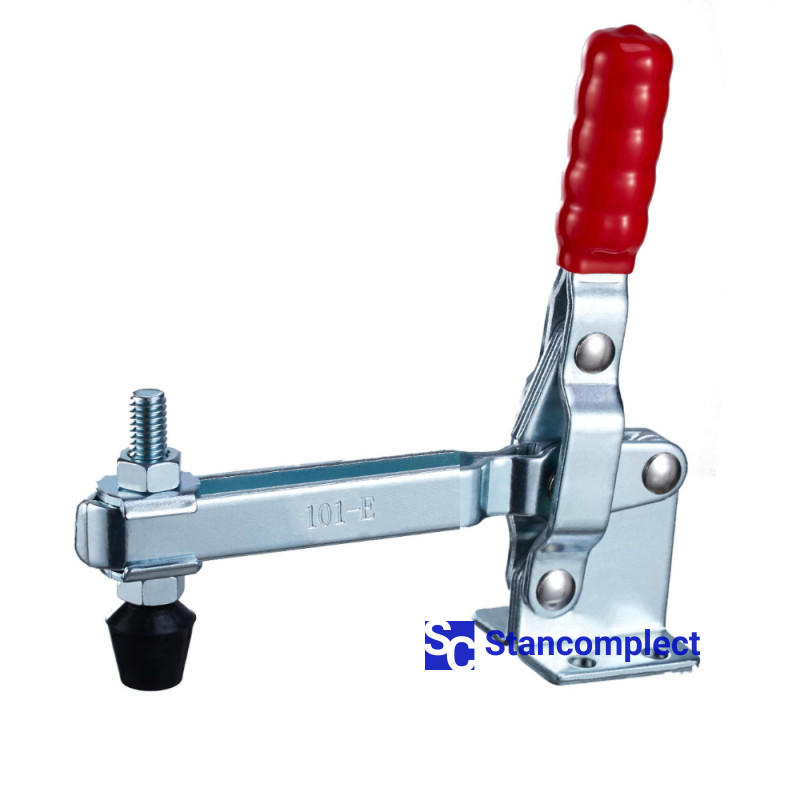

Toggle clamp ST-101-E with a vertical handle for quick fixing of the workpiece. The clamping screw has a rubberized tip. The U-shaped clamping arm allows adjustment of the clamping screw position. Quick-release vertical toggle clamp ST-101-E is suitable for clamping wood, plastic and glass where lower clamping force is required.

Technical specifications:

  • Material - steel;
  • Weight - 380 g;
  • Holding capacity - 180 kg;
  • Clamping arm opening angle - 100°;
  • Handle opening angle - 60°;
  • Mounting base - flanged.



Specifications
Toggle clamp specifications
Material
steel
Weight, g
380
Clamping force, kg
180
Pressure bar opening angle, °
100
Handle opening angle, °
60
Mounting base
flanged
Reviews
Delivery to a Packeta/Zasilkovna pickup point or Z-BOX, courier delivery via FedEx, DHL or UPS, or pickup from our warehouse.
Online card payment, bank transfer for individuals and legal entities, or payment upon receipt of the goods.
Official manufacturer's warranty.
Vertical quick-release toggle clamp ST-101-E - holding capacity 180 kg
9.00€
