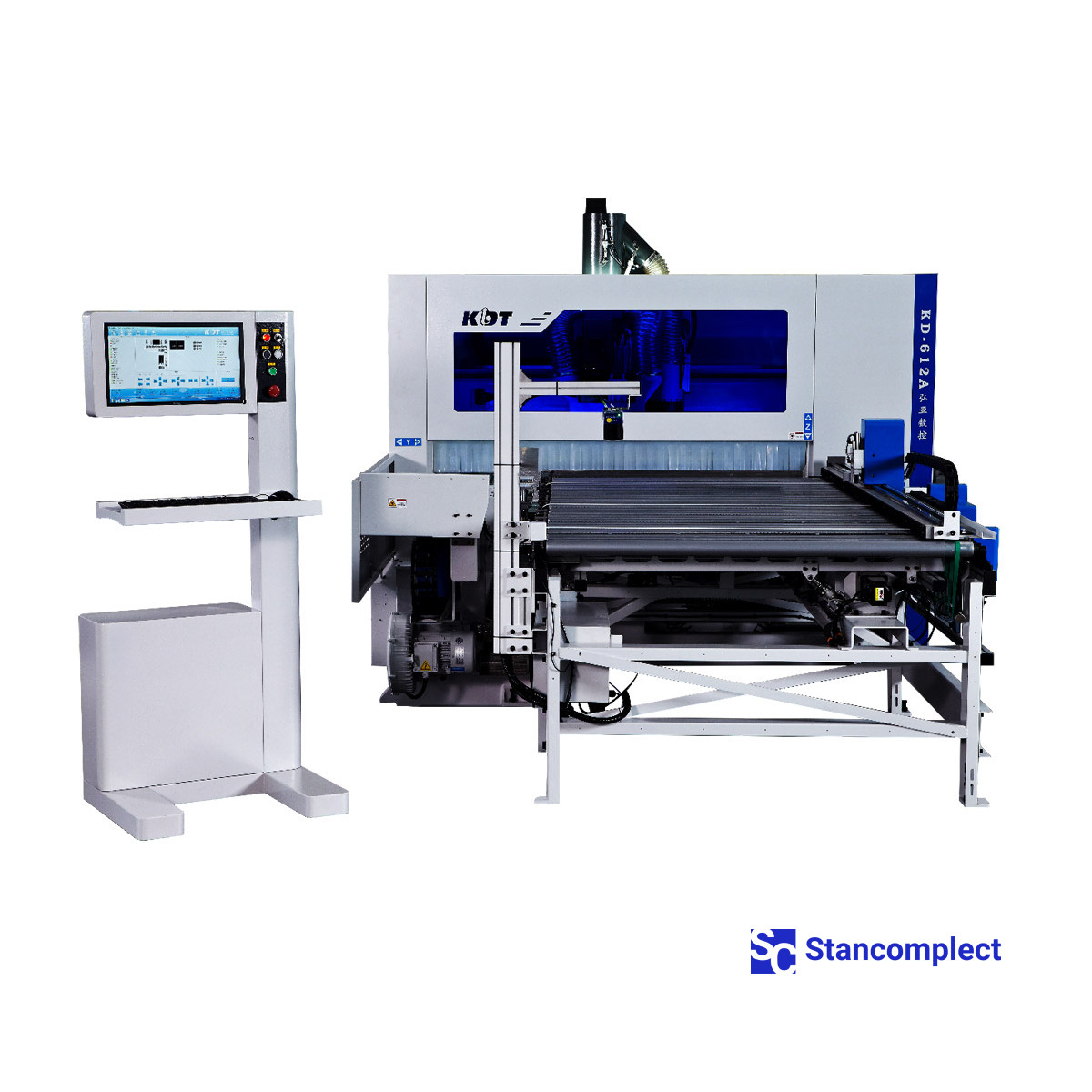

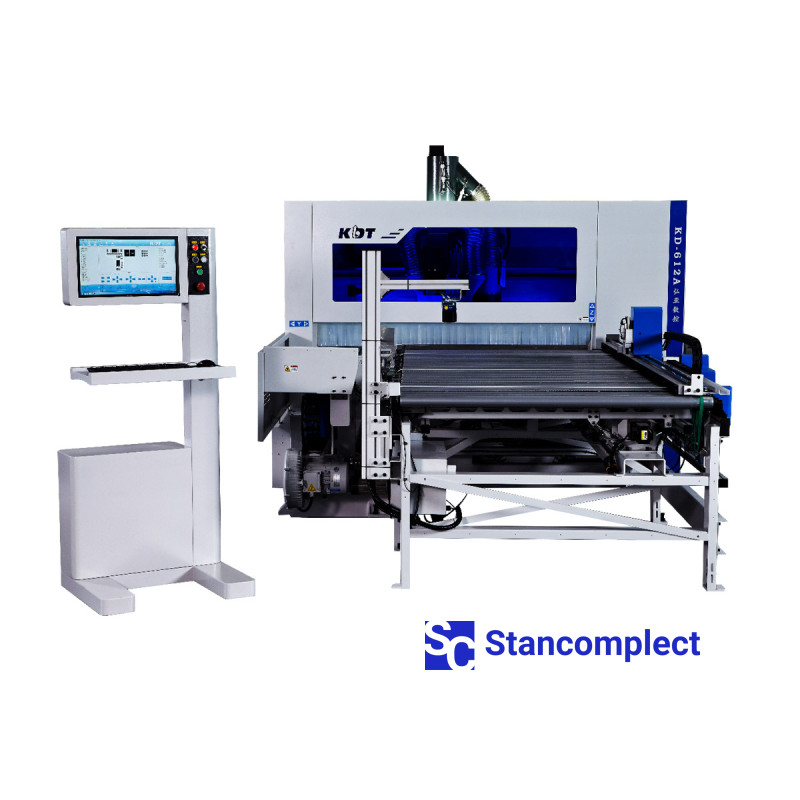

CNC drilling center KD-612KHSA with three drilling groups at the top and bottom (milling + grooving saw) for drilling from 6 sides with the possibility of embedding up to 3 machines from KDT Machinery is designed for high-precision drilling of blind and through holes in the planes and ends of furniture parts in the through mode, according to a given additive map. The machine is equipped with a milling unit, which allows milling straight and curved grooves.
The main feature of this model over other models of the line of KDT CNC drilling machines is the possibility of retrofitting the machine with robotic and other automation tools.
- Vision system for barcode scanning.
- Roller conveyor with workpiece positioning system.
- Drilling from 6 sides.
- The best ratio of price and quality.
- Barcode Scanner.
- Air cushion table.
- Ability to work with optimizer programs with additive maps.
- Productivity 800-1000 parts per shift.
- For medium and large productions.
- Grooving unit (Saw).
- Control of the length of the workpiece (if the workpiece is of the wrong size, the machine issues an informational message).
- Ability to perform curved cutting of blanks.
- After through milling, in a situation where the waste size is large enough, the machine stops and allows the waste to be removed from the processing area to avoid damage to the machine.
- Unloading conveyor - equipped with a workpiece detection sensor, and if the operator forgot to remove the previously processed part from the conveyor, the machine does not allow the next part to push the workpiece to the floor, but stops and waits for the workpiece to be removed.
- The movement sensor on the conveyor is equipped with a blower to avoid contamination.

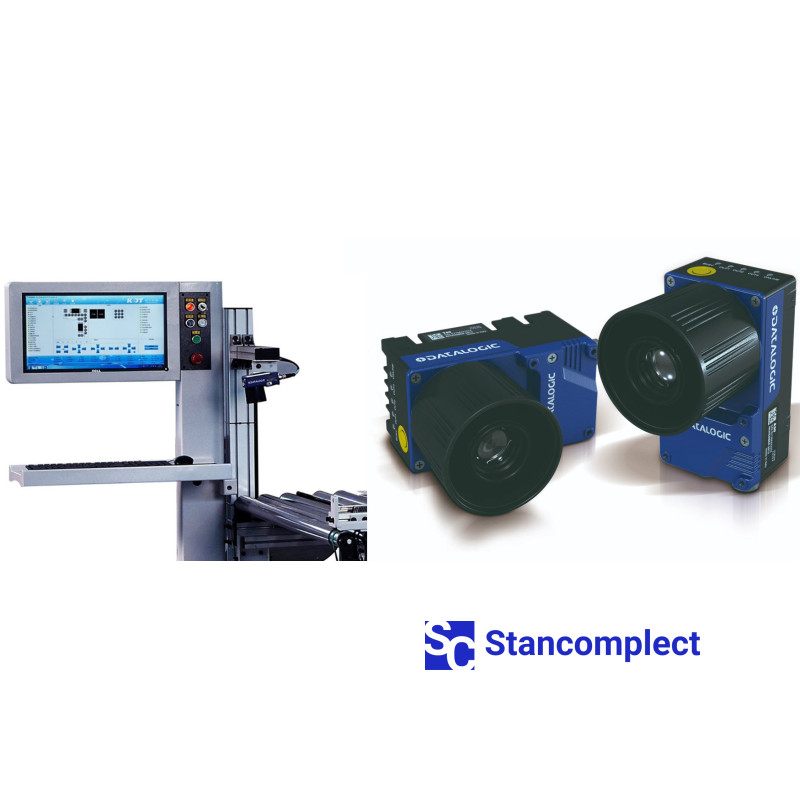

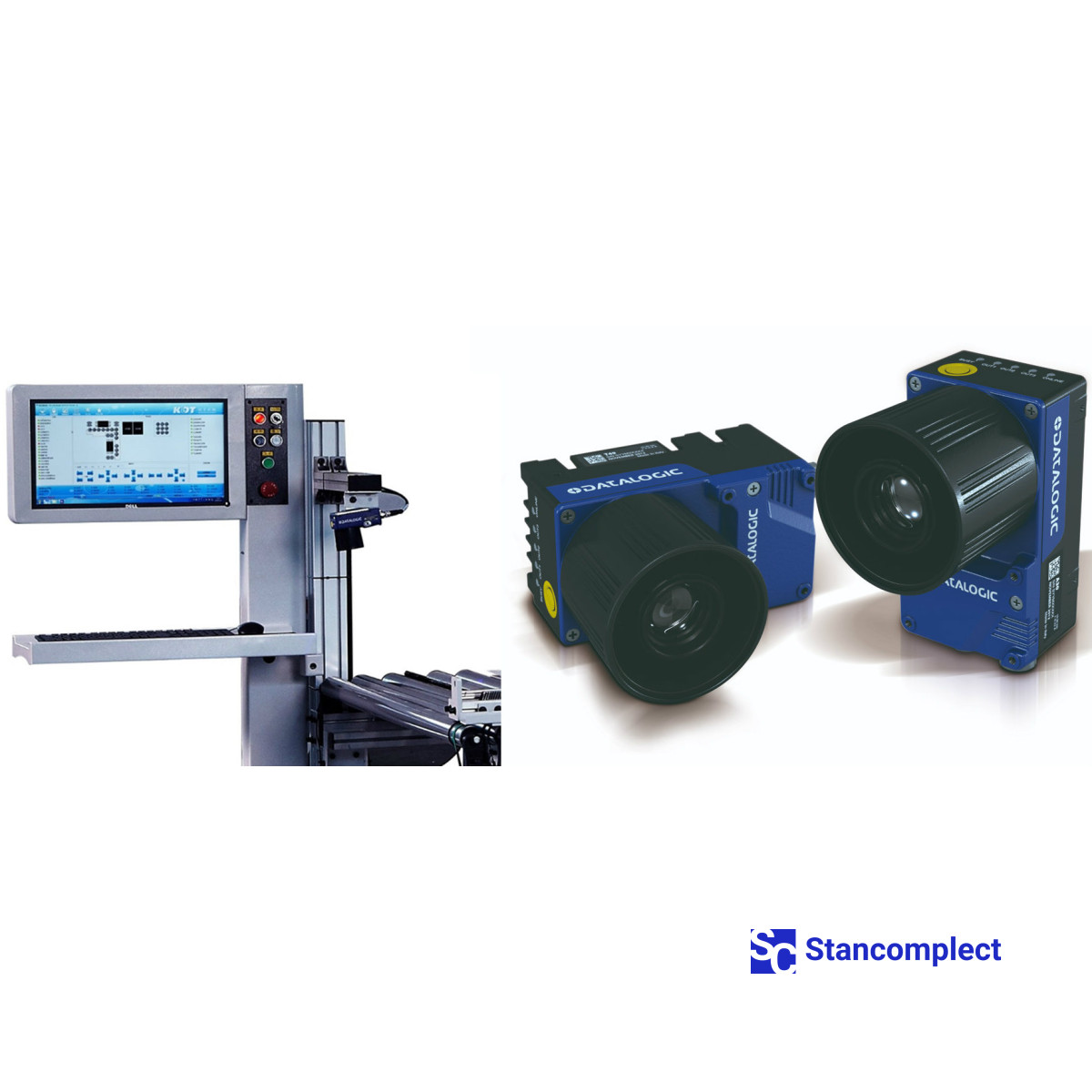

A control panel with a vision system - an autonomous smart camera manufactured by DATALOGIC, mounted on a bracket, automatically scans all passing barcodes.
There are 3 drilling groups installed on the machine: 12 - horizontal spindles, 35 - vertical spindles (26 - from above, 9 - from below). As standard, 2 milling units (3.5 kW) and a grooving saw are installed.

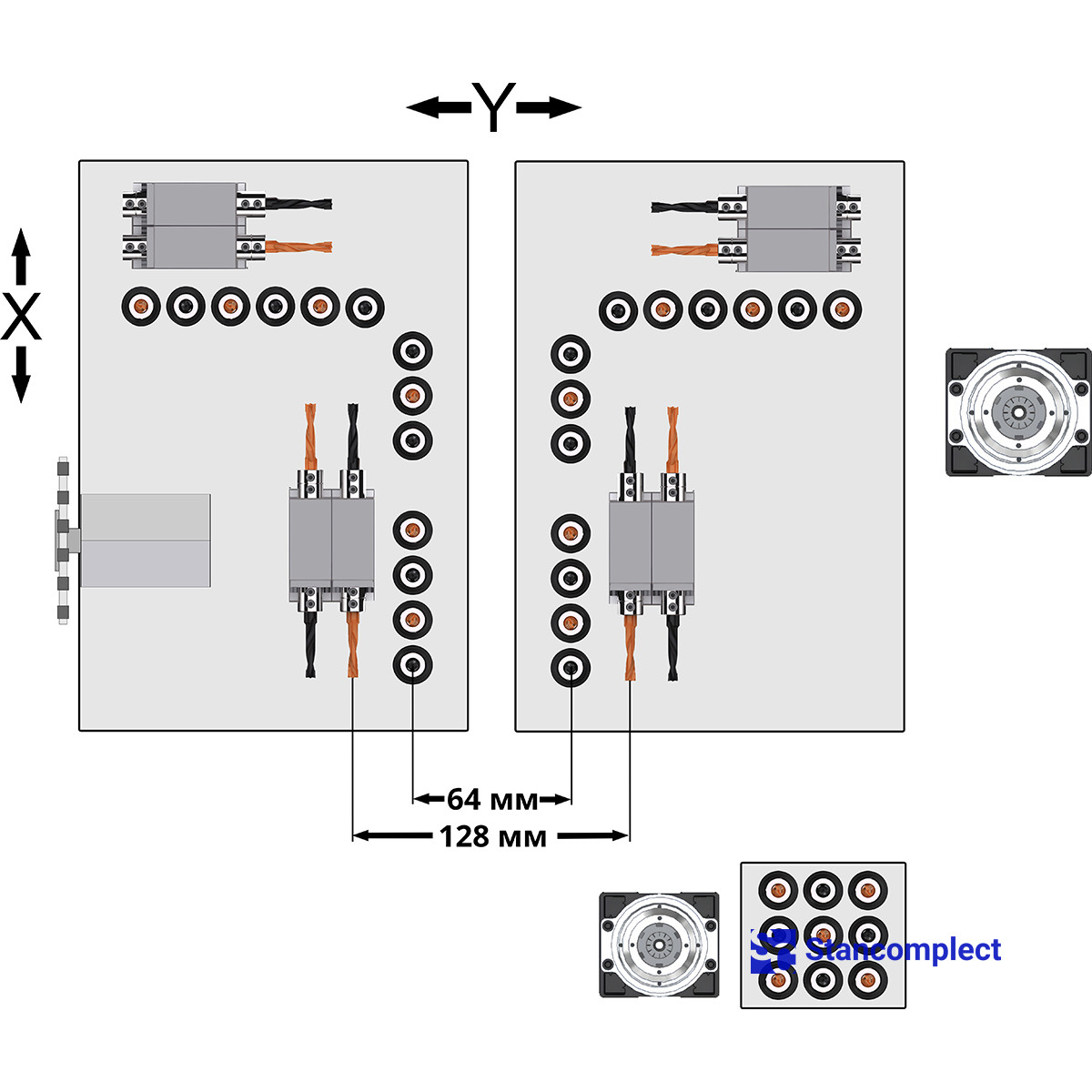

Minimum distance when drilling with two heads for:
- Vertical holes - 64 mm.
- Horizontal holes - 128 mm.
The machine can process two panels at the same time, both top and bottom, within one working cycle, thanks to the possibility of drilling from 6 sides.

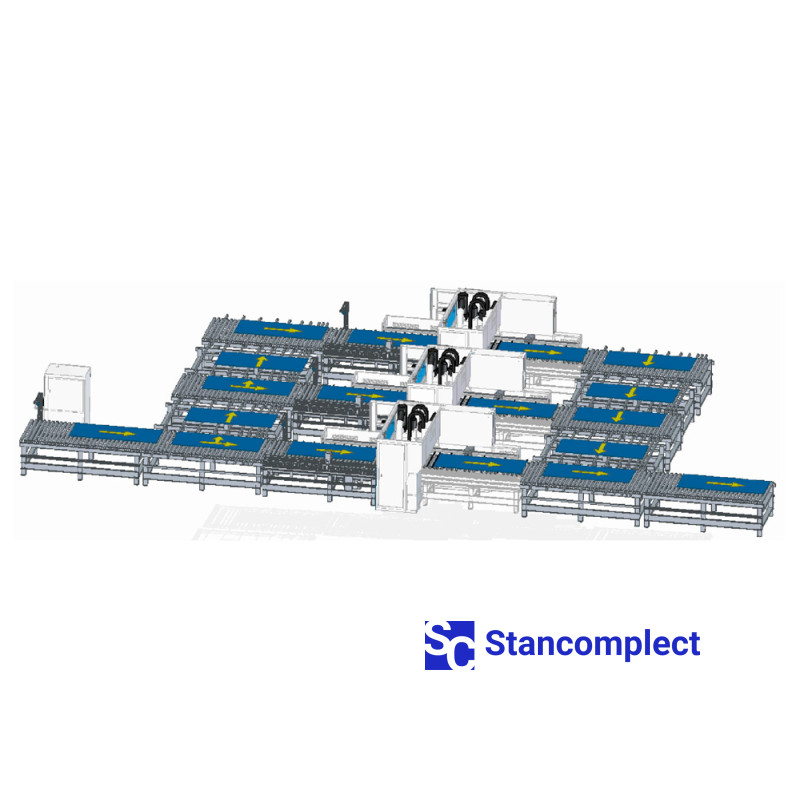

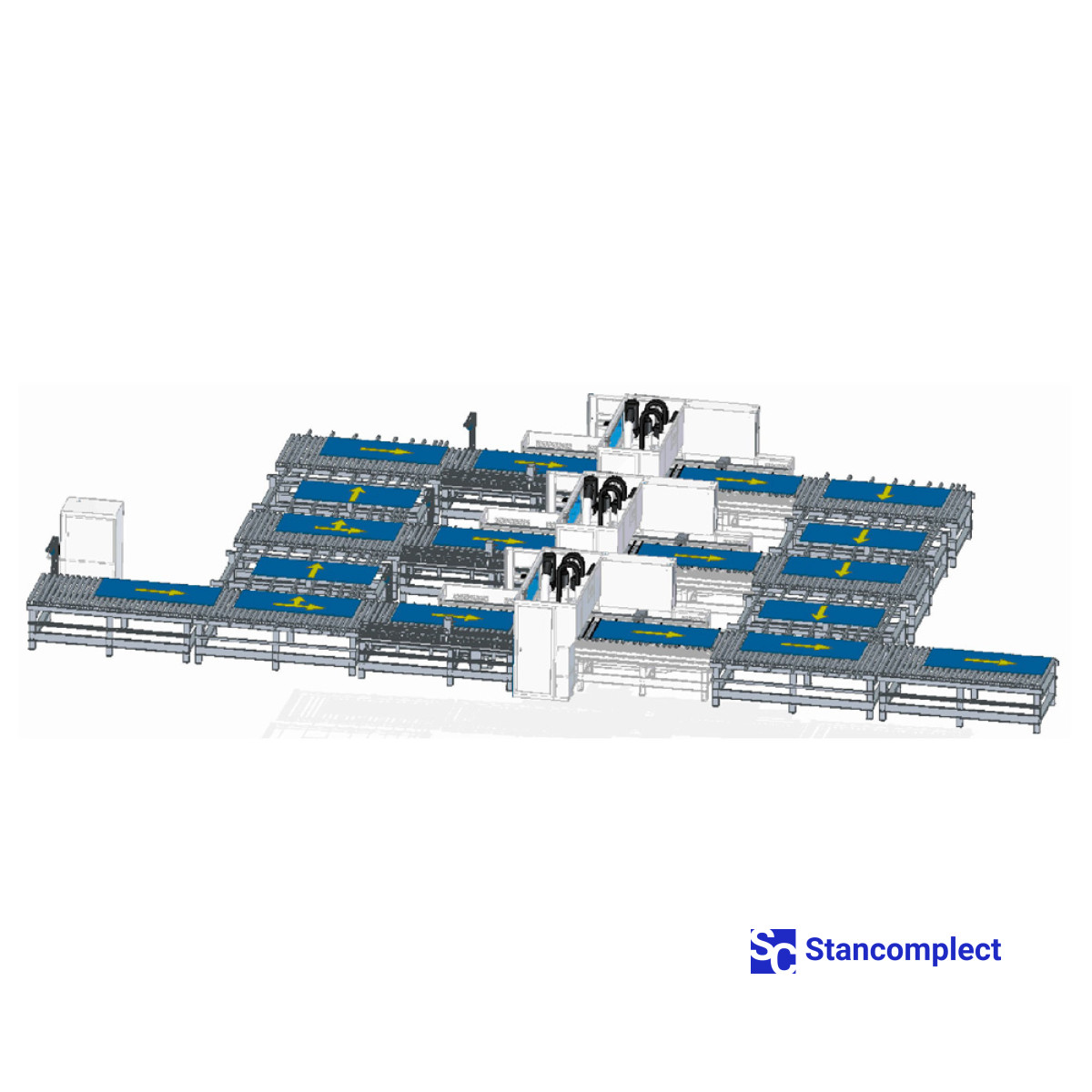

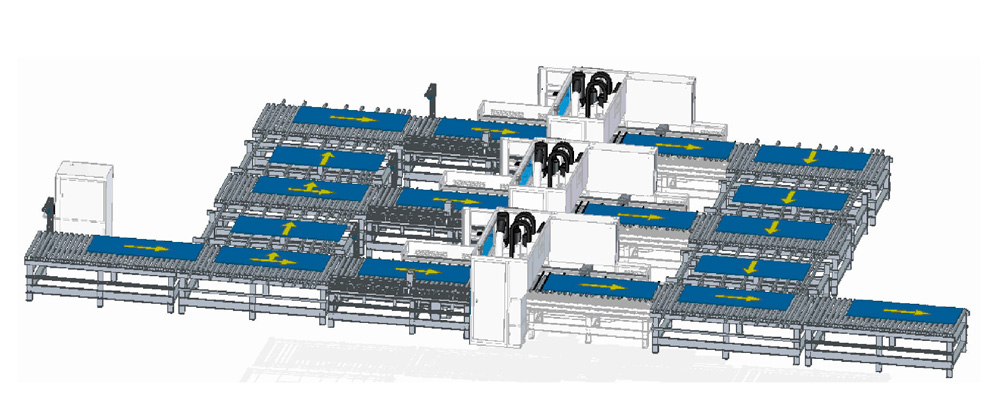

The machine is designed for use in automatic mode with the possibility of embedding up to 3 machines in a line.
2 milling spindles: upper - 5.5 kW, lower - 3.5 kW, 18000 rpm (top and bottom) for cutting straight and curved grooves.
Grooving unit with a saw (disk diameter 120 mm).
Ability to work with all popular programs for optimizing drilling maps.

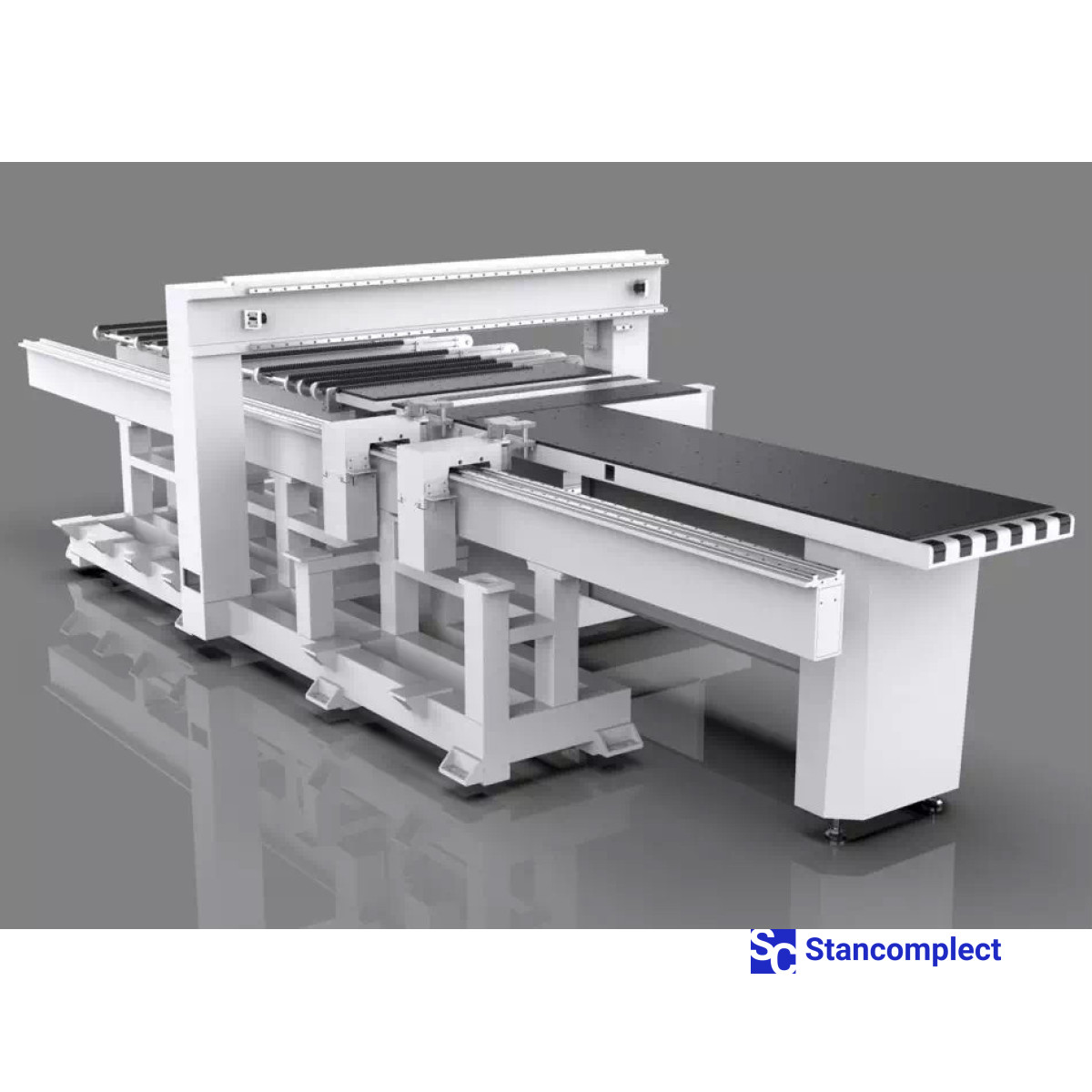

During the development of the machine, the maximum allowable loads and requirements for the design of the machine were calculated and modeled. The welded frame is tempered to relieve all internal stresses in the material, then it is processed on high-precision CNC equipment.
The discharge conveyor is equipped with belt drives and motion sensors.
The positioning of the workpiece on the machine is carried out thanks to the automatic lateral alignment. After reading the barcode, the side aligner moves as close as possible to the dimensions of the part. The workpiece rests on the zero point along the X axis, and the side leveler positions it along the Y axis. Then two pneumatic grippers take the workpiece into the working area of the machine for further processing.
The powerful vertical clamp securely positions the workpiece. Works synchronously with the drilling unit.
Mobile plates in the drilling area allow for through milling.
