CNC machining center KN-2409LP, processing area 2850x1220 mm

The machine is controlled by a reliable and accurate CNC system NCstudio (Taiwan) - a full-fledged "command center" that allows you to control all the functions of the machine without the need to connect to a personal computer and has a wide range of functions.

The CNC system is equipped with an updated WoodSystem shell with a simple, well-designed and user-friendly interface.

The machine is equipped with an air-cooled KDT electrospindle with a power of 9 kW, a rotation speed of 24,000 rpm, an ISO-30 chuck type, has a high level of reliability and low noise level.

12-position linear type automatic tool change system for ISO-30.

A high degree of structural rigidity is achieved due to high-strength steel with a thickness of 12-20 mm, which affects vibration resistance, load resistance and has a high level of reliability and durability.

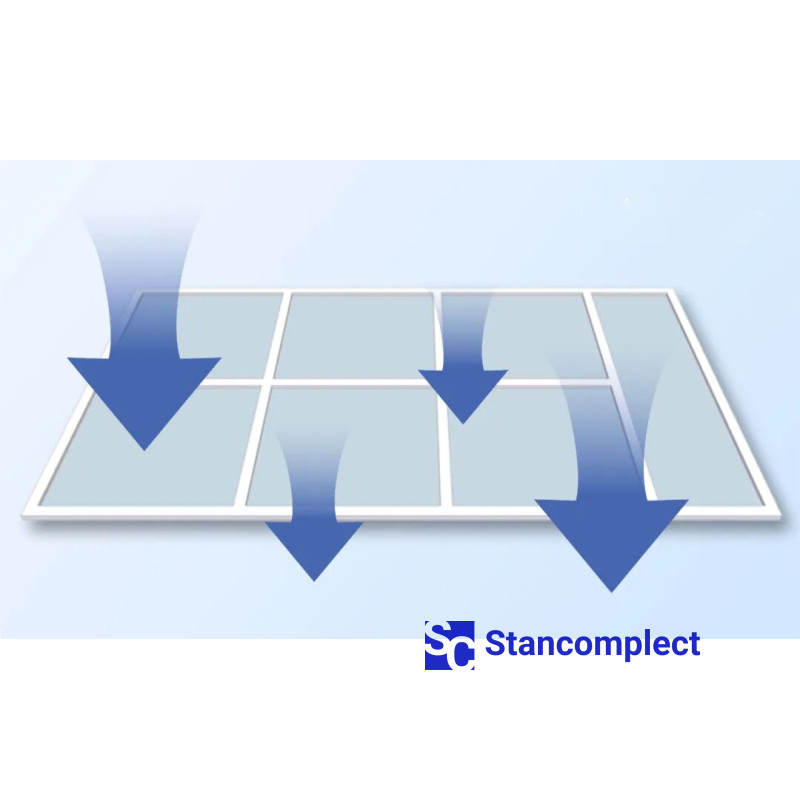

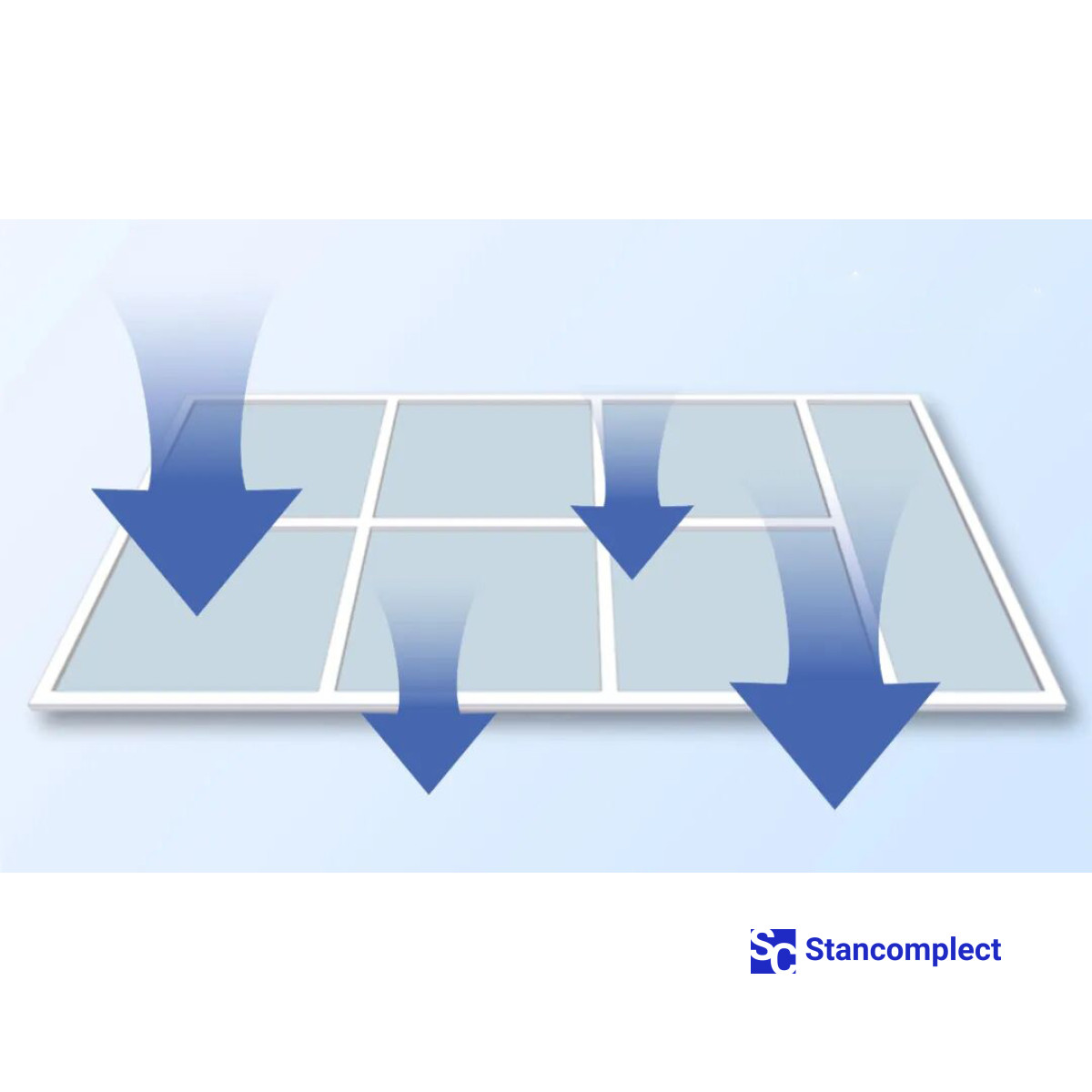

Vacuum table with working area 2850x1220x40 mm for 7 vacuum zones with mechanical control. It is possible to work in pendulum mode and with small parts.

Pneumatic lifting jacks provide precise positioning and ease the operator's work.

The one-piece design of the U-shaped gantry is unique in its class and provides high structural rigidity.

The sensor for automatic tool measurement and calibration accurately measures the length of the tool, reduces machine setup time, which greatly facilitates the work of the operator.

Workpiece pusher/Worktable cleaning reduces maintenance time and prevents chips from getting under the workpiece, which greatly affects the quality of processing, facilitating the work of the operator. At the same time, it collides workpieces and cleans the table from chips.

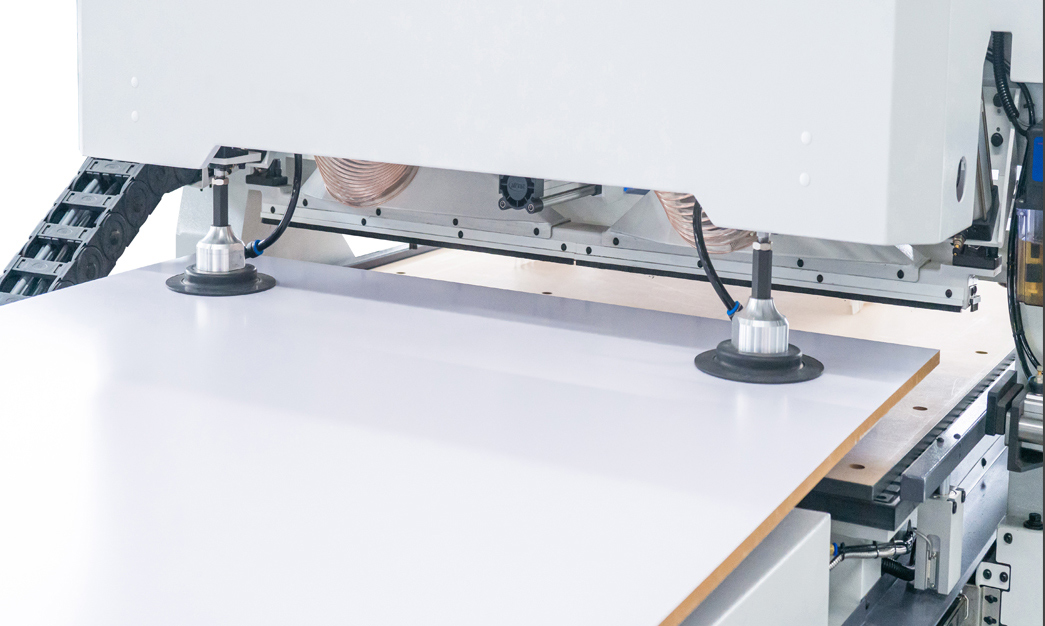

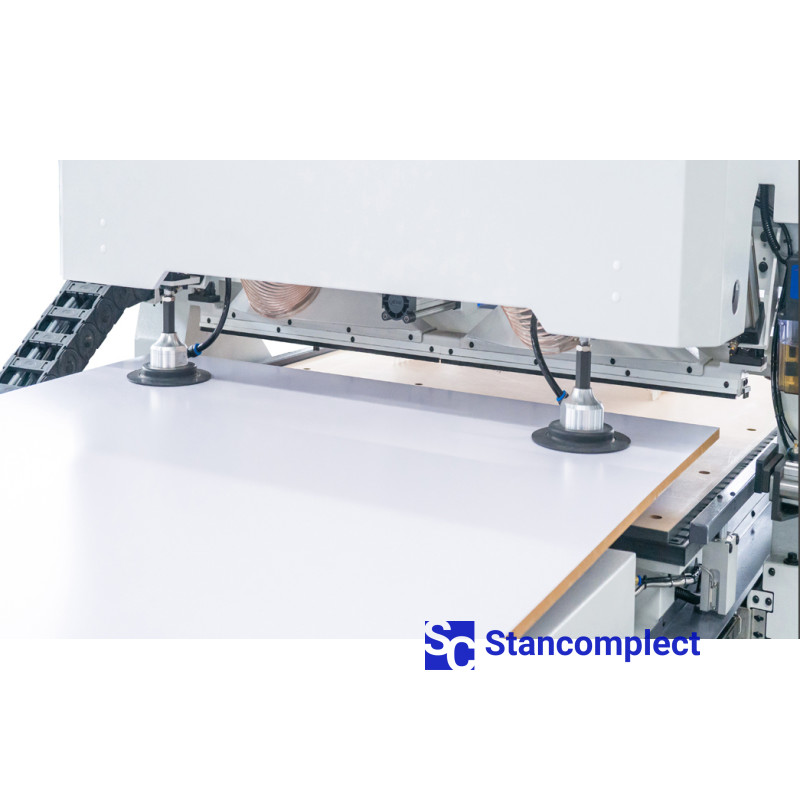

This device allows the machine to load panels onto itself, enabling operation in automated lines when connected to loading tables.

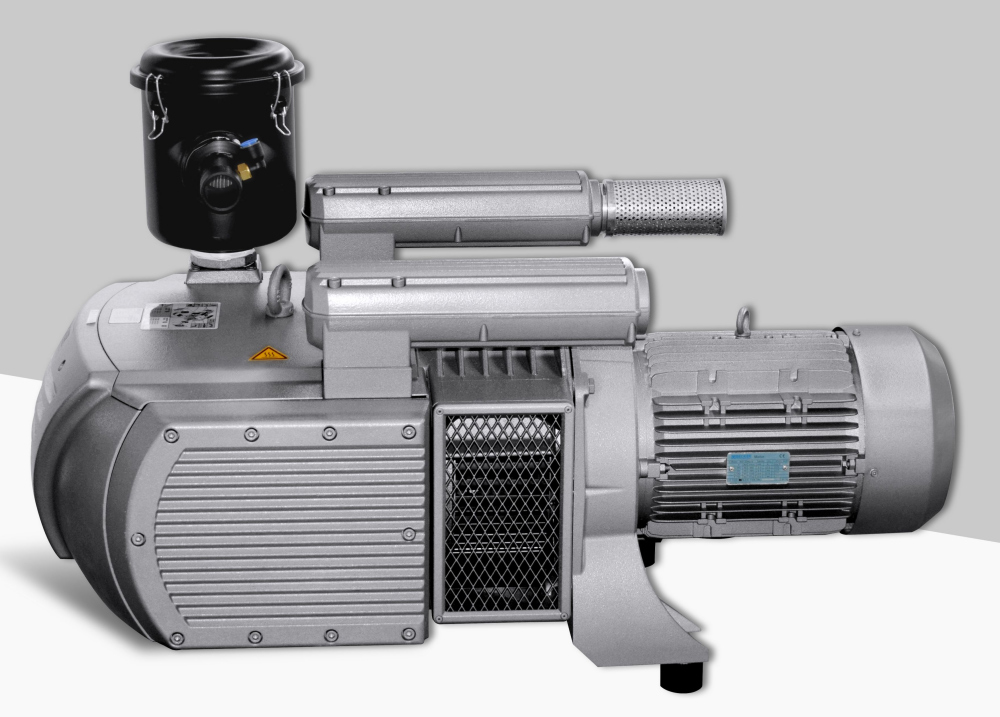

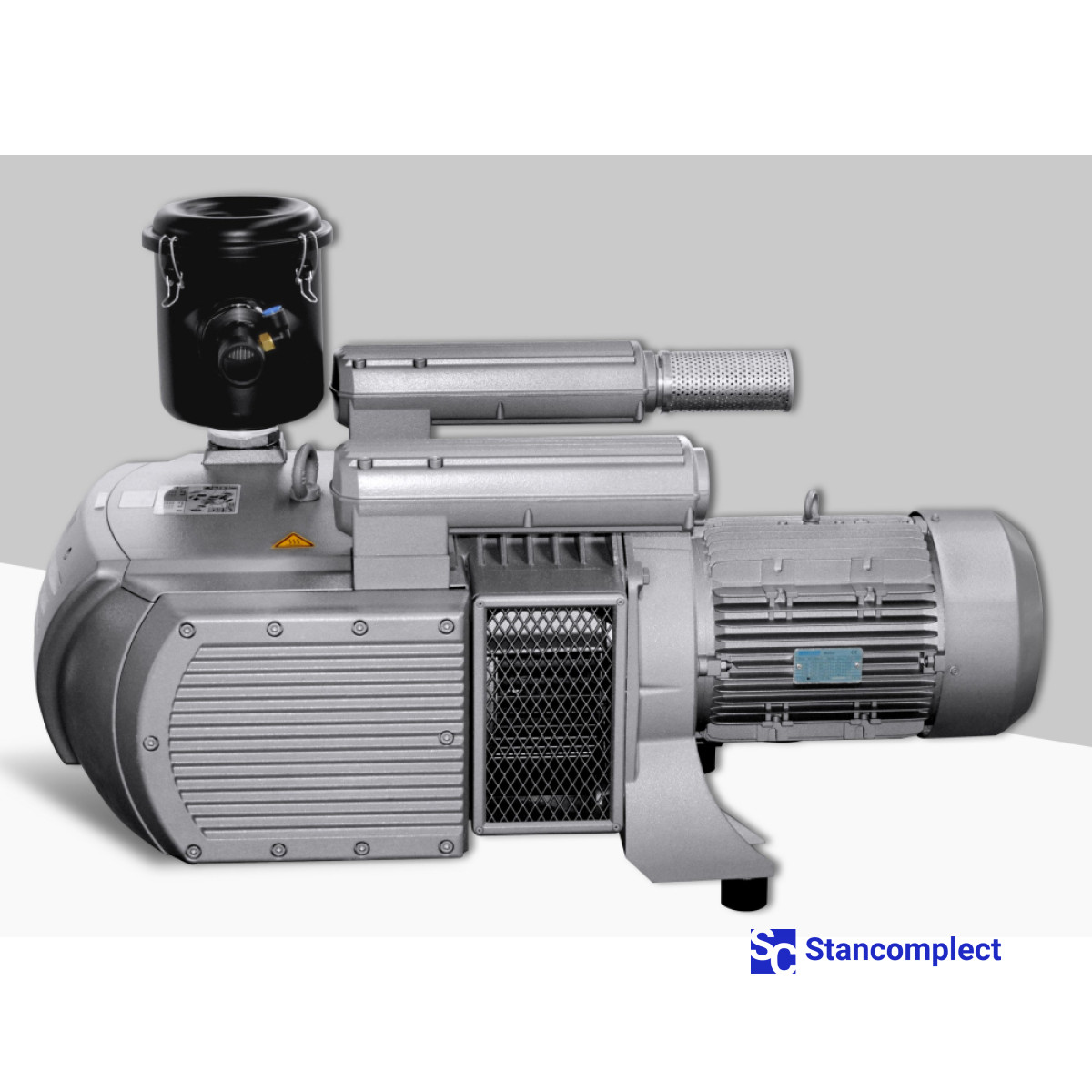

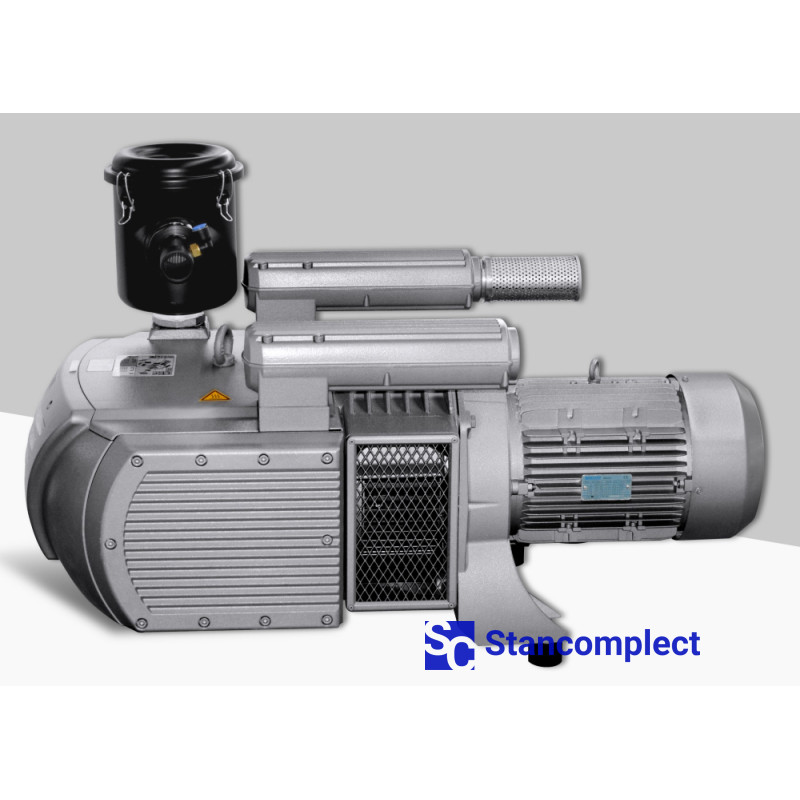

Vacuum system BECKER with a capacity of 250 m3/h securely fixes the workpiece.

Ball screws along the Z axis - movement is carried out using a PMI ball screw (Taiwan), which guarantees the complete absence of backlash, and subsequently high accuracy of movement.

Gear rack and pinion SHAC (Taiwan) with teeth ground from hardened steel provide high accuracy and smooth running due to minimal friction and no backlash. The pinion is integrated into a high precision planetary gearbox.

PMI Group's roller guides and bottom brackets provide a smooth ride with minimal friction while maintaining a firm grip and precision.

1.5KW high power INVT servo motors and SESAME Motor Taiwan precision planetary gearboxes provide synchronous movement, high precision and dynamics.

High-quality pneumatic components manufactured by SMC Corporation (Japan) are used in the most modern developments in the field of industrial automation.

An automatic two-loop lubrication system along the X-Y axes and separately along the Z axis (manual control) lubricates all necessary components and assemblies.

The electrical cabinet consists of electrical components from leading brands such as Schneider Electric, frequency converters from the well-known company INVT and is CE compliant.
