Nesting carbide cutter CL-07 10x40x12 L100 HD (Taiwan) for cutting chipboard, MDF, plywood

All about product
Specification
Reviews
2
Information
Recommended
Articles
Bestseller
In Stock
Product code: 366
Reviews: 2
53.10€
Buy in 1 click:
Specifications: (See all)
Cutting diameter, mm
10
Cutting height, mm
40
Total length, mm
100
Shank diameter, mm
12

Get AI analytics

Nesting carbide cutter CL-07 10x40x12 L100 HD (Taiwan) for cutting chipboard, MDF, plywood

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

Logo HD Woodworking tools

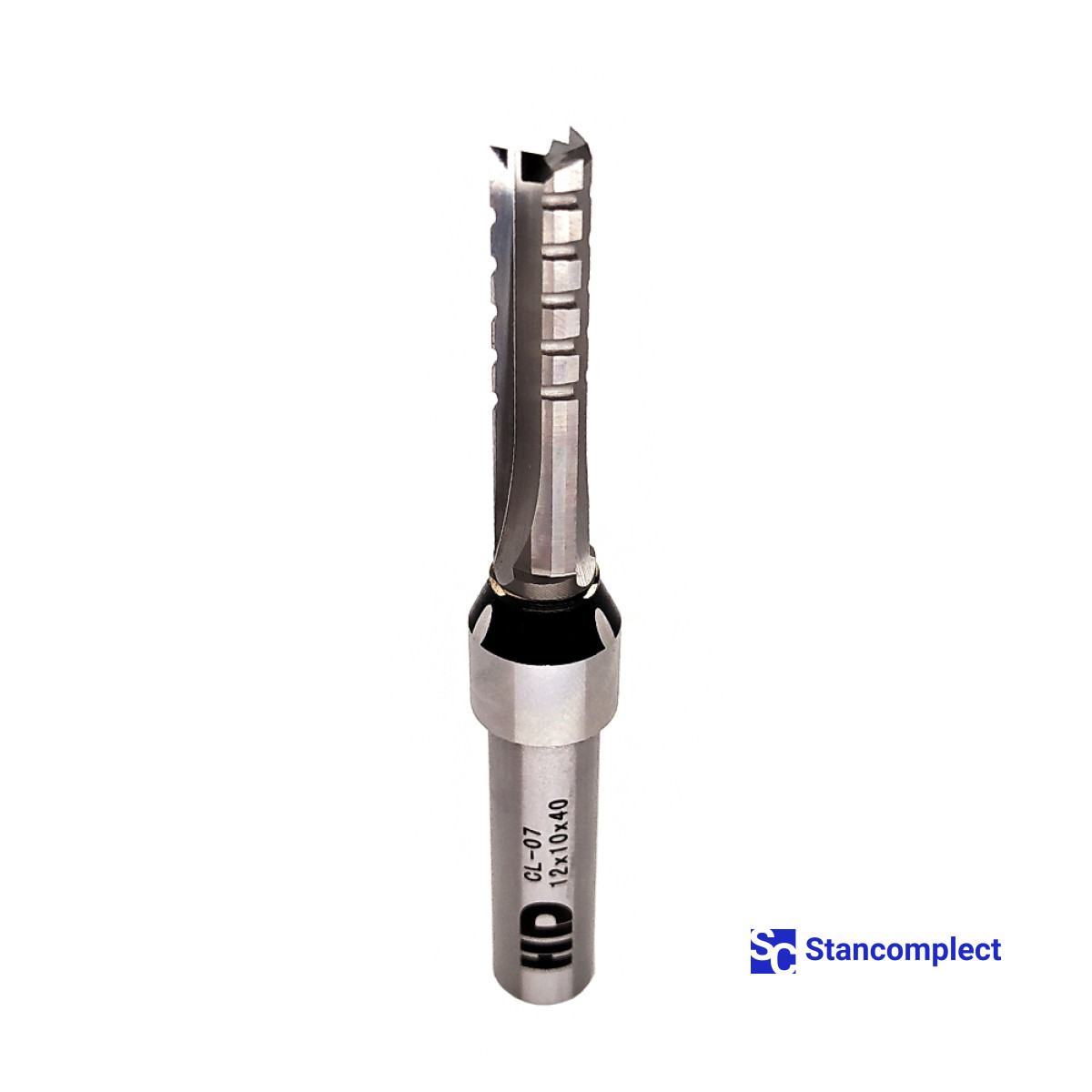

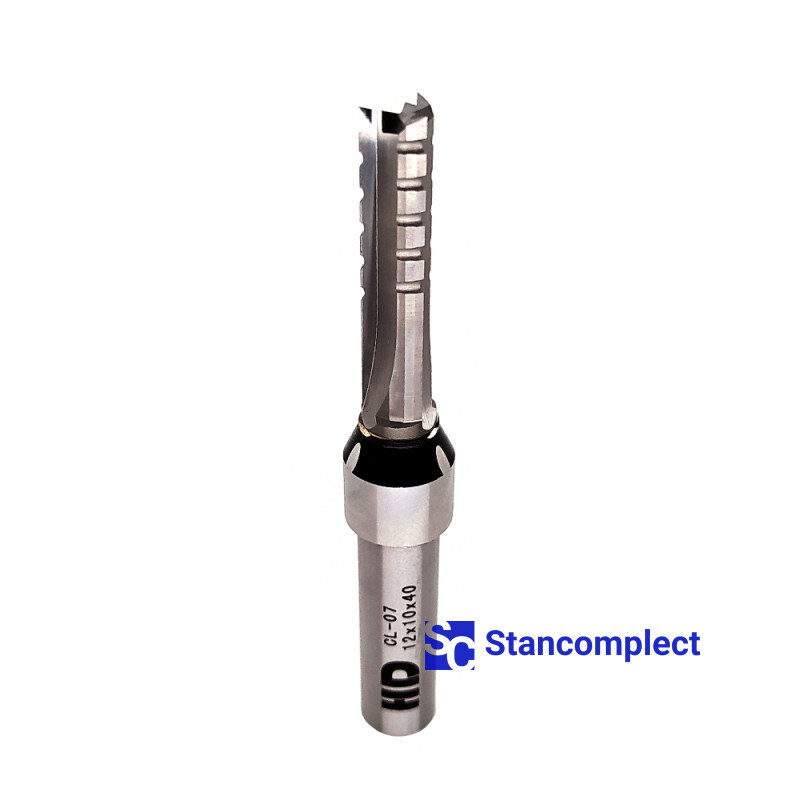

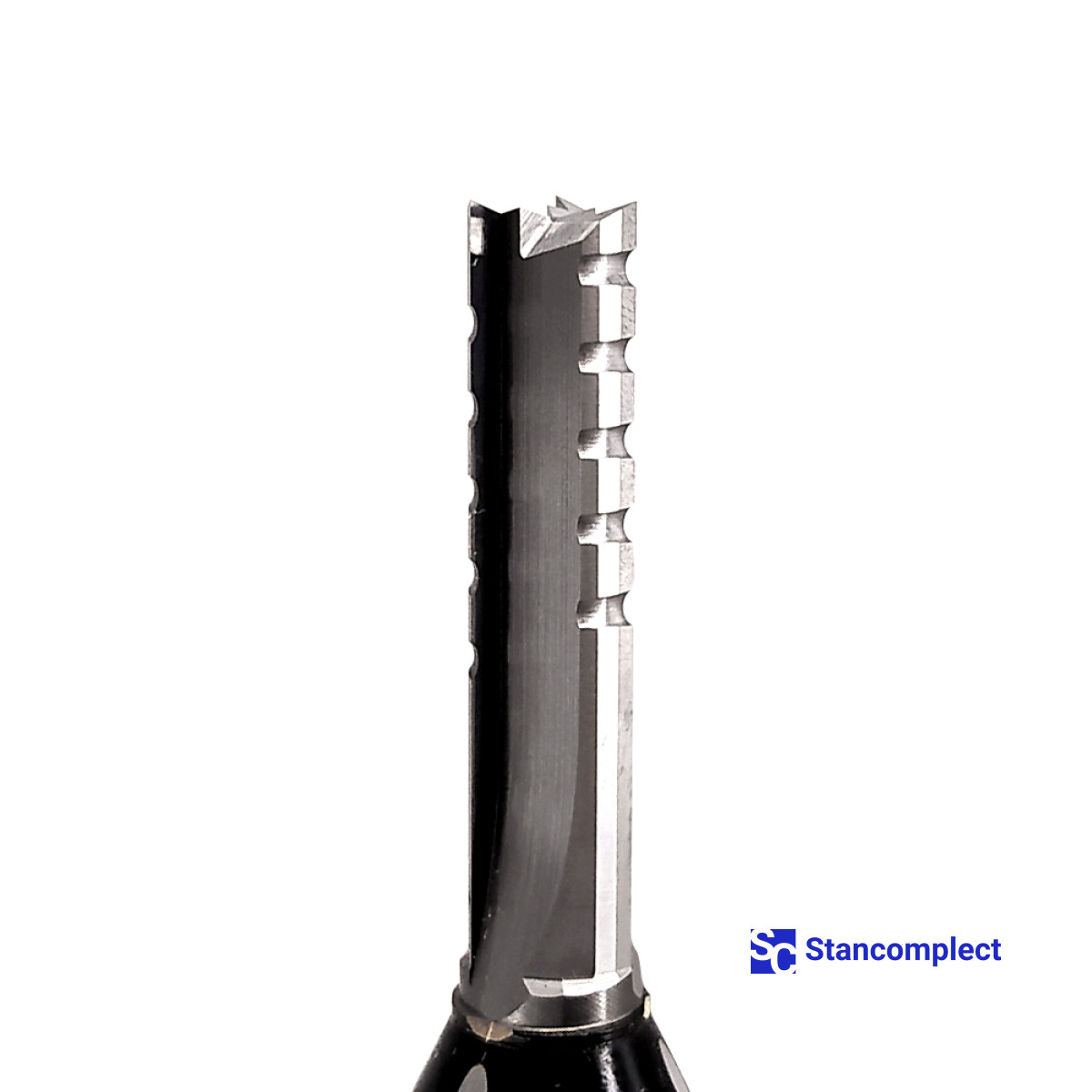

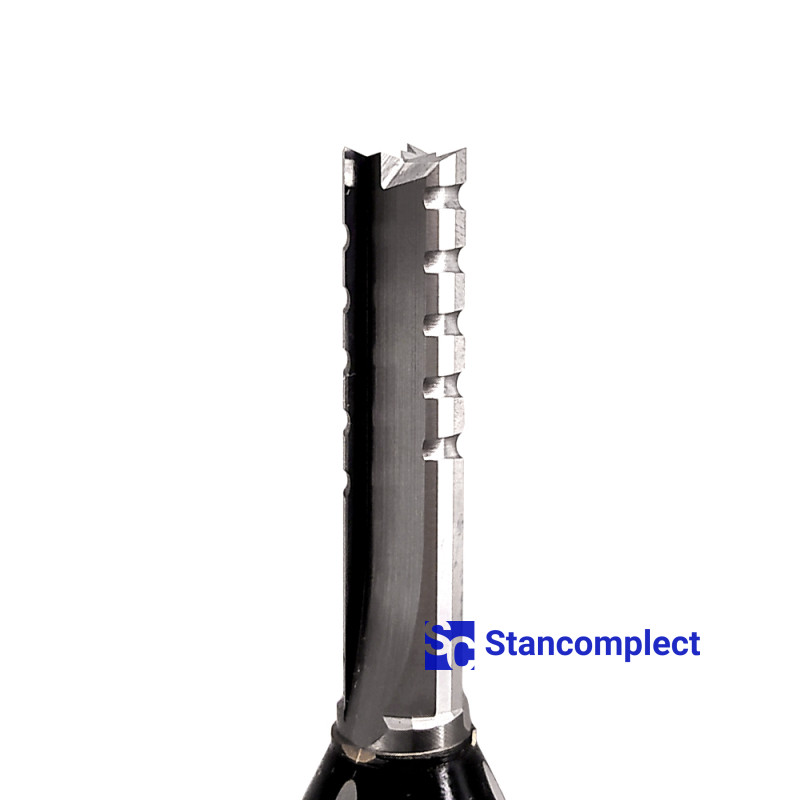

3-flute nesting carbide cutter CL-07 10x40x12 L100 HD (Taiwan) are used in CNC machining centers and CNC milling machines for curved and straight line nesting cutting without chipping wood-like boards materials: laminated chipboard, MDF, plywood.

The main features of this cutter are high quality processing, with a high processing speed of 8-12 m/min at a very low cost of the cutter itself, and as a result, a decrease in the cost of the cutting operation itself. The cutting part is 10 mm at the height of the cutting part is 40 mm.

Advantages:

  • Small cutting diameter of 10 mm and as a result significant material savings. For comparison, I drank 12, 16 or 20 mm from diamond cutters.
  • The low cost of the cutter itself and, as a result, a decrease in the cost of the operation itself.
  • High cutting quality - the ability to cut parts under certain conditions in one pass.
  • Save material by cutting 10 mm instead of 12 or 16 (as for diamond cutters).

nesting compression carbide cutter

Specifications
Specifications
Cutting diameter, mm
10
Cutting height, mm
40
Total length, mm
100
Shank diameter, mm
12
Cutting part material
carbide
Reviews
5 / 5
average product rating
2
0
0
0
0
Valentin Kravchenko
Valentin Kravchenko
15 march 2019 (21:48)
I recently took a batch of 10 of these cutters from the guys, and one cutter had a small chip on the cutting edge, took a photo, and sent the photo to the guys. They replaced my damaged cutter without any questions.
Artem Nikolaenko
Artem Nikolaenko
25 february 2018 (10:29)
Basically you have to cut laminated chipboard and chipboard, I talked to the guys and they recommended this one. I set the plunge speed to 5-6 m/min, the working feed to 8-10 m/min, after 30 sheets of laminated chipboard I inspected the cutter, it seemed to have no defects, and it also cuts without chips. I'm happy with the cutter, so far it fully justifies the price.
Delivery Packeta, Fedex, DHL, UPS to the post office, address delivery by courier. Pick up from the warehouse.
Payment by card online, non-cash payment for legal entities and individuals, payment by card and when receiving the goods.
Official manufacturer's warranty.
