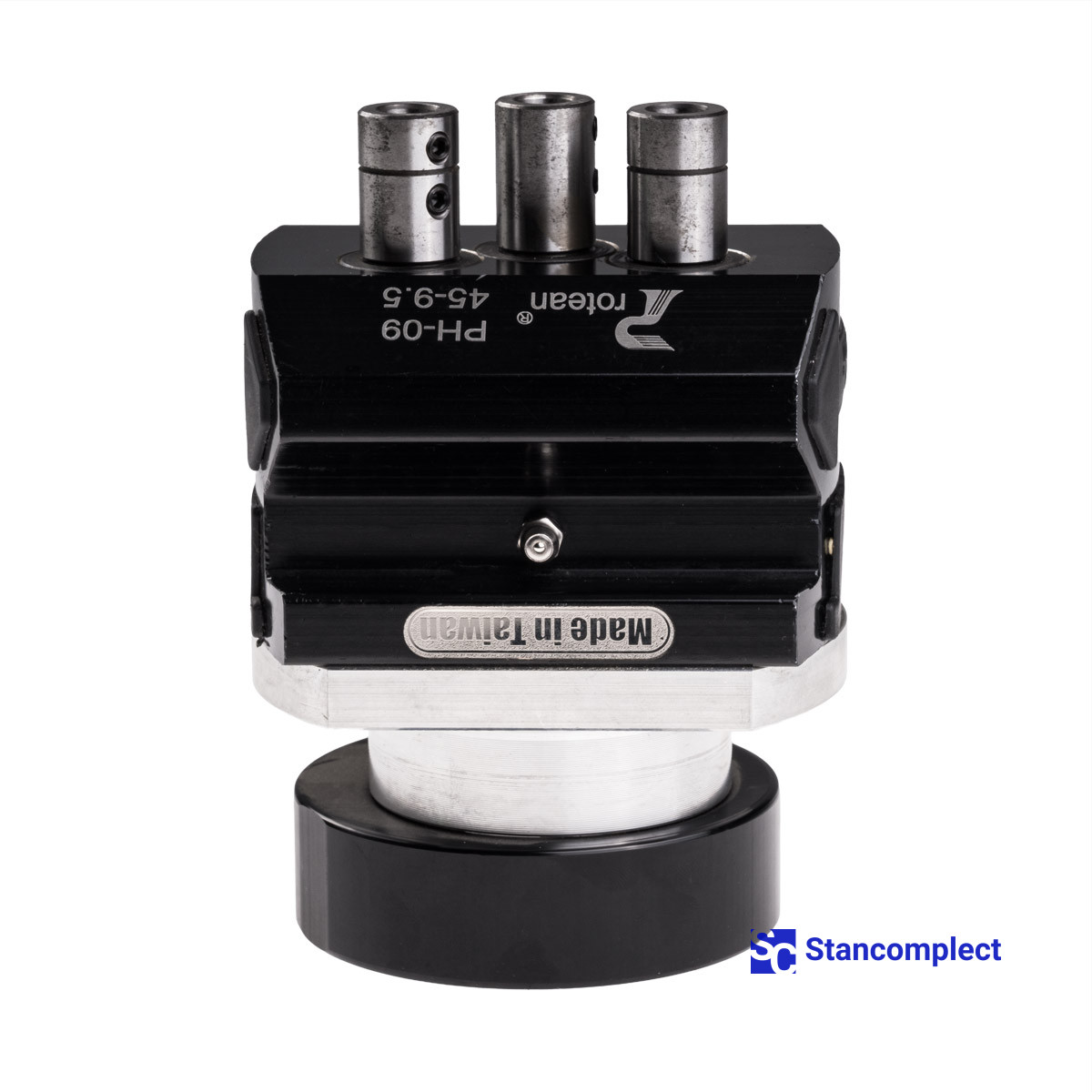

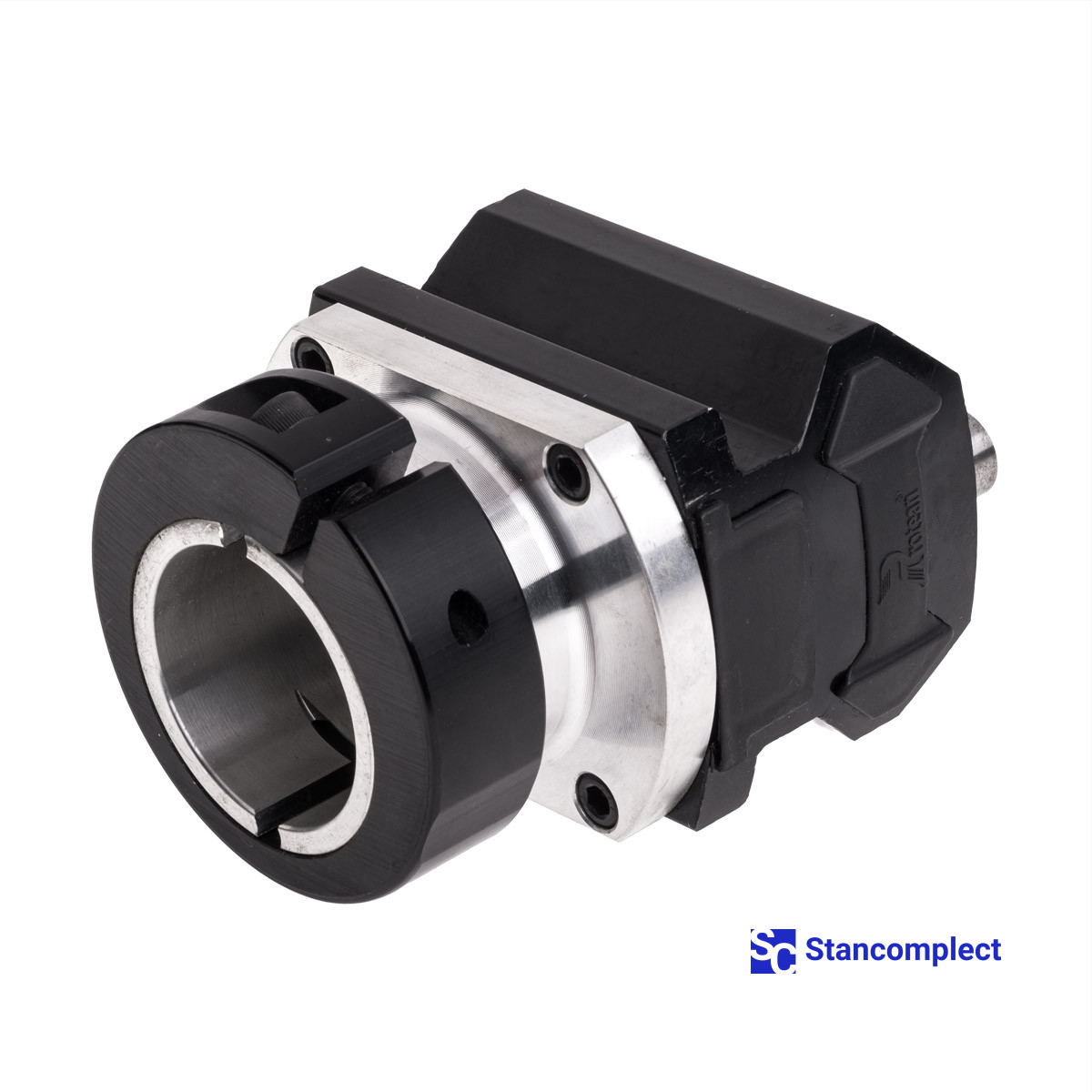

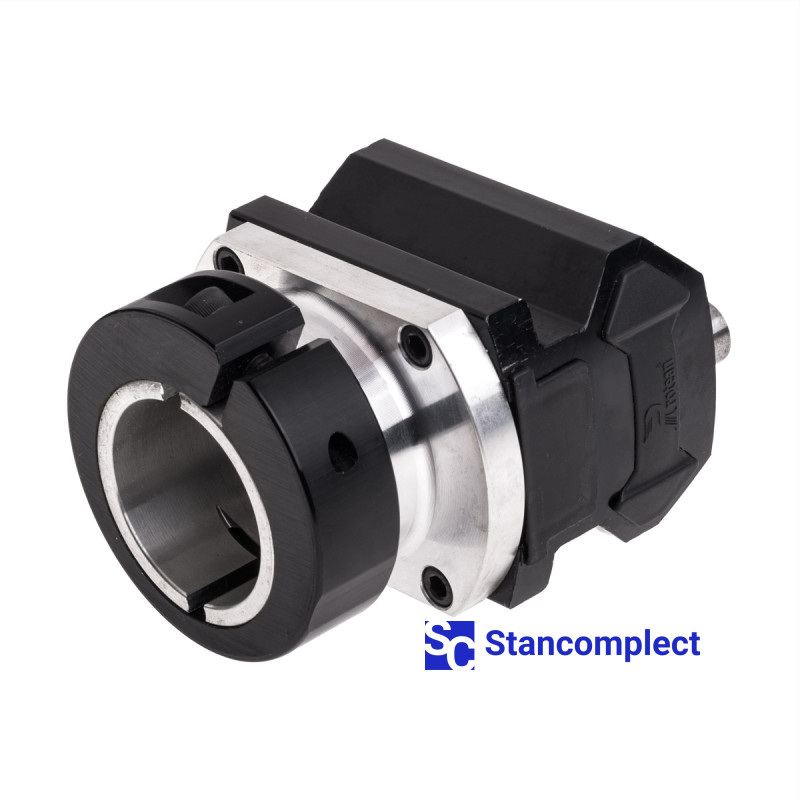

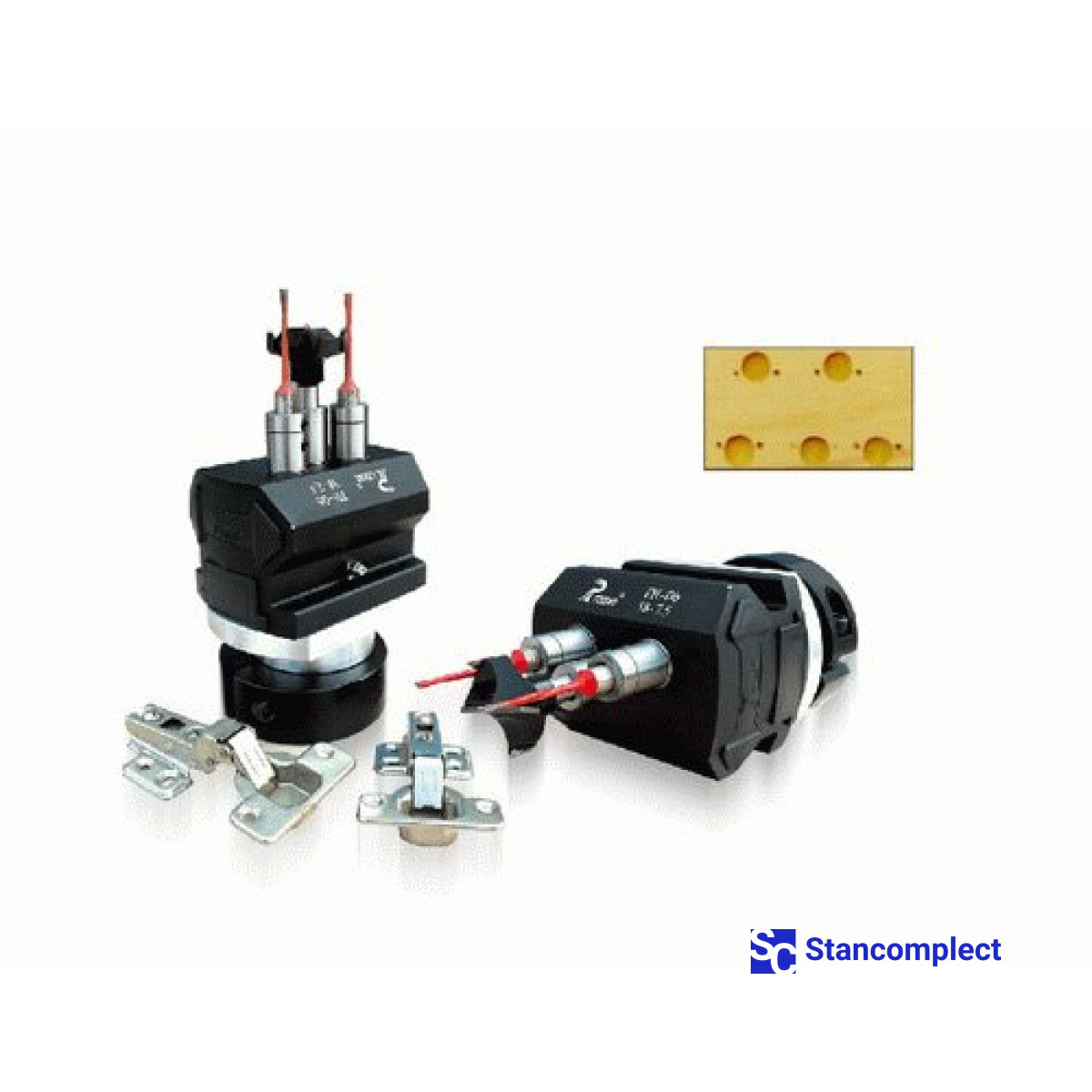

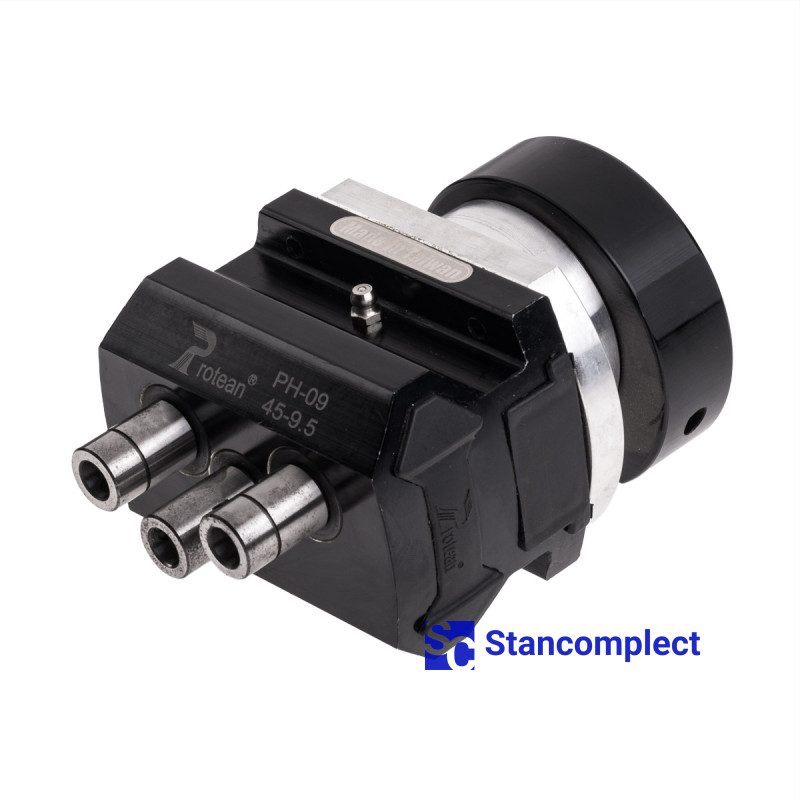

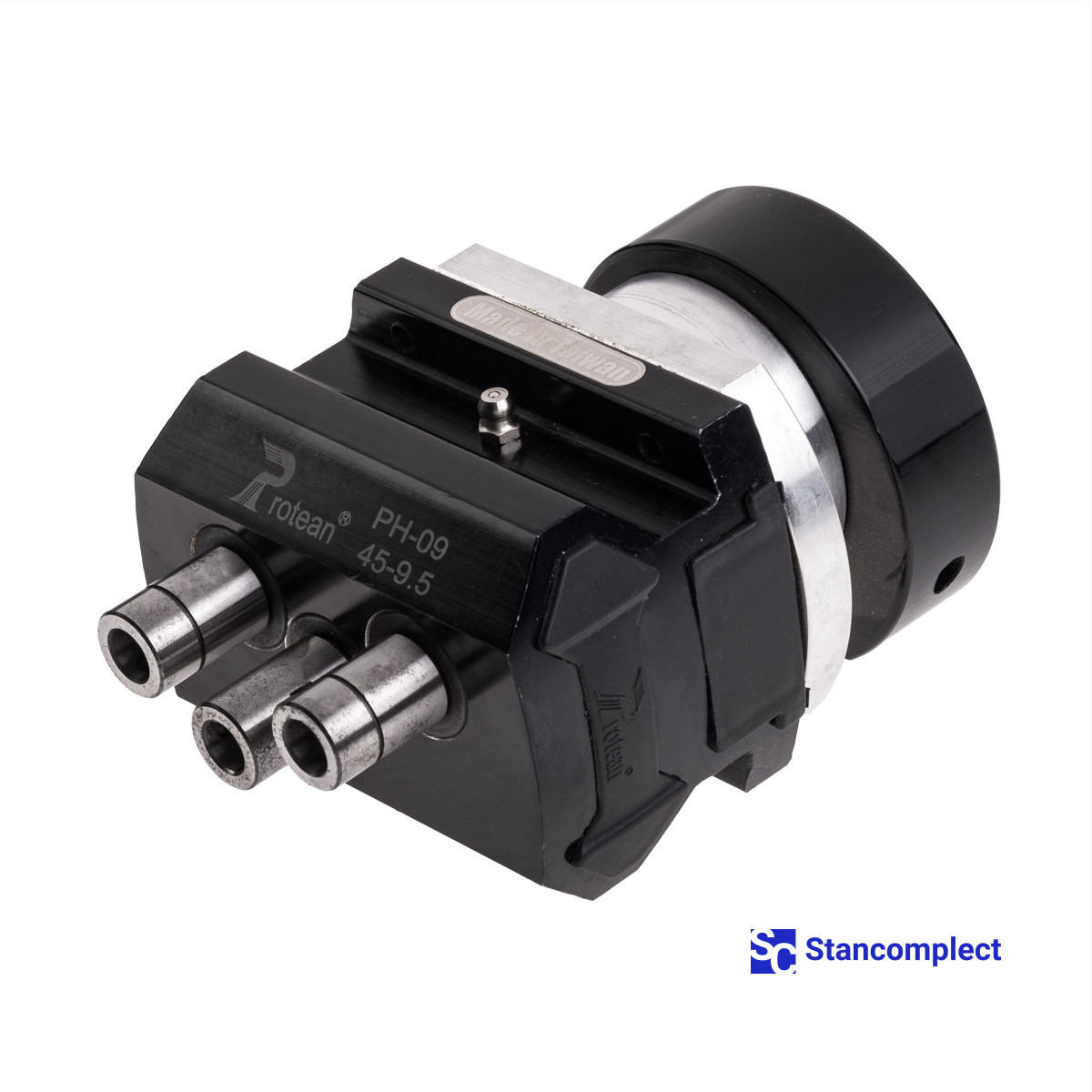

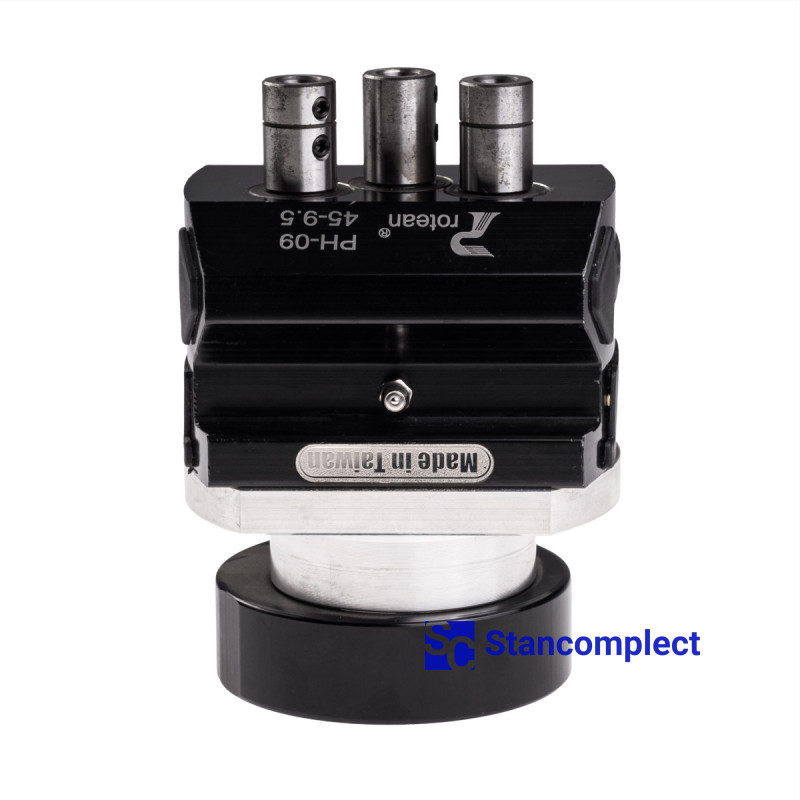

Drilling head for hinge boring for BLUM furniture hinges can be installed on any drilling machines and drill three holes at the same time, the central spindle drills with a 35 mm cutter for a cup and the outer spindles drill holes with a diameter of 5 mm for euro screws or a smaller diameter marking holes for self-tapping screws. Most furniture companies use standard multi-spindle drilling machines for hinge drilling, thus using significantly expensive equipment that could do other work at that time. In addition, on a standard multi-spindle drilling machine, you have to drill for the hinges in two and sometimes in 3 approaches due to the fact that the distance of the holes for the furniture hinge is not a multiple of 32 mm and the holes are not on the same line. Thanks to the use of drilling heads for furniture hinges, drilling can be done in one pass.

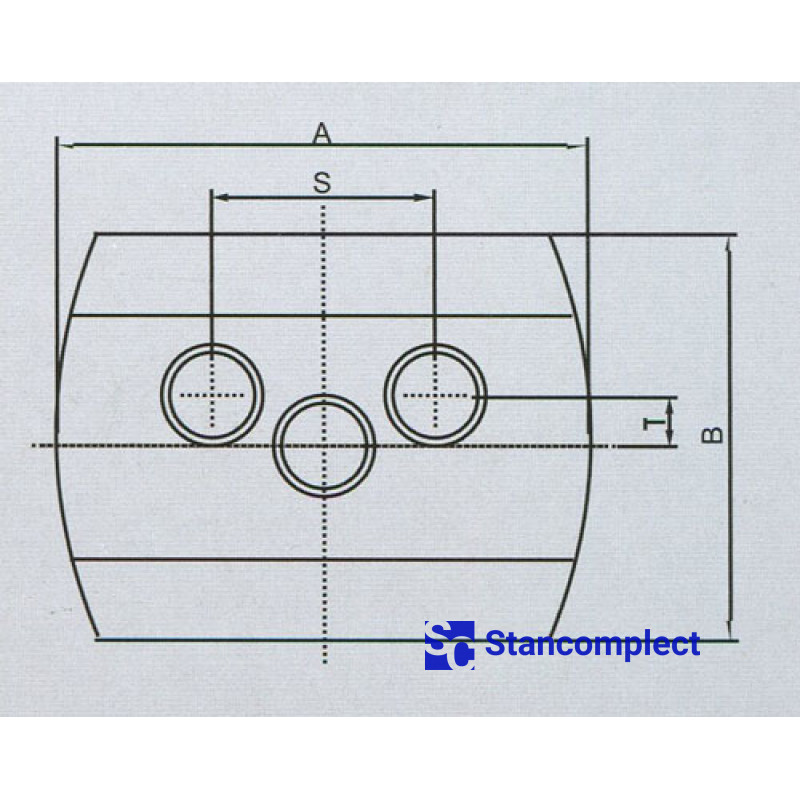

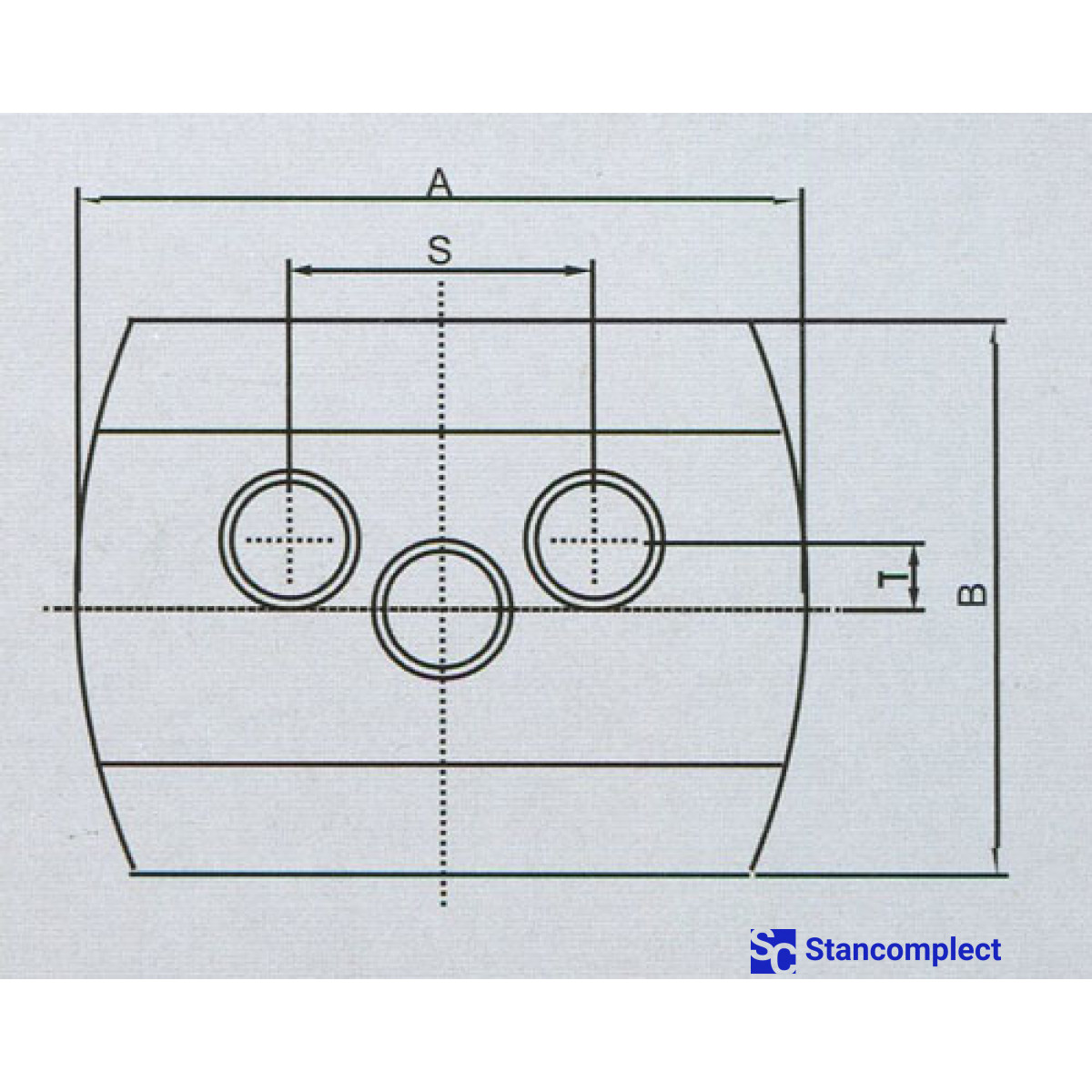

Dimensions A and B must be specified before ordering. These values differ for different hinges.
| Length A, mm | Width B, mm | C | D | E | F | G | H | L1 | L2 | L3 | S distance between outer spindles | T Offset | Hinge manufacturer | Drill bit clamping method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 76 | 25 | 66 | Ø 55 Ø 65 |
Ø 25 | 10 | 11 | 56 75 |
43 62 |
32 51 |
45 | 9.5 | BLUM | Clamp with inner diameter 10 mm or threaded M8 or M10 |
