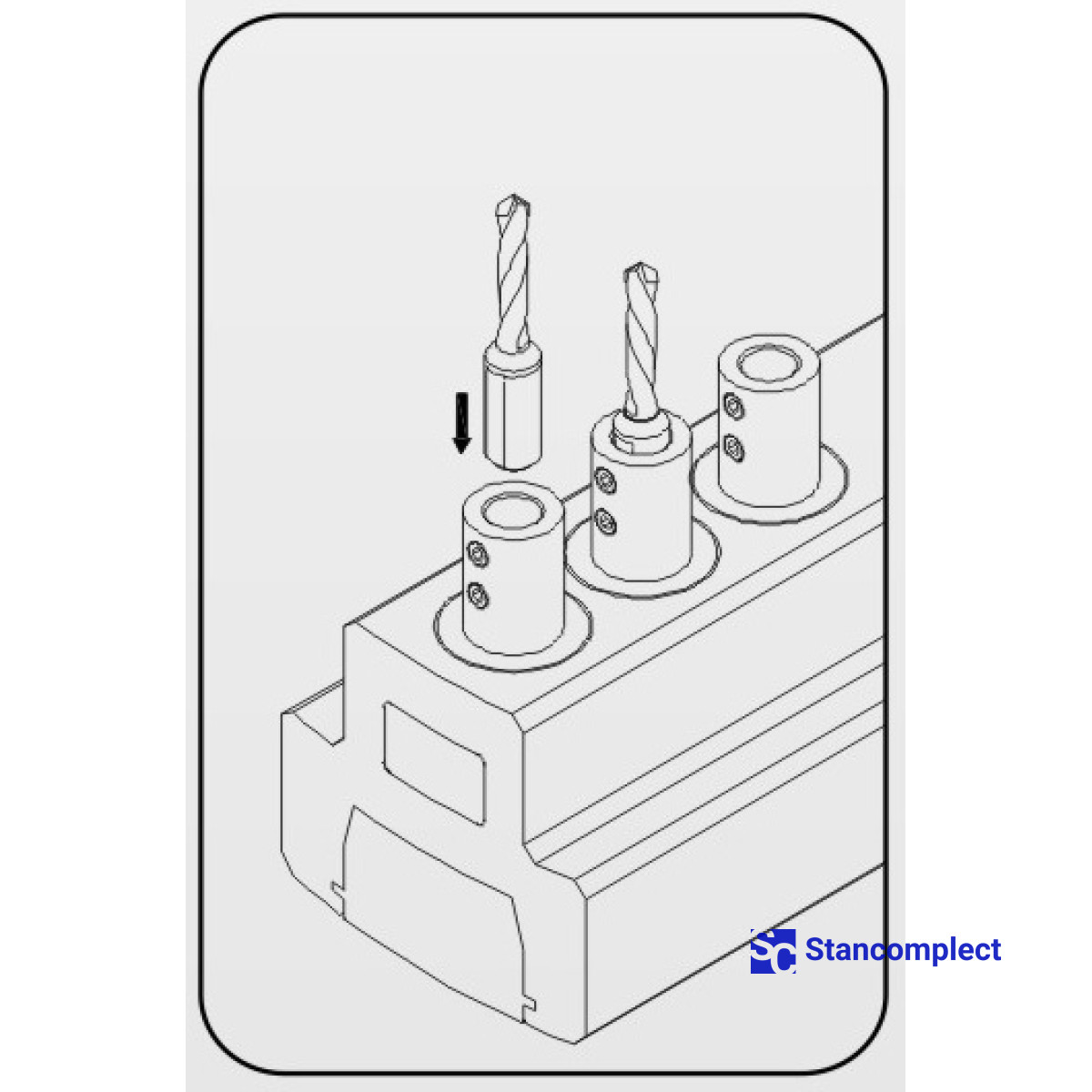

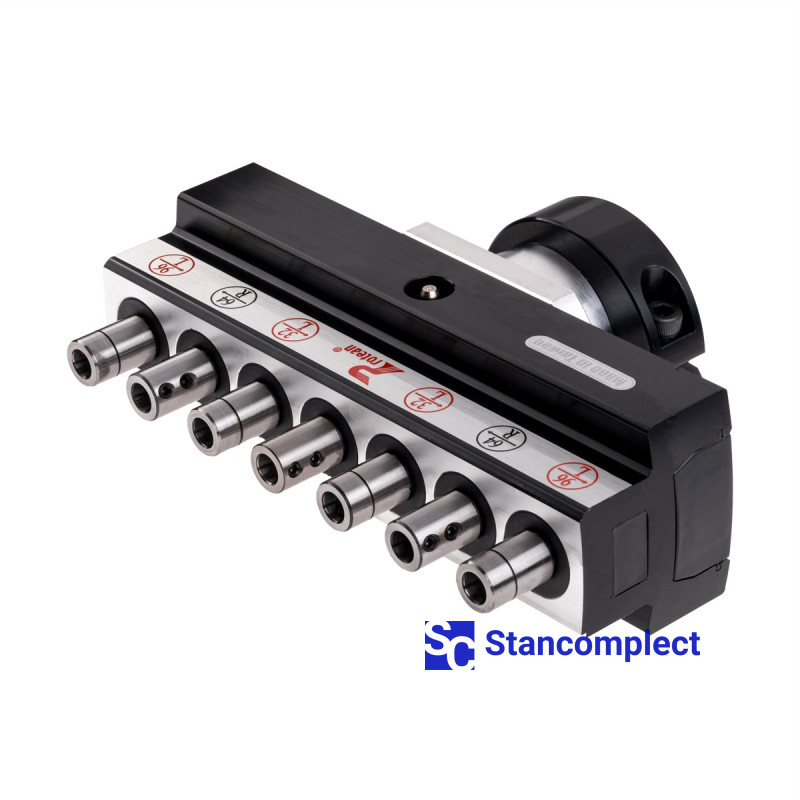

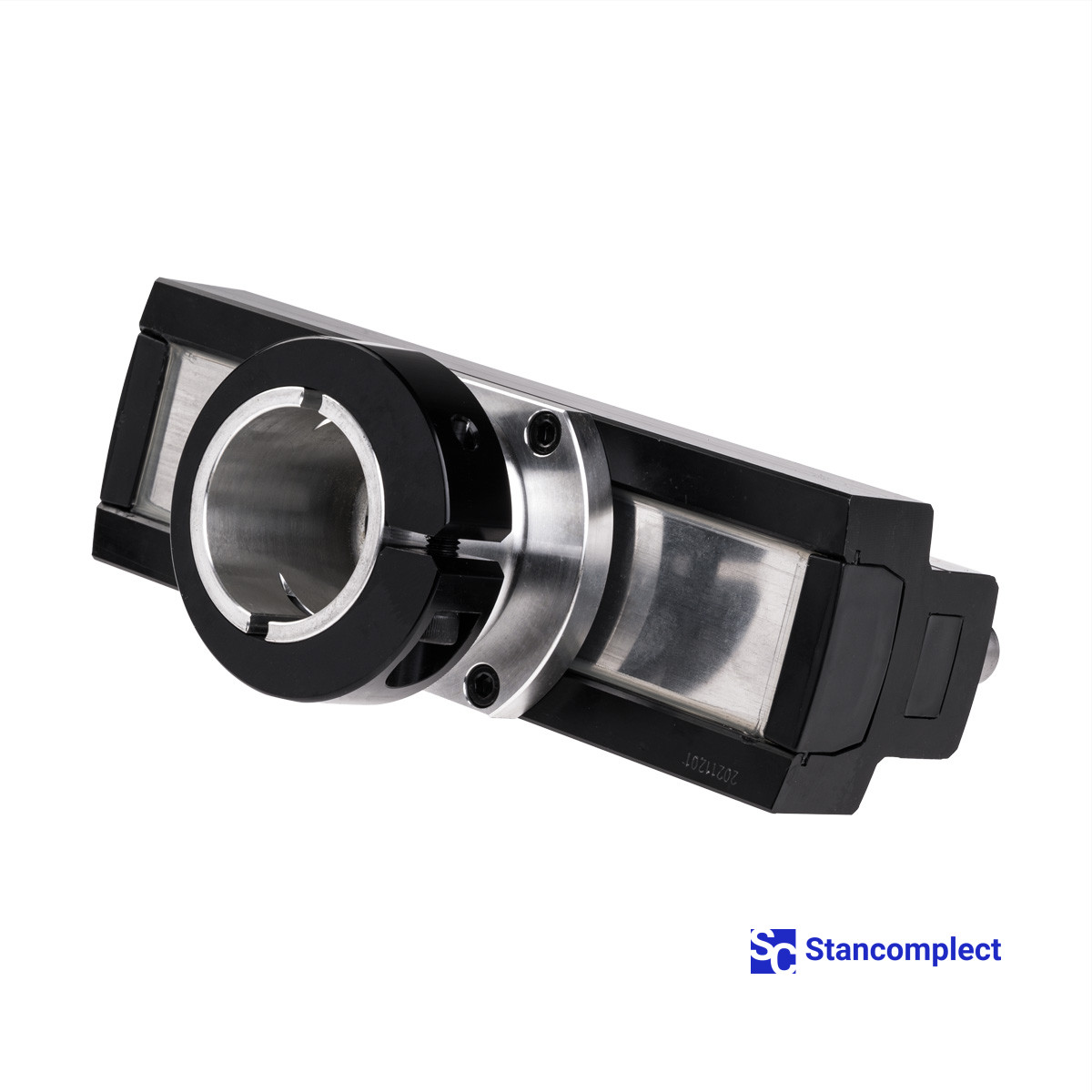

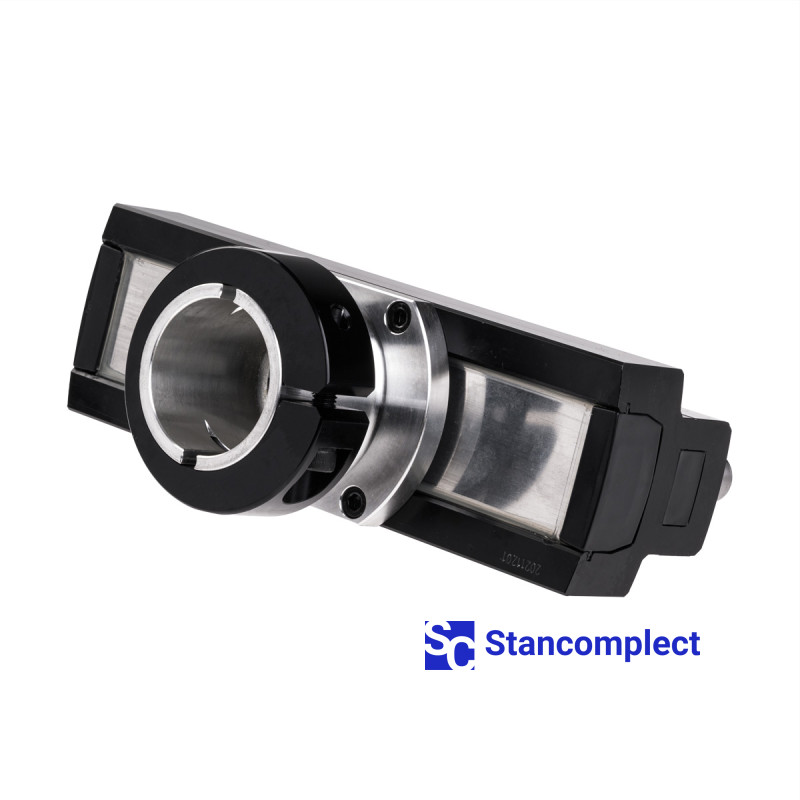

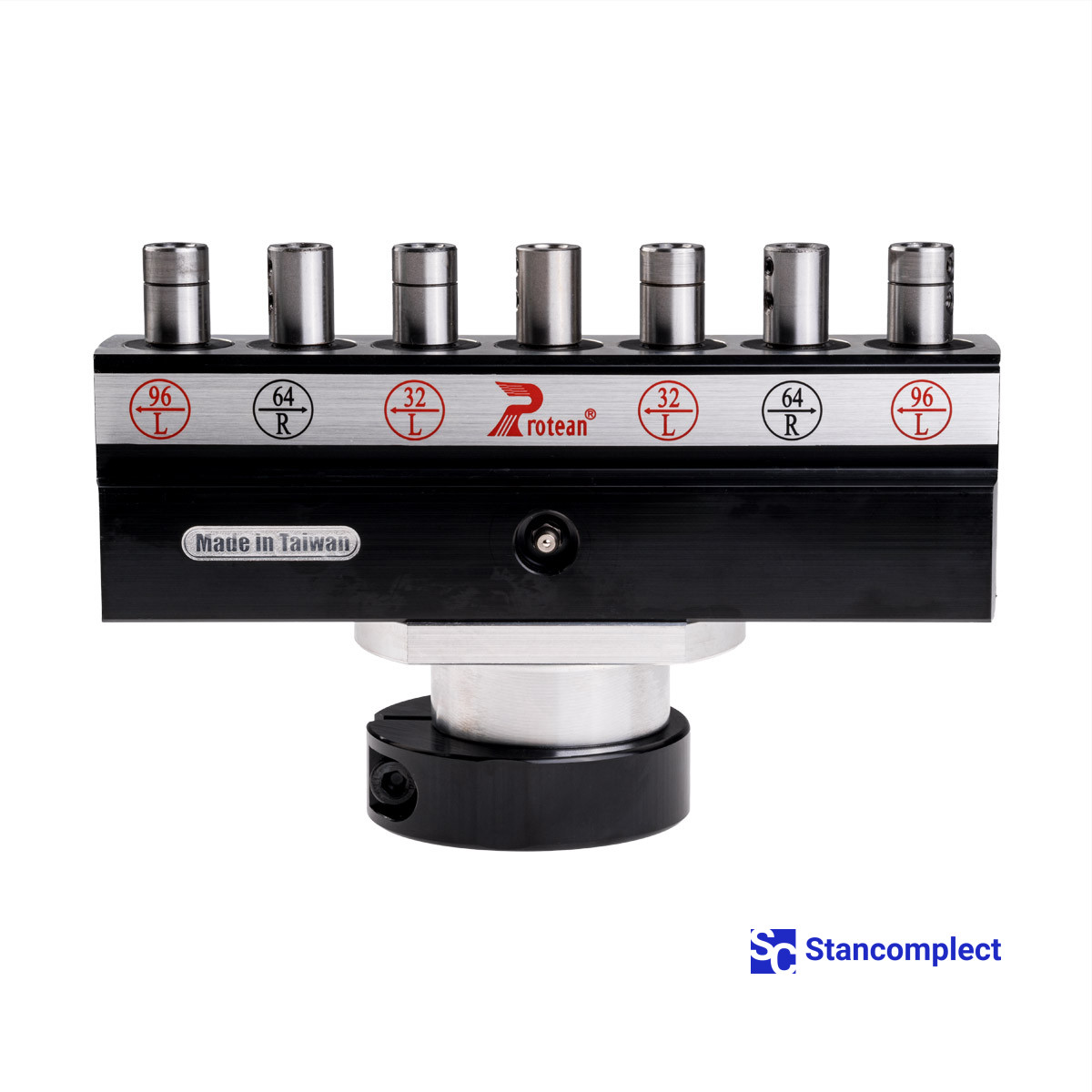

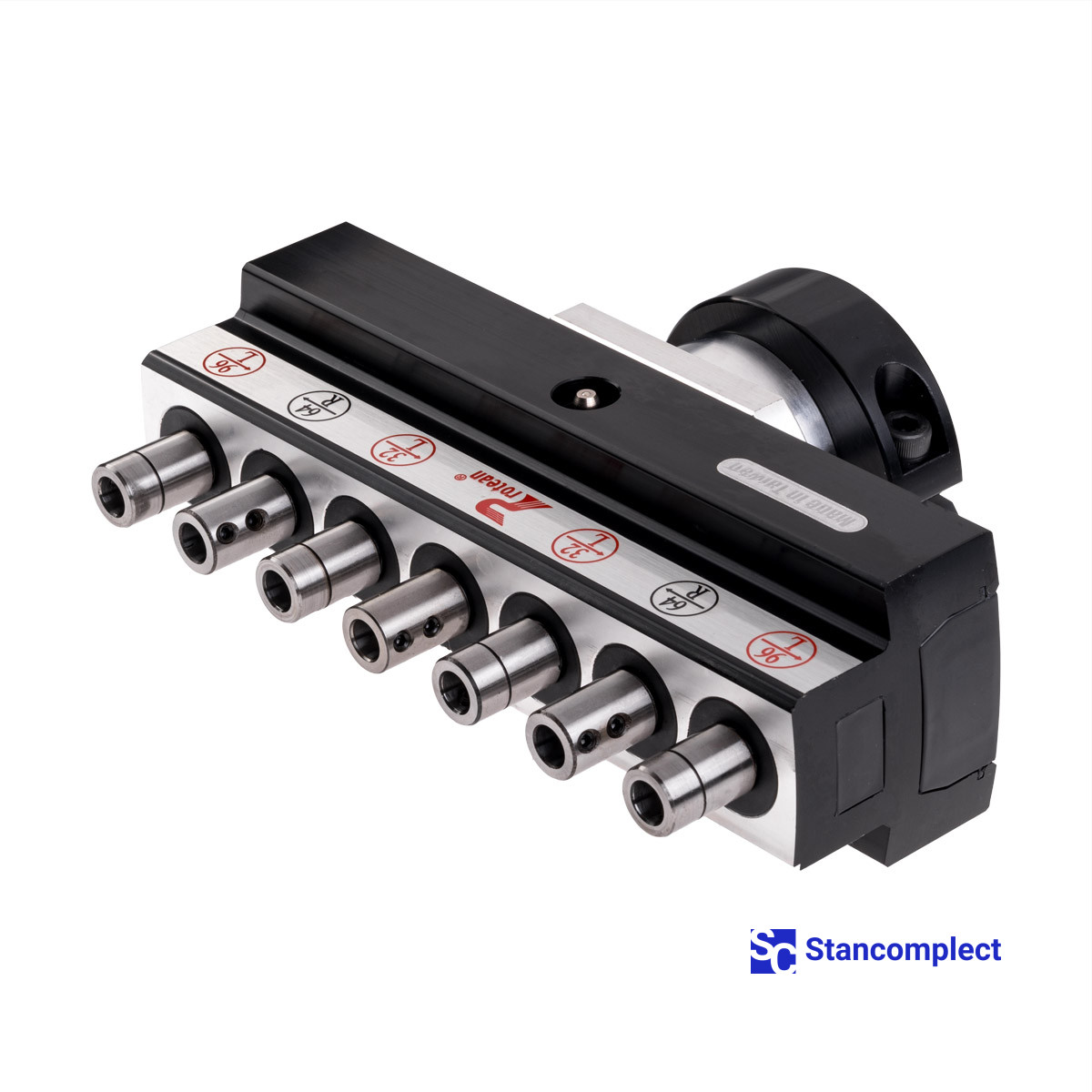

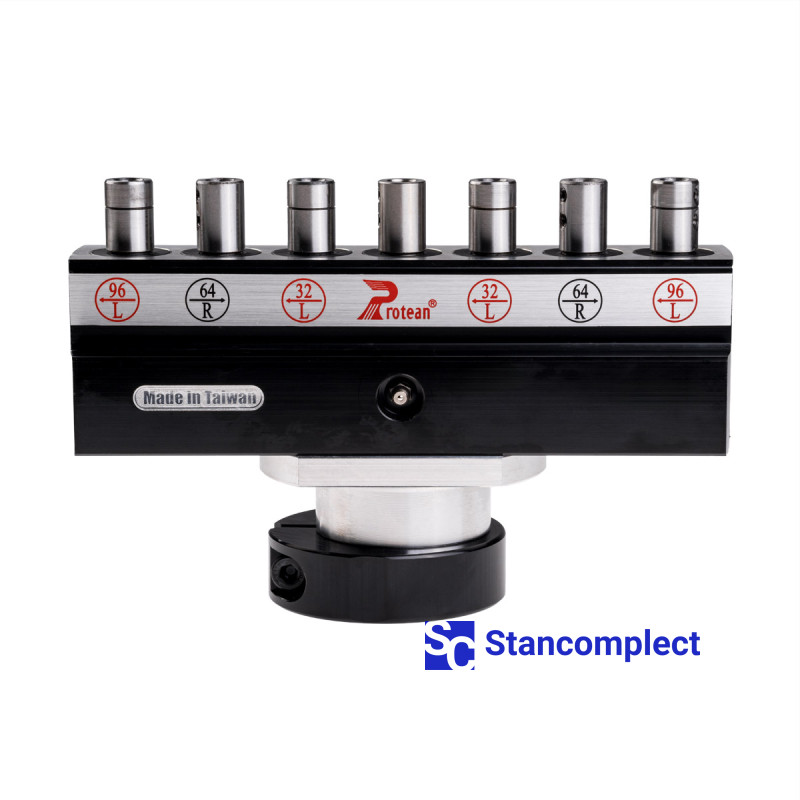

7-spindle drilling head with fixed spindle spacing is mounted on a drilling machine. The standard distance between the spindles is 32 mm, the drilling head is available in increments of - 20, 22, 24, 25, 25.4, 30, 32, 40 mm. Maximum speed - 4500 rpm.
Maximum drill bit diameter for:
- wood or plastic - up to 40 mm;
- copper, zinc, aluminum - up to 12 mm;
- cast iron and steel - up to 6 mm.
| A | B | C | D | E | F | G | H | L1 | L2 | L3 | Distance between spindles, mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 240 | 76 | 25 | 66 | Ø50 or Ø65 | Ø25 | 10 | 13 | 56 | 52 | 39 | Standard - 32 mm, on request - 20, 22, 25, 25.4, 30, 32, 40 mm |
