9-spindle drilling head with fixed spindle spacing is mounted on a drilling machine. The standard distance between the spindles is 32 mm, the drilling head is available in increments of - 20, 22, 24, 25, 25.4, 30, 32, 40 mm. Maximum speed - 4500 rpm.
Maximum drill bit diameter for:
- wood or plastic - up to 40 mm;
- copper, zinc, aluminum - up to 12 mm;
- cast iron and steel - up to 6 mm.
| A | B | C | D | E | F | G | H | L1 | L2 | L3 | Distance between spindles, mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 304 | 76 | 25 | 66 | Ø50 or Ø65 | Ø25 | 10 | 13 | 56 | 52 | 39 | Standard - 32 mm, on request - 20, 22, 25, 25.4, 30, 32, 40 mm |
Delivery
Orders are processed and delivered within 2–14 days. Shipping costs are calculated individually based on the product, selected delivery method and destination. Warehouse pickup is available by prior arrangement.
The delivery amount is calculated individually by the postal operator depending on the product you have chosen, the form of payment and the remoteness of your settlement.
Payment
Payment can be made online on the website through a special service, by contacting our manager by phone, making a payment to card, paying upon receipt at pick-up , paying upon receipt at the post office, making a non-cash payment for legal entities.

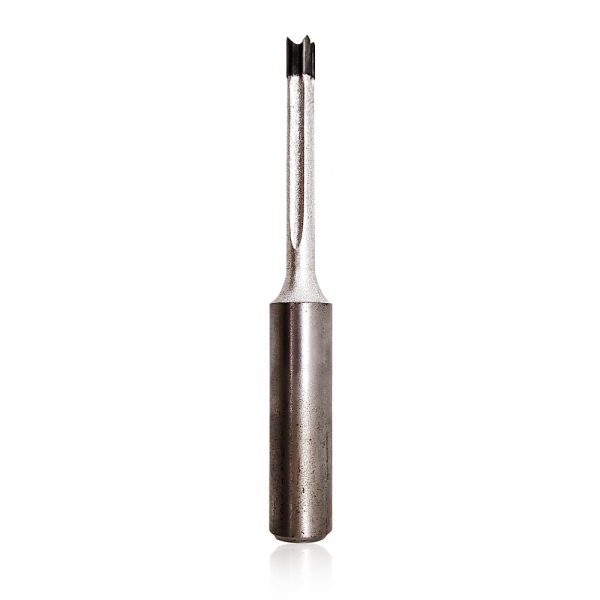

-600x600.jpg "Slot mortise bit PB (Taiwan) D-6, L-100 mm, Z-4")
