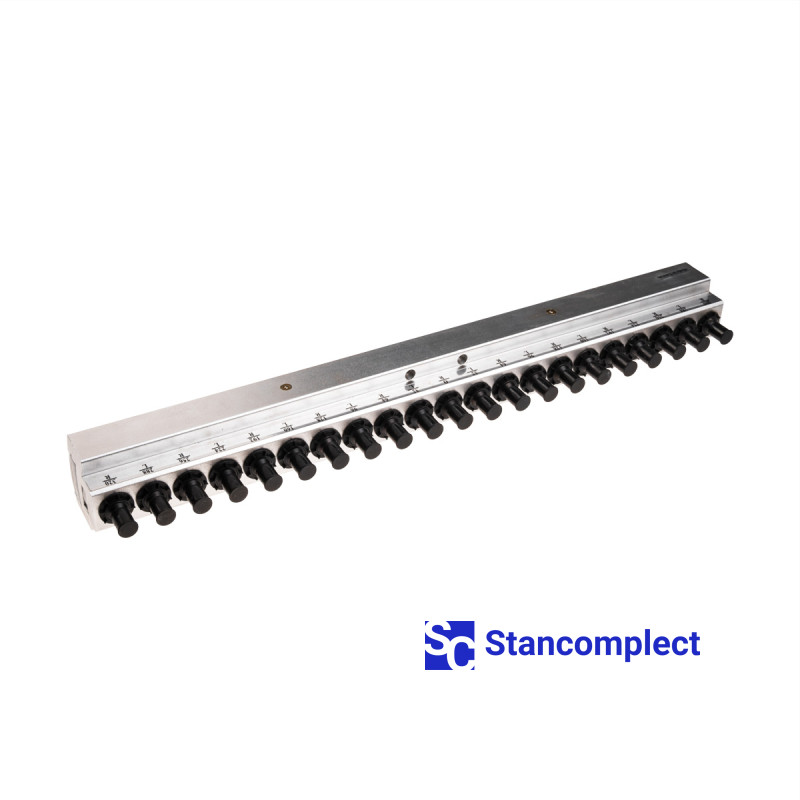

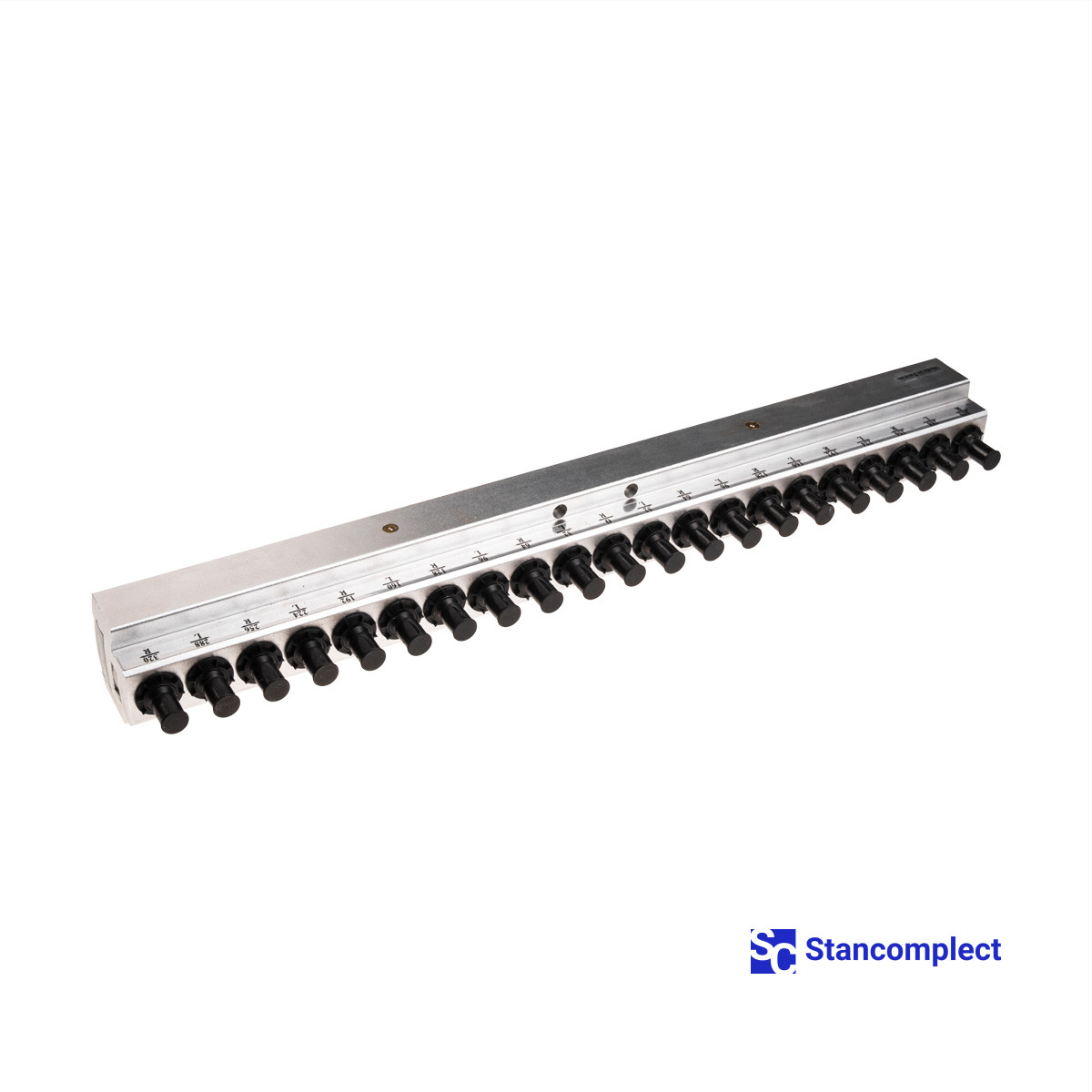

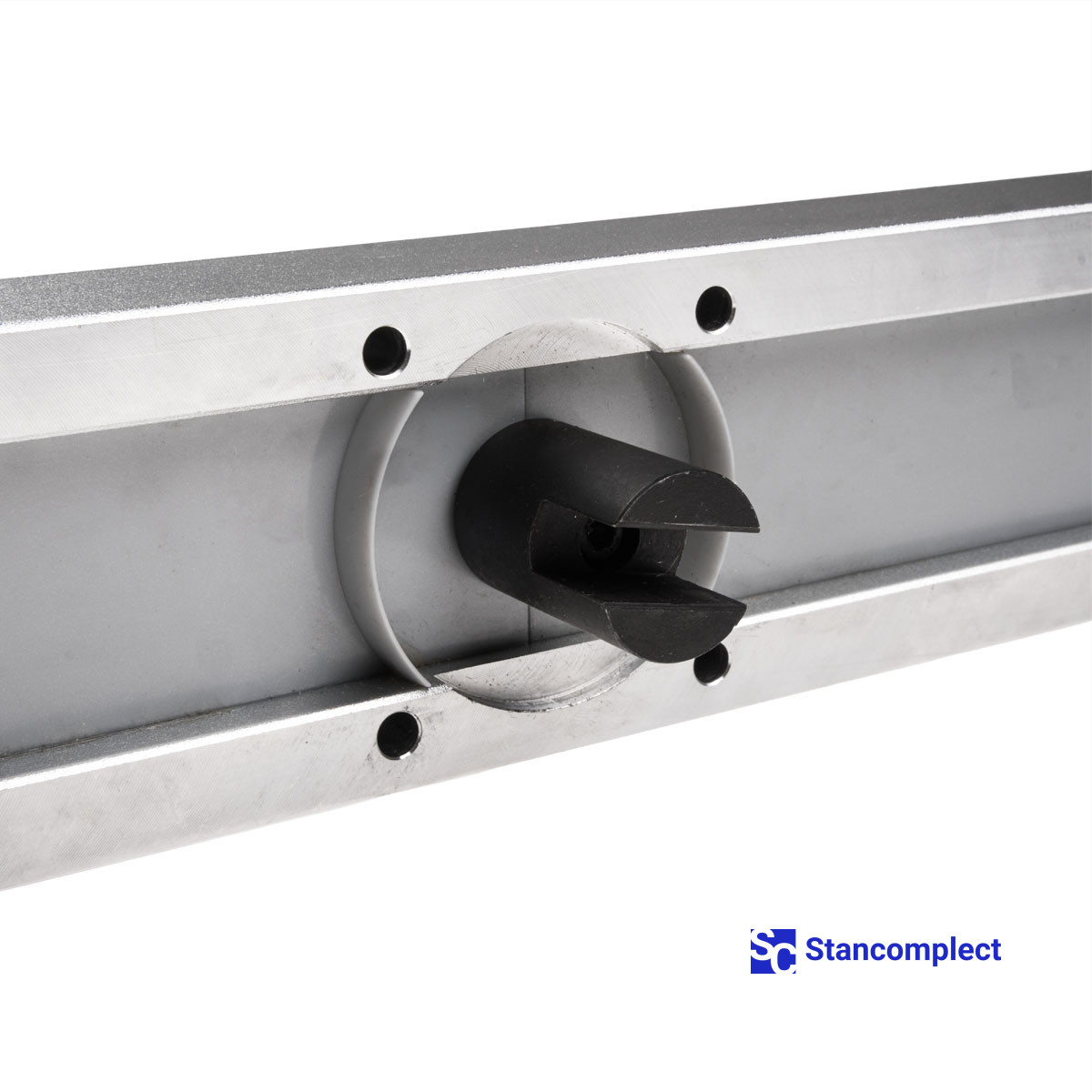

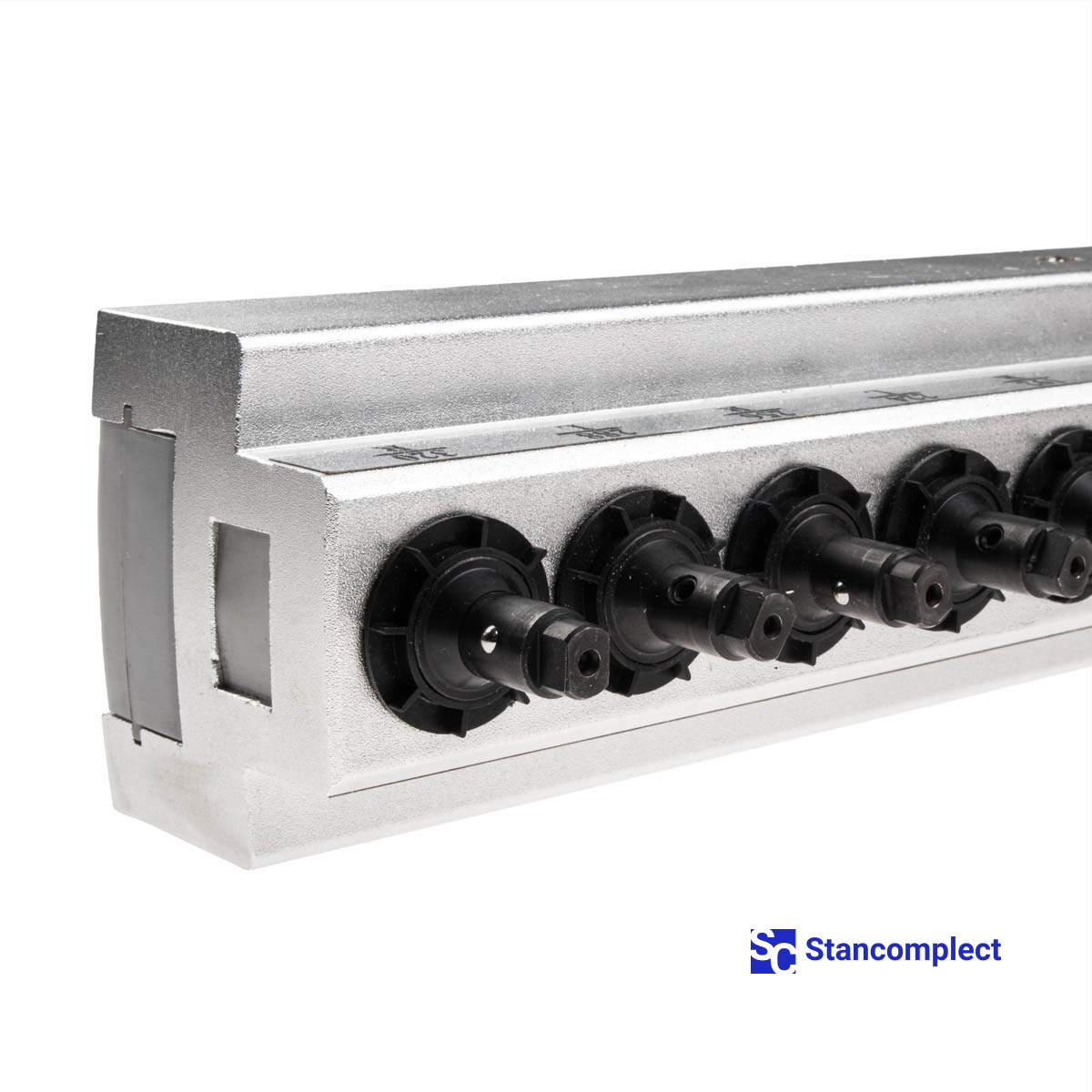

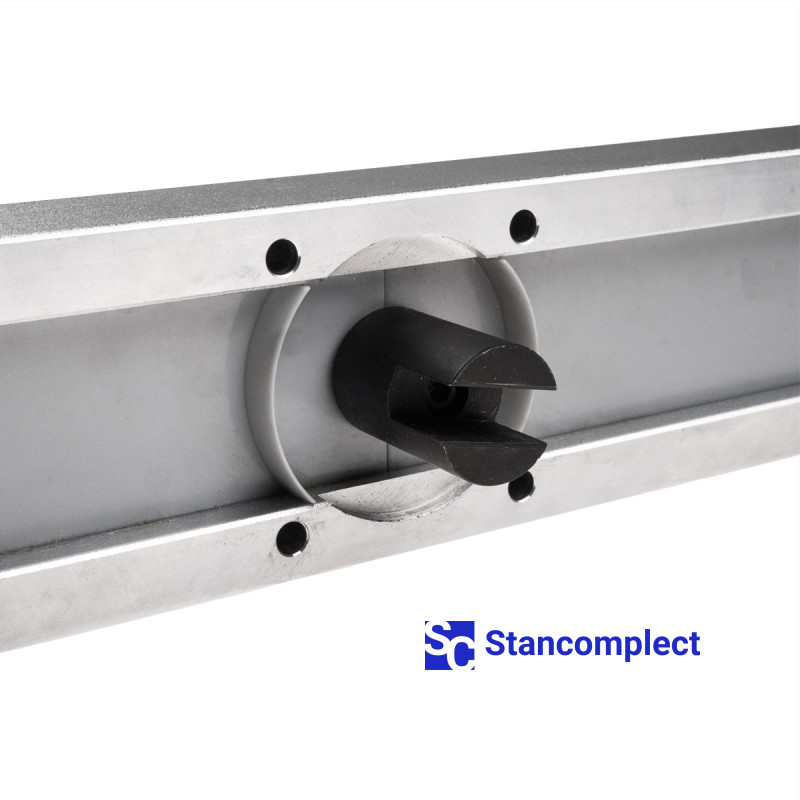

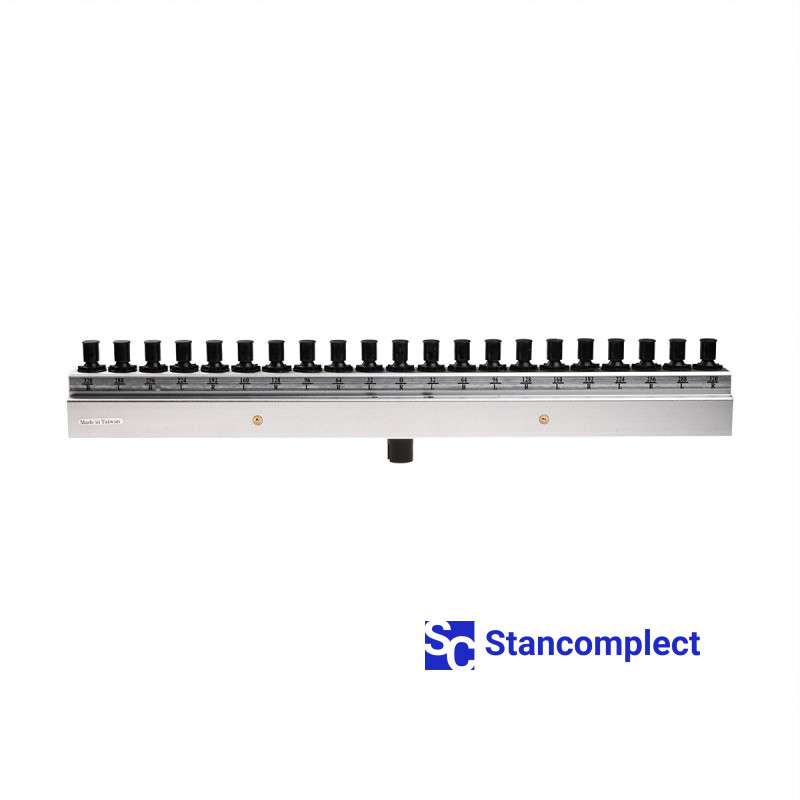

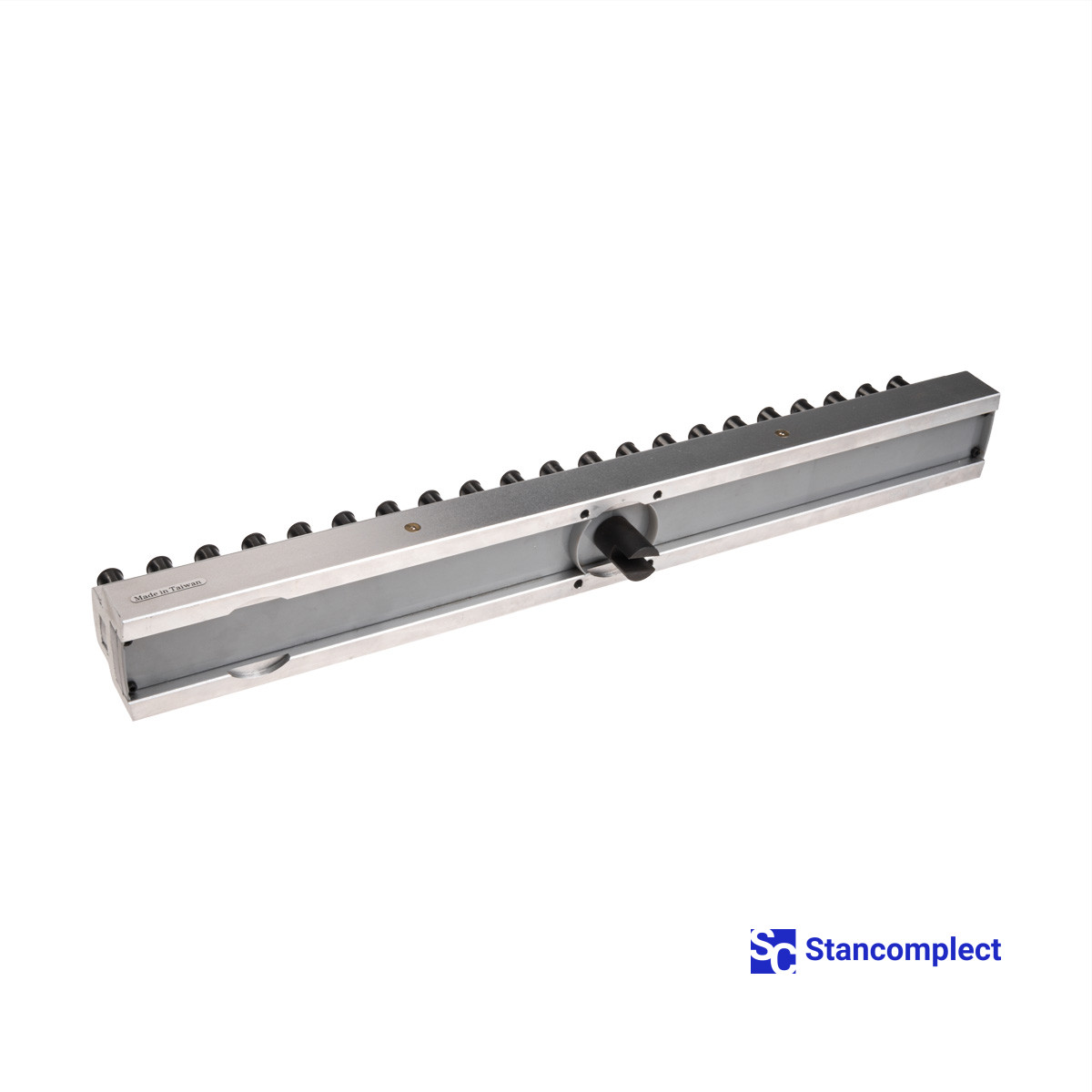

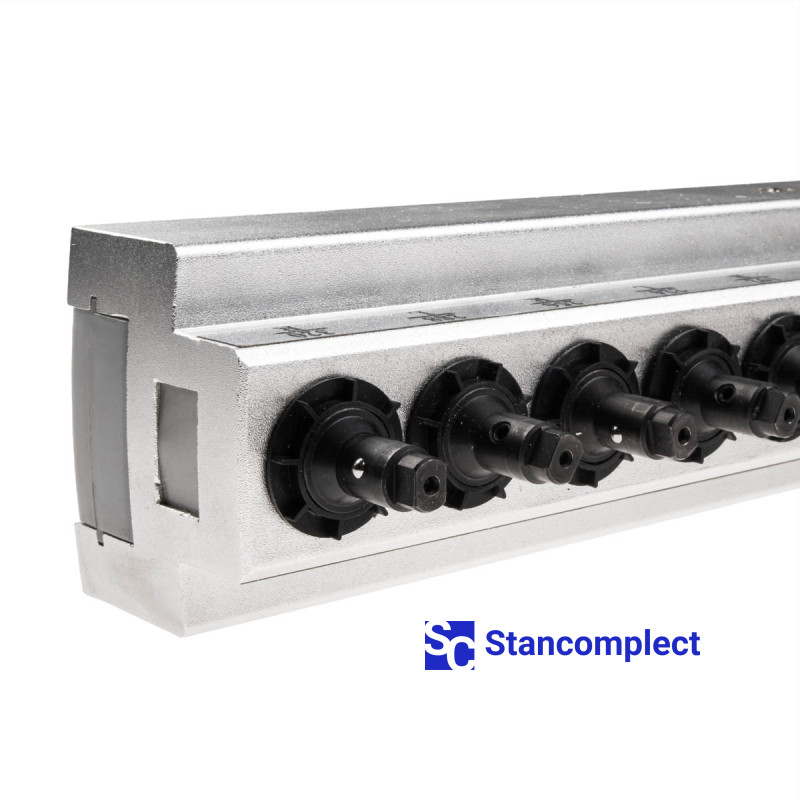

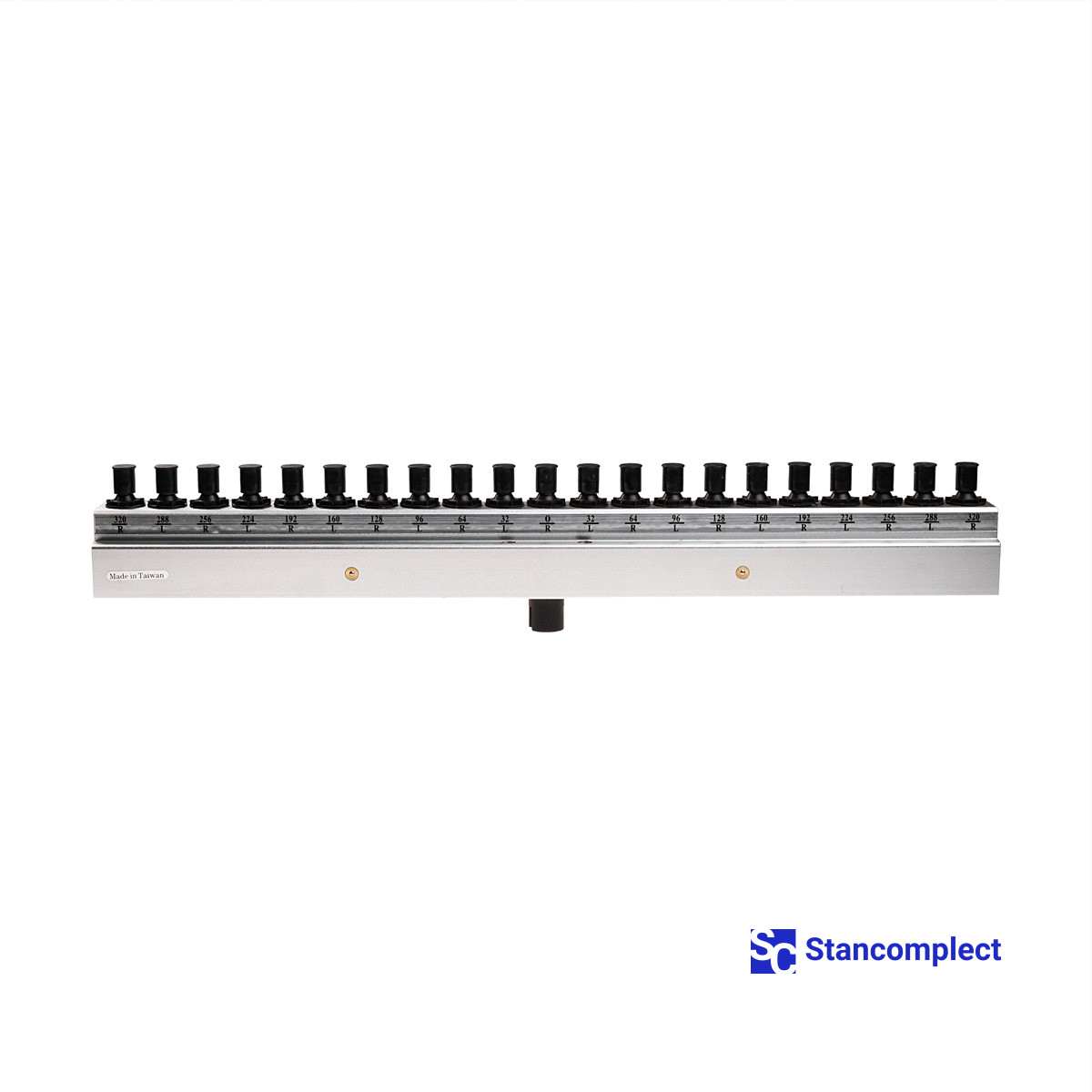

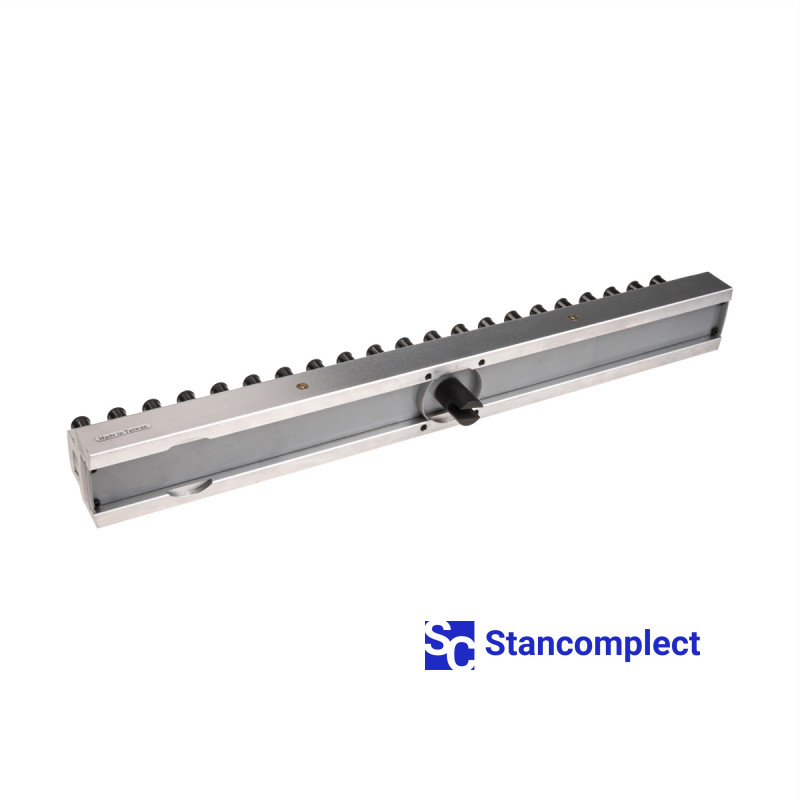

Multi-spindle drilling head with 21 spindles type N for Chinese drilling machines. The standard distance between spindles is 32 mm. Maximum speed - 4500 rpm.
Maximum drill bit diameter for:
- wood or plastic - up to 40 mm;
- copper, zinc, aluminum - up to 12 mm;
- cast iron and steel - up to 6 mm.
| A | B | C | D | E | F | G | H | L2 | X | AS | Distance between spindles, mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 680 | 80 | 25 | 54 | Ø60 | Ø25 | 10 | 13 | 13 | 64 | Ø8.5 | Standard - 32 mm, on request - 20, 22, 25, 25.4, 30, 32, 40 mm |
