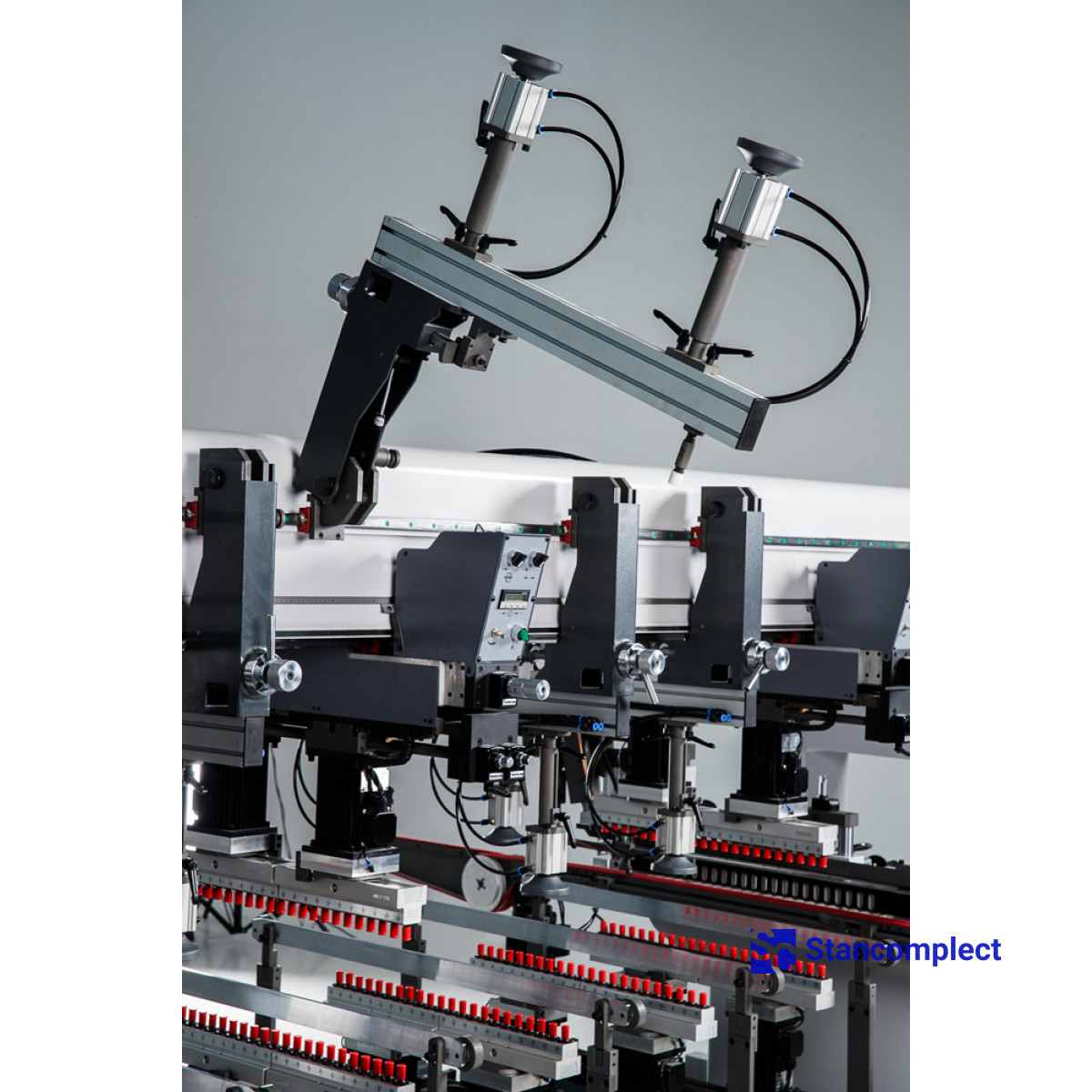

KDT-6462 Automatic 4 Side Drilling Machine (10 Vertical Groups + 2 Horizontal) from KDT Machinery is used for drilling the required mounting holes in cabinet furniture parts in furniture factories and workshops.
- Automatic feeding of blanks into the working area.
- Possibility to integrate into the production line.
- Two options for unloading parts from the machine "back / forward".
- Drilling of a detail from four parties.
- High rigidity.
- Powerful reliable drives.
- Industrial control panel with LCD display.
- Impeccable quality and precision processing.
- Fixation of drilling groups is carried out with the help of pneumatics.
- Digital counters on the drill groups allow quick and precise changeover from one size to another.
- Possibility of rotation of the drilling group by 90 degrees.
The machine bed is made of a profile with an enlarged section, which additionally gives rigidity to the structure and minimizes vibrations that occur during operation.
The machine is controlled by an industrial remote control with an LCD display.
Digital counters on the drill groups allow quick and precise changeover from one size to another.
The KDT-6462 machine has the following equipment:
- 2 horizontal end traverses with 21 spindles.
- 6 lower vertical traverses, double design with independent engines (11+11)x6. They have the ability to rotate 90 degrees.
- 4 top vertical traverses, double design with independent motors (11+11)x4. They have the ability to rotate 90 degrees.

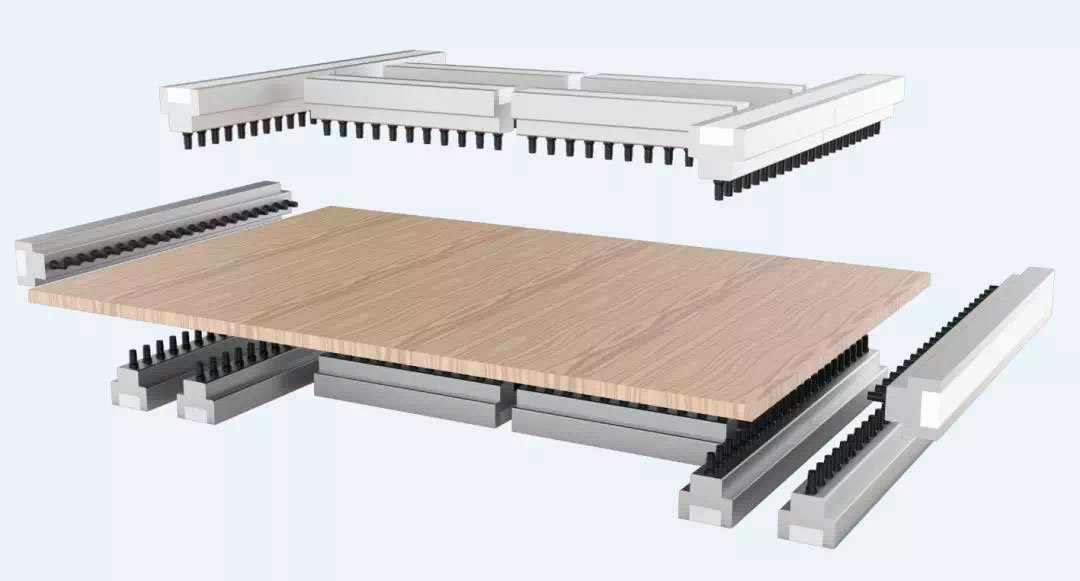

- Drilling of the part is carried out from four sides, this guarantees the processing of most filler cards in one work cycle.
On request, the machine can be manufactured in the following configurations:
- Lower vertical traverses in the amount of 1 to 8 x (11+11).
- Upper vertical traverses in quantity from 1 to 5 x (11+11).
Automatic supply of parts to the working area, ensures maximum productivity of the machine in mass production.
The machine can work in two modes:
- walk-through mode, two operators work.
- return mode, one operator works.
Powerful drilling traverse drives guarantee fast and precise insertion of required mounting holes in workpieces.

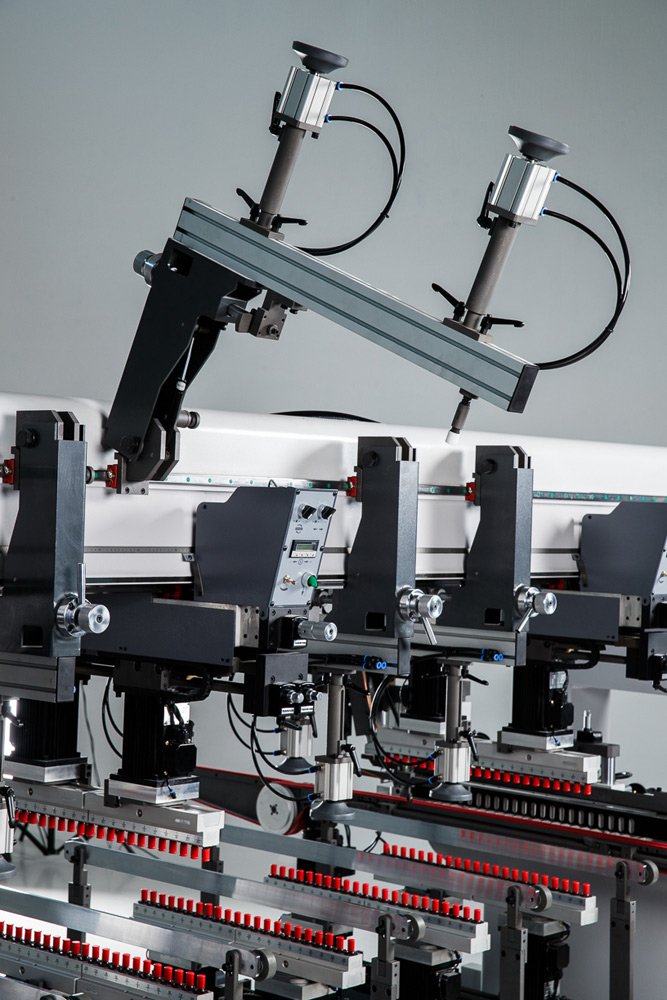

Pneumatic cylinders have the ability to move to adjust to the size of the workpiece, thereby reliably and accurately fix the workpiece in the working area. An additional pair of pneumatic cylinders with the possibility of perpendicular movement is also installed on the machine.
