Electrospindle 6 kW 18000 rpm

All about product
Specification
Reviews
Information
Recommended
Articles
In Stock
Product code: DF60-18Z-6.0 380V
Write a rewiew
1 080.00€
Buy in 1 click:
Specifications: (See all)
Power, kW
6

Get AI analytics

Electrospindle 6 kW 18000 rpm

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

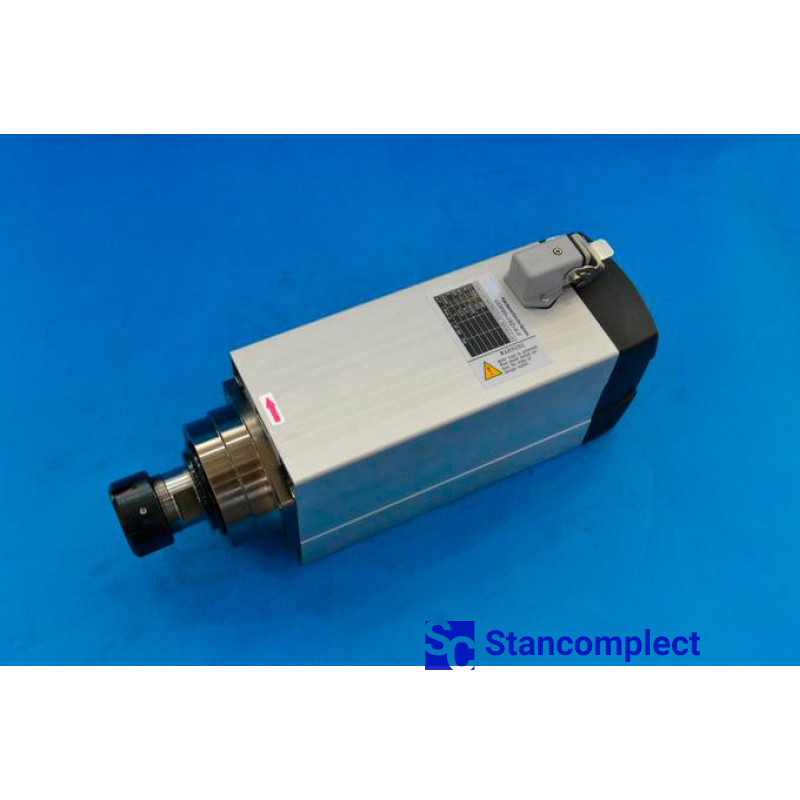

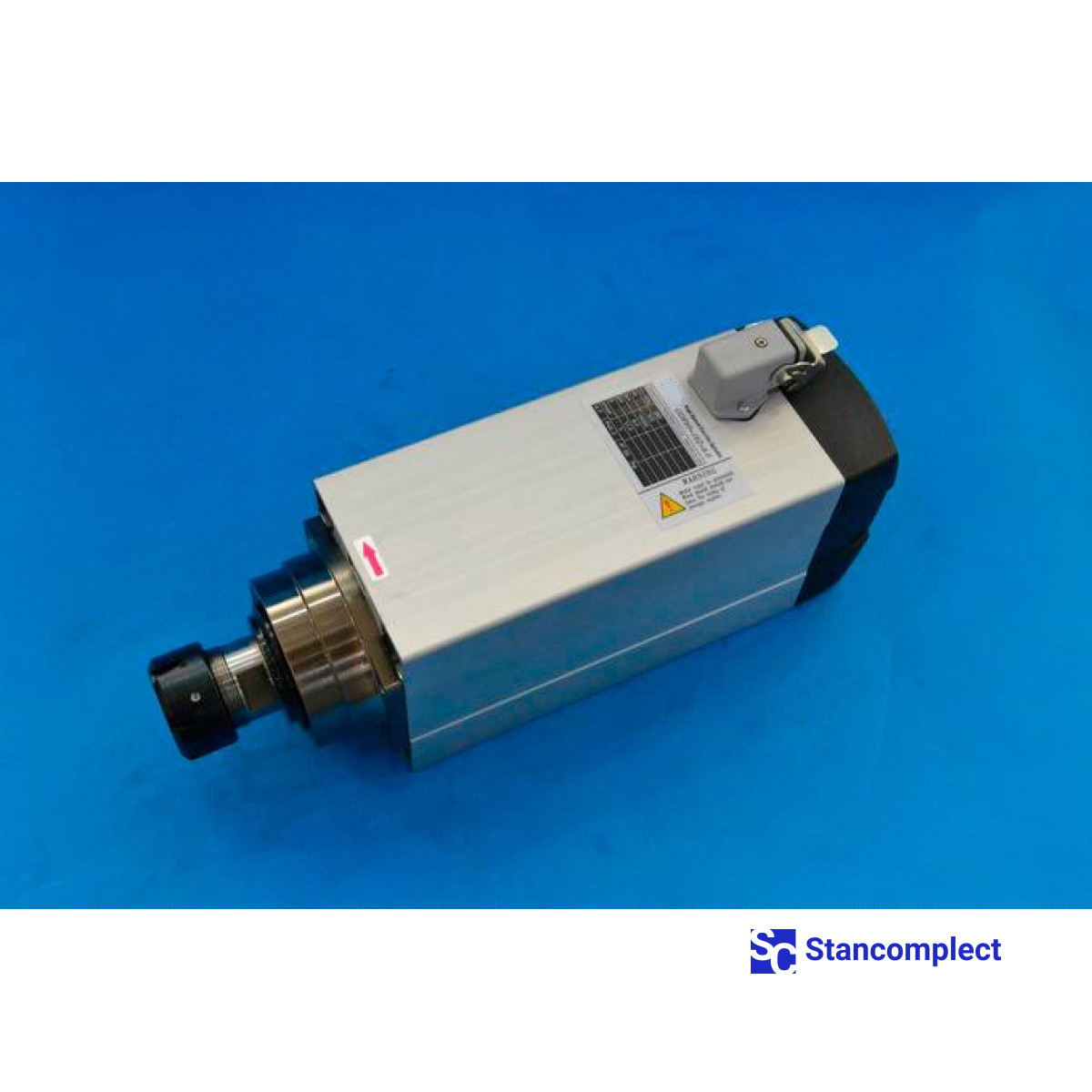

High-speed air-cooled electrospindle with a power of 6 kW and a maximum speed of up to 18,000 rpm for CNC machining centers and CNC drilling centers.

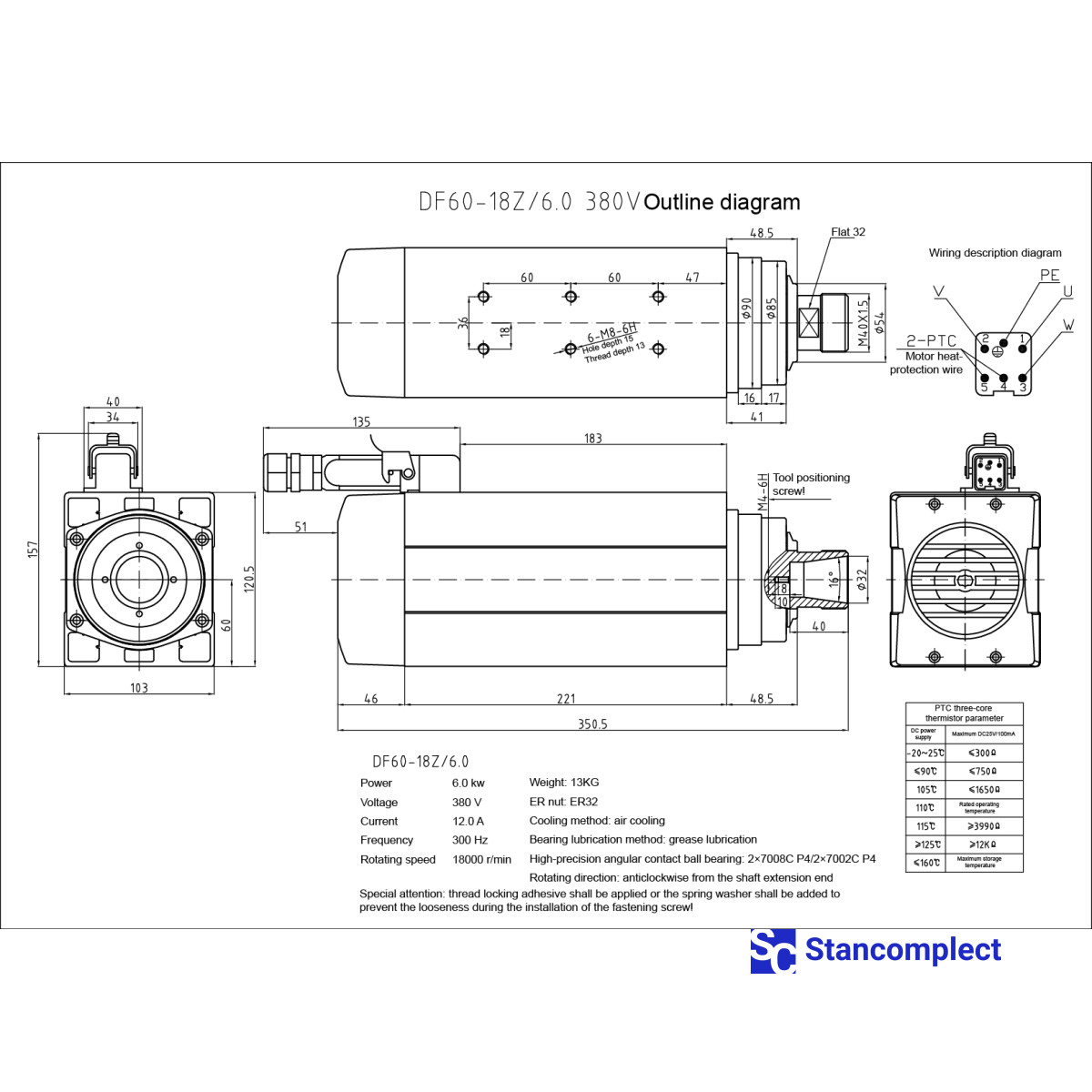

Electrospindle specifications:

  • Power - 6 kW.
  • Supply voltage - 380 V.
  • Current - 12 A.
  • Frequency - 300 Hz.
  • Max. rotation speed - 18000 rpm.
  • Weight - 13 kg.
  • Tool holder - ER-32.
  • Cooling type - air.
  • Bearings - 2×7008C P4/1×7002V P5
  • Size - 350x157x103 mm.
Specifications
Electrospindles
Power, kW
6
Reviews
Delivery Packeta, Fedex, DHL, UPS to the post office, address delivery by courier. Pick up from the warehouse.
Payment by card online, non-cash payment for legal entities and individuals, payment by card and when receiving the goods.
Official manufacturer's warranty.
Electrospindle 6 kW 18000 rpm
1 080.00€
