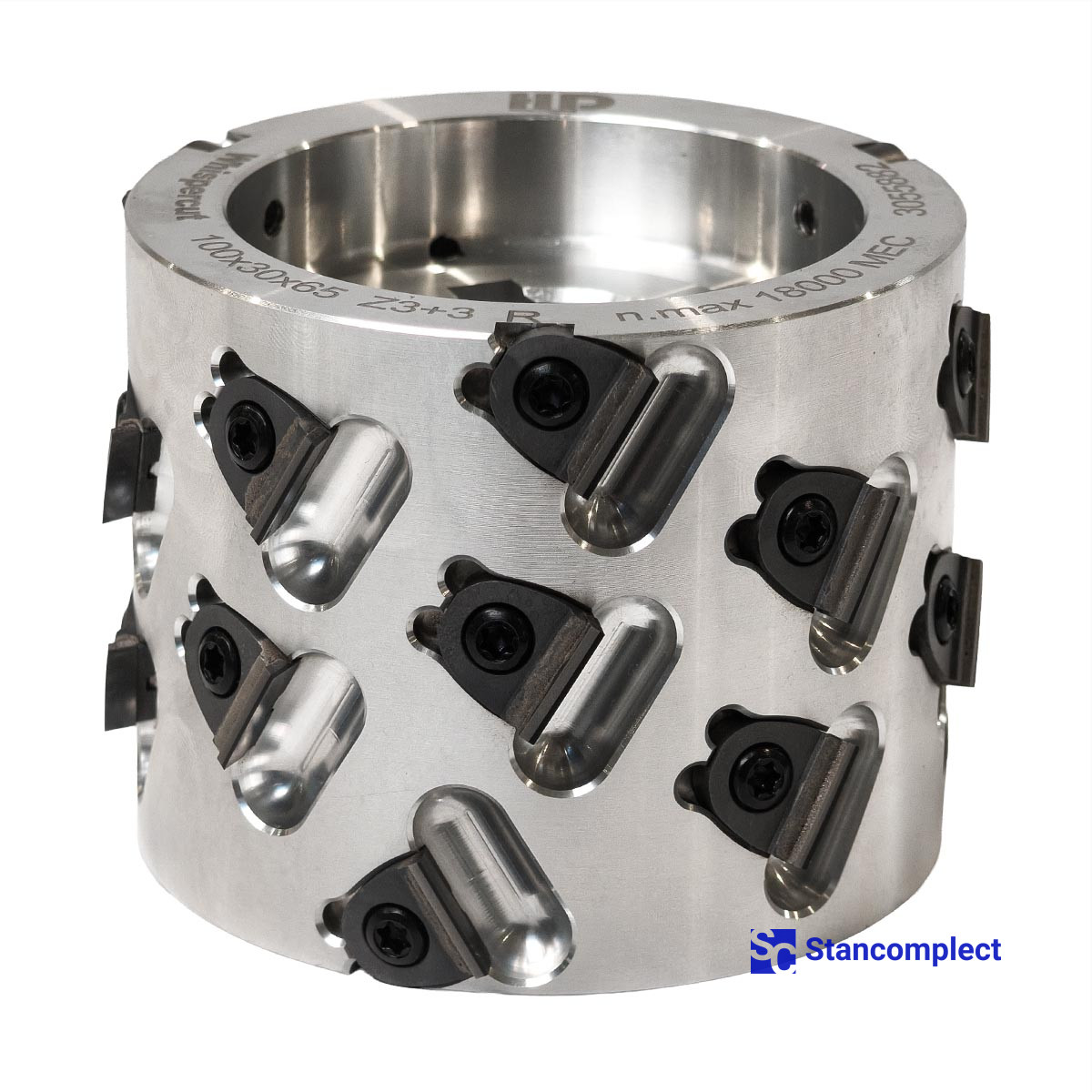

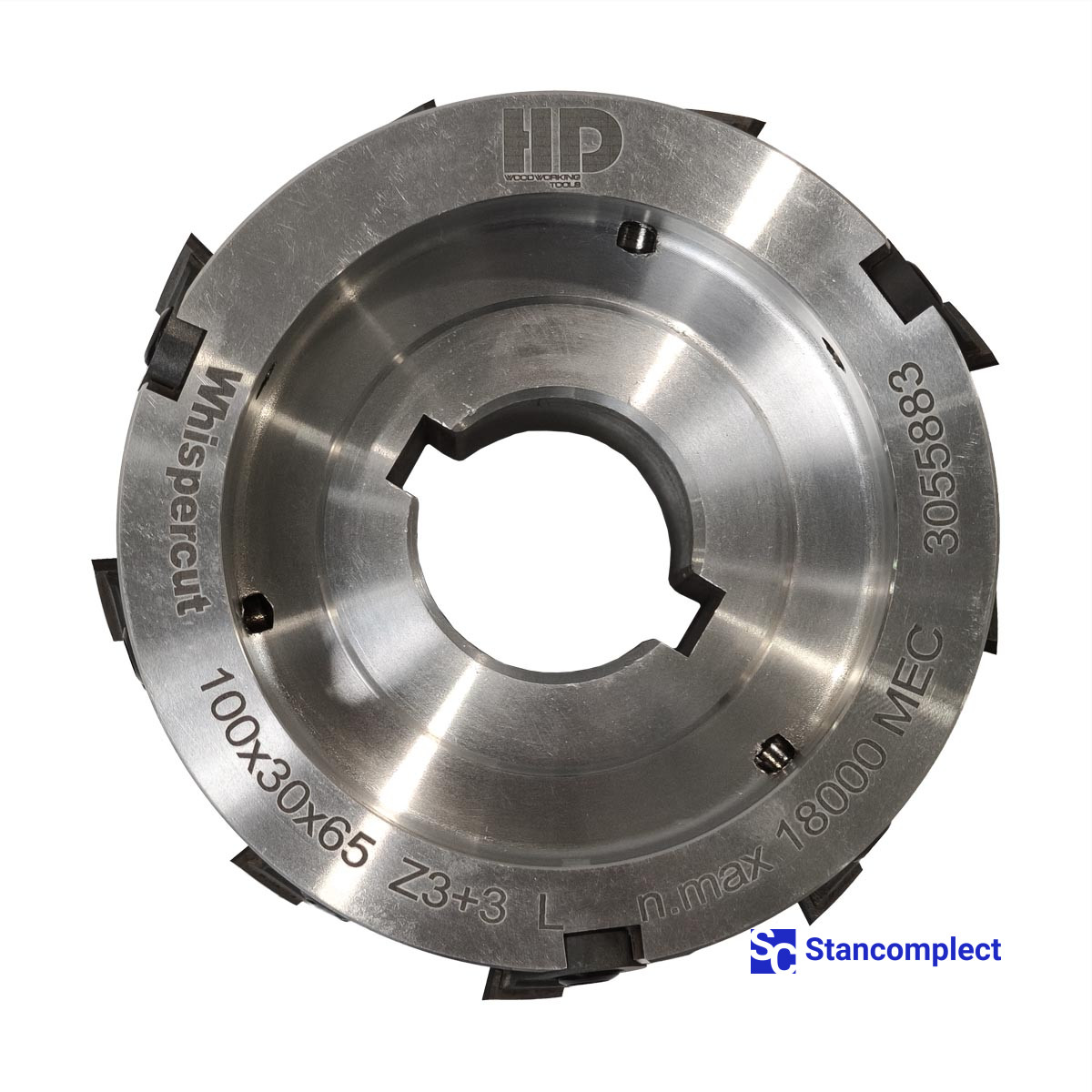

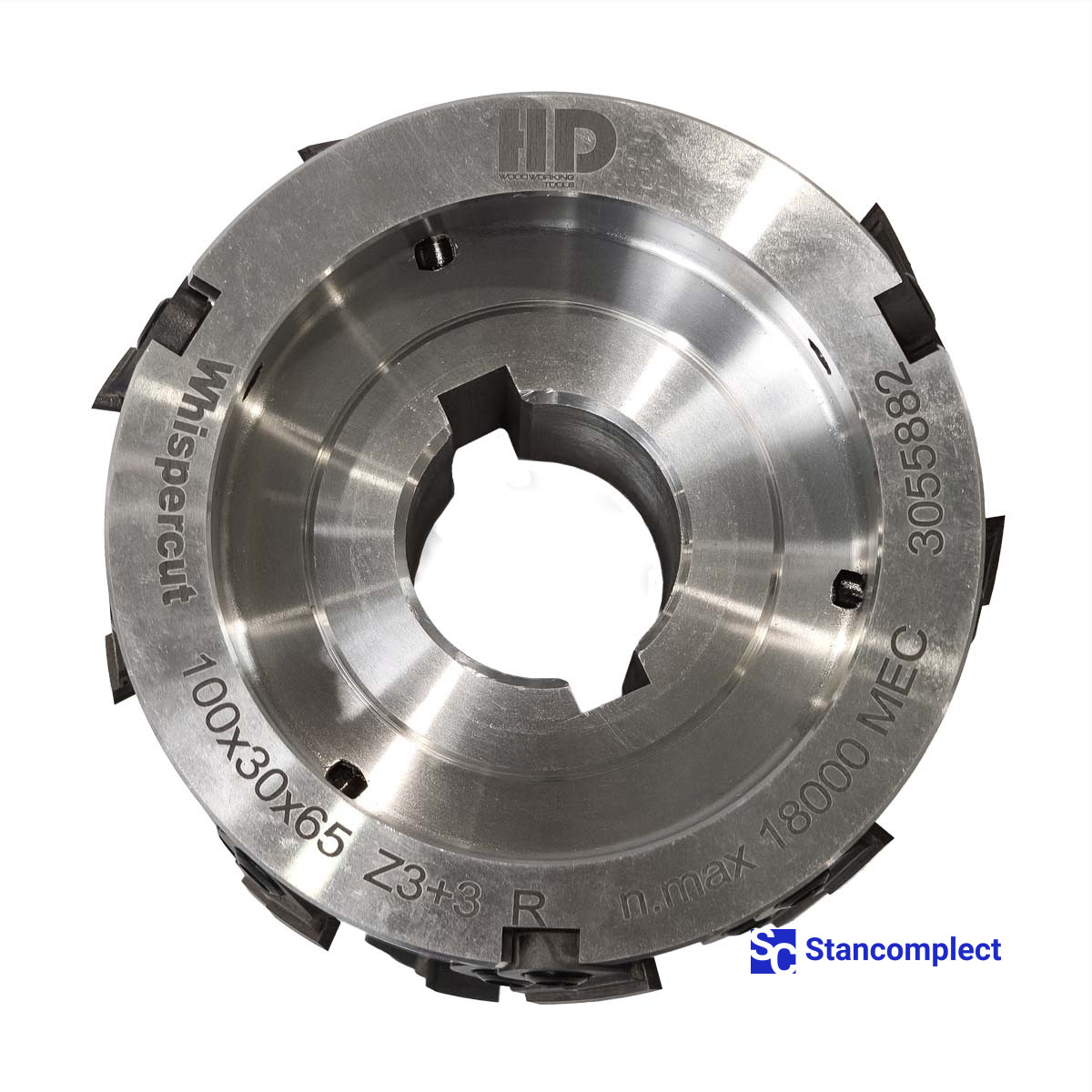

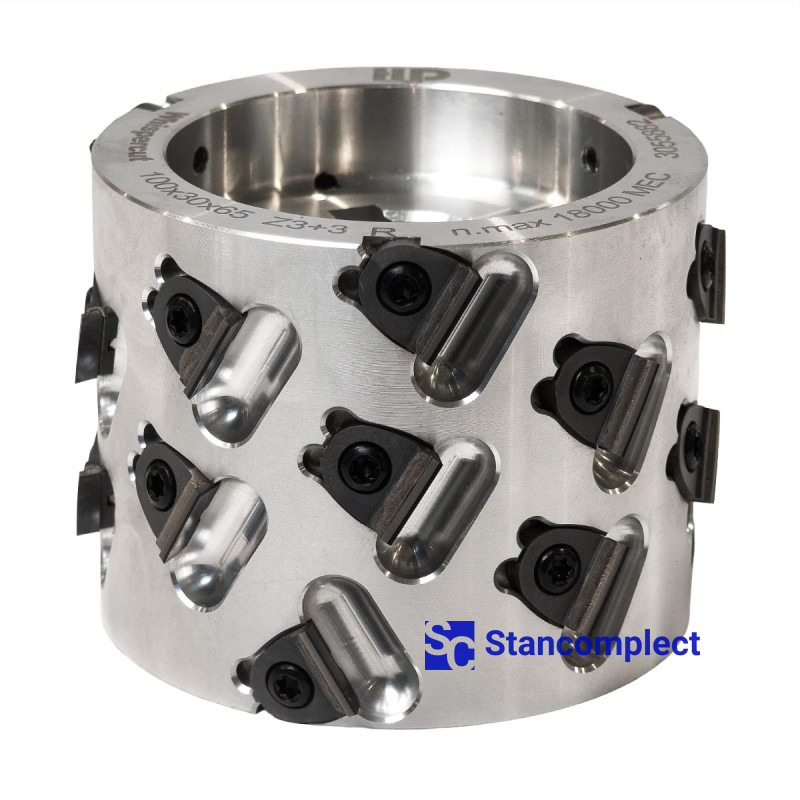

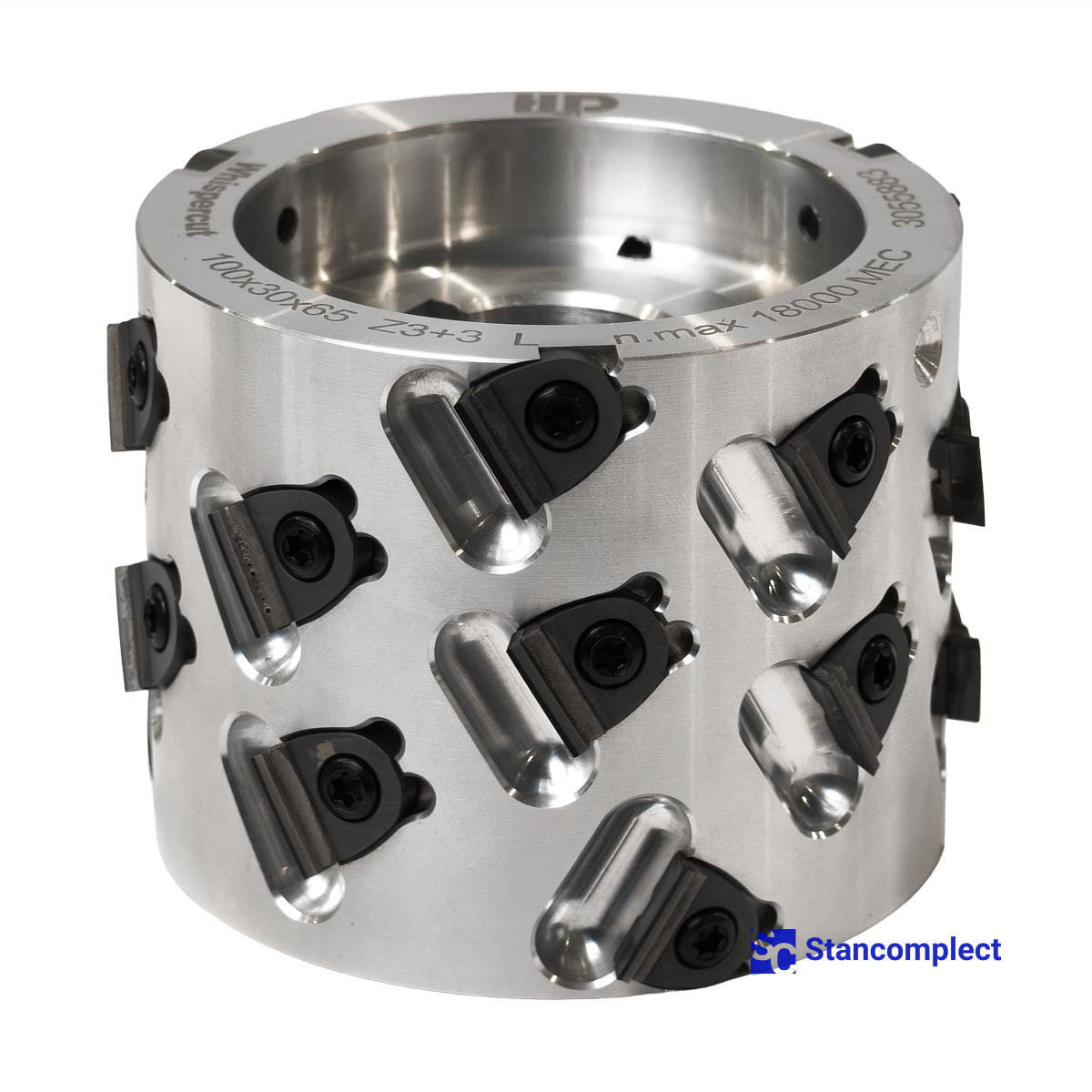

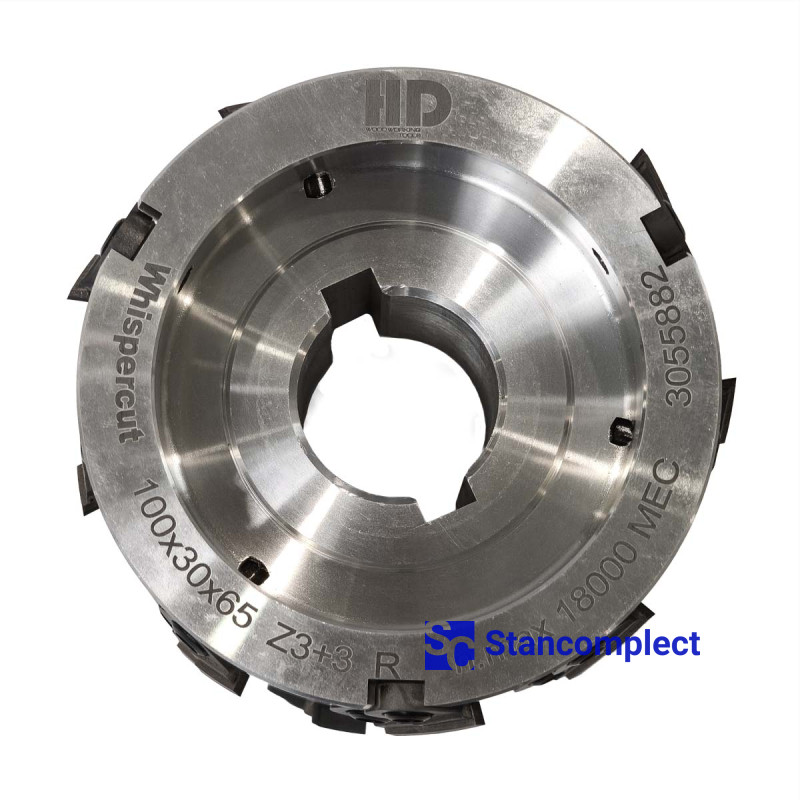

Premilling cutter diamond HD with replaceable knives 100x30x65 mm Z3+3 12T

All about product
Specification
Reviews
Information
Recommended
Articles
Product code: 4243
Write a rewiew
720.00€
Buy in 1 click:
Specifications: (See all)
External diameter, mm
100
Inner diameter, mm
30
Height, mm
65
Blade configuration
Z3+3

Get AI analytics

Premilling cutter diamond HD with replaceable knives 100x30x65 mm Z3+3 12T

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

Premilling cutter diamond HD with replaceable knives 100x30x65 mm Z3+3 12T for HOMAG BRANDT edge banding machines.

Characteristics:

  • Outer diameter - 100 mm.
  • Processing height - 65 mm.
  • Landing diameter - 30 mm.
  • Knife scheme - 3+3.
  • Number of knives - 12
  • The height of the diamond plate is 3.2 mm.
  • Rotation frequency - 18,000 rpm.

Advantages of diamond premilling cutters with HD interchangeable blades:

  • Price - the cost is lower than European counterparts.
  • Wide model range.
  • The 3.2 mm diamond plate height provides up to 6 regrinding cycles .
  • Knife scheme Z3 + 3 - the ability to work on high-performance machines at a feed rate of up to 30 m / min.
  • Lightweight body - reduces the load on the spindle and bearings of the jointer.

Premilling cutters with interchangeable blades

Specifications
Product specifications
External diameter, mm
100
Inner diameter, mm
30
Height, mm
65
Blade configuration
Z3+3
