Diamond profile end mill D39.21 h10.3 d12.7(12)

All about product
Specification
Reviews
Information
Recommended
Articles
Pre-order
Not available
Product code: T112213
Write a rewiew
126.90€
Specifications: (See all)
Cutter diameter (D), mm
39.21
Shank diameter (d), mm
12.7.12
Cutter length (L), mm
50.3
Cutting length (h), mm
10.3

Get AI analytics

Diamond profile end mill D39.21 h10.3 d12.7(12)

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

HD Woodworking tools diamond profile end mills for CNC machines

Profile diamond end mill D39.21 h10.3 d12.7(12) is designed for processing board materials (chipboard, chipboard, MDF, etc.) uncoated and coated, as well as hardwood and is used in CNC machines for production of furniture facades. The milling cutter is characterized by high reliability and long service life.

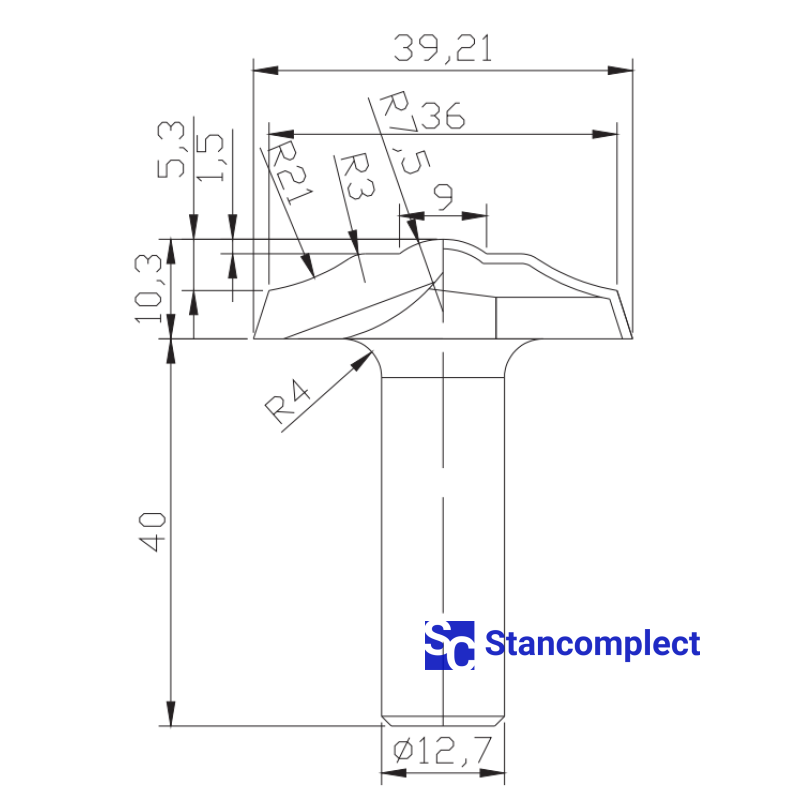

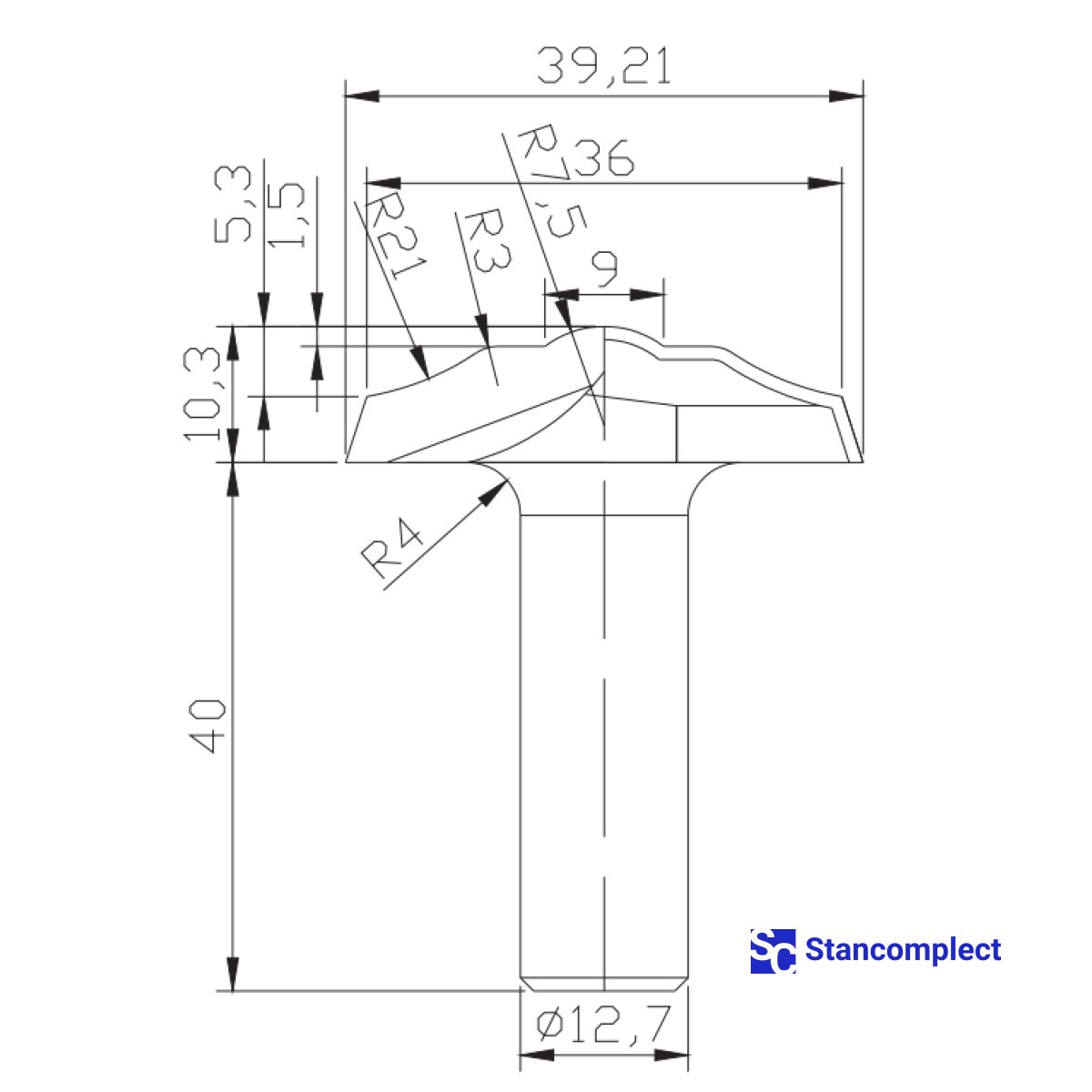

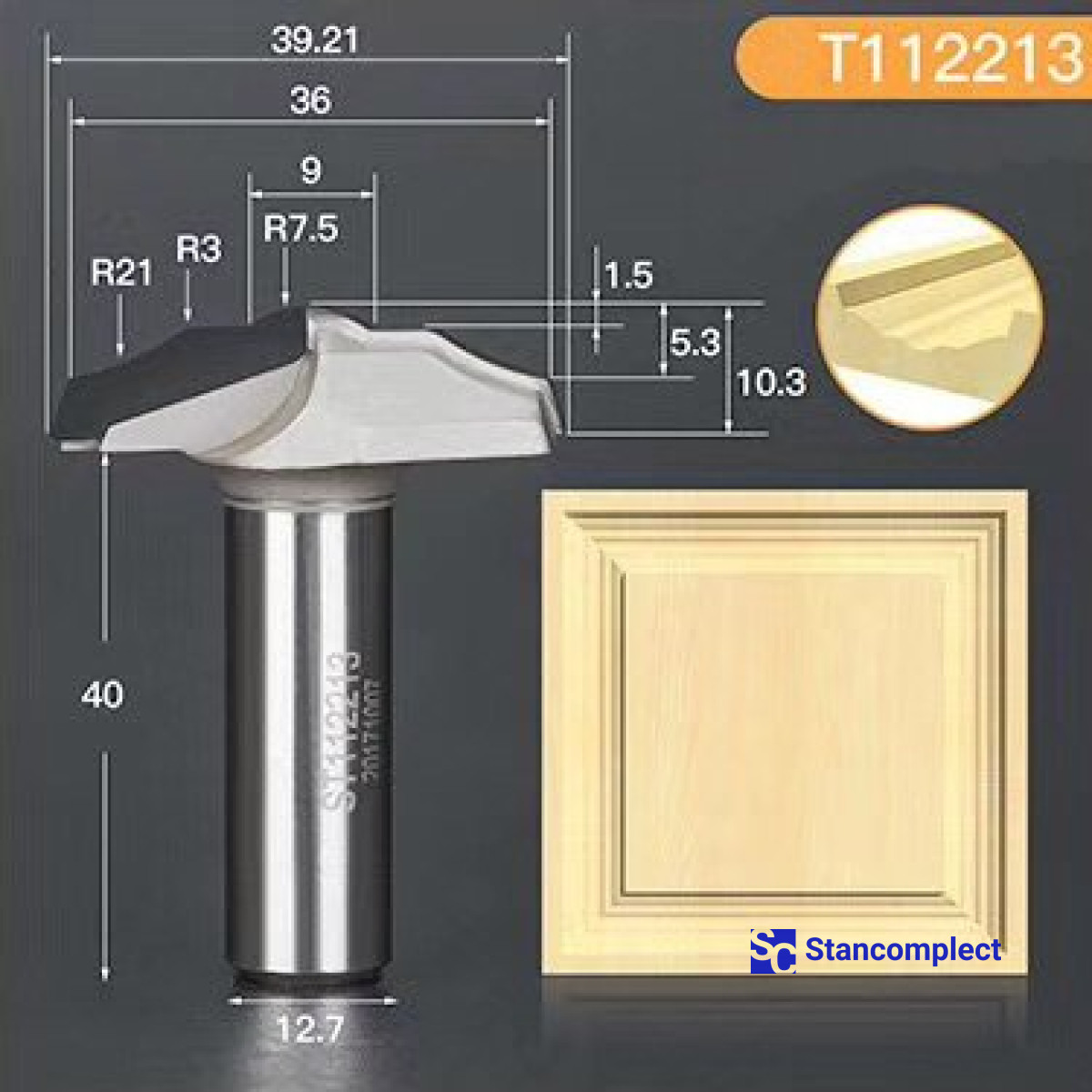

Characteristics of a diamond cutter for the production of furniture facades:

  • cutter diameter (D) - 39.21 mm;
  • shank diameter (d) - 12.7 or 12 mm;
  • cutter length (L) - 50.3 mm;
  • length of the cutting part (h) - 10.3 mm.
Specifications
Cutter specifications
Cutter diameter (D), mm
39.21
Shank diameter (d), mm
12.7.12
Cutter length (L), mm
50.3
Cutting length (h), mm
10.3
Radius (R), mm
21,3,7.5
Reviews
Delivery to a Packeta/Zasilkovna pickup point or Z-BOX, courier delivery via FedEx, DHL or UPS, or pickup from our warehouse.
Online card payment, bank transfer for individuals and legal entities, or payment upon receipt of the goods.
Official manufacturer's warranty.
Diamond profile end mill D39.21 h10.3 d12.7(12)
126.90€
