CNC drilling center KD-612NHSZ with three drilling groups from above and below (milling + grooving saw) for drilling from 6 sides (workpiece size 1200 * 2800 mm), two milling spindles and linear tool change for 5 positions from KDT Machinery is designed for high-precision drilling of blind and through holes in the planes and ends of furniture parts in the through mode, according to a given additive map. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling.
- Two milling units as standard.
- Linear tool change with 5 positions for the upper milling unit.
- High processing speed: 140/90/50 m/min.
- 3 drilling groups.
- Drilling from 6 sides.
- Additive for small parts from 70x35 mm.
- Automatic lubrication of X and Y travel guides.
- Visualization of the processing of a double-sided additive map.
- Scanner for reading the additive card by barcode.
- Air cushion table.
- Productivity 800-1200 parts per shift.
- For medium and large productions.
- Batch mode is supported.
- Grooving unit (Saw).
- Control of the length of the workpiece (if the workpiece is of the wrong size, the machine issues an informational message).
- Ability to perform curved cutting of blanks.
- Ability to work with optimizer programs with additive maps.
- The conveyor for removal of shaving installed in a basic complete set of the machine.
Possible operations
Screed milling LAMELLO
Side milling
Milling for wardrobe profile
Lateral grooving saw

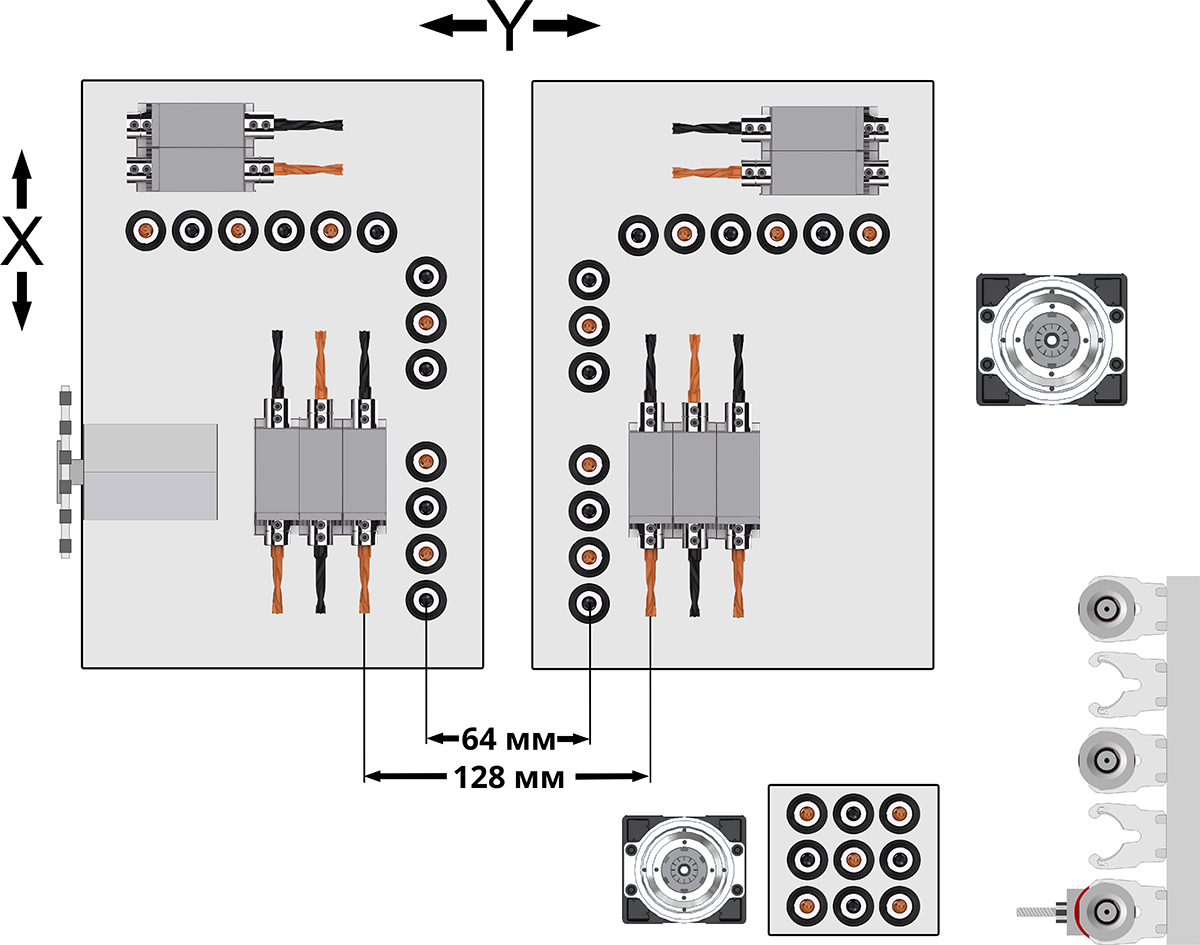

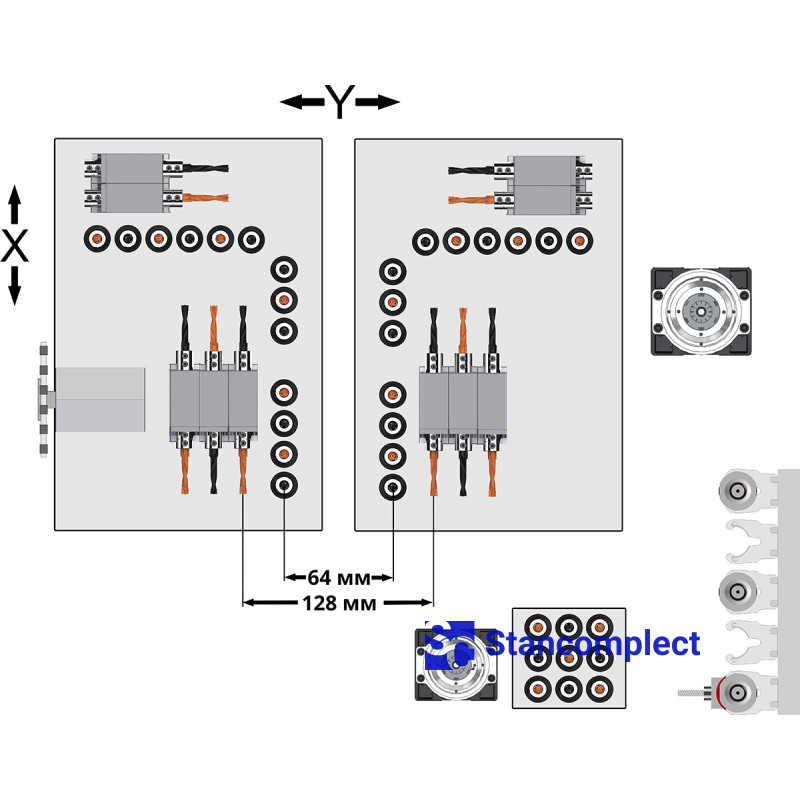

Drilling from 6 sides. There are 3 drilling groups installed on the machine: 16 - horizontal spindles, 35 - vertical spindles (26 - from above, 9 - from below). As standard, 2 milling units for 5.5 kW and 3.5 W are installed.
2 milling spindles 5.5 kW and 3.5 kW, 18000 rpm (top and bottom). The upper milling spindle, due to its increased power, has the ability to work with various tools and carry out various operations - milling under the LAMELLO coupler, side milling and grooving.
A special CNC unit has the ability to carry out sawing, drilling and milling operations (for invisible fittings, handles, hinges, etc.).
The upper milling spindle is equipped with a 5-position linear tool change, which saves time when switching from one type of processing to another.
Grooving unit with a saw (disk diameter 120 mm).
Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm. up to 2800 mm and perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with a single grip. The maximum speed has been increased to 140 m/min.
The upper milling spindle is equipped with a powerful vertical clamp with two clamping plates. Improves milling accuracy and prevents damage to the workpiece.
Batch drilling mode - processing of two parts at the same time with a mirror filler map.
The machine is equipped with an industrial computer based on Windows. The control panel of the CNC drilling machine is compatible with the GIBLAB optimizer.
Barcode reader for maximum convenience and performance optimization.
Ability to work with all popular programs for optimizing drilling maps.
During the development of the machine, the maximum allowable loads and requirements for the design of the machine were calculated and modeled. The welded frame is tempered to relieve all internal stresses in the material, then it is processed on high-precision CNC equipment.

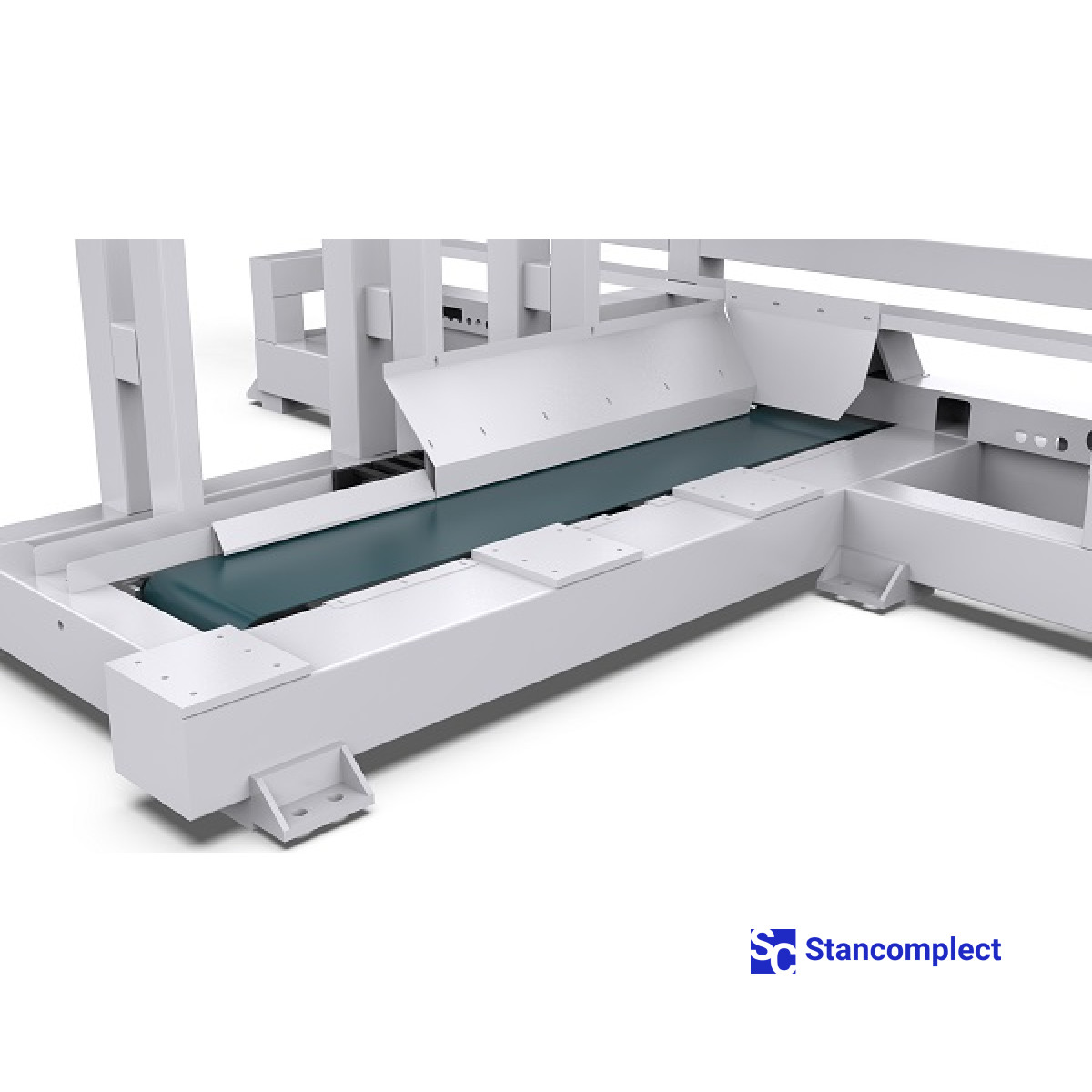

The machine in the basic configuration has a conveyor for removing chips and small residues of workpieces.
The discharge conveyor is equipped with belt drives and motion sensors.
The tables are equipped with an air cushion to prevent scratches and chips.
Mobile plates in the drilling area allow for through milling.
Reliable protection prevents injury to the operator.
The minimum workpiece size is 70x35 mm, which allows for the addition of small-sized parts.
The machine uses high-precision INVT servo drives, which ensures excellent precision and high productivity.
Sealed dust and moisture resistant cabinet with electronic components from the world's leading manufacturers is removed from the processing area, which prolongs the service life of electrical components and provides ease of maintenance.
