CNC drilling center KD-610NH with two drilling groups from above and below for drilling from 6 sides and a grooving saw (workpiece size 1000 * 2800 mm), two milling spindles KDT Machinery is designed for high-precision drilling of blind and through holes in planes and the ends of furniture parts in the through mode, according to a given additive map. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling.
- Two milling units as standard.
- High processing speed: 140/90/50 m/min.
- Grooving unit - saw 120 mm.
- Drilling from 6 sides.
- Additive for small parts from 70x35 mm.
- Automatic lubrication of X and Y travel guides.
- Compact dimensions and saving up to 22% of production space.
- Visualization of the processing of a double-sided additive map.
- Scanner for reading the additive card by barcode.
- Air cushion table.
- Productivity 800-1200 parts per shift.
- For medium and large productions.
- Batch mode is supported.
- Control of the length of the workpiece (if the workpiece is of the wrong size, the machine issues an informational message).
- Ability to perform curved cutting of blanks.
- Ability to work with optimizer programs with additive maps.

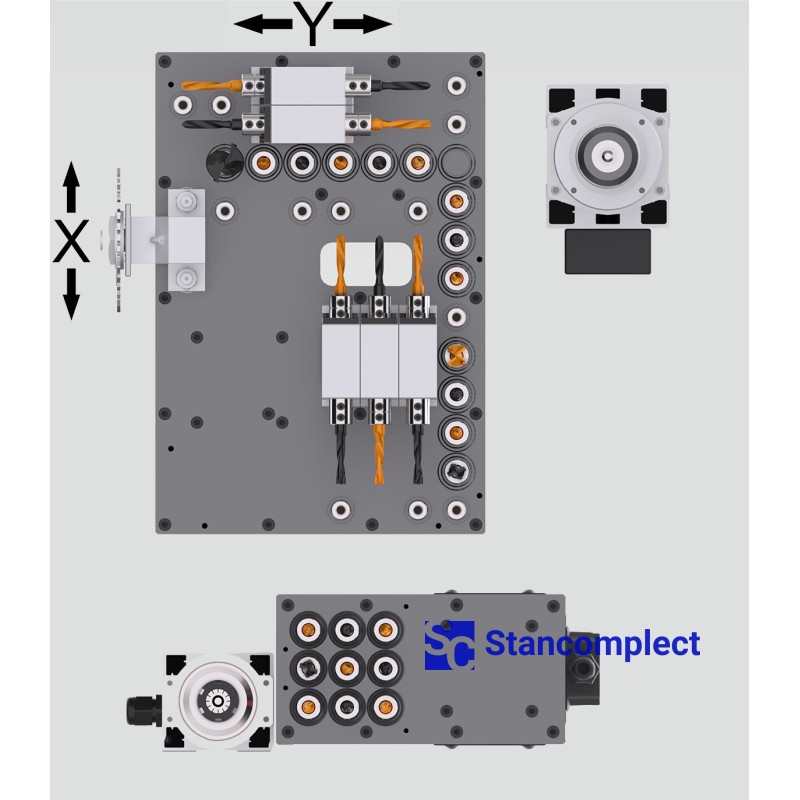

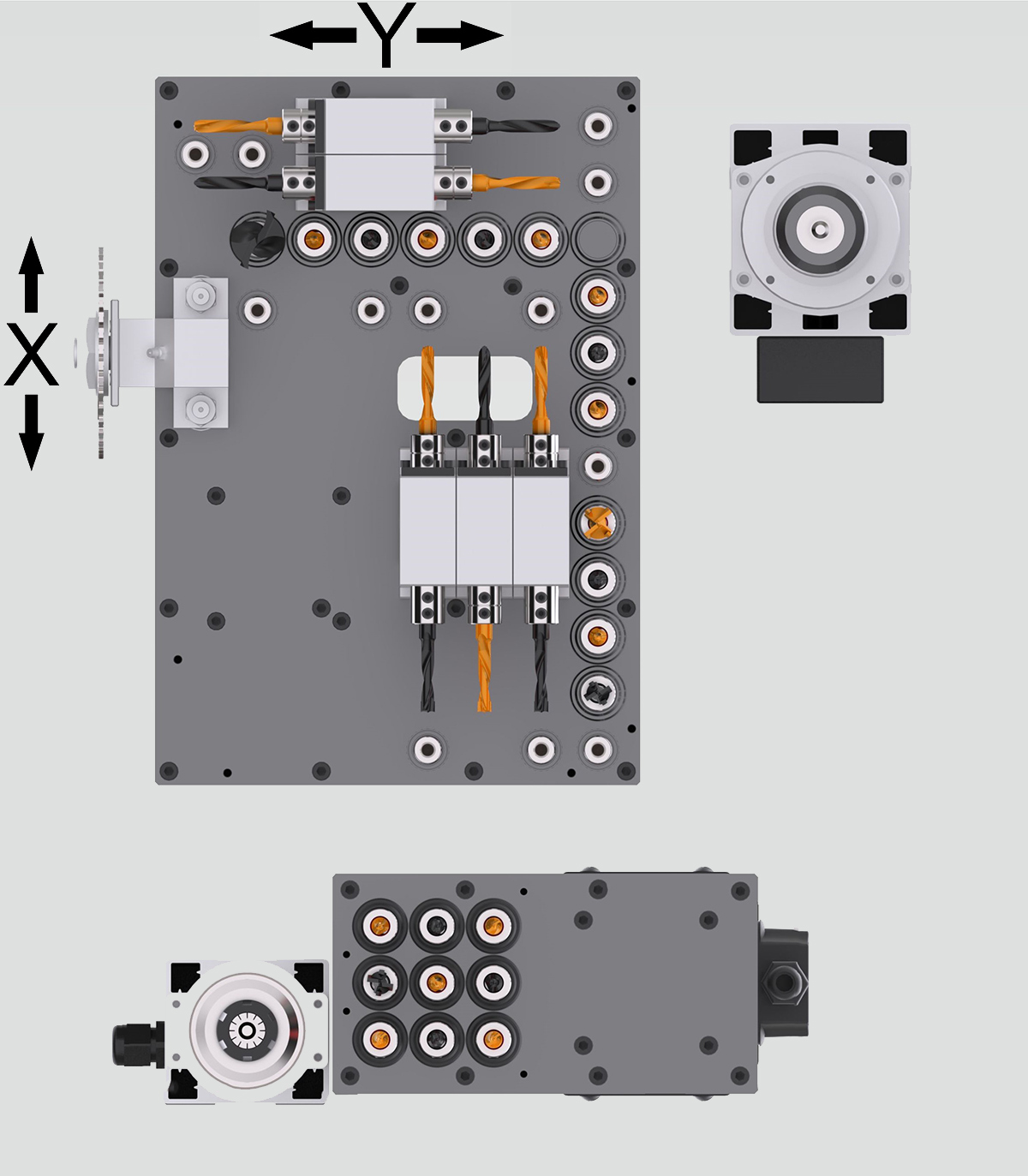

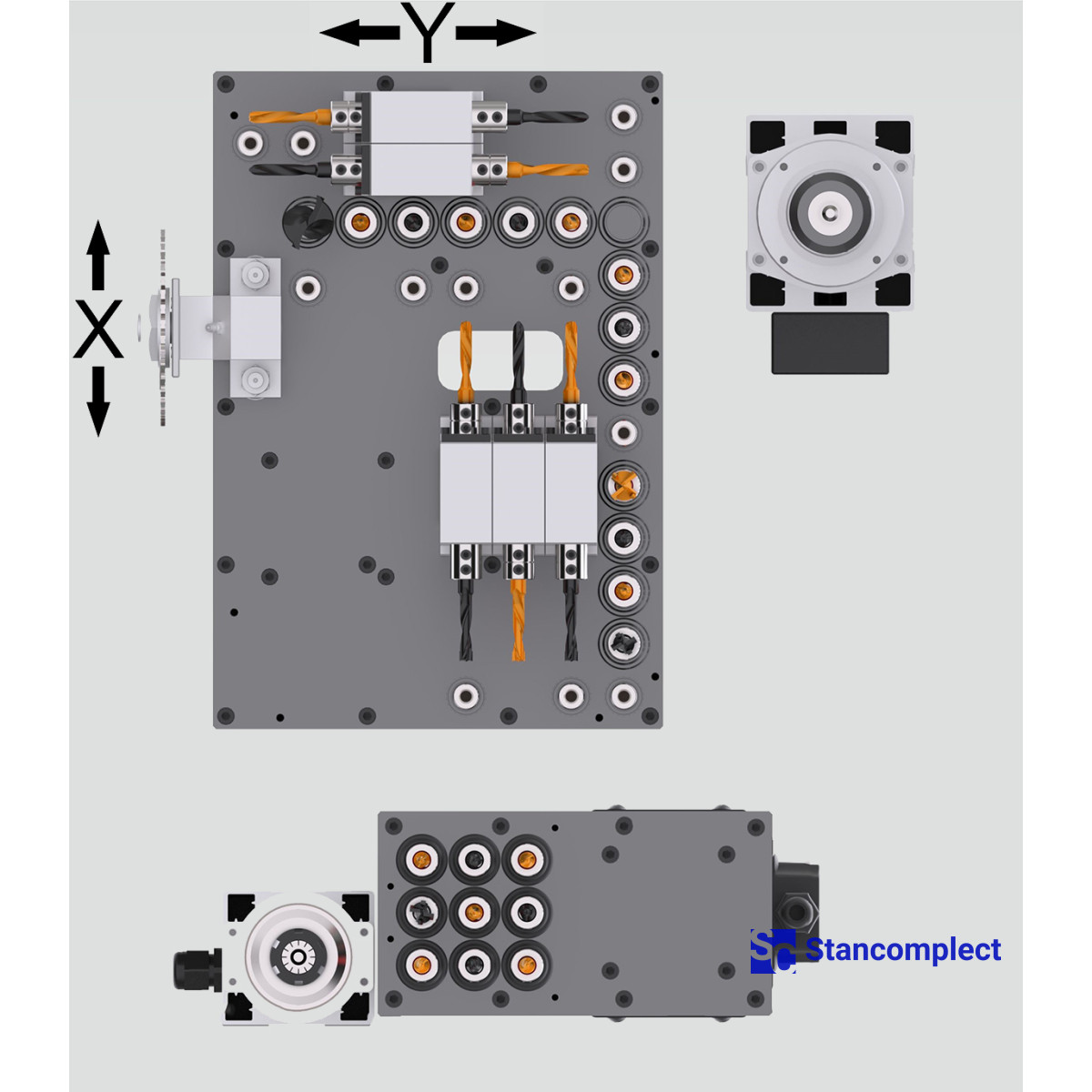

Drilling from 6 sides. There are 2 drilling groups on the machine: 10 - horizontal spindles, 22 - vertical spindles (13 - from above, 9 - from below). As standard, 2 milling units for 5.5 kW and 3.5 W are installed.

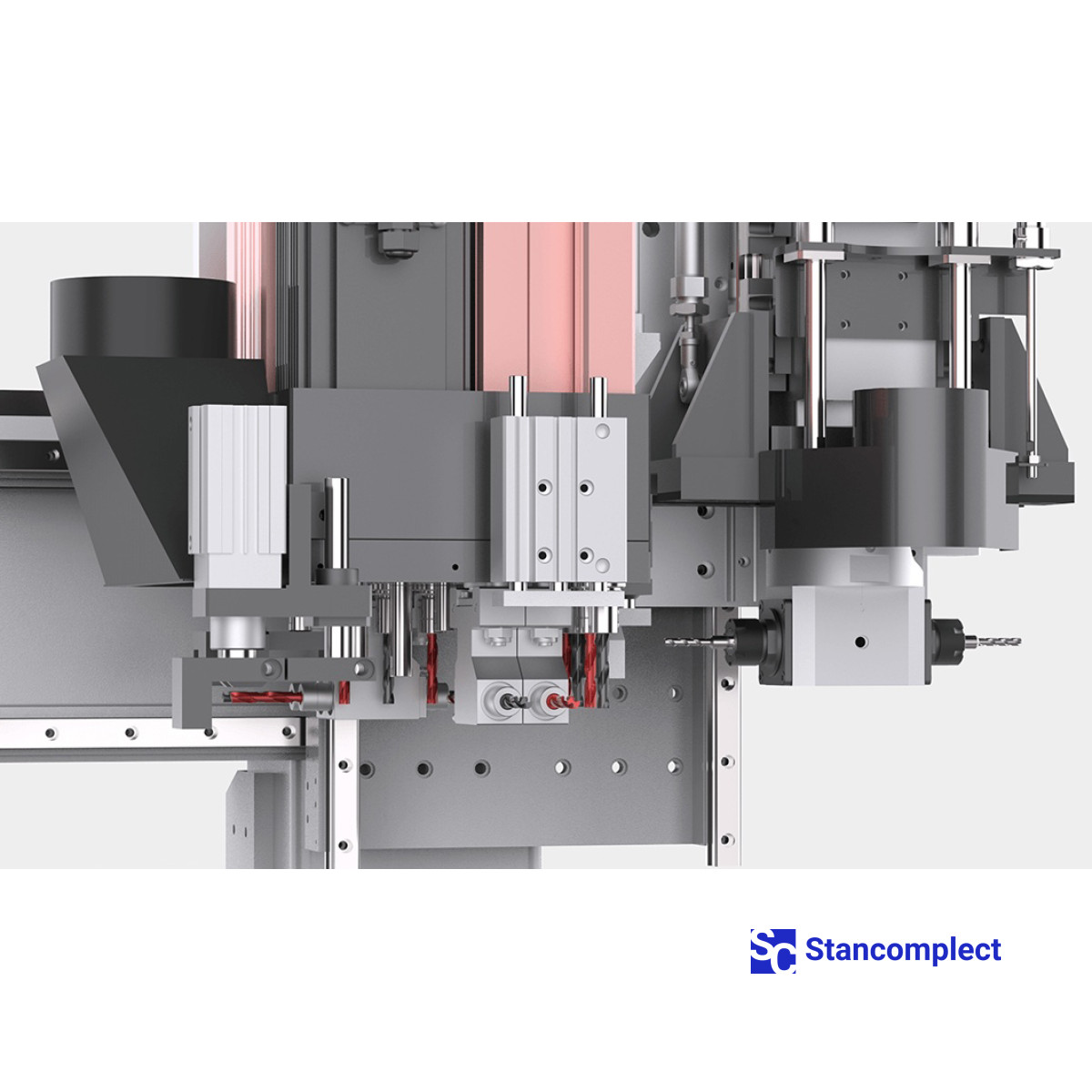

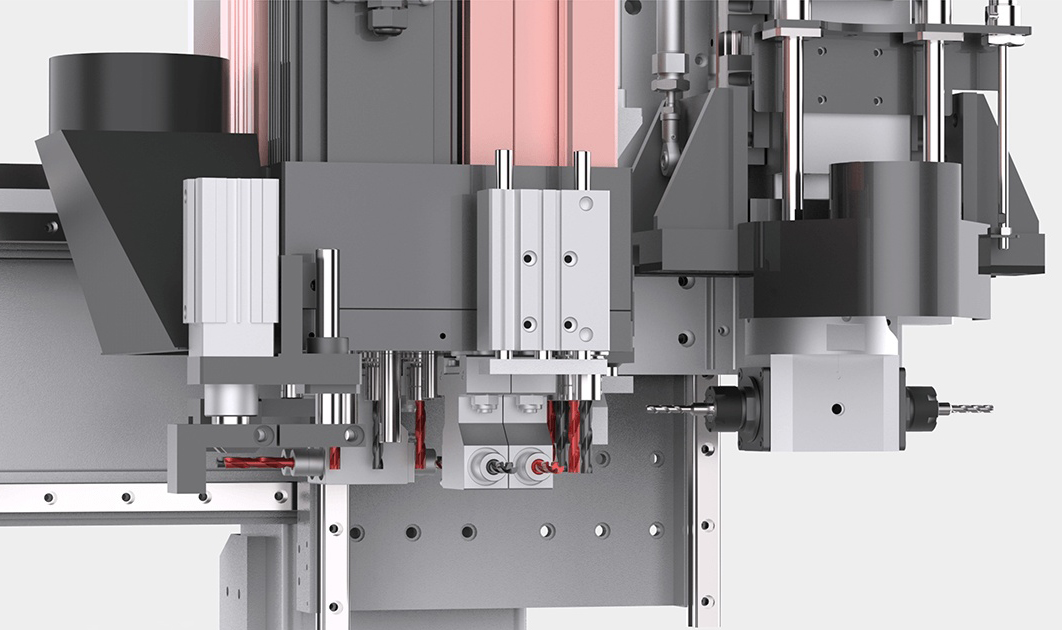

2 milling spindles 5.5 kW and 3.5 kW, 18000 rpm (top and bottom).
Grooving unit with a saw (disk diameter 120 mm).
Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm. up to 2800 mm and perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with a single grip. The maximum speed has been increased to 140 m/min.
The upper milling spindle is equipped with a powerful vertical clamp with two clamping plates. Improves milling accuracy and prevents damage to the workpiece.
Batch drilling mode - processing of two parts at the same time with a mirror filler map.
The machine is equipped with an industrial computer based on Windows. The control panel of the CNC drilling machine is compatible with the GIBLAB optimizer.
Barcode reader for maximum convenience and performance optimization.
Ability to work with all popular programs for optimizing drilling maps.
The tables are equipped with an air cushion to prevent scratches and chips.
Mobile plates in the drilling area allow for through milling.
Reliable protection prevents injury to the operator.
The minimum workpiece size is 70x35 mm, which allows for the addition of small-sized parts.
Thanks to the compact dimensions of the machine, up to 22% of production space is saved.
The machine uses high-precision INVT servo drives, which ensures excellent precision and high productivity.
Sealed dust and moisture resistant cabinet with electronic components from the world's leading manufacturers is removed from the processing area, which prolongs the service life of electrical components and provides ease of maintenance.
