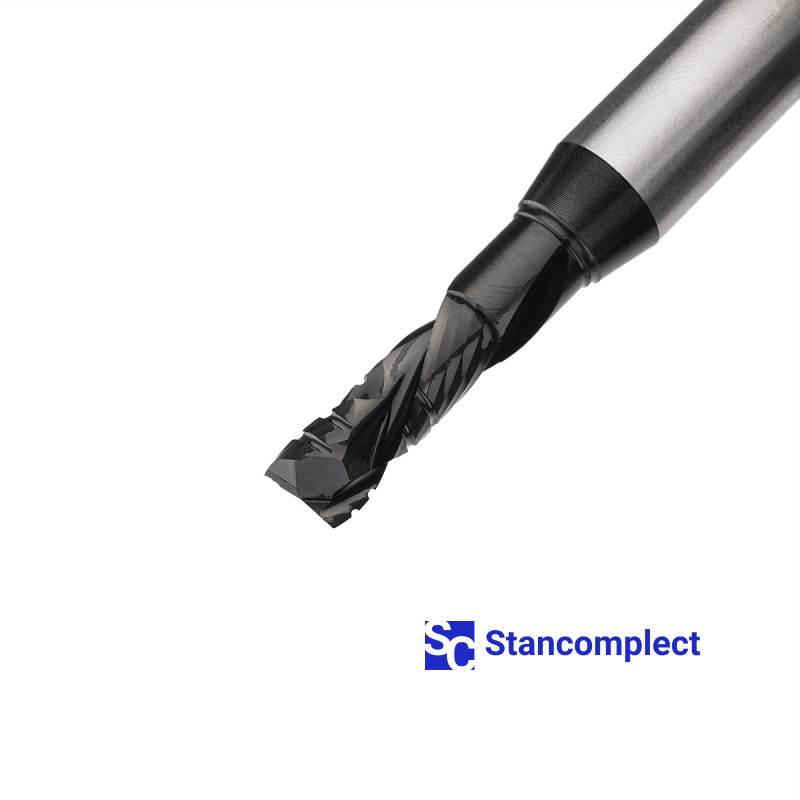

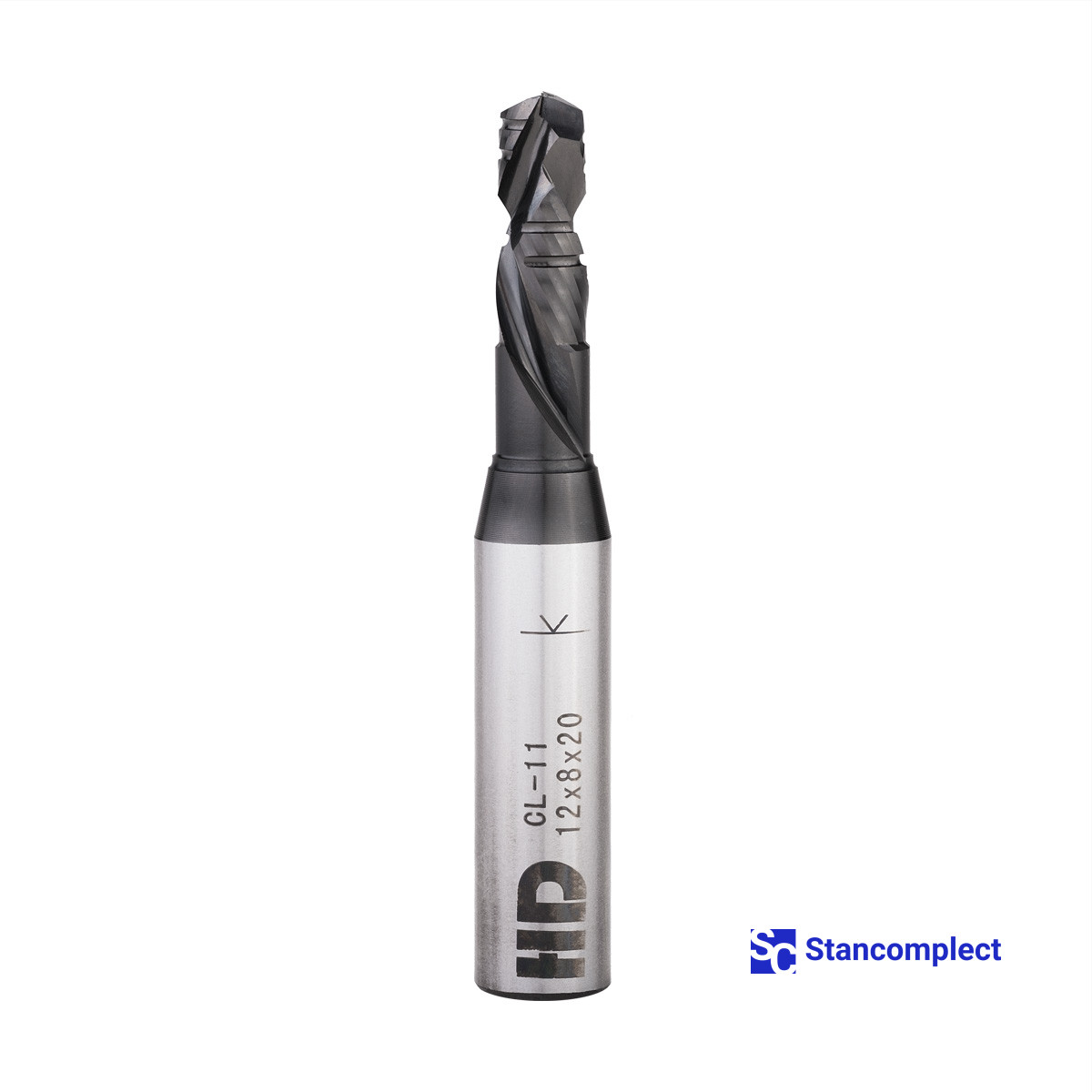

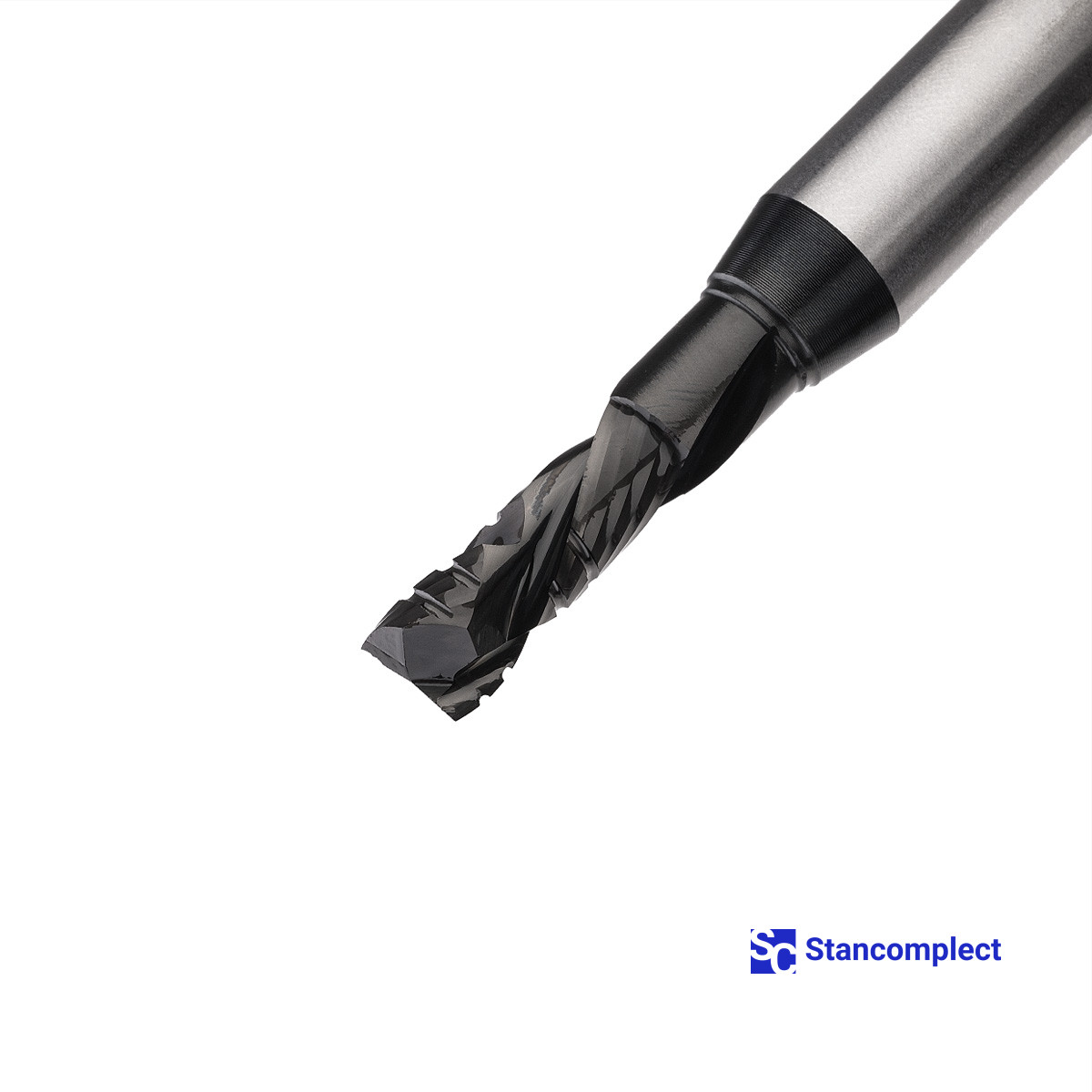

Nesting compression carbide cutter with coating CL-11 8x20x12 L80 HD (Taiwan) for cutting chipboard, MDF, plywood

Nesting compression carbide cutter with coating CL-11 8x20x12 L80 HD (Taiwan) is used in CNC machining centers, as well as CNC milling machines for curved and straight nesting cutting without chips, wood-like board materials: laminated chipboard, MDF, plywood. The main feature of the cutter is the cutting edges, which are each inclined at their own angle with respect to the edge of the plate. This feature allows the cutter to be especially delicate in relation to laminated and veneered boards.

The main features of this cutter are high quality processing, with a high processing speed of 8-12 m/min at a very low cost of the cutter itself, and as a result, a decrease in the cost of the cutting operation itself. The cutting part is 8 mm with a cutting part height of 20 mm.

Advantages:

• 120° cutting edges
• Small cutting diameter of 8 mm and as a result significant material savings. For comparison, I drank 12, 16 or 20 mm from diamond cutters.
• The low cost of the cutter itself and, as a result, a decrease in the cost of the operation itself.
• High cutting quality - the ability to cut parts under certain conditions in one pass.
• Save material by cutting 8 mm instead of 12 or 16 (as for diamond cutters).
