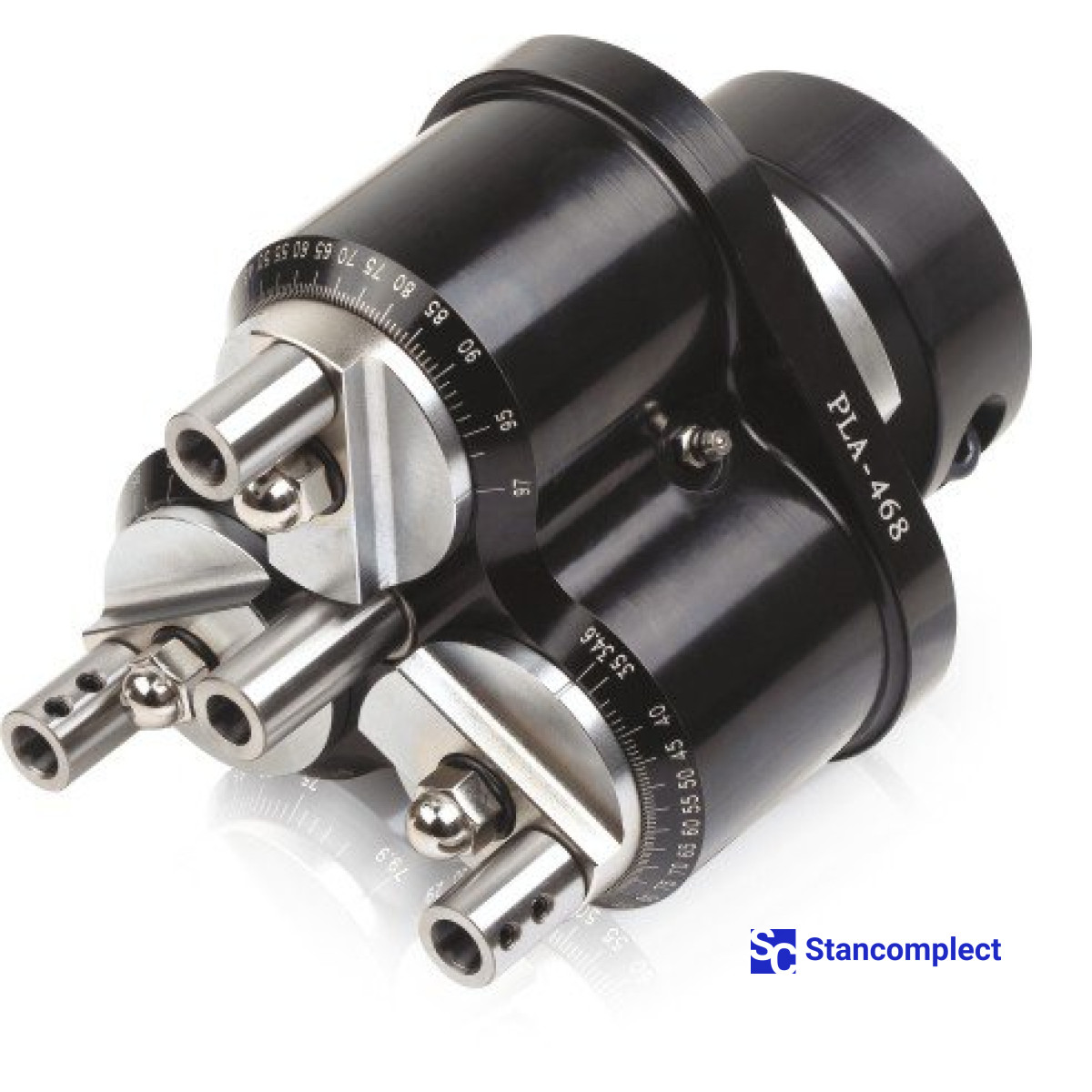

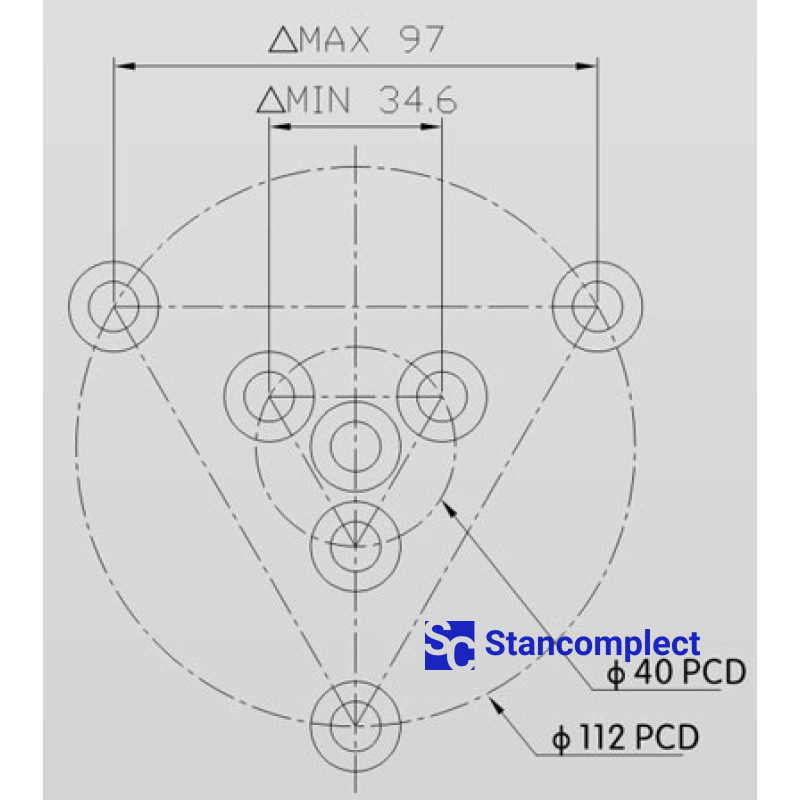

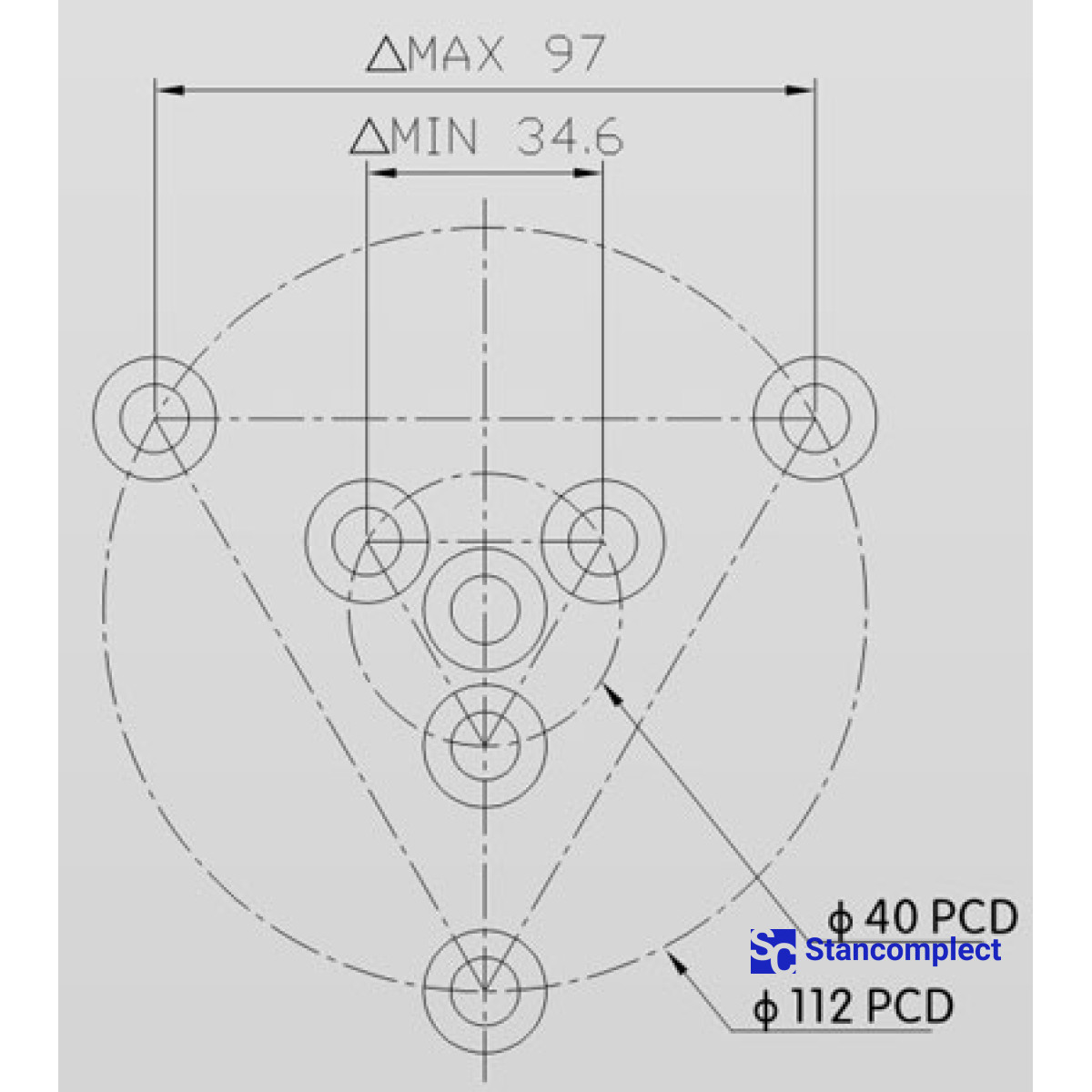

4-spindle drilling head with adjustable spindle spacing 20–112 mm (between the central and any outer spindle). The maximum allowable rotation speed is 4500 rpm.
Maximum drill bit diameter for:
- wood materials and metal-plastic - up to 40 mm,
- copper, zinc, aluminum - up to 12 mm,
- cast iron and steel - up to 6 mm.

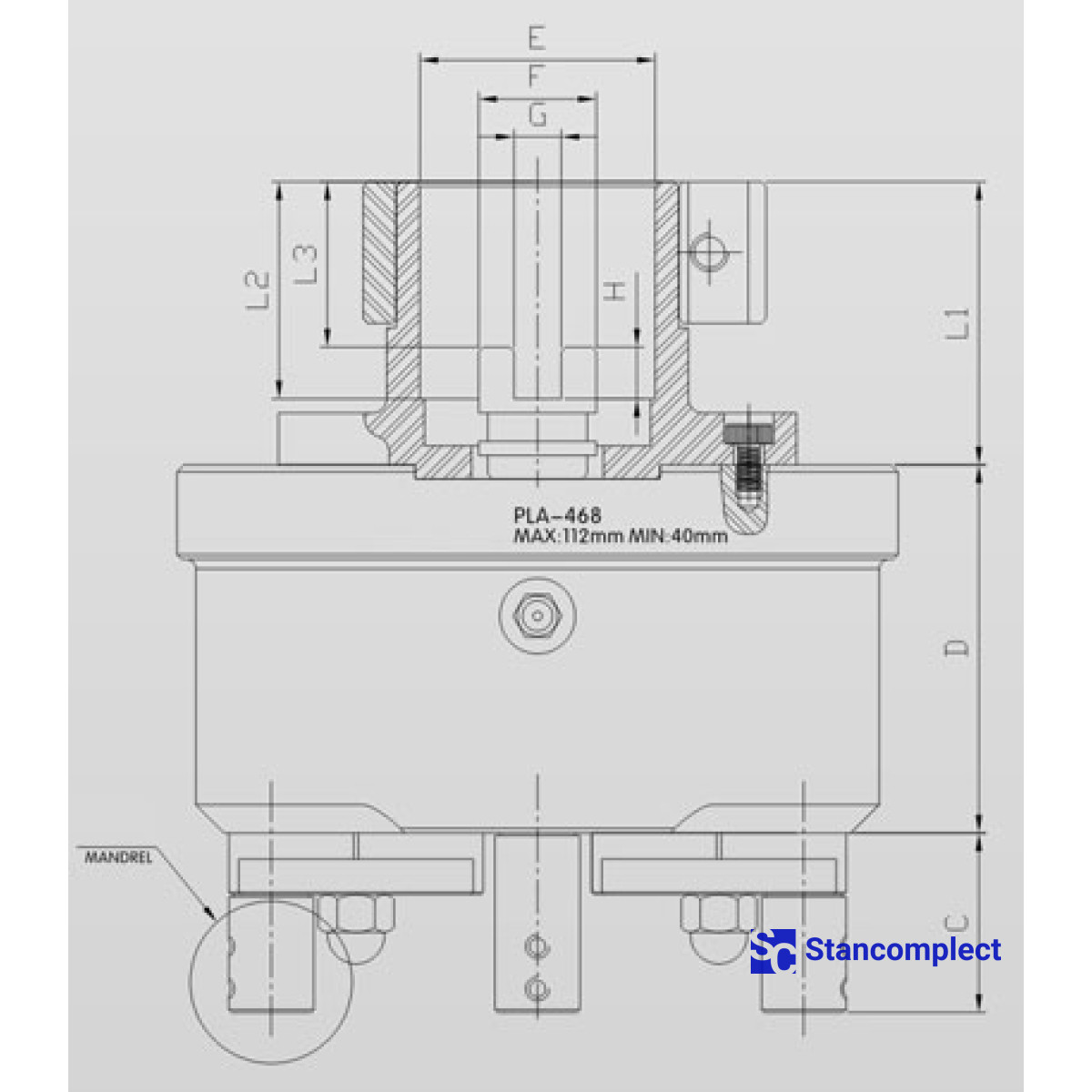

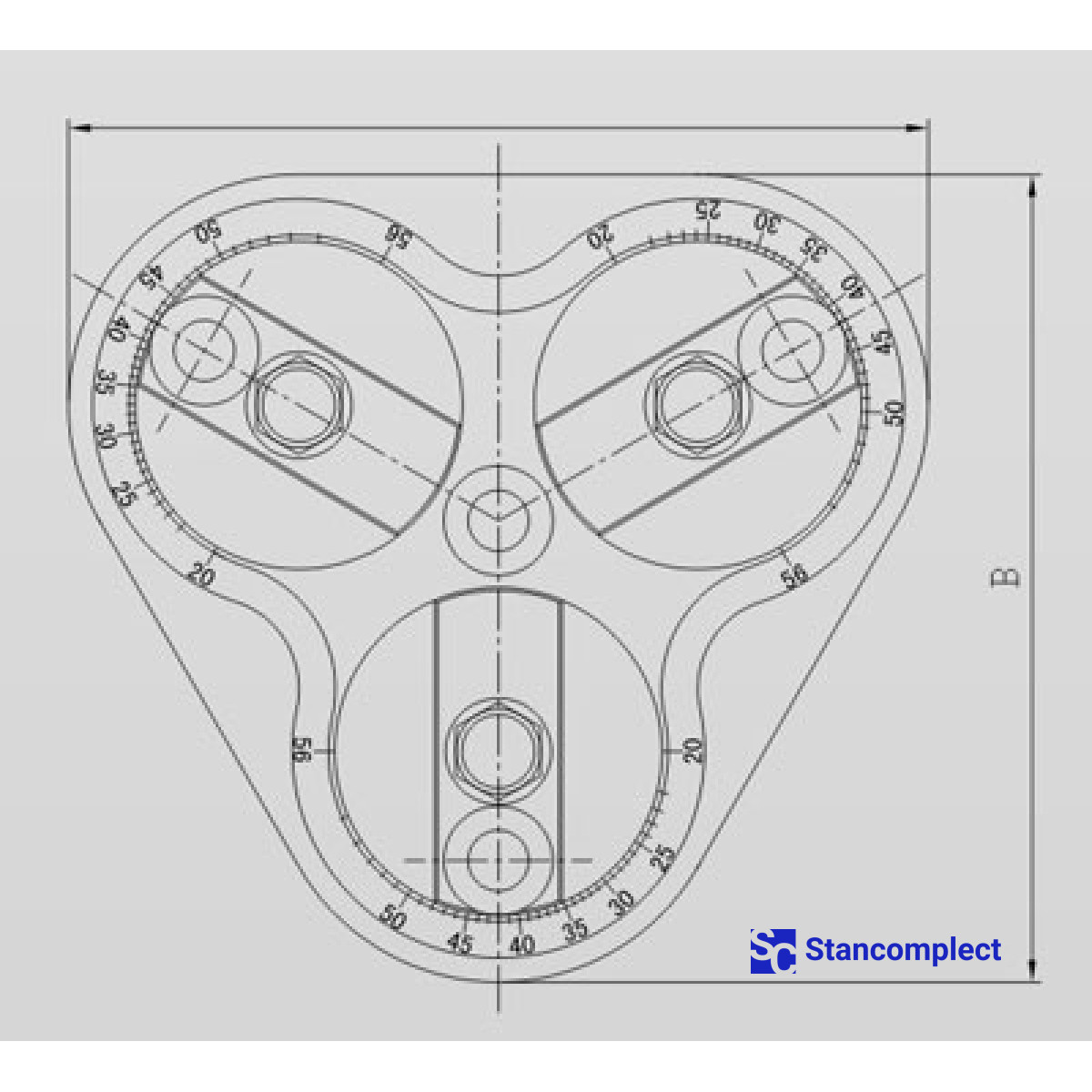

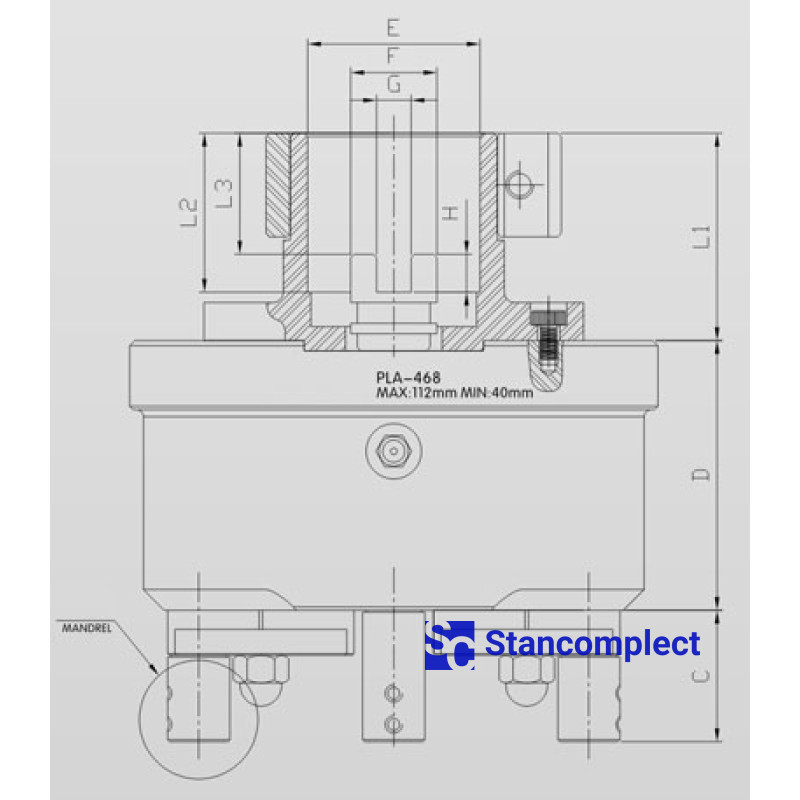

| A | B | C | D | E | F | G | H | L1 | L2 | L3 | Distance min. mm | Distance max. mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 142 | 133 | 38 | 78 | Ø50 | Ø25 | 10 | 11 | 56 | 43 | 31 | 20 | 112 |
