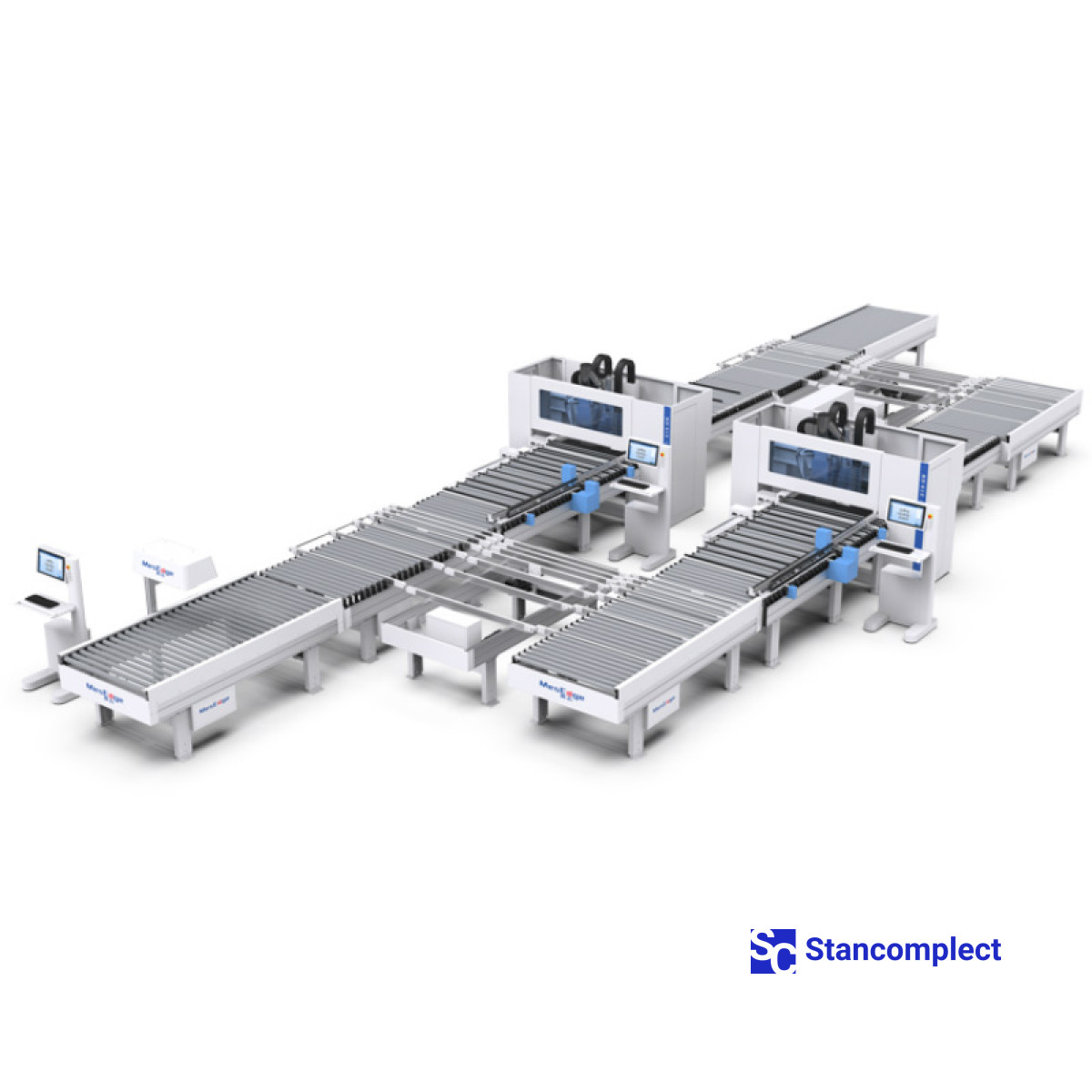

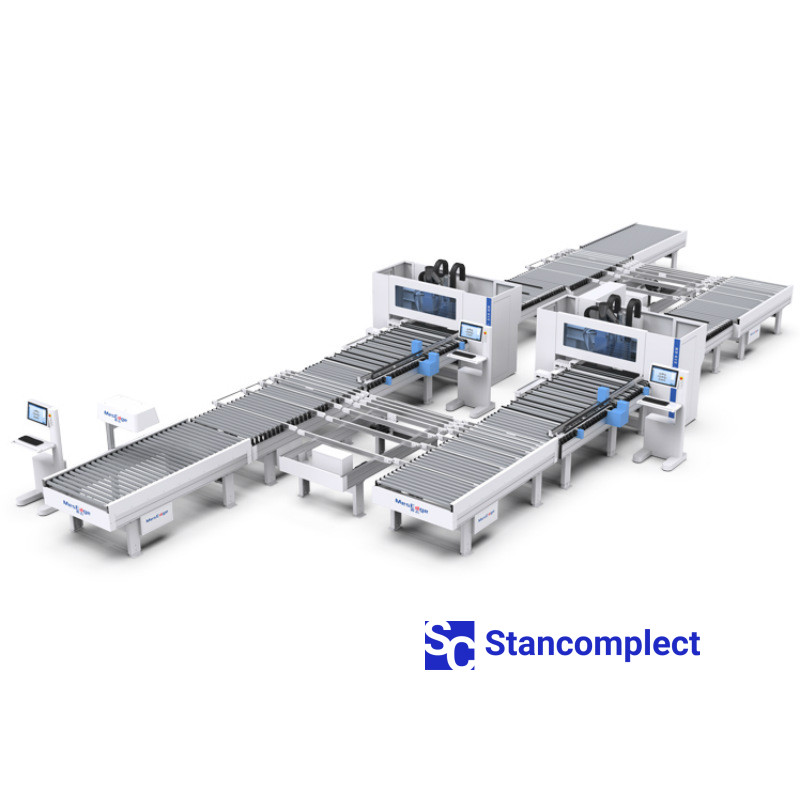

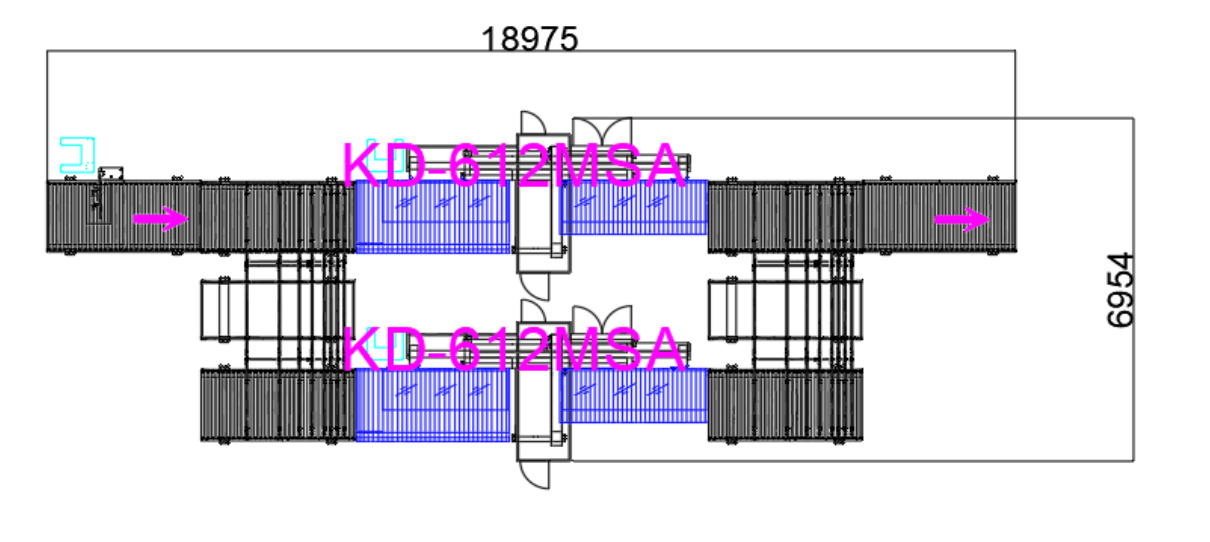

The KDT Line-2 automatic line based on 2 KDT KD-612NHSA CNC drilling centers is designed for high-precision drilling of blind and through holes in the planes and ends of furniture parts in the through mode, according to a given filler map. The machine is equipped with a milling unit, which allows milling straight and curved grooves.
- Capacity about 2000 parts per shift or 4 parts per minute
- Drilling from 6 sides + milling from above and below + grooving.
- Intelligent parts distribution system.
- The line requires 2 workers instead of 4.
- CNC drilling centers KDT KD-612NHSA - 2 pcs
- CNC controller - 1 pc.
- Roller conveyor MC-3014C - 1 pc.
- Belt conveyor MB-3014B - 2 pcs.
- Elevating conveyor ME-3014C - 4 pcs.
A control panel with a vision system - an autonomous smart camera manufactured by DATALOGIC, mounted on a bracket, automatically scans all passing barcodes.
There are 3 drilling groups installed on the machine: 18 - horizontal spindles, 35 - vertical spindles (26 - from above, 9 - from below). As standard, 2 milling units (3.5 kW) and a grooving saw are installed.
Minimum distance when drilling with two heads for:
- Vertical holes - 64 mm.
- Horizontal holes - 128 mm.
The machine can process two panels at the same time, both top and bottom, within one working cycle, thanks to the possibility of drilling from 6 sides.
2 milling spindles: upper - 5.5 kW, lower - 3.5 kW, 18000 rpm (top and bottom) for cutting straight and curved grooves.
Grooving unit with a saw (disk diameter 120 mm).
Two automatic clamps will allow you to securely fix the workpiece with a length of 200 mm. up to 2800 mm and perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with a single grip. The maximum speed has been increased to 140 m/min.
The upper milling spindle is equipped with a powerful vertical clamp with two clamping plates. Improves milling accuracy and prevents damage to the workpiece.
Ability to work with all popular programs for optimizing additive maps.
During the development of the machine, the maximum allowable loads and requirements for the design of the machine were calculated and modeled. The welded frame is tempered to relieve all internal stresses in the material, then it is processed on high-precision CNC equipment.
The discharge conveyor is equipped with belt drives and motion sensors.
The positioning of the workpiece on the machine is carried out thanks to the automatic lateral alignment. After reading the barcode, the side aligner moves as close as possible to the dimensions of the part. The workpiece rests on the zero point along the X axis, and the side leveler positions it along the Y axis. Then two pneumatic grippers take the workpiece into the working area of the machine for further processing.
The powerful vertical clamp securely positions the workpiece. Works synchronously with the drilling unit.
Mobile plates in the drilling area allow for through milling.
