CNC drilling center KD-612G with two drilling groups at the top and bottom for drilling on 6 sides (workpiece size 1200*2800 mm), two upper milling spindles with a C axis and two lower ones, two-level linear tool change for 10 positions for the upper right milling spindle + linear tool change for 2 units for the upper left milling spindle with the C axis is designed for high-precision drilling of through and blind holes in the ends and planes of furniture panels, which allows processing of any additive cards in one pass of the part. This is a modern machine with advanced technology.
- Two drilling and milling groups on top and bottom;
- 2 upper milling units for 9 kW and 5.5 kW and two lower ones for 3.5 kW each;
- Multifunction rotary axis C for the upper left milling unit;
- Two-level linear tool change with 10 positions for the upper right milling unit;
- Linear tool change for 2 units for the upper left milling unit;
- High processing speed: 140/90/50 m/min;
- Drilling from 6 sides;
- Tool calibration sensor for right upper milling spindle;
- Additive for small-sized parts from 70x35 mm;
- Conveyor for removing residual parts and sawdust;
- Automatic lubrication of X and Y travel guides;
- Visualization of processing of a double-sided additive card;
- Batch drilling mode supported;
- Ability to work with optimizer programs with additive cards;
- Scanner for reading additive cards using barcodes.

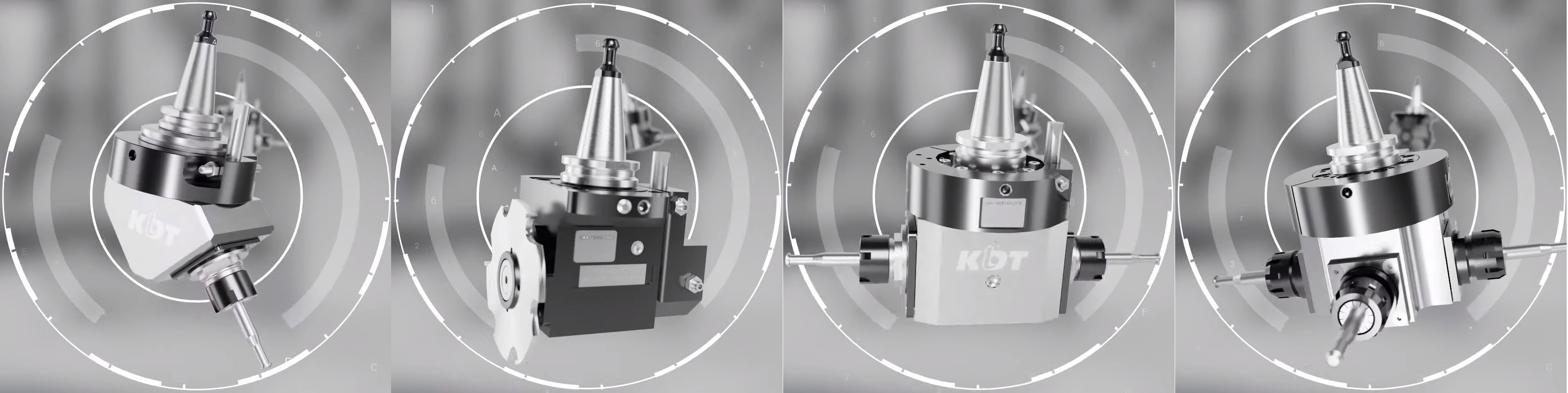

Types of processing units
Possible operations

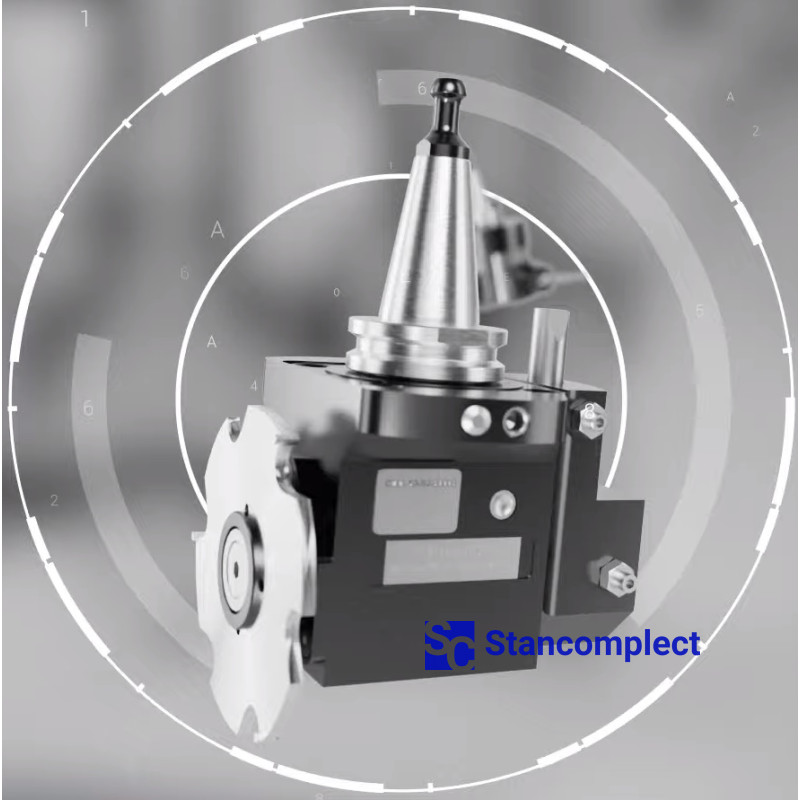

Milling for LAMELLO screed
Side milling
Milling for wardrobe profile
Lateral grooving with saw

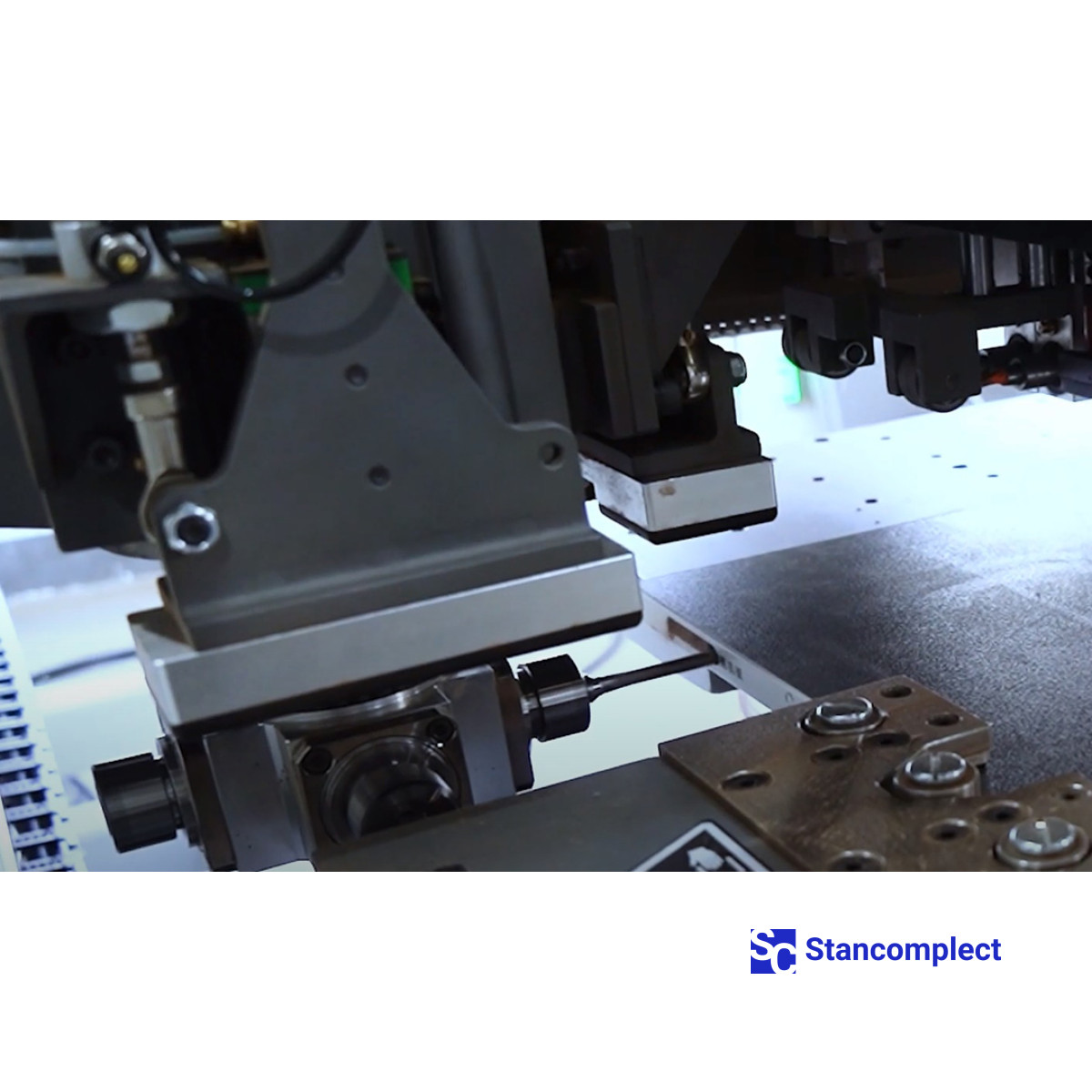

Milling for hidden hinges

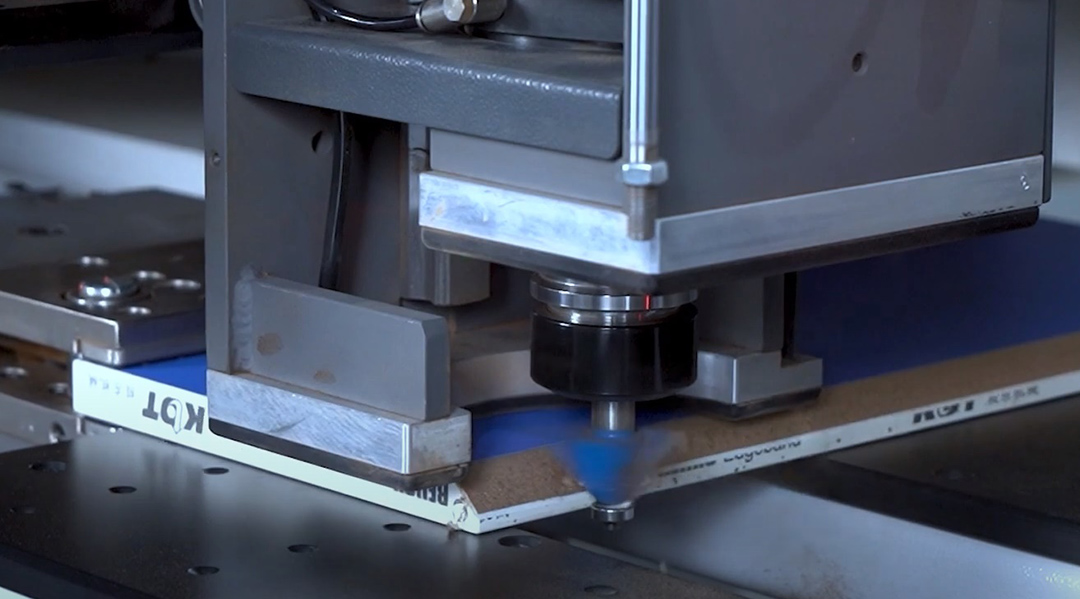

Milling a part at an angle

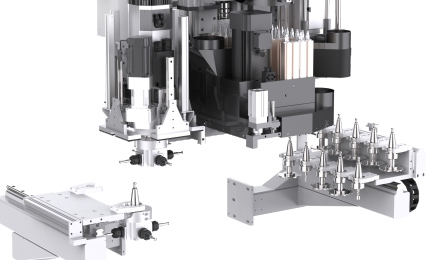

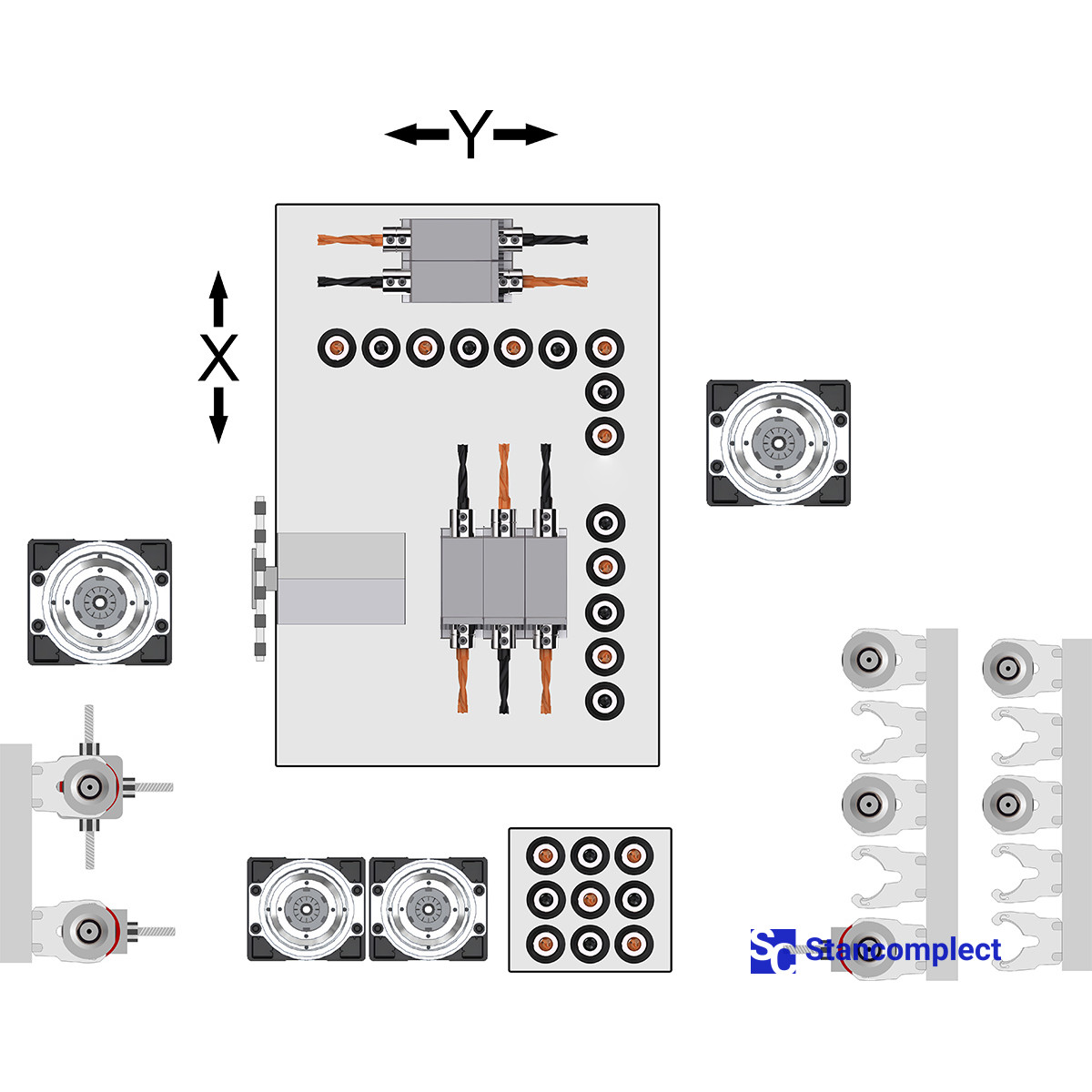

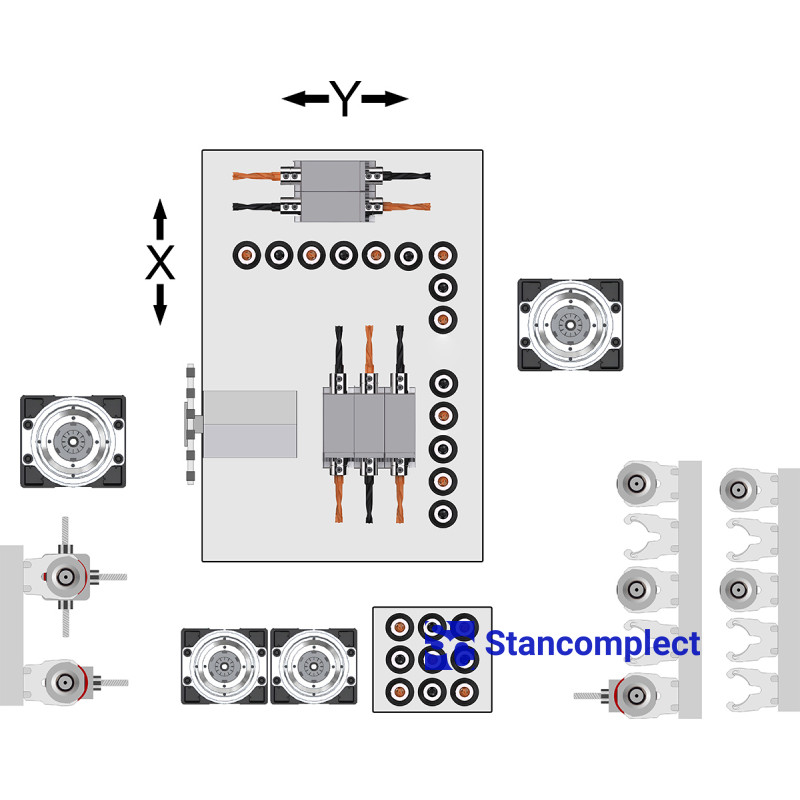

The machine has 2 drilling groups: 10 horizontal spindles, 23 vertical spindles (14 on top, 9 on bottom). As standard, 2 upper milling units of 9 kW and 5.5 kW and two lower units of 3.5 kW each are installed.

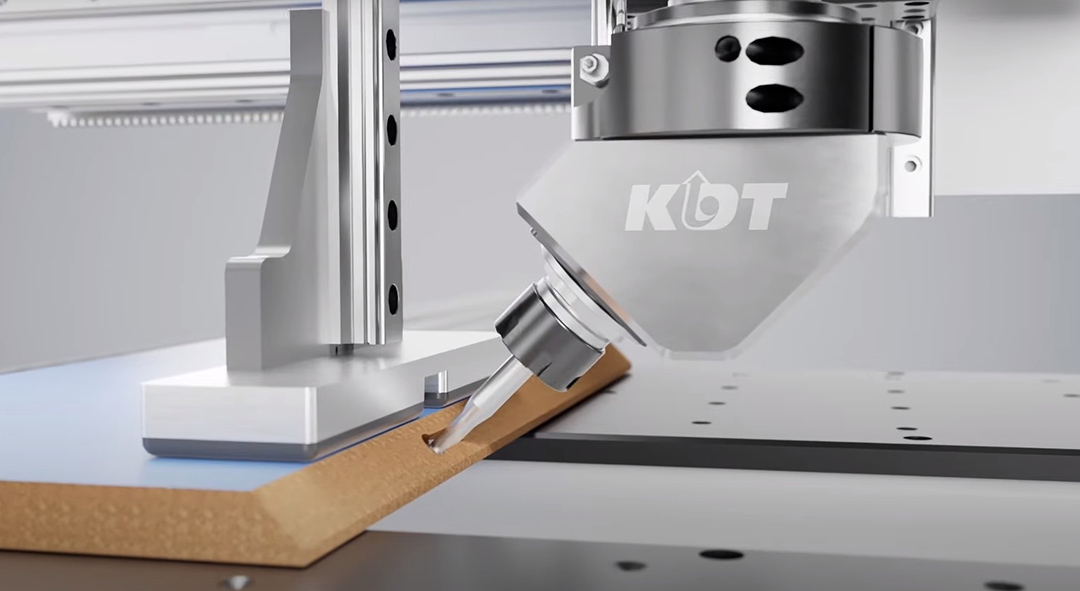

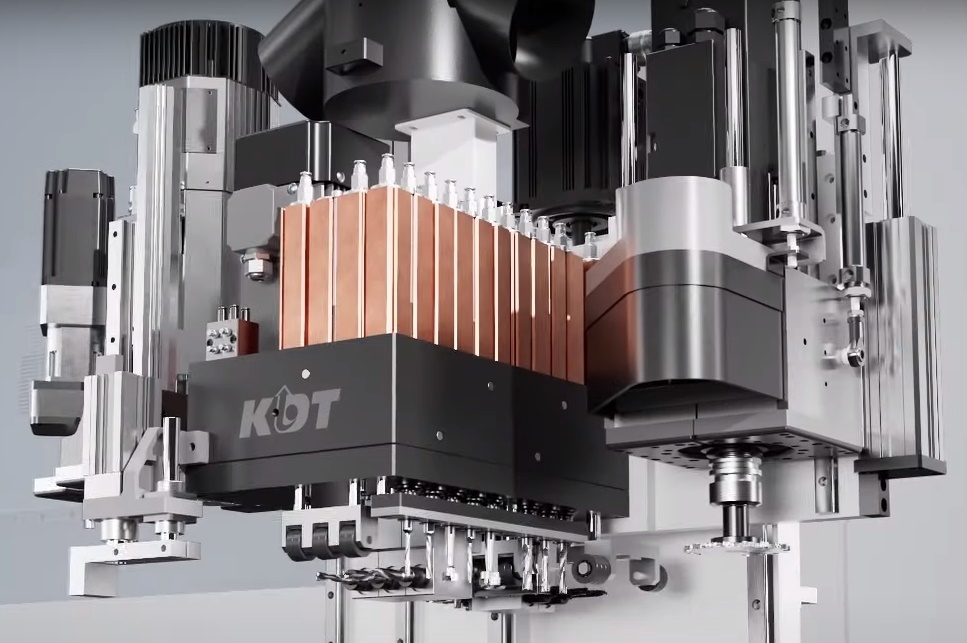

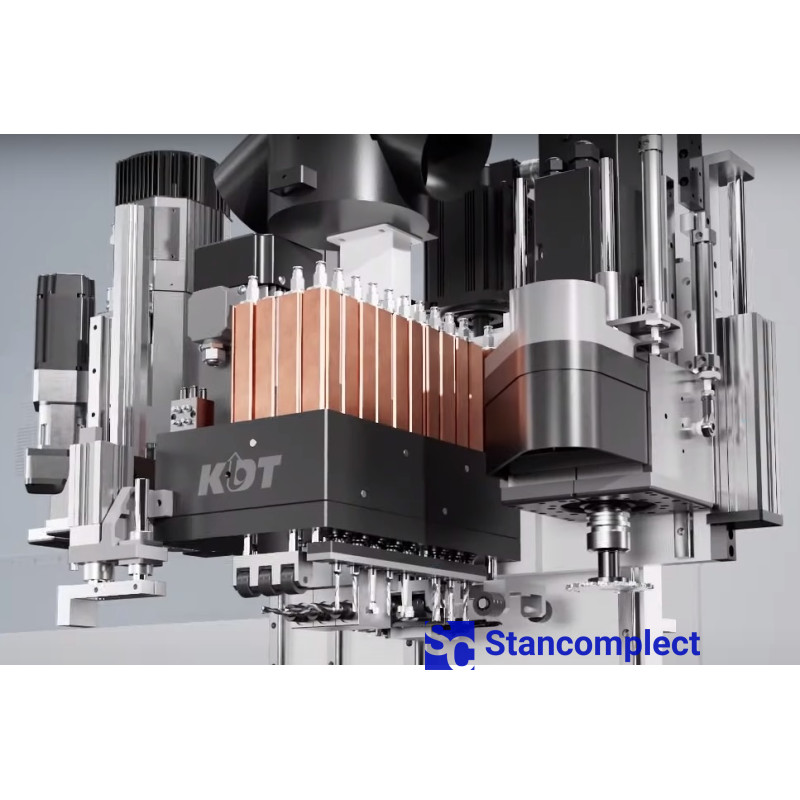

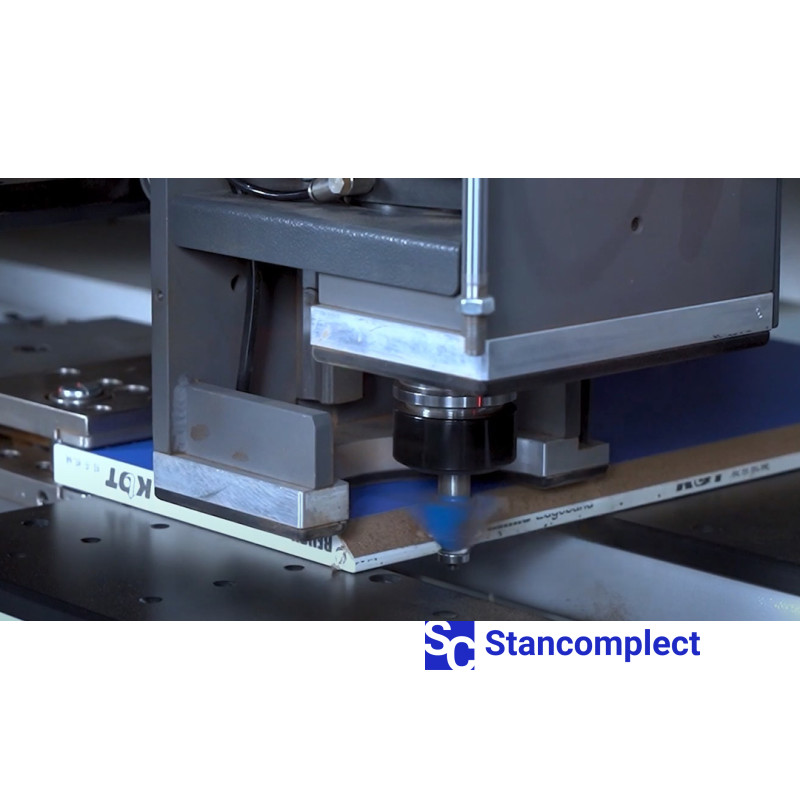

The upper drilling and milling group consists of 10 horizontal spindles and 14 vertical spindles and 2 milling spindles of 9 kW (possibility of C-axis milling) and 5.5 kW. The upper milling spindle, thanks to its increased power, has the ability to work with various tools and carry out various operations - milling for LAMELLO screeds, 45° milling, milling for door fittings, side milling and grooving.

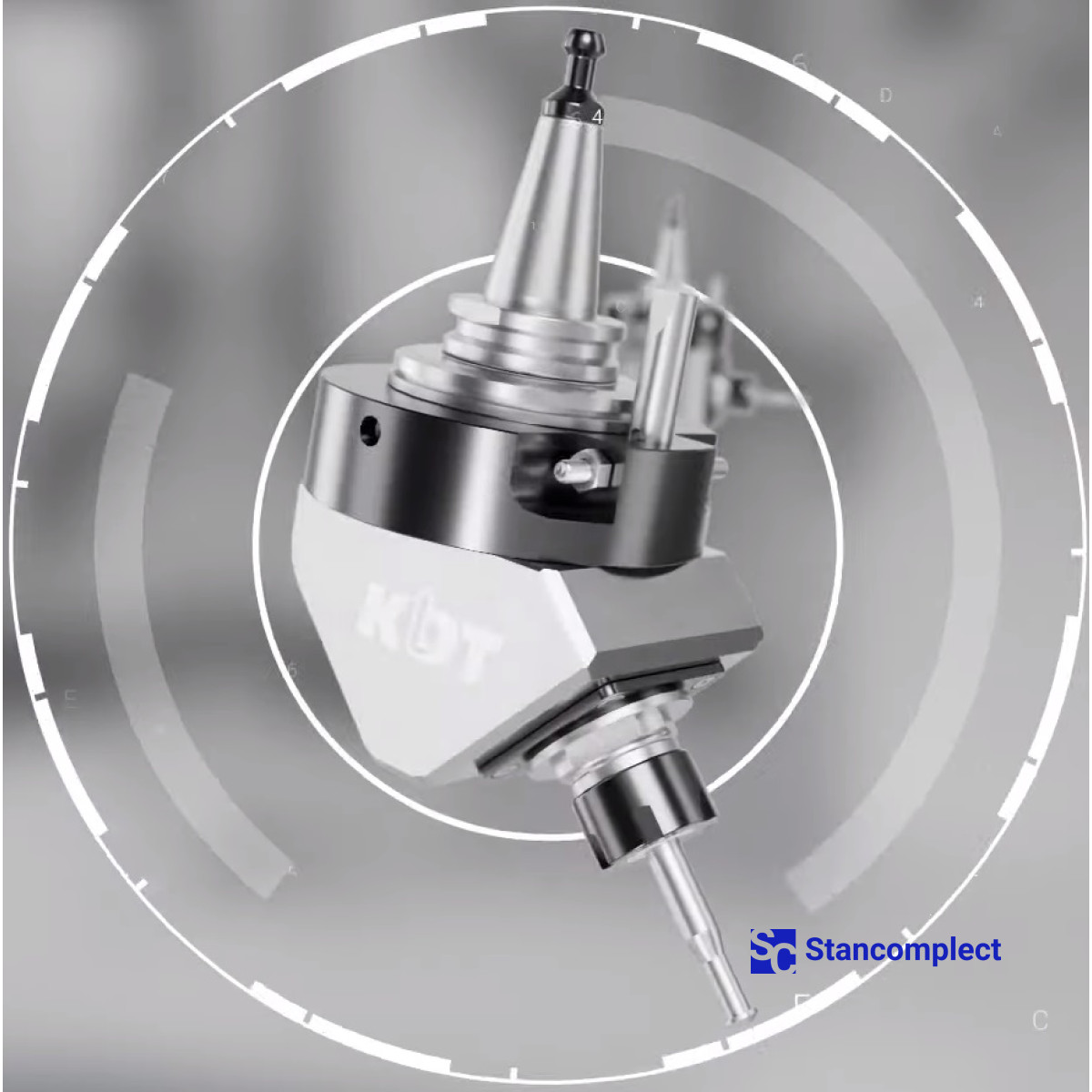

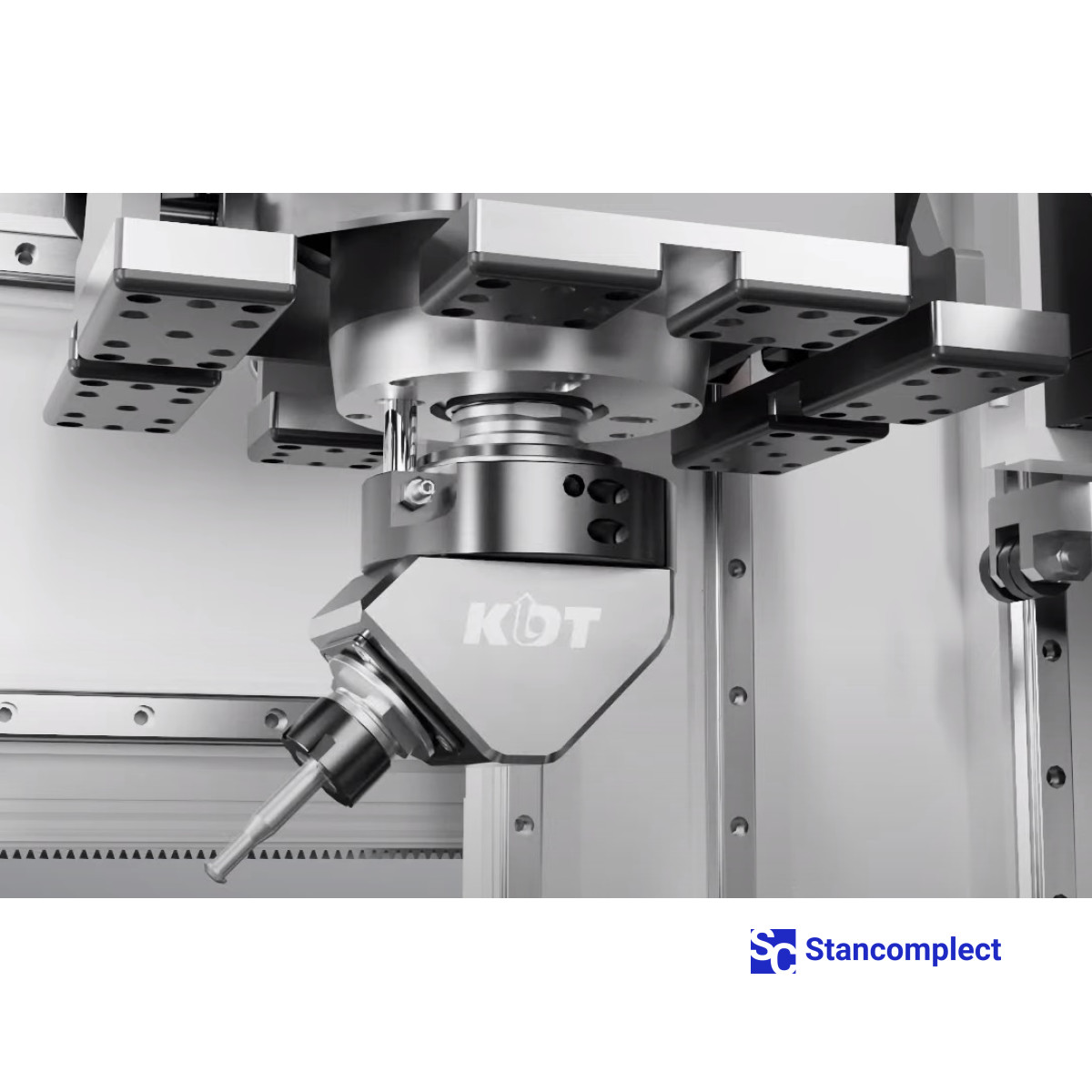

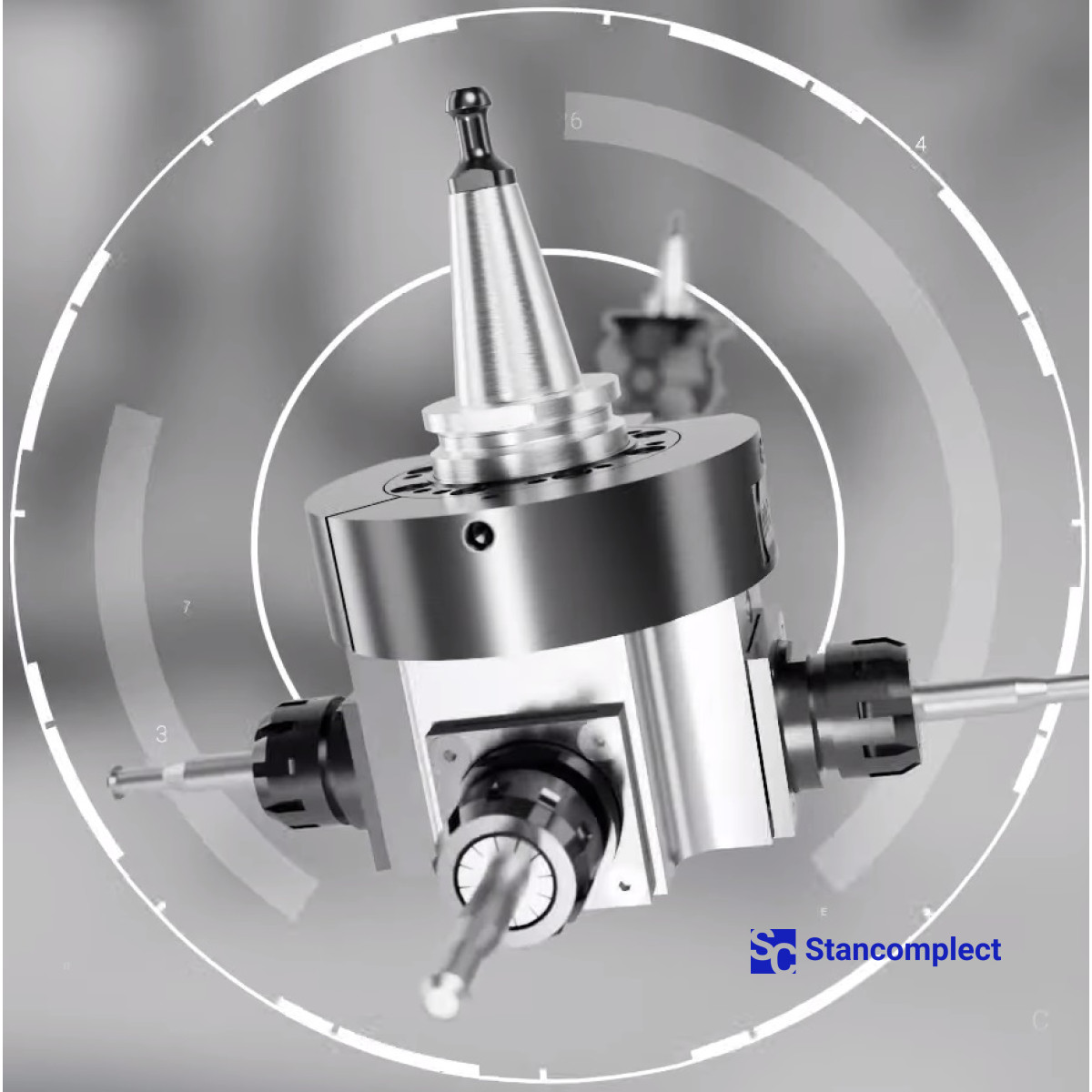

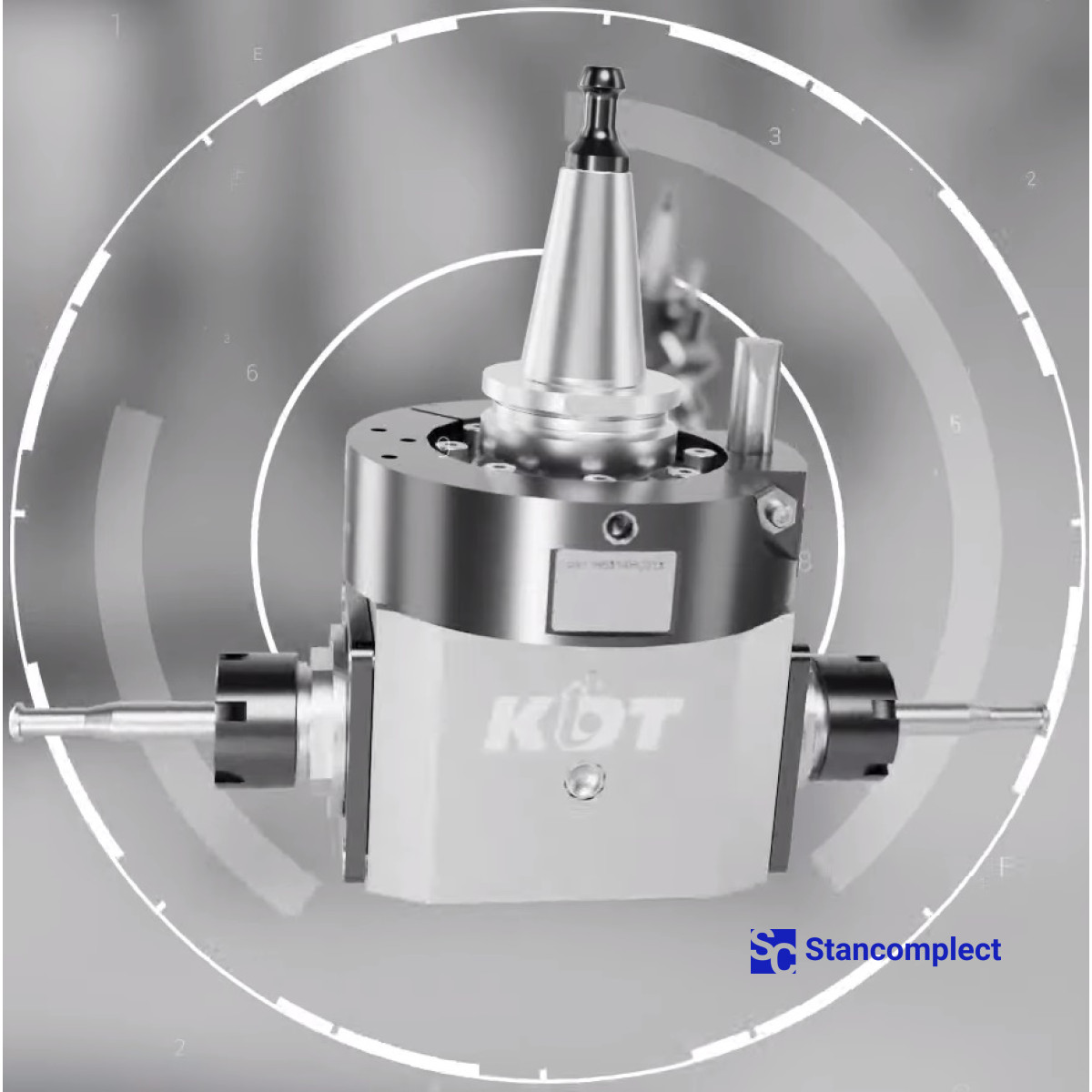

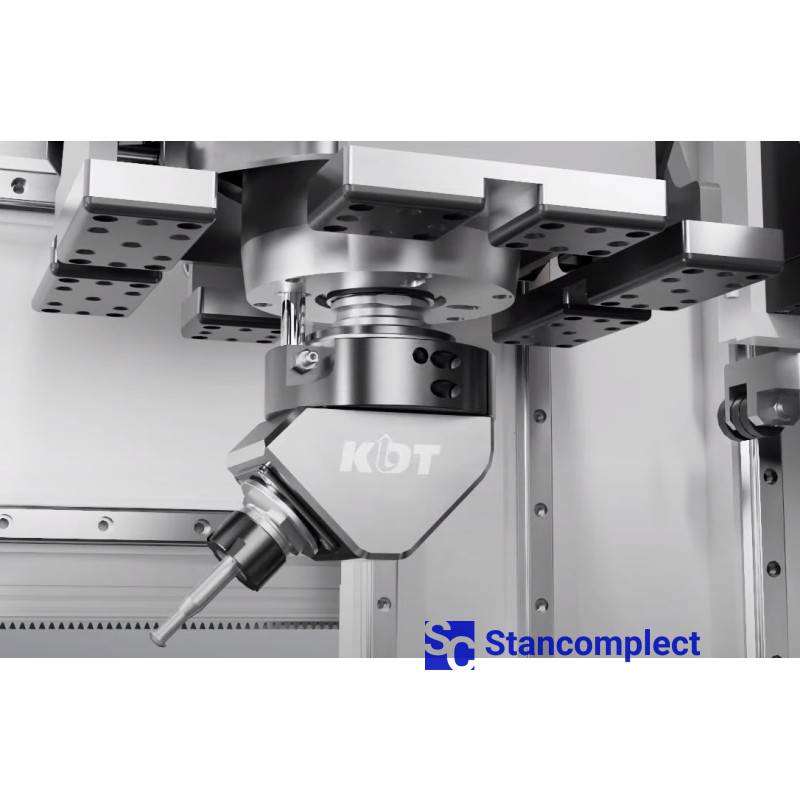

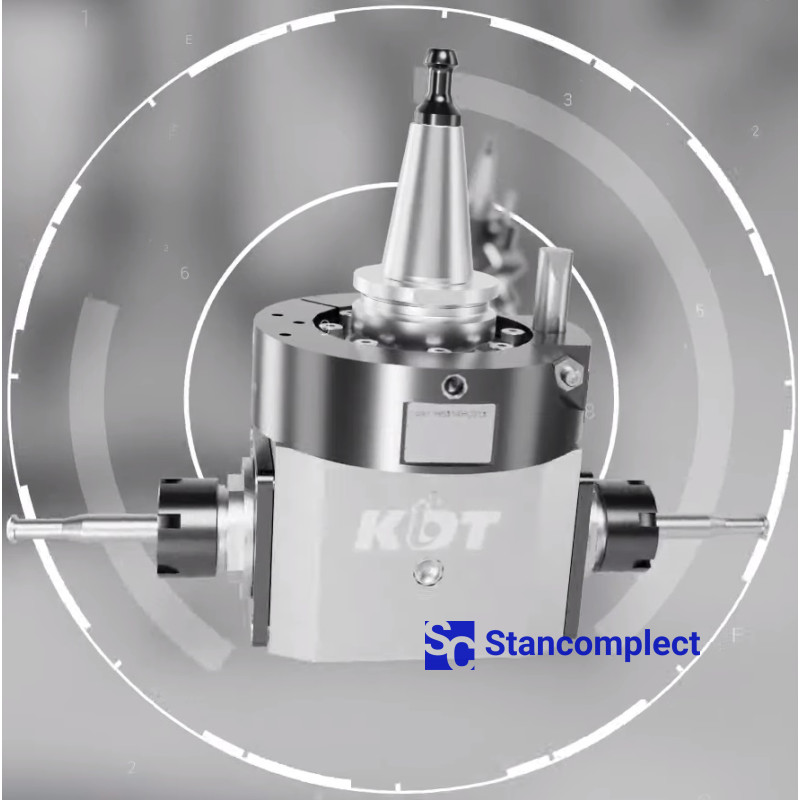

The upper left milling spindle supports a multi-function rotary C axis, making it possible to work with many types of units. The 360° C rotation axis eliminates position reconfiguration by the unit, so the part can be processed in one cycle. A magazine for 2 units speeds up the processing process. And the clamp with an air cushion allows for high-quality processing of the part.

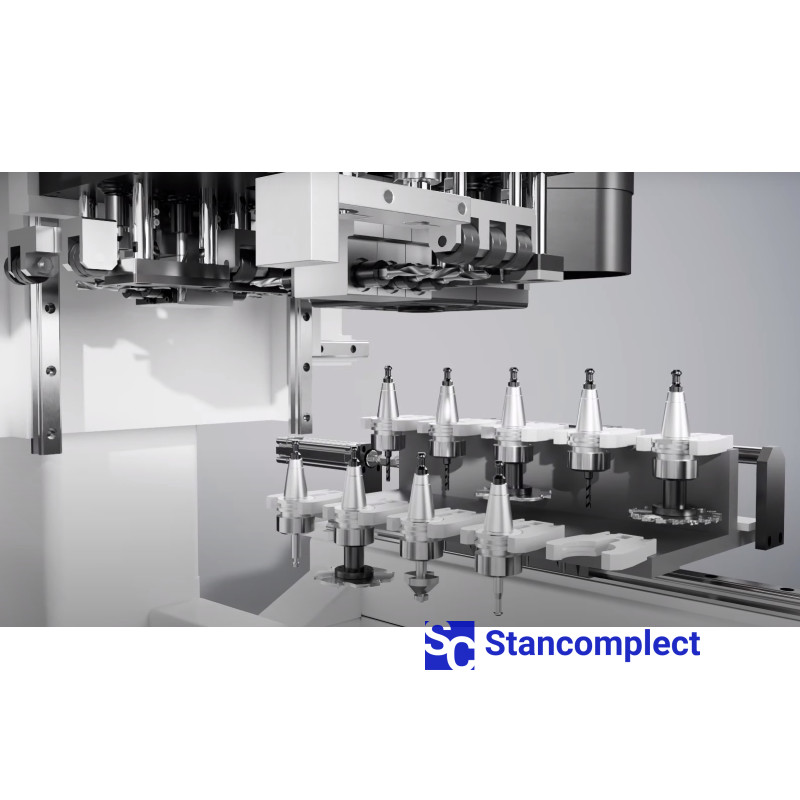

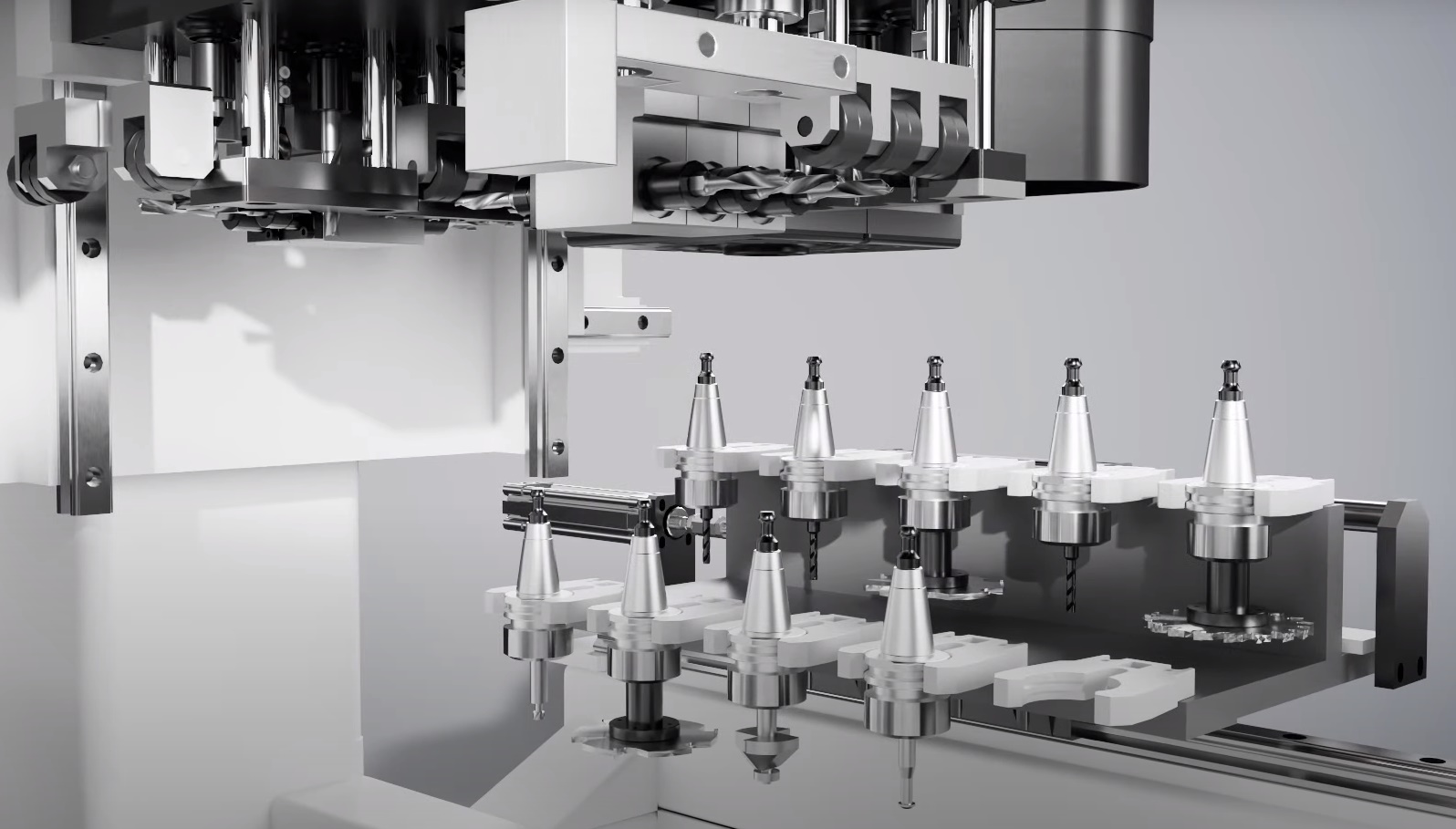

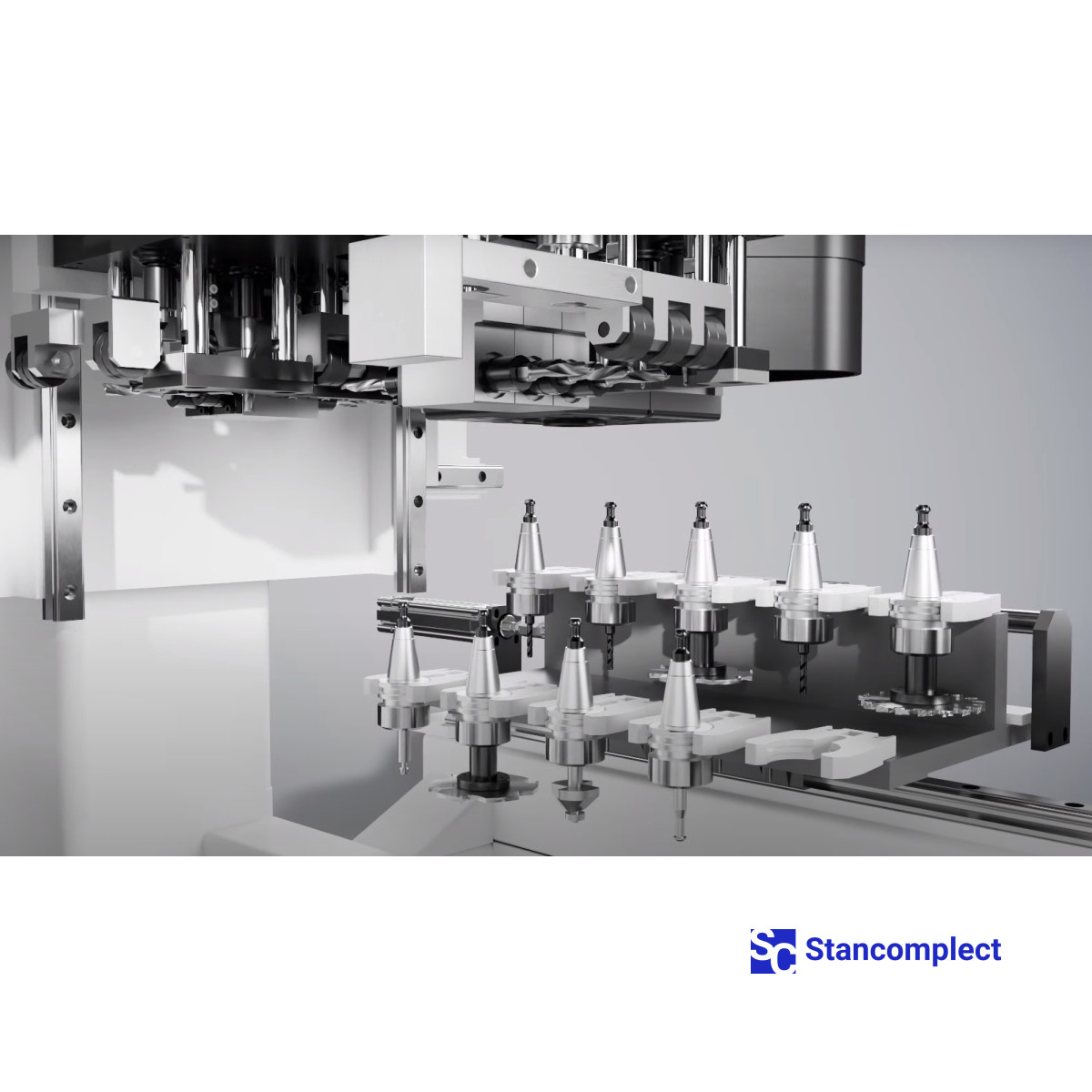

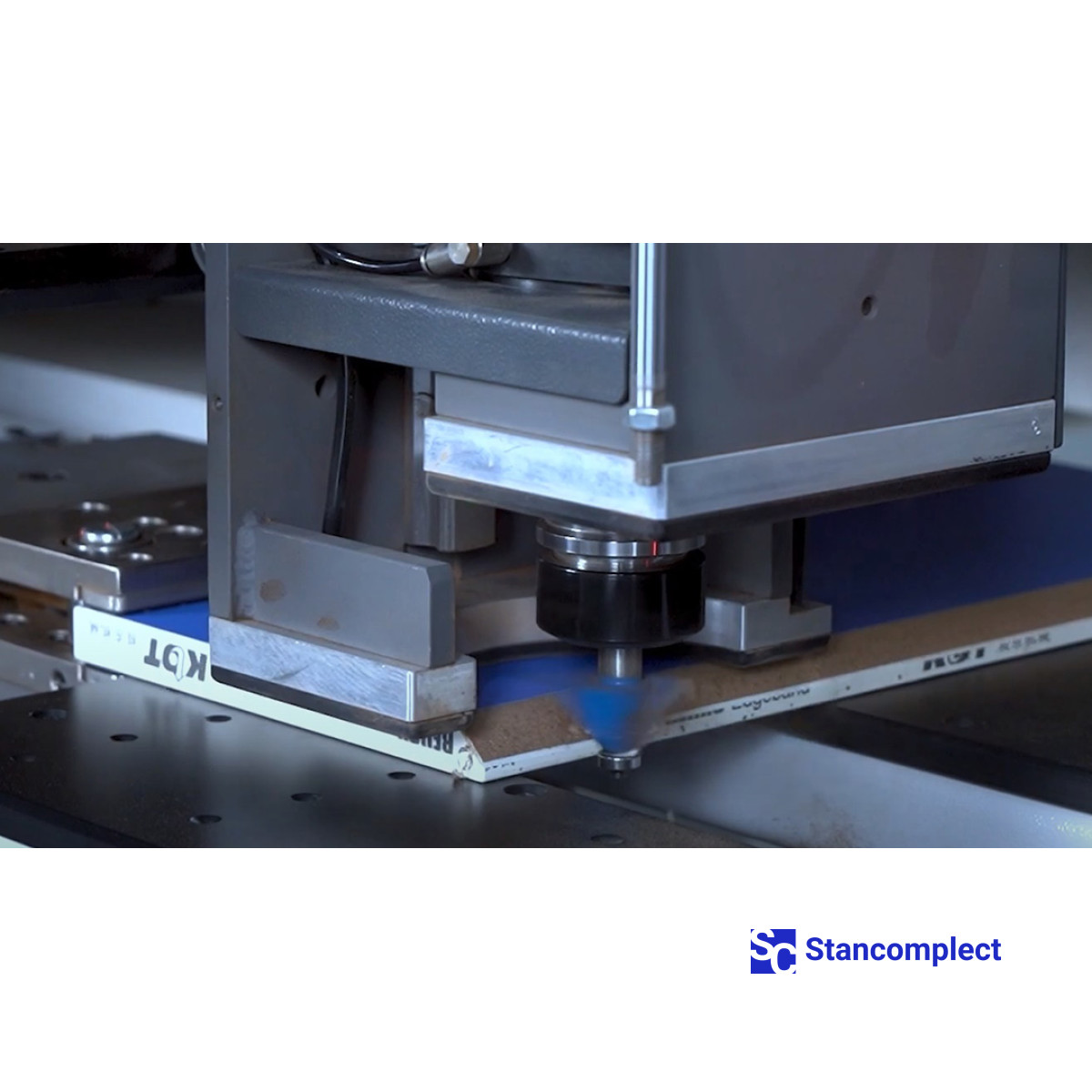

The upper right milling spindle is equipped with a two-level linear tool change for 10 positions, which saves time when switching from one type of processing to another and makes it possible to work in automatic mode thanks to a tool length measurement sensor.

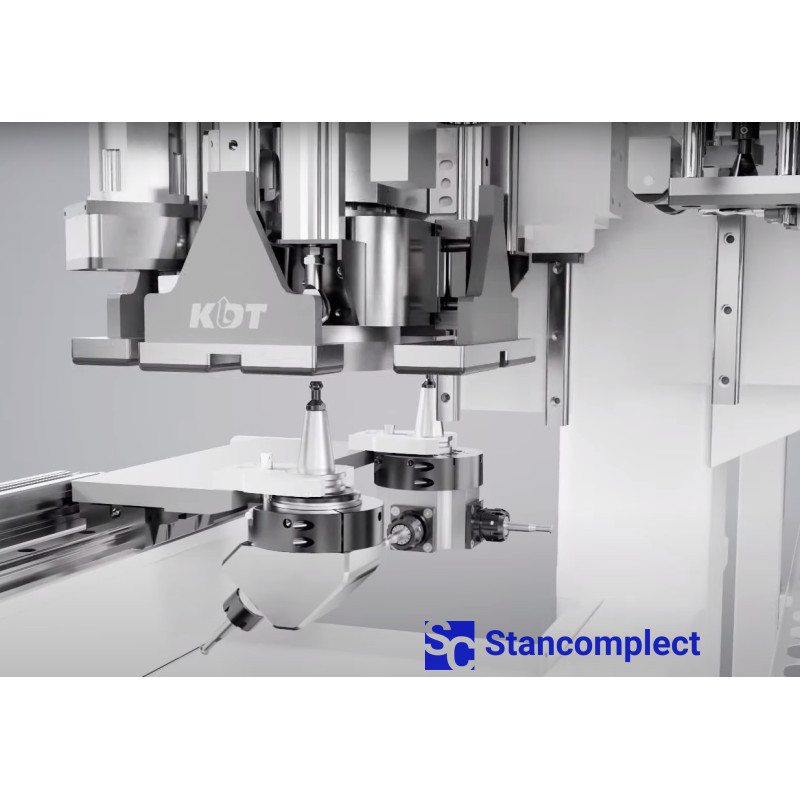

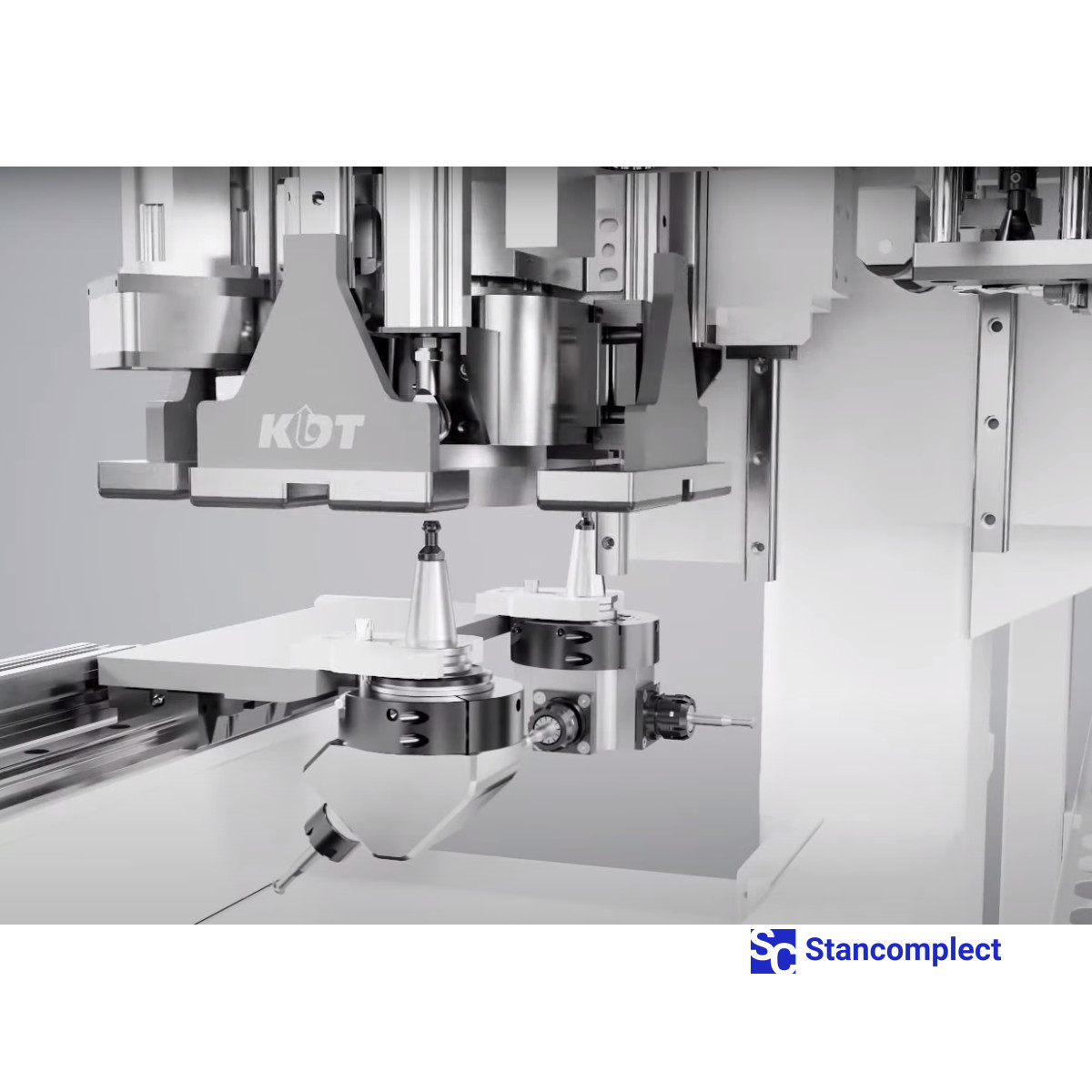

The left milling spindle is equipped with a tool change for 2 units, which saves time and makes it possible to use a wide range of units.

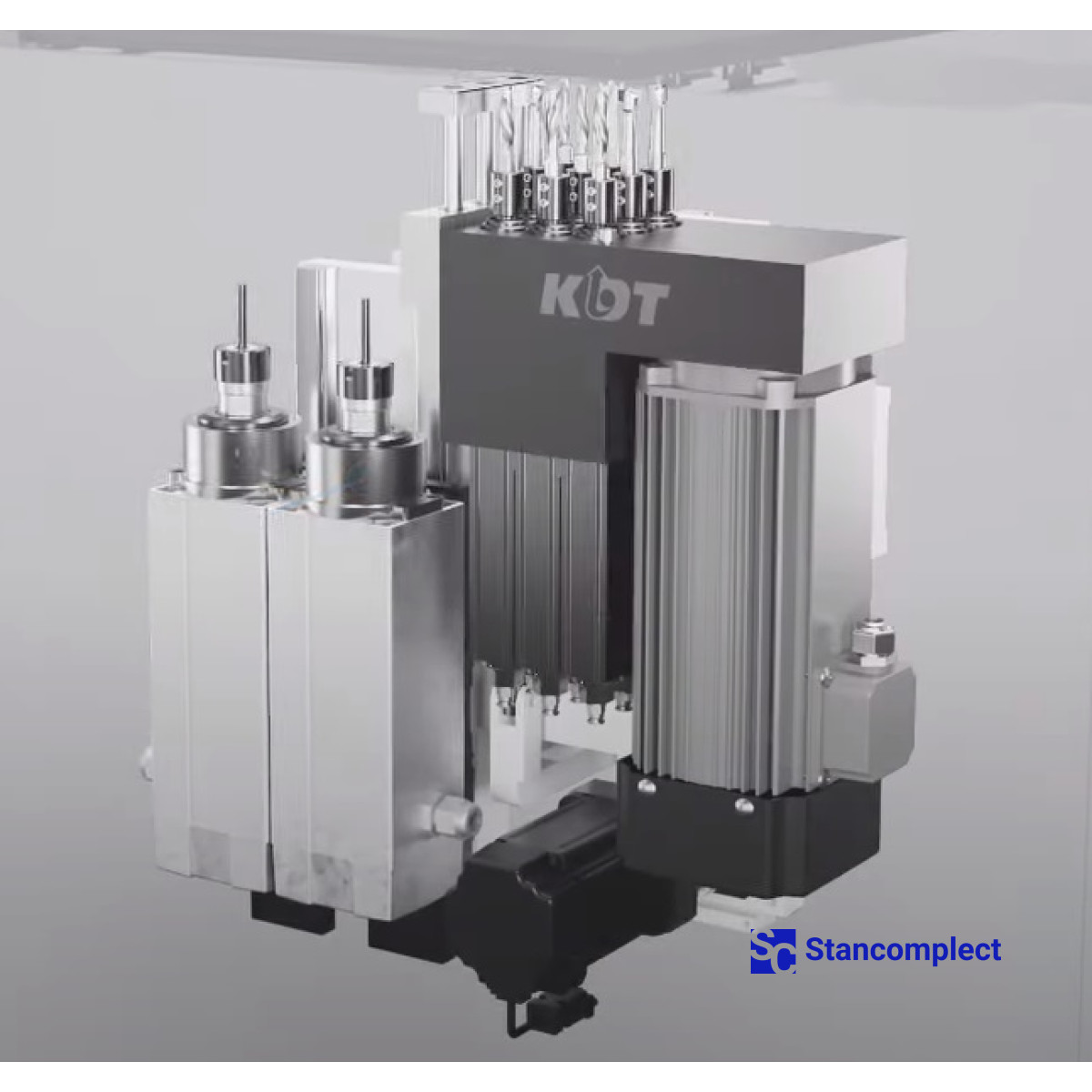

The lower drilling and milling group consists of 9 vertical spindles and 2 milling spindles of 3.5 kW each.

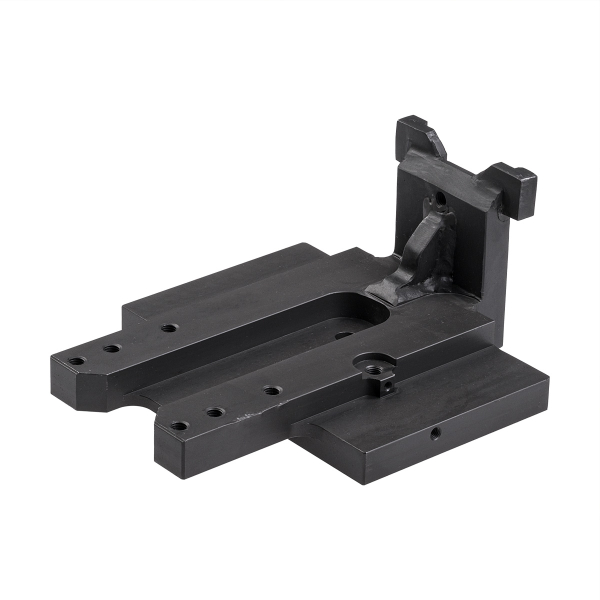

Two automatic clamps will allow you to securely fix workpieces with a length of 70 mm or more. up to 2800 mm and perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with one grip. Maximum speed increased to 140 m/min.
The upper milling spindle is equipped with a powerful vertical clamp with two clamping plates. Improves milling accuracy and prevents damage to the workpiece.
Batch drilling mode - processing of two parts simultaneously with a mirror additive map.

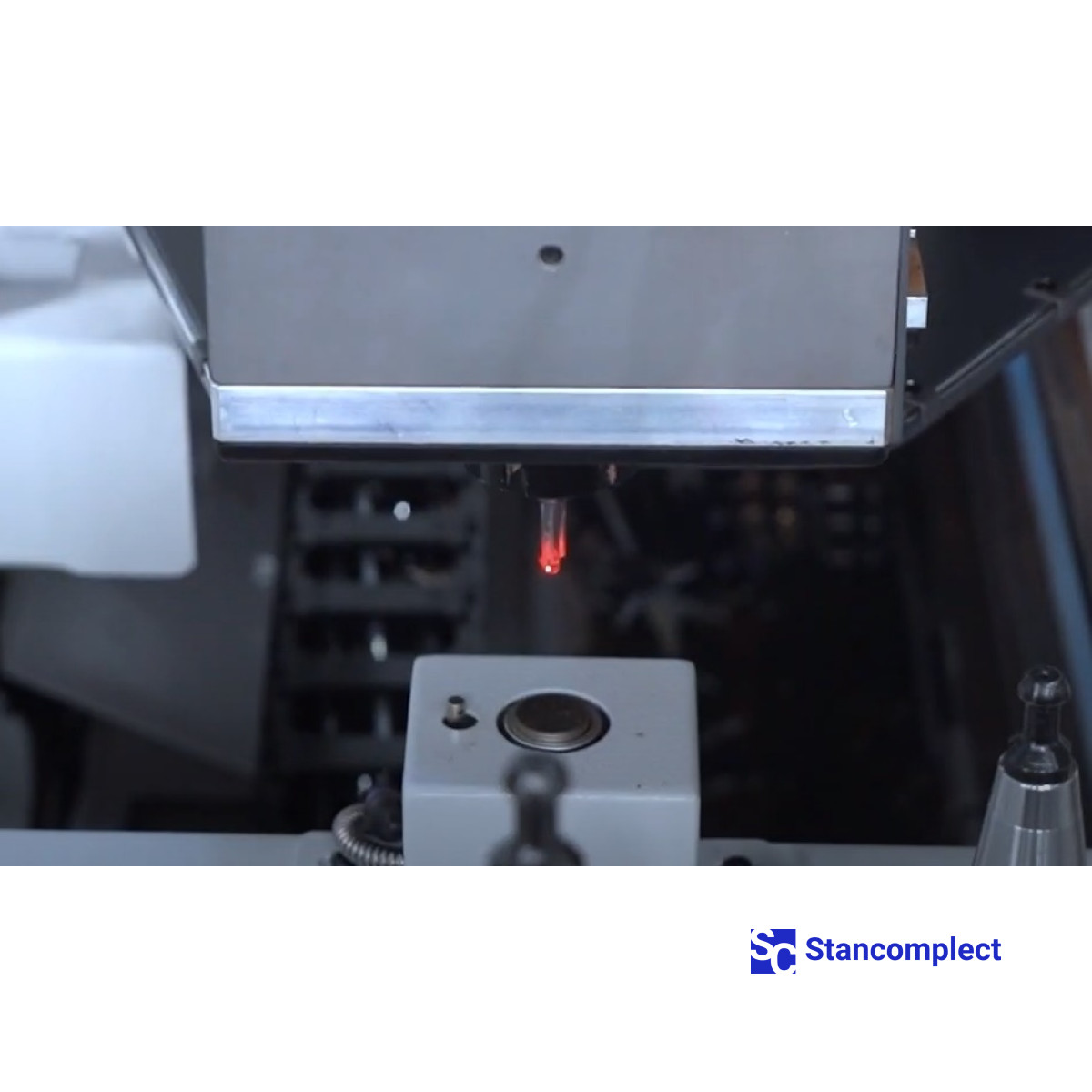

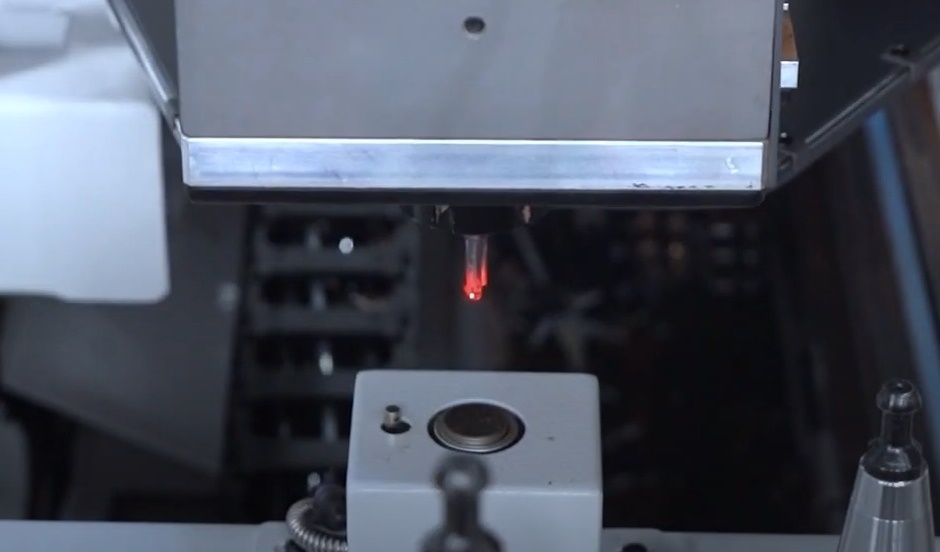

Tool length sensor minimizes calibration and tool change time.
The machine is equipped with an industrial computer based on Windows. The control panel of the CNC drilling and attachment machine is compatible with the GIBLAB optimizer.
Barcode reader for maximum convenience and optimized performance.
Ability to work with all popular programs for optimizing additive cards.
When developing the machine, the maximum permissible loads and requirements for the design of the machine were calculated and modeled. The welded frame is tempered to remove all internal stresses in the material, then processed on high-precision CNC equipment.

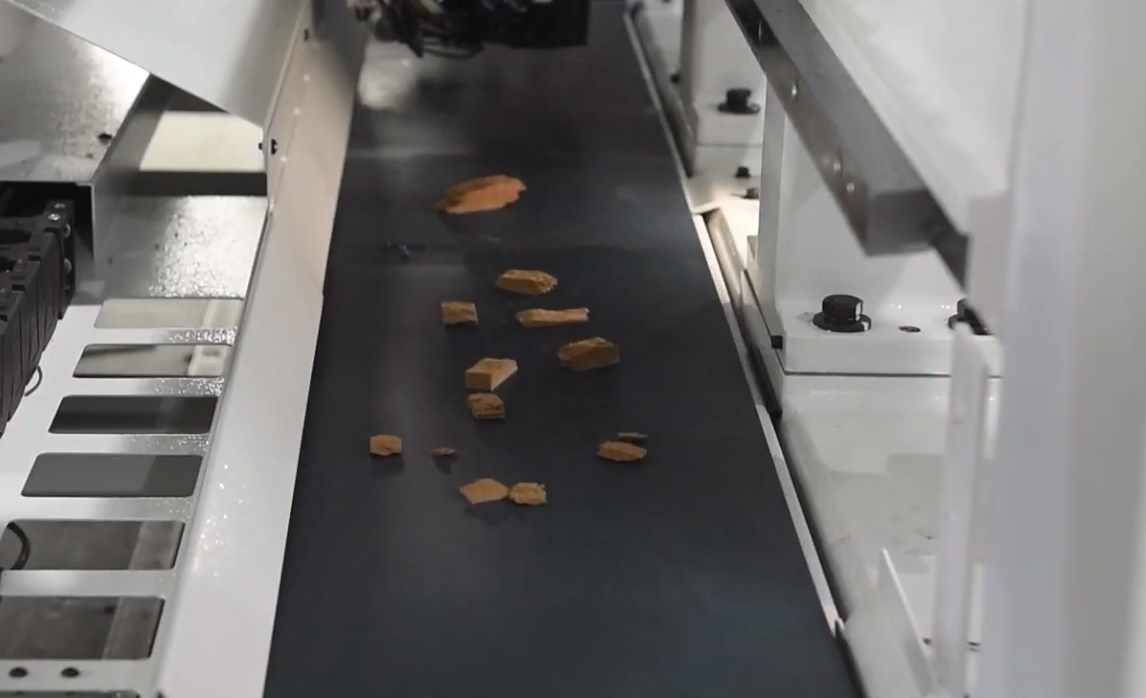

The basic machine has a conveyor for removing chips and small workpiece residues.

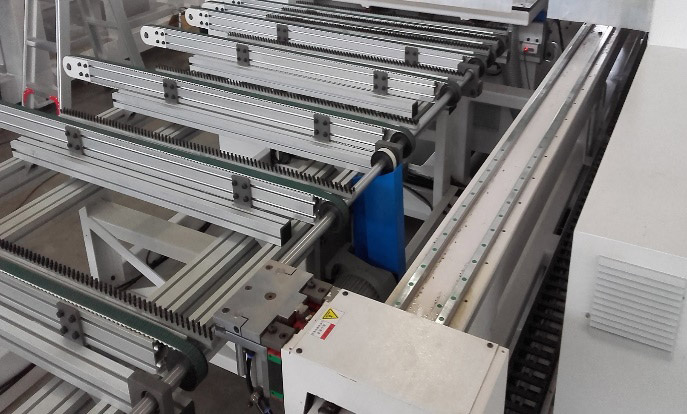

The unloading conveyor is equipped with belt drives and motion sensors.
The tables are equipped with an air cushion to prevent scratches and chips.
Movable plates in the drilling area allow through milling.
Reliable protection prevents operator injury.
The minimum workpiece size is 70x35 mm, which allows for the addition of small-sized parts.
The machine uses high-precision INVT servos to ensure superior precision and high productivity.
A sealed dust- and moisture-resistant cabinet with electronic components from the world's leading manufacturers is removed from the processing area, which extends the service life of electrical components and ensures ease of maintenance.
