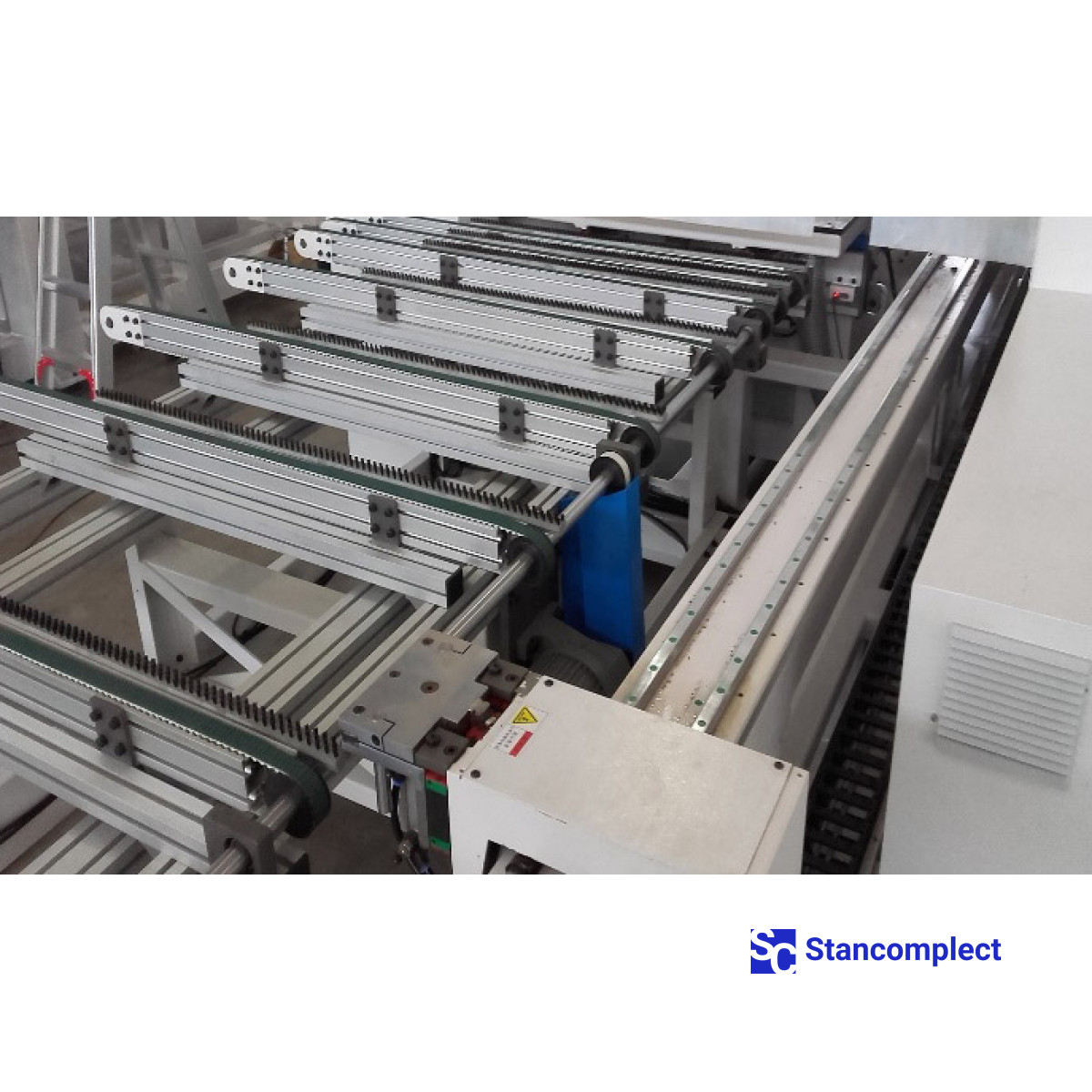

CNC drilling center KD-612NHS with three drilling groups at the top and bottom (milling + grooving saw) for drilling from 6 sides from KDT Machinery is designed for high-precision drilling of blind and through holes in the planes and ends of furniture parts in through mode , according to the given additive map. The machine is equipped with a milling unit, which allows milling straight and curved grooves.
- 3 drilling groups.
- Drilling from 6 sides.
- The best ratio of price and quality.
- Barcode Scanner.
- Air cushion table.
- Ability to work with optimizer programs with additive maps.
- Productivity 800-1200 parts per shift.
- Additive for small parts from 70x35 mm.
- For medium and large productions.
- Batch mode is supported.
- Grooving unit (Saw).
- Control of the length of the workpiece (if the workpiece is of the wrong size, the machine issues an informational message).
- Ability to perform curved cutting of blanks.
- After through milling, in a situation where the waste size is large enough, the machine stops and allows the waste to be removed from the processing area to avoid damage to the machine.
- Unloading conveyor - equipped with a workpiece detection sensor, and if the operator forgot to remove the previously processed part from the conveyor, the machine does not allow the next part to push the workpiece to the floor, but stops and waits for the workpiece to be removed.
- The movement sensor on the conveyor is equipped with a blower to avoid contamination.
The machine is equipped with an industrial computer based on Windows. The control panel of the CNC drilling machine is compatible with the GIBLAB optimizer.
Barcode reader for maximum convenience and performance optimization.

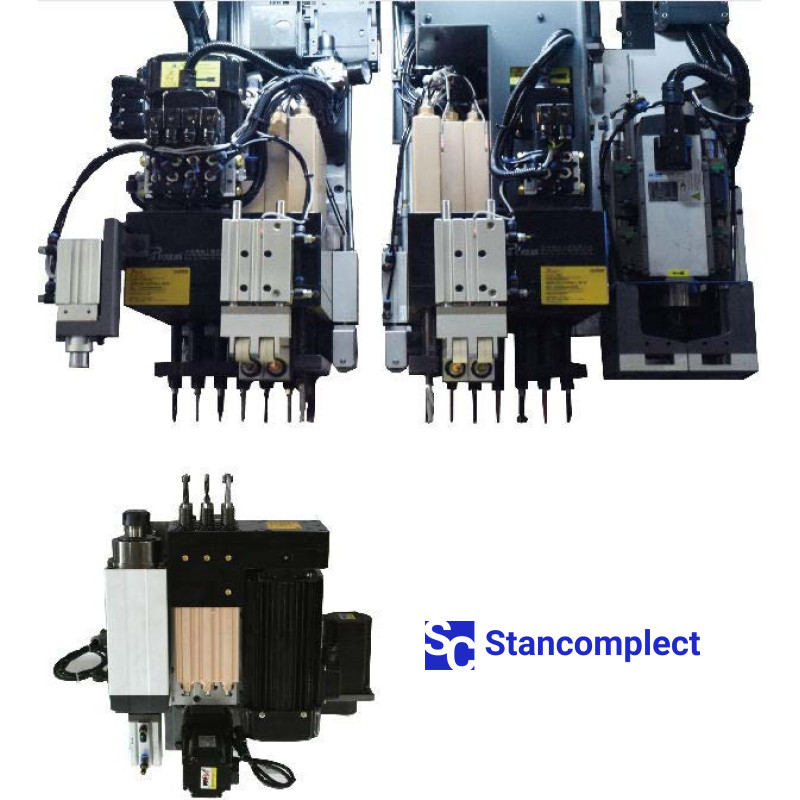

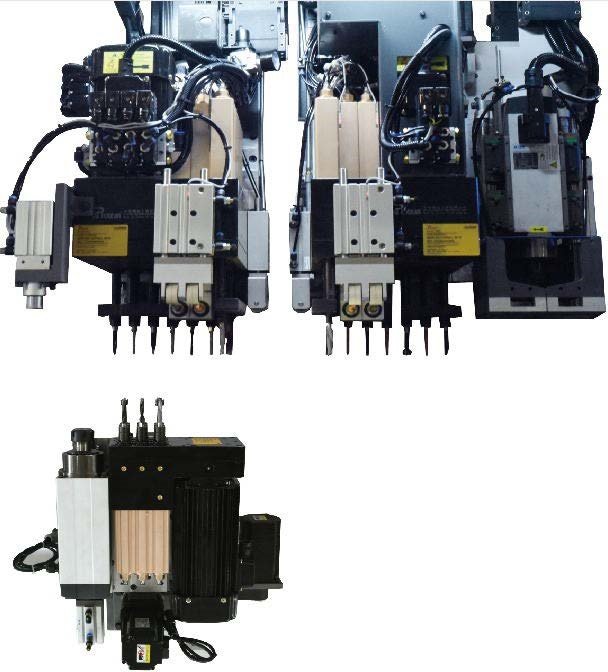

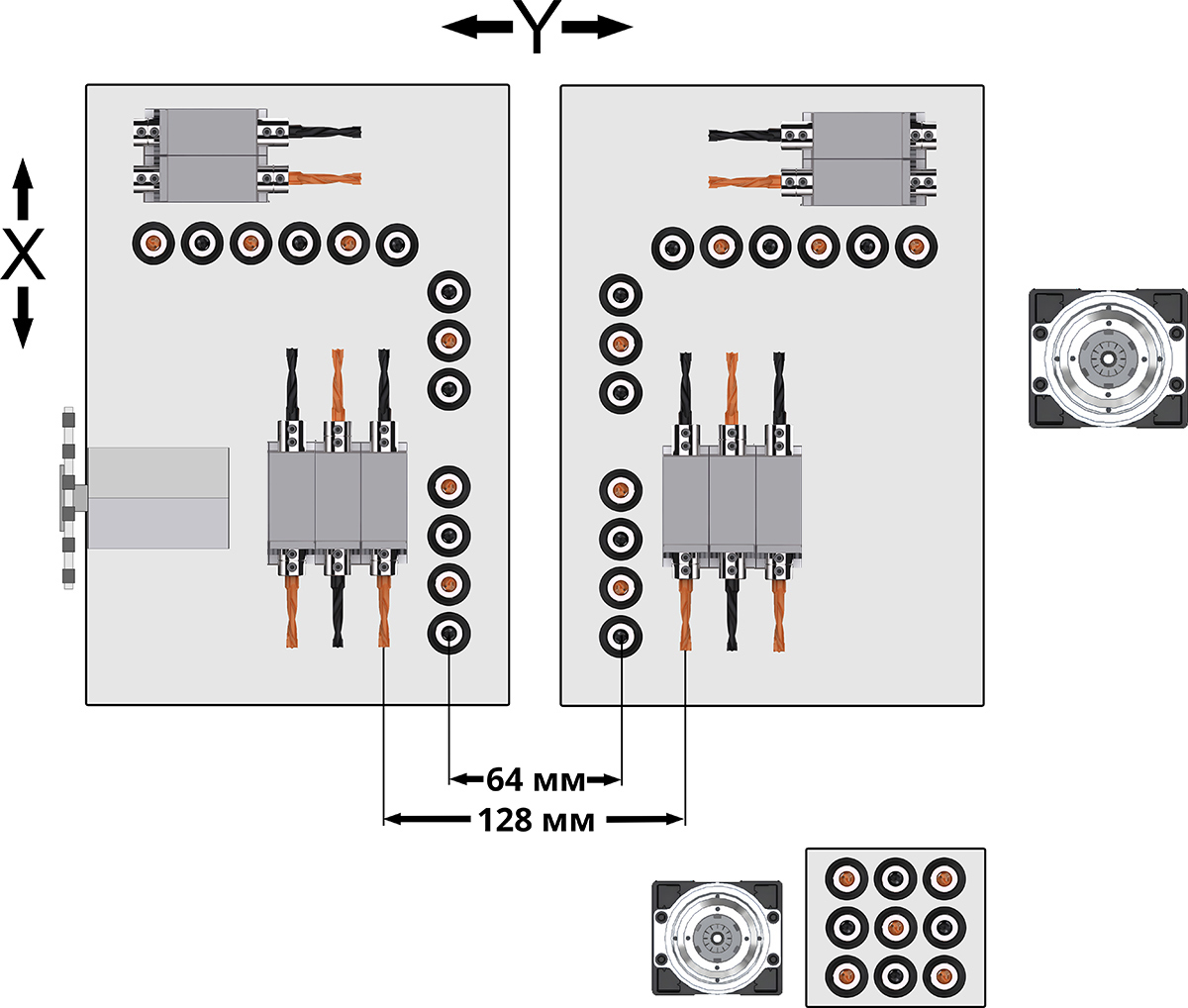

There are 3 drilling groups installed on the machine: 16 - horizontal spindles, 35 - vertical spindles (26 - from above, 9 - from below). As standard, 2 milling units (5.5 kW + 3.5 kW) and a grooving saw are installed.

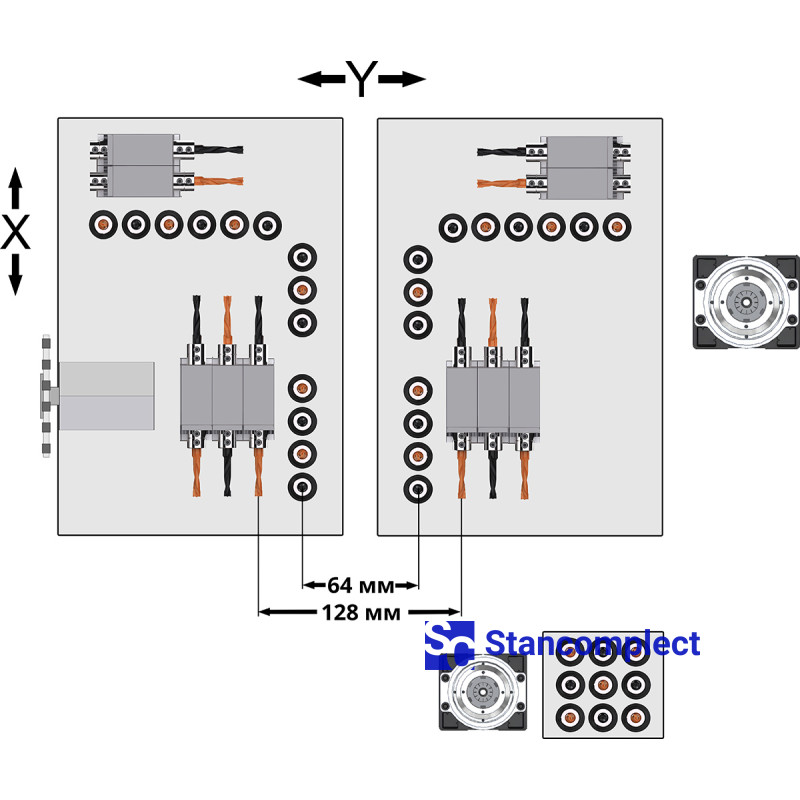

Minimum distance when drilling with two heads for:
- Vertical holes - 64 mm.
- Horizontal holes - 128 mm.

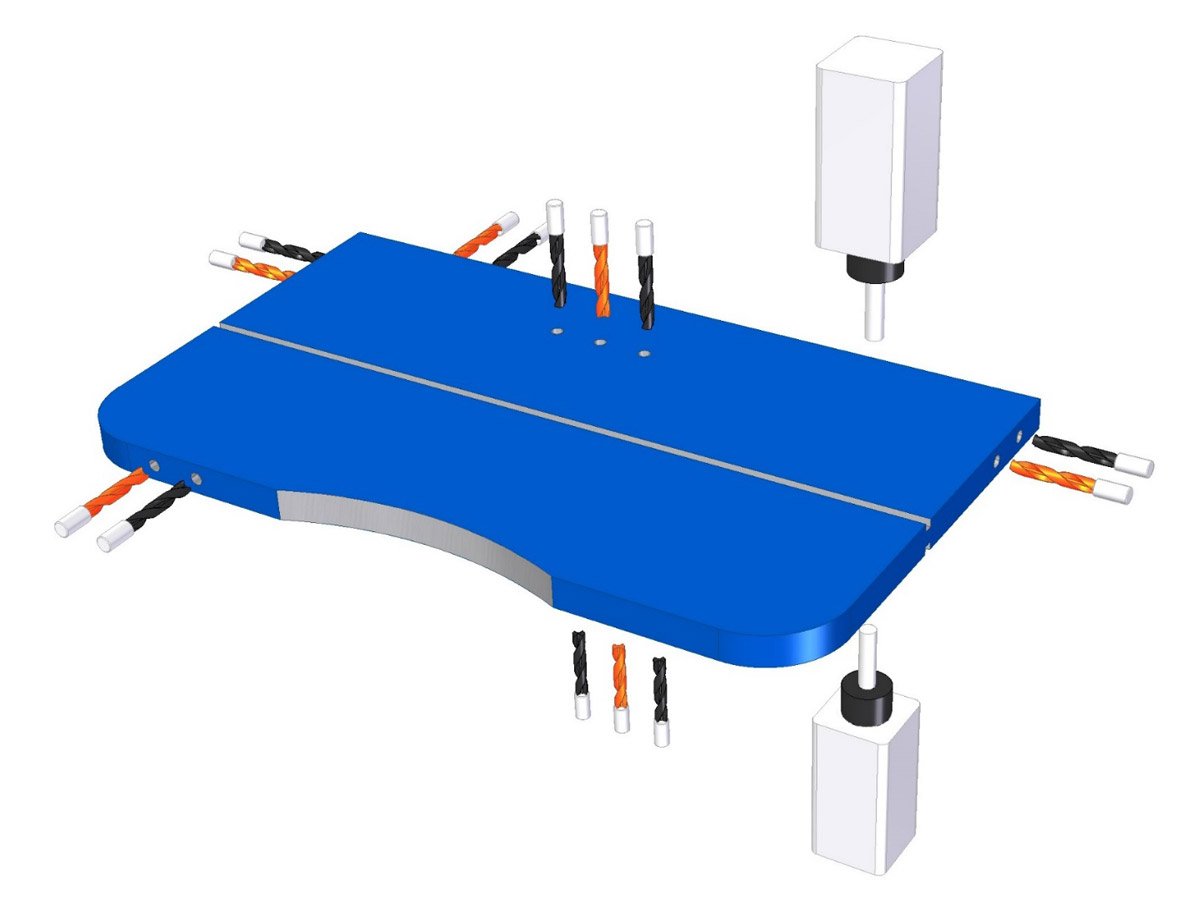

The machine can process two panels at the same time, both top and bottom, within one working cycle, thanks to the possibility of drilling from 6 sides.

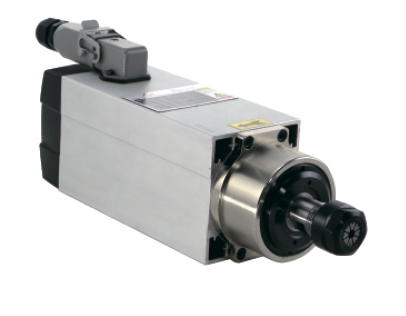

2 milling spindles: upper - 5.5 kW, lower - 3.5 kW, 18000 rpm (top and bottom) for cutting straight and curved grooves.

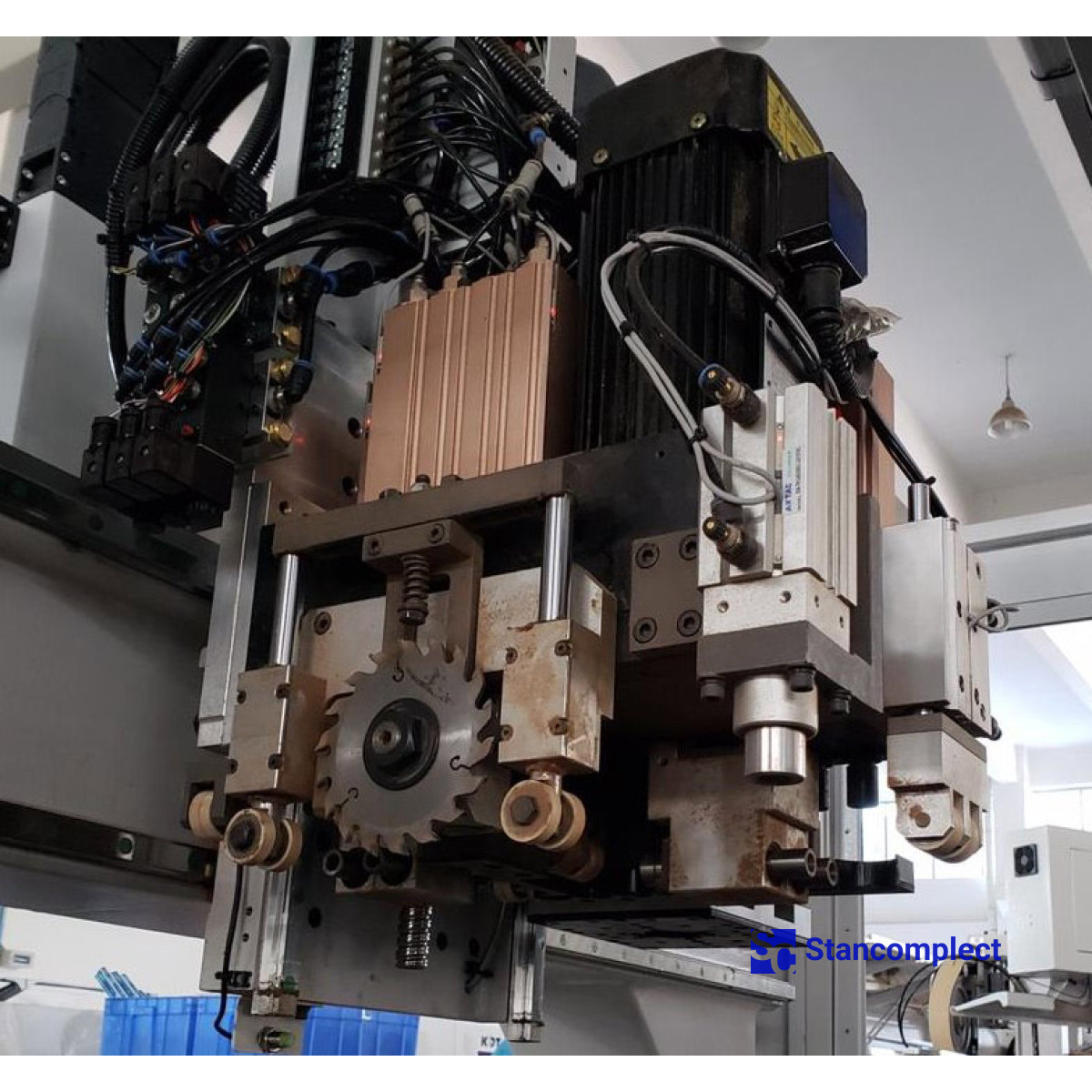

Grooving unit with a saw (disk diameter 120 mm).
Batch drilling mode - processing of two parts at the same time with a mirror filler map.
Ability to work with all popular programs for optimizing drilling maps.

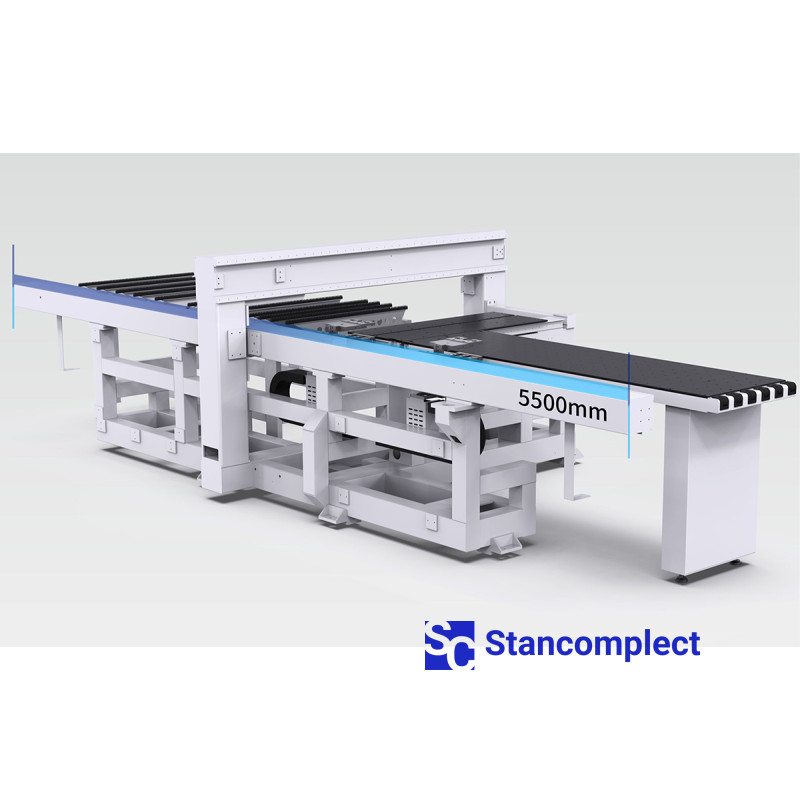

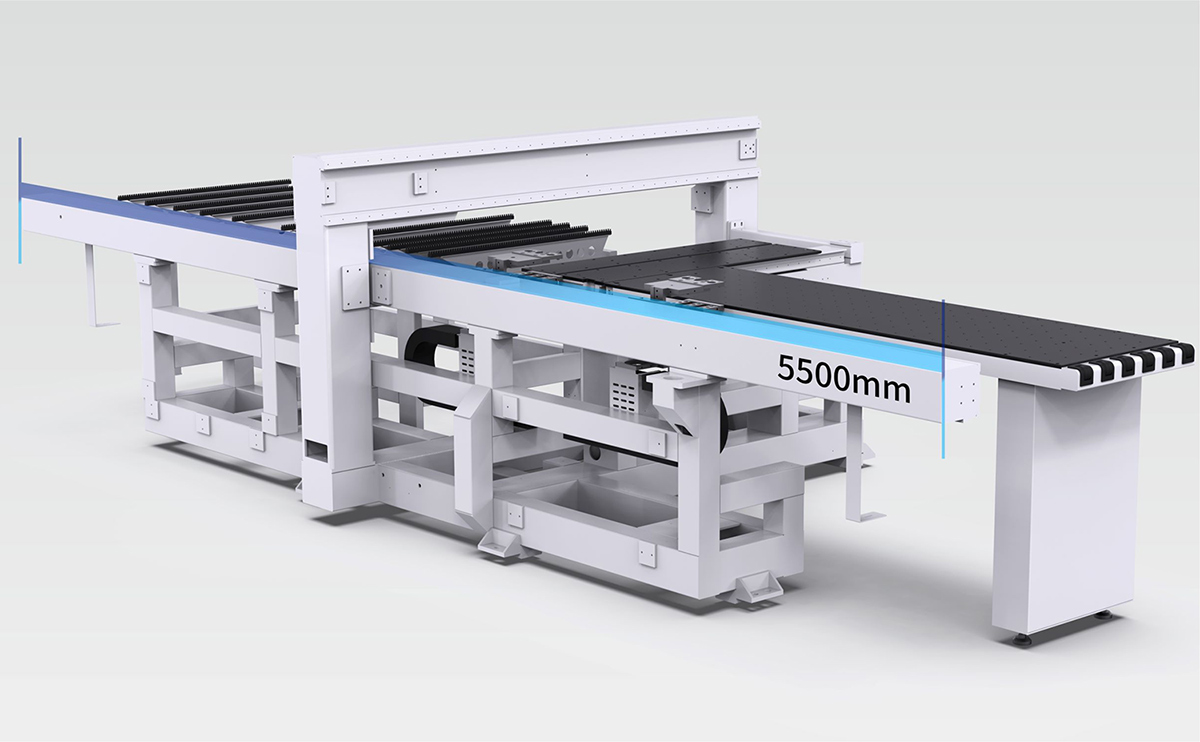

During the development of the machine, the maximum allowable loads and requirements for the design of the machine were calculated and modeled. The welded frame is tempered to relieve all internal stresses in the material, then it is processed on high-precision CNC equipment.

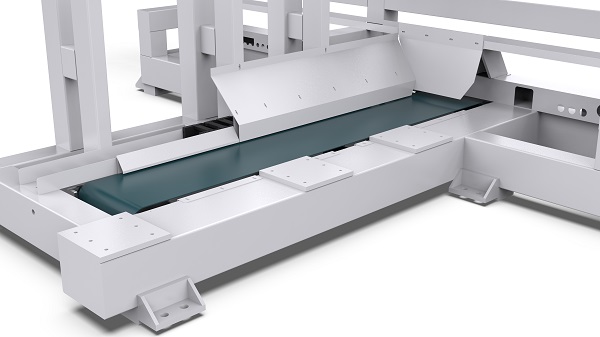

The machine in the basic configuration has a conveyor for removing chips and small residues of workpieces.

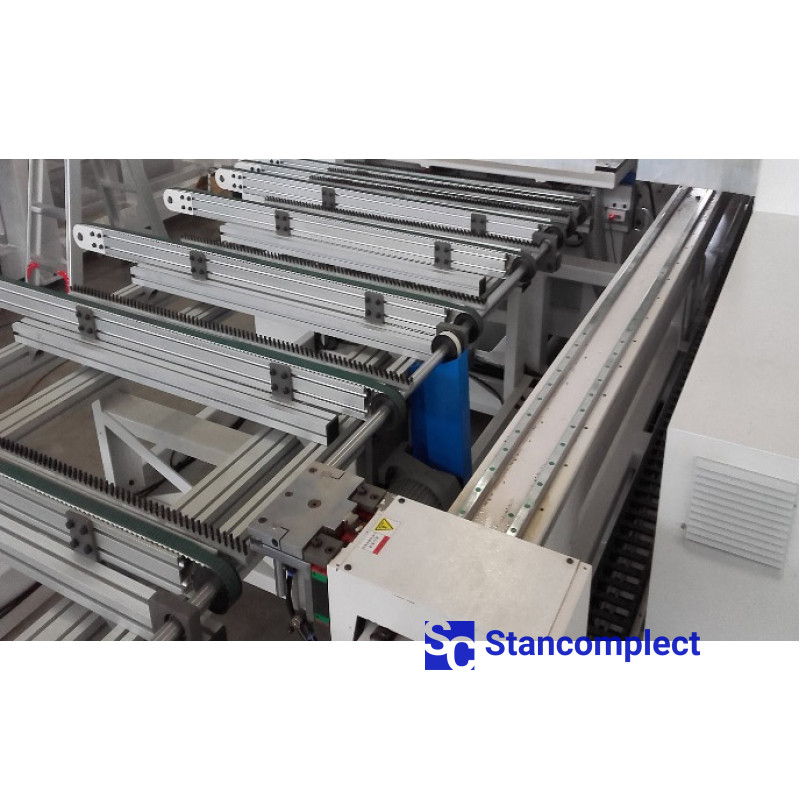

The discharge conveyor is equipped with belt drives and motion sensors.

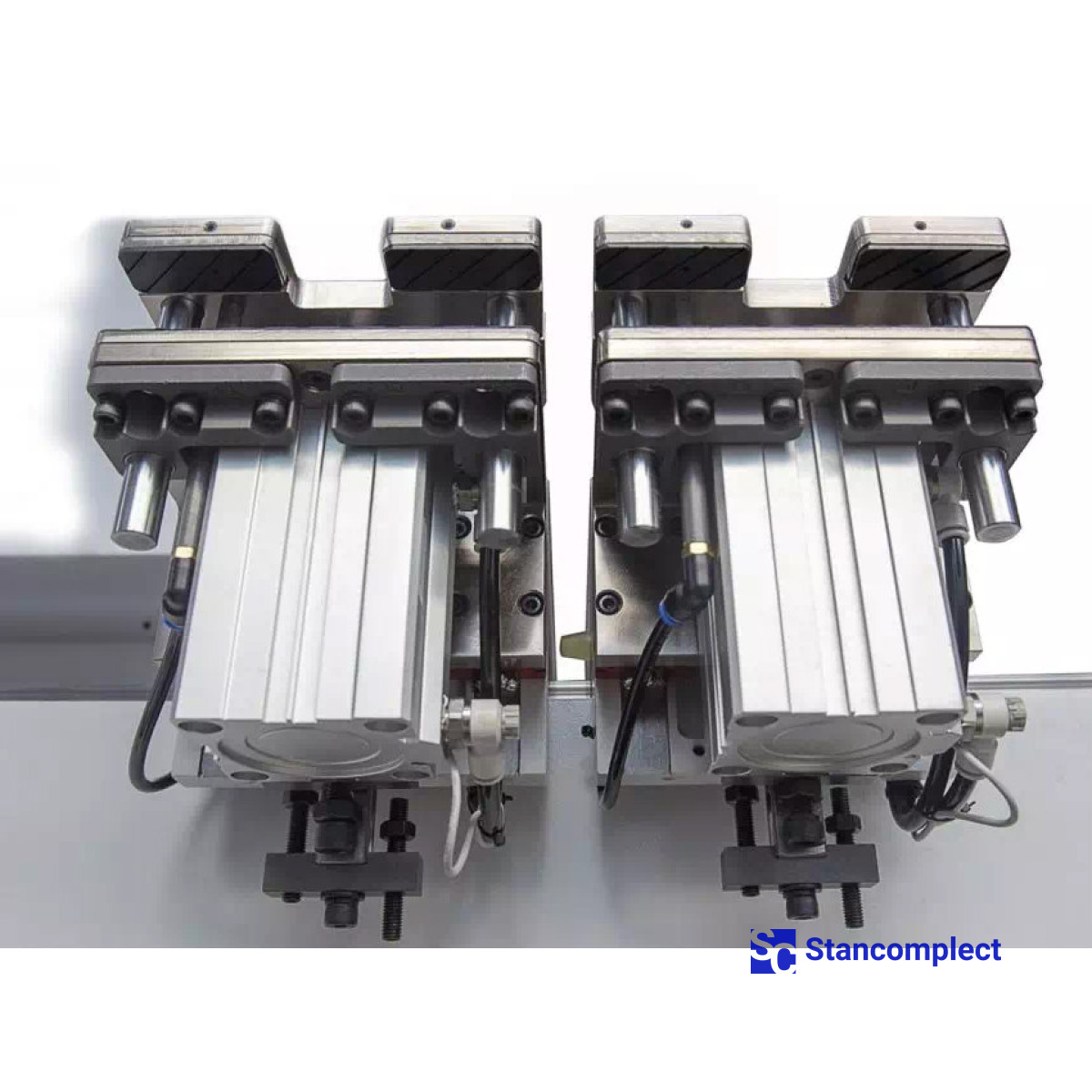

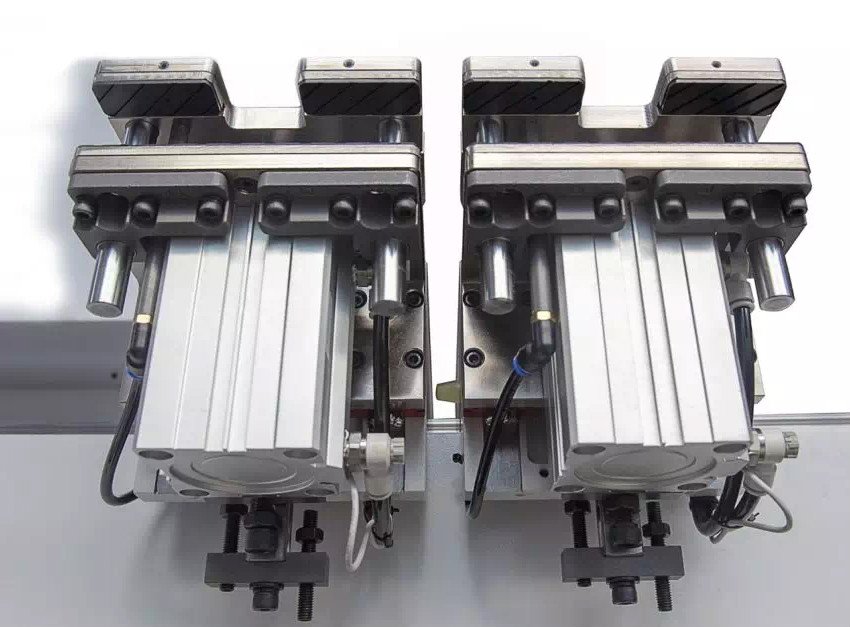

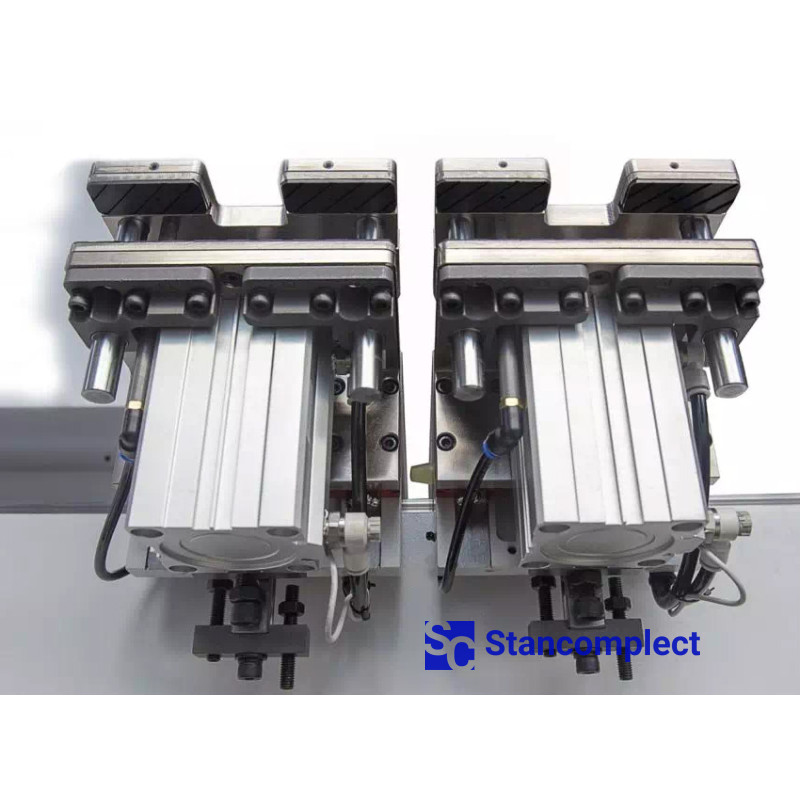

The machine is equipped with two powerful positioning clamps that move the workpiece along the X axis relative to the drilling axis. The movement of the clamps takes place on prismatic guides, which makes it possible to reach a travel speed of 140 m/min.
The tables are equipped with an air cushion to prevent scratches and chips.

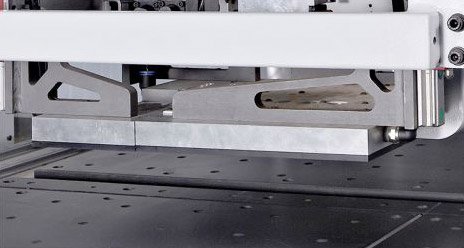

The powerful vertical clamp securely positions the workpiece. Works synchronously with the drilling unit.

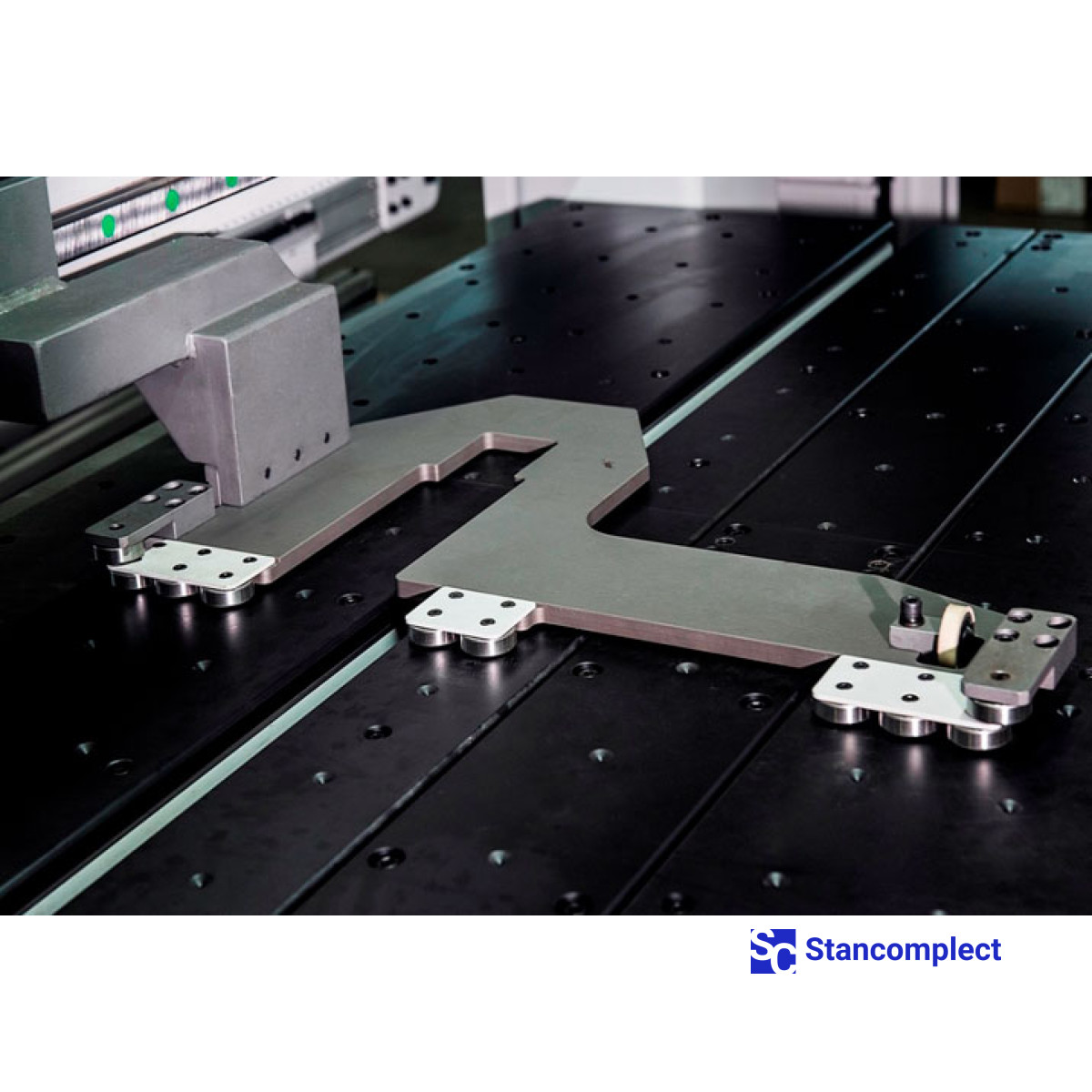

Mobile plates in the drilling area allow for through milling.

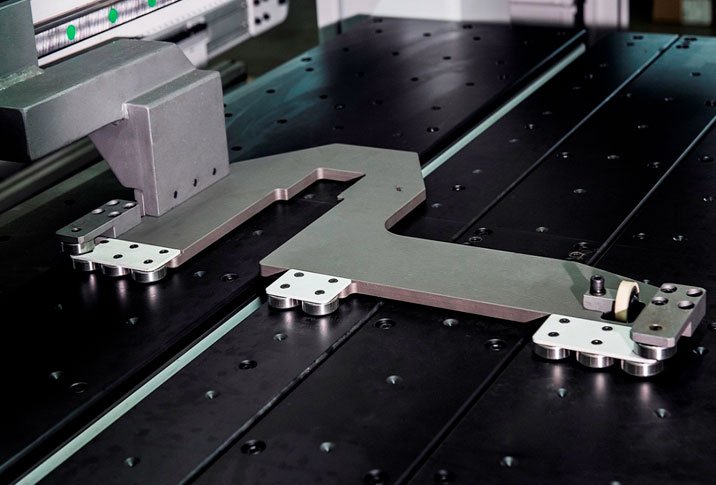

The side leveler precisely positions the workpiece.
Reliable protection prevents injury to the operator.

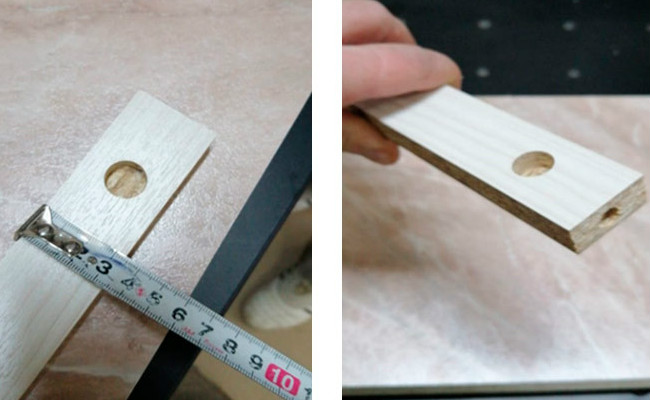

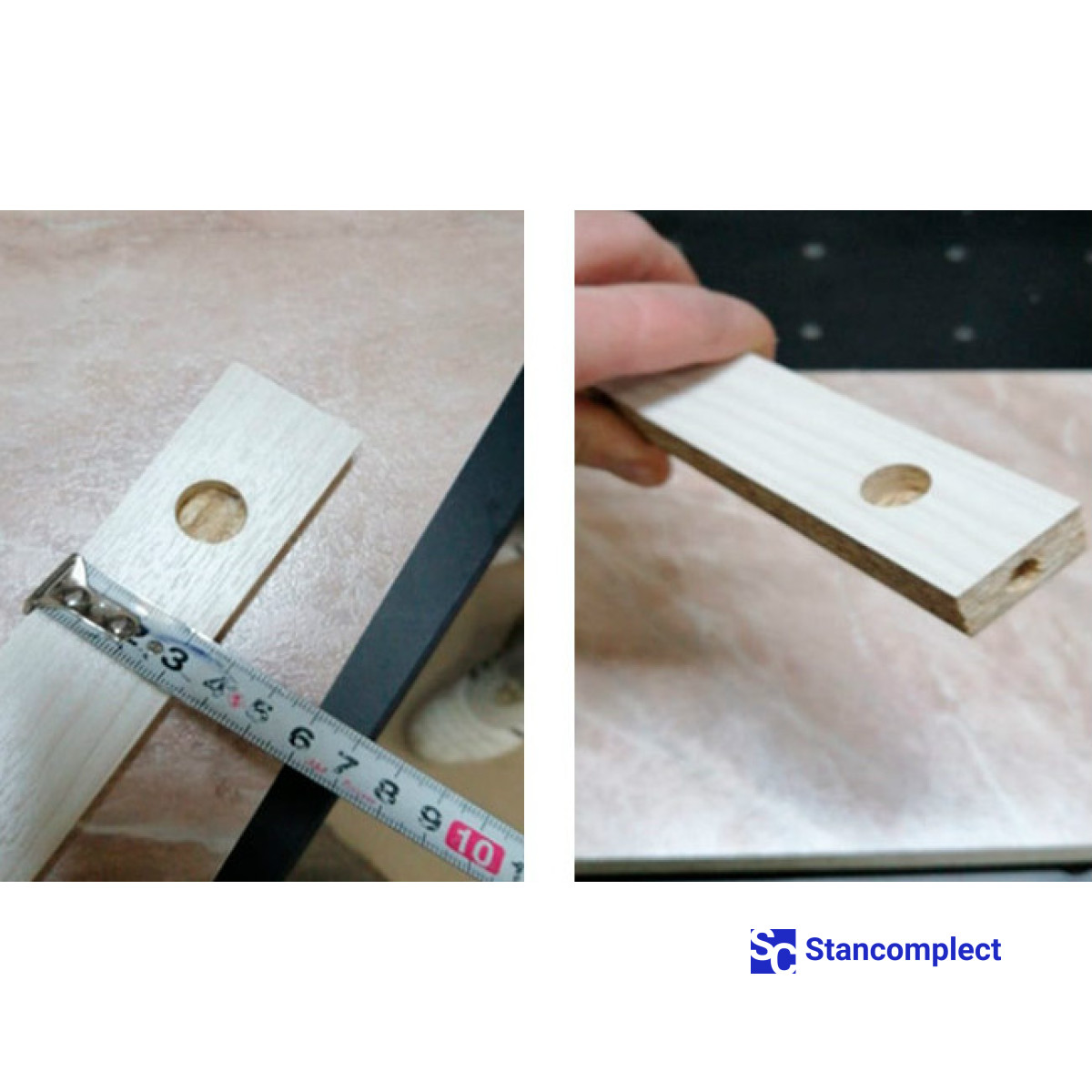

The minimum workpiece size is 70x35 mm, which allows for the addition of small-sized parts.
Sealed dust and moisture resistant cabinet with electronic components from the world's leading manufacturers is removed from the processing area, which prolongs the service life of electrical components and provides ease of maintenance.
