CNC drilling center KD-612THZA with four drilling groups at the top and bottom (milling + grooving saw) machines from KDT Machinery is designed for high-precision drilling of blind and through holes in the planes and ends of furniture parts in the through mode, according to a given additive map. The machine is equipped with a milling unit, which allows milling straight and curved grooves.
The main feature of this model over other models of the line of KDT CNC drilling machines is the possibility of retrofitting the machine with robotic and other automation tools.
- Machine vision system for scanning barcodes and QR codes.
- Roller conveyor with workpiece positioning system.
- Linear tool change with 5 positions for the upper milling unit.
- Drilling from 6 sides.
- The best ratio of price and quality.
- Air cushion table.
- Ability to work with optimizer programs with additive maps.
- Productivity 800-1000 parts per shift.
- For medium and large productions.
- Grooving unit (Saw).
- Control of the length of the workpiece (if the workpiece is of the wrong size, the machine issues an informational message).
- Ability to perform curved cutting of blanks.
- After through milling, in a situation where the waste size is large enough, the machine stops and allows the waste to be removed from the processing area to avoid damage to the machine.
- Unloading conveyor - equipped with a workpiece detection sensor, and if the operator forgot to remove the previously processed part from the conveyor, the machine does not allow the next part to push the workpiece to the floor, but stops and waits for the workpiece to be removed.
- The movement sensor on the conveyor is equipped with a blower to avoid contamination.
The machine is equipped with an industrial computer based on Windows. CAD/CAM control panel with barcode reading capability to increase machine productivity.
Intelligent visual barcode and QR code recognition device on worktable. Automatically scans and identifies the machining program.

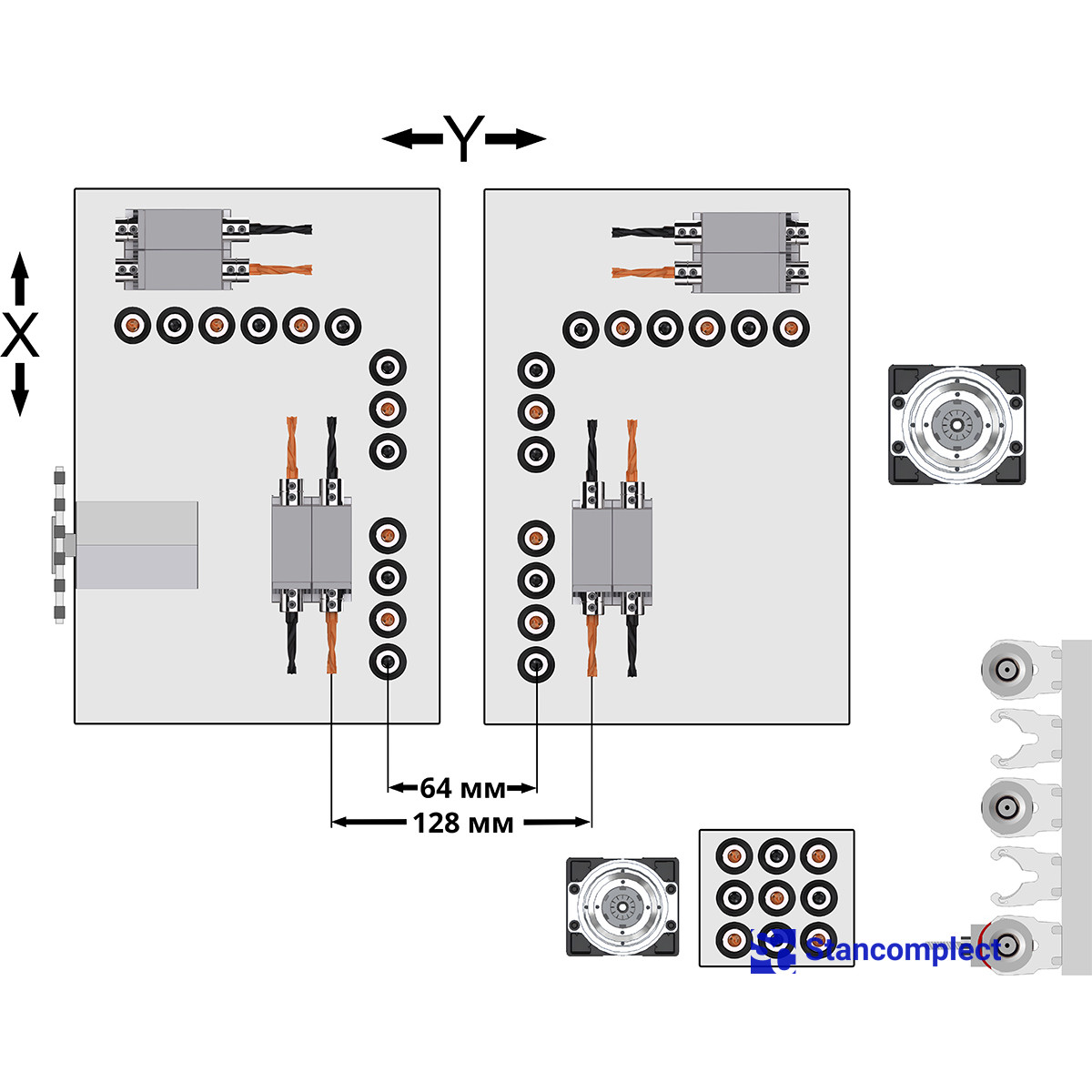

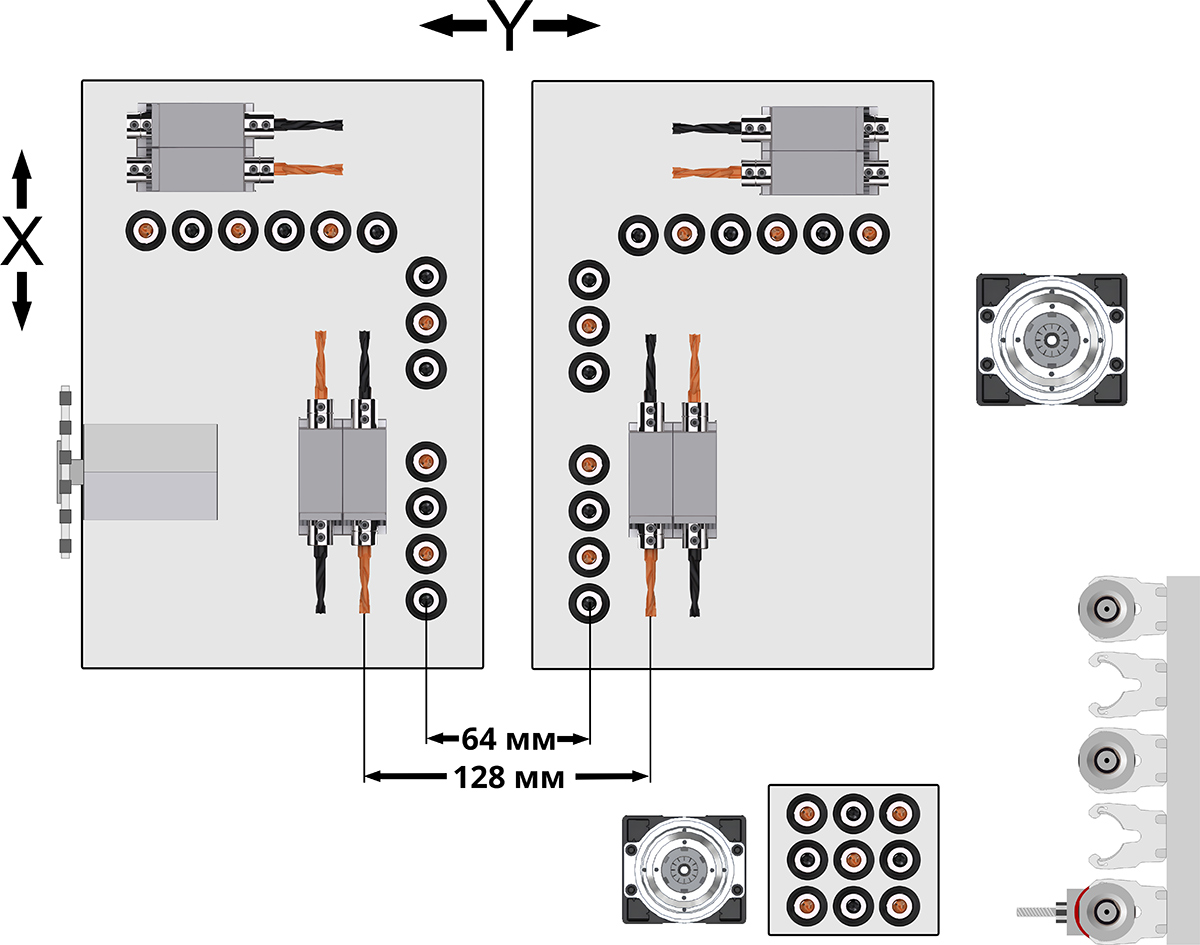

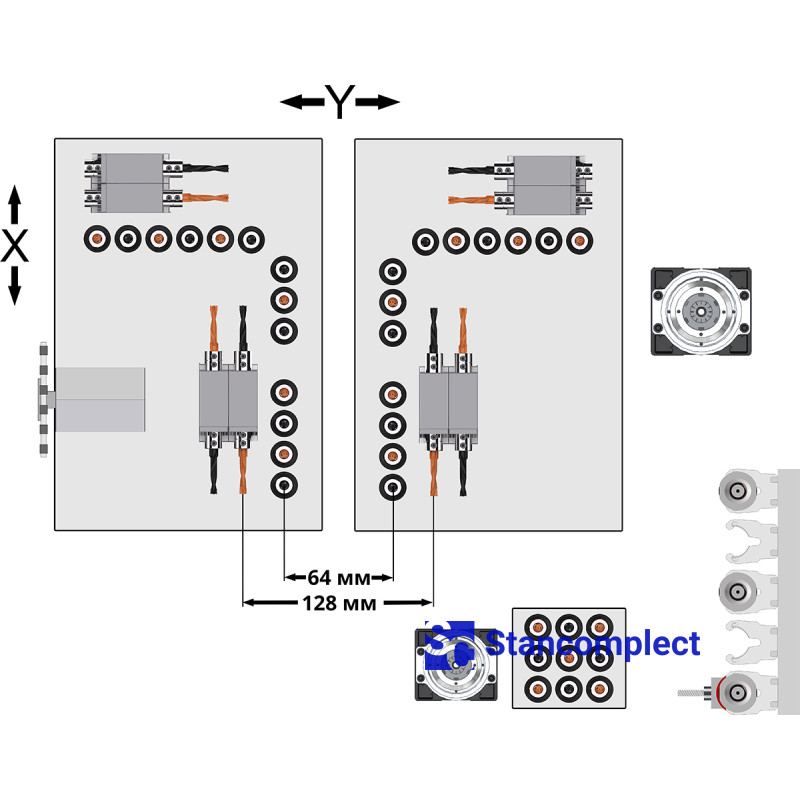

There are 4 drilling groups installed on the machine: 18 - horizontal spindles, 44 - vertical spindles (26 - from top, 18 - from bottom). As standard, 2 milling units (5.5 kW + 3.5 kW) and a grooving saw are installed.
Minimum distance when drilling with two heads for:
- Vertical holes - 64 mm.
- Horizontal holes - 128 mm.
The machine can process two panels at the same time, both top and bottom, within one working cycle, thanks to the possibility of drilling from 6 sides.
2 milling spindles 5.5 kW and 3.5 kW, 18000 rpm (top and bottom). The upper milling spindle, due to its increased power, has the ability to work with various tools and carry out various operations - milling under the LAMELLO coupler, side milling and grooving.
A special CNC unit has the ability to carry out sawing, drilling and milling operations (for invisible fittings, handles, hinges, etc.).
The upper milling spindle is equipped with a 5-position linear tool change, which saves time when switching from one type of processing to another.
Grooving unit with a saw (disk diameter 120 mm).
Two automatic clamps securely hold workpieces from 200 to 2800 mm in length and reduce the number of regripping operations during drilling. This significantly shortens the working cycle compared with machines equipped with a single clamp. The maximum speed has been increased to 140 m/min.
The minimum workpiece size is 200х45 mm, enabling the drilling of small parts.
The upper routing spindle is equipped with a powerful vertical hold-down system featuring two pressure plates. It improves routing accuracy and prevents damage to the workpiece.
Workpiece positioning on the machine is performed by an automatic side alignment device. After the barcode is scanned, the side alignment device moves as close to the workpiece as its dimensions allow. The workpiece is positioned against the zero reference point on the X-axis, while the side alignment device aligns it along the Y-axis. Two pneumatic grippers then transfer the workpiece into the machine’s working area for further processing.
The side alignment device ensures high operating accuracy by being mounted on a linear guide with two bearing carriages. Movement is driven by a servo motor.
Movable plates in the drilling area enable through milling. The parts move smoothly across the table thanks to a flow of air supplied by a special electric fan through openings in the top of the table, thereby preventing any scratches from appearing on the underside of the part.
The machine is equipped as standard with a conveyor for removing chips and small workpiece offcuts.
Compatible with all popular drilling pattern optimization software.
During the machine design process, the maximum permissible loads and structural requirements were calculated and modelled. The welded frame undergoes stress-relief heat treatment to eliminate internal stresses in the material, followed by machining on high-precision CNC equipment.
The sealed, dust- and moisture-resistant electrical cabinet houses electronic components from leading global manufacturers. It is located outside the machining area, extending the service life of the electrical components and providing convenient access for maintenance.
