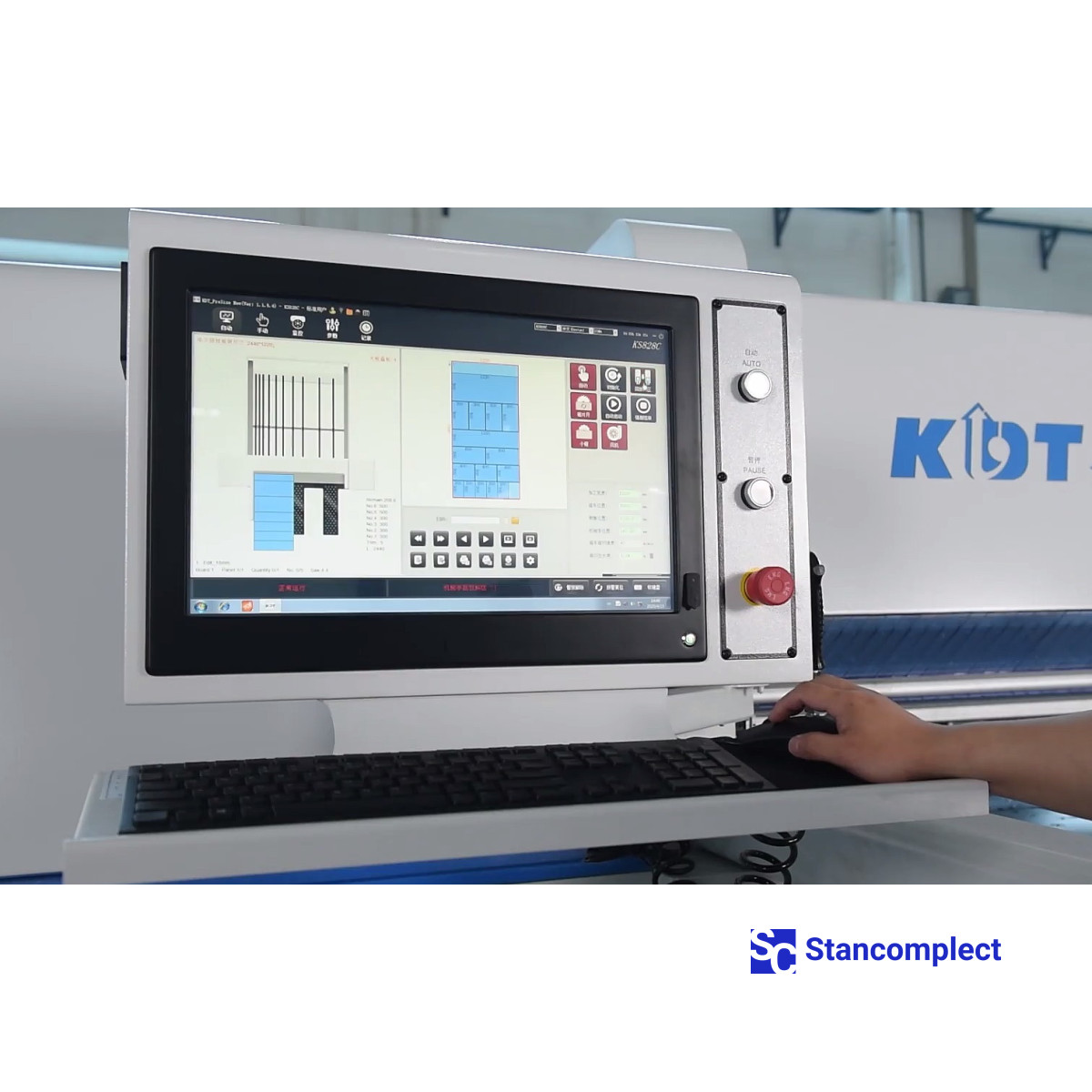

CNC panel saw/beam saw KS-832DT with grooving function from KDT Machinery is designed for automatic cutting of a package of coated or uncoated chipboard, MDF, fiberboard with a maximum package height of up to 90 mm. The CNC panel saw/beam saw from KDT is characterized by the highest reliability, large margin of safety and high quality cutting of laminated boards.
- Grooving function.
- Main saw adjustment - servomotor.
- Scoring saw adjustment from the control panel.
- Polished steel plates in the cutting area.
- Work with optimizer programs that allow you to program the cutting order, print labels and import files with cutting maps.
- The maximum height of the opened package is 90 mm.
- The movement of the saw carriage occurs due to a spur rack and gear using a servomotor. Accuracy-Speed-Durability, three main parameters, according to which it was decided to complete our machine with these rails.
- The minimum cut size is 34x45 mm.
- Saw carriage travel speed up to 95 m/min.
- Saw carriage idle speed up to 120 m/min.
- The speed of the programmable pusher is 95 m/min.
- The working table of the machine is equipped with a blowing system (air cushion).
- The industrial computer ensures the reliable operation of the CNC system.
- Automatic lifting of the main saw to the required height depending on the thickness of the material being cut.
- Automatic determination of the length of the cut.
- Quick tool change system.
- The programmable pusher is equipped with 10 pneumatic two-finger grippers.
- Servo adjustment for lifting/lowering the main saw.
Raising the main saw is carried out by a servo drive, due to which a high accuracy of the cutting height is achieved when grooving.

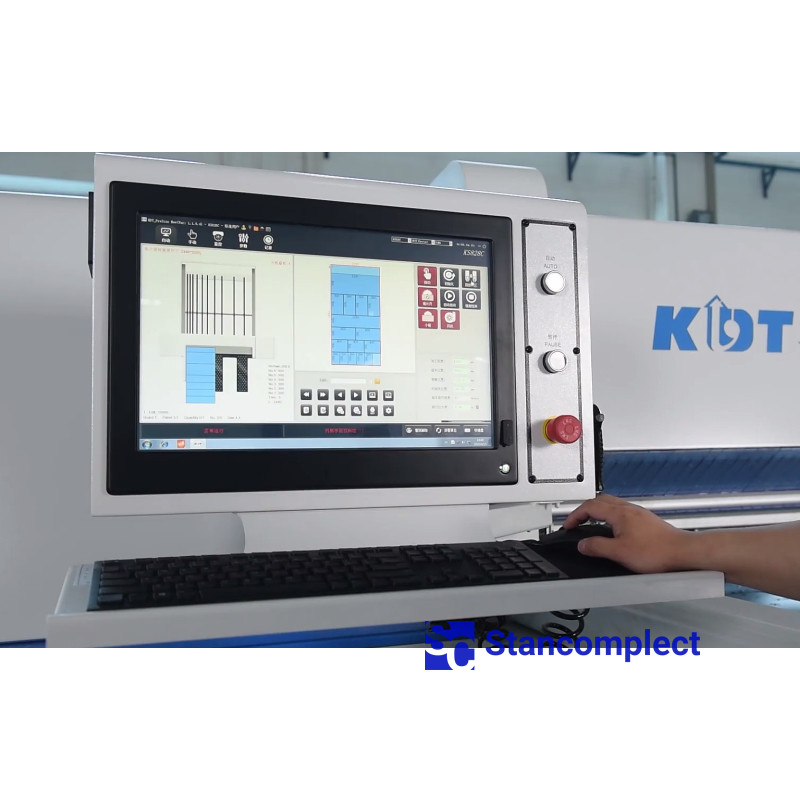

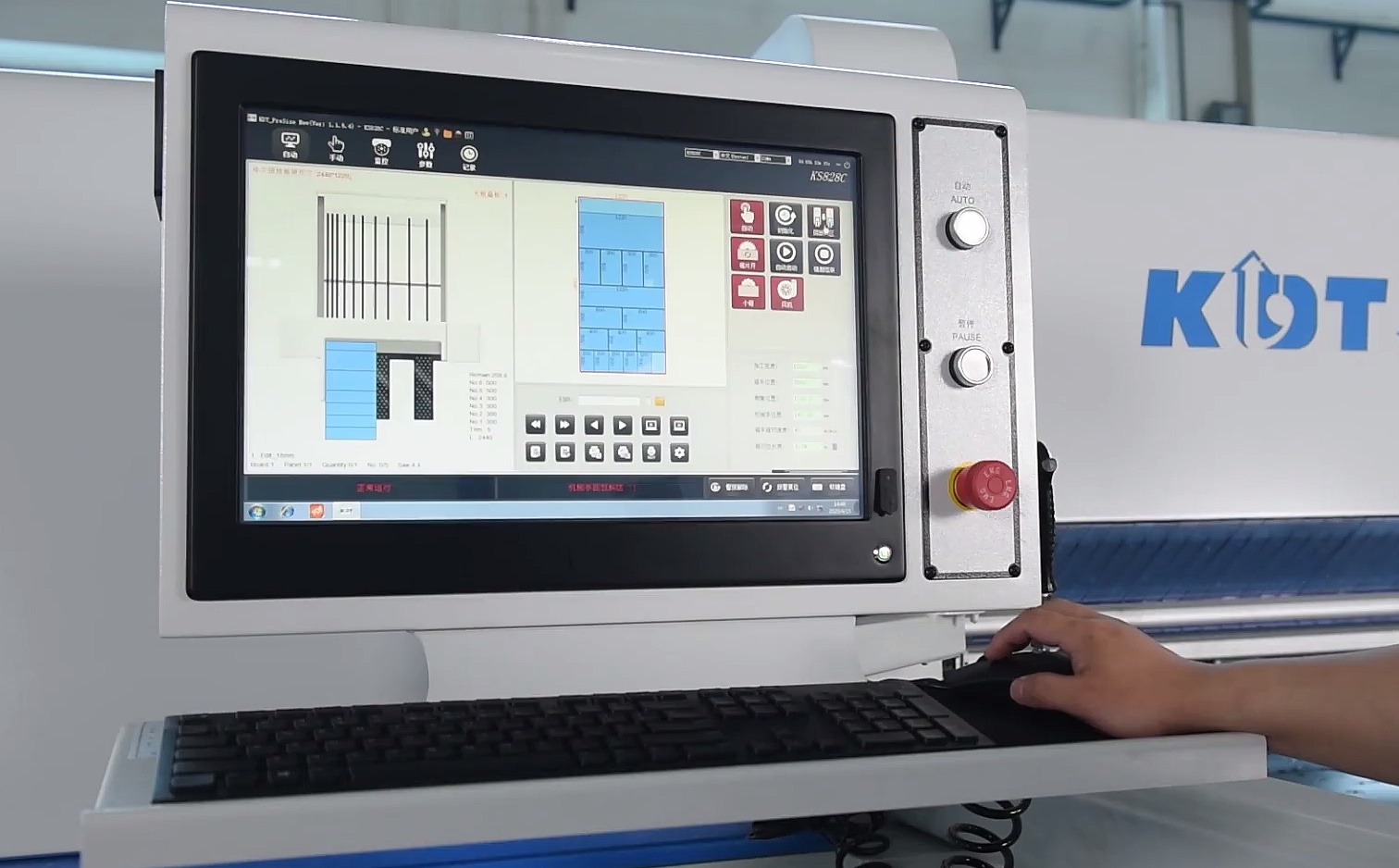

An industrial computer based on Windows 10 ensures reliable operation of the CNC system.
The machine bed is made of special carbon steel, which ensures very high stiffness and torsional resistance.
Ability to work with all popular programs for optimizing cutting charts and printing labels.
Longitudinal lever for switching on/off the cutting cycle.
The infeed worktables are equipped with an air cushion system to facilitate the positioning of workpieces.
The cutting area is equipped with tables with polished steel plates with an air cushion, which significantly facilitates work with small parts and protects them from damage.
Separate motors for main and scoring saw. Servo adjustment for lifting/lowering the main saw.
Automatic adjustment of the height of the main saw and the departure of the pressure beam according to the height of the package being cut.
The force of the clamping beam is controlled by the system and corresponds to the thickness or height of the stack cutting. Equipped with an injury protection system.

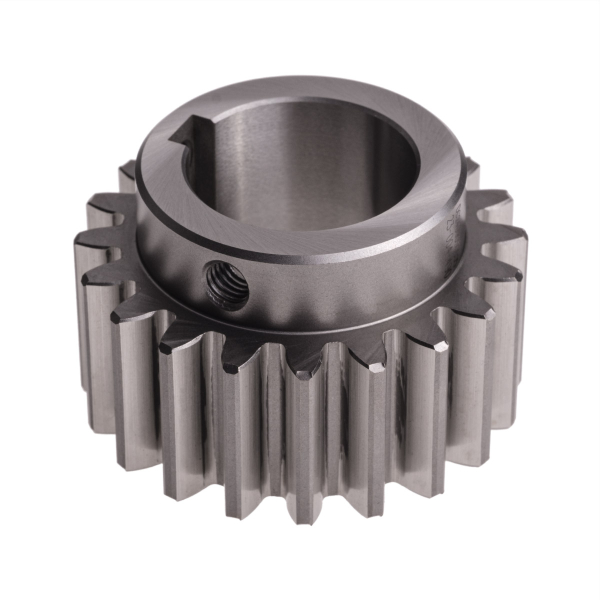

The movement of the saw carriage occurs due to a spur rack and gear using a servomotor. This ensures greater cutting accuracy up to +-0.1 mm.

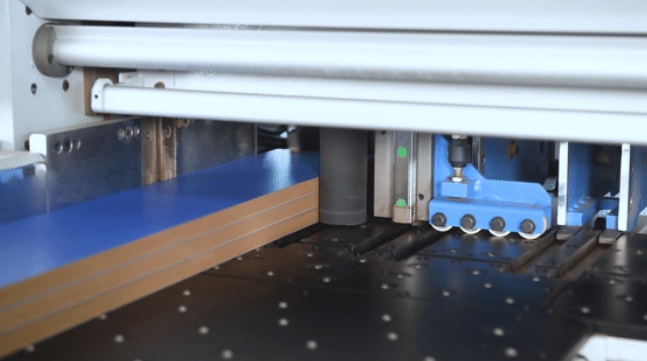

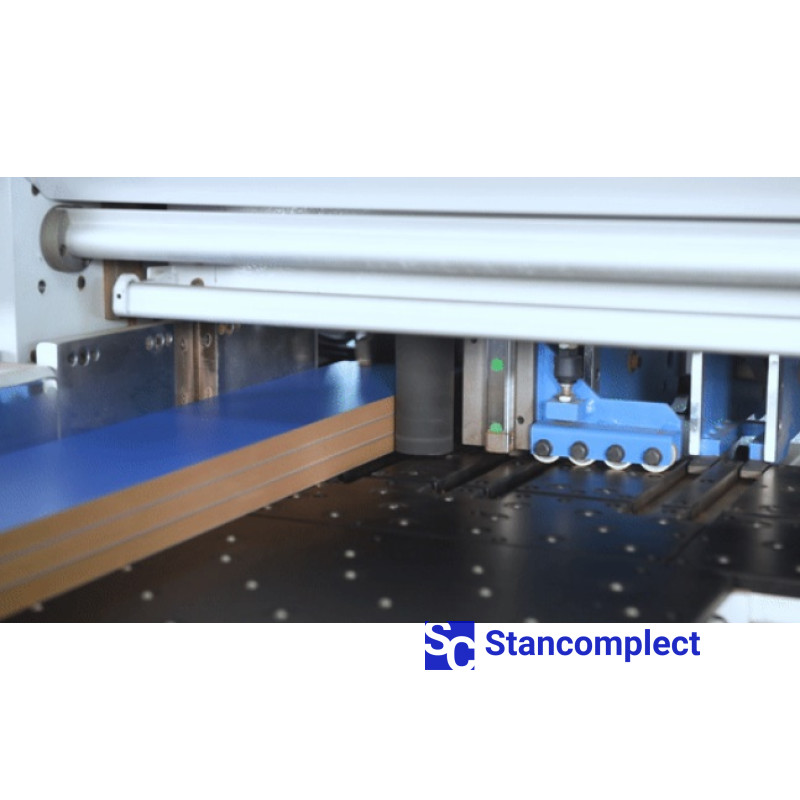

Side stops with rollers and linear guide accurately position narrow strips on the side ruler when cutting them into finished parts and ensure more stable operation. Speed increases up to 24 m/min, saving time for positioning and leveling.
The programmable pusher is equipped with 10 two-finger pneumatic grippers, which guarantees a secure fixation of the workpiece package.
The special design of the grippers does not damage the material during its fixation and movement.
Flexible and durable cable channel provides stable and fast movement of the pusher with pneumatic grips.
Electrical components comply with CE standards.
Height of package cutting - 90 mm. Possibility to cut 5 18 mm chipboard boards.
The minimum workpiece size is 34x45 mm.
What I liked about the machine:
- Grooving function is a super option.
- Clear interface, the operator learned quickly.
- The saw unit does not go all the way, but only according to the size of the part (saving time).
- The saw itself rises according to the height of the package, which minimizes chipping. On our Italian saw the offset was fixed.
- All clamps on the pusher are double - for Europeans this is an expensive option. There are ENTIRE clamps in the basic package - 10 pcs!
- Our old Italian had weak blowers on the tables and we were very tired of it. There are 2 powerful ones on this - it’s enough.
- Great service - the guys fixed small nuances remotely!
Summary: The machine is cool. Thank you very much to the guys at Stancomplect!
