CNC panel saw/beam saw KS-543HLM with rear loading and Twin Pusher from KDT Machinery is designed for automatic cutting of a stack of coated or uncoated chipboard, MDF, fiberboard with a maximum stack height of up to 120 mm. The CNC panel saw/beam saw from KDT is characterized by the highest reliability, high structural strength reserve and high-quality cutting of laminated boards.
- Automatic rear loading on the machine allows you to load a panel stack with a maximum size of 2200x4000 mm.
- Hydraulic lifting table with load capacity up to 4000 kg.
- 2 independent pushers for cutting panels of different lengths improve cutting efficiency for different sizes.
- Moves the two left grippers parallel to the cutting line.
- The innovative saw carriage with Maglev technology ensures smooth, easy movement of the saw carriage and allows you to achieve high cutting accuracy and speed.
- Magnetic positioning to measure workpiece lifting during rear loading, minimum workpiece thickness is 8 mm.
- Grooving function;
- Polished steel plates in the cutting area.
- Work with optimizer programs that allow you to program the cutting order, print labels and import files with cutting plans.
- Visualization of the order of cutting and a schematic map of the cut.
- The maximum height of the panel stack is 120 mm.
- The minimum workpiece size is 34x45 mm.
- Saw carriage travel speed up to 160 m/min.
- Saw carriage return speed up to 200 m/min.
- The speed of the programmable pusher is 95 m/min.
- The working table of the machine is equipped with a blowing system (air cushion).
- The main worktable has been enlarged to 2200x800 mm.
- The industrial computer ensures the reliable operation of the CNC system.
- Automatic lifting of the main saw to the required height depending on the thickness of the material being cut.
- Automatic determination of the length of the cut.
- Quick tool change system.
- The programmable pusher is equipped with two groups of double grippers that move left and right, 1 standard push gripper, five two-finger pneumatic grippers.
- Servo adjustment for lifting/lowering the main saw.
- Smart LED Indicators.
- Sealed dust curtain behind the pressure beam.
Automatic rear loading allows you to load a panel stack with a maximum size of 4000x2200 mm into the machine. Carriage for preparing panel material for subsequent cutting. Pushes the required amount of sheet material according to a given program. Operates independently of the main pusher.
Hydraulic lift table:
- Maximum load - 4000 kg.
- Platform with a driven roller table, fixed on cables.
- The maximum panel stack dimensions is 4000x2200 mm.
- The height of the stack of panel material without an installation pit / with an installation pit is 600/1300 mm.
Magnetic positioning to measure workpiece lifting during rear loading, minimum workpiece thickness is 8 mm.
Raising the main saw is carried out by a servo drive, due to which a high accuracy of the groove depth is achieved when grooving.
2 independent pushers for cutting panels of different lengths improve cutting efficiency for different sizes.
The next sheet is fed before the cutting of the current one is completed.
The machine can carry out simultaneous cutting of two blanks of different sizes.
Moves the two left grippers parallel to the cutting line to prevent damage to the edges of parts and securely hold parts of different widths. The programmable pusher is equipped with two groups of double grippers that move left and right, 1 standard pusher gripper, five two-finger pneumatic grippers, which guarantees reliable fixation of the stack of workpieces. The clamps reliably fix both a stack of material up to 120 mm thick, and a single panel.
An industrial computer based on Windows 10 ensures reliable operation of the CNC system.
Visualization of the order of cutting and a schematic map of the cut.
The machine frame is made of special carbon steel, which ensures very high stiffness and torsional resistance.
Ability to work with all popular programs for optimizing cutting plans and printing labels.
Full-length switch bar for starting/stopping the cutting cycle.
The main worktable has been enlarged to 2200x800 mm.
The infeed worktables are equipped with an air cushion system to facilitate the positioning of workpieces.
The cutting area is equipped with tables with polished steel plates with an air cushion, which significantly facilitates work with small parts and protects them from damage.
Separate motors for main and scoring saw. Quick and easy blade change (patented by KDT).
Automatic adjustment of the height of the main saw and the lift height of the pressure beam according to the height of the stack being cut.
The force of the clamping beam is controlled by the system and corresponds to the thickness or height of the panel stack being cut. Equipped with an injury protection system.
The machine is equipped with an innovative saw carriage with Maglev technology with a linear motor. The saw carriage has high rigidity, high accuracy up to +-0.1 mm and high dust protection of the linear guide rail. Sawing is more accurate and stable, with low noise, low vibration and high speed. The maximum speed can reach 200 m/min.
Side stops precisely position narrow strips along the side fence when cutting them into finished parts.
The special design of the grippers does not damage the material during its fixation and movement.
Flexible and durable cable carrier chain provides stable and fast movement of the pusher with pneumatic grippers.
Electrical components comply with CE requirements.
Stack cutting height - 120 mm. Possibility to cut 6 chipboard panels 18 mm thick.
The minimum workpiece size is 34x45 mm.

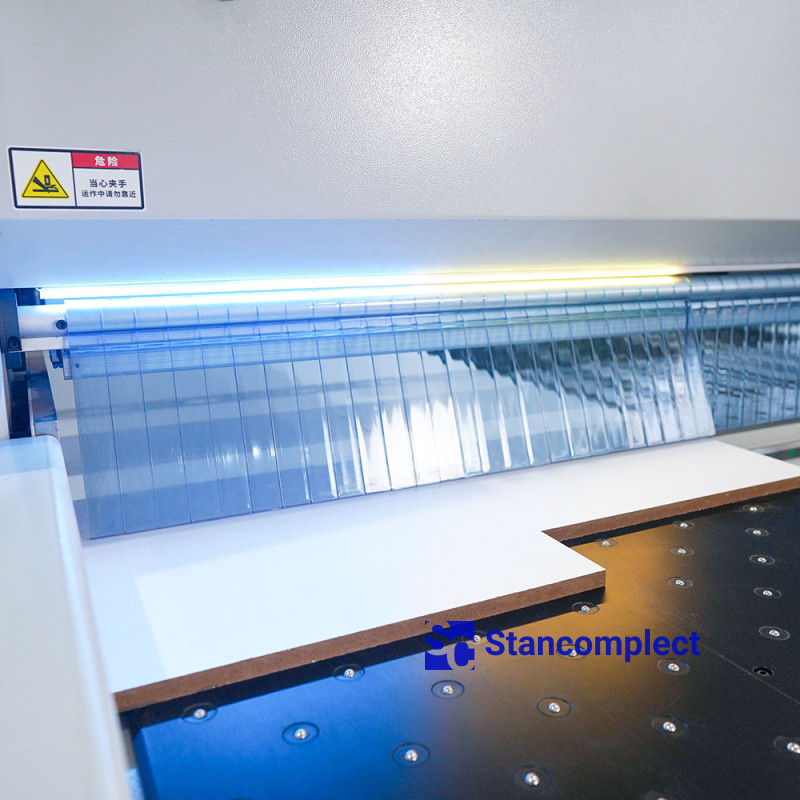

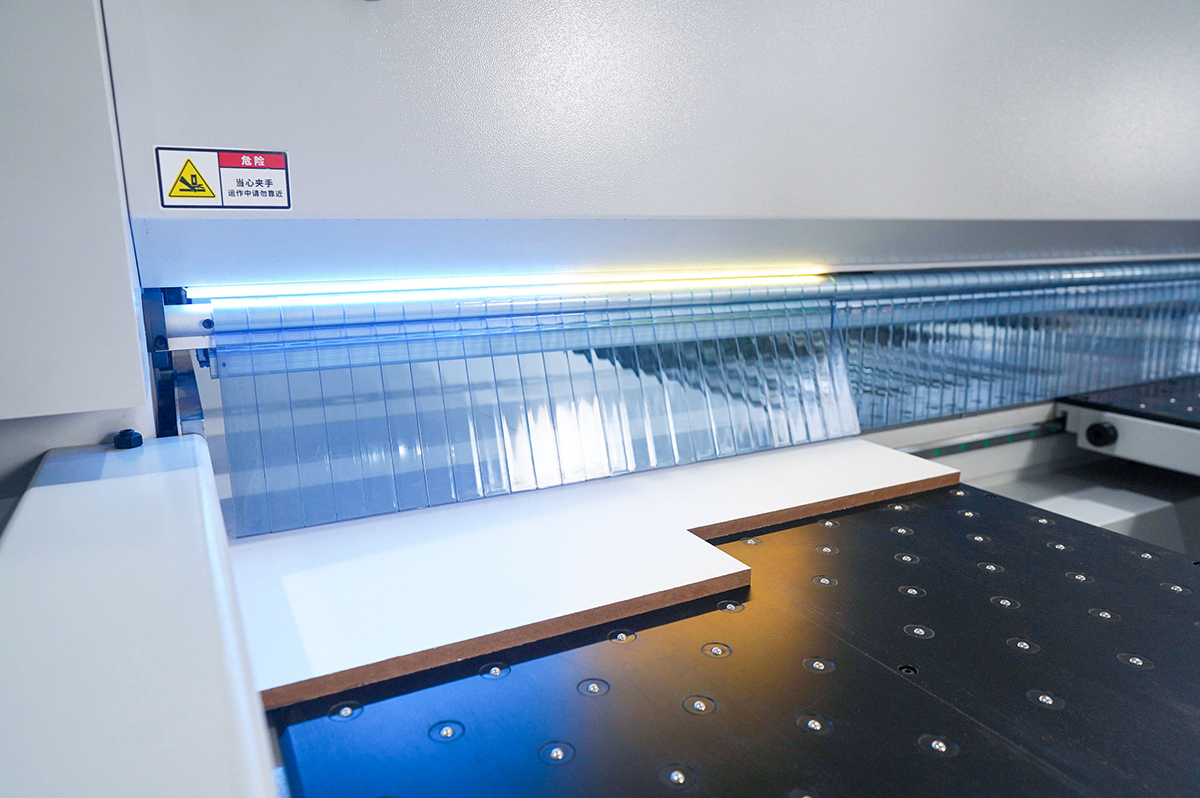

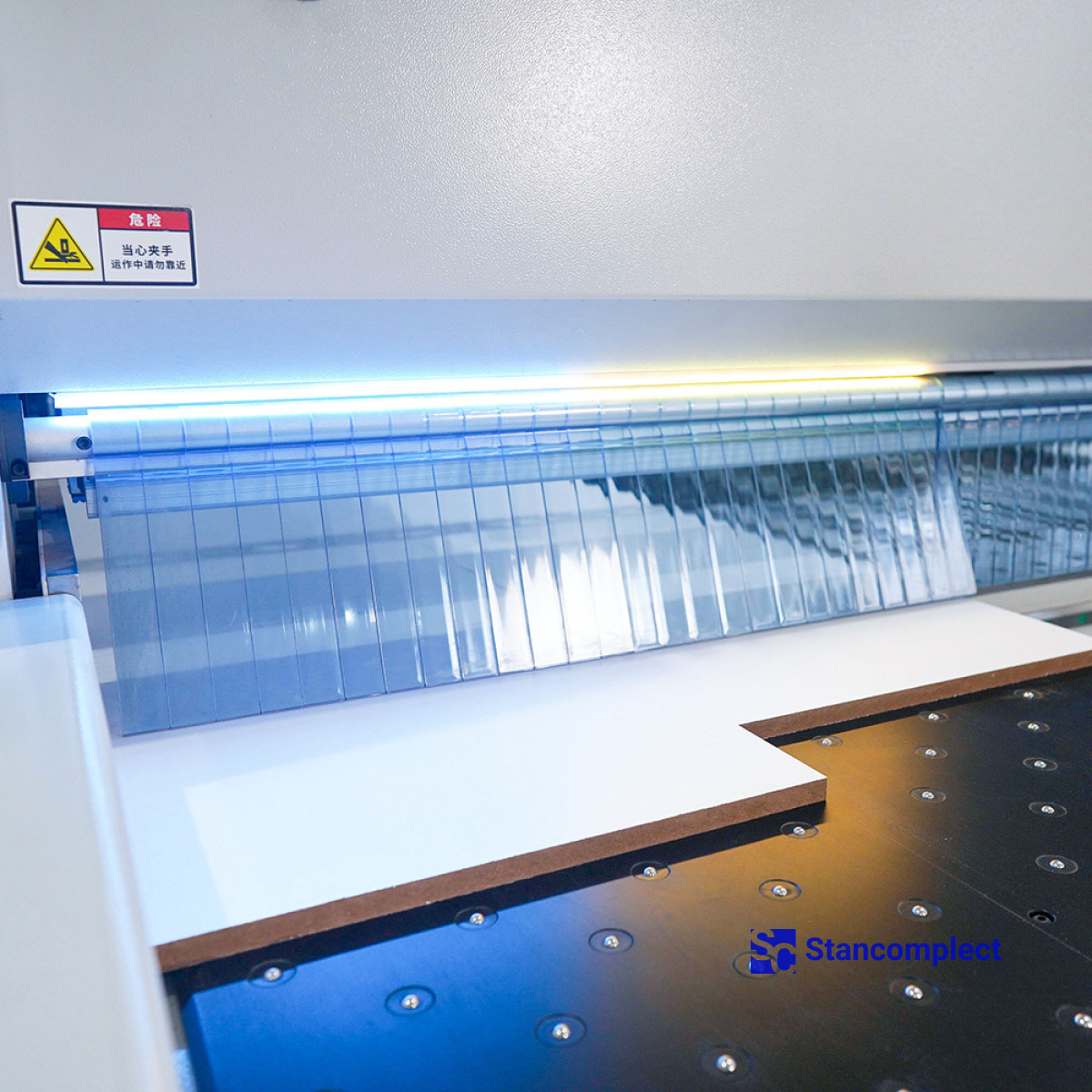

The smart colour-coded cutting line provides intuitive operation and shows workpiece status at a glance, reducing monitor checks and optimising team workflow for safer, more efficient operations.

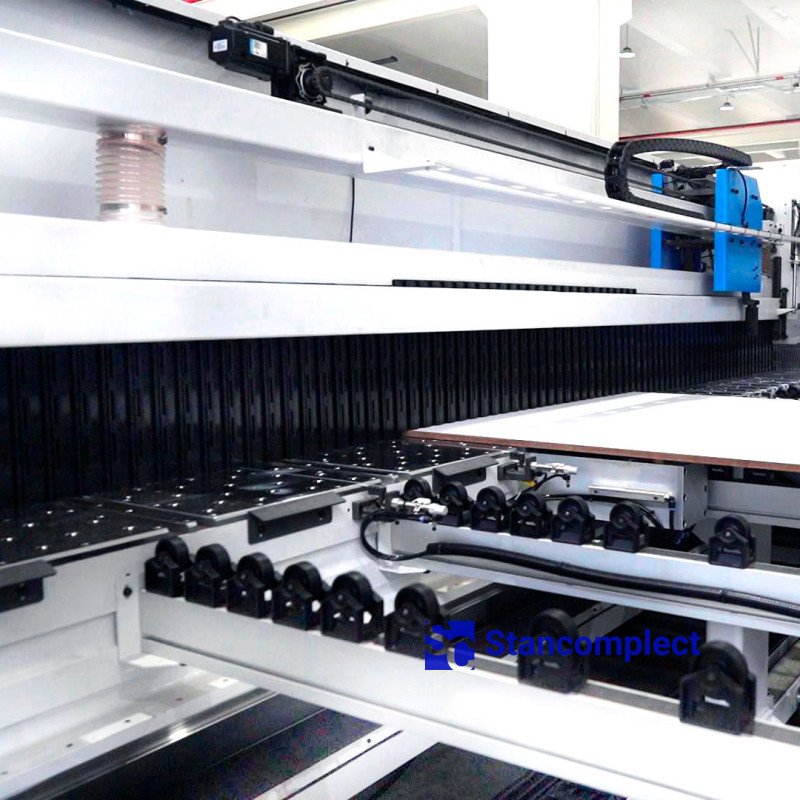

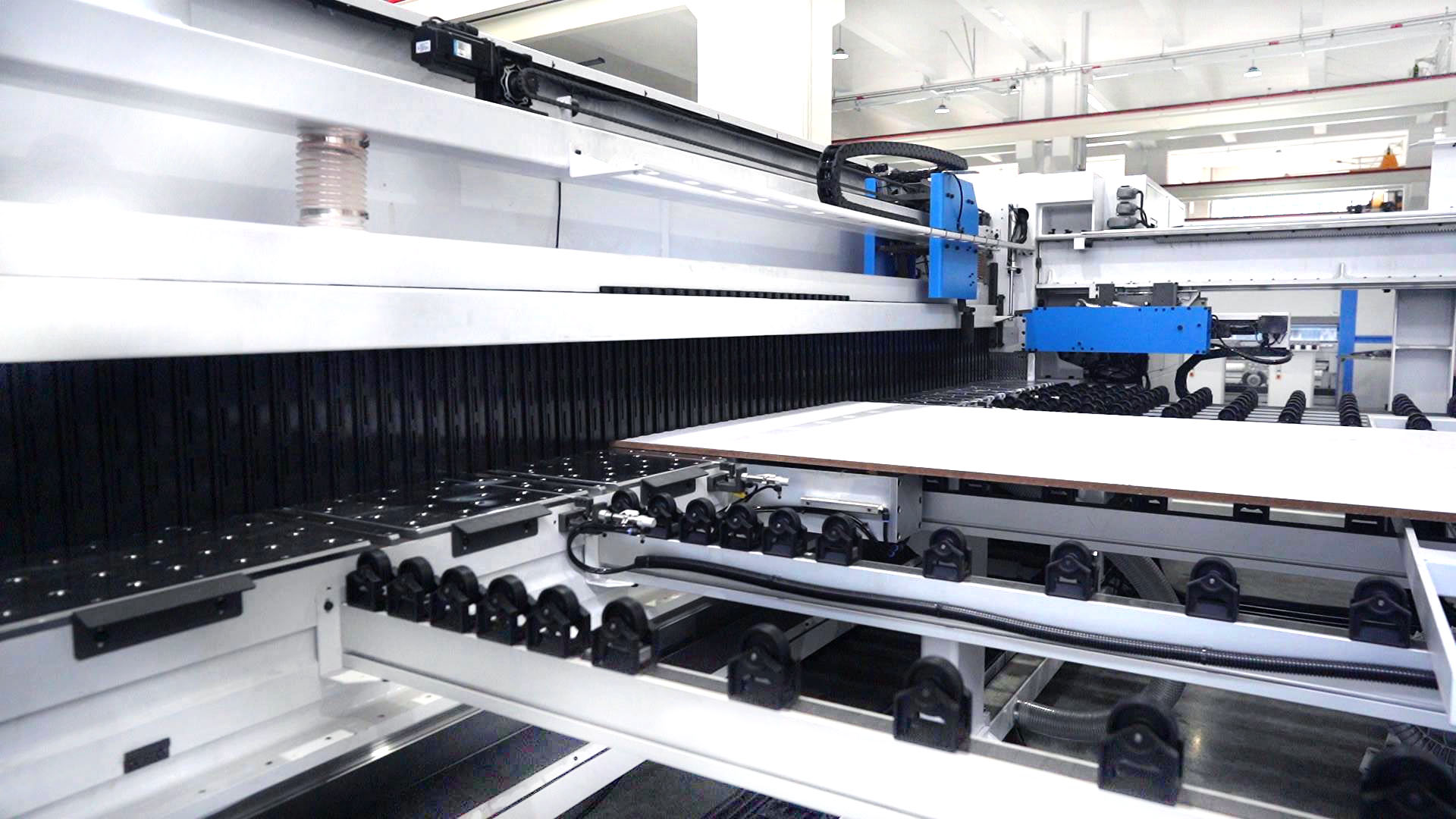

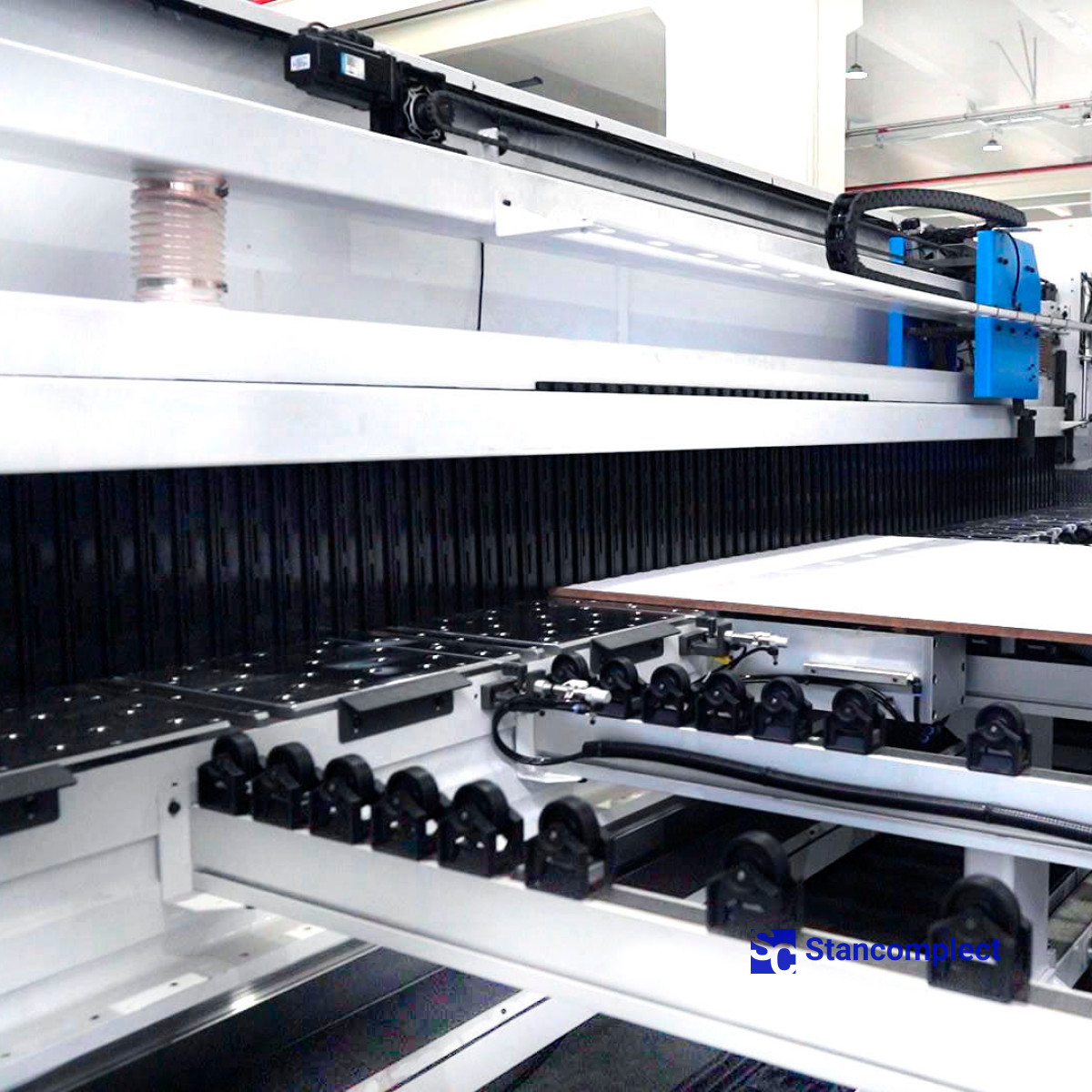

Sealed dust curtain behind the pressure beam effectively blocks sawdust, ensuring a clean and safe workspace.
