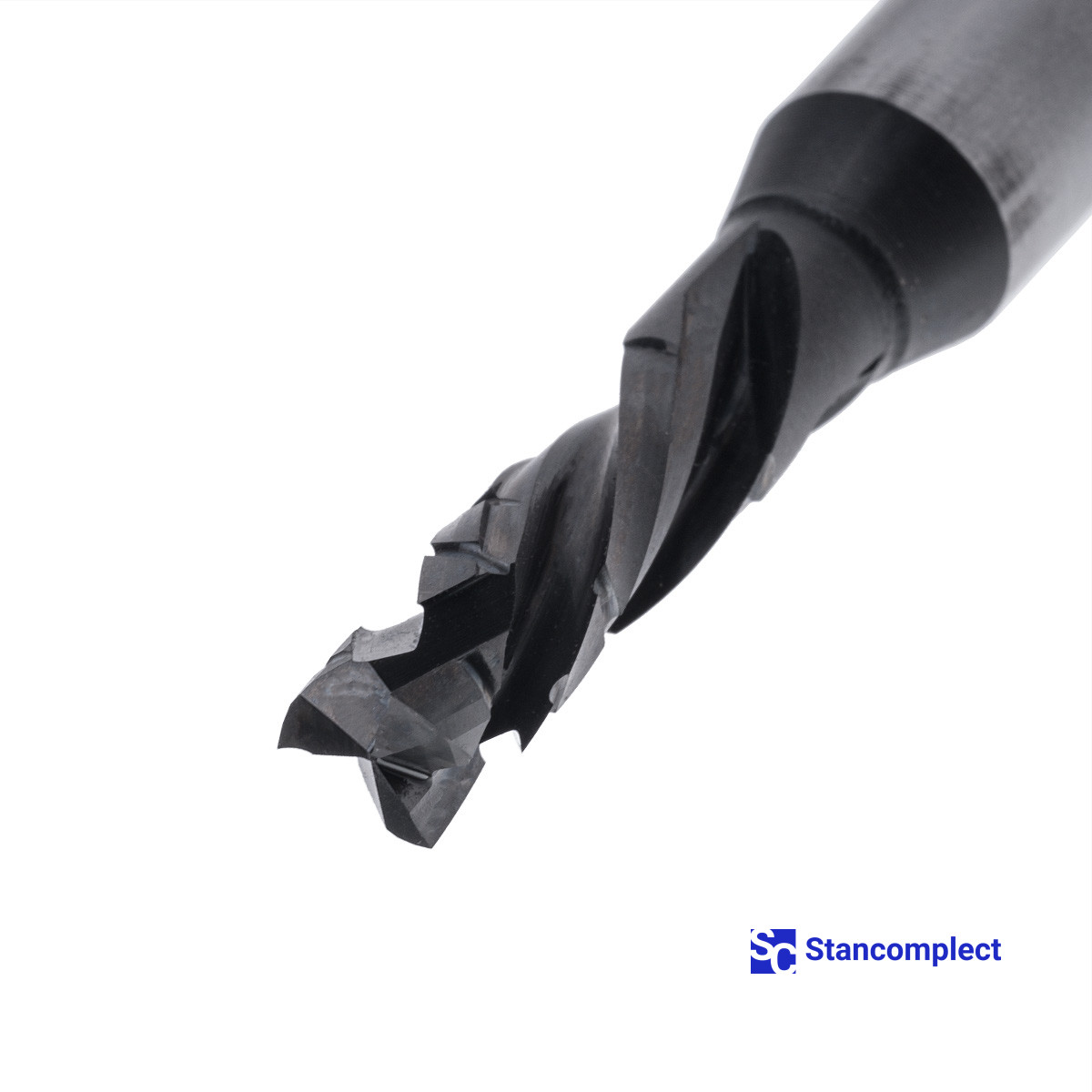

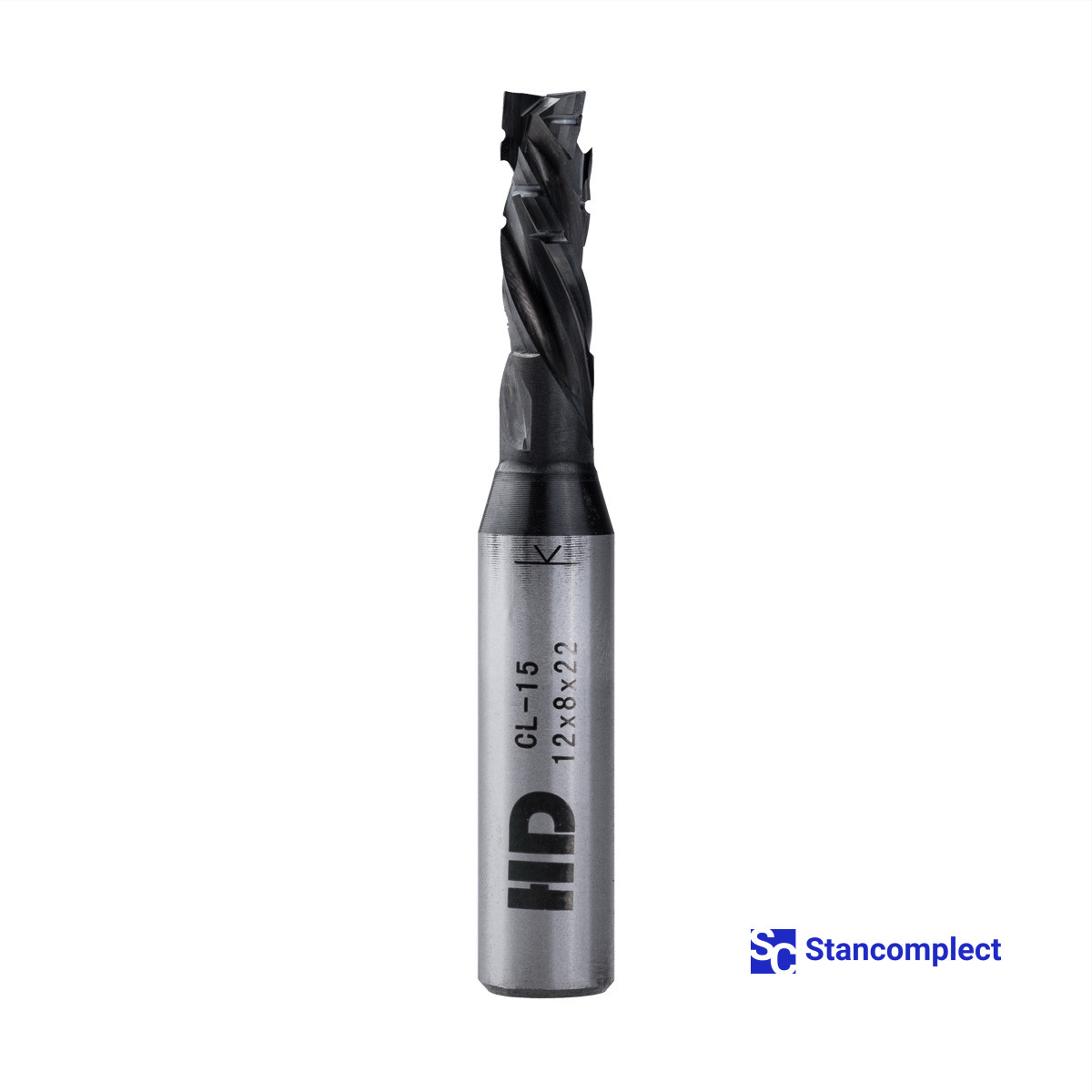

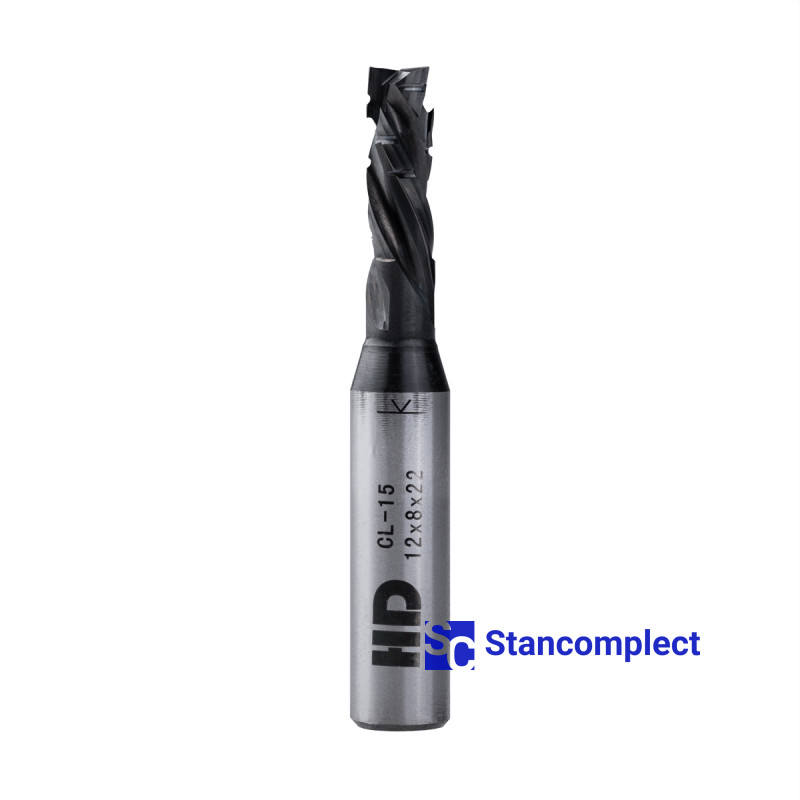

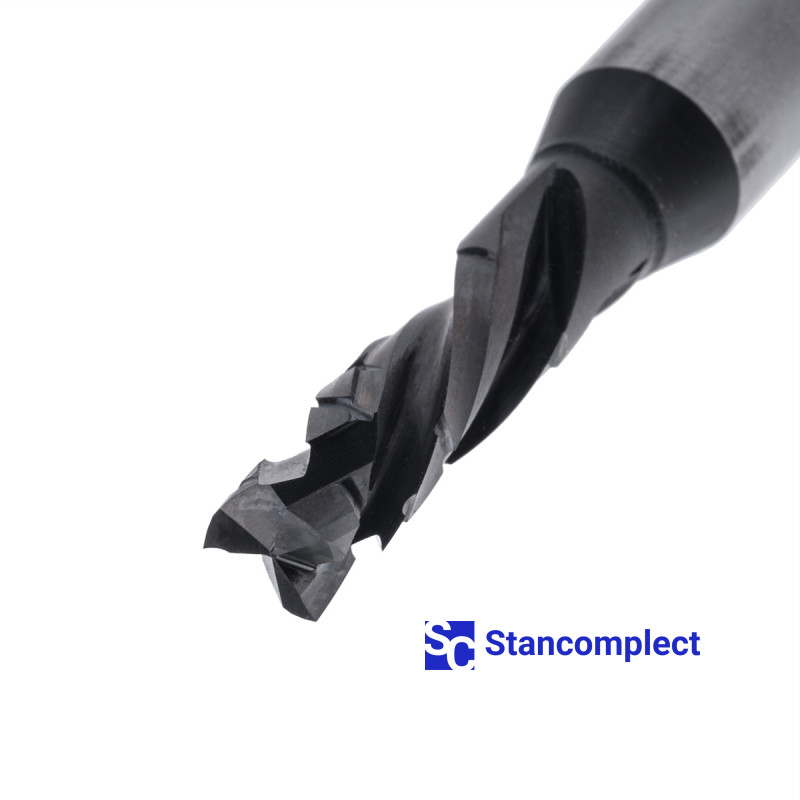

Nesting compression carbide cutter with coating CL-15 8x22x12 L78 HD (Taiwan) for cutting chipboard, MDF, plywood

All about product
Specification
Reviews
2
Information
Recommended
Articles
Bestseller
In Stock
Product code: 3434
Reviews: 2
36.00€
Buy in 1 click:
Specifications: (See all)
Cutting diameter, mm
8
Cutting height, mm
22
Total length, mm
78
Shank diameter, mm
12

Get AI analytics

Nesting compression carbide cutter with coating CL-15 8x22x12 L78 HD (Taiwan) for cutting chipboard, MDF, plywood

Chat with a specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

HD Woodworking tools logo

Nesting compression carbide cutter with coating CL-15 8x22x12 L78 HD (Taiwan) is used in CNC machining centers, as well as CNC milling machines for curved and straight nesting cutting without chips, wood-like board materials: laminated chipboard, MDF, plywood.

The main features of this cutter are high quality processing, with a high processing speed of 8-12 m/min at a very low cost of the cutter itself, and as a result, a decrease in the cost of the cutting operation itself. The cutting part is 8 mm with a cutting part height of 22 mm.

Advantages:

  • Small cutting diameter of 8 mm and as a result significant material savings. For comparison, I drank 12, 16 or 20 mm from diamond cutters.
  • The low cost of the cutter itself and, as a result, a decrease in the cost of the operation itself.
  • High cutting quality - the ability to cut parts under certain conditions in one pass.
  • Save material by cutting 8 mm instead of 12 or 16 (as for diamond cutters).

nesting compression carbide cutter

Specifications
Specifications
Cutting diameter, mm
8
Cutting height, mm
22
Total length, mm
78
Shank diameter, mm
12
Cutting part material
carbide
Reviews
5 / 5
average product rating
2
0
0
0
0
Patlan Ivan Vasyliovych
Patlan Ivan Vasyliovych
15 march 2024 (07:28)
The best cutter for cutting slabs without chips, 100% recommended
Oleg Kolomiets
Oleg Kolomiets
23 january 2024 (20:36)
Tell me about this beautiful cutter - is it the same as CL-11 but with three faces? What makes it better than 011? Can you give a higher speed?
