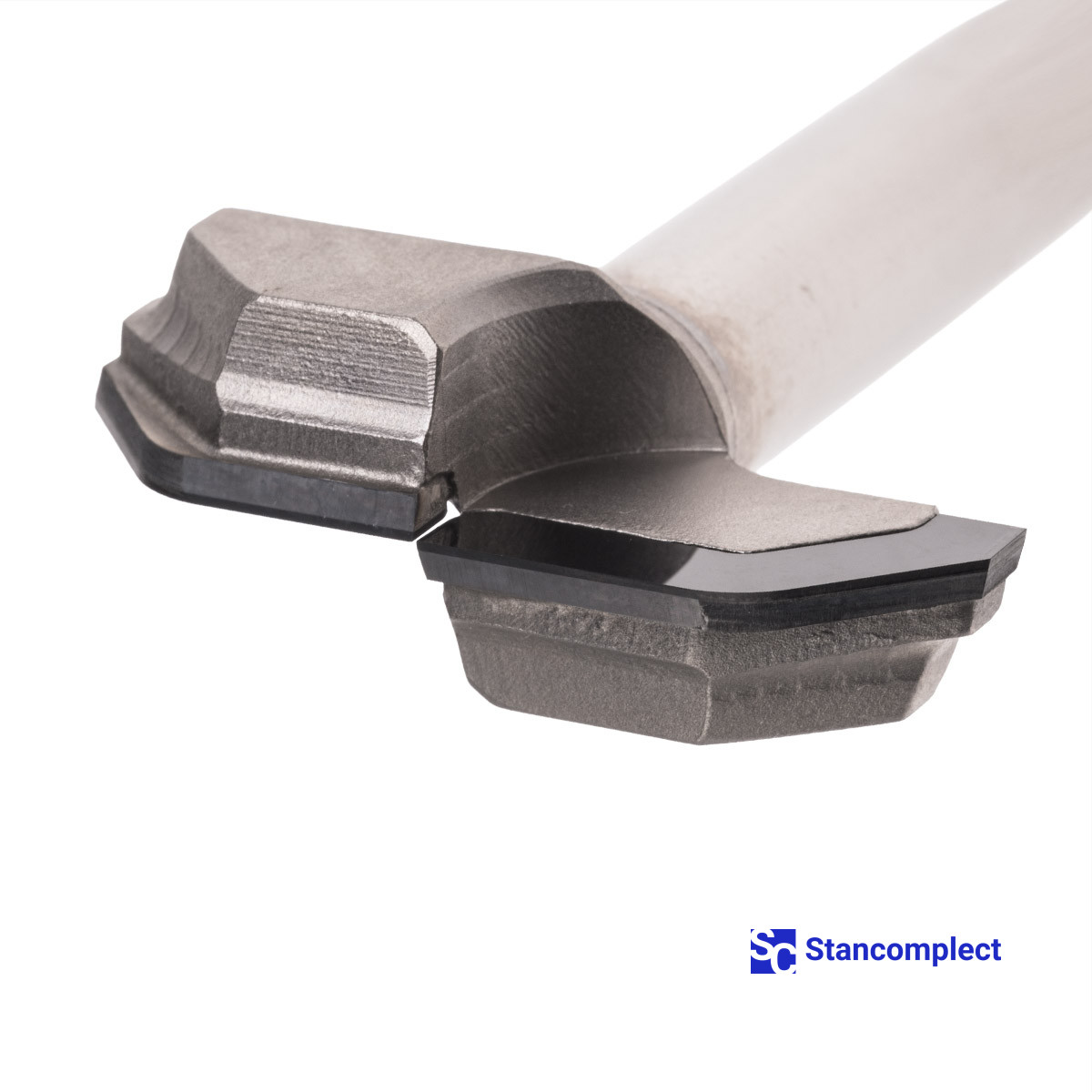

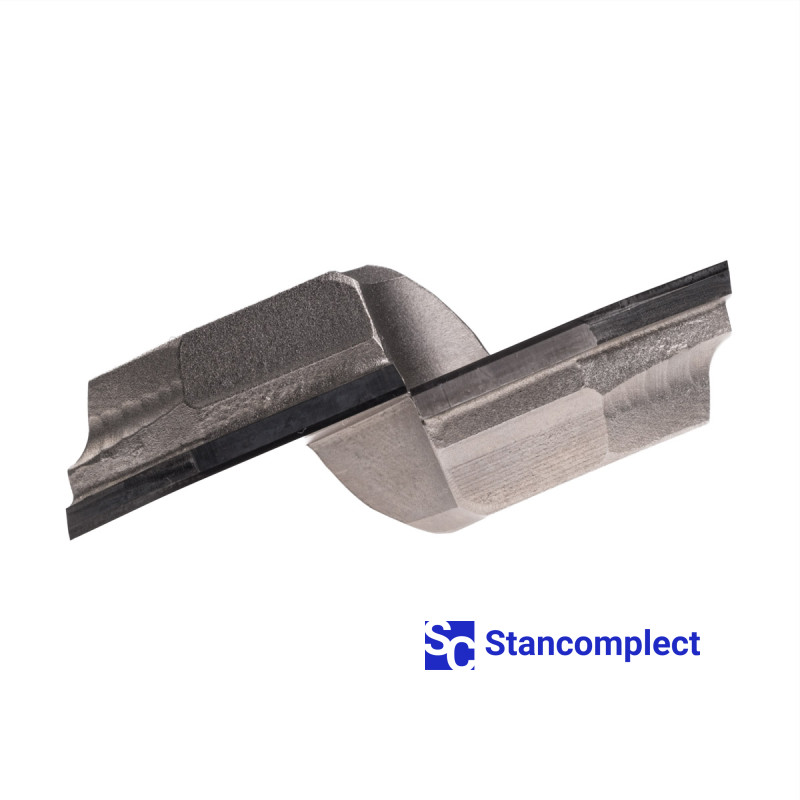

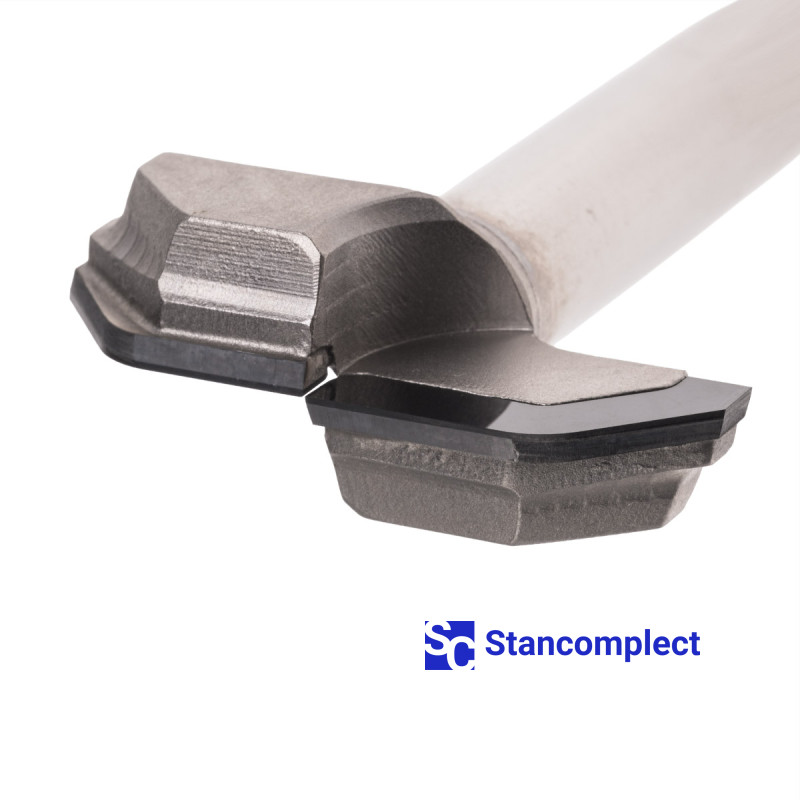

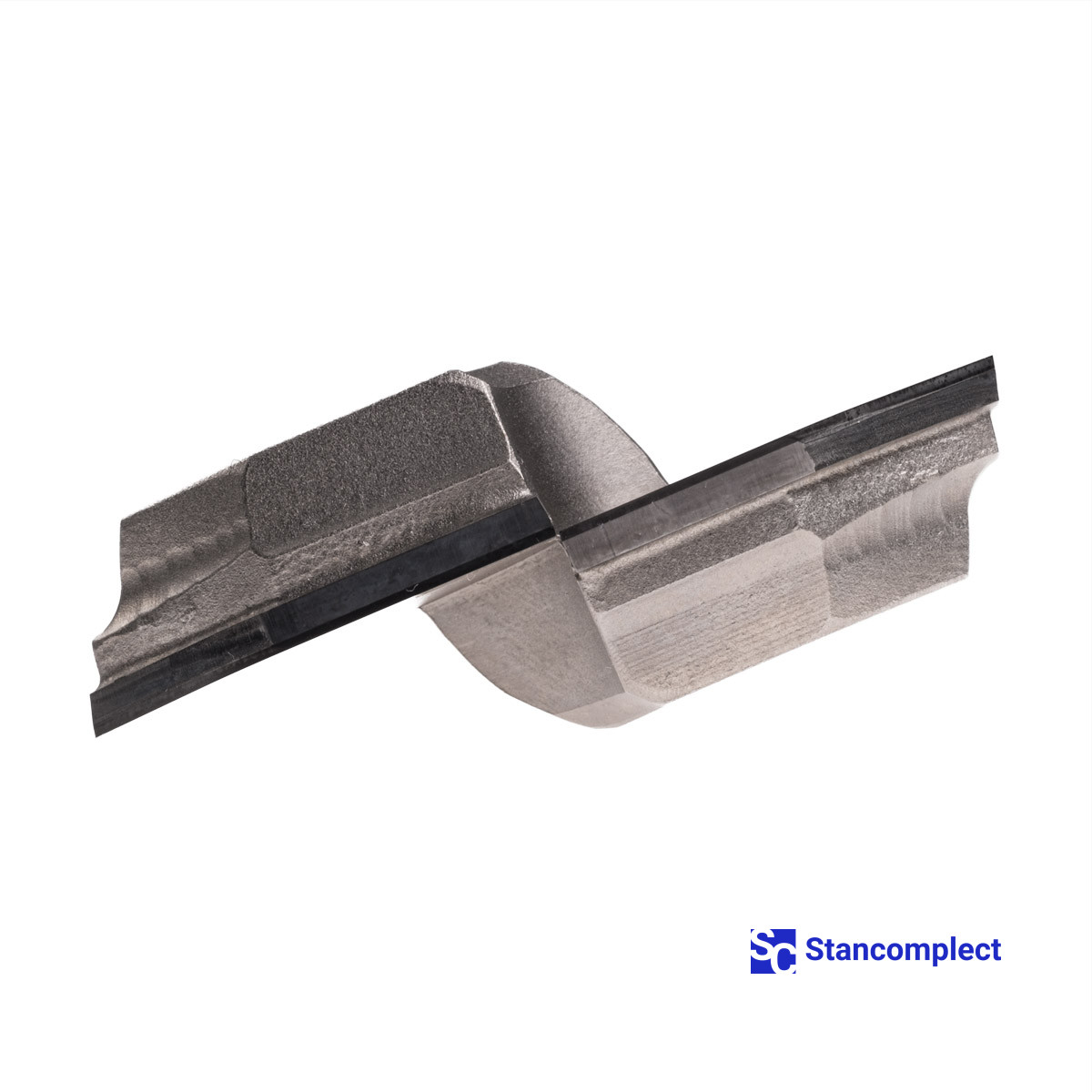

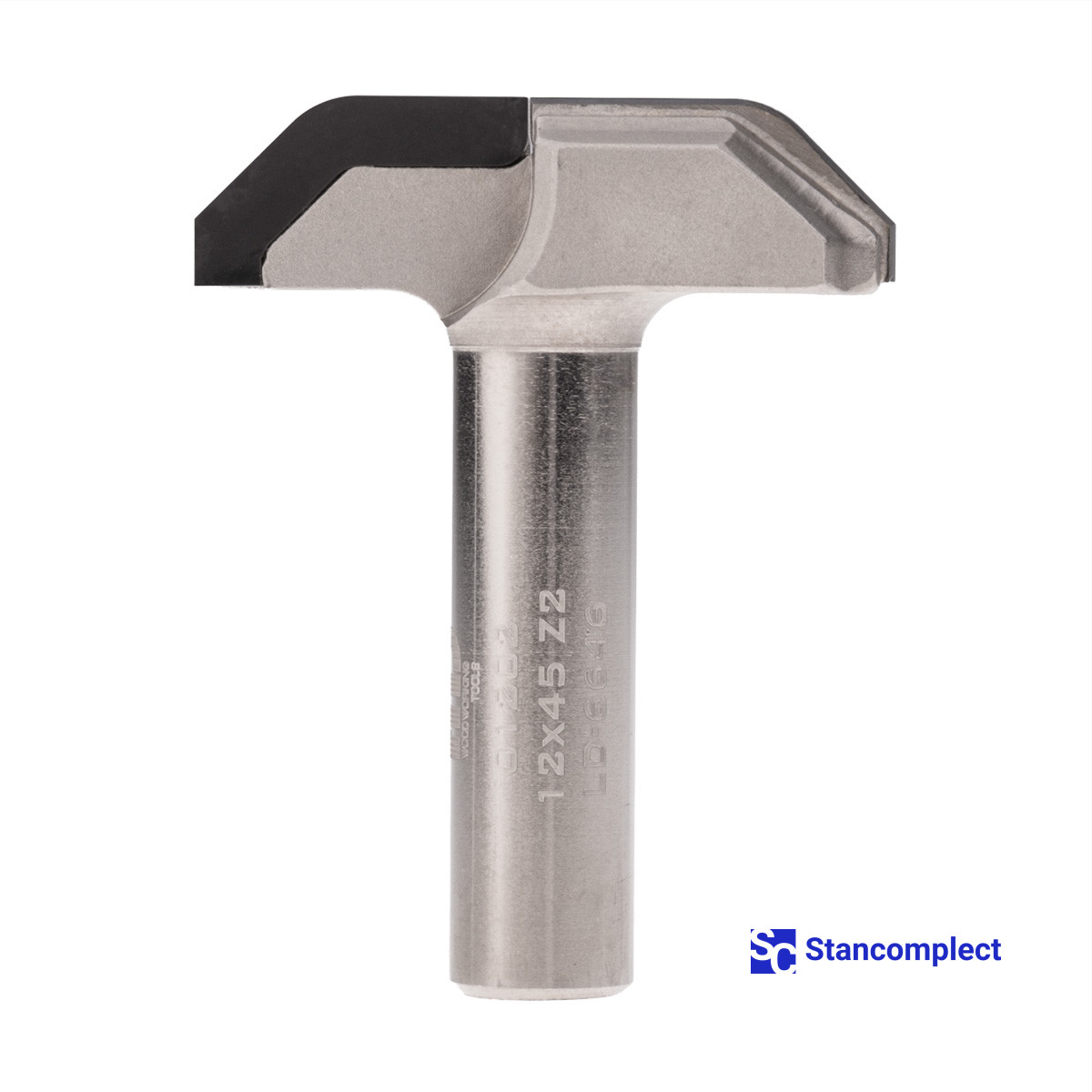

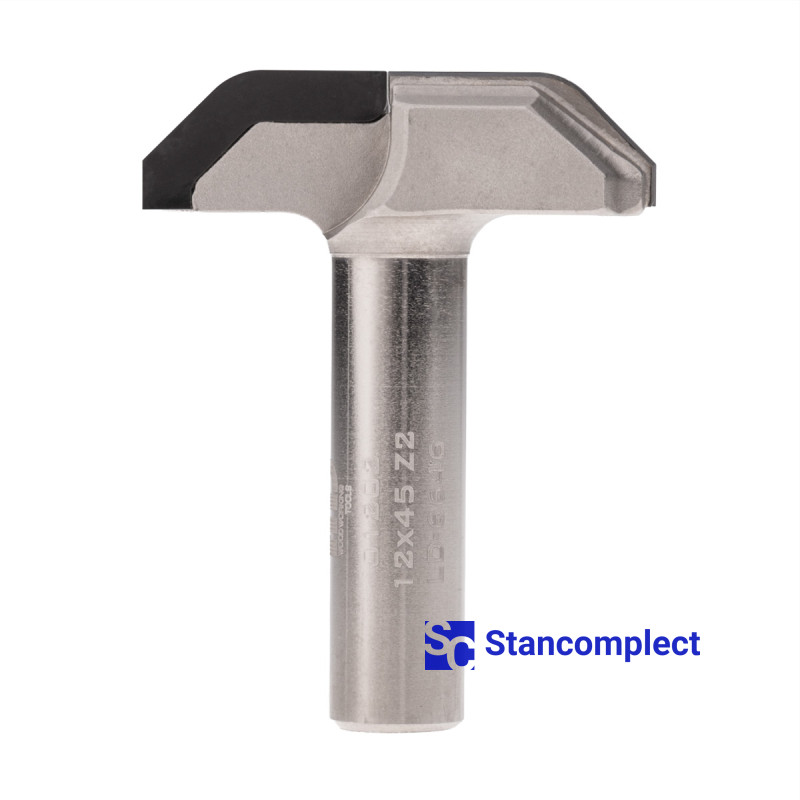

Diamond panel router bit D45 h12 L58 d12 R6 Z2

All about product
Specification
Reviews
Information
Recommended
Articles
Product code: 4093
Write a rewiew
126.00€
Buy in 1 click:
Specifications: (See all)
Cutter diameter (D), mm
45
Shank diameter (d), mm
12
Cutter length (L), mm
58
Cutting length (h), mm
12

Get AI analytics

Diamond panel router bit D45 h12 L58 d12 R6 Z2

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

HD Woodworking tools diamond panel router bit for CNC machines

Diamond panel router bit D45 h12 L58 d12 R6 Z2 is designed for processing board materials (chipboard, chipboard, MDF, etc.) uncoated and coated, as well as hardwood and is used in CNC machines for the manufacture of furniture facades. The milling cutter is characterized by high reliability and long service life.

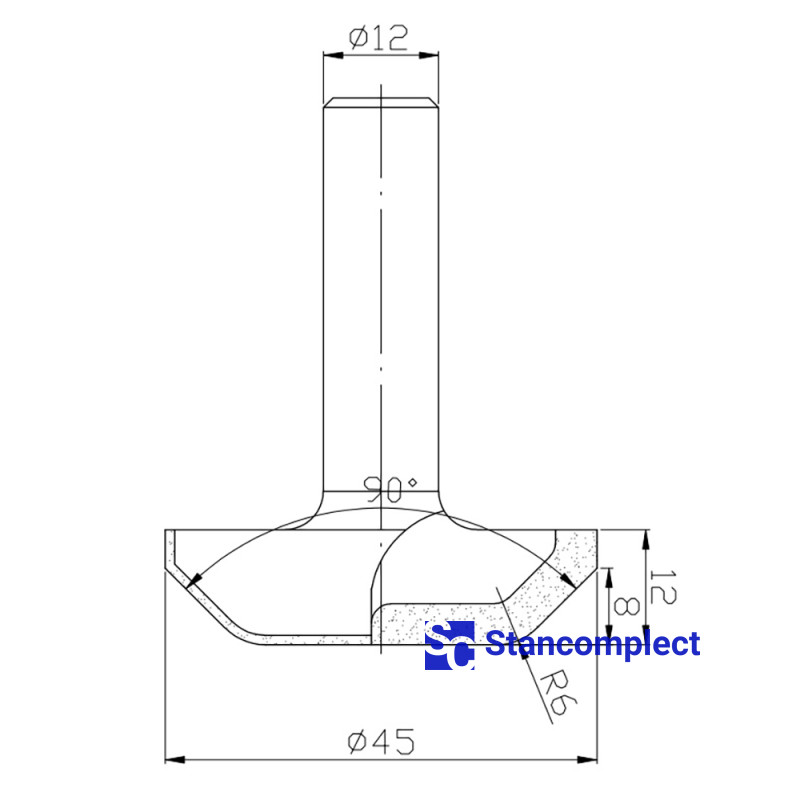

Characteristics of a diamond panel router bit for the production of furniture facades:

  • cutter diameter (D) - 45 mm;
  • shank diameter (d) - 12 mm;
  • cutter length (L) - 58 mm;
  • cutting length (h) - 12 mm;
  • radius (R) - 6 mm.
Specifications
Cutter specifications
Cutter diameter (D), mm
45
Shank diameter (d), mm
12
Cutter length (L), mm
58
Cutting length (h), mm
12
Radius (R), mm
6
Reviews
Delivery Packeta, Fedex, DHL, UPS to the post office, address delivery by courier. Pick up from the warehouse.
Payment by card online, non-cash payment for legal entities and individuals, payment by card and when receiving the goods.
Official manufacturer's warranty.
