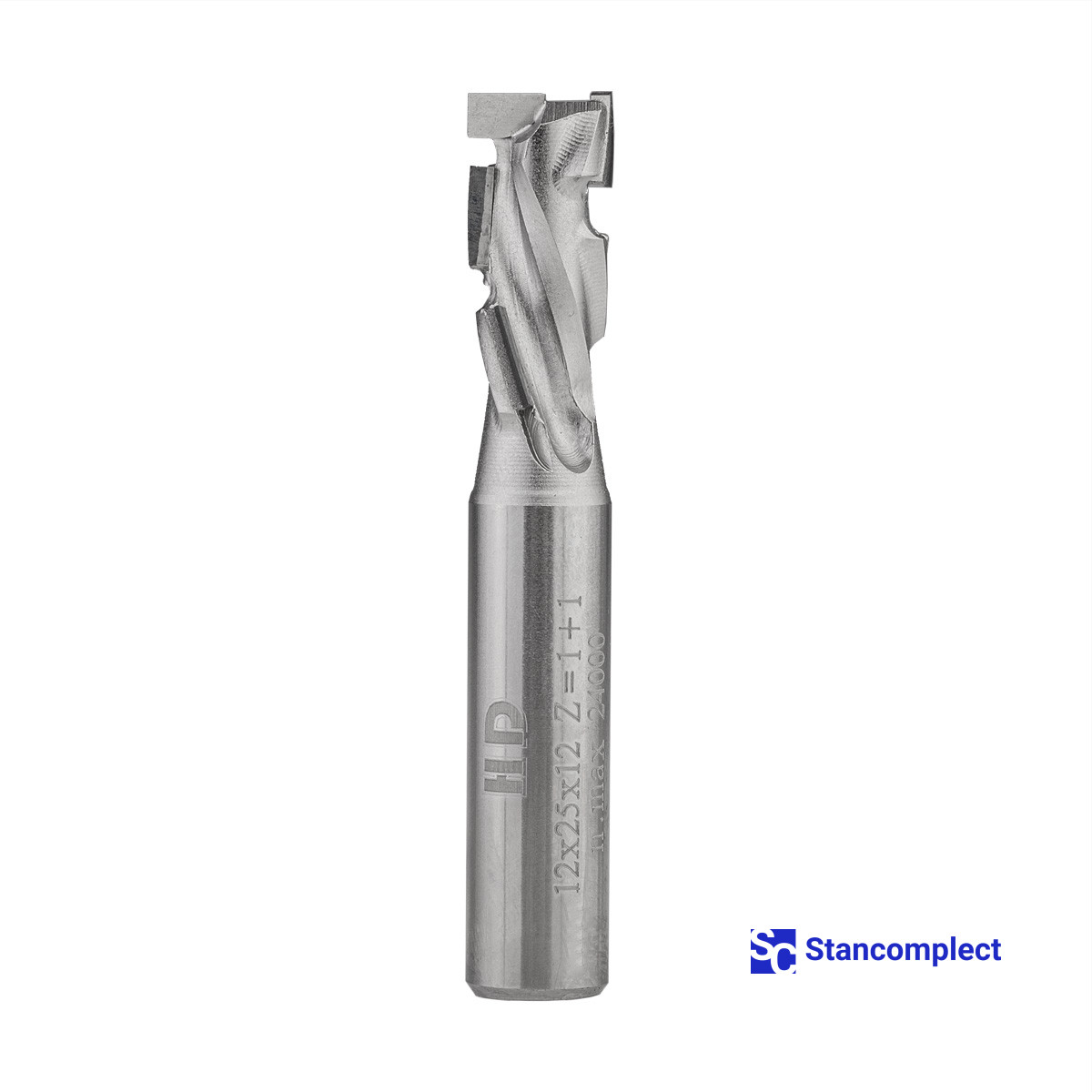

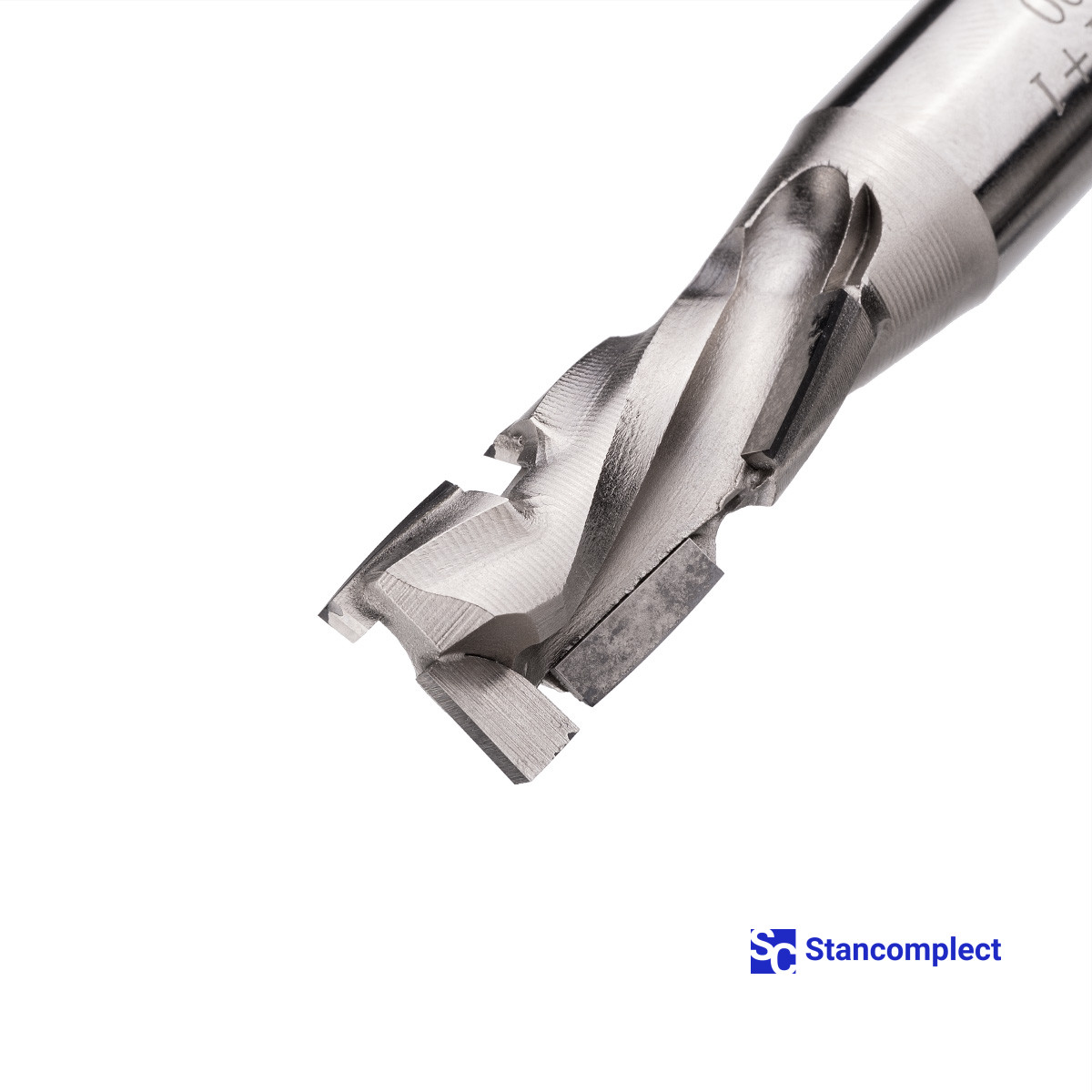

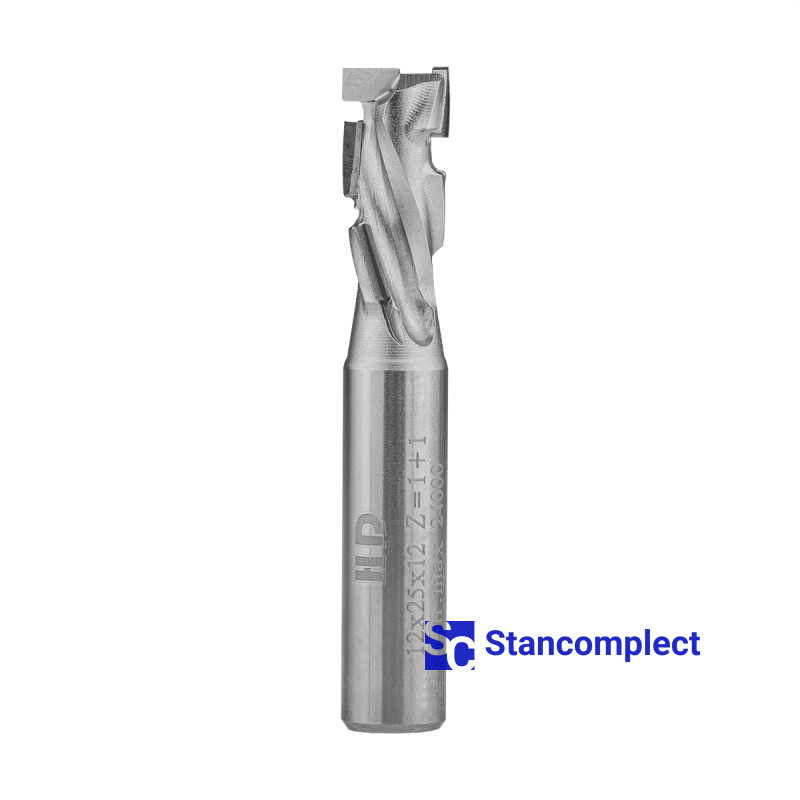

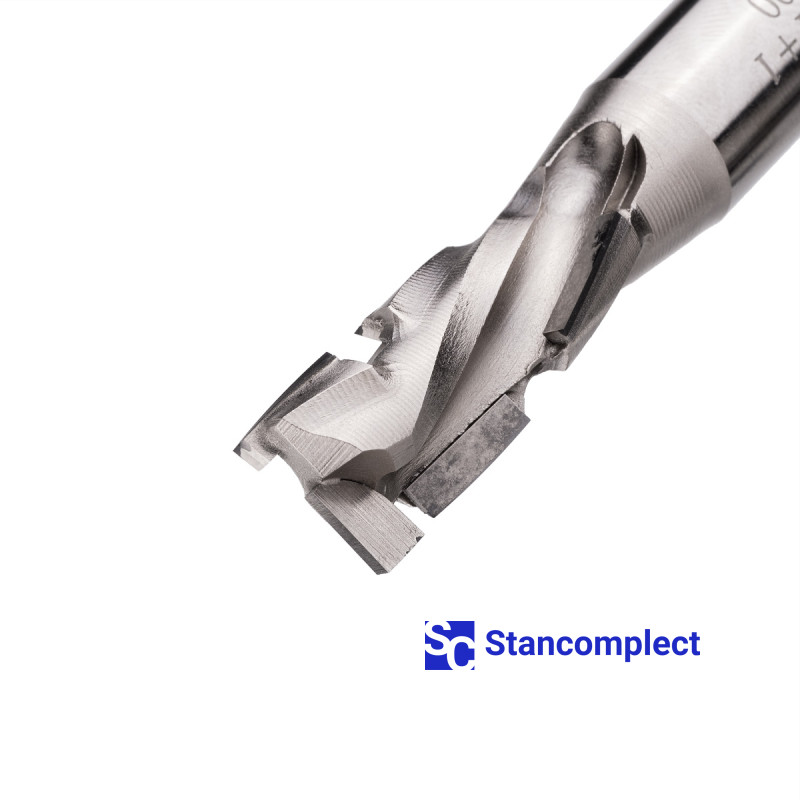

Diamond router cutter 12x25x75x12 Z=1+1 Nesting HD (Taiwan) for cutting chipboard

Name: Diamond router cutter 12x25x75x12 Z=1+1 Nesting HD (Taiwan) for cutting chipboard
Brand: HD Woodworking Tools
SKU: 920
Price: 54 EUR
Availability: InStock
Rating: 5 (4 reviews)

All about product

Specification

Reviews

Information

Recommended

Articles

-17%

Bestseller

Popular

Special

In Stock

Product code: 920

Brand: HD Woodworking Tools

Reviews: 4

54.00€

45.00€

Buy in 1 click:

Specifications: (See all)

Cutting diameter, mm

Cutting height, mm

Total length, mm

Shank diameter, mm

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Viber

Description

Diamond router cutter 12x25x75x12 Z=1+1 Nesting HD (Taiwan) is used on CNC router machines for planing, cutting quarters, grooving, overcutting and cutting chipboard, MDF, chipboard, laminate, plastics and veneered panels. High productivity is achieved with preliminary and finishing milling.

drawing of a diamond router cutter 12x25x75x12 Z-3 HD 1+1 (Taiwan) for cutting chipboard

Characteristics of the diamond cutter:

OL - 75 mm;
CL - 25 mm;
D - 12 mm;
d - 12 mm.

Peculiarities:

Heavy duty steel housing to reduce vibration.
3 diamond (PCD) cutting edges.
Resharpenable cutting edge.

hd diamond router cutters

Specifications

Cutting diameter, mm

Cutting height, mm

Total length, mm

Shank diameter, mm

Cutting part material

PCD

Number of cutting edges, pcs

1+1

Reviews

5 / 5

average product rating

* Your Name

* Your feedback

Stancomplect

15 may 2022 (23:41)

Hello, Serhiy, thank you for the good review! If you want to work at a speed of 20 m/min - I advise you to try the X-CUT series coated diamond cutters, in order to find them - enter the numbers 1915, 1916 and 1917 in the search on the website, these are 3+3 cutters with DLC coating, diameters 8.

Myroslav

10 april 2020 (20:10)

I have been cutting facades for more than a year without sharpening and in considerable quantities with such a cutter, and to say that I am satisfied is nothing to say, although to be honest, I was skeptical about a Taiwanese or Chinese manufacturer, now I have changed my mind, and I do not want to overpay for a well-known brand.

Stancomplect

17 march 2020 (18:52)

The optimal speed for this cutter and cutters 1+1 is 5-7 m/min, 2+2 - 10-12 m/min, 3+3 - 15-20 m/min.

Sergey

15 march 2020 (12:05)

What is the feed rate when cutting 16 mm chipboard in one pass? On your hard alloys with a diameter of 6 and 8 mm we work at 8-10 m/min.
Is it possible to work with this cutter at 20 m/min?
