Diamond round nose router bit D38 h24 d12 L69 R19 Z2

All about product
Specification
Reviews
Information
Recommended
Articles
In Stock
Product code: 4086
Write a rewiew
94.50€
Buy in 1 click:
Specifications: (See all)
Cutter diameter (D), mm
38
Shank diameter (d), mm
12
Cutting length (h), mm
24
Overall length, mm
69

Get AI analytics

Diamond round nose router bit D38 h24 d12 L69 R19 Z2

Free chat with an experienced specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

HD woodworking tools logo

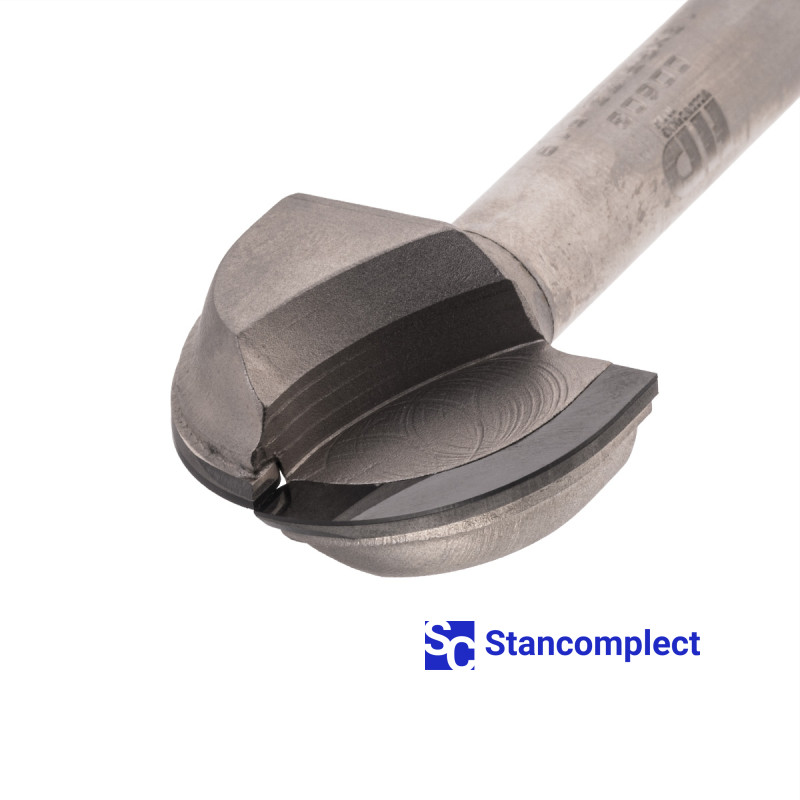

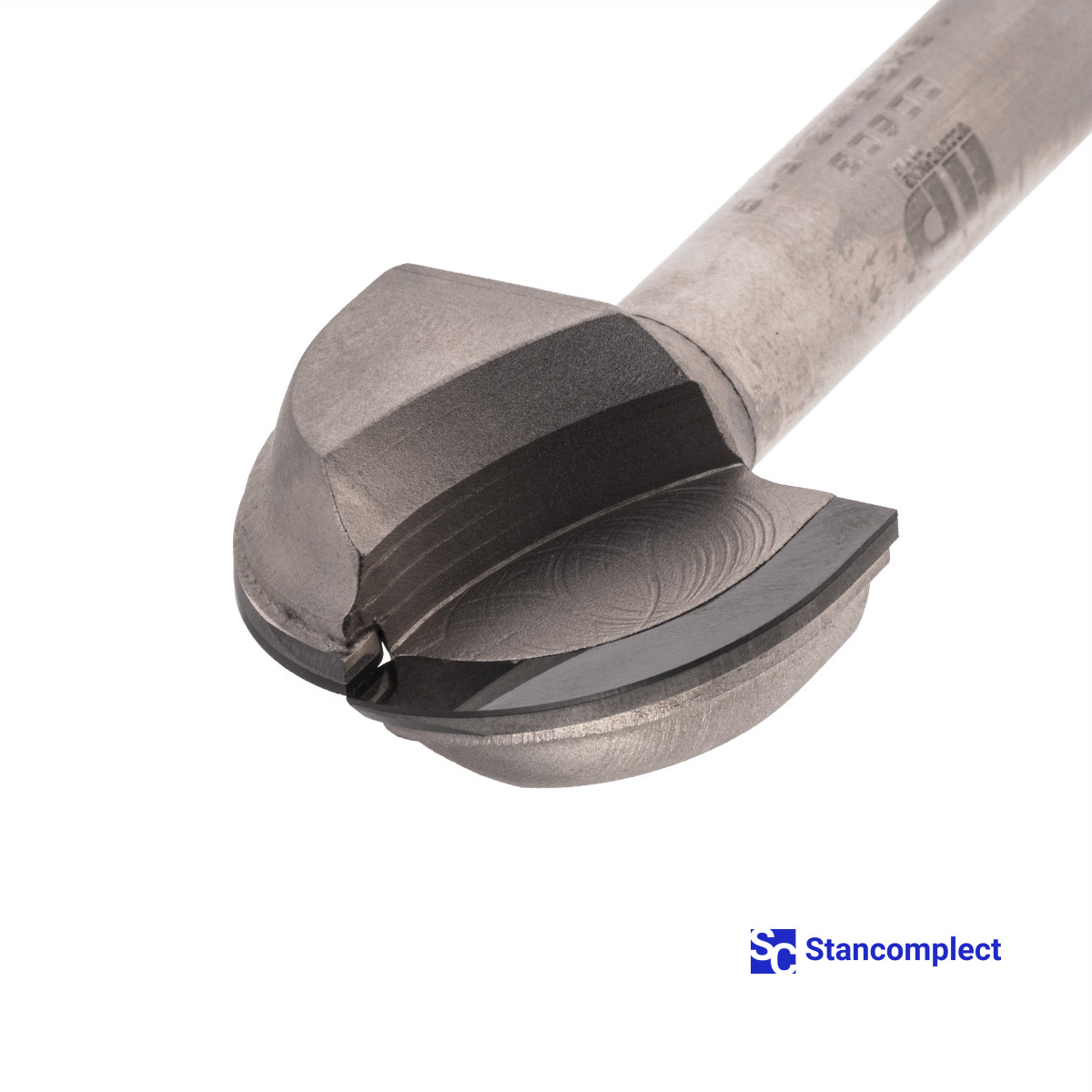

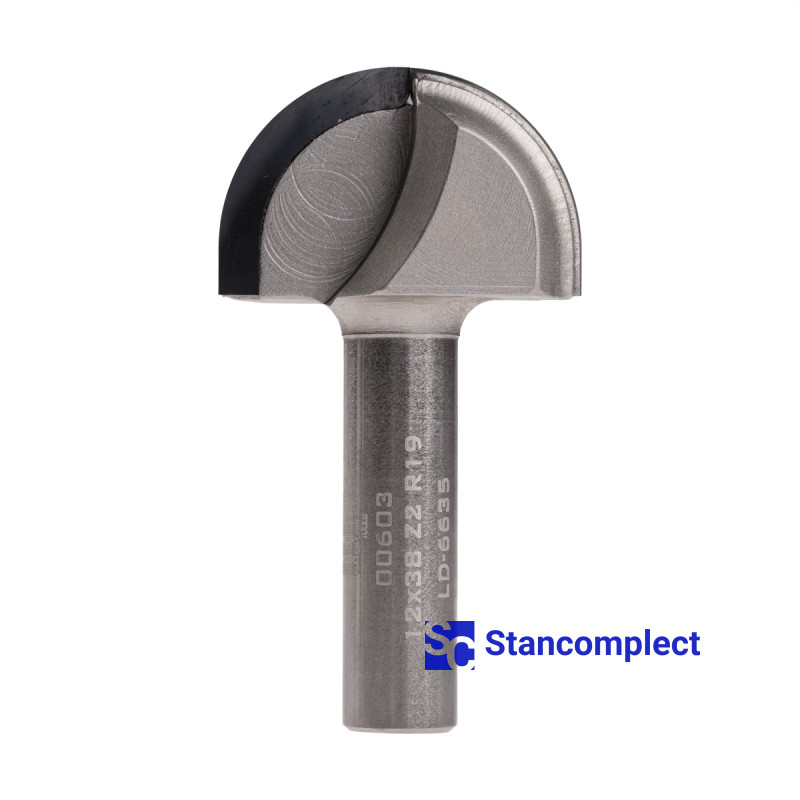

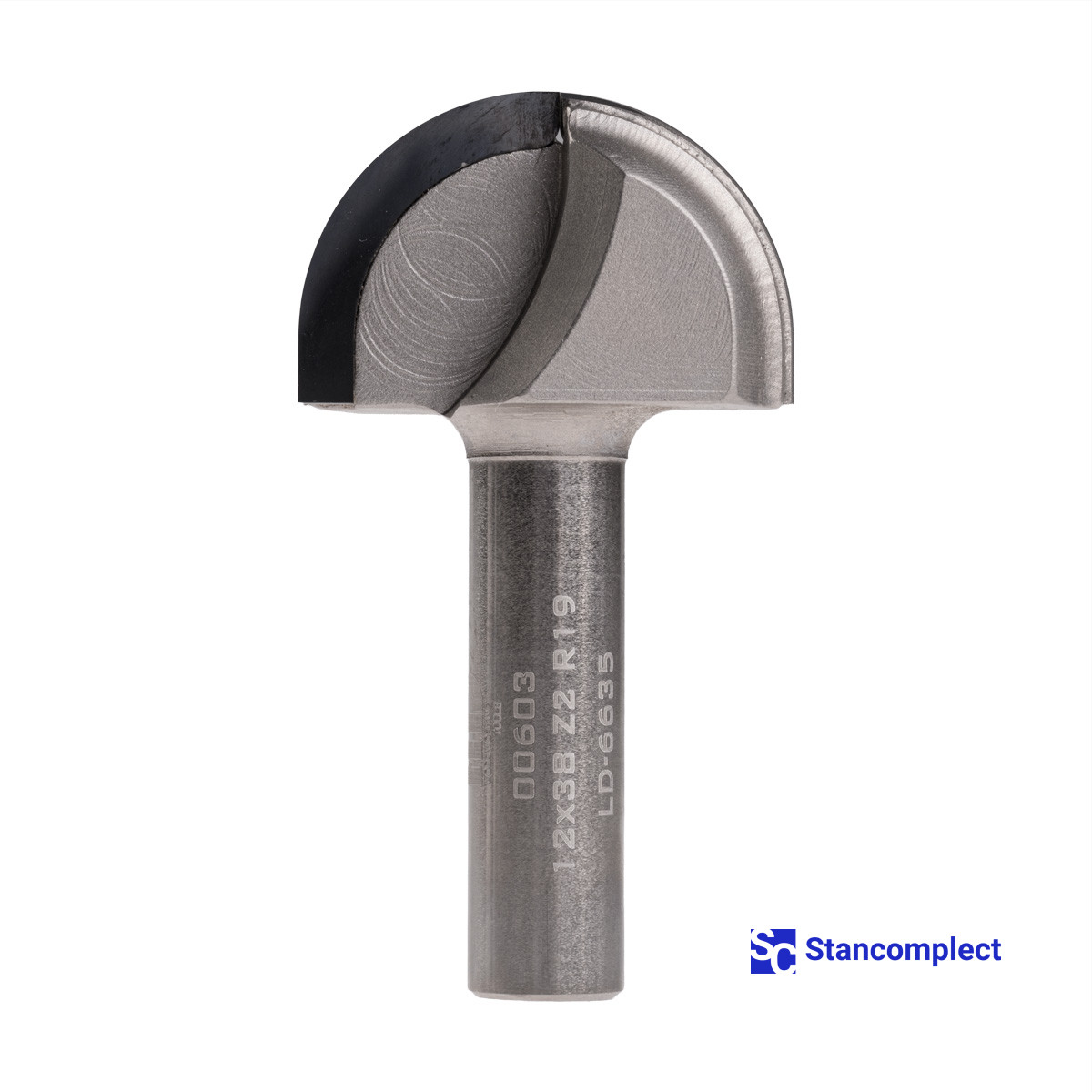

Diamond round nose router bit D38 h24 d12 L69 R19 Z2 is designed for processing board materials (chipboard, chipboard, MDF, etc.) uncoated and coated, as well as hardwood and is used in CNC machines for the manufacture of furniture facades. The milling cutter is characterized by high reliability and long service life.

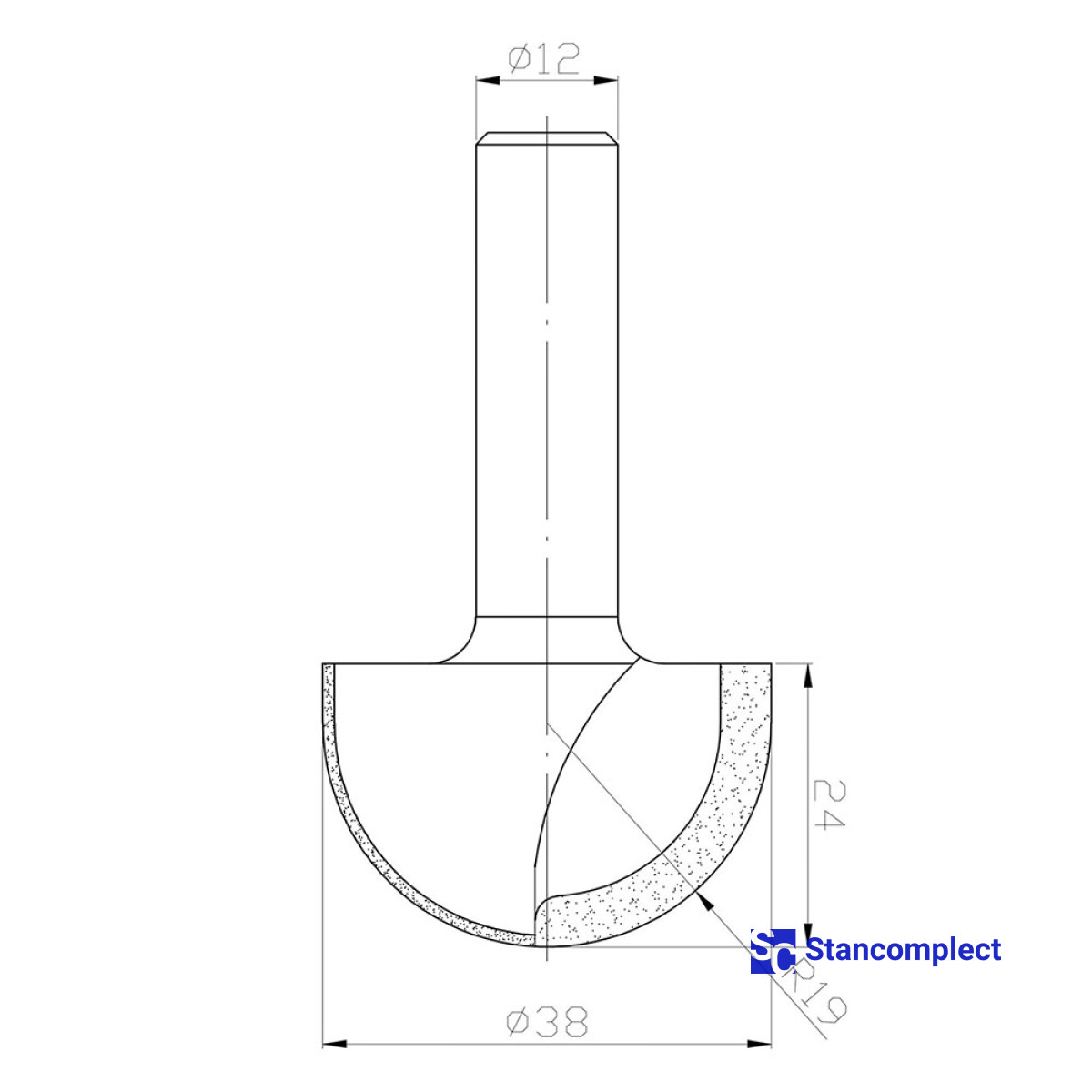

Characteristics of a diamond round nose router bit for the production of furniture facades:

  • cutter diameter (D) - 38 mm;
  • shank diameter (d) - 12 mm;
  • length of the cutting part (h) - 24 mm;
  • total length – 69 mm;
  • radius (R) - 19 mm.
Specifications
Cutter specifications
Cutter diameter (D), mm
38
Shank diameter (d), mm
12
Cutting length (h), mm
24
Overall length, mm
69
Radius (R), mm
19
