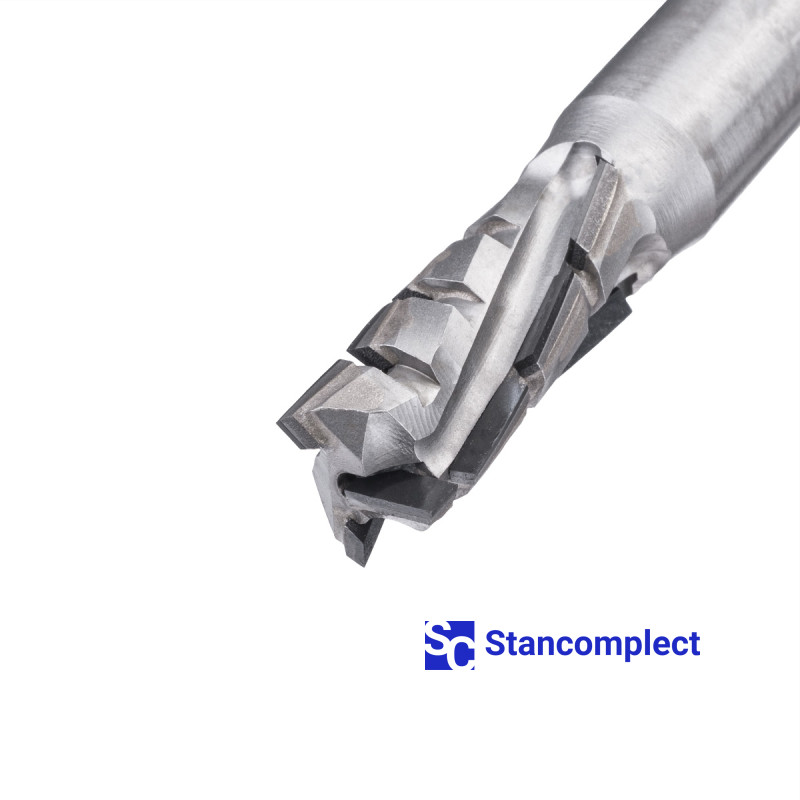

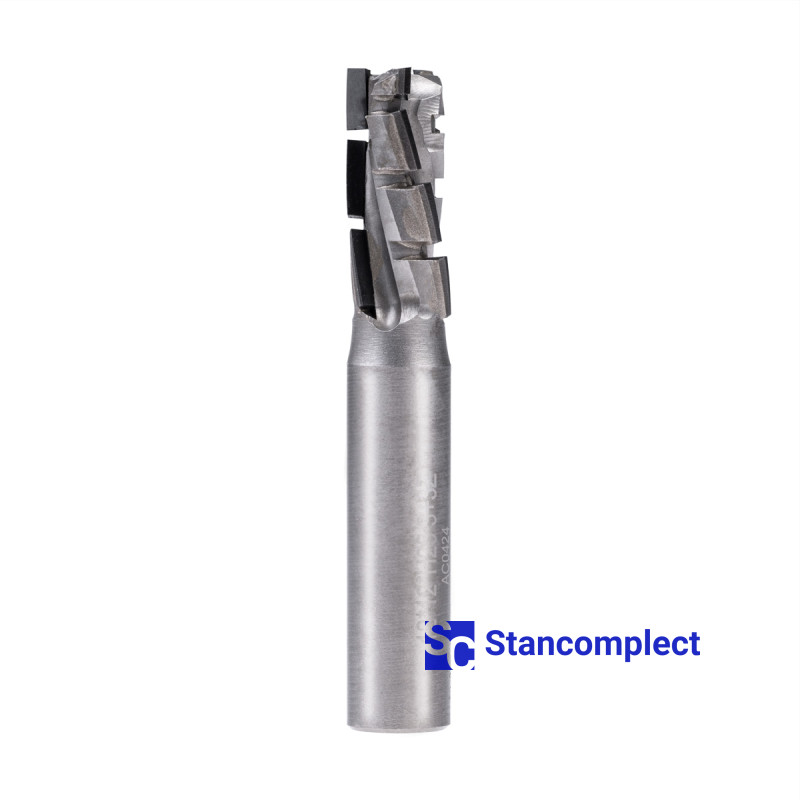

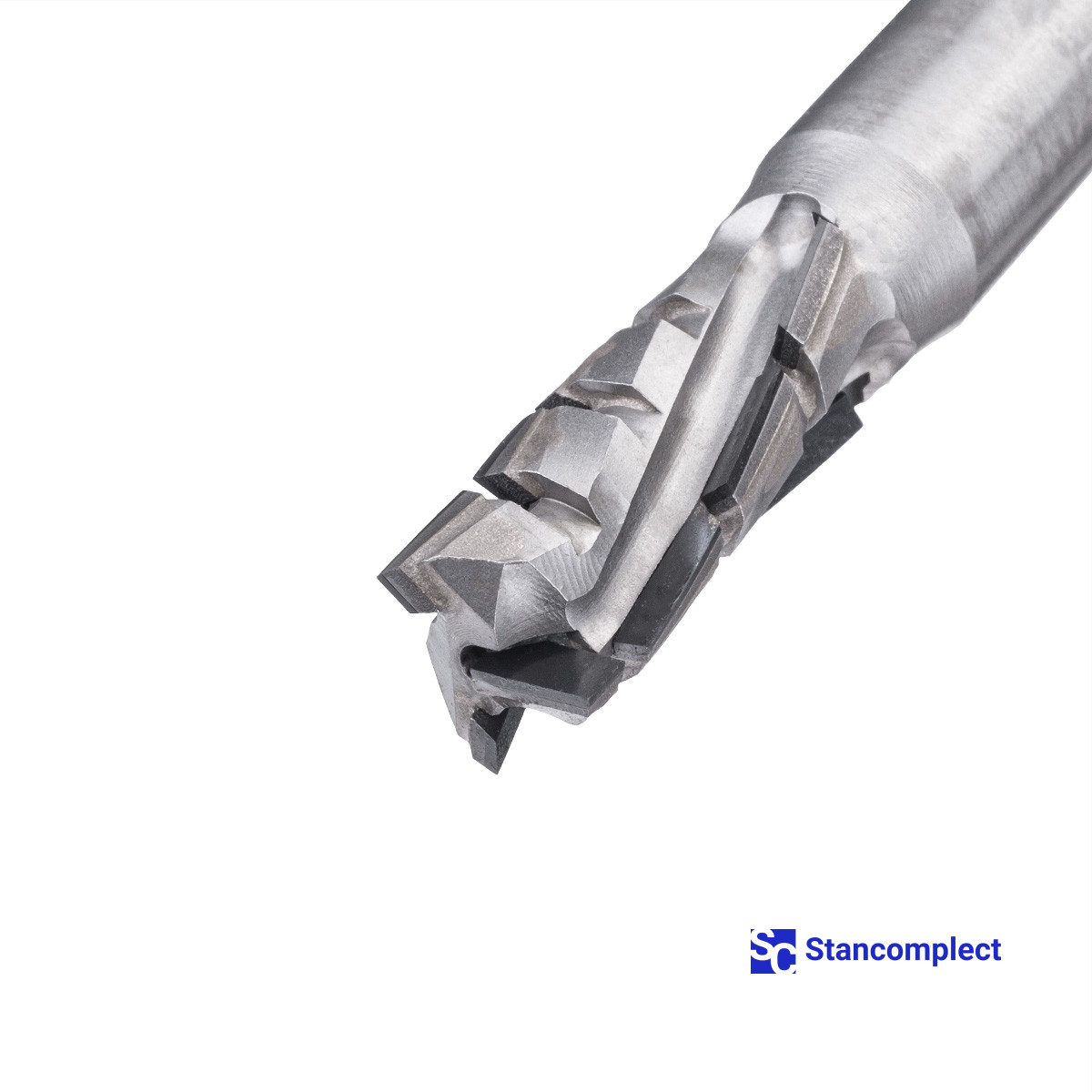

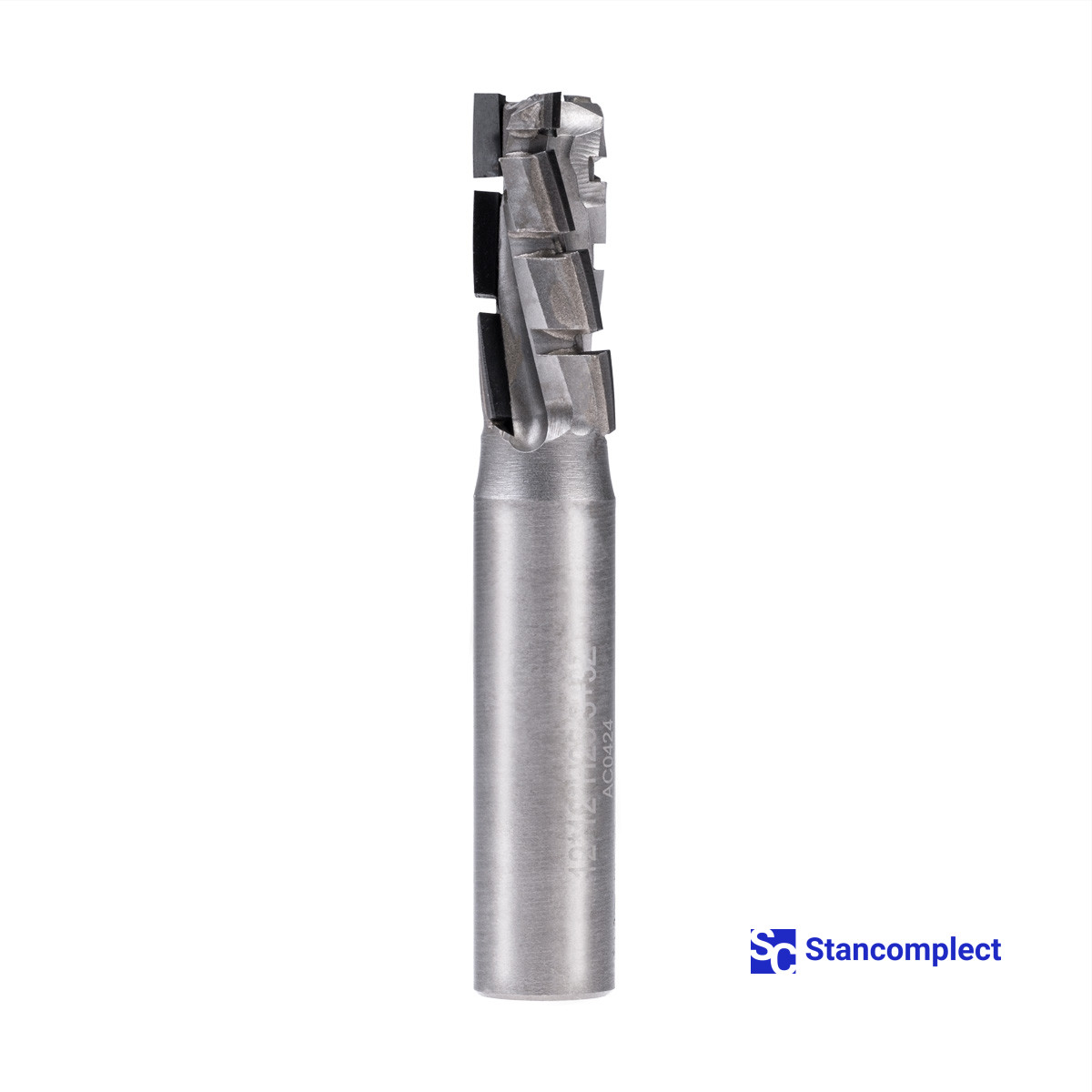

Diamond router cutter 12x25x75x12 Z=3+3 Nesting HD (Taiwan) for cutting chipboard

All about product
Specification
Reviews
Information
Recommended
Articles
In Stock
Product code: 3483
Write a rewiew
198.00€
Buy in 1 click:
Specifications: (See all)
Cutting diameter, mm
12
Cutting height, mm
25
Total length, mm
75
Shank diameter, mm
12

Get AI analytics

Diamond router cutter 12x25x75x12 Z=3+3 Nesting HD (Taiwan) for cutting chipboard

Chat with a specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

Diamond router cutter 12x25x75x12 Z=3+3 Nesting HD (Taiwan) is used on CNC router machines for planing, cutting quarters, grooving, overcutting and cutting chipboard, MDF, chipboard, laminate, plastics and veneered panels. High productivity is achieved with preliminary and finishing milling.

drawing of a diamond router cutter 12x25x75x12 Z-3 HD 1+1 (Taiwan) for cutting chipboard

Characteristics of the diamond cutter:

  • OL - 75 mm;
  • CL - 25 mm;
  • D - 12 mm;
  • d - 12 mm.

Peculiarities:

  1. Heavy duty steel housing to reduce vibration.
  2. 3 diamond (PCD) cutting edges.
  3. Resharpenable cutting edge.

hd diamond router cutters

Specifications
Specifications
Cutting diameter, mm
12
Cutting height, mm
25
Total length, mm
75
Shank diameter, mm
12
Cutting edge material
PCD
Number of cutting edges, pcs
3+3
Reviews
Delivery to a Packeta/Zasilkovna pickup point or Z-BOX, courier delivery via FedEx, DHL or UPS, or pickup from our warehouse.
Online card payment, bank transfer for individuals and legal entities, or payment upon receipt of the goods.
Official manufacturer's warranty.
Diamond router cutter 12x25x75x12 Z=3+3 Nesting HD (Taiwan) for cutting chipboard
198.00€
