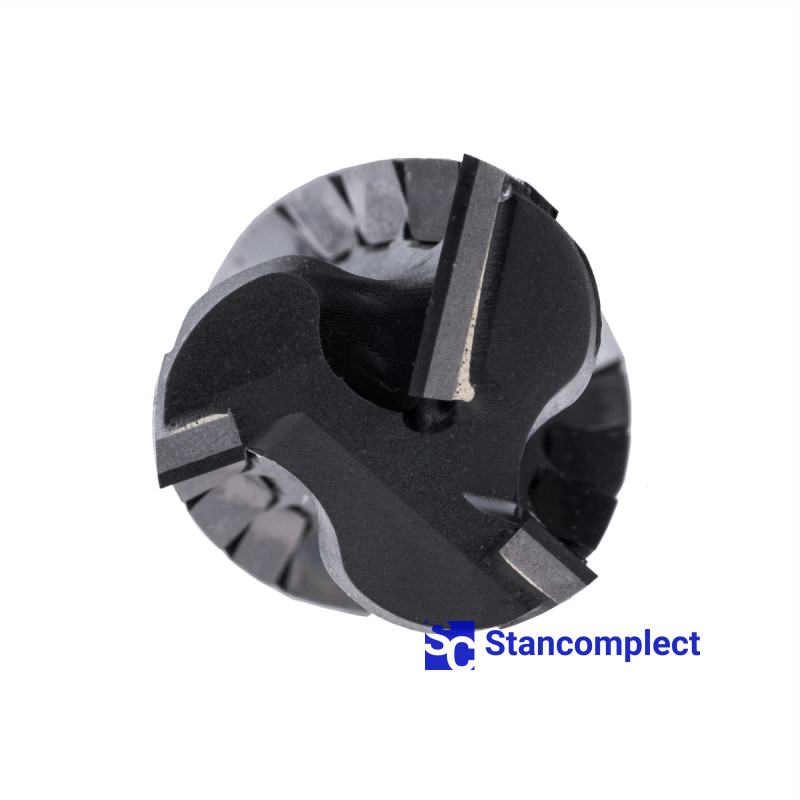

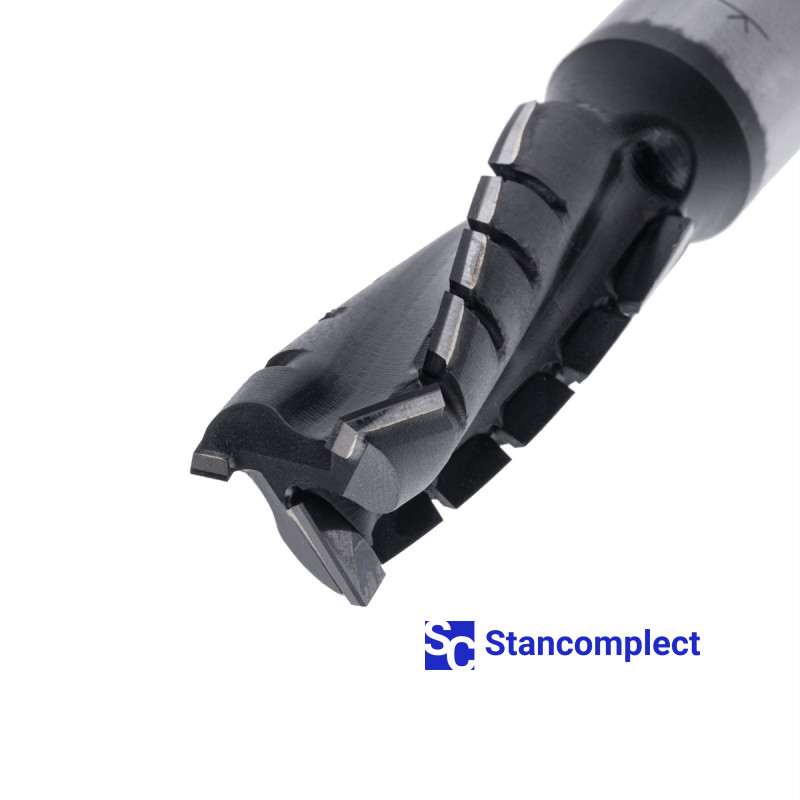

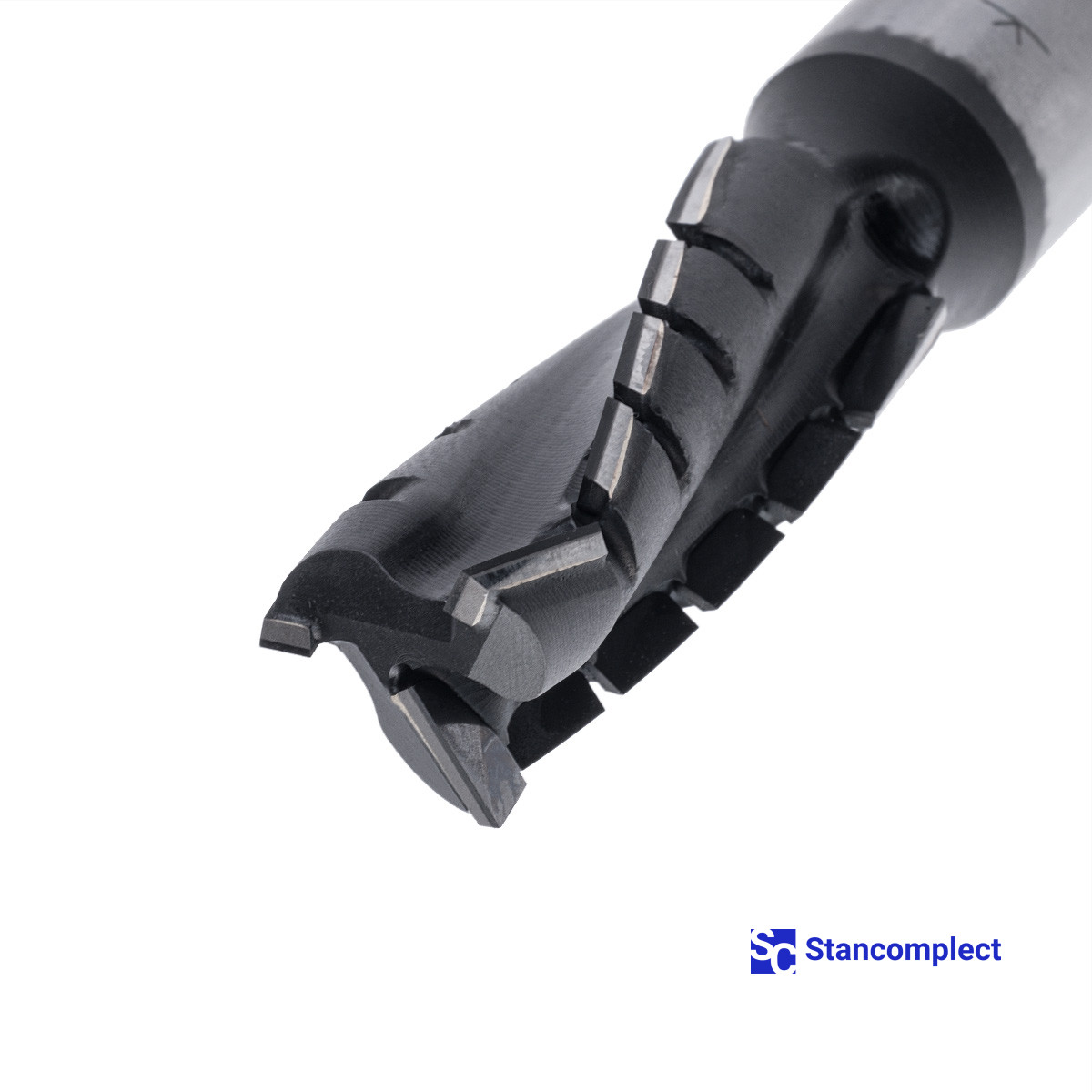

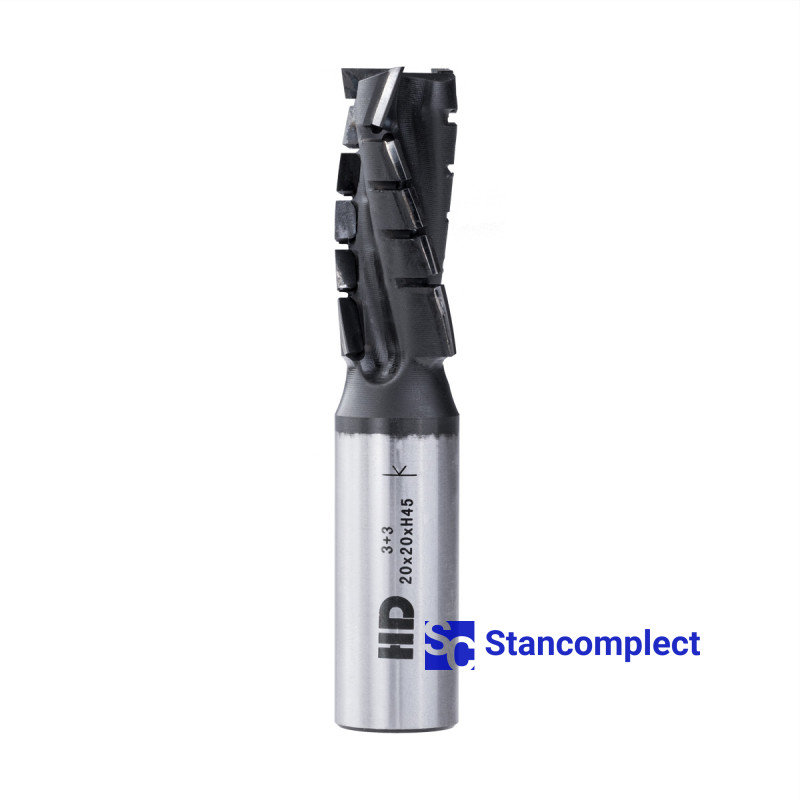

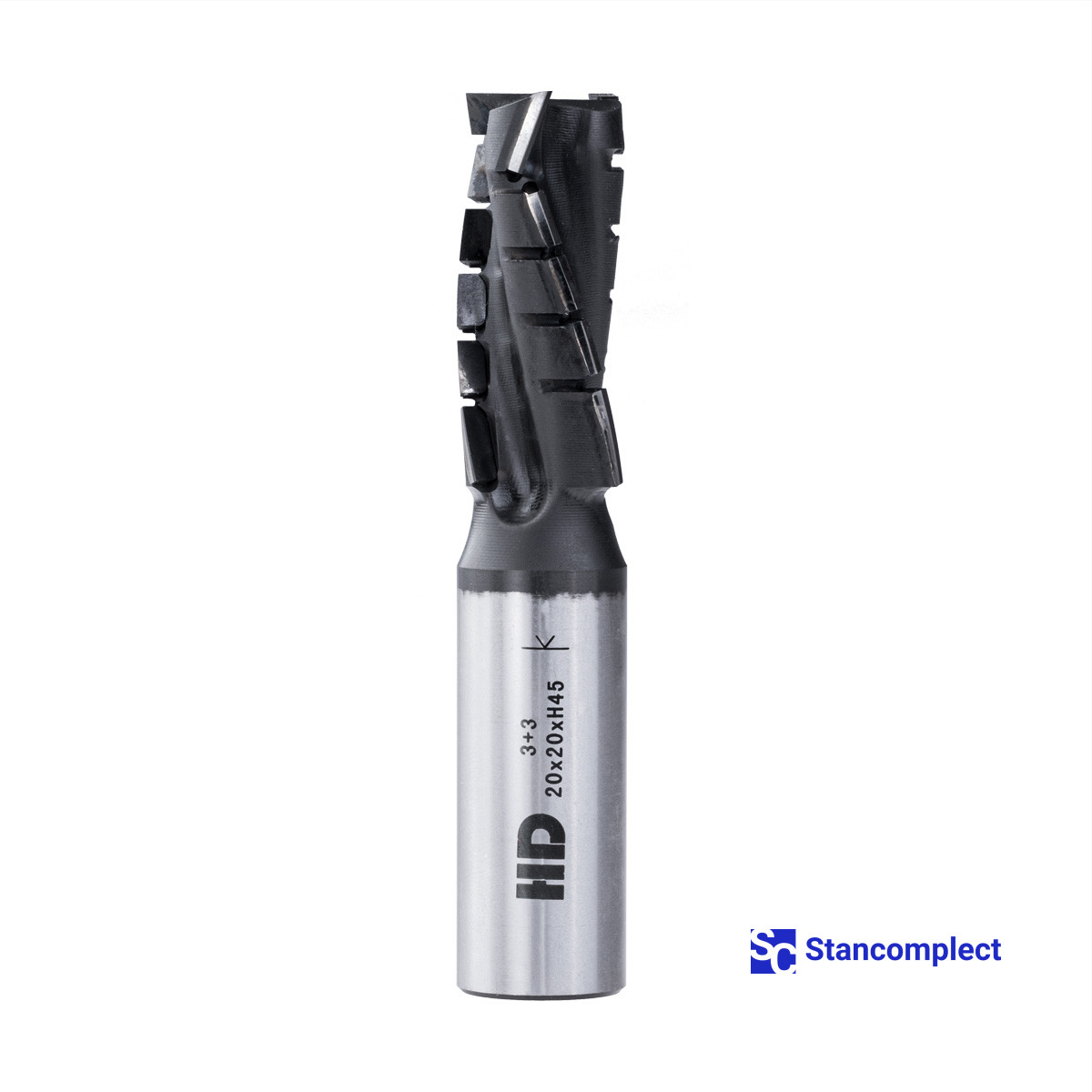

Diamond router cutter with coating 20x45x105x20 Z=3+3 Nesting HD (Taiwan) for cutting chipboard

All about product
Specification
Reviews
Information
Recommended
Articles
In Stock
Product code: 1784
Write a rewiew
324.00€
Buy in 1 click:
Specifications: (See all)
Cutting diameter, mm
20
Cutting height, mm
45
Total length, mm
105
Shank diameter, mm
20

Get AI analytics

Diamond router cutter with coating 20x45x105x20 Z=3+3 Nesting HD (Taiwan) for cutting chipboard

Chat with a specialist

Feel free to contact us at any convenient time — we’re available from 9:00 to 4:00 PM

Description

Diamond router cutter with coating 20x45x105x20 Z=3+3 Nesting HD (Taiwan) for cutting chipboard is used on CNC router machines for planing, cutting quarters, grooving, edging and cutting chipboard, MDF, laminated chipboard, laminate, plastics and veneered panels. High productivity is achieved with preliminary and finishing milling.

Diamond router cutter 3+3 HD (Taiwan) for cutting chipboard

Characteristics of the diamond cutter:

  • OL - 105 mm;
  • CL - 45 mm;
  • D - 20 mm;
  • d - 20 mm.

Peculiarities:

  1. Heavy duty steel housing to reduce vibration.
  2. 3 diamond (PCD) cutting edges.
  3. Resharpenable cutting edge.

hd diamond router cutters



Specifications
Specifications
Cutting diameter, mm
20
Cutting height, mm
45
Total length, mm
105
Shank diameter, mm
20
Cutting part material
PCD
Number of cutting edges, pcs
3+3
Reviews
Delivery to a Packeta/Zasilkovna pickup point or Z-BOX, courier delivery via FedEx, DHL or UPS, or pickup from our warehouse.
Online card payment, bank transfer for individuals and legal entities, or payment upon receipt of the goods.
Official manufacturer's warranty.
Diamond router cutter with coating 20x45x105x20 Z=3+3 Nesting HD (Taiwan) for cutting chipboard
324.00€
