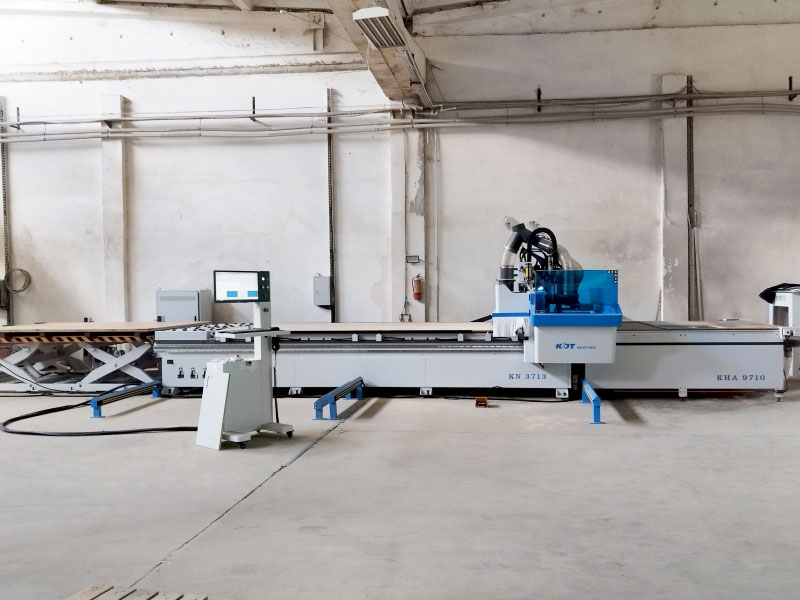

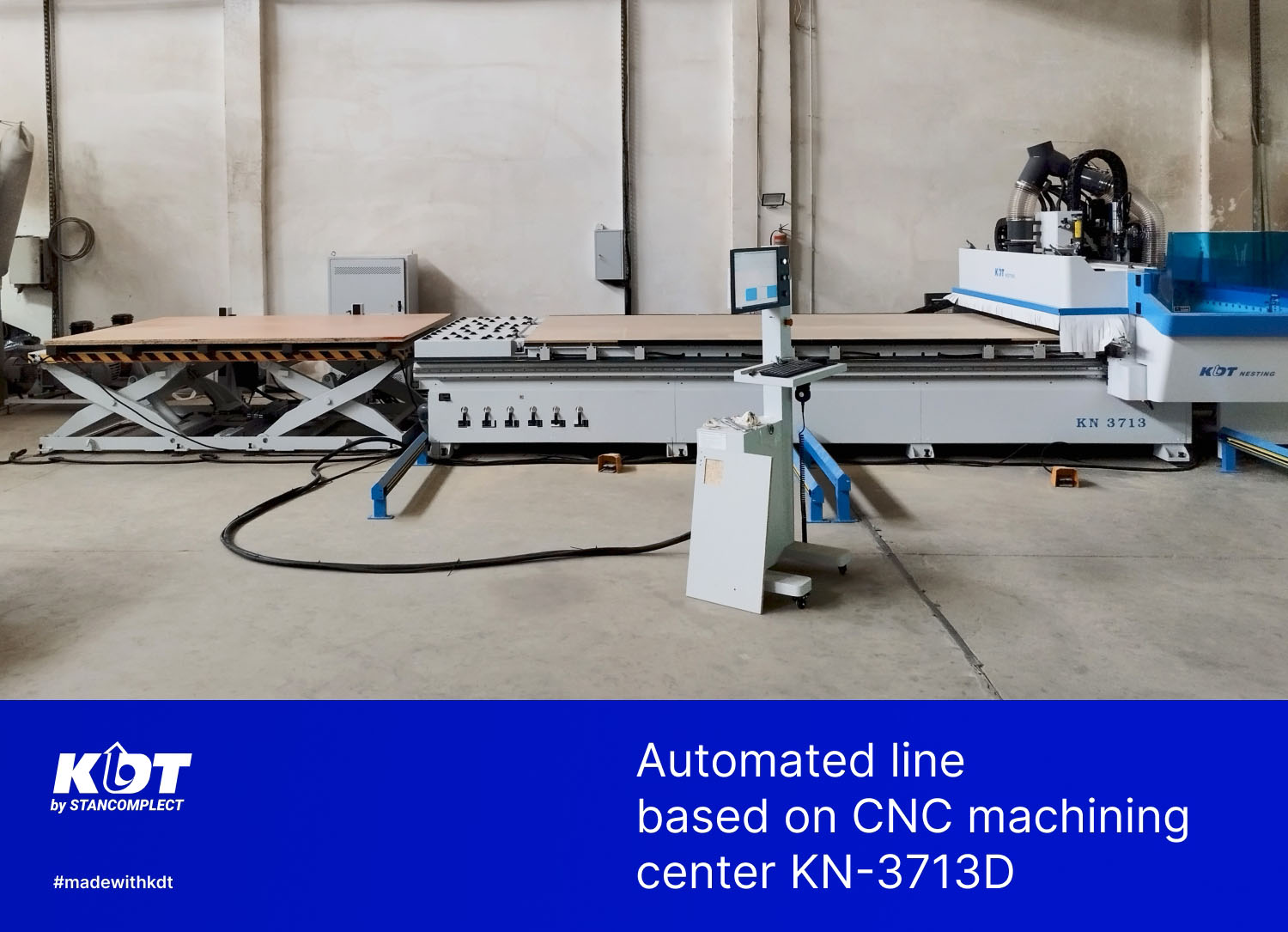

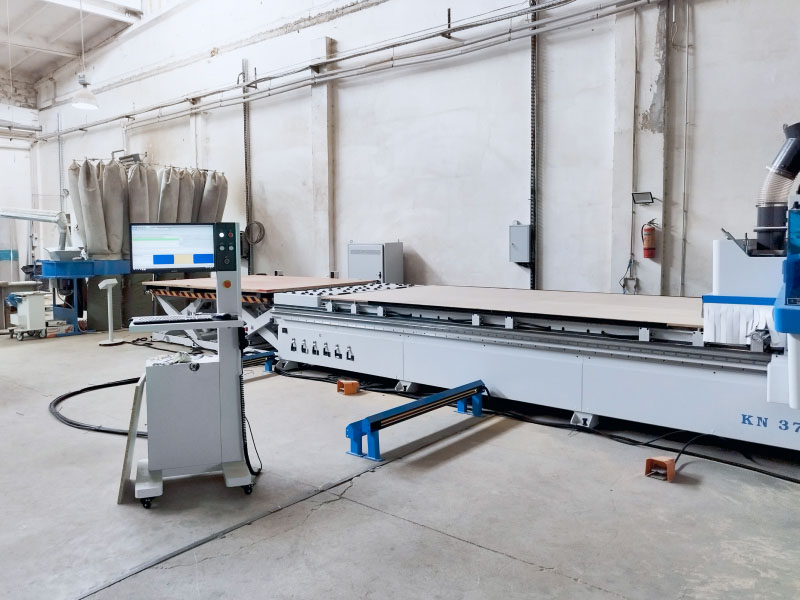

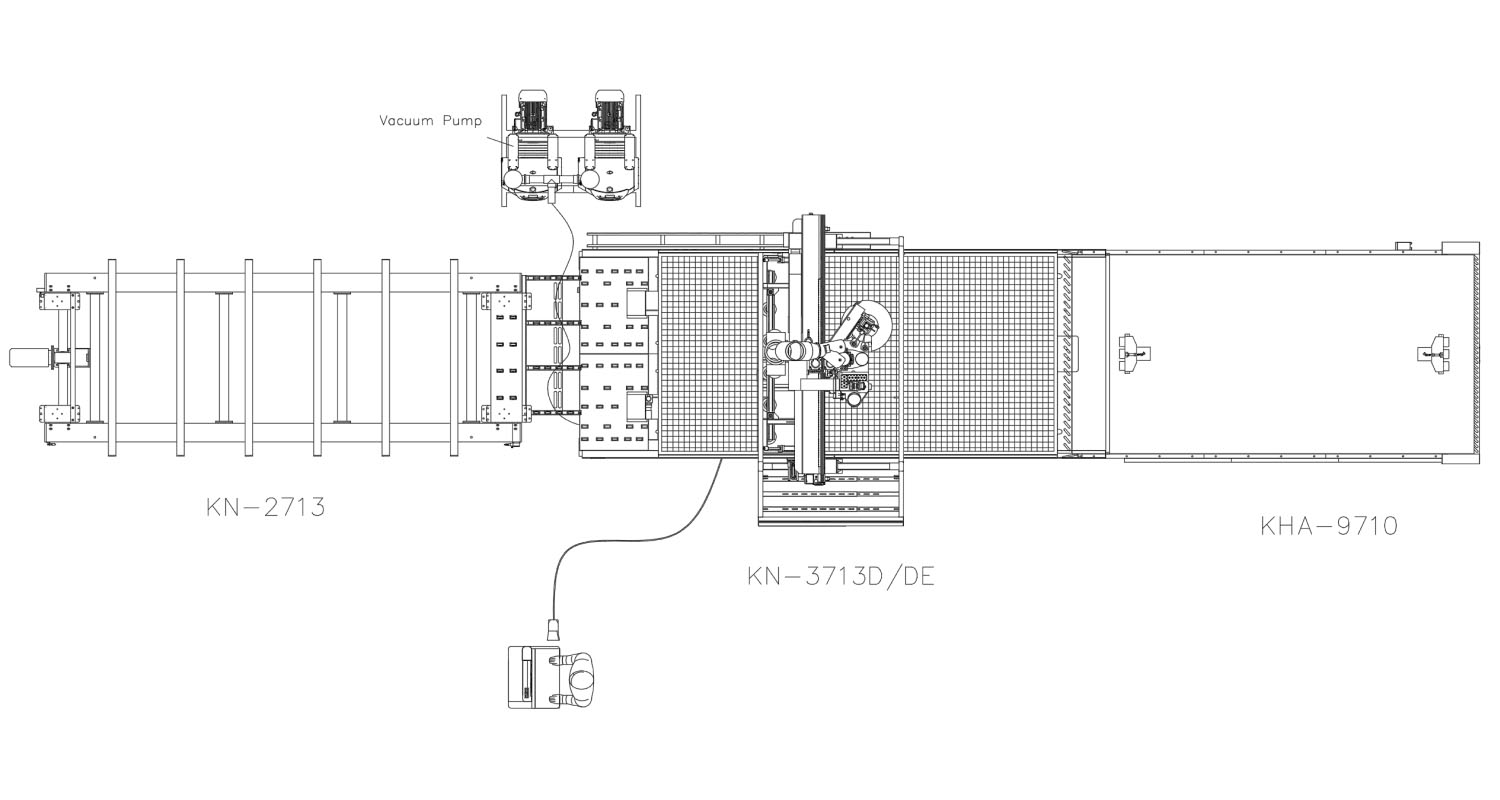

The automated line based on the KN-3713D CNC machining center provides high-performance panel cutting combined with flexible workpiece processing. A loader feeds sheets onto the KT-2713 loading table.
Next, the KN-3713D machining center uses a vacuum manipulator to transfer the sheet into the machine’s working area for linear and curvilinear cutting. Thanks to its drilling head with 10 vertical spindles and a 12-position automatic tool changer, the machine offers high processing flexibility. Cutting, drilling, and milling operations are performed in a single work cycle. This solution significantly reduces the total processing time and lowers production costs.

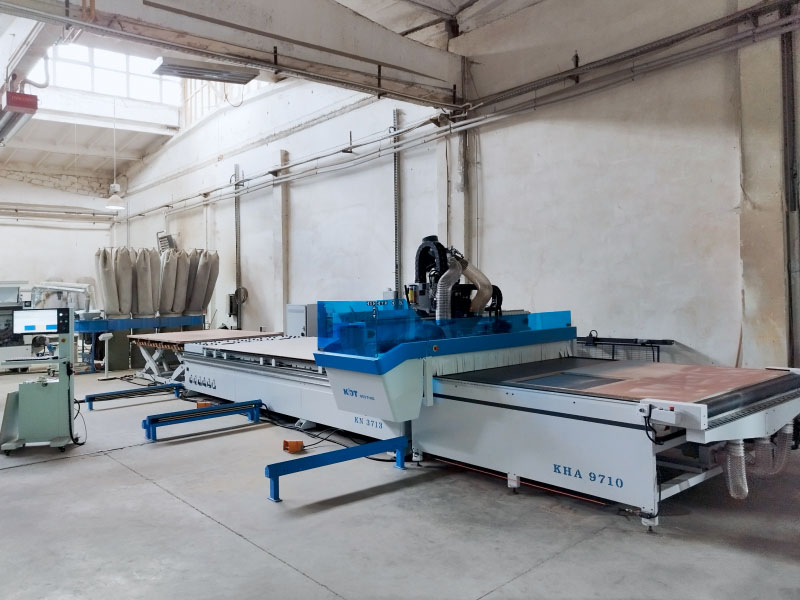

After the machining process is complete, the finished workpieces are automatically moved to the KHA-9710 unloading table, while the working surface is simultaneously cleaned of sawdust. If needed, the line can be additionally equipped with a robotic vacuum manipulator that unloads parts onto pallets or a conveyor. This setup is ideal for modern furniture manufacturing facilities, where speed, precision, and the ability to quickly reconfigure for various production tasks are crucial.
Key advantages of the automated line:
- High-performance linear and curvilinear cutting of sheet materials
- Consistent industrial-grade product quality with minimized human factor
- Cutting of panels up to 4260x2150 mm in size
- Flexible processing enabled by the drilling head and 12-position tool changer
- Combination of cutting, drilling, and milling in a single cycle
